Overview

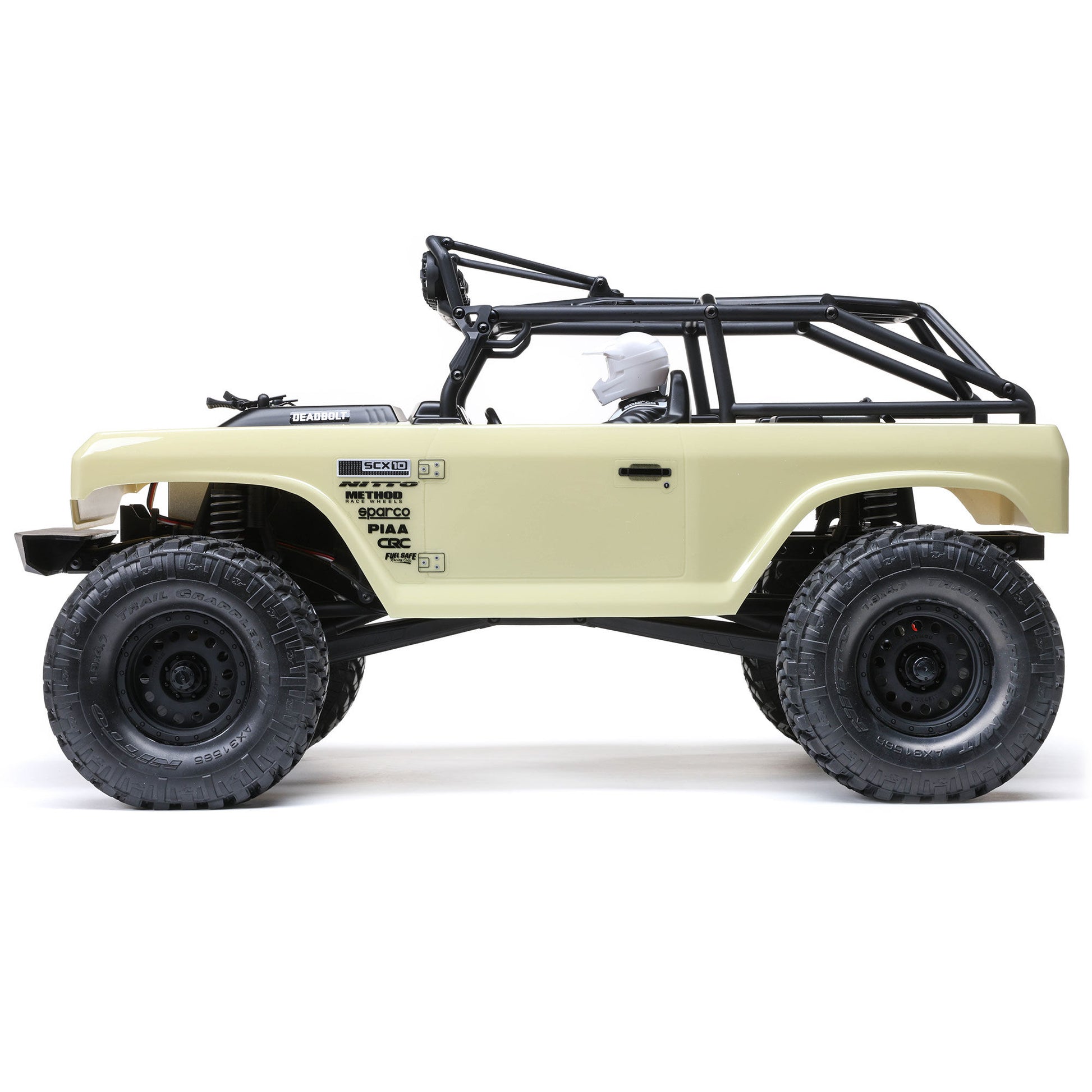

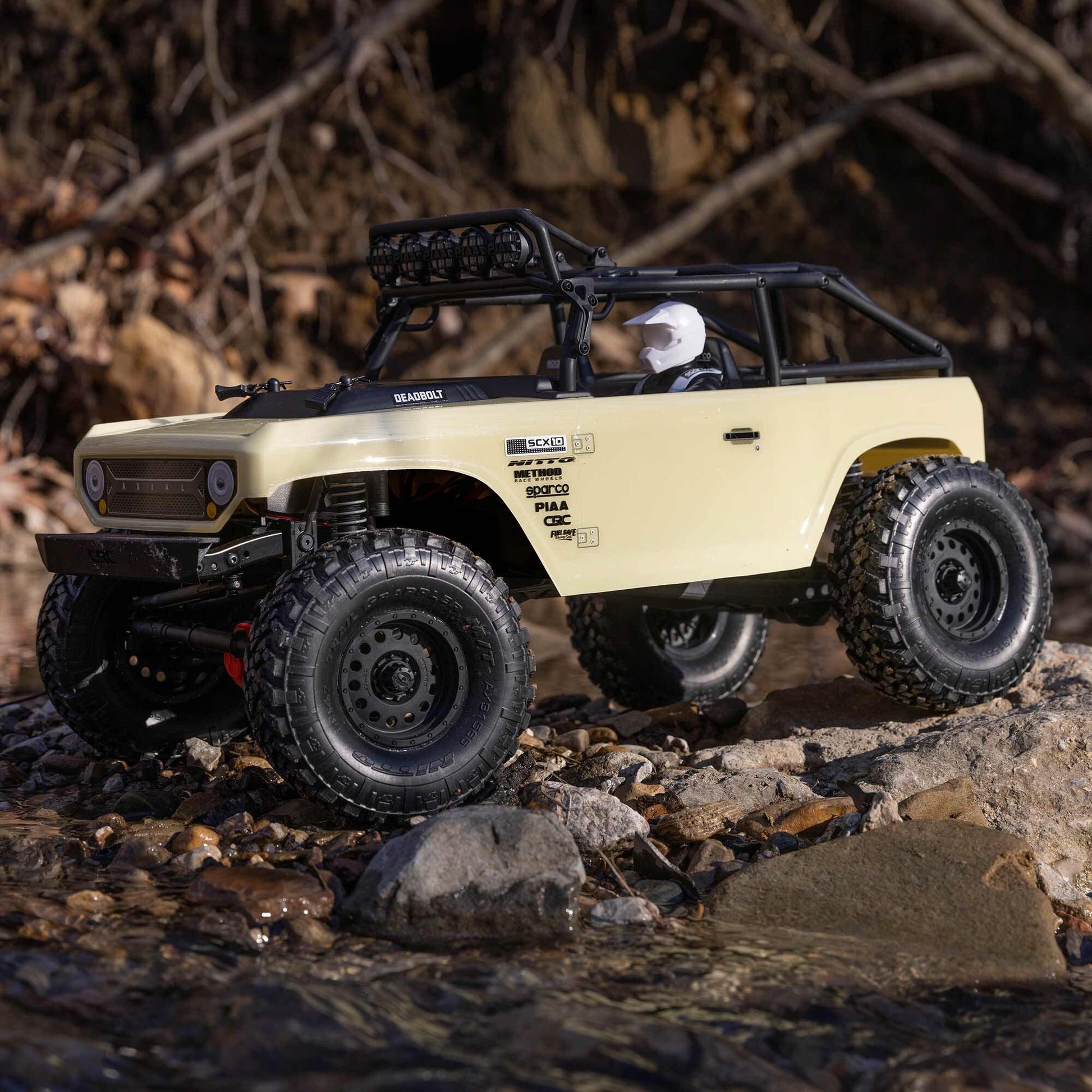

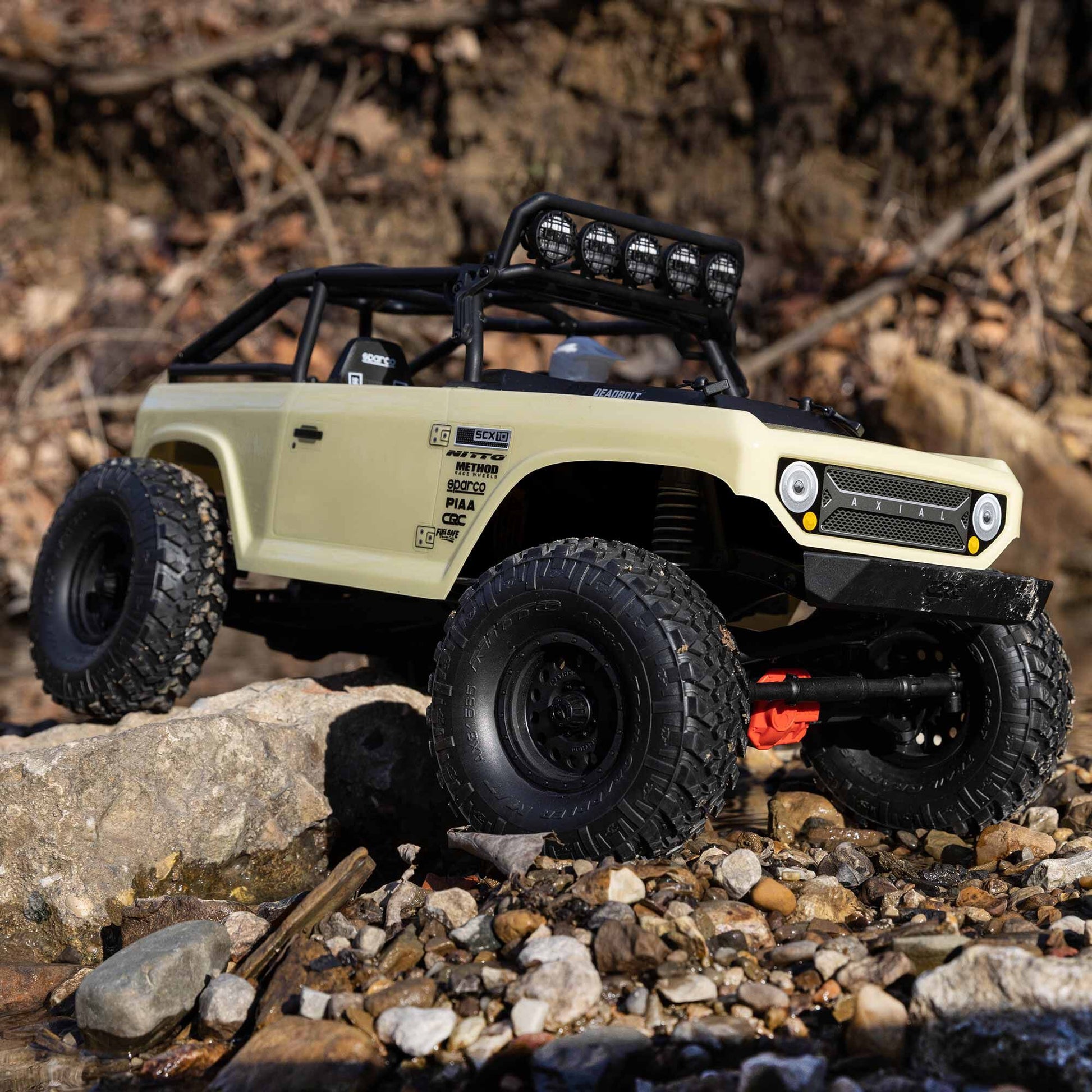

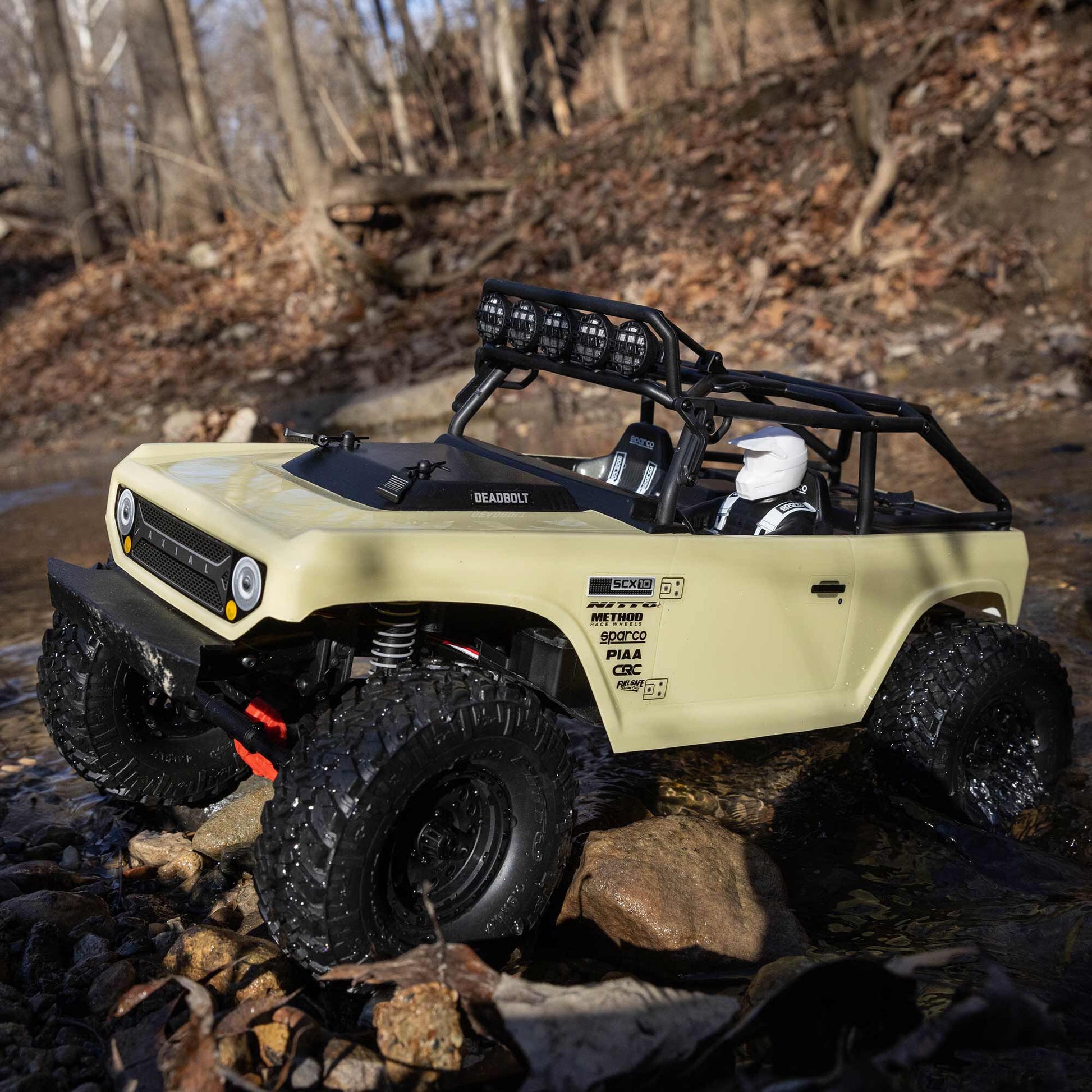

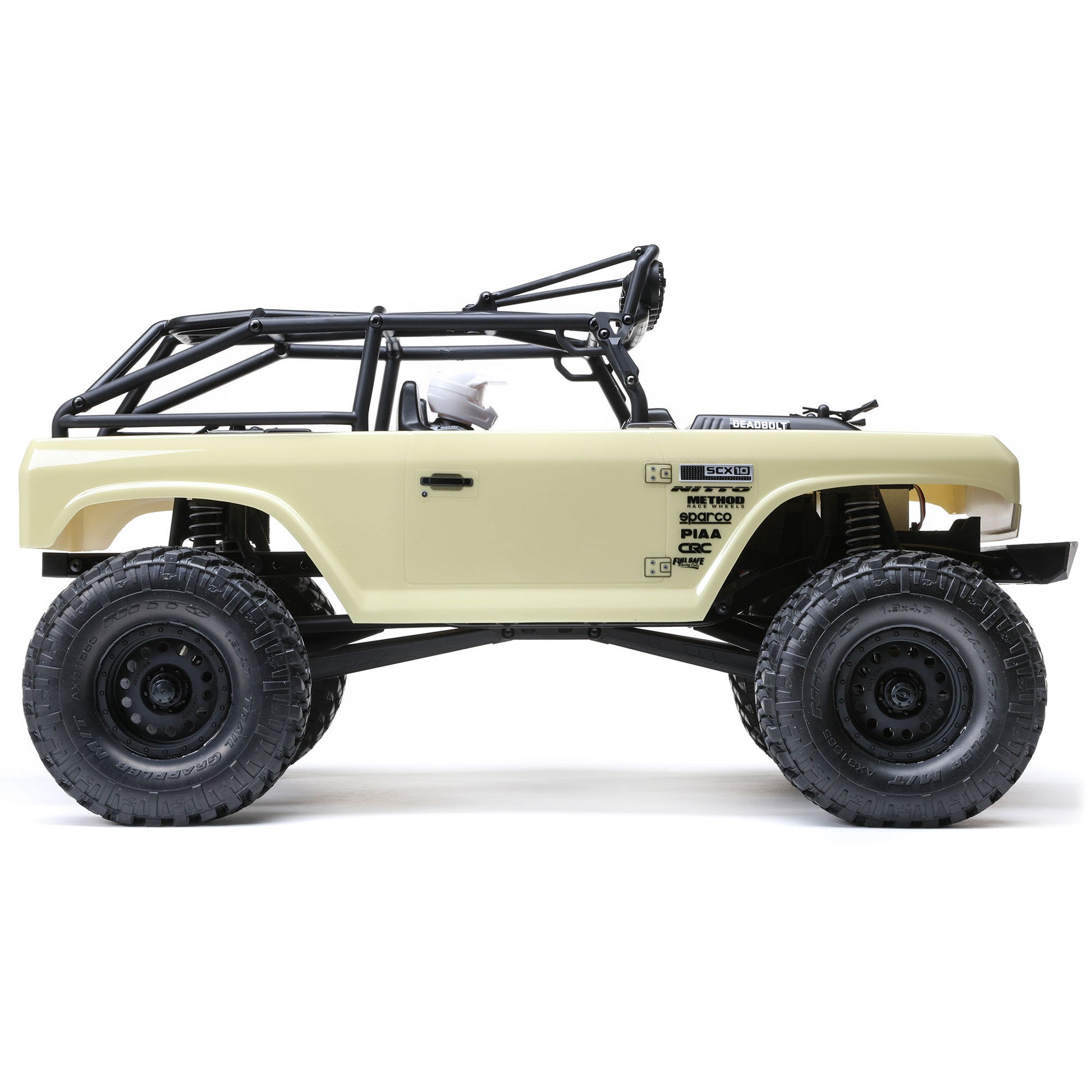

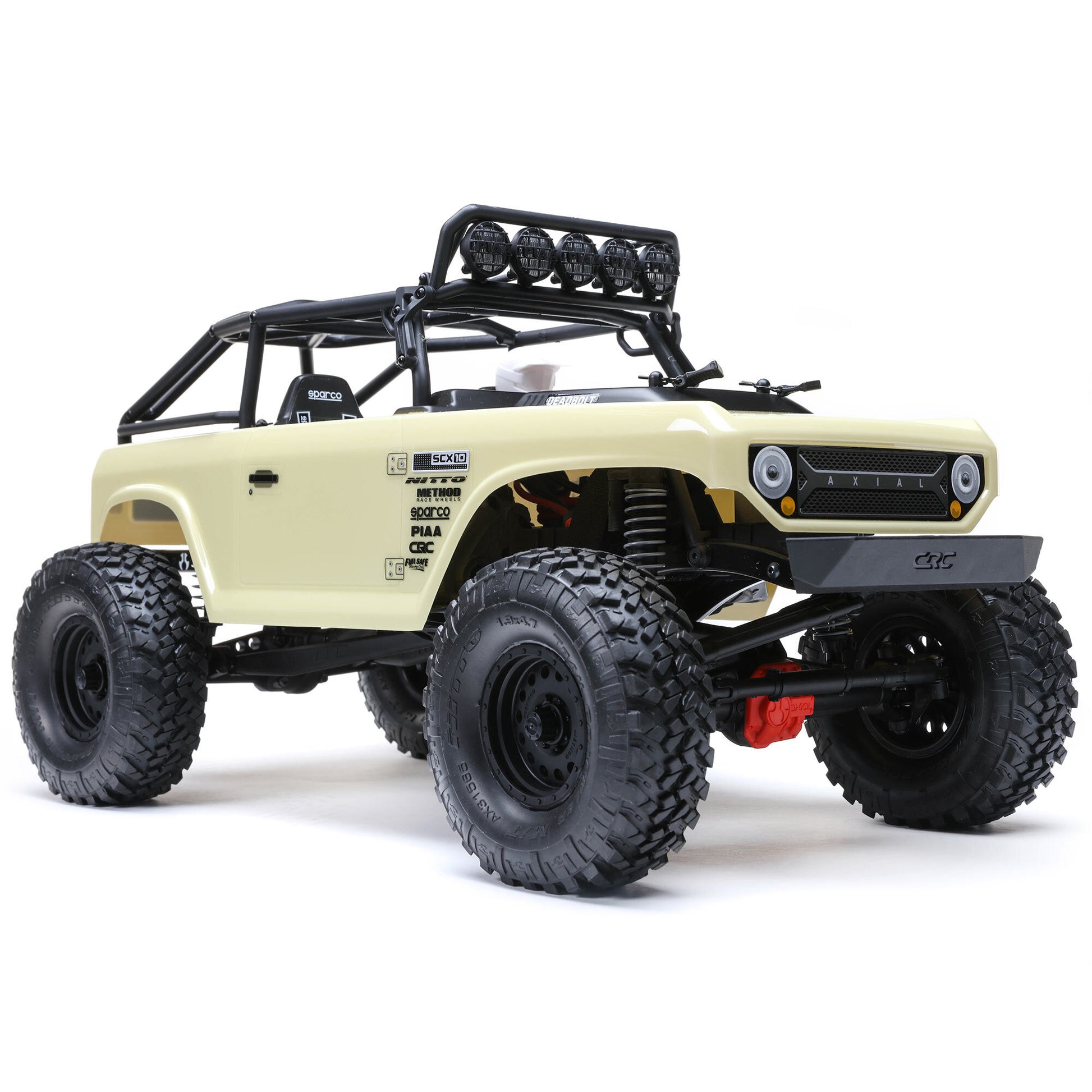

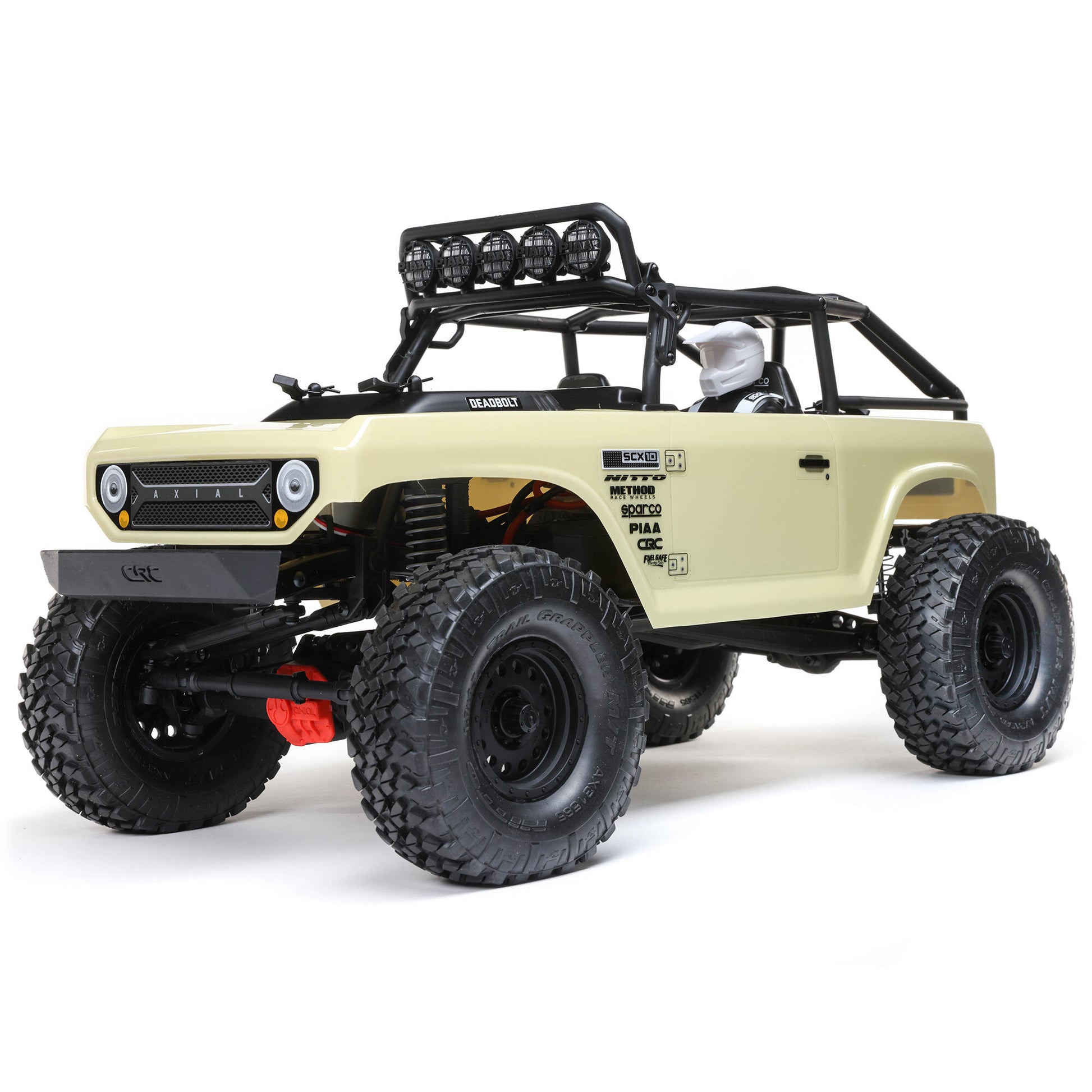

The Axial SCX10 II Deadbolt 4X4 is a remarkable 1/10 scale rock crawler that combines agility, affordability, and upgradeable features into a ready-to-run package. With its legendary SCX10 II chassis, this electric-powered vehicle is built to tackle any trail, making it suitable for both experienced enthusiasts and newcomers to the hobby.

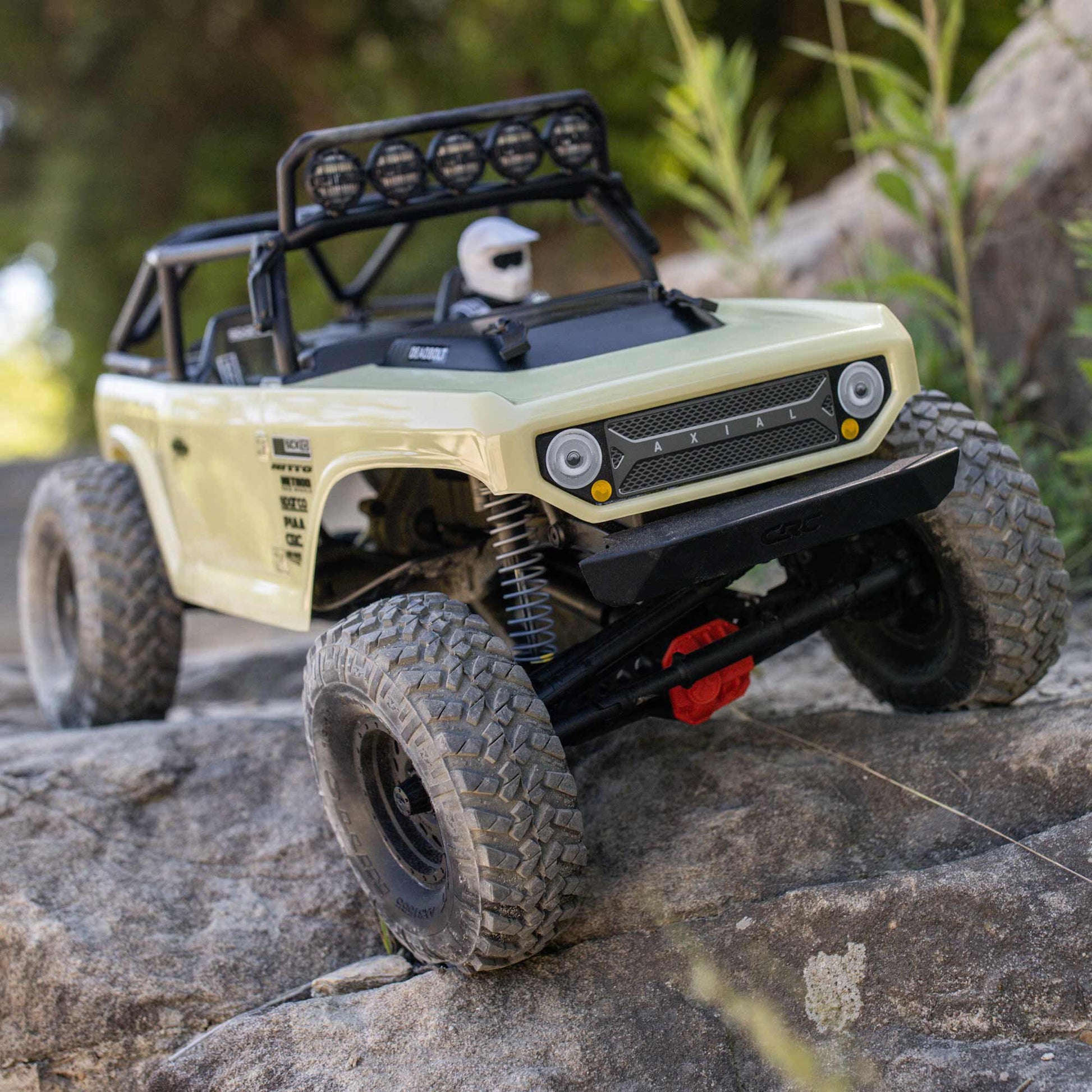

The suspension system is equipped with oil-filled, adjustable coilover shocks, providing necessary dampening for any trail condition. Furthermore, the SCX10 II Deadbolt boasts a significant 2.7-inch ground clearance and rugged 4.7-inch wide Nitto Trail Grappler tires that grip even the most challenging surfaces. The adjustable wheelbase allows for customization, offering versatility against different driving landscapes, while the chassis mounted servo facilitates precise handling and maneuverability.
Features

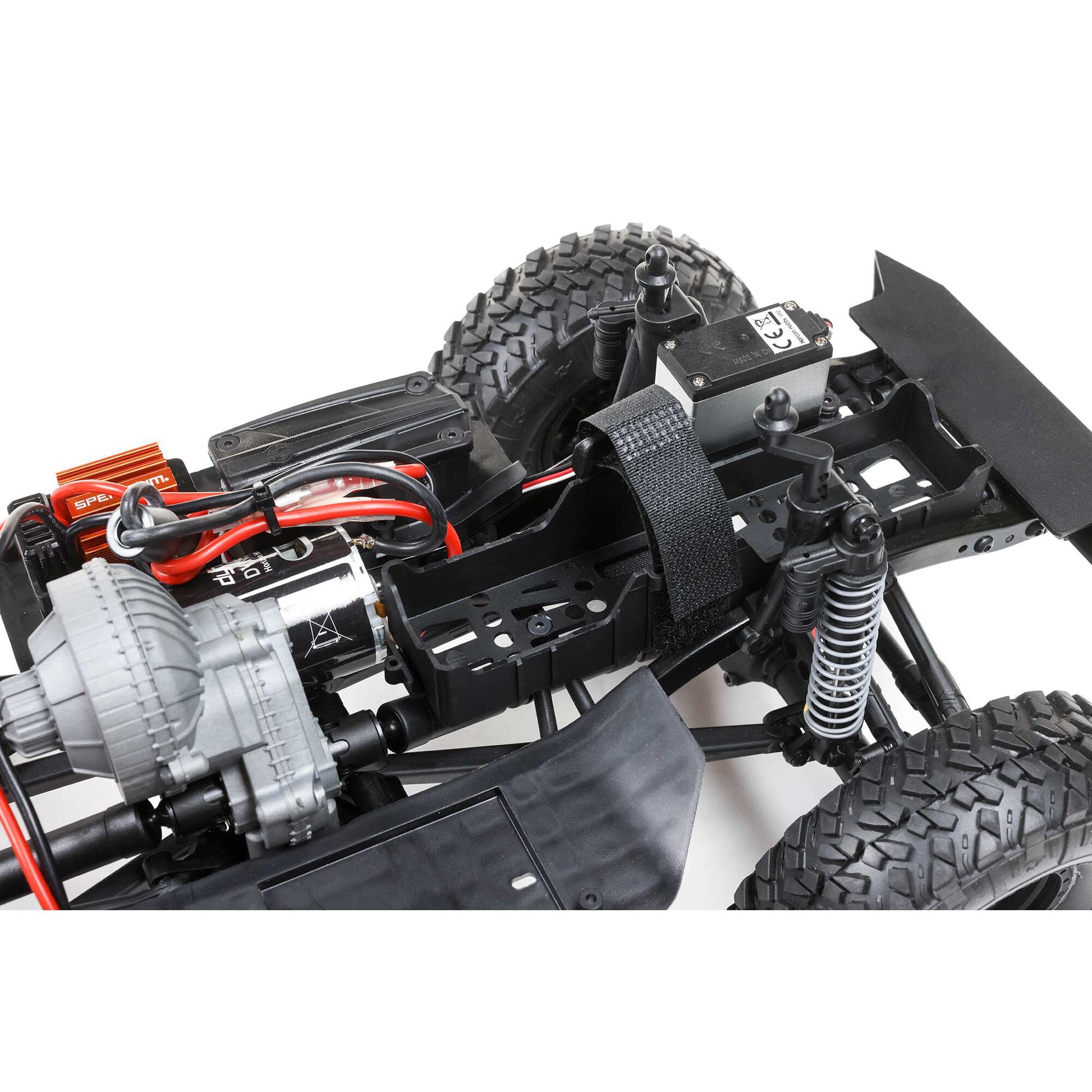

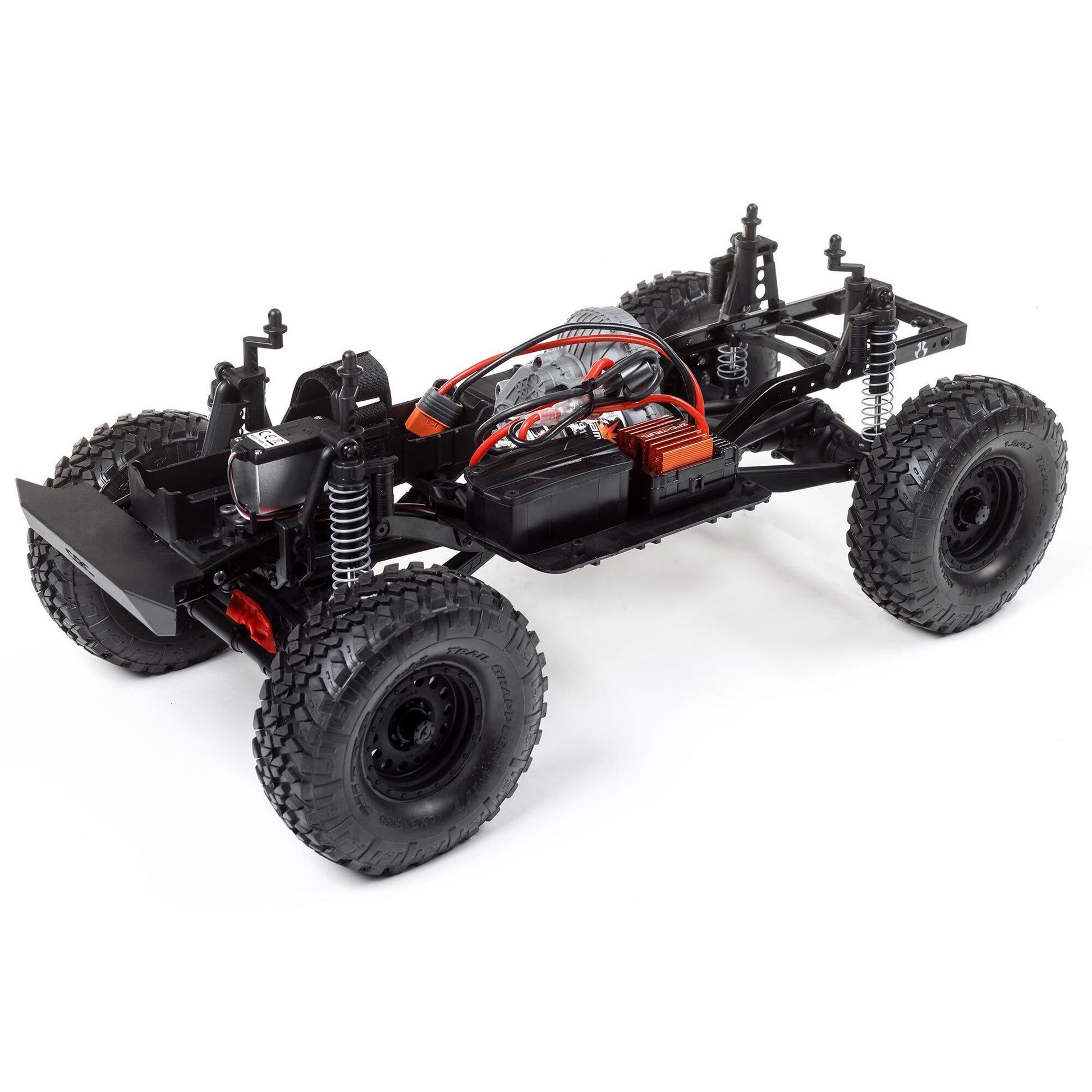

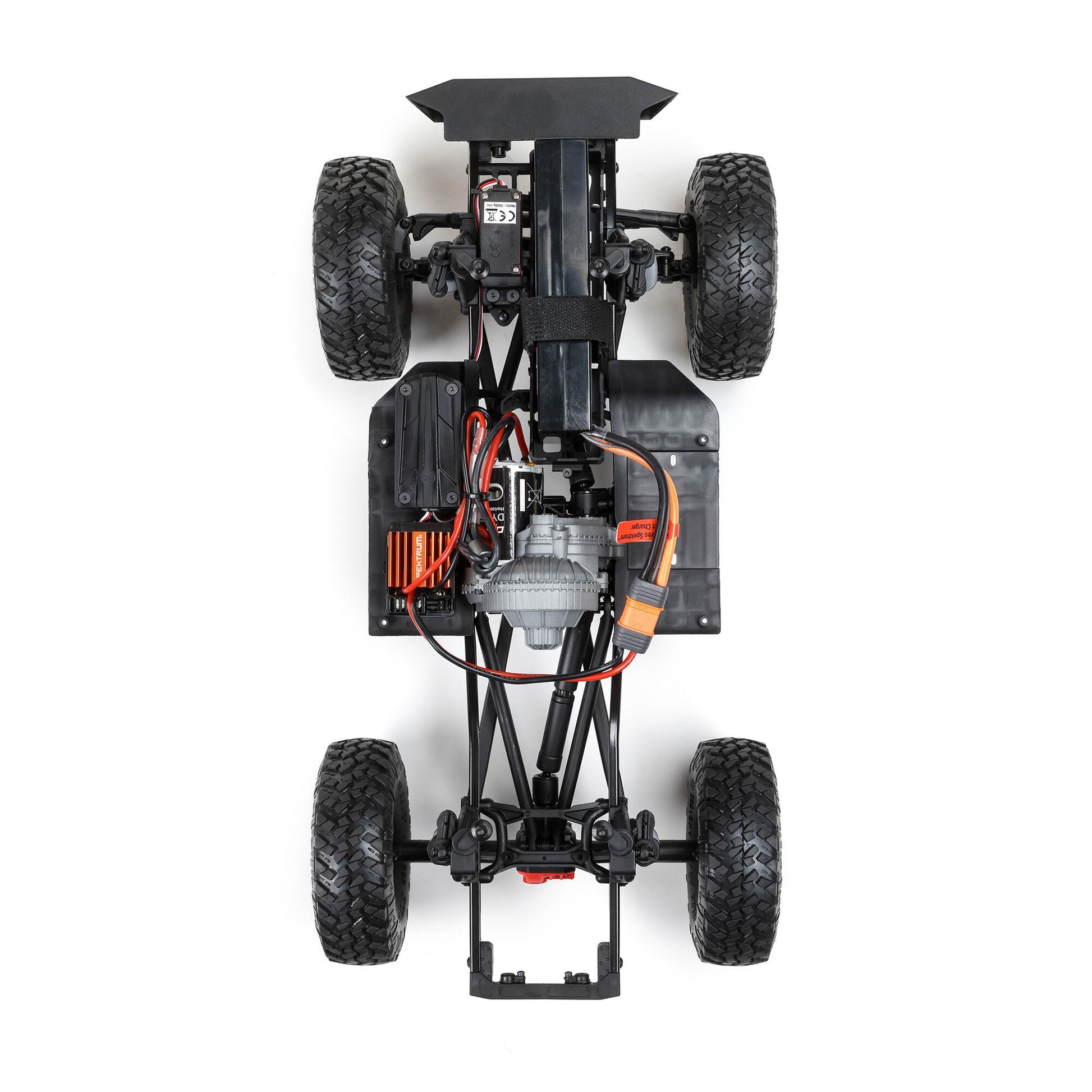

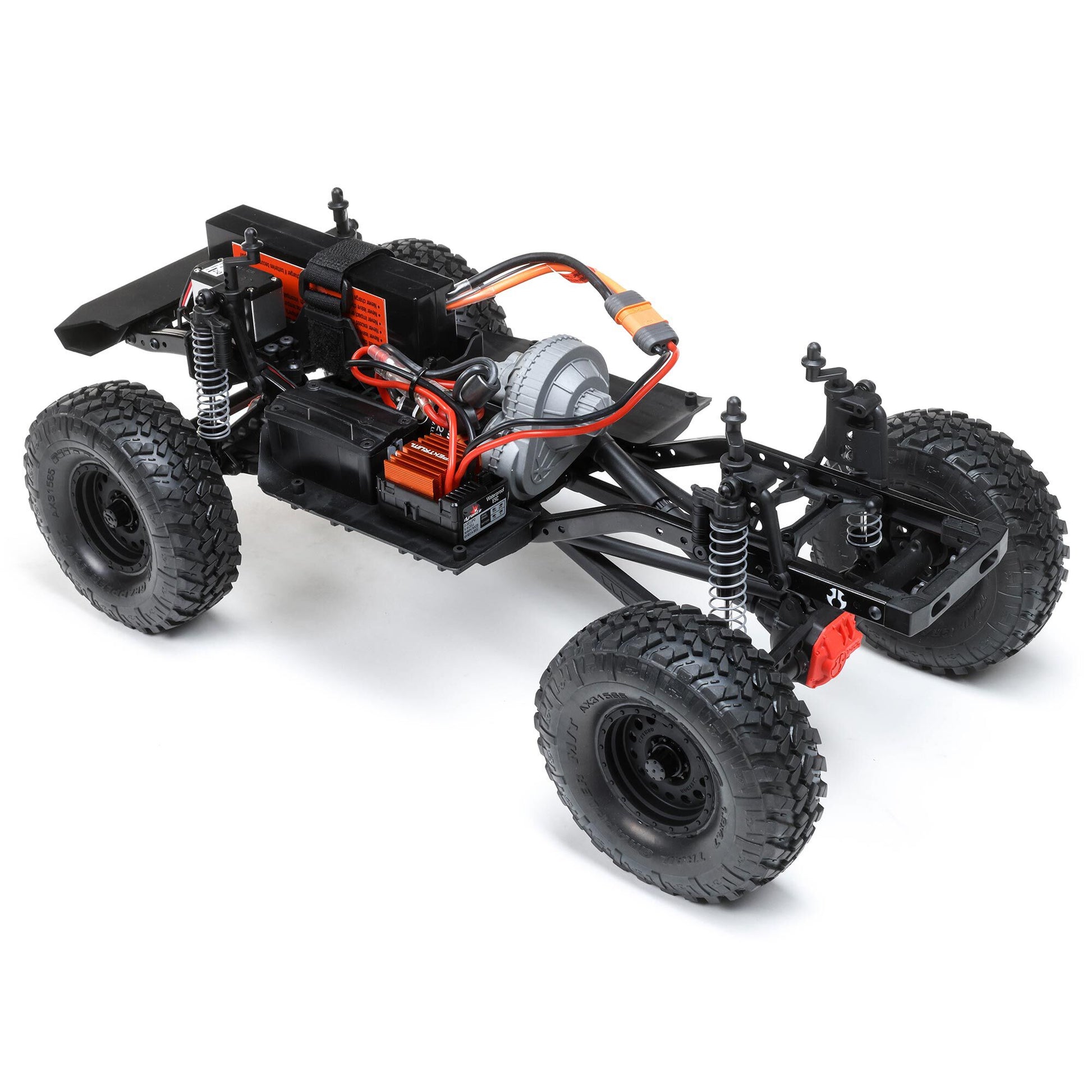

- Realistic, durable steel C-channel chassis with cross braces for reinforcement and rigidity

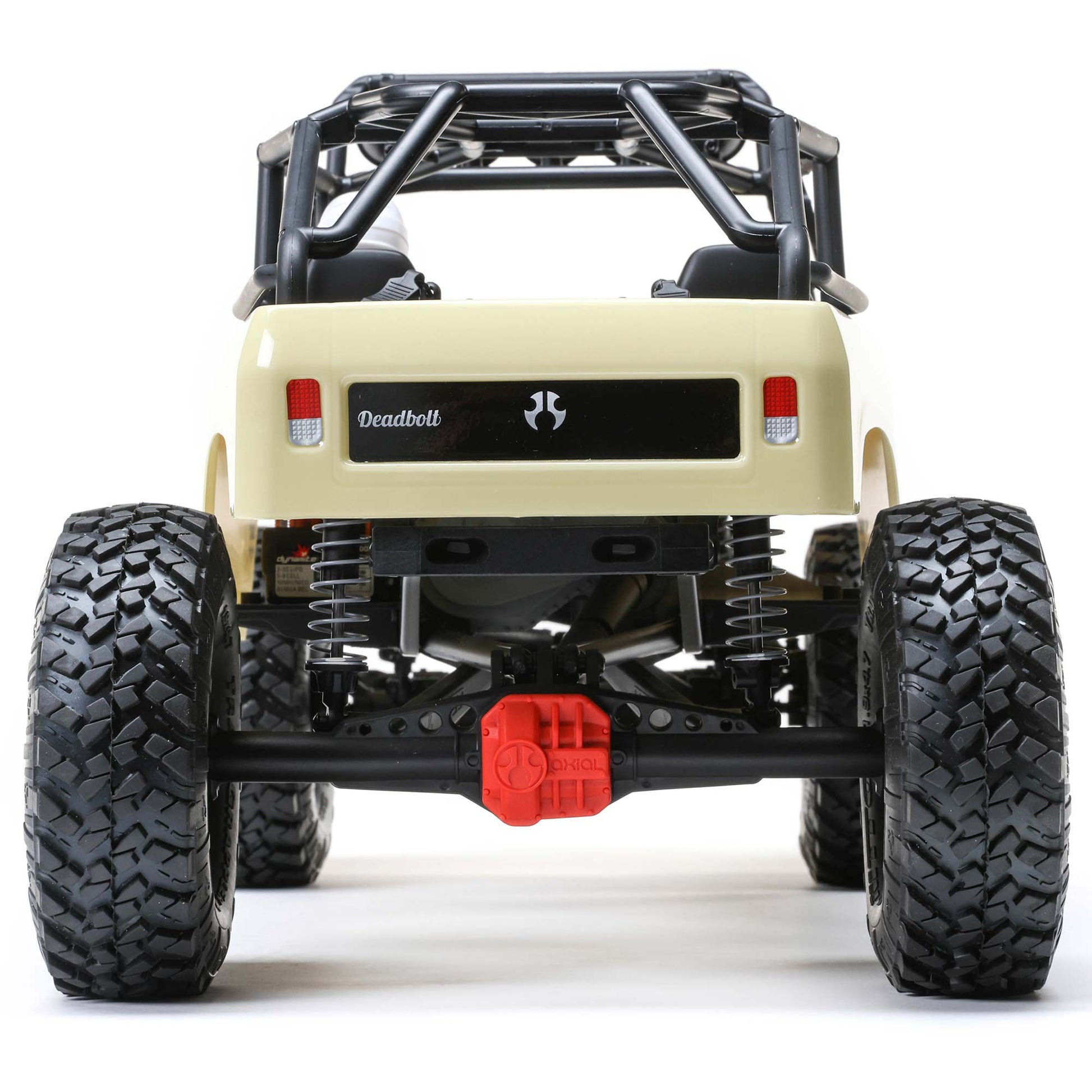

- Single-piece AR44 front and rear axles with molded truss for extreme durability
- High pinion design adds ground clearance and improves driveshaft angles
- LCX AX10 transmission with adjustable gearing ratio for high speed or crawling
- Optimized gear ratio of 3.75 reduces torque twist
- Metal gears enhance durability
- Larger load rated bearings for improved performance
- 8° Kingpin axle eliminates tire scrub

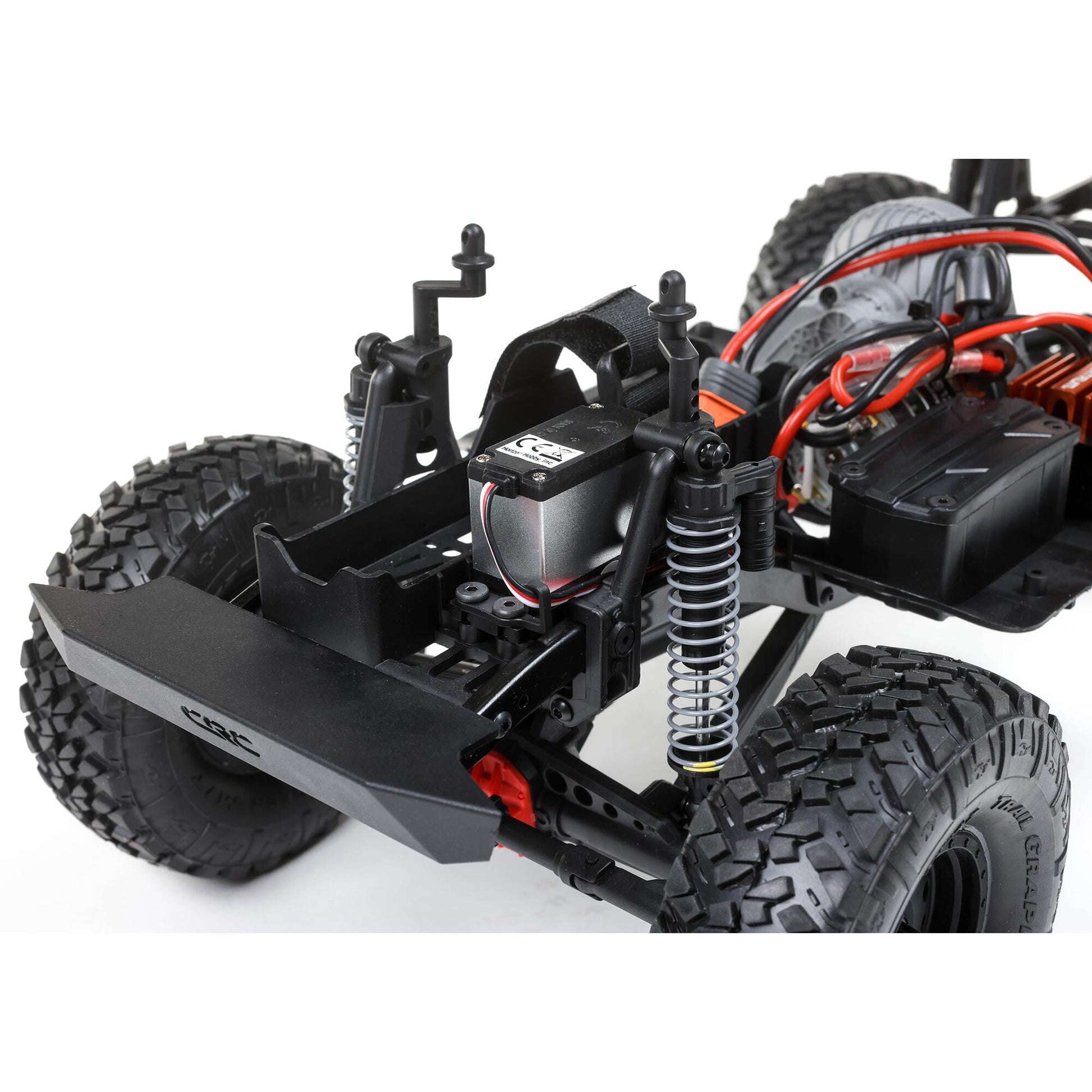

- Chassis mounted servo with adjustable mounting system

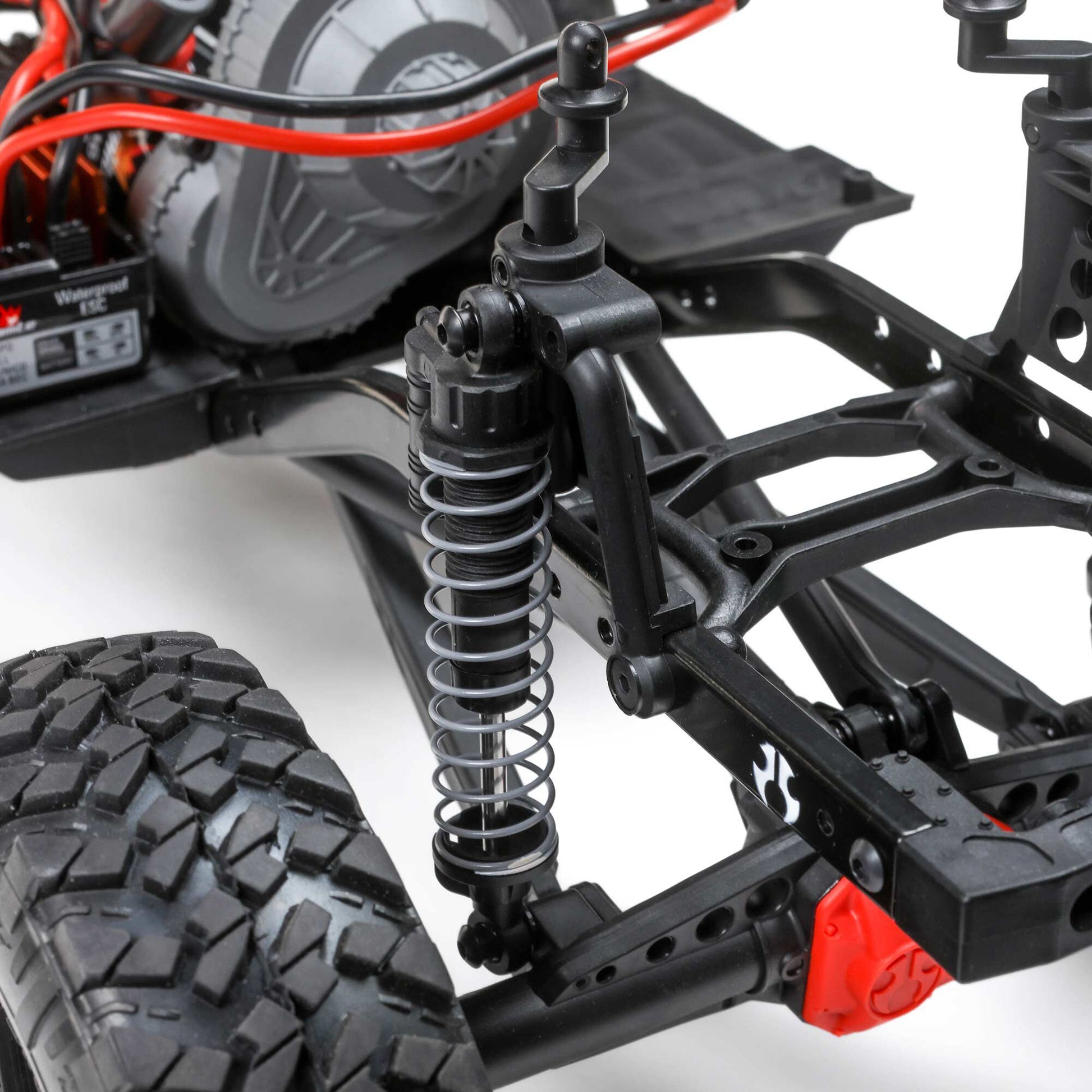

- Oil-filled, coilover shocks with threaded shock bodies for tuning

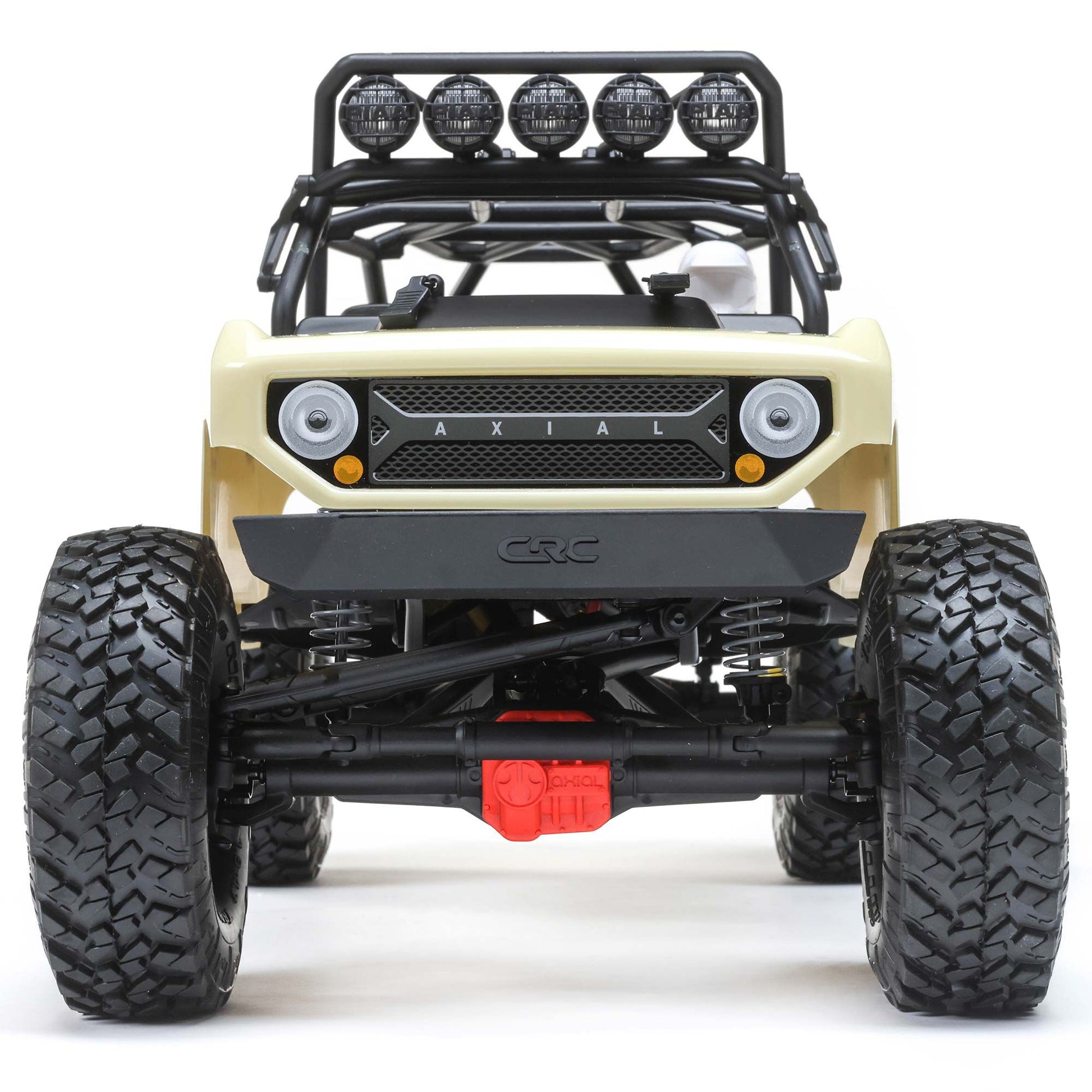

- Licensed CRC front bumper adds realistic detail
- 3-piece WB8 HD Wildboar driveshafts reduce flex and fatigue
- Easy-access, water-resistant receiver box for convenient maintenance
- Realistic driver figure included enhancing scale aesthetics
- Officially licensed METHOD 307 Hole 1.9" wheels for durability and style
- Nitto Trail Grappler M/T tires provide excellent traction in all terrain
- Spektrum 40A brushed ESC offers multiple battery compatibility
- Spektrum SLT2 transmitter included for reliable control
- Water-resistant components for added protection against elements
- Adjustable wheelbase for versatility in handling various terrains
- Optimized drive type with forward, brake, and reverse capabilities
Needed to Complete
- Batteries
- Charger
Specifications
- Scale: 1/10
- Vehicle Type: Rock Crawler
- Power Type: Electric
- Drivetrain: 4WD
- Completion Level: Ready-To-Run
- Charger: Sold Separately
- Battery: Sold Separately
- Motor Type: Brushed
- Motor Size: 540
- Gear Ratio: 3.75
- Final Drive Ratio: 40.44:1
- Pinion: 14T
- Spur Gear: 56T
- Ground Clearance: 2.7 in (68mm)
- Wheelbase: 12" (305 mm)
- Product Weight: 4.65 lb (2.1 kg)
- Product Length: 18.1" (460 mm)
- Product Width: 8.8" (224 mm)
- Product Height: 9" (229 mm)
- Wheel Hex Size: 12mm
- Front Track: 7.5 in (190.5mm)
- Rear Track: 7.5 in (190.5mm)
- Color Variant: Beige
- Water-Resistant: Yes
- Servos: Included
- Radio: Included
- Receiver: Included
- LiPo Compatibility: 3S, 2S
- Steering Type: 2WS
- Differential: Locked
- Shock Type: Oil Filled
- Brakes: Integral with ESC
- Approximate Assembly Time: Less than 1 Hour
- Drive Type: Forward/Brake/Reverse
- Gear Pitch: 32P
- Speed Control: Included
- Front and Rear Driveshafts: 3-piece WB8 HD Wildboar
