Losi (LOS)

SKU:LOS-2168T1

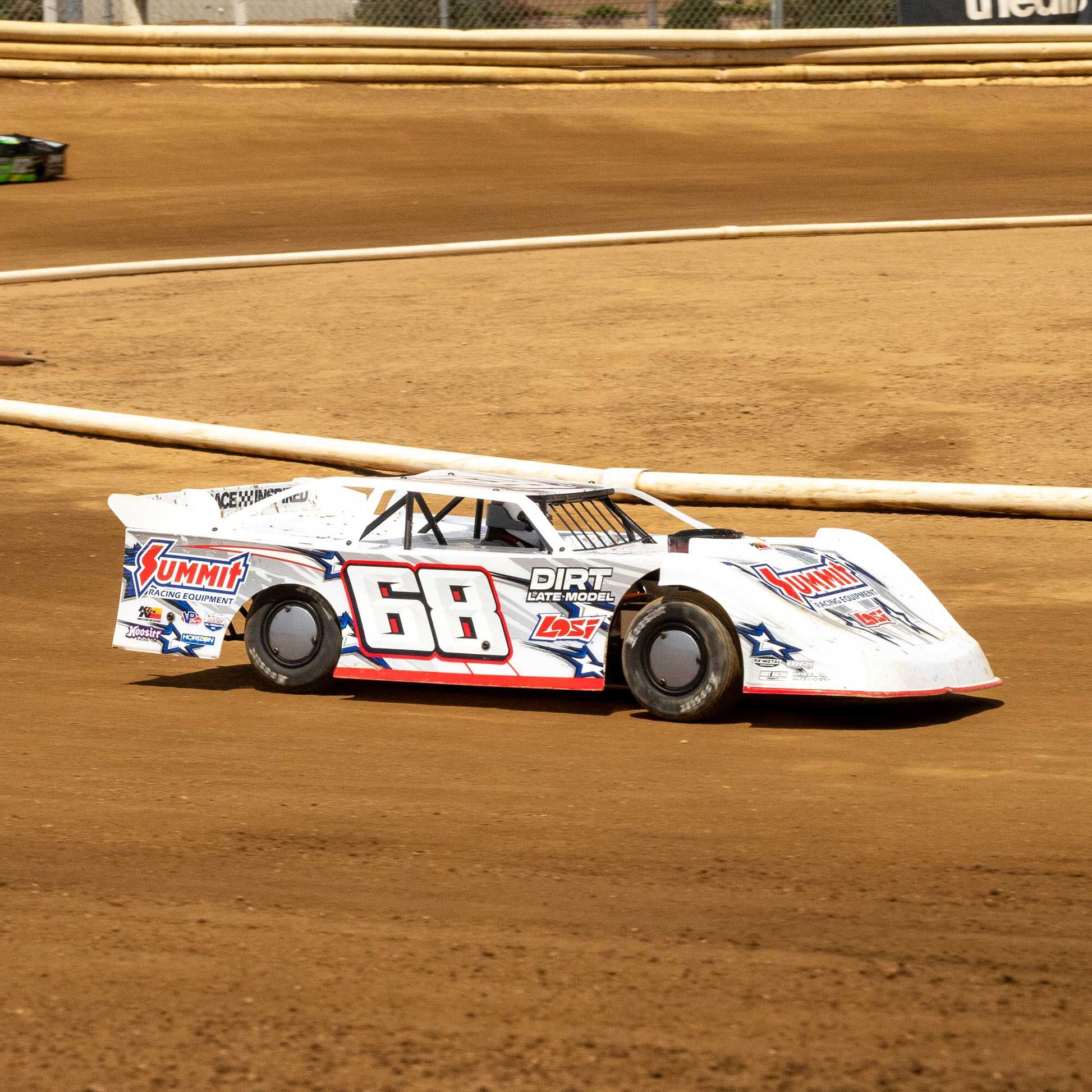

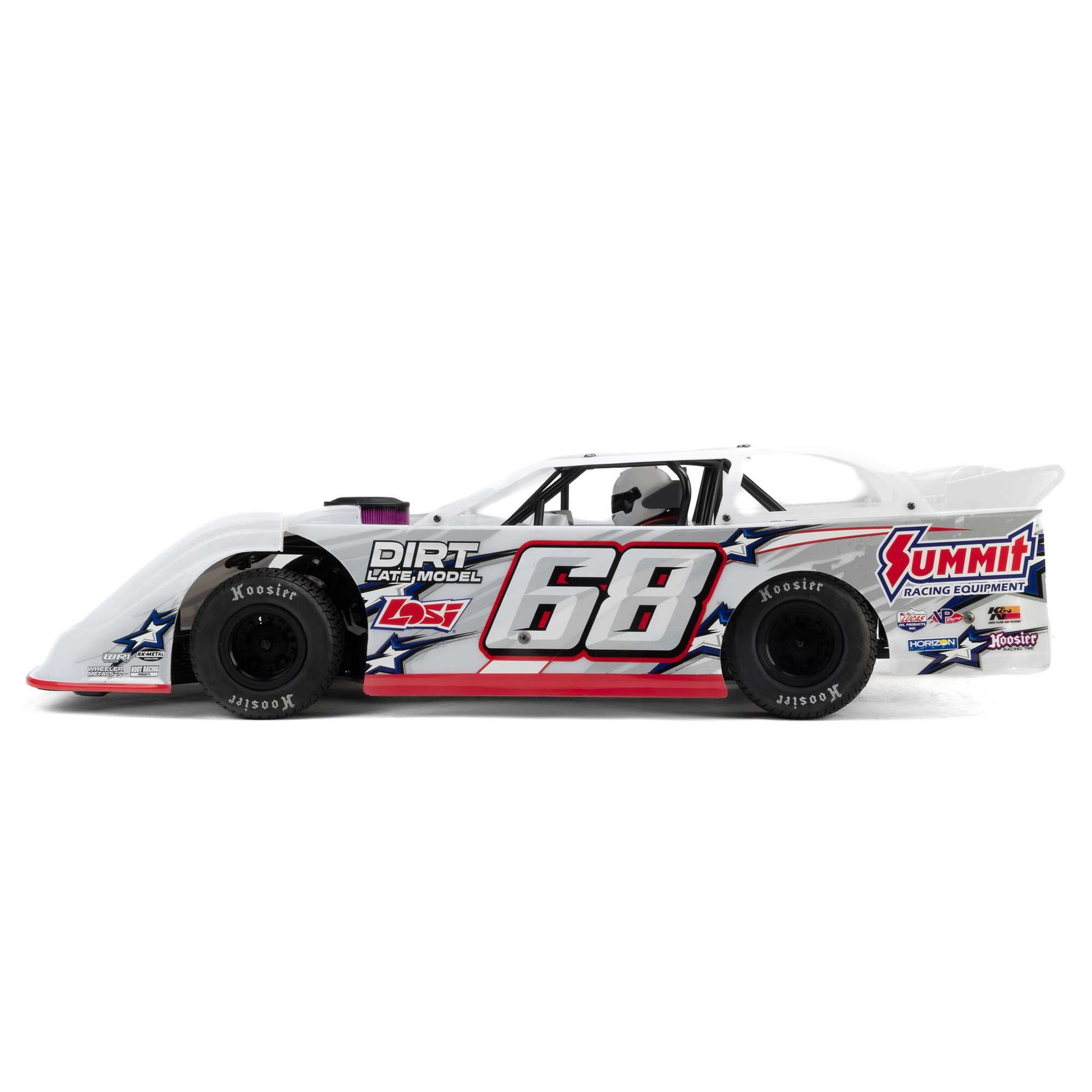

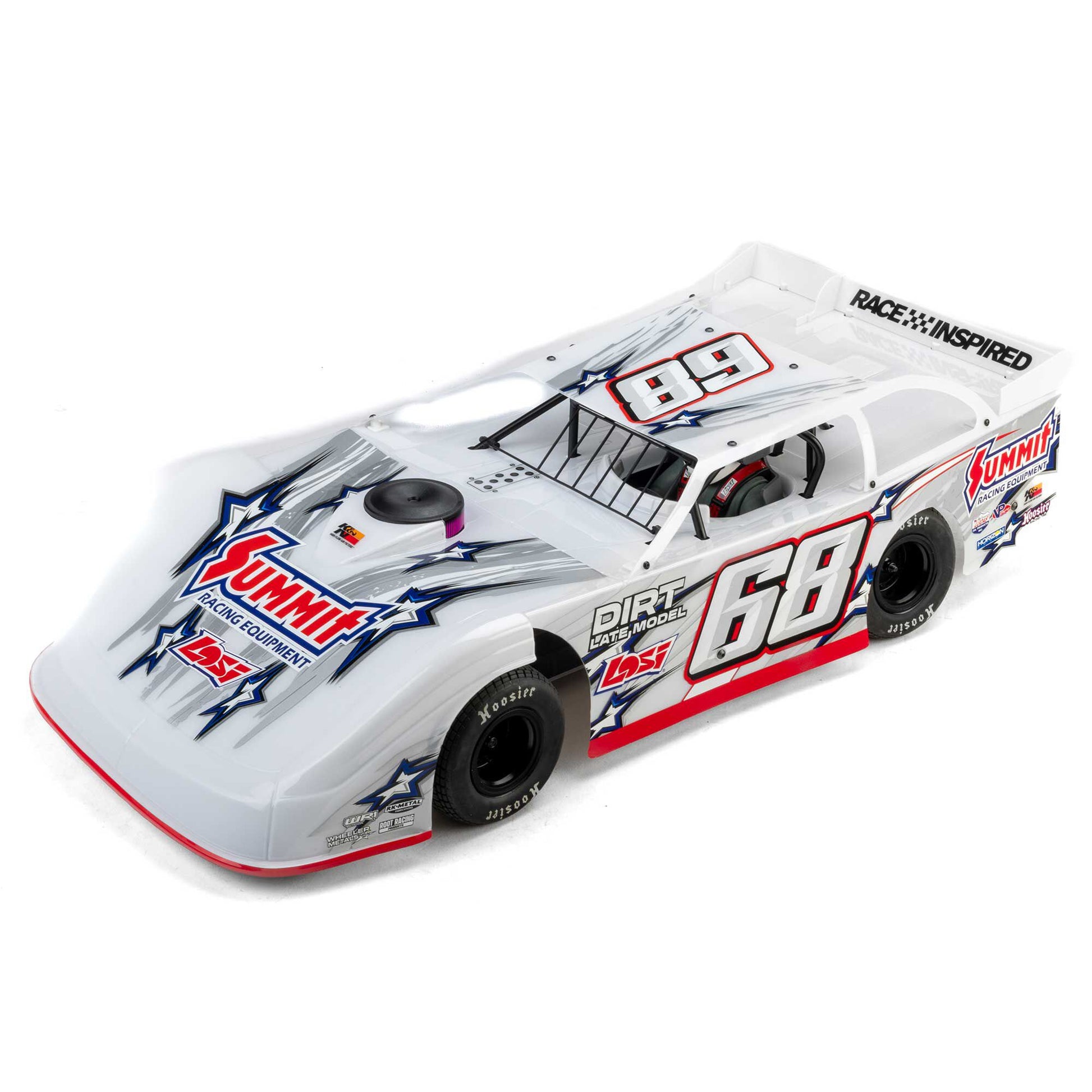

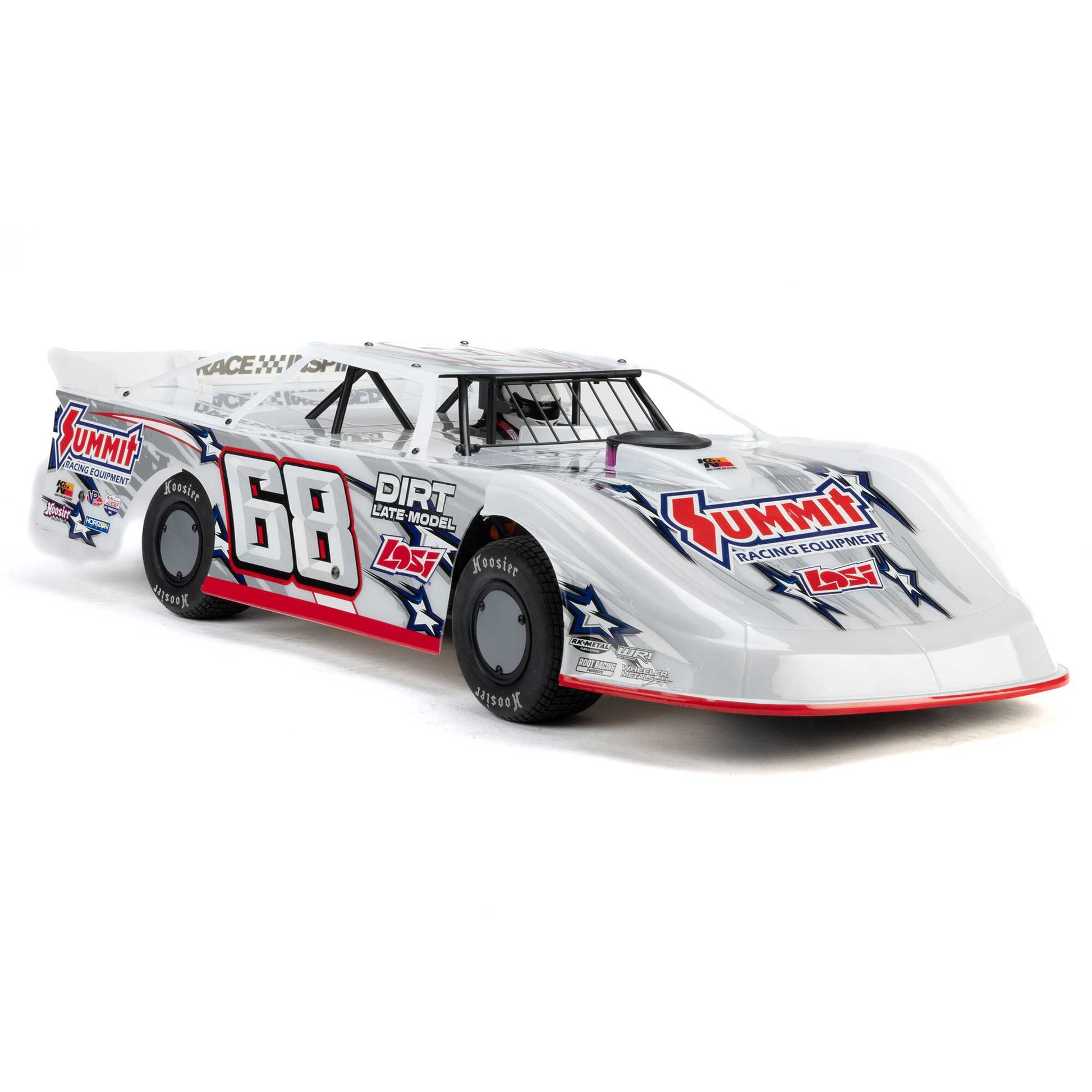

1/10 22S Dirt Late Model Ready to Run with Battery and Charger (White) (LOS-2168T1)

1/10 22S Dirt Late Model Ready to Run with Battery and Charger (White) (LOS-2168T1)

This item is currently available for Preorder.

Step into the world of dirt late model racing with the 1/10 scale, ready-to-run 22S Dirt Late Model from Losi. This exceptional RC vehicle redefines performance and realism, delivering an authentic late model experience straight out of the box. The closed-wheel design allows for aggressive side-by-side racing while maintaining stability and speed, providing an exhilarating driving experience that surpasses other racing styles.

The 22S Dirt Late Model is built on the proven TLR 22 race geometry, which offers a low center of gravity for confident cornering. Equipped with a powerful brushless power system, this model can reach speeds exceeding 25 mph, ensuring an adrenaline-pumping performance on the track. The all-metal transmission and sealed gear differential, pre-filled with diff fluid, guarantee durability and optimal handling in competitive conditions.

Regular price $419.99
Regular price Sale price $419.99
Sale Sold out

Exploded View

Parts List

Product Manual

View full details

Collapsible content

Overview

Step into the world of dirt late model racing with the 1/10 scale, ready-to-run 22S Dirt Late Model from Losi. This exceptional RC vehicle redefines performance and realism, delivering an authentic late model experience straight out of the box. The closed-wheel design allows for aggressive side-by-side racing while maintaining stability and speed, providing an exhilarating driving experience that surpasses other racing styles.

The 22S Dirt Late Model is built on the proven TLR 22 race geometry, which offers a low center of gravity for confident cornering. Equipped with a powerful brushless power system, this model can reach speeds exceeding 25 mph, ensuring an adrenaline-pumping performance on the track. The all-metal transmission and sealed gear differential, pre-filled with diff fluid, guarantee durability and optimal handling in competitive conditions.

Features

  • 1/10 scale, ready-to-run design
  • Officially licensed Summit Racing livery

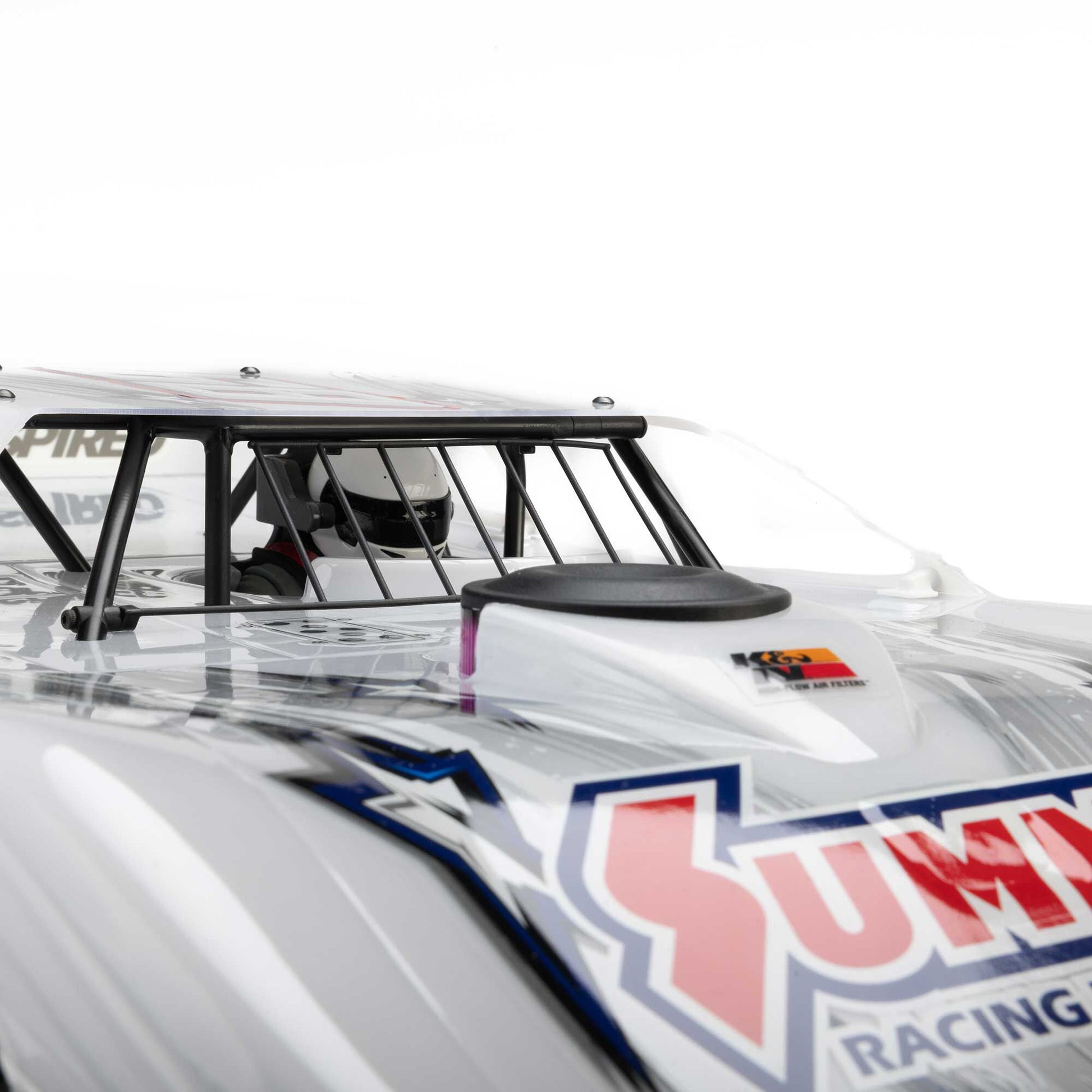

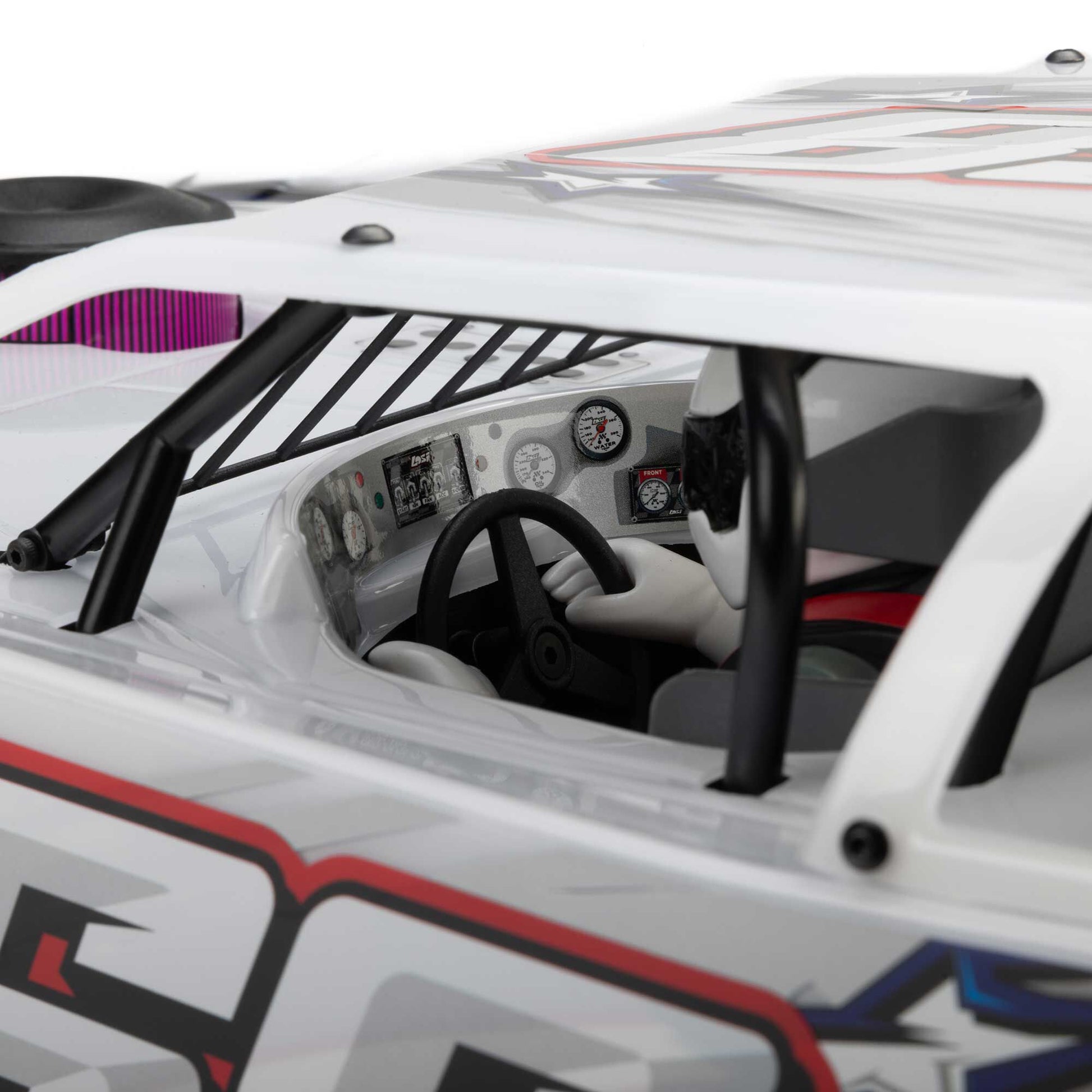

  • Hand-painted driver figure with race seat

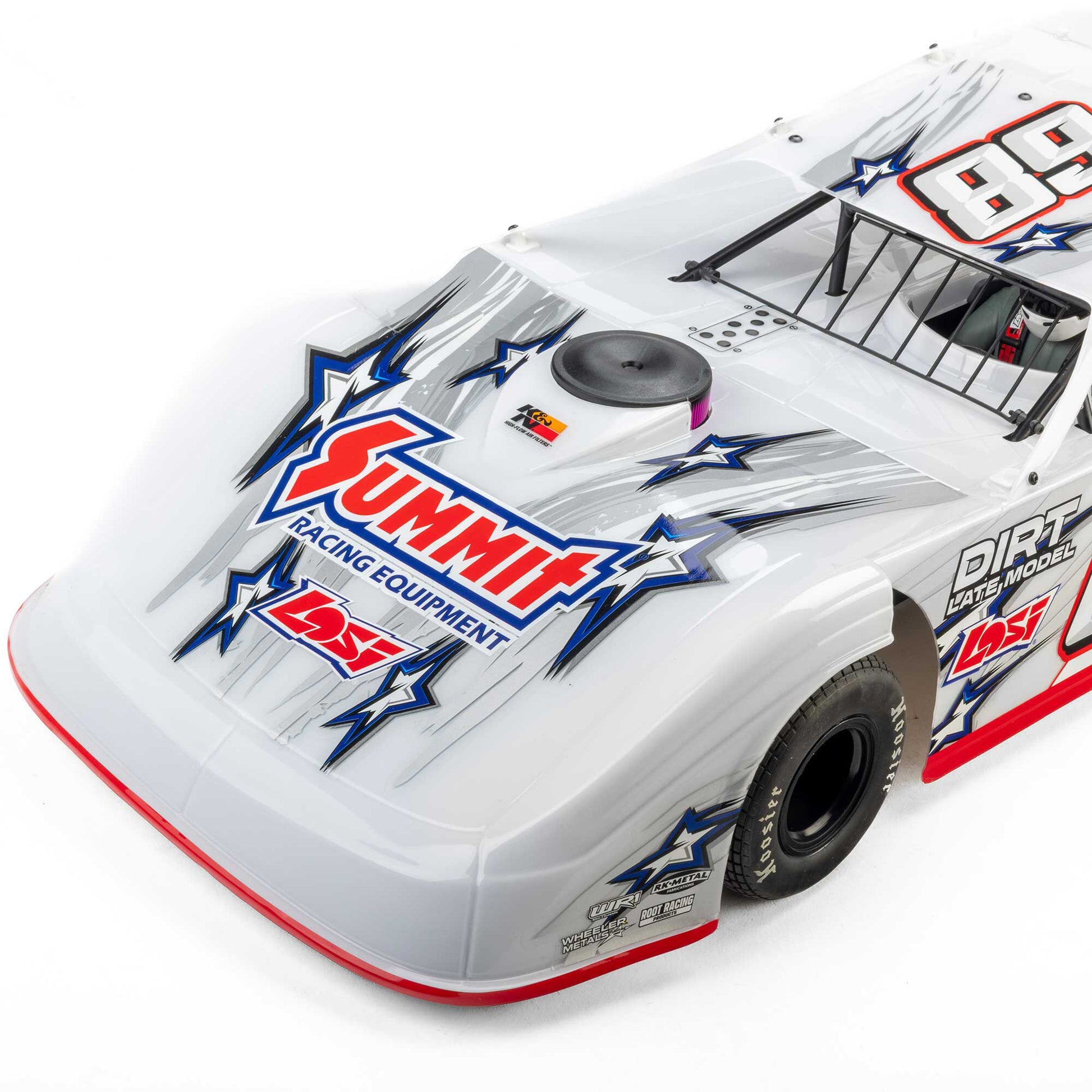

  • Accurate body design for maximum downforce
  • Built on proven TLR 22 race geometry
  • Low center of gravity for confident cornering
  • Powerful Spektrum brushless power system for speeds over 25 mph
  • All-metal transmission with dual slipper clutch
  • Sealed gear differential, pre-filled with 3000cSt diff fluid

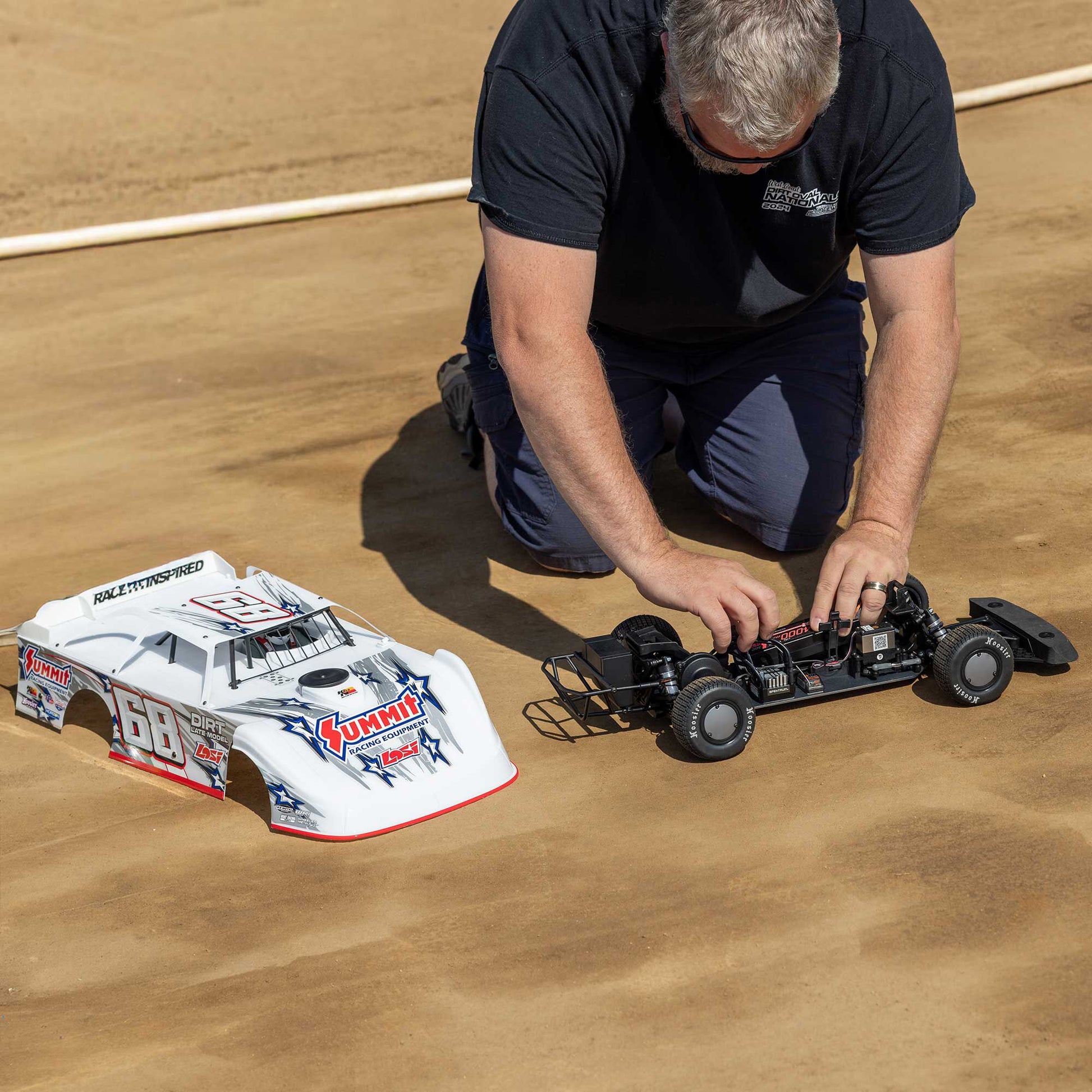

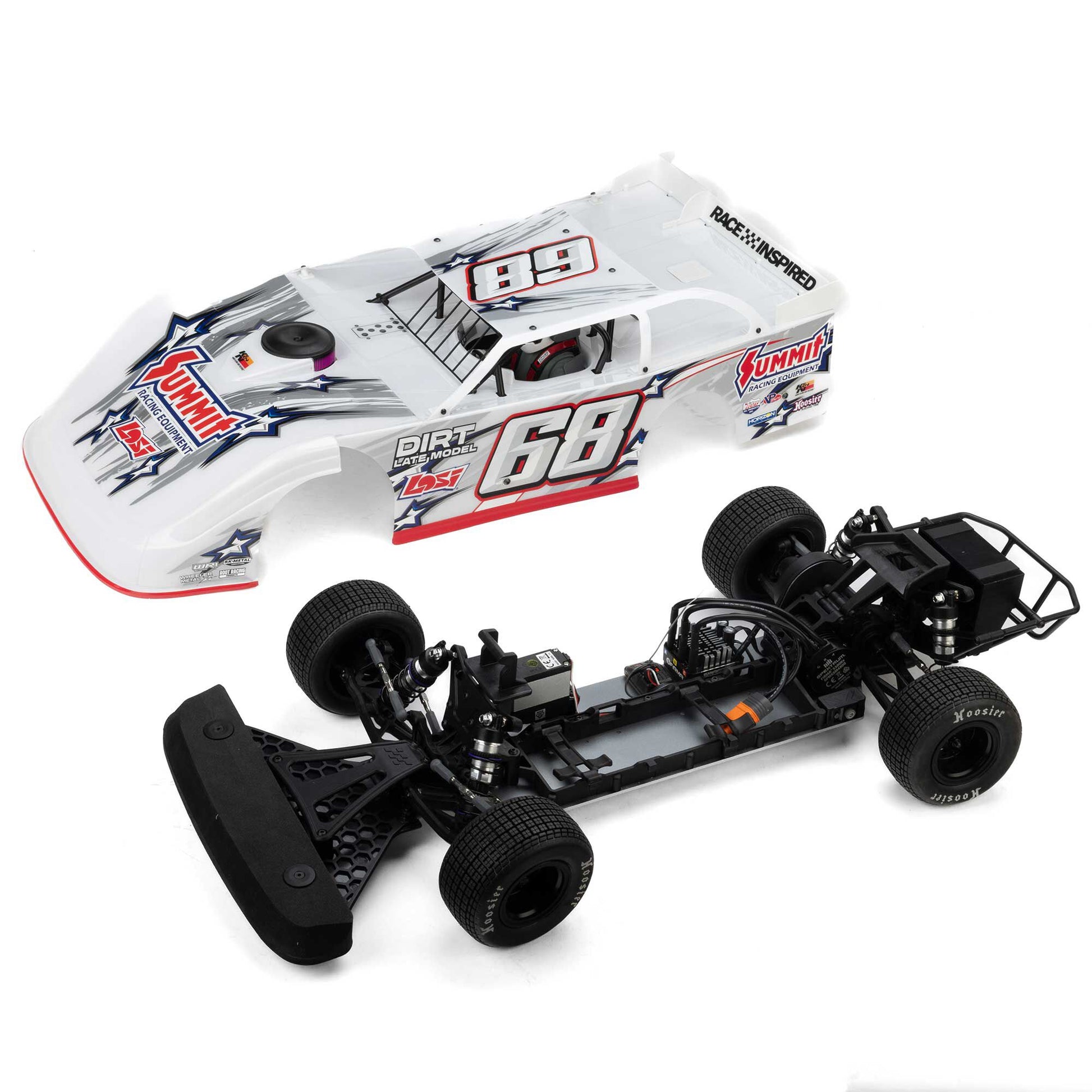

  • Clipless body mounting for easy chassis access
  • Customizable battery tray for full-length or shorty packs

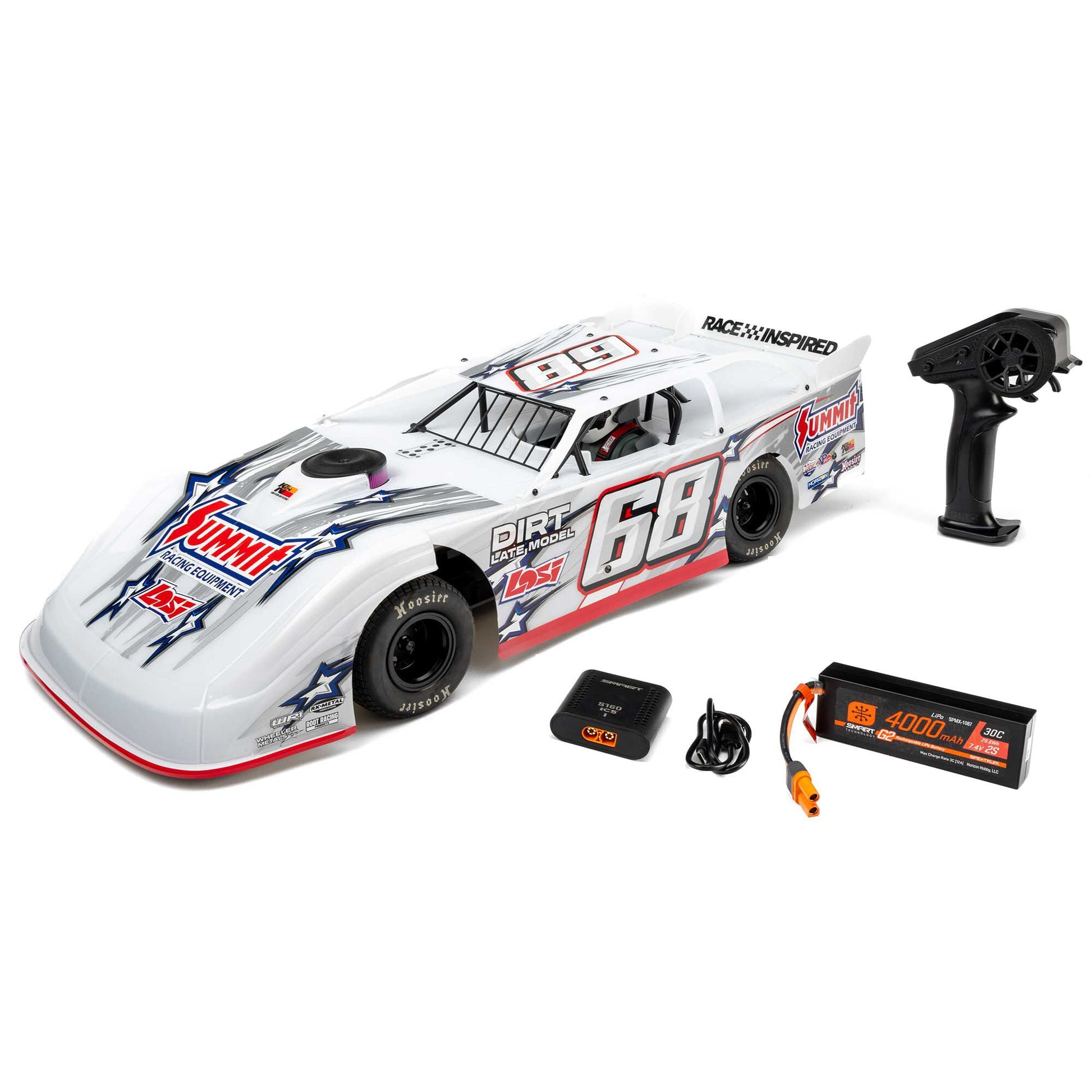

  • Includes Spektrum Smart 2S 4000mAh LiPo battery
  • Includes Spektrum S160 USB-C Smart Charger for fast recharging

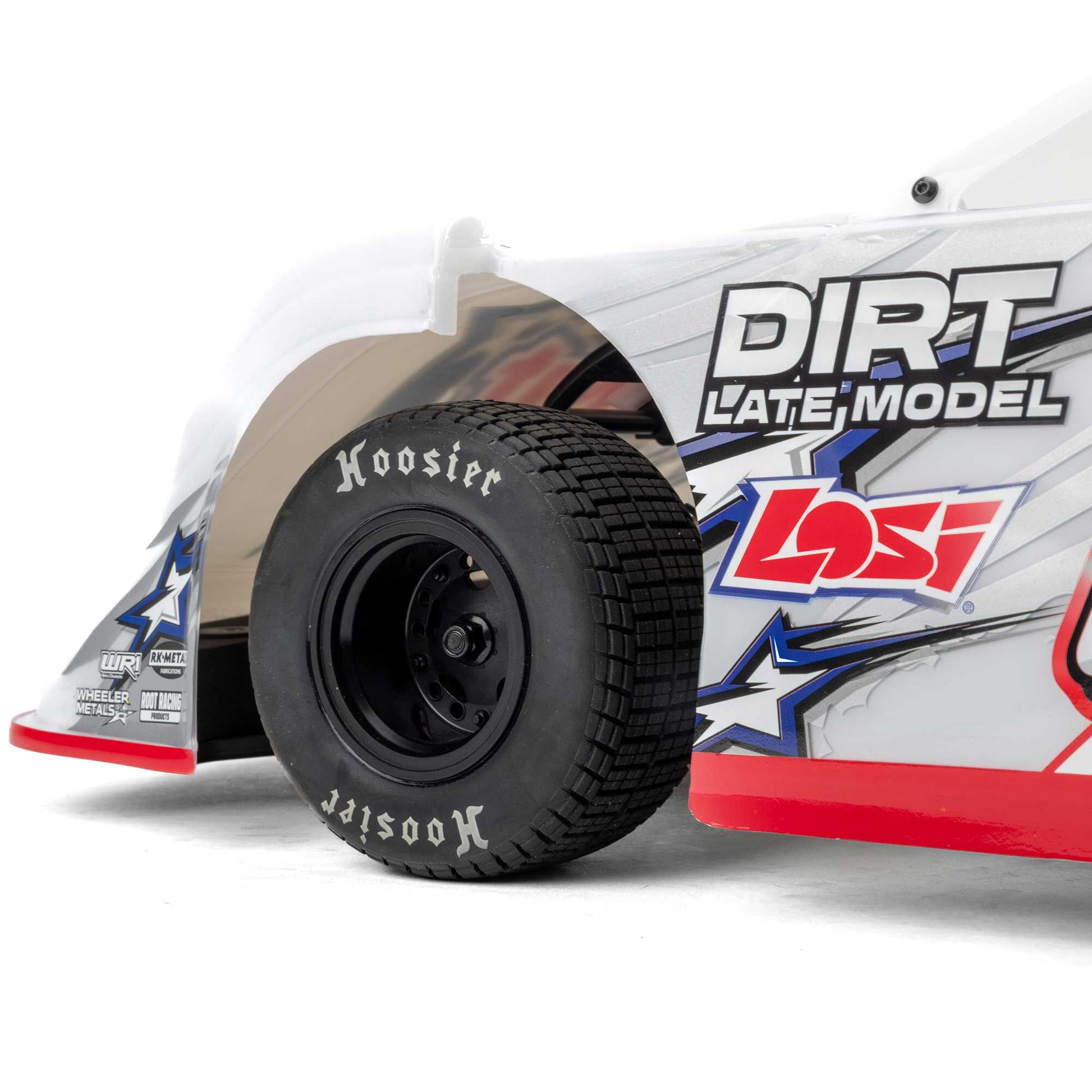

  • Authentic racing details such as scaled wheels and tires
  • Includes decal sheet with custom numbers
  • Adjustable steel turnbuckles for fine-tuning
  • Race-ready suspension components from TLR
  • Compatible with many existing Losi and TLR option parts
  • Front and rear shock oil: 30wt (front), 35wt (rear)
  • Durable 6061-T6 aluminum chassis for long-lasting performance
  • Spektrum SLT2 2.4GHz transmitter with throttle limiting switch
  • Spektrum SR215 DSMR 2-channel receiver with transponder port
  • Spektrum S684 waterproof metal gear steering servo
  • 12mm wheel hex size for compatibility with various wheels
  • Drivetrain layout: 2WD

Needed to Complete

  • AA Transmitter Batteries (4)
  • Optional Spektrum Smart SPMX-1027 65W Power Supply (for faster charging)
  • Medium compound Hoosier tires (available separately for high-traction surfaces)

Specifications

  • Scale: 1/10
  • Vehicle Type: Oval
  • Completion Level: Ready-To-Run
  • Power Type: Electric
  • Top Speed: 25+
  • Motor Type: Brushless
  • Motor Size: 3650 3300Kv
  • Internal Gear Ratio: 2.43:1
  • Final Drive Ratio: 10.21:1
  • Chassis: Aluminum
  • Product Length: 24.25" (616 mm)
  • Product Width: 11.8" (300 mm)
  • Product Height: 6.4" (163 mm)
  • Product Weight: Weight w/o battery: 2494g
  • Drivetrain: 2WD
  • Wheel Hex Size: 12mm
  • Battery: Included
  • Charger: Included
  • LiPo Compatibility: 2S
  • Connector Type: IC5
  • Diff Oil: 3000cSt
  • Shock Oil: Front: 30wt, Rear: 35wt
  • AA Transmitter Batteries: 4
  • Approximate Assembly Time: Less than 1 hour
  • Receiver: Included
  • Servos: Included
