Share
TLR (TLR)
SKU:TLR-1265

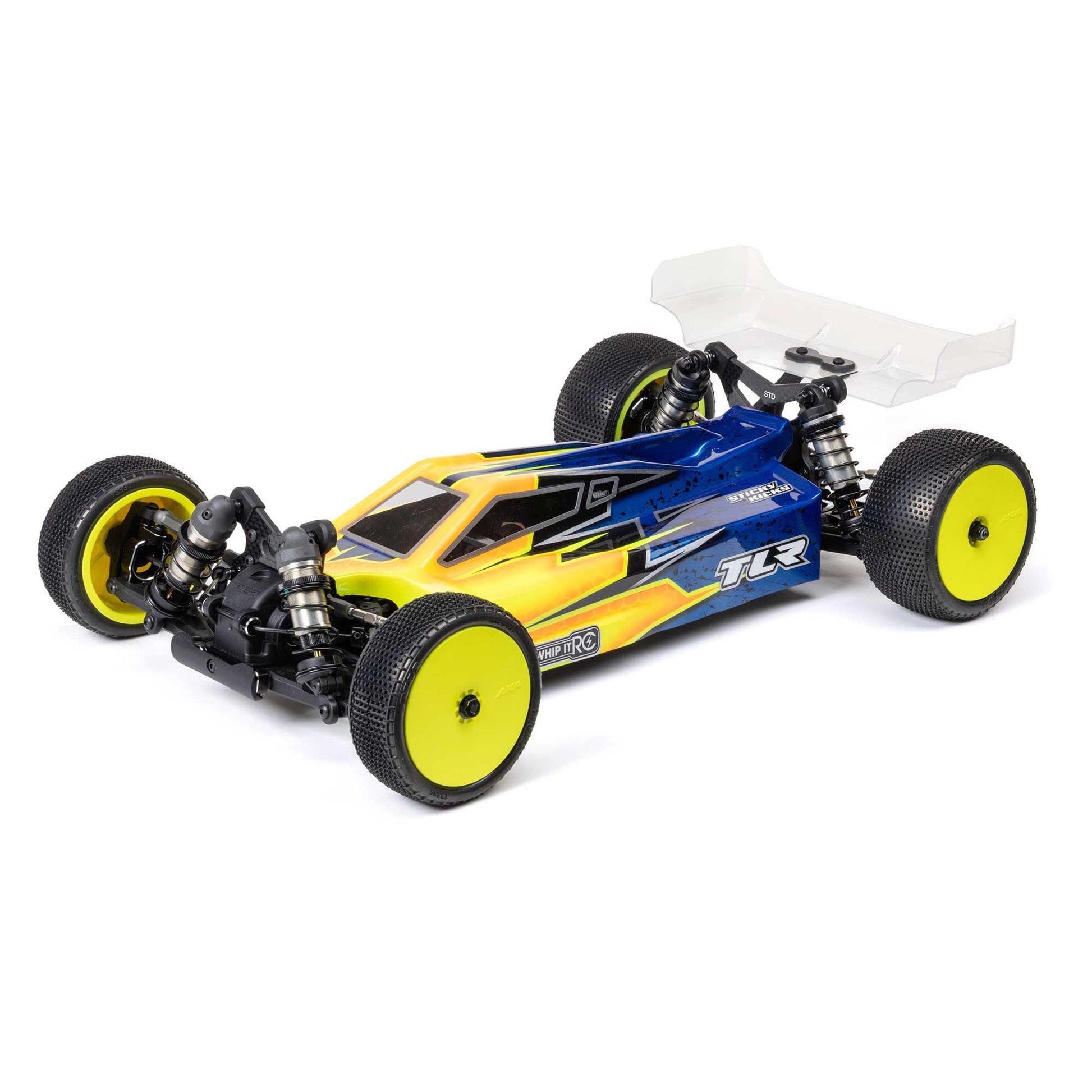

1/10 22X-4 2.0 AC Race Kit (TLR-1265)
1/10 22X-4 2.0 AC Race Kit (TLR-1265)
The 1/10 22X-4 2.0 AC 4WD Buggy Race Kit from Team Losi Racing marks the next evolution in electric buggy racing, building upon the successful 22 series to deliver unparalleled performance on high-grip surfaces like astro and carpet. This kit is designed to provide racers with advanced tuning options and greater adjustability, enabling faster lap times and enhanced handling characteristics.
This buggy kit is fully optimized for competitive racing right out of the box. It includes multiple aluminum and carbon fiber components crafted for strength and lightness, such as the durable carbon fiber front and rear shock towers and optional glass-filled composite parts that can be tuned for various stiffness requirements. The innovative variable height axle (VHA) rear hubs allow for easy adjustments to tailor the buggy's handling characteristics to individual driver's preferences or specific track conditions.
Beyond its mechanical sophistication, the 22X-4 2.0 AC is designed for ease of customization, featuring adjustable motor and battery positions and a built-in motor fan mount for cooling solutions. The lightweight Pro-Line Sector body, which comes pre-cut and ready for painting, adds aerodynamic advantages, while the included Pro-Line Air Force rear wing contributes to downforce for improved grip on the track.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual

Collapsible content
Overview
The 1/10 22X-4 2.0 AC 4WD Buggy Race Kit from Team Losi Racing marks the next evolution in electric buggy racing, building upon the successful 22 series to deliver unparalleled performance on high-grip surfaces like astro and carpet. This kit is designed to provide racers with advanced tuning options and greater adjustability, enabling faster lap times and enhanced handling characteristics.
This buggy kit is fully optimized for competitive racing right out of the box. It includes multiple aluminum and carbon fiber components crafted for strength and lightness, such as the durable carbon fiber front and rear shock towers and optional glass-filled composite parts that can be tuned for various stiffness requirements. The innovative variable height axle (VHA) rear hubs allow for easy adjustments to tailor the buggy's handling characteristics to individual driver's preferences or specific track conditions.
Beyond its mechanical sophistication, the 22X-4 2.0 AC is designed for ease of customization, featuring adjustable motor and battery positions and a built-in motor fan mount for cooling solutions. The lightweight Pro-Line Sector body, which comes pre-cut and ready for painting, adds aerodynamic advantages, while the included Pro-Line Air Force rear wing contributes to downforce for improved grip on the track.
Features
- Sway bars included
- Larger-volume gear differentials for enhanced durability
- New decoupled slipper for front braking bias adjustments
- AC specific carbon steering arms for increased steering control
- Extended chassis design for improved stability on astro/carpet surfaces
- Hard-anodized 2mm machined 7075-T6 aluminum chassis
- Larger 13mm big-bore shocks for optimal handling
- Larger 13mm shock springs for improved support
- Adjustable caster from 6° to 12° in 1° increments
- Industry-standard offset front wheels
- Durable 4mm woven carbon fiber front and rear shock towers
- Updated 5.8mm ball studs and rod ends for interference-free movement
- Lightweight Pro-Line Sector 22X-4 body for improved aerodynamics
- Pro-Line Air Force 7" clear rear buggy wing for added downforce
- Glass-filled composite parts available in multiple stiffness options
- Proven Variable Height Axle (VHA) rear hubs for easy adjustments
- Adjustable inner pivots for fine-tuning anti-squat and rear toe
- Built-in motor fan mount compatible with 30mm x 30mm fans
- Optimized shock mounting locations for tailored suspension setups
- Front and rear shock tower covers to protect track surfaces
- Adjustable motor and battery positions for balance optimization
- Multiple aluminum components including motor mount and servo mount
- Decoupled slipper included for adjustable brake bias
- Maximum tunability provided out of the box without extra parts
Needed to Complete
- Battery (Sold Separately)
- Charger (Sold Separately)
- Receiver (Sold Separately)
- Radio (Sold Separately)
Specifications
- Scale: 1/10
- Drivetrain: 4WD
- Completion Level: Kit
- Vehicle Size: Standard
- Vehicle Type: Buggy
- Power Type: Electric
- Chassis: 7075-T6 Aluminum Milled Plate 2mm thick
- Battery: Sold Separately
- LiPo Compatibility: 2S
- Charger: Sold Separately
- Receiver: Sold Separately
- Radio: Sold Separately
- Max Battery Dimensions: H: 0.94 x L: 3.78 x W: 1.85 in (25.1 x 96 x 47 mm)
- Wheel Hex Size: 12mm
- Product Length: with Tires: 14.8 in (372 mm)
- Front Track: 9.8 in (250 mm)
- Rear Track: 9.8 in (250 mm)
- Wheelbase: 11.4 in (290 mm)
- Product Height: 5.8 in (147 mm)
- Internal Gear Ratio: 2.5:1
- Motor Size: Mid Motor
- Spur Gear: 78T, 48-Pitch
- Gear Pitch: 48-Pitch
- Differential: Gear
- Approximate Assembly Time: 3-5 Hours
-
