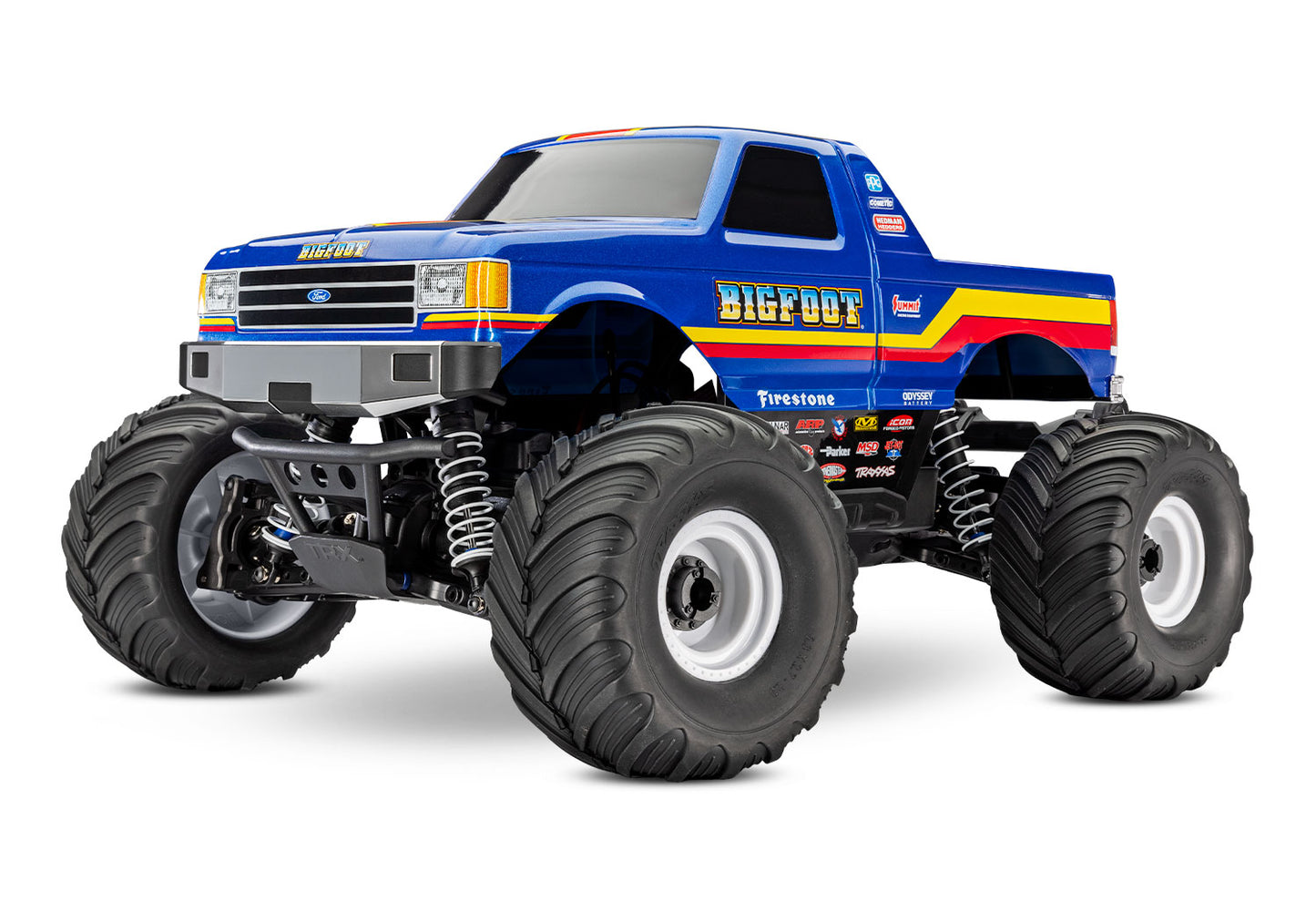

Overview
Experience the nostalgia of monster truck racing with the BIGFOOT 4X4, featuring BL-2s brushless power and a rugged 4X4 driveline designed for ultimate durability. This model is equipped with a clipless BIGFOOT No. 8 body and includes factory-installed Extreme Heavy Duty components, ready to handle the toughest challenges. From the stadium to your backyard, the BIGFOOT 4X4 promises endless fun and excitement.
| Scale: | Speed: | Battery and Charger: |
|---|---|---|
| 1/10 | Under 30 mph | Not Included |
New BIGFOOT 4X4 Design
BIGFOOT and Stampede, the two most recognizable names in monster trucks join forces to create BIGFOOT 4X4. Based on the newest Stampede 4X4 chassis, BIGFOOT 4X4 combines legendary Traxxas toughness with innovative modular design for unstoppable all-terrain fun.
Unparalleled Strength
Engineered for maximum strength, the Extreme Heavy Duty Upgrade Kit fortifies BIGFOOT 4X4 with a full complement of driveline and suspension parts designed to work together as a complete package. Combined with Traxxas’ cold-weather HD suspension arms, BIGFOOT sets a new standard for brushless durability.
Monster Size
BIGFOOT 4X4 rides tall on new white monster truck wheels with replica military-style axle hubs and Terra Groove tires. With nearly 3 inches of center ground clearance, BIGFOOT 4X4 goes places other trucks can’t. Short front and rear overhangs allow BIGFOOT 4X4 to climb up and over obstacles without breaking a sweat.
Clipless Body Mounting
BIGFOOT 4X4’s clipless latching system delivers secure mounting with easy removal. Battery changes are fast and easy with no clips to lose. The classic BIGFOOT No. 8 body locks onto the chassis with a reassuring snap to let you know it’s secure. You can even mount the original BIGFOOT No. 1 clipless body to the chassis with no modifications necessary.
Waterproof Electronics
Your RC experience should be filled with fun and adventure, not limited by the electronics. Traxxas’ patented waterproof technology gives you the freedom to live out your wildest adventures, regardless of the weather.

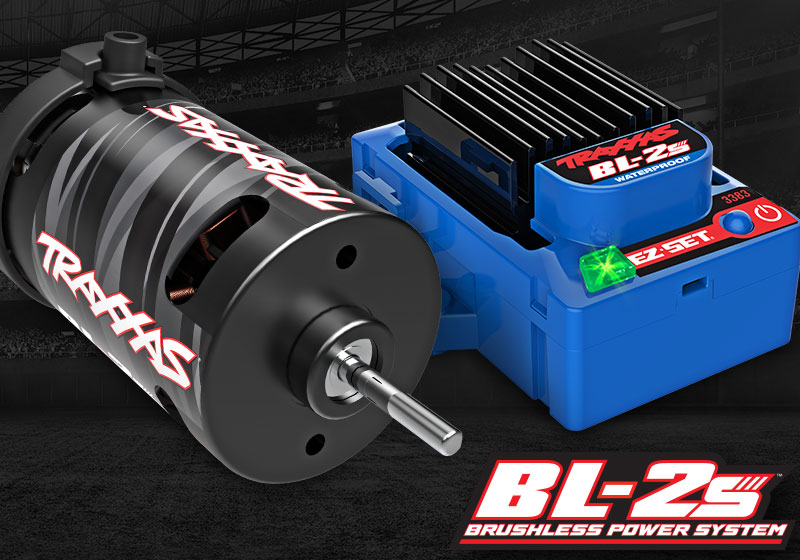

BL-2s Brushless Power System
The waterproof BL-2s electronic speed control packs powerful features like three separate drive profiles, low-voltage detection for LiPo batteries, patented Training Mode™, and Thermal-Shutdown Protection to prevent overheating. The sensorless BL-2s 3300 Kv motor with integrated cooling fan delivers strong brushless performance with nearly zero maintenance.
TQ™ 2.4 GHz Radio System
The TQ 2.4 GHz radio system keeps the focus on having fun, not worrying about interference from other vehicles. The TQ radio’s advanced programming provides long-range control with smooth, glitch-free performance and its ergonomic design is comfortable for all-day driving.
Modular Simplicity
BIGFOOT’s modular 4X4 chassis design allows the entire front section to be removed with just 5 screws, and the rear assembly with just 4 screws. In less than a minute using a power screwdriver, you have full access for easy service and adjustment.
Support
- Bigfoot 4X4 Brushless (67134-4) Manual - English
- Bigfoot 4X4 Brushless (67134-4) Manual - French
- Bigfoot 4X4 Brushless (67134-4) Manual - Spanish
- Bigfoot 4X4 Brushless (67134-4) Manual - German
Product Manuals
- Bigfoot 4X4 Brushless (67134-4) Body Assembly Exploded View
- Bigfoot 4X4 Brushless (67134-4) Chassis Assembly Exploded View
- Bigfoot 4X4 Brushless (67134-4) Driveshafts Assembly Exploded View
- Bigfoot 4X4 Brushless (67134-4) Front Assembly Exploded View
- Bigfoot 4X4 Brushless (67134-4) Rear Assembly Exploded View
Exploded Views
- Bigfoot 4X4 Brushless (67134-4) Parts List
Parts Lists
- Bigfoot 4X4 Brushless (67134-4) Box Panels
Box Reference
Features
Extreme HD 4X4 Driveline
BIGFOOT 4X4 uses a shaft-driven four-wheel-drive system for extreme traction in any environment. A tough center driveshaft joins the front and rear steel-gear differentials to distribute the brushless motor’s massive torque. Huge Maxx-Duty® driveshafts keep power flowing to BIGFOOT’s towering monster truck wheels with unrivaled durability.
BL-2s Brushless Power System
BIGFOOT’s waterproof BL-2s brushless power system ramps up the fun with more torque, faster acceleration, and less maintenance than comparable brushed power systems. The BL-2s is a model of efficiency and refinement, offering more power than before with the safety and convenience that only Traxxas can deliver.
- Brilliant blue metallic officially licensed Ford® F-150® body
- Chrome front and rear bumpers
- Holds tight for intense action
- Quick and easy removal
Licensed BIGFOOT No. 8 Clipless Body
- Heat sink accepts accessory cooling fan (3340)
-
Three Programmable Drive ProfilesSport Mode - Forward / Brake / Reverse
Race Mode - Forward / Brake
Training Mode™ - 50% Forward / Brake / 50% Reverse (patented) - Sport Mode - Forward / Brake / Reverse
- Race Mode - Forward / Brake
- Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection for LiPo batteries
- NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
- LiPo battery packs: 2 cells (7.4 volts)
BL-2s™ Waterproof Electronic Speed Control
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 Kv
Brushless Motor
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
TQ™ 2.4 GHz Transmitter
- Strengthened C-hubs, axle carriers, and steering blocks
-
Maxx-duty driveshaftsOversize diameter
6 mm axles
Steel wheel hexes - Oversize diameter
- 6 mm axles
- Steel wheel hexes
Extreme Heavy-Duty Upgrade Kit Installed
- Modular composite tub design
- Secure battery hold-down latch
- High angle bumpers
- Wheelie bar
Chassis
- HD-composite suspension arms
- Oil-filled Ultra Shocks
- White powder-coated springs
Suspension
- Chassis-mounted 2075 servo
- Dual bellcrank design with integrated servo saver
Steering
- Full-time shaft-driven four-wheel drive
- Sealed steel gear front and rear differentials
- Large 32-pitch steel spur gear
Drivetrain
- Dual-profile white monster truck wheels
- Replica military-style axle hubs
- Pre-glued high profile Terra Groove shaved monster truck tires with foam inserts
Wheels and Tires
Sealed Ball Bearings
Hex hardware with Rust-Resistant Black Oxide Coating
Wheelie Bar
BIGFOOT 4X4 is a wheelie machine thanks to the monstrous power of the BL-2s brushless power system. BIGFOOT’s wheelie bar delivers complete wheelie control and incorporates a convenient carry handle.
Monster Truck Wheels with Terra Groove Tires
BIGFOOT 4X4 rides on dual-profile white monster truck wheels with replica military-style axle hubs. Large Terra Groove tires come pre-glued and mounted with foam inserts. The Terra Groove tires emulate the "hand carved" look of the full-size treads for grip on a wide variety of surfaces including dirt, grass, pavement, and rocks.

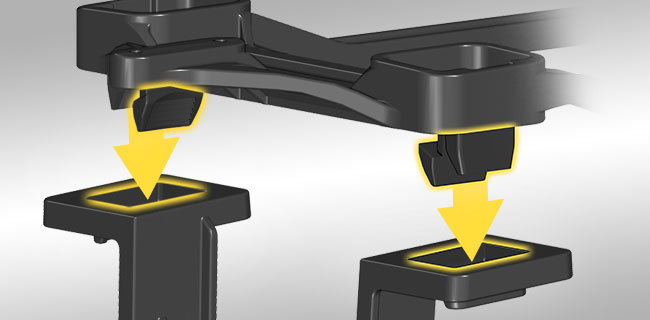

Clipless Body Mounting
BIGFOOT’s innovative clipless body features secure mounting with quick and easy removal. No posts, no clips—just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis in just seconds.
Oil-Filled Ultra Shocks
BIGFOOT’s oil-filled Ultra Shocks™ utilize dual X-ring technology for a perfect seal and silky-smooth performance. The large oil capacity and rugged design soaks up big jumps and off-road abuse for smooth driving performance. They are easy to tune with a wide range of available oils, springs, and pistons.
Long-Travel Suspension
BIGFOOT has huge amounts of seemingly bottomless, ultra-plush suspension travel to swallow up jumps and delivers incredible control. Performance-optimized suspension components provide maximum articulation without binding or interference.
Adjustable Battery Hold-Dow
BIGFOOT’s battery tray accommodates both short and long-format batteries for maximum flexibility. A rugged battery hold-down secures the battery safely in the chassis without flimsy straps or clips to lose. They battery latch provides solid locking action to keep batteries safe no matter how wild the action gets.
Modular Chassis
BIGFOOT’s modular design creates a chassis that’s both strong and easy to maintain. The front and rear bulkheads remove easily with just a few screws. In less than a minute using a power screwdriver, you’ll have full access for easy service and adjustment.
Digital High-Torque Waterproof Steering Servo
BIGFOOT’s large monster truck tires and go-anywhere capability require a steering servo that’s both strong and durable. The waterproof 2075 digital high servo provides robust steering authority with ball bearings for precise control.

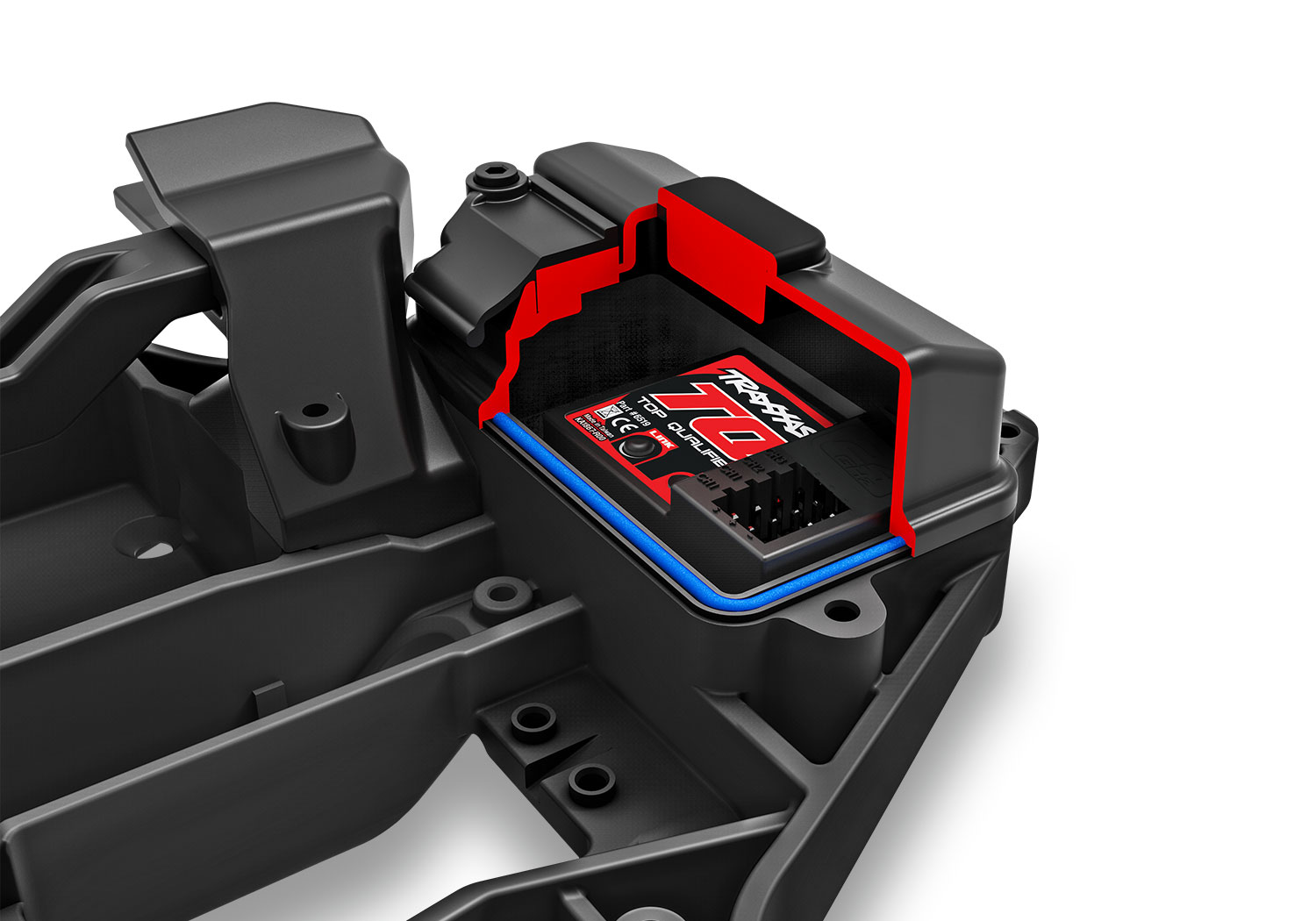

Waterproof Receiver Box
BIGFOOT 4X4 incorporates a waterproof receiver box in the nose of the chassis to save weight and provide a clean, high-tech appearance. The antenna and servo wires route neatly through a patented watertight seal to protect the receiver from water. No matter what the weather, BIGFOOT is ready for action!
3-Channel Receiver with Fail-Safe Security
In the event of signal loss due to an accidental transmitter switch-off or depleted batteries, the receiver automatically returns the throttle to neutral and holds the last commanded steering position. The fail-safe programming is conveniently built-in and does not need to be activated.
Dual Bellcrank Steering with Servo Saver
BIGFOOT’s dual-bellcrank design pivots smoothly even in the harshest conditions. An integrated cam-type servo saver protects the steering servo from crash impacts without sacrificing steering precision.
Durable One-Piece Camber Links
Durable one-piece camber links are perfect for bashing because they maintain proper suspension geometry and never require adjustments. Captured rod ends provide unmatched durability and they won't pop off.
Hex Hardware
Hex-drive hardware provides a more positive and secure connection than other fasteners. The black-oxide coating provides a rust resistant high-tech look and feel.
Heavy Duty Suspension Arms
Molded from our toughest composite material, BIGFOOT 4X4’s heavy-duty suspension arms provide just the right amount of flex to resist breaking—even in cold weather! These high-tech suspension arms stand up to even the most punishing drivers for non-stop fun behind the wheel.

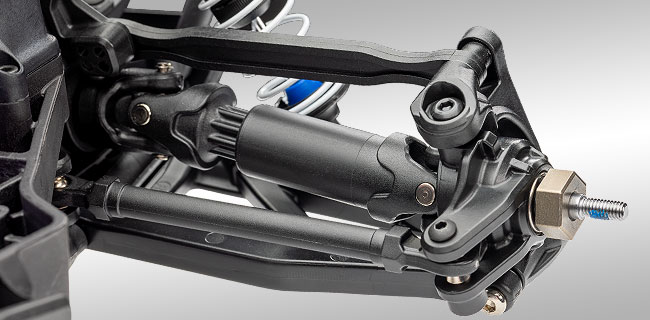

Extreme Suspension Components
BIGFOOT 4X4 comes outfitted with the Extreme Heavy Duty Upgrade Kit already installed for ultimate strength and durability. The axle carriers, C-hubs, and steering blocks are beefed-up with more material and stronger construction.
Rubber-Sealed Ball Bearings
BIGFOOT 4X4 utilizes full contact sealed bearings throughout the driveline to keep out the grime and grit. Less downtime for cleaning and maintaining bearings equals more run time and more fun.
Large 32-Pitch Gears
BIGFOOT 4X4’s driveline is built to handle standard brushless horsepower power and even the extreme Velineon 3s brushless power upgrade down the road. The spur gear features large 32-pitch teeth for total reliability no matter how much power you pour on.
Upgraded Slipper Clutch
BIGFOOT 4X4 uses an upgraded slipper clutch with larger alloy pressure plates and high-temperature aluminum pads for superior power handling. The slipper clutch delivers equal power distribution front to rear for instant throttle response through the drive system and aggressive four-wheel grip from the Sledgehammer tires.
Maxx-Duty Driveshafts
BIGFOOT 4X4 features Maxx-duty driveshafts with beefed-up U-joints are built to handle brushless power without breaking a sweat. Large 6 mm axles key into the included steel wheel hexes for unmatched strength and durability.

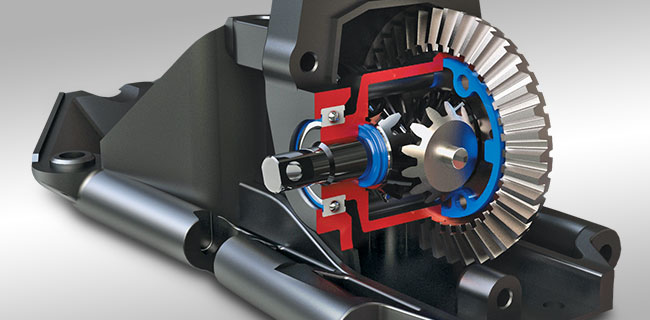

Sealed Steel-Gear Differentials
Sealed steel-gear differentials are ready to handle brushless power without costly upgrades. Silicone gaskets and X-ring seals allow the differentials to be tuned for specific running conditions by varying the viscosity of the oil inside them. BIGFOOT's modular chassis design makes differential access quick and easy.
Specifications
- Length: 20.24 inches (514 mm)
- Width: 13.10 inches (333 mm)
- Ground Clearance: 2.44 inches (62 mm)
- Weight: 5.98 pounds (2.7 kg) without batteries
- Height: 8.34 inches (235 mm)
- Wheelbase: 11.62 inches (295 mm)
- Front Shock Length: 3.45 inches (88 mm) - Long
- Rear Shock Length: 3.98 inches (101 mm) - XX-long
- Tires: 2.2″ Terra Groove with foam inserts
- Wheel Diameter: Dual-profile (2″ outer, 3″ inner) white monster truck
- Speed Control: BL-2s™ electronic speed control
- Motor (electric): BL-2s™ 3300 Kv sensorless brushless
- Gear Pitch: 32 pitch
- Overall Drive Ratio: 15.36:1
- Differentials: Hardened steel bevel, sealed, limited slip
- Chassis Structure / Material: Modular composite tub
- Brake Type: Electronic
- Drive System: Shaft driven 4WD
- Steering: Dual bellcrank with integrated servo saver
- Radio System: TQ™ 2.4 GHz (2-channel)
- Servo: Waterproof 2075
- Skill Level: 1
- Battery Compartment: 162 mm x 47 mm x 26 mm
- Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)
- Gear Pitch: 32 pitch
- Overall Drive Ratio: 15.36:1
- Differentials: Hardened steel bevel, sealed, limited slip
- Chassis Structure / Material: Modular composite tub
- Brake Type: Electronic
- Drive System: Shaft driven 4WD
- Steering: Dual bellcrank with integrated servo saver
- Radio System: TQ™ 2.4 GHz (2-channel)
- Servo: Waterproof 2075
- Skill Level: 1
- Battery Compartment (L/W/H): 162 mm x 47 mm x 26 mm
- Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)
Vehicle
- Type: BL-2s 3300 Kv sensorless brushless motor
- Weight: 7.51 ounces (213 g)
- Length: 3.15 inches (80 mm)
- Diameter: 1.42 inches (36 mm)
- Connector Type: Traxxas Quick Connect Motor Plug
Motor
- Input Voltage (cells): 6-7 Cells NiMH / 2s LiPo
- Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
- Weight: 3.07 ounces (87 g)
- BEC Voltage: 6.0 volts
- Reverse Delay: Yes, with lockout
- Thermal Protection: Two-stage thermal shutdown
- Ports: Auxiliary fan
ESC
