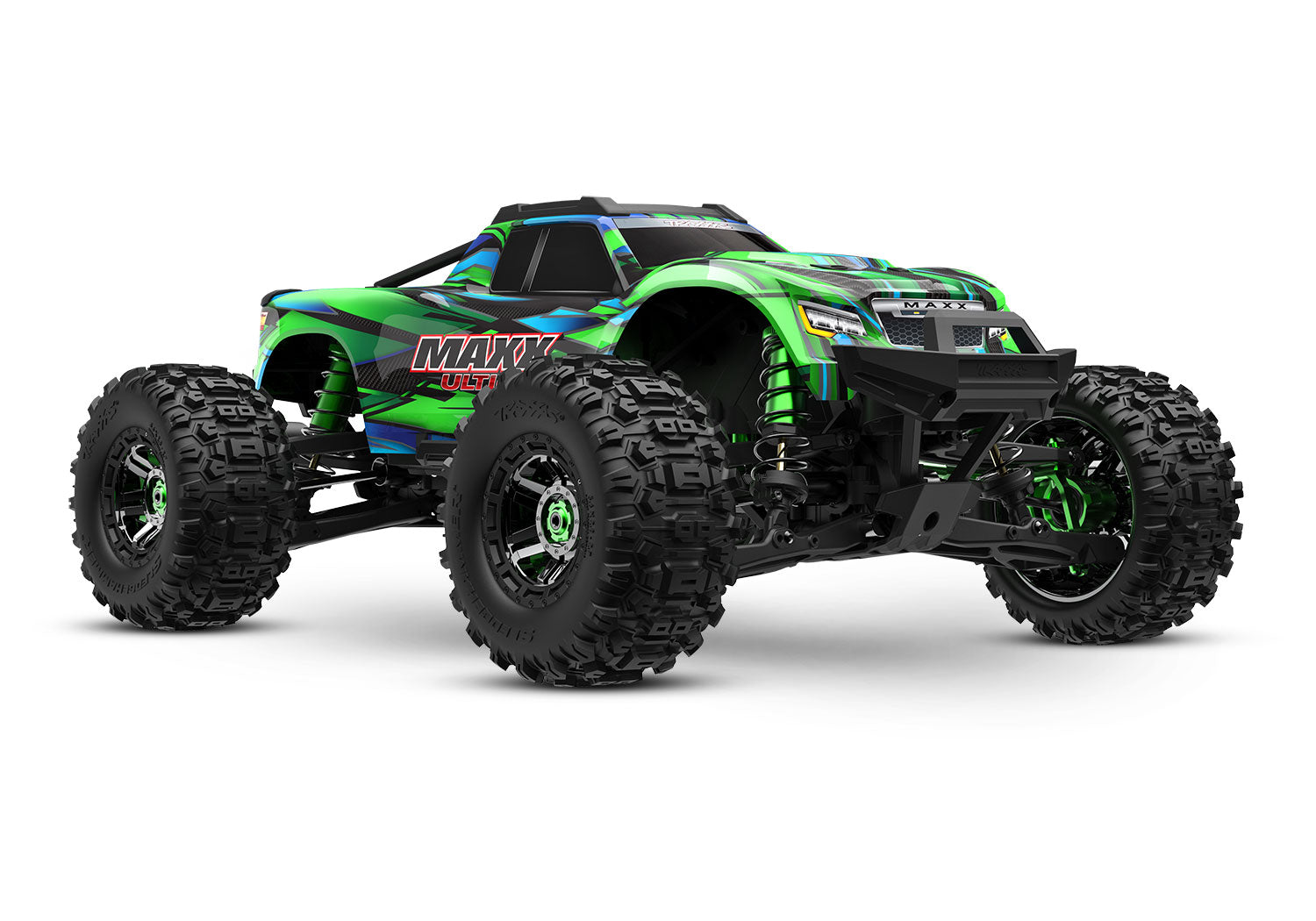

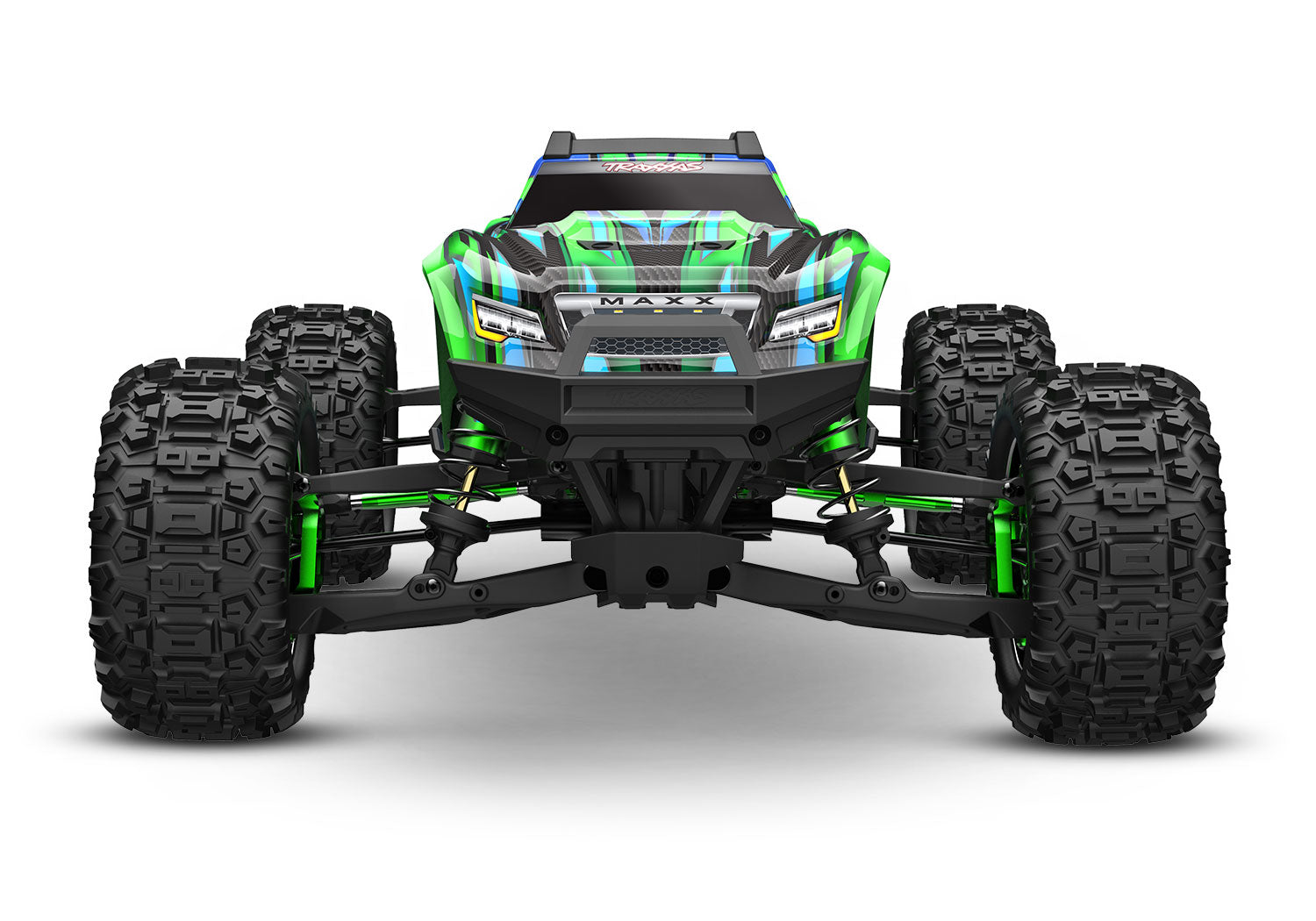

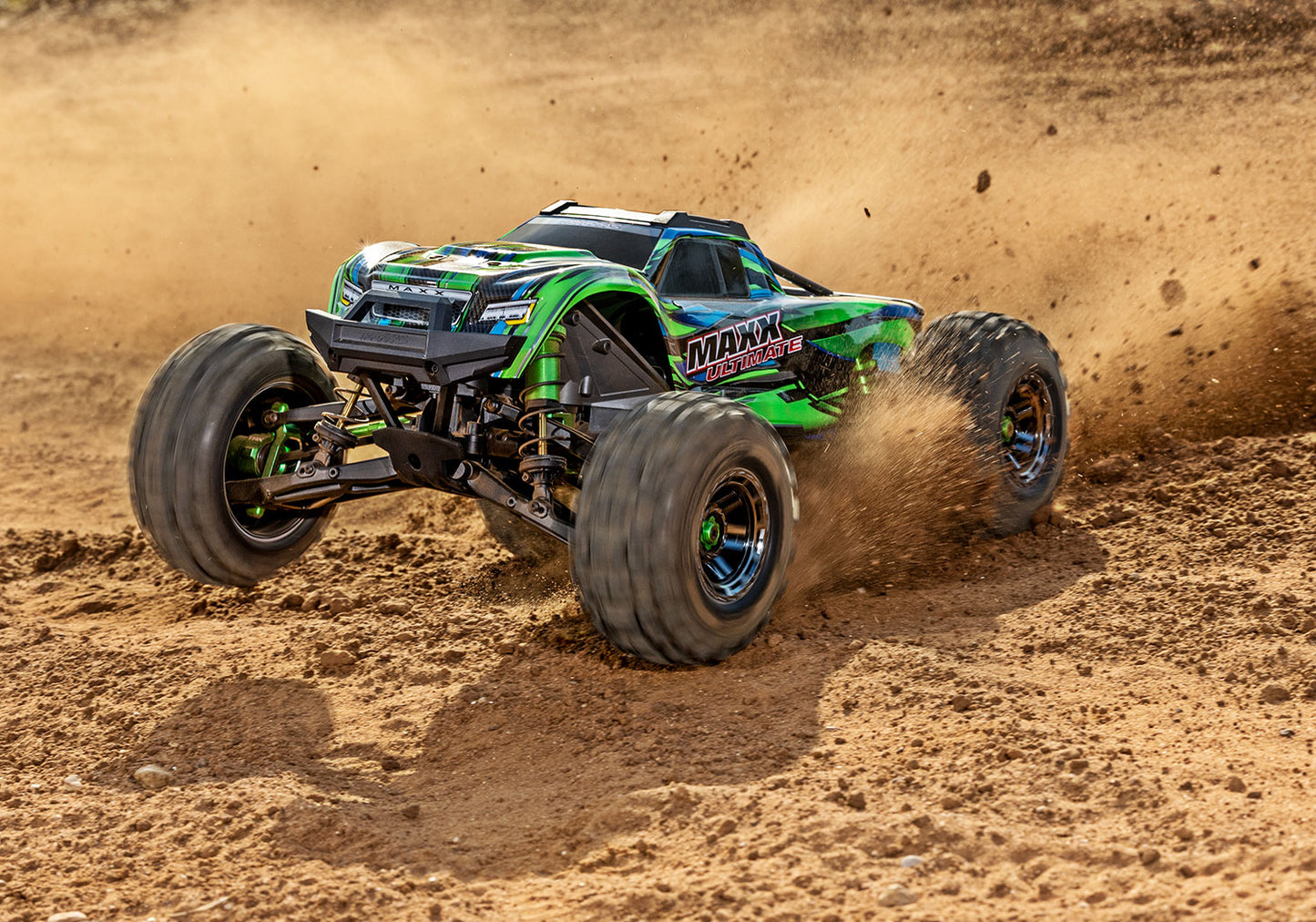

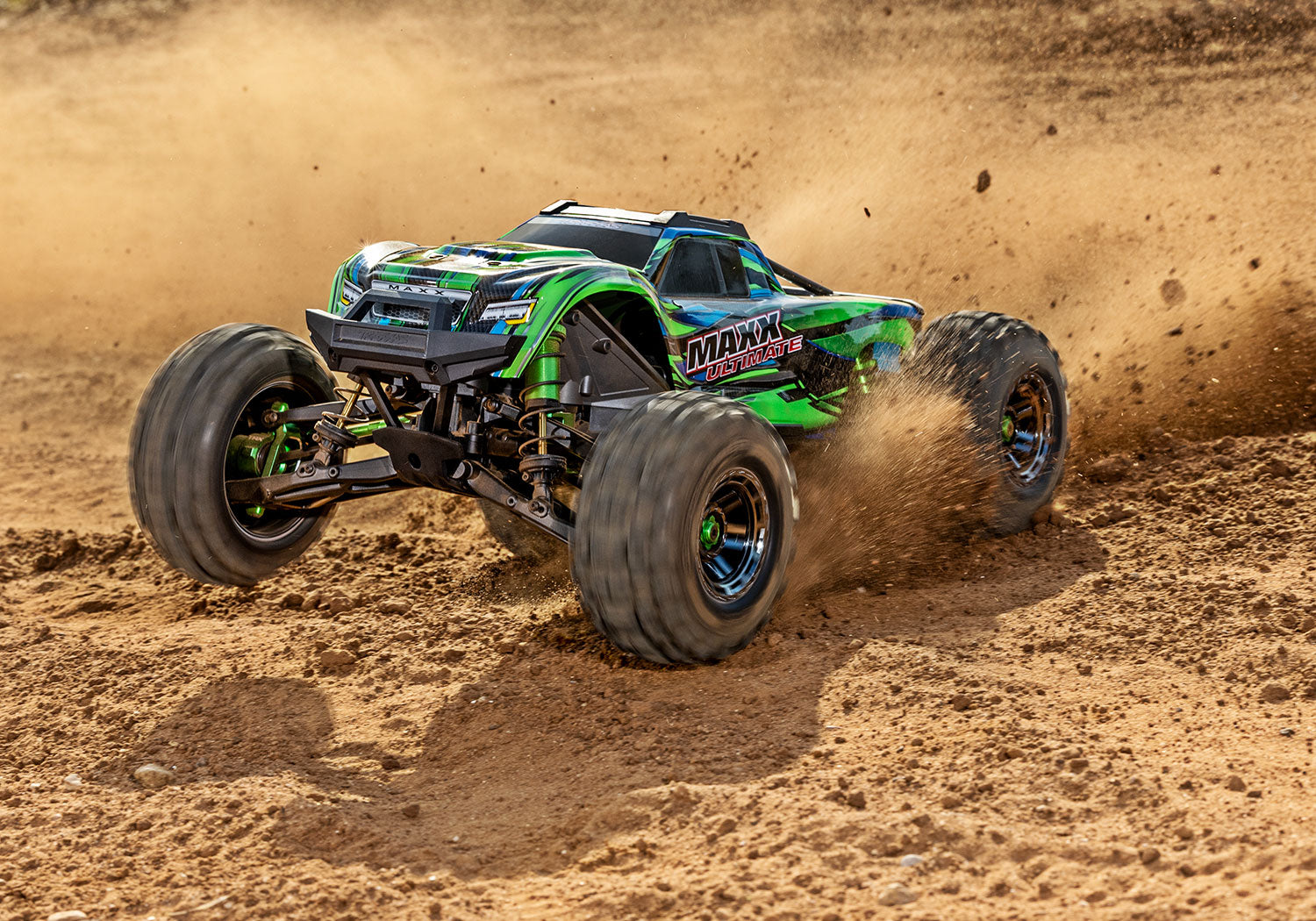

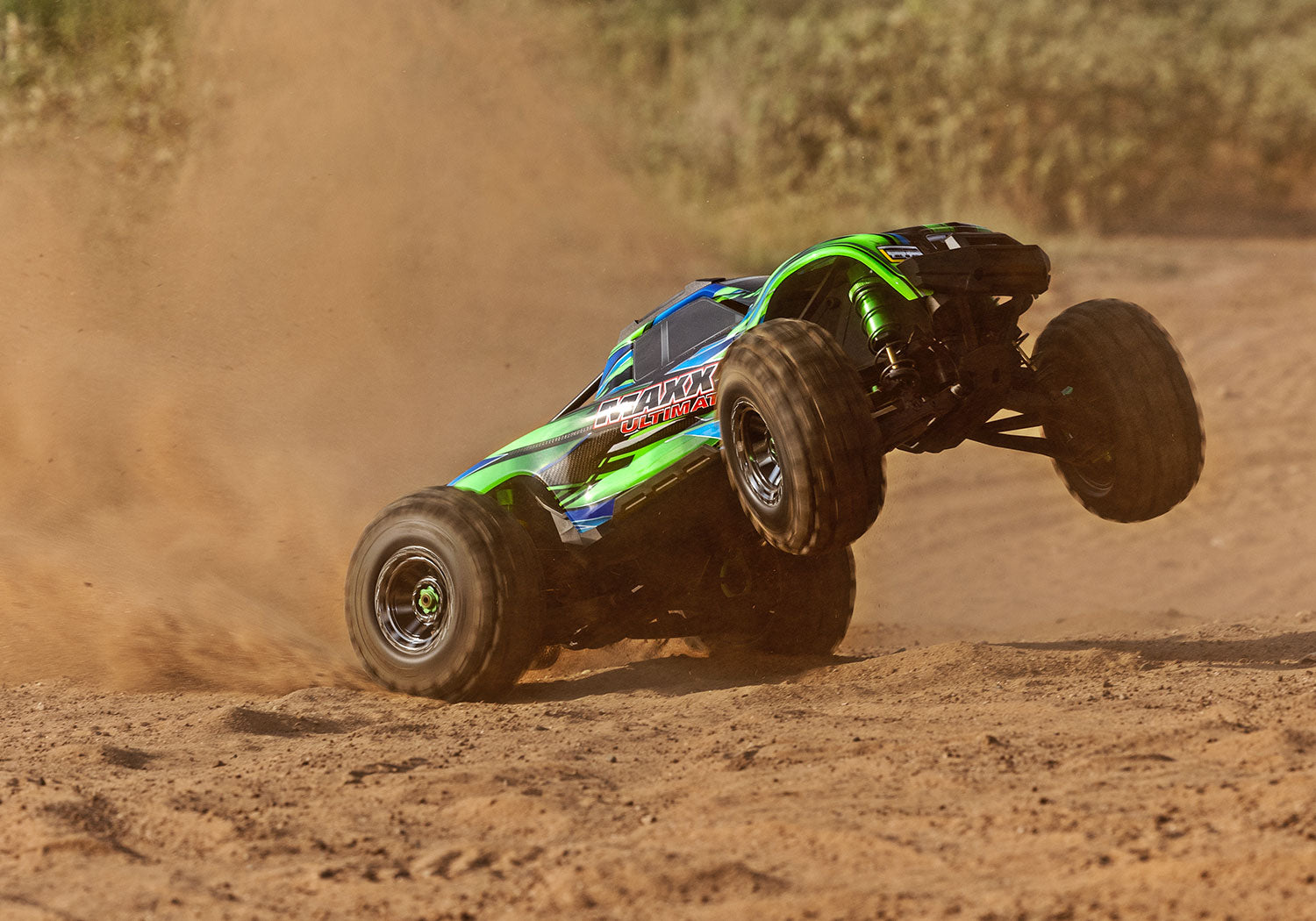

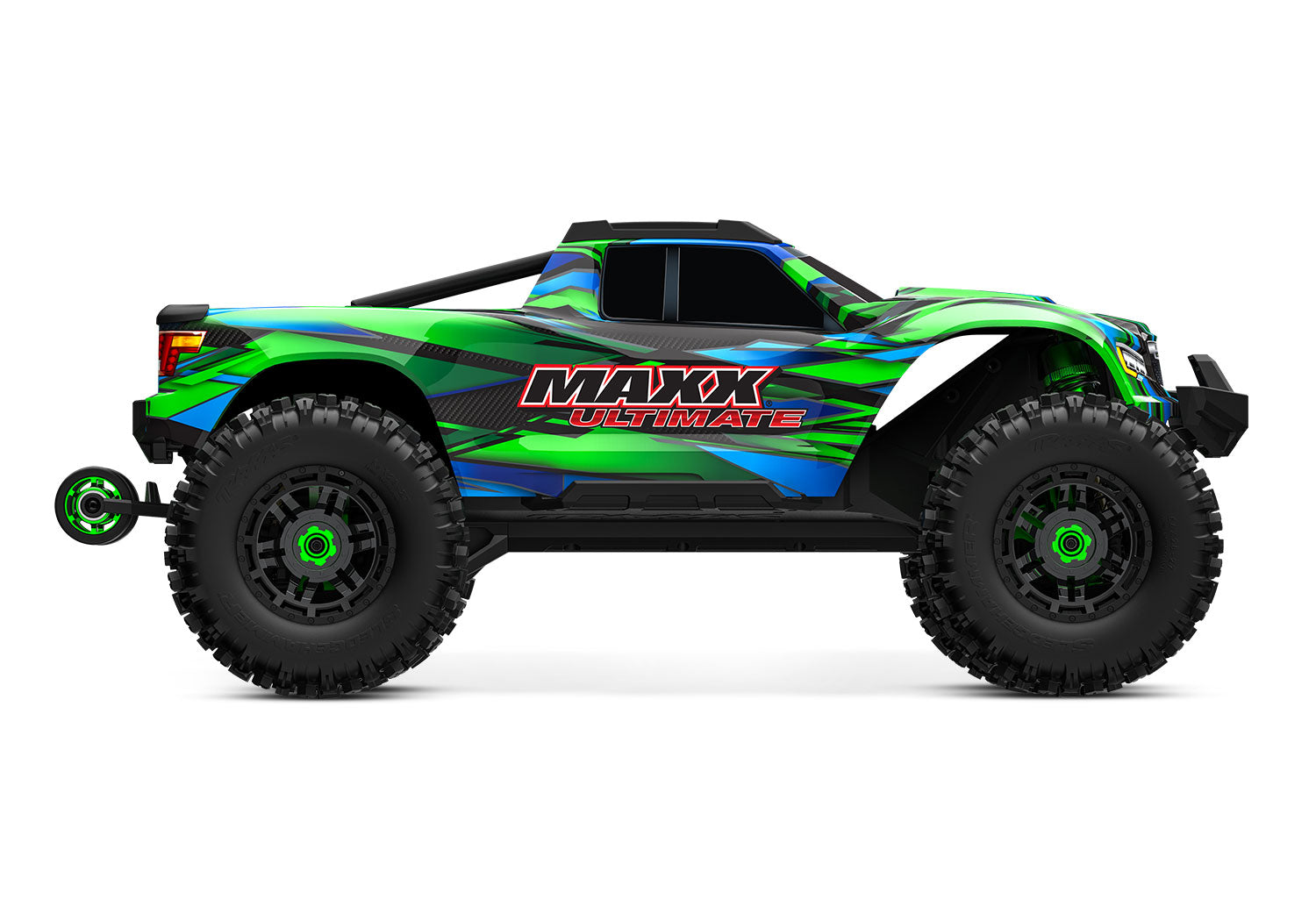

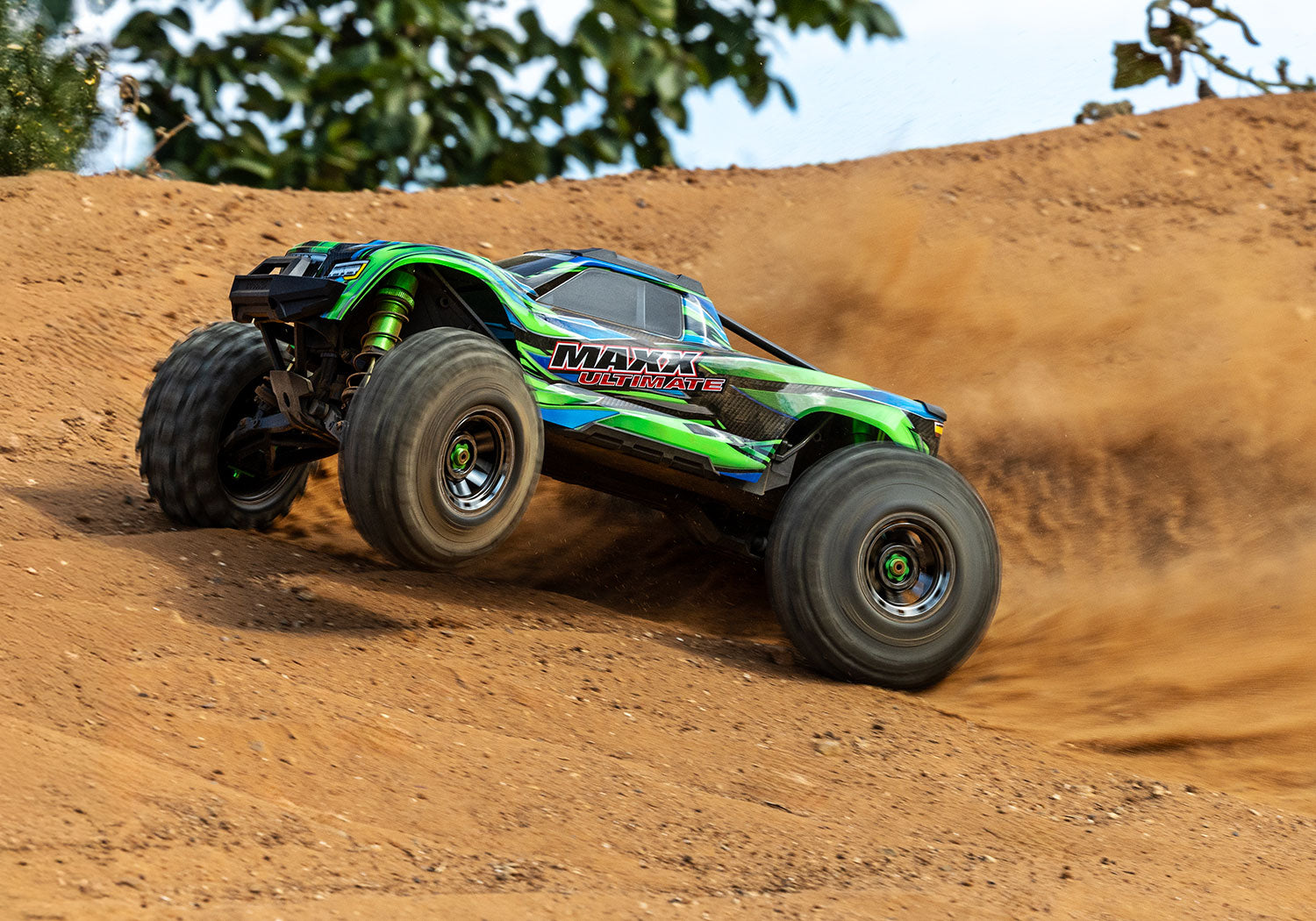

1/10 Maxx Ultimate Ready to Run (Green) (TRA89087-4-GRN)

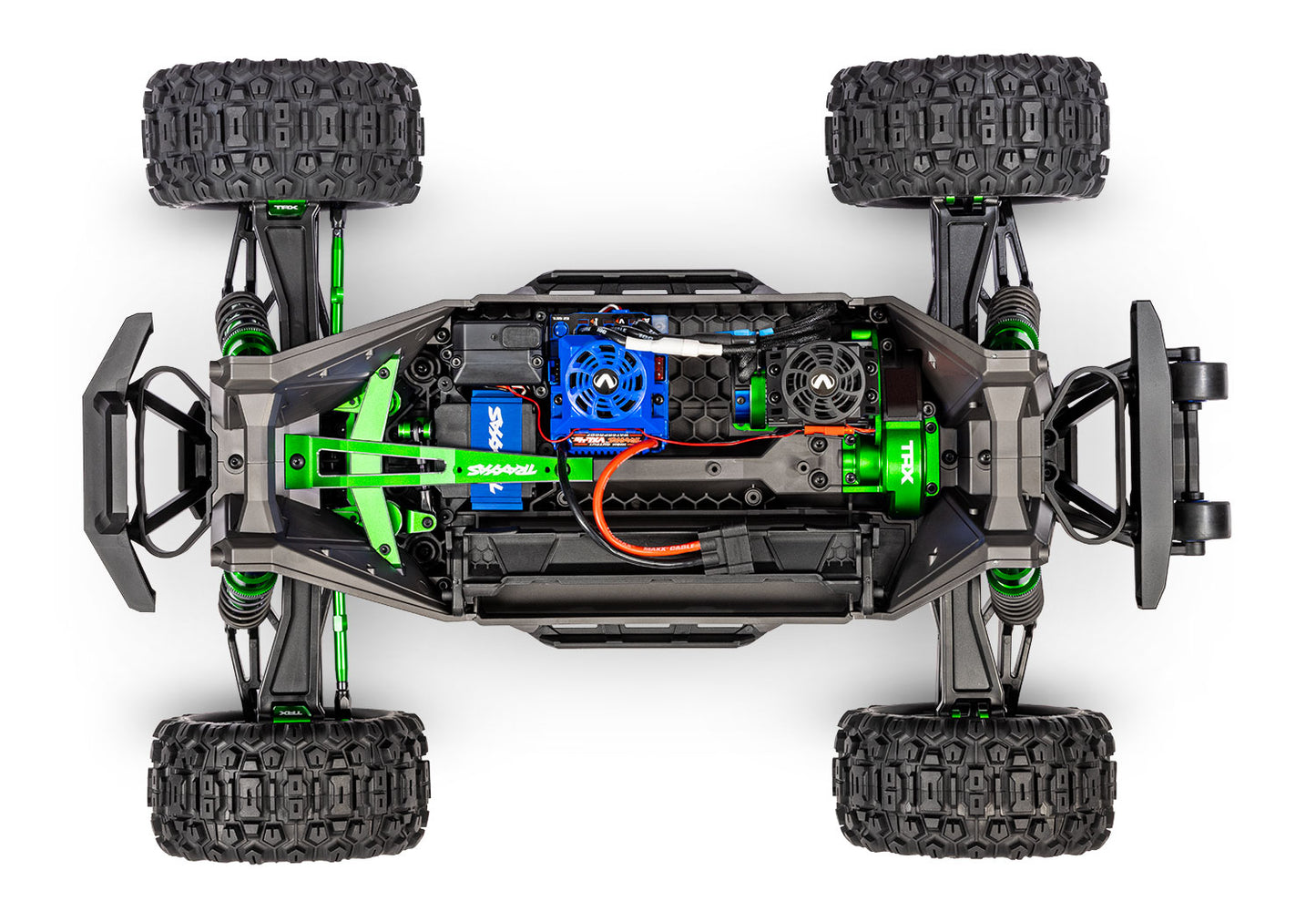

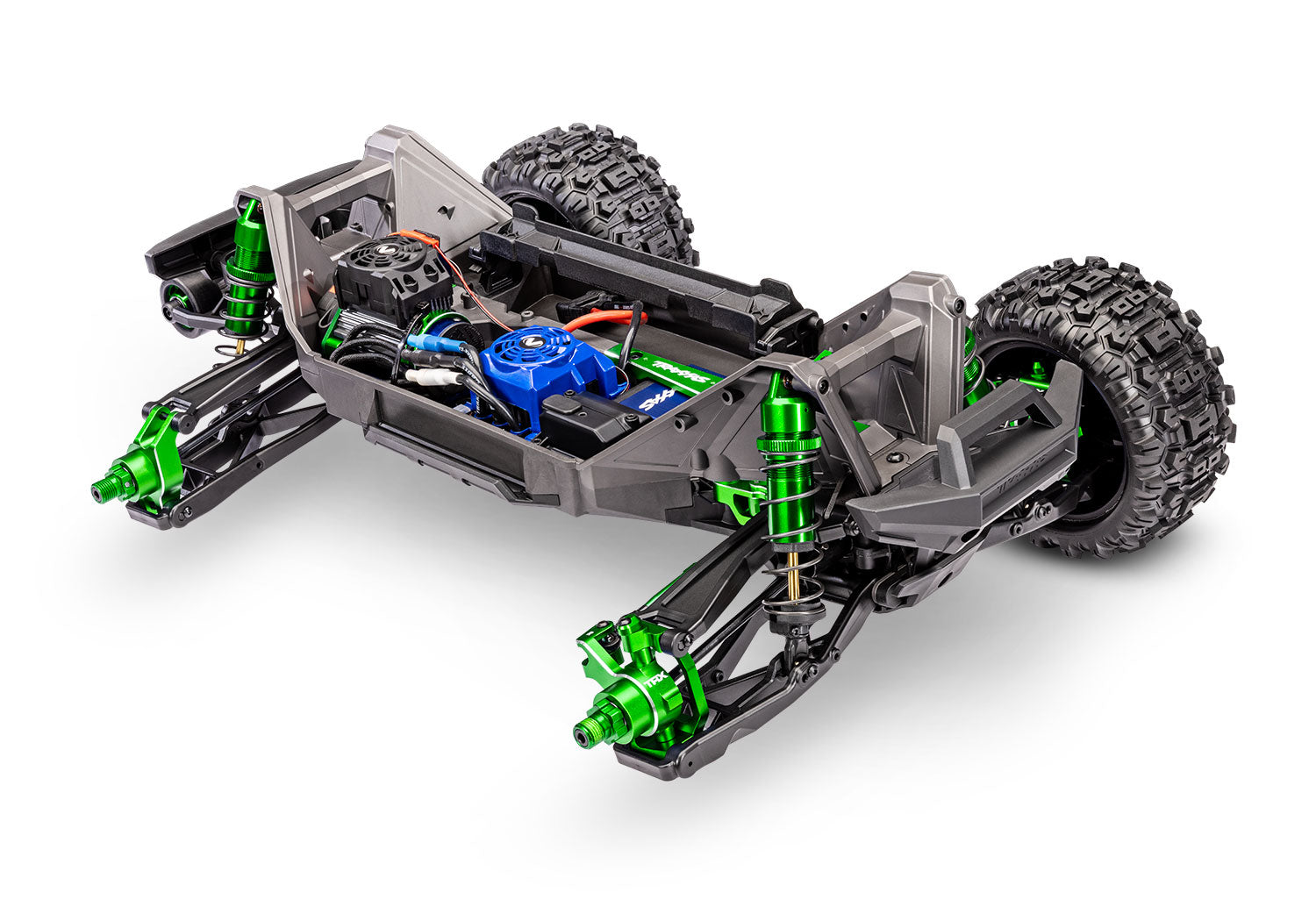

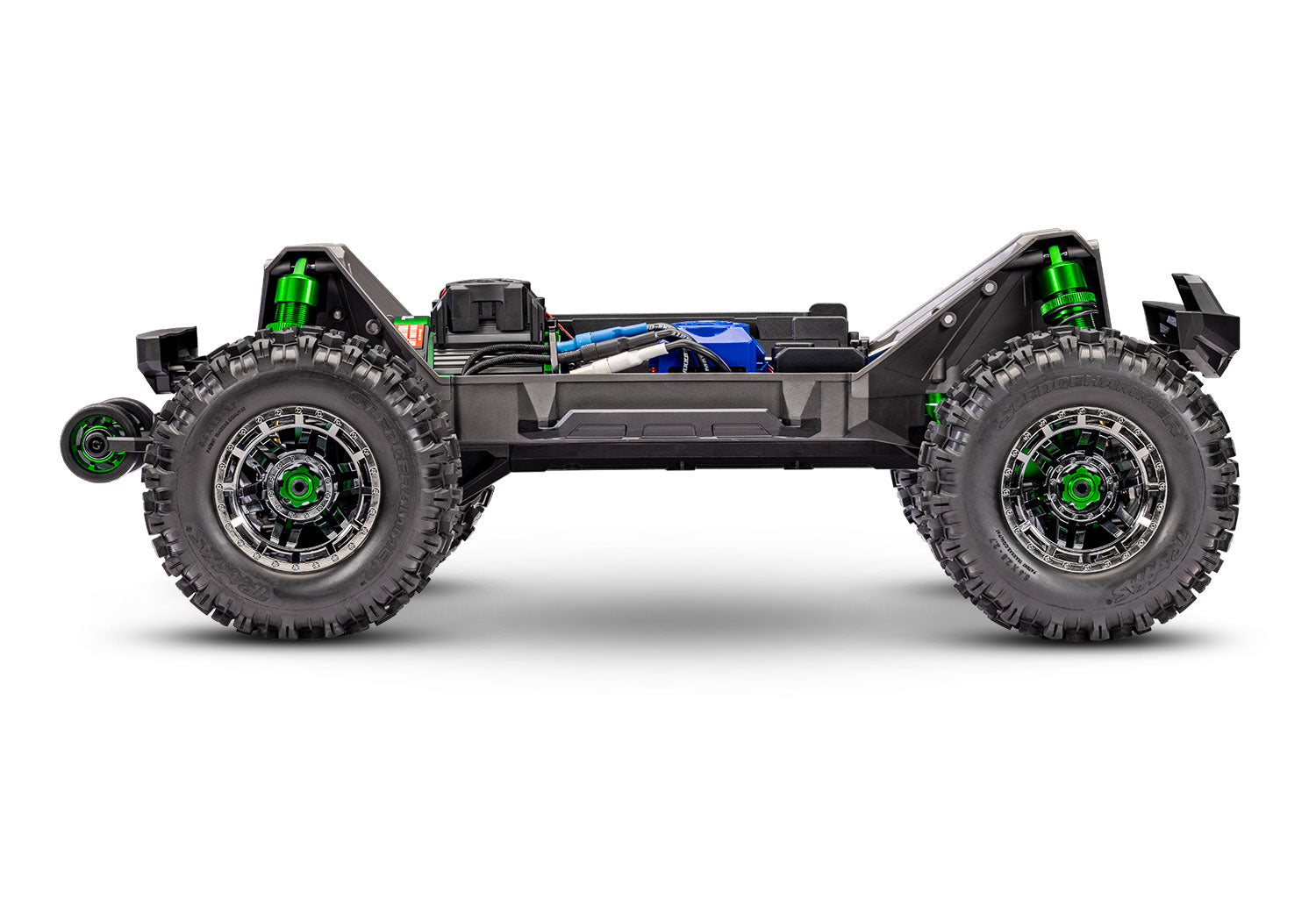

Maxx Ultimate elevates the 1/10 scale monster truck platform with a comprehensive package of durability, control, and performance upgrades. A tough 6061-T6 aluminum chassis pairs with reinforced suspension components and steel driveline parts to handle big power and hard landings while maintaining precise handling.

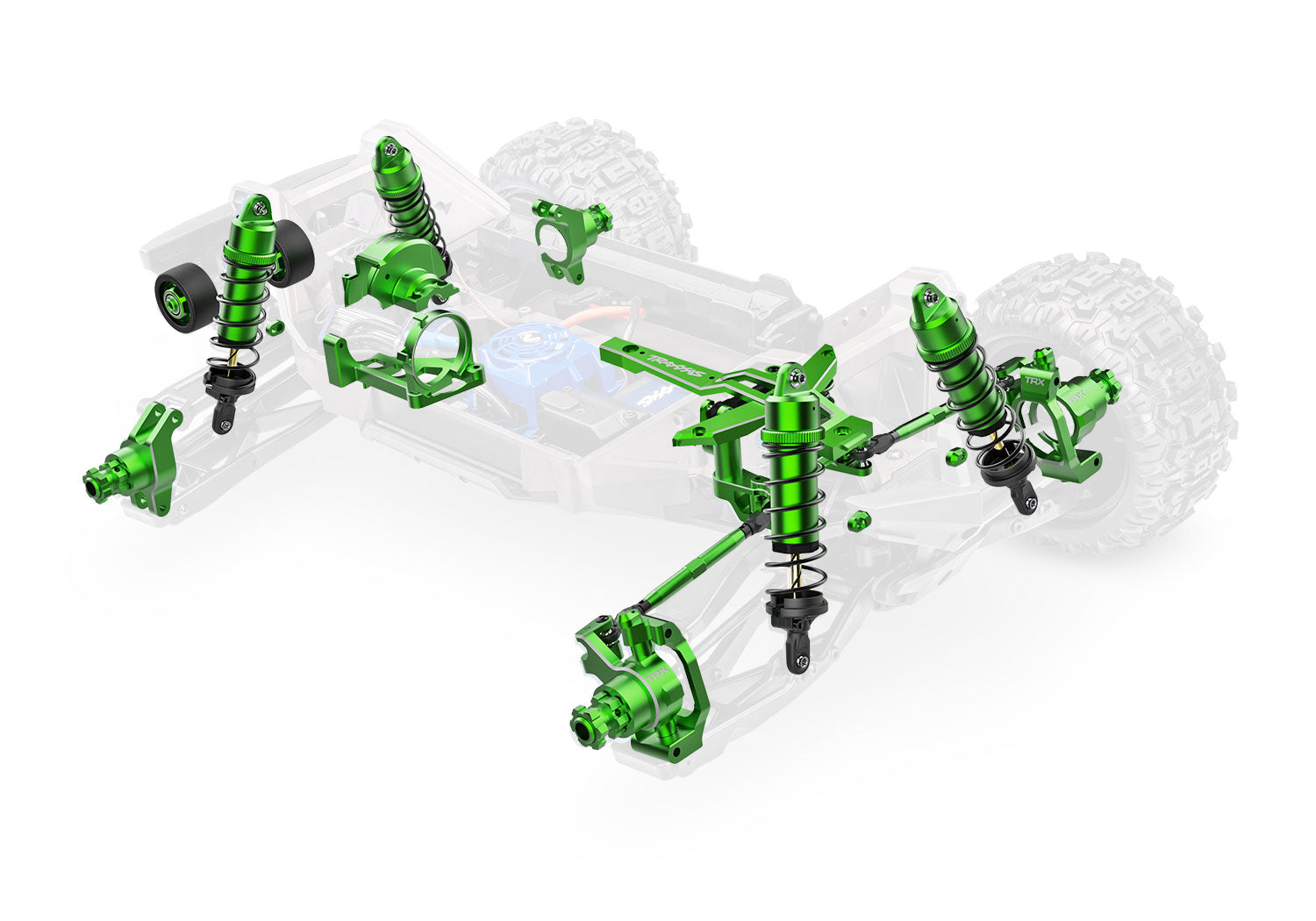

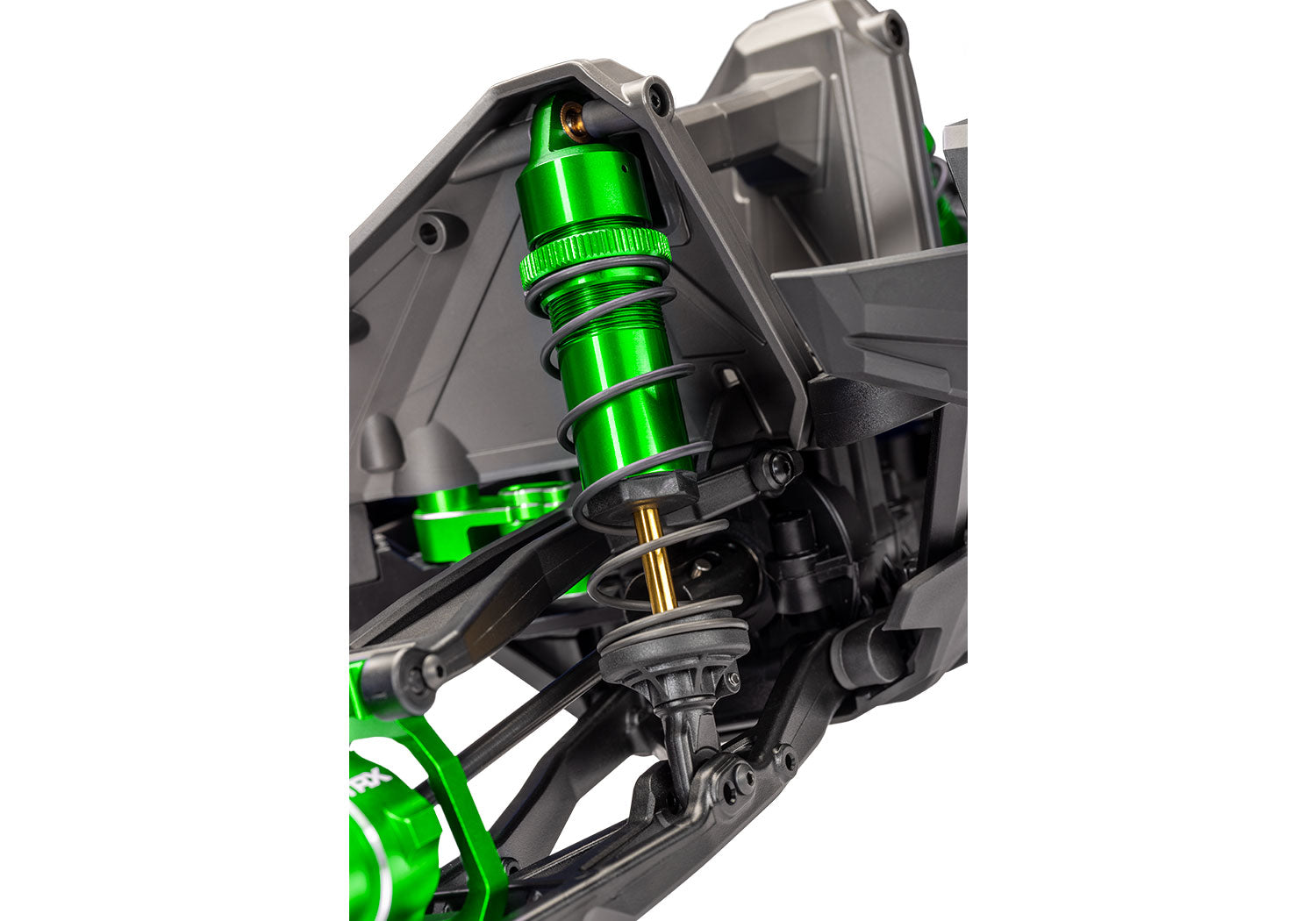

The suspension is built around large-bore GT-Maxx aluminum shocks with TiN-coated shafts, double X-ring seals, and threaded bodies for smooth, consistent damping and easy ride height adjustments. Adjustable TUBES toe links, machined from ultra-high-grade 7075-T6 aluminum, add rigidity without excess weight. Precision continues with 6061-T6 aluminum caster and steering blocks, hub carriers, and suspension pin retainers, along with an ultra-rigid aluminum bellcrank assembly and a color-matched front chassis brace for added structural strength.

Power delivery is engineered for reliability and response. Steel CV driveshafts and Mod-1 steel gears are backed by a torque-biasing center drive that distributes power to all four wheels. The Cush Drive uses an elastomer damper to absorb driveline shocks from the steel spur gear for instant acceleration and consistent throttle control. An aluminum transmission cover locks alignment in place, and an aluminum motor cradle supports the 540XL motor to eliminate flex under load. Splined 17 mm aluminum wheel hubs provide a solid connection to 2.8-inch wheels wrapped in massive 5.6-inch Sledgehammer tires, while an integrated wheelie bar with aluminum wheels, sealed bearings, and soft-compound tires helps manage hard launches and rough landings.

Steering authority comes from the High Torque Maxx Servo with full metal gears and 650 oz-in of torque, paired with an aluminum double-shear servo horn for fast, confident response. Tight tolerances and sealed bearings in the steering system deliver precise control, even with the truck\u2019s oversized tires.

Control and tuning are enhanced by the TQi transmitter with a pre-installed Traxxas Link Wireless Module. The Traxxas Link app enables real-time telemetry viewing\u2014such as speed, RPM, and battery voltage\u2014and provides intuitive adjustments for steering and throttle sensitivity, steering percentage, braking strength, and throttle trim from a mobile device.

Distinctive styling complements the performance hardware. Black chrome wheels and unique ProGraphix paint give the body a bold look, while internal reinforcements and a rigid frame add protection during rollovers. Anodized aluminum accents throughout the chassis and drivetrain complete the high-performance presentation.

• 6061-T6 aluminum chassis and suspension components for enhanced durability and style
• Steel CV driveshafts and Mod-1 steel gears for maximum torque handling and long-term reliability
• Pre-installed Traxxas Link wireless module for full telemetry and mobile app tuning
• View real-time telemetry such as speed, RPM, and battery voltage via smartphone or tablet
• 5.6-inch Sledgehammer tires with aggressive open-block tread for superior traction
• Black chrome 2.8-inch wheels with splined 17 mm hex mount for strong axle connection
• 650 oz-in high-torque servo with full-steel gears for reliable and powerful steering
• Aluminum center section with cooling fins and ball bearings for smoother, precise servo operation
• TQi transmitter with wireless module enables tuning and telemetry via the Traxxas Link app
• Adjust steering and throttle sensitivity, brake strength, and throttle trim through HD sliders
• Adjustable Tubes toe links machined from 7075-T6 aluminum for maximum rigidity and minimal weight
• Vibrant anodized aluminum suspension pin retainers for added durability and style
• Unique ProGraphix paint and rigid internal body frame provide standout looks and rollover protection
• Integrated wheelie bar with aluminum wheels and sealed ball bearings for stable acceleration

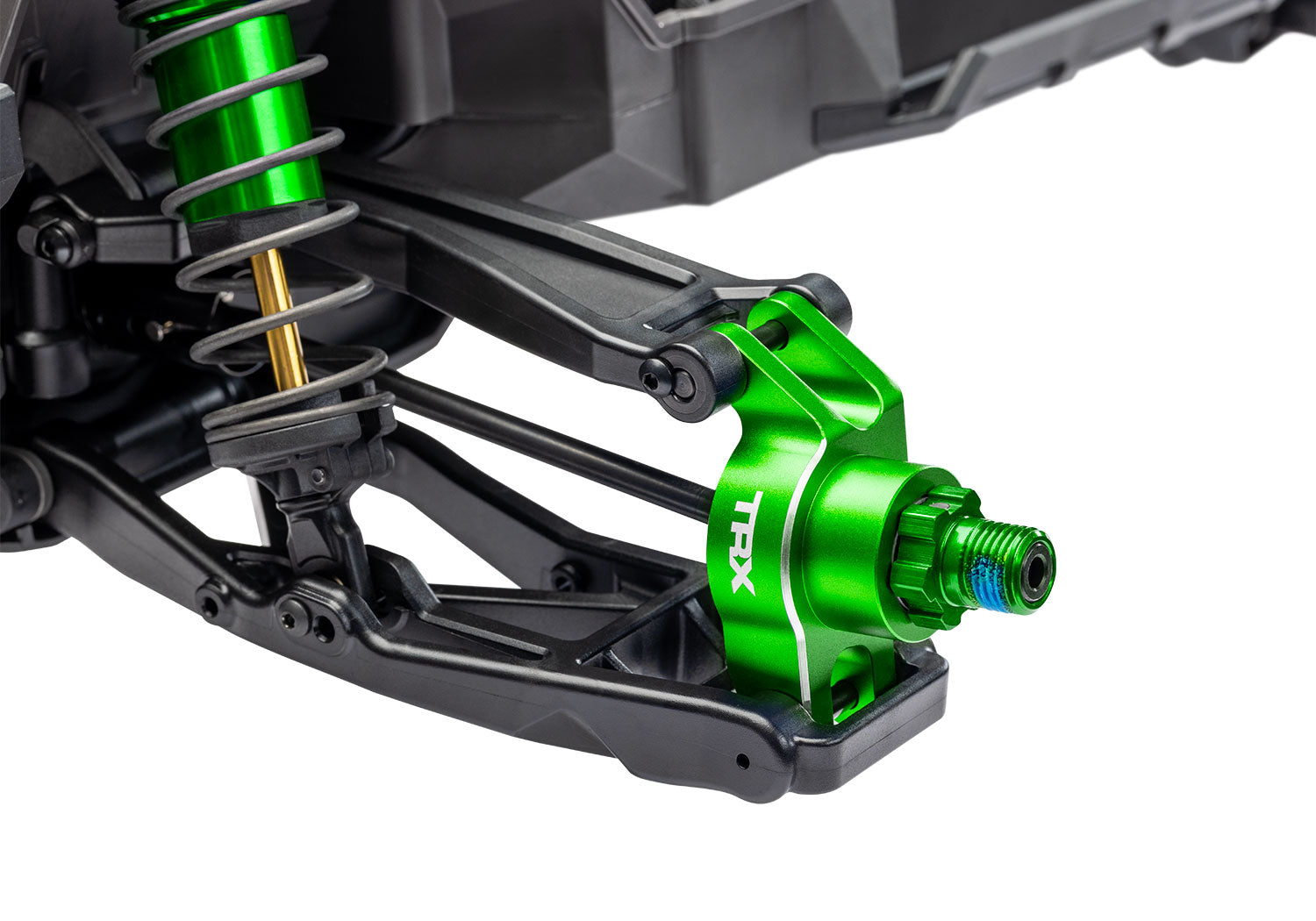

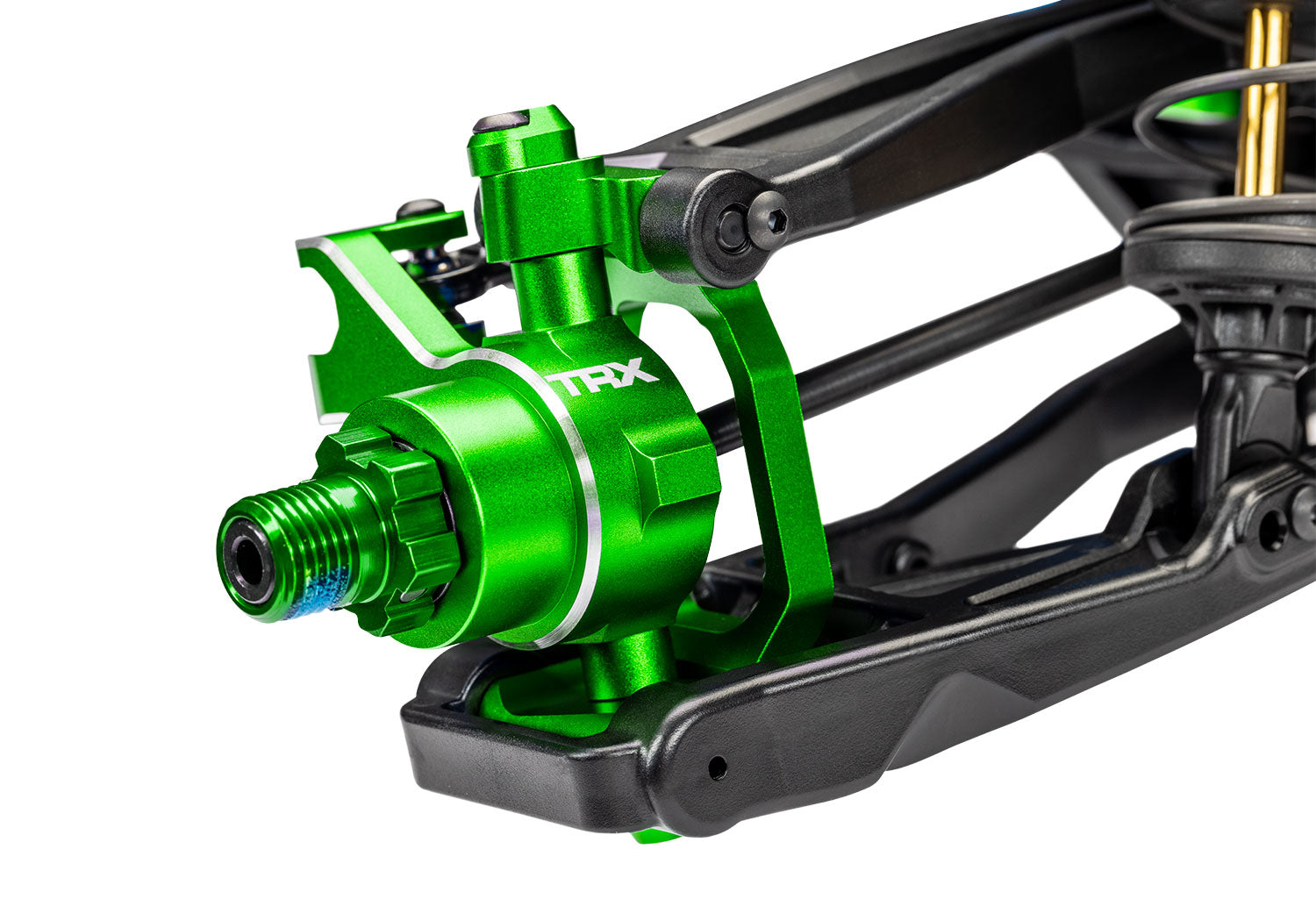

• 6061-T6 aluminum hub carriers maintain precise suspension geometry and boost strength
• 17 mm splined aluminum wheel hubs and matching nuts ensure grip and precise alignment
• Aluminum caster and steering blocks for added strength and optimized geometry

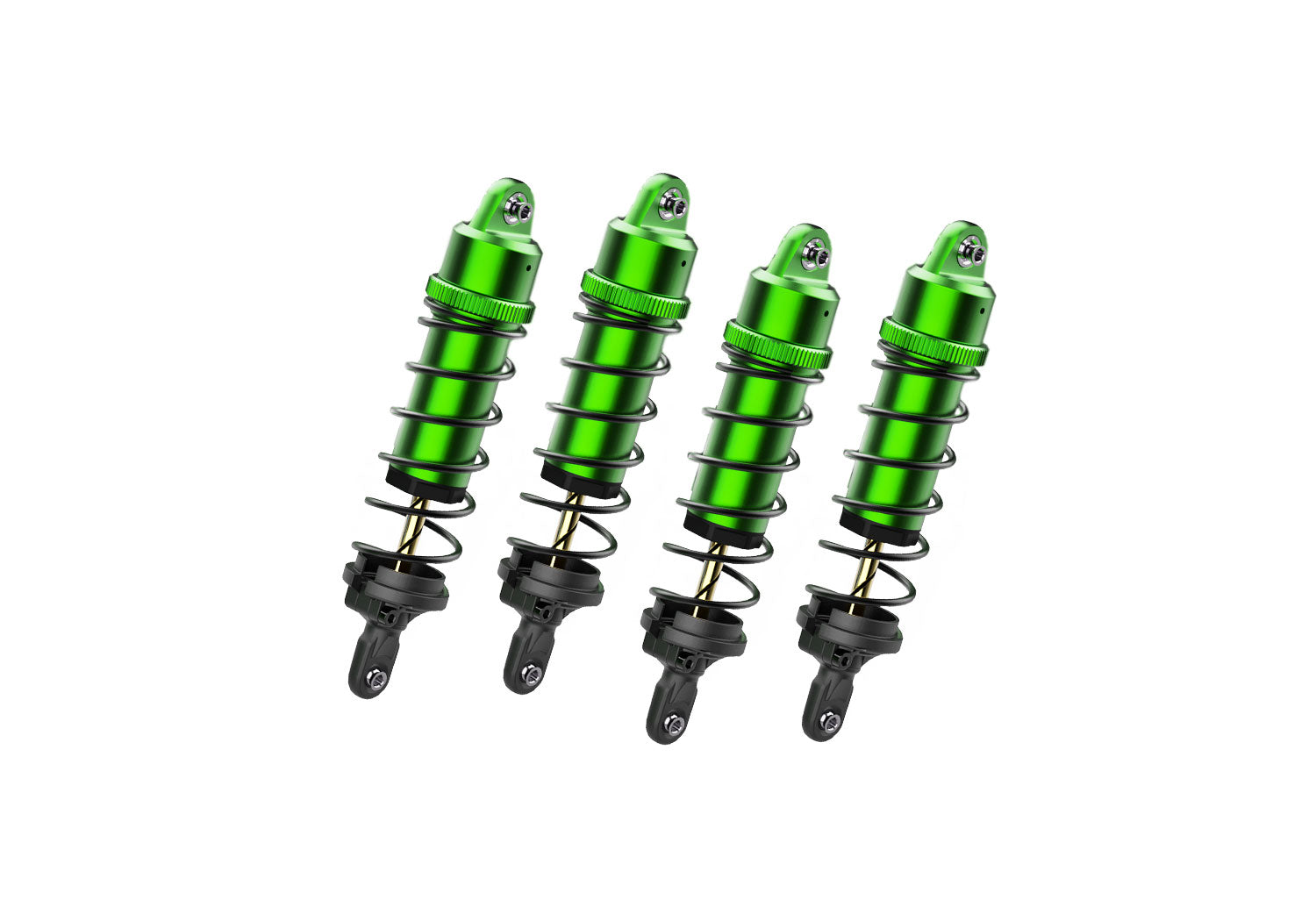

• GT-Maxx aluminum shocks with TiN-coated shafts and threaded bodies for plush, tunable suspension
• Steel constant-velocity driveshafts for efficient power transfer and extreme torque capacity

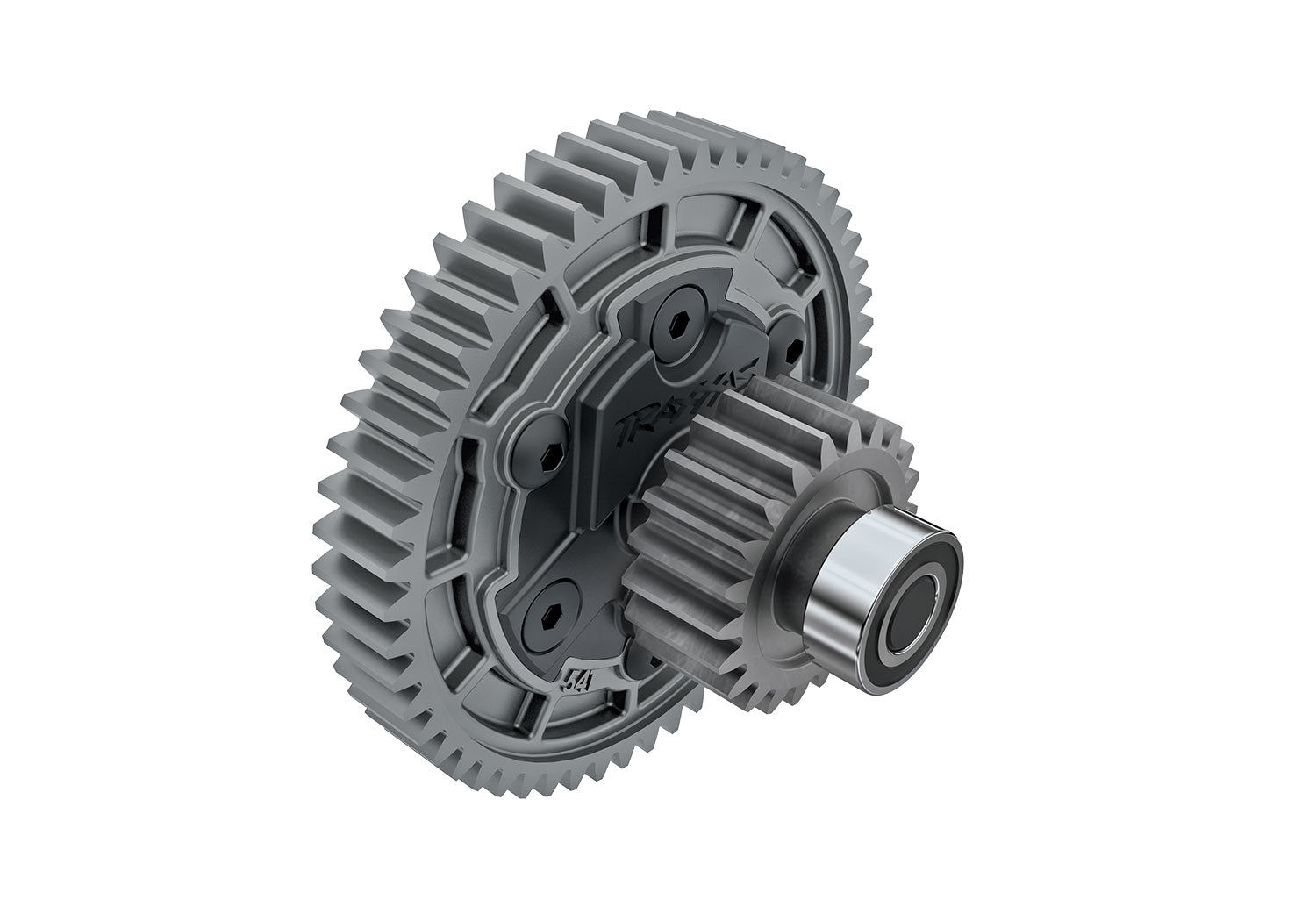

• Shock-absorbing Cush Drive with elastomer damper eliminates slipping and maintains precise control
• 6061-T6 aluminum transmission cover with laser-etched logo maintains alignment and adds style

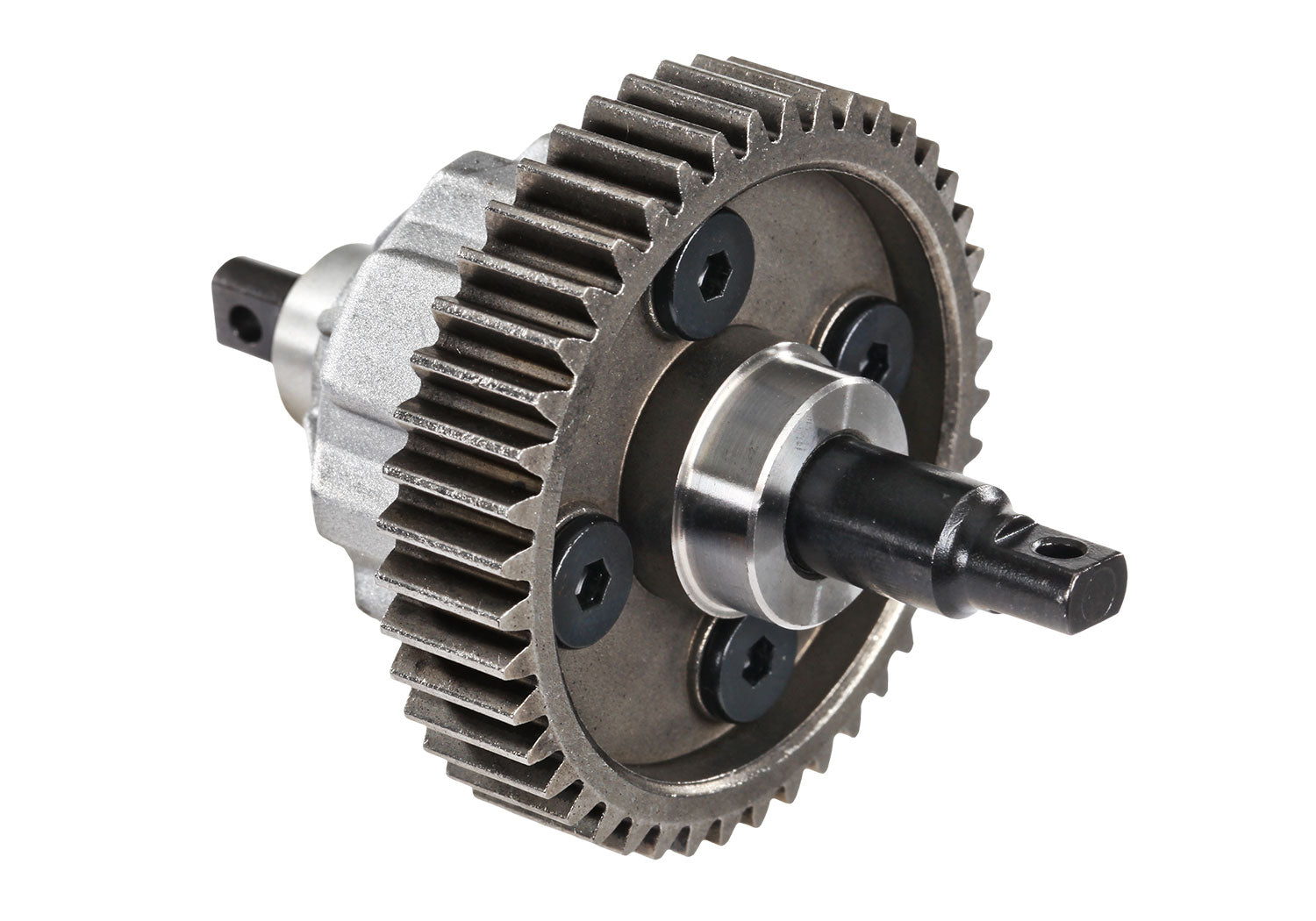

• Torque-biasing center differential with aluminum housing distributes power and absorbs shocks
• Aluminum motor cradle eliminates gear flex and supports high-performance 540XL motor
• 2085RL high-torque metal gear servo with aluminum servo horn for responsive high-speed steering
• Aluminum front chassis brace adds structural strength for skate-park use and hard landings

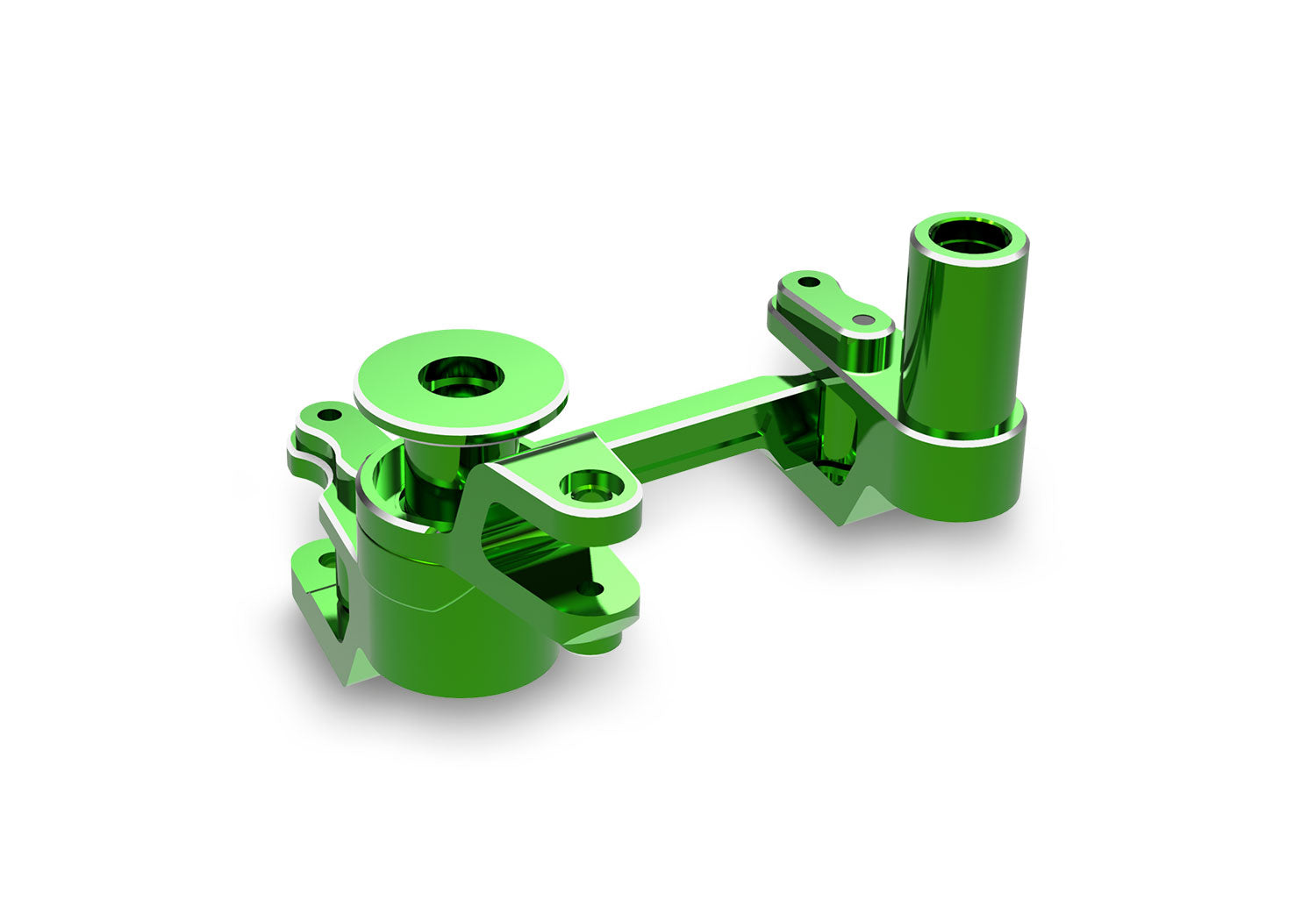

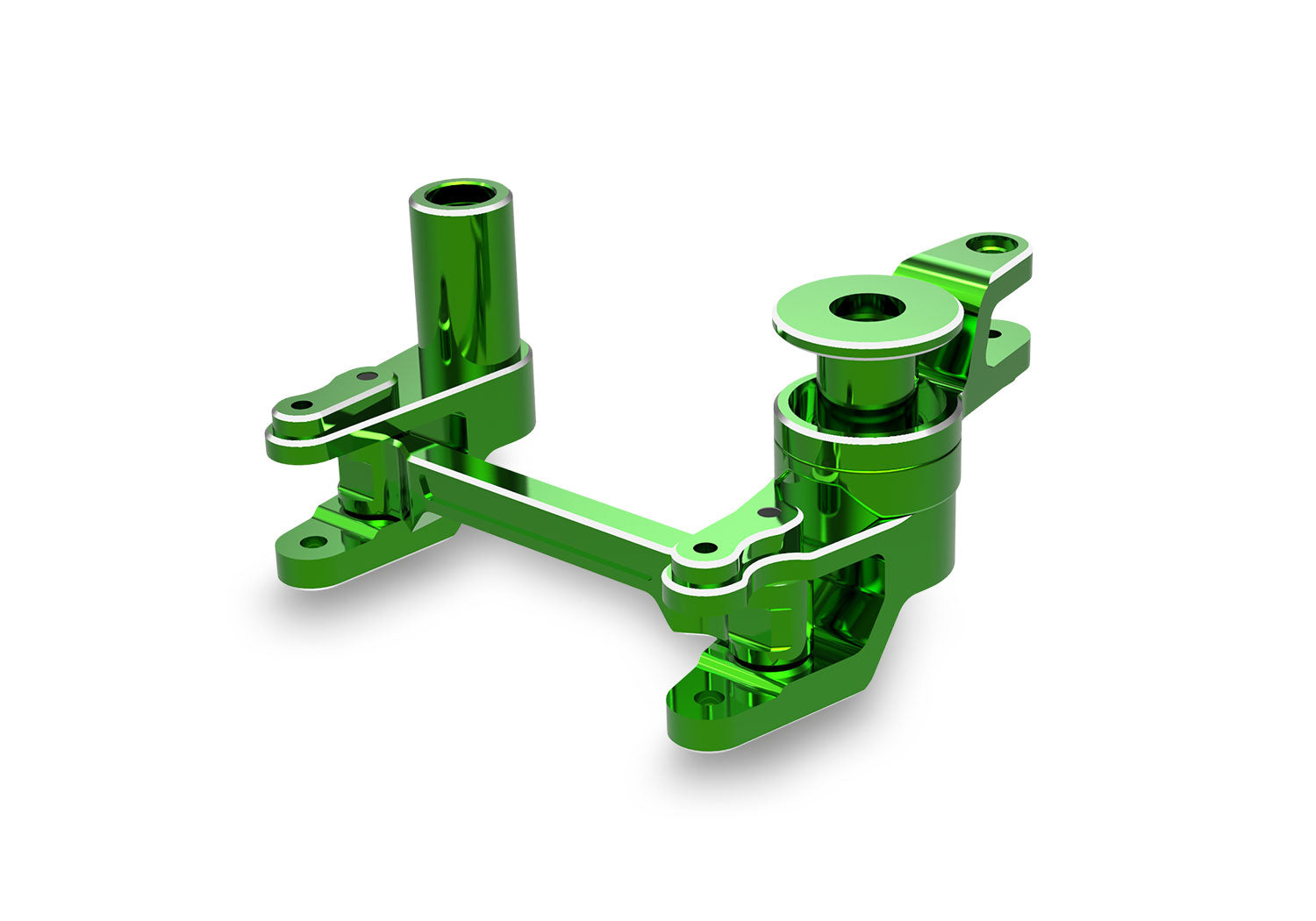

• 6061-T6 aluminum bellcrank assembly for improved steering precision and servo-saver protection

• Model Name: Maxx Ultimate
• Type: Monster Truck
• Top Speed: 60+ mph with 4s LiPo battery and optional gearing
• Model Skill Level: 4
• Scale: 1/10
• Weight: 10.20 pounds (4.63 kg)
• Length: 22.50 inches (572 mm)
• Width: 15.95 inches (405 mm)
• Track: 15.95 inches (405 mm)
• Height: 9.12 inches (232 mm)
• Wheelbase: 13.85 inches (352 mm)
• Center Ground Clearance: 2.6 inches (67 mm)
• Drivetrain: Shaft-driven 4WD
• Transmission: Single speed
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Ratio (Internal): 12.37:1
• Gear Pitch: 1.0 metric pitch
• Servo: 2085RL metal gear ultra-high-torque (650 oz-in)
• Radio System: TQi 2.4 GHz 2-channel transmitter with wireless module
• Battery Compartment Specs: 186 mm x 48 mm x 43 mm
