Kyosho (KYO)

SKU:KYO34362C

1/10 Outlaw Rampage Pro Kit (KYO34362C)

1/10 Outlaw Rampage Pro Kit (KYO34362C)

The Kyosho Outlaw Rampage PRO 1/10 Scale Electric 2WD Trophy Truck Kit delivers an authentic trophy truck experience, combining high-performance features with durable construction. This Almost Ready to Run kit comes approximately 70% pre-assembled and includes performance upgrade parts that define it as the PRO version. Designed to capture the dynamic feel of 2WD off-road racing, it features a roll cage, long stroke aluminum oil shocks, and front and rear stabilizers with three wire gauge settings. Aluminum skid pads further protect the chassis, ensuring stable handling and enhanced durability across challenging terrains.

Built for performance and reliability, the truck includes 20 full ball bearings that reduce drive loss and maintain smooth operation. Hex screws are used throughout the build to simplify maintenance while providing robust durability. The drivetrain is engineered for heavy-duty use, featuring a 32-pitch module counter gear and reinforced differential gear. Larger gear modules increase overall strength and performance under high-stress conditions. A 3-piece front bumper protects the chassis during impacts, and a lever lock holder makes battery removal fast and easy.

Handling is refined with a front double-wishbone suspension system and extended suspension arms for superior stability and traction. At the rear, the rigid axle differential delivers smooth articulation and consistent grip, giving drivers precise control over various surfaces. The truck also includes a connector holder on the radio plate for single-hand removal. With its advanced design, adjustability, and high-quality components, the Outlaw Rampage PRO provides a competitive edge for enthusiasts ready to take on the demands of 2WD off-road racing.

This kit includes the Kyosho Outlaw Rampage PRO chassis, a pre-cut clear body, decal sheet, hex wrench, and shock oil. Required to complete the model are a 2-channel radio system with servo, 540-class motor, compatible ESC, chassis battery, charger, polycarbonate body paint, transmitter batteries, and necessary tools.

Regular price $239.99
Regular price $239.99 Sale price $239.99
Sale Sold out

Exploded View

Parts List

Product Manual

View full details

Collapsible content

Overview

Features

  • Almost Ready to Run (ARR) kit is approximately 70% pre-assembled for quick setup
  • Includes performance-enhancing optional upgrade parts standard in the PRO version
  • Rear-wheel drive 2WD design with roll cage and long-stroke aluminum oil shocks for enhanced stability
  • Front and rear stabilizers with three different wire gauge settings for adjustable handling
  • Aluminum skid pads protect the chassis during rugged use
  • Full ball bearing system with 20 high-quality bearings for smooth operation and reduced drive loss
  • Durable hex screws used throughout the model for ease of maintenance
  • Front 3-piece bumper offers protection from crash damage
  • Double-wishbone front suspension with extended arms for improved stability and traction
  • Rear suspension linked to a rigid axle differential for smooth movement and excellent traction
  • Gearbox features 32-pitch module counter gear and diff gear for enhanced durability
  • Large module gear design increases overall drivetrain strength
  • Spur gear uses 48-pitch design for performance tuning
  • Lever lock holder enables quick and easy battery removal
  • Connector holder allows single-hand removal from the radio plate

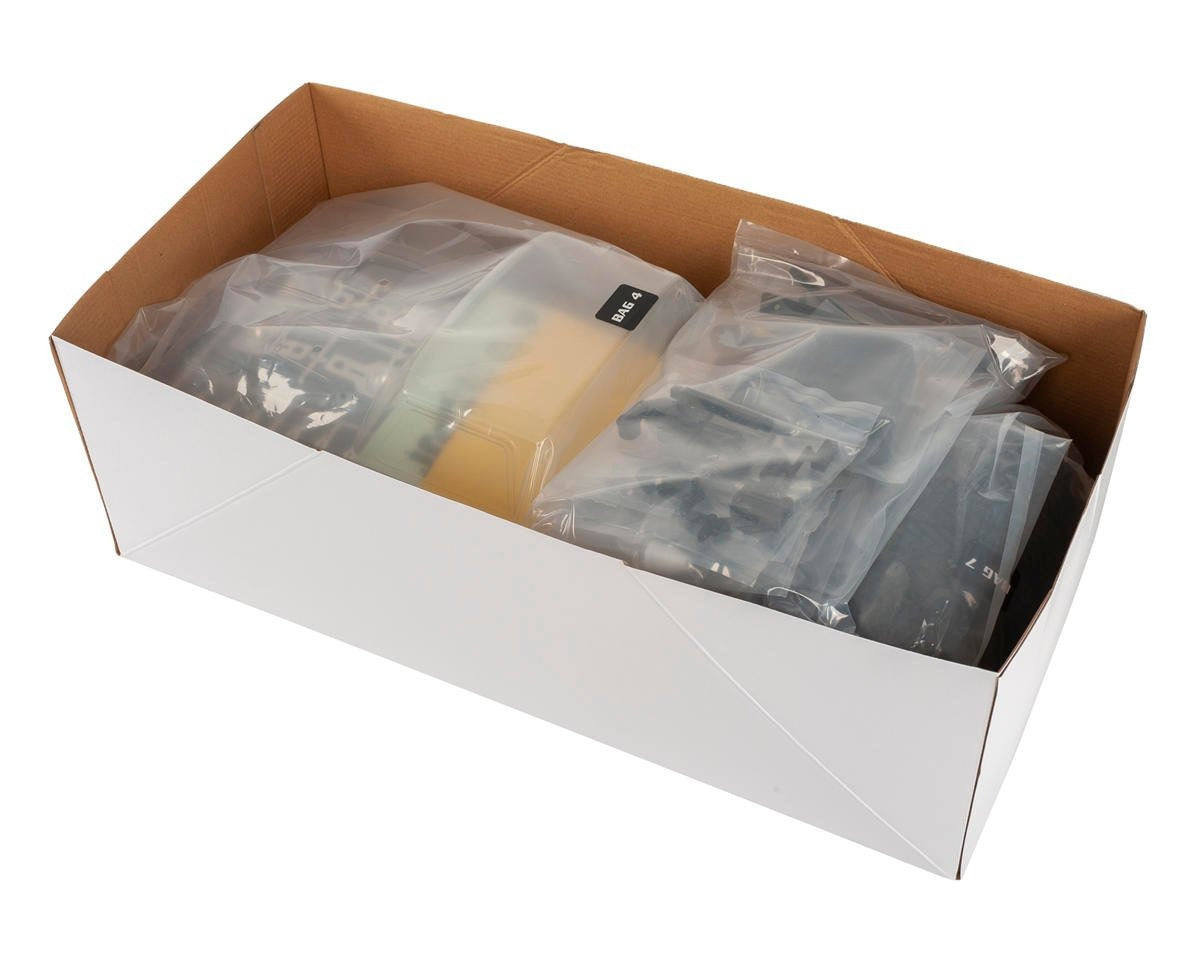

  • Includes pre-cut clear body, decal sheet, hex wrench, and shock oil
  • Requires 2-channel radio system with 1 servo, 540-class motor, ESC, battery, charger, body paint, transmitter batteries, and tools
  • Dimensions: Length 22.0" (561mm), Width 10.3" (262mm), Height 9.0" (231mm), Wheelbase 13.1" (335mm)
  • Weight: 91.7oz (2600g)
  • Gear ratio: 12.65:1

Needed to Complete

  • 2-channel radio system with 1 steering servo
  • 540 class electric motor
  • Electronic speed control (ESC) compatible with 540 motor
  • Battery for vehicle
  • Battery charger
  • Polycarbonate-safe paint for body
  • Batteries for transmitter
  • Basic tools for assembly and maintenance

Specifications

  • Model: Outlaw Rampage PRO
  • Scale: 1/10
  • Drive Type: 2WD
  • Vehicle Type: Trophy Truck Kit
  • Assembly: Almost Ready to Run (ARR), approximately 70% pre-assembled
  • Body: Pre-cut clear body included
  • Length: 22.0" (561mm)
  • Width: 10.3" (262mm)
  • Height: 9.0" (231mm)
  • Wheelbase: 13.1" (335mm)
  • Weight: 91.7oz (2600g)
  • Gear Ratio: 12.65:1
  • Chassis Protection: 3-piece front bumper and aluminum skid pads
  • Shocks: Long stroke aluminum oil shocks
  • Suspension (Front): Double-wishbone with extended arms
  • Suspension (Rear): Linked to rigid axle differential
  • Stabilizers: Front and rear with 3 wire gauge settings
  • Gearbox: 32-pitch module counter gear and diff gear
  • Spur Gear: 48-pitch
  • Bearings: Full ball bearings (20 total)
  • Hardware: Hex screws throughout
  • Battery Holder: Lever lock for easy removal
  • Connector Holder: One-hand removable connector to radio plate
  • Included Items: Kit, pre-cut clear body, decal sheet, hex wrench, shock oil
  • Required Items: 2-channel 1-servo R/C system, 540 class motor, compatible ESC, chassis battery, charger, polycarbonate body paint, transmitter batteries, tools
