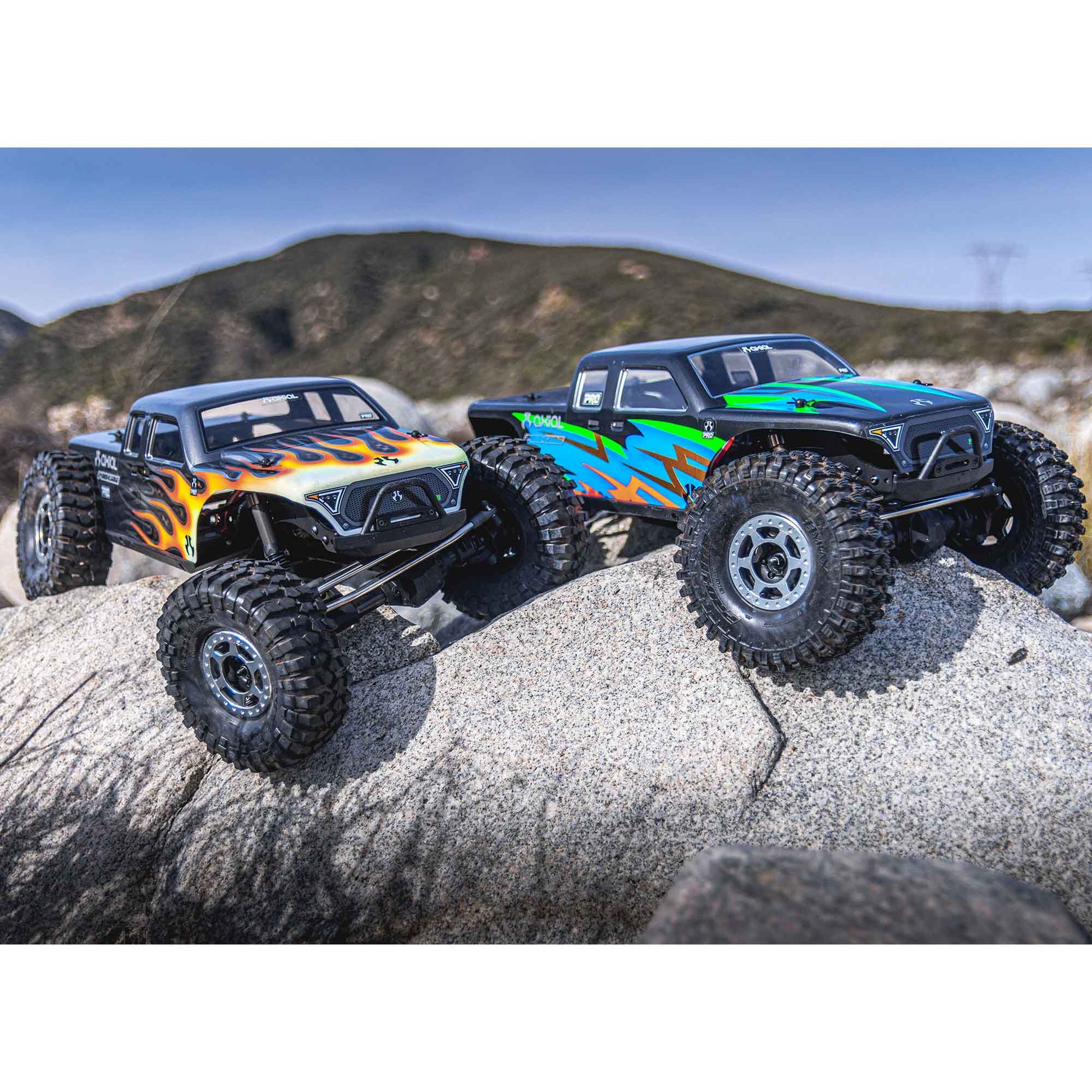

1/10 SCX10 Pro Comp Scaler Kit (AXI03028)
1/10 SCX10 Pro Comp Scaler Kit (AXI03028)

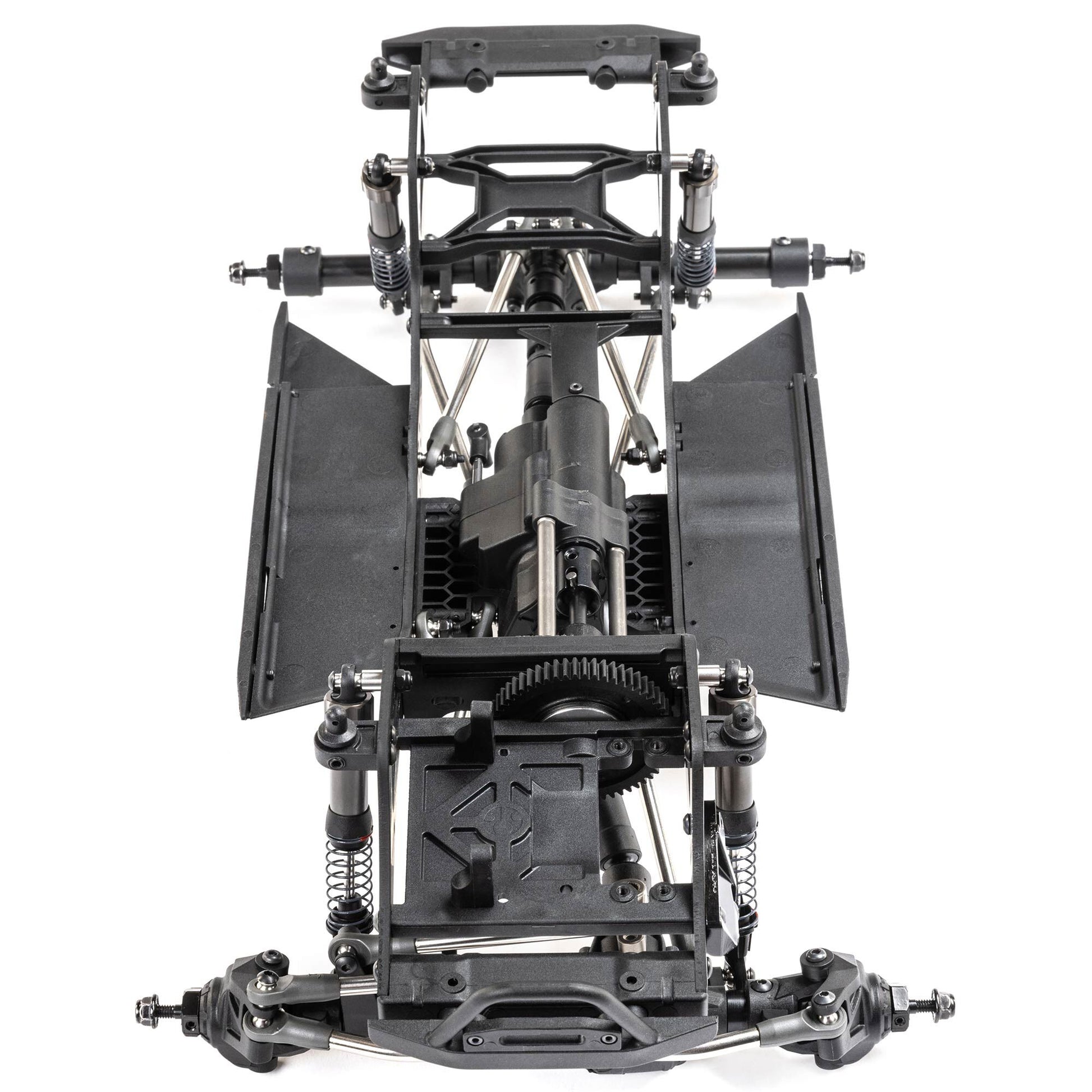

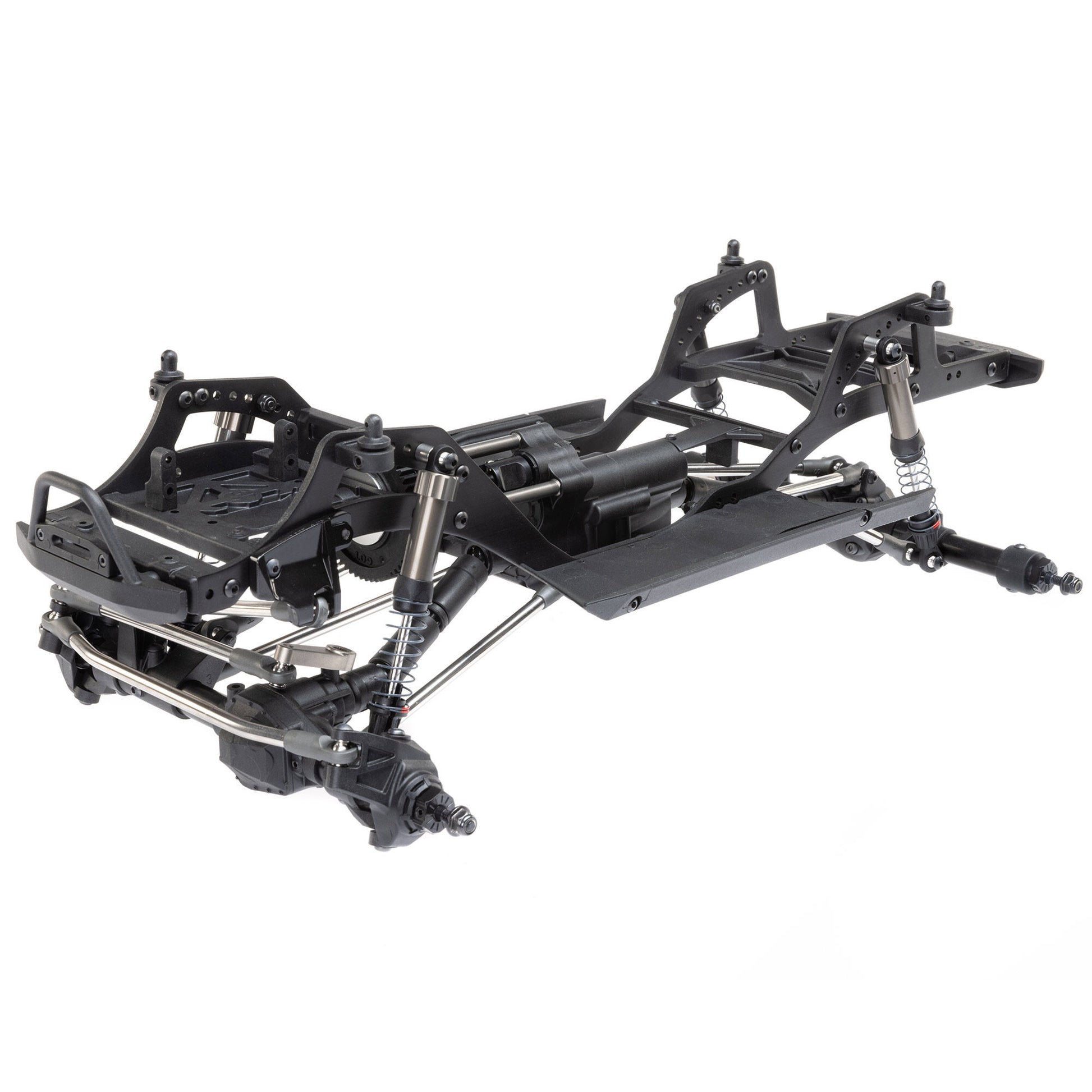

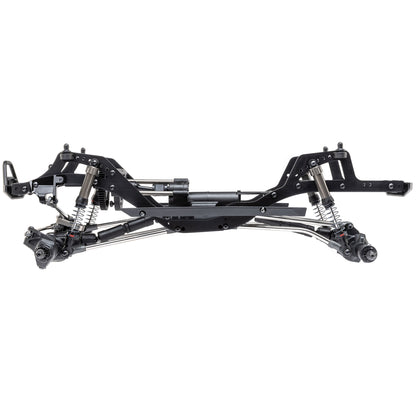

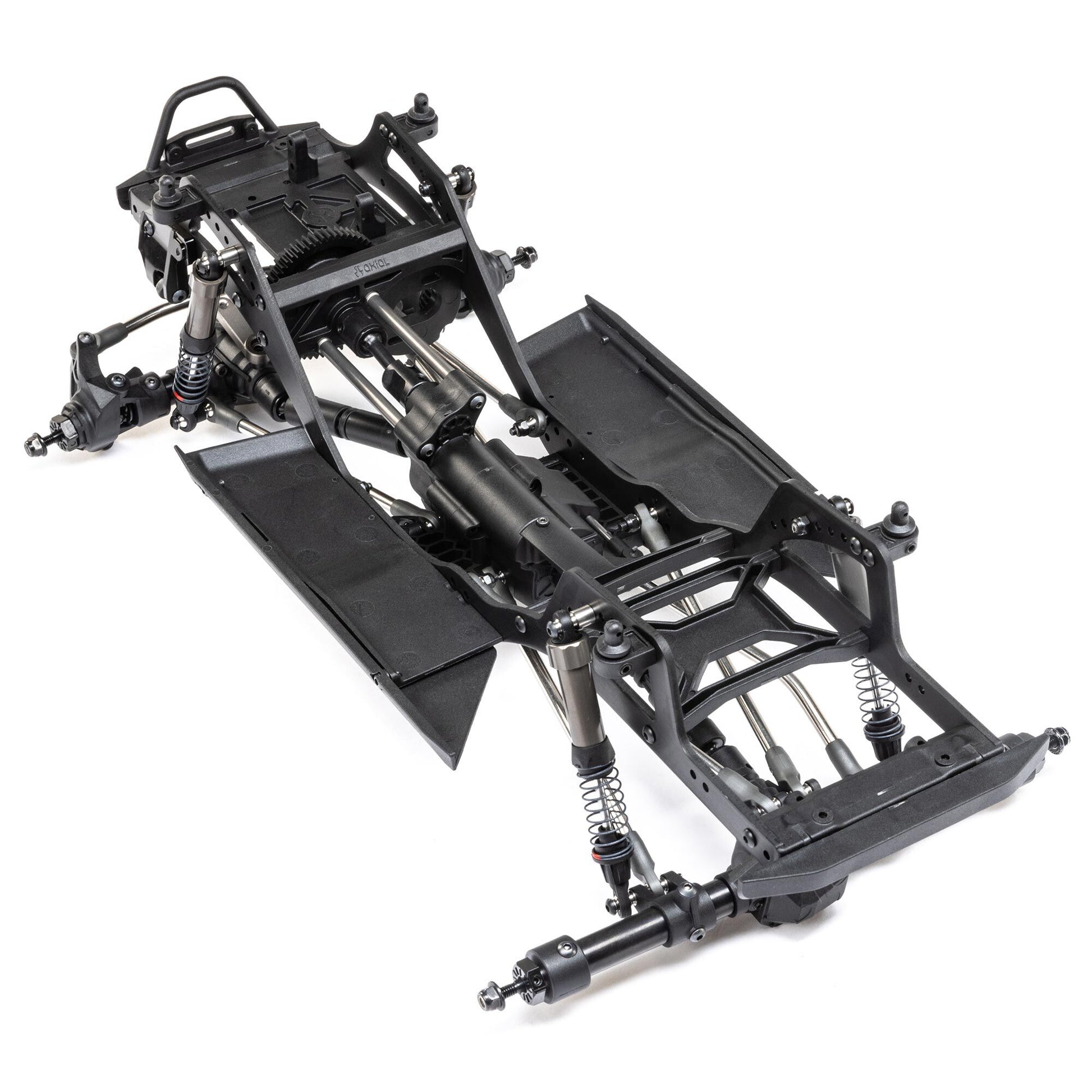

Introducing the 1/10-scale SCX10 Pro 4WD competition-ready crawler kit — a purpose-built scale rig designed to tackle demanding trails with precision. Built for competition and serious trail work, it features a lightweight, lower-profile aluminum chassis that’s highly adjustable for climbs, side hilling, and break-over. The kit blends a 3-link/4-link suspension, aluminum oil-filled shocks, and full ball bearings to deliver smooth, dependable handling right out of the box.
Designed for versatility, it supports both axle-mounted (AMS) and chassis-mounted (CMS) servos to enhance the scale look. The motor sits forward and low for balanced weight distribution, helping maintain stability on challenging lines. The shift-able underdrive transmission lets you reduce the rear drive by 40 percent manually or with a servo, delivering tighter turns and less torque twist on climbs. Aluminum smooth-body shocks provide higher clearance, with a 96 mm eye-to-eye length and 12 mm springs for tunable suspension. The Pro kit is lightweight, easy to assemble, and has a proven competition record, so it’s ready to pair with preferred electronics, a body, tires, and wheels to build a top-tier crawler.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual

Collapsible content
Overview
The 1/10 SCX10 Pro 4X4 Kit stands out as a premium option that seamlessly combines convenience, value, and unparalleled performance for both competitive enthusiasts and casual crawlers alike. Engineered with multiple innovative features, this comp-ready crawler kit is designed to tackle the toughest terrains with confidence, helping you achieve victory in competitive environments or enjoy leisurely drives through challenging landscapes.

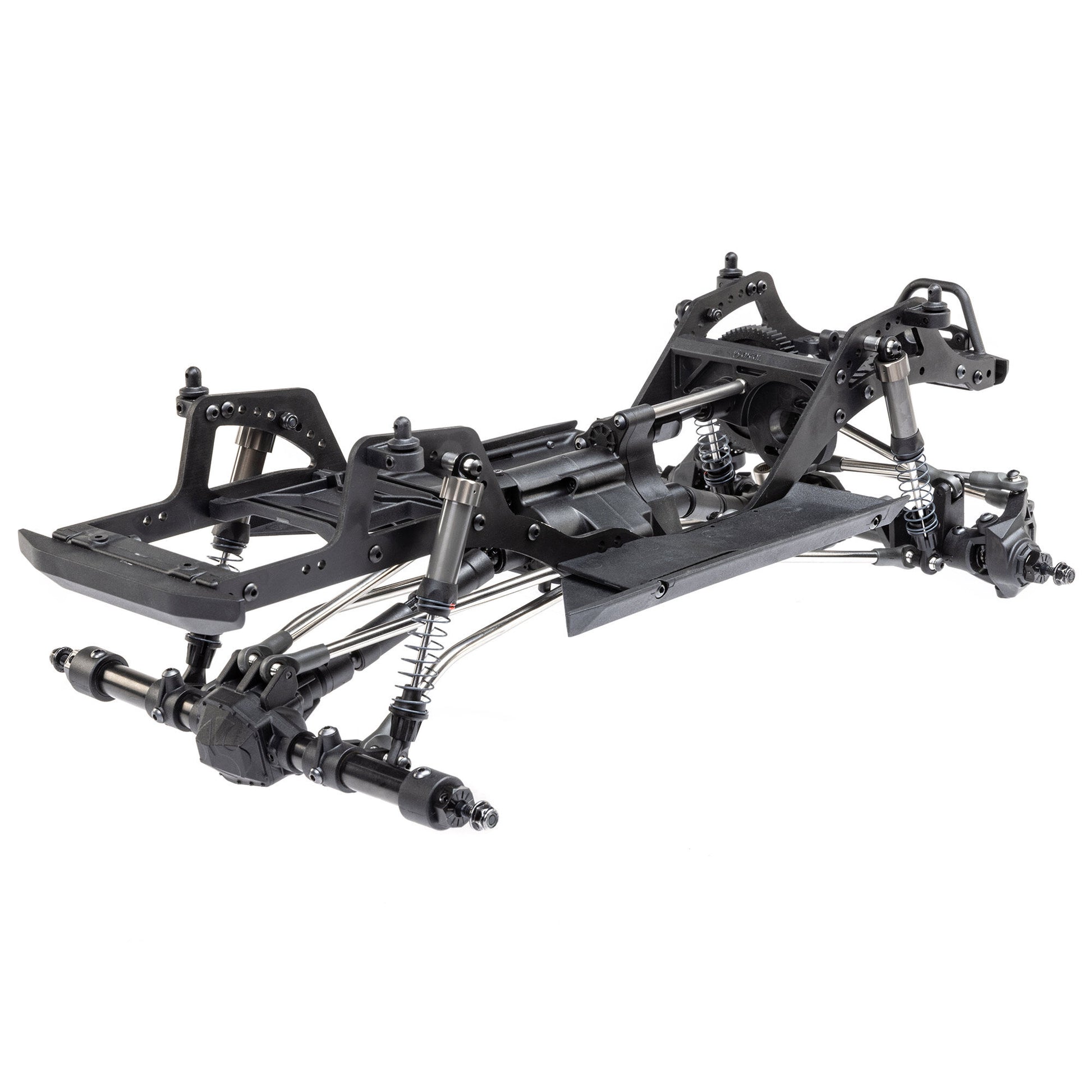

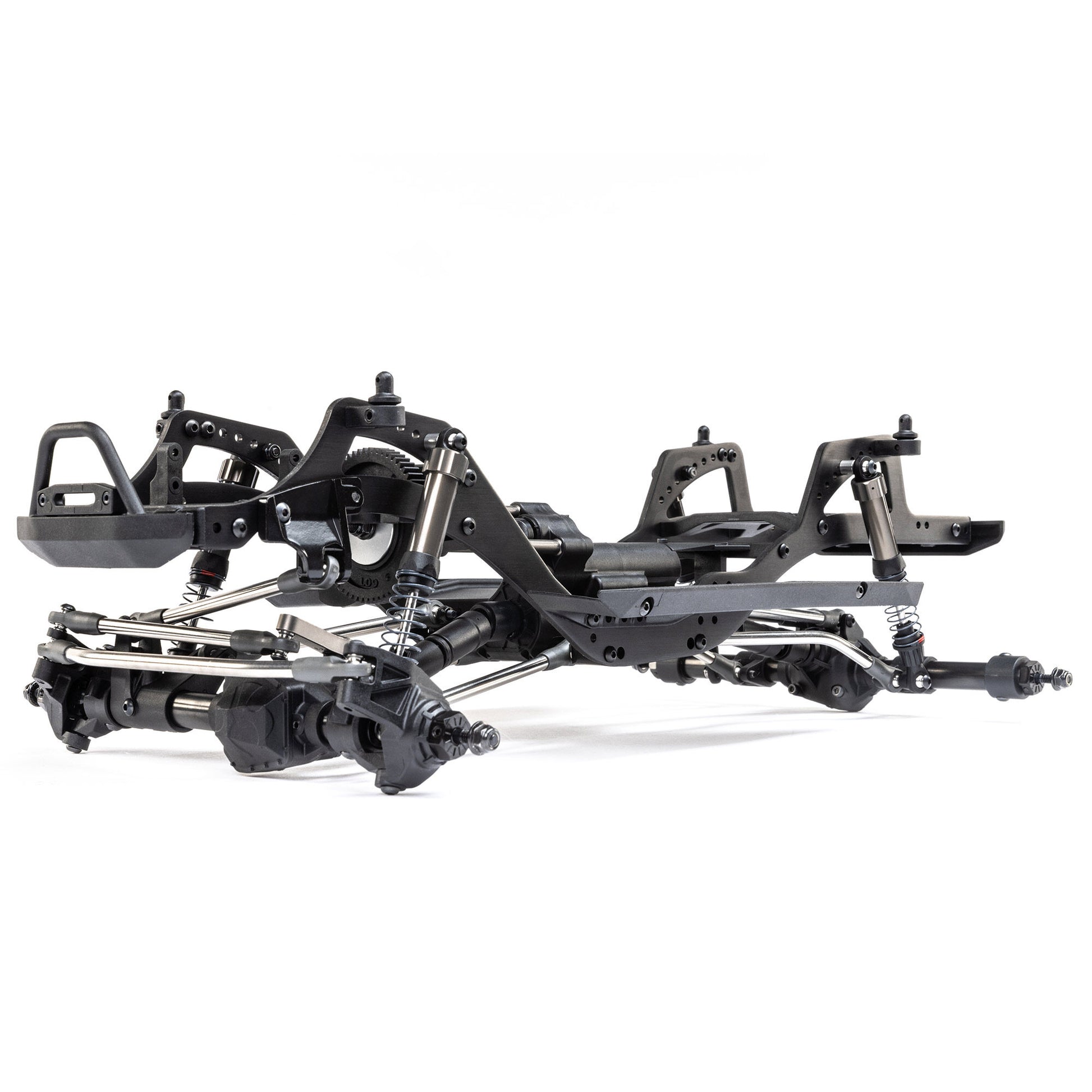

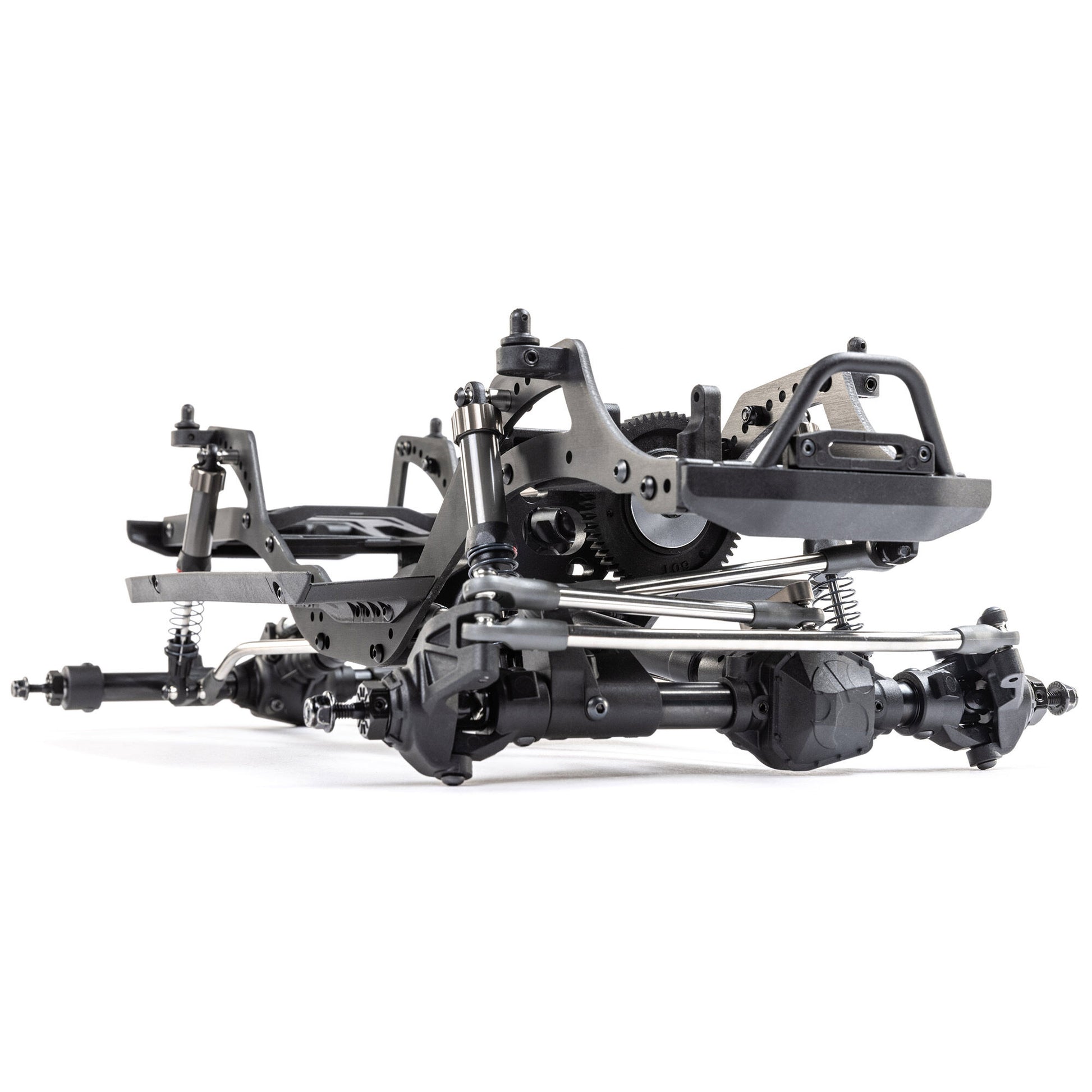

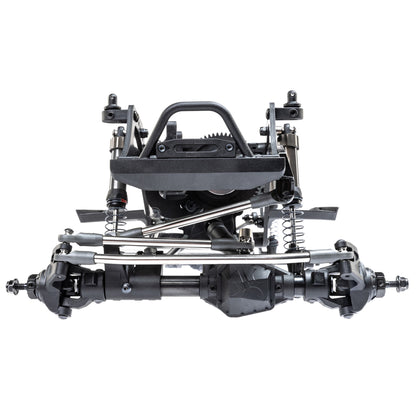

This kit offers a straightforward approach to building a scale crawler, eliminating the time and expense of sourcing individual components. The lightweight chassis, crafted from aluminum, is optimized for performance, ensuring superior climbing capabilities, adeptness in side hilling, and effective break-over angles. Its multi-piece steel tube axles enhance adaptability, allowing for either axle-mounted or chassis-mounted servo options, giving enthusiasts customization flexibility.
The SCX10 Pro promotes an excellent weight distribution through a low and forward motor position, which enhances balance and stability on rugged climbs. With features enabling the underdriving of the rear axle either manually or via servo, the vehicle displays improved maneuverability and reduced torque twist during steep ascents. Designed to ensure top-tier performance, the kit has not only won numerous competitions but has also gained recognition in events like the Little Rock City Scale Nationals and the Clash of the Four Cardinals.

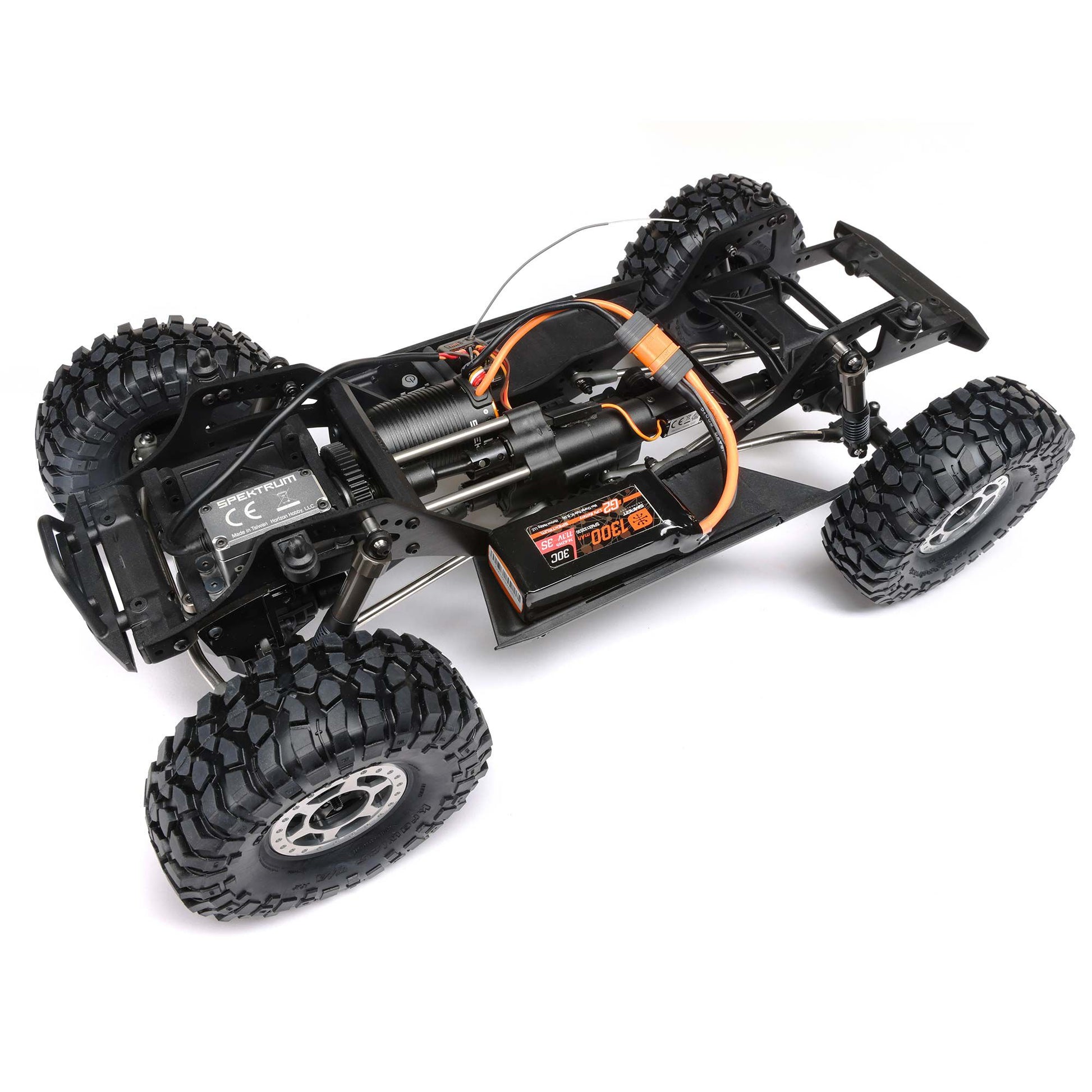

To enhance the driving experience, the kit is equipped with aluminum, oil-filled shocks designed for higher clearance, complemented by a complete ball bearing system that guarantees smooth operation. The comprehensive assembly of the SCX10 Pro allows enthusiasts to minimize guesswork while adding their choice of electronics, body, tires, and wheels, resulting in an innovative and high-performance crawler that leads the way in scale comp crawlers.
For anyone seeking an exceptional RC scale crawler kit with the benefits of cutting-edge engineering at a competitively affordable price, the SCX10 Pro 4WD is the ideal choice that promises adventure and achievement in the world of rock crawling.
Features
- Easiest way to build a scale crawler for competition with numerous innovations in a single kit
- Saves time and money compared to buying components separately
- Comp-ready chassis is lightweight, low, and adjustable for optimized performance
- Multi-piece steel tube axles support servo options (AMS or CMS)
- Low and forward motor position provides superior weight distribution and balance
- Ability to underdrive the rear axle via servo or manual lock in 1:1 or underdrive
- Aluminum smooth body, oil-filled shocks for higher clearance
- Proven competition success with wins and placements at multiple events

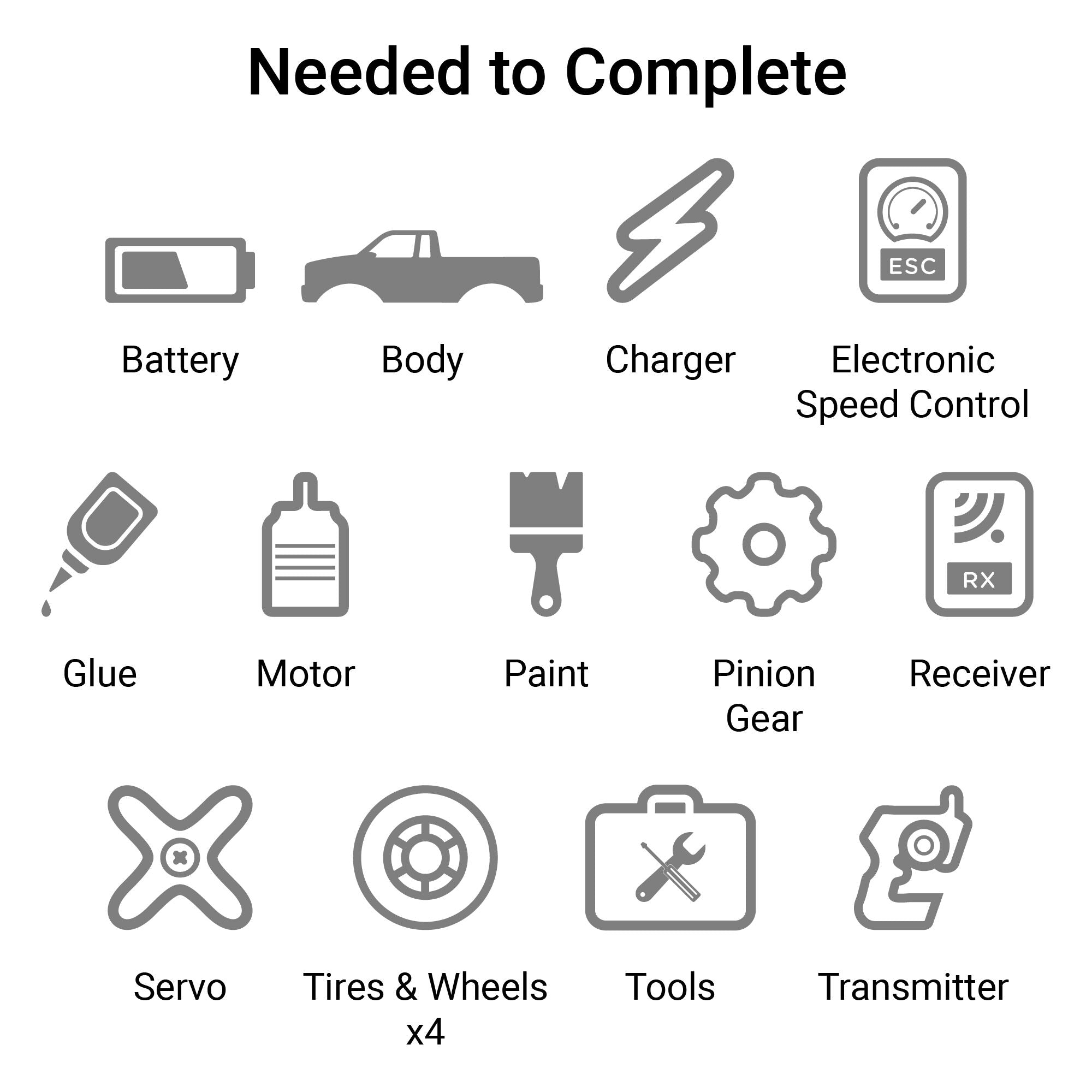

Needed to Complete
- Radio (Sold Separately)
- Servos (Sold Separately)
- Body (Not Included)
- Battery (Sold Separately)
- Charger (Sold Separately)
- Speed Control (Sold Separately)
Specifications
- Completion Level: Kit
- Product Height: 7" (178 mm)
- Product Width: 9.25" (235 mm)
- Chassis: Aluminum Plate
- Wheel Hex Size: 12mm
- Radio: Sold Separately
- Differential: Locked
- Drivetrain: 4WD
- Ball Bearings: Complete Vehicle
- Product Weight: 3lbs (1.4kg) Without Components
- Servos: Sold Separately
- Body: Not Included
- Ground Clearance: 2.25" (57.1mm)
- Motor Size: 540/550 recommended
- Battery: Sold Separately
- Brakes: Integral with ESC
- Receiver: Sold Separately
- Scale: 1/10
- Power Type: Electric
- Approximate Assembly Time: 5-7 Hours
- Pinion: 13T
- Internal Gear Ratio: 10.26:1, 15.33:1
- Shock Type: 2.9" - 3.8" (74-96mm) Aluminum Oil filled
- Charger: Sold Separately
- Vehicle Type: Rock Crawler
- Gear Pitch: 32-Pitch
- Suspension: 3-Link/4-Link
- Steering Type: 2WS
- Wheelbase: 12.5" (318 mm)
- Final Drive Ratio: 38.46:1, 57.50:1
- Speed Control: Sold Separately
- Product Length: 16.65" (423 mm)
- LiPo Compatibility: 3S, 2S
- Vehicle Size: Standard
-
