Arrma (ARA)
SKU:ARA310969

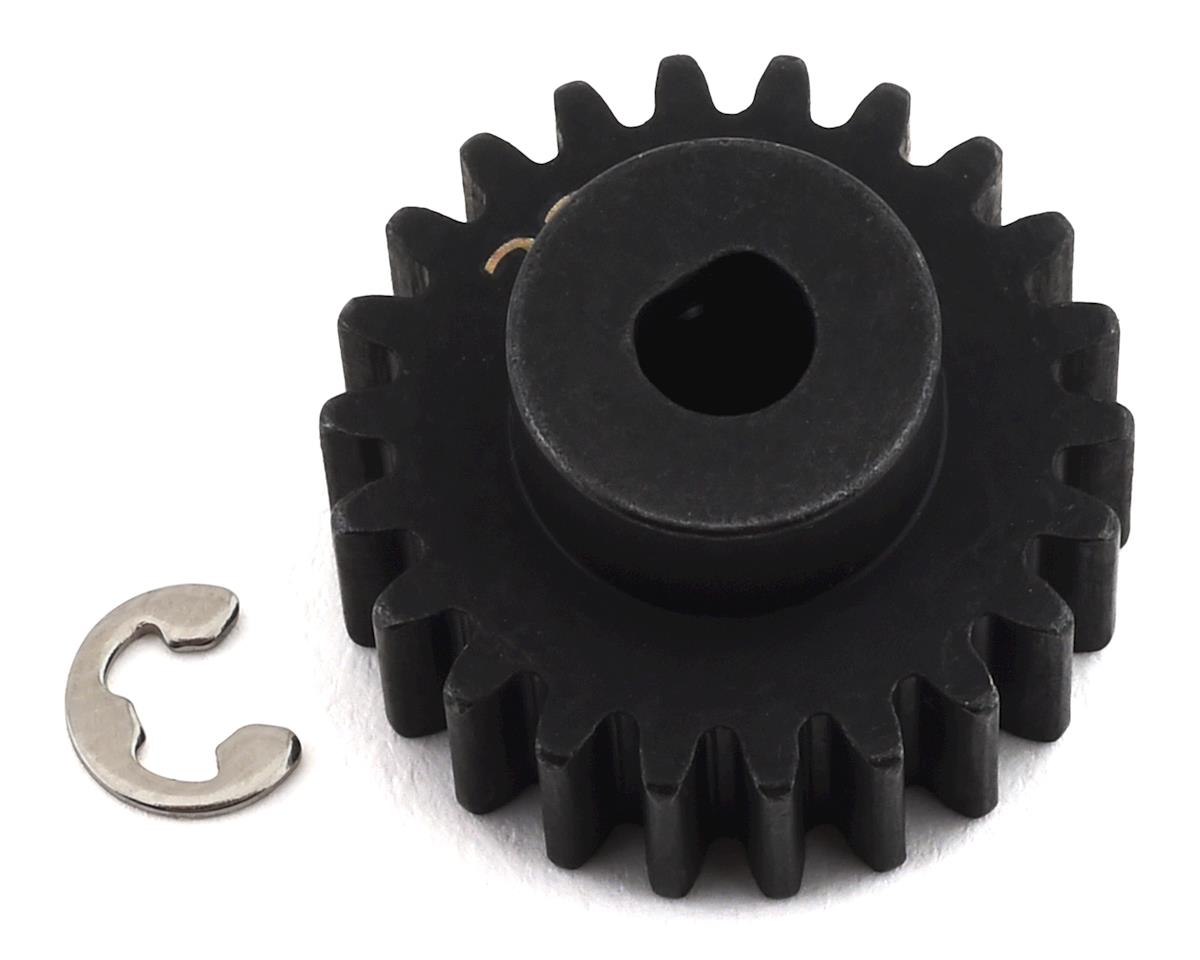

22T Mod1 Safe-D5 Pinion Gear (ARA310969)
22T Mod1 Safe-D5 Pinion Gear (ARA310969)
Meet the 22-tooth Mod1 Safe-D5 pinion gear—a rugged steel pinion built for high-performance RC use. It connects the electric motor to the drivetrain, turning motor RPM into wheel speed with dependable engagement in demanding conditions.
Crafted from tough steel with a wide tooth profile for smooth gear meshing, this pinion features a D-shaped bore that matches the motor shaft profile to help keep it engaged even if the set screw backs out. It is designed to fit 5mm motor shafts and includes a precisely threaded set-screw hole for secure mounting. The package includes the pinion, an M4 x 4mm set screw, and a 3.2mm E-clip to retain the pinion on the shaft.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual
Collapsible content
Overview
The 22T Mod1 Safe-D Pinion Gear is a rugged steel component designed for hobbyists who demand durability and performance in their RC vehicles. This high-definition pinion gear is an essential addition to any RC tool kit, ensuring reliable function during intense racing or off-road adventures.
This product includes one 22T Mod1 Safe-D Pinion Gear, one M4 x 4mm set screw, and one 3.2mm E-clip, providing everything necessary for installation. The robust construction guarantees long-lasting performance under extreme conditions, while the precision-manufactured wide tooth profile ensures smooth operation.
The unique 'D' shaped hole fits securely on the motor shaft, preventing loss of drive or braking if the set screw loosens. It is compatible with a 5mm motor shaft diameter and features a threaded set-screw hole for easy assembly. An E-clip is also provided to secure the pinion on the motor shaft for utmost reliability.
Features
- Strong and durable steel construction for long-lasting performance in extreme RC conditions
- Precision manufactured wide tooth profile for smooth operation
- 'D' shaped hole to match motor shaft profile, preventing loss of drive and brakes if set screw backs out
- Compatible with 5mm motor shaft diameter
- Precision manufactured threaded set-screw hole for easy assembly
- E-clip included for motor shaft pinion retention
Needed to Complete
- Set Screw - M4 x 4mm
- E-Clip - 3.2mm
Specifications
- Product Name: 22T Mod1 Safe-D Pinion Gear
- SKU: ARA310969
- Material: Steel
- Teeth: 22T
- Motor Shaft Compatibility: 5mm diameter
- Includes: 1 x 22T Mod1 Safe-D Pinion Gear, 1 x Set Screw - M4 x 4mm, 1 x E-Clip - 3.2mm
- Set Screw: M4 x 4mm
- E-Clip: 3.2mm
- Profile Type: Wide tooth profile with 'D' shaped hole
- Features: Precision manufacturing, secure retention, durable performance
-
