Arrma (ARA)
SKU:ARA311001

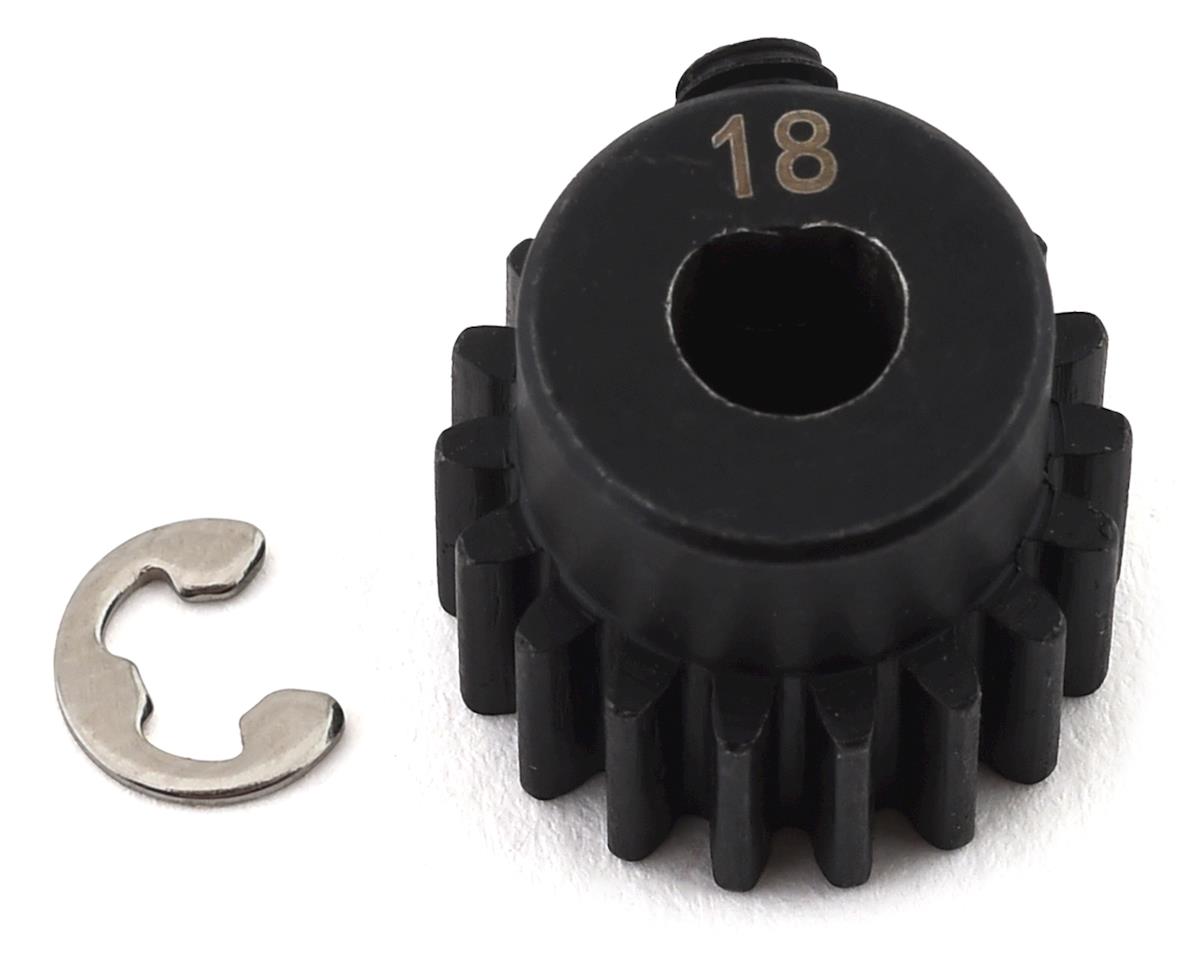

18T 0.8Mod Safe-D5 Pinion Gear (ARA311001)
18T 0.8Mod Safe-D5 Pinion Gear (ARA311001)
The 18T 0.8 Module Safe-D Pinion Gear is a robust steel gear designed specifically for RC applications. This gear is perfect for any enthusiast looking to enhance their RC experience, providing reliability in challenging environments.
Included with the pinion gear is a set screw (M4 x 4mm) and an E-Clip (3.2mm) for added convenience and efficiency during installation.
This pinion gear features strong and durable steel construction, ensuring long-lasting performance under extreme RC conditions. It boasts a precision-manufactured wide tooth profile for smooth operation and a 'D' shaped hole to match the motor shaft profile. This design prevents drive and brake loss even if the set screw were to loosen. It is suitable for a 5mm motor shaft diameter and includes a precision-threaded set screw hole. Additionally, the E-clip is provided for secure motor shaft pinion retention.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual
Collapsible content
Overview
The 18T 0.8 Module Safe-D Pinion Gear is a robust steel gear designed specifically for RC applications. This gear is perfect for any enthusiast looking to enhance their RC experience, providing reliability in challenging environments.
Included with the pinion gear is a set screw (M4 x 4mm) and an E-Clip (3.2mm) for added convenience and efficiency during installation.
This pinion gear features strong and durable steel construction, ensuring long-lasting performance under extreme RC conditions. It boasts a precision-manufactured wide tooth profile for smooth operation and a 'D' shaped hole to match the motor shaft profile. This design prevents drive and brake loss even if the set screw were to loosen. It is suitable for a 5mm motor shaft diameter and includes a precision-threaded set screw hole. Additionally, the E-clip is provided for secure motor shaft pinion retention.
Features
- Strong and durable steel construction for long-lasting performance in extreme RC conditions
- Precision manufactured wide tooth profile for smooth operation
- 'D' shaped hole design that matches motor shaft profile, preventing loss of drive and brakes if the set-screw backs out
- Compatible with 5mm motor shaft diameter
- Precision manufactured threaded set-screw hole
- E-clip included for motor shaft pinion retention
Needed to Complete
- Set Screw - M4 x 4mm
- E-Clip - 3.2mm
Specifications
- Product Name: 18T 0.8 Mod Safe-D Pinion Gear
- Product Code: ARA311001
- Material: Steel
- Teeth: 18T
- Module: 0.8
- Motor Shaft Compatibility: 5mm diameter
- Included Items: 1 x Set Screw (M4 x 4mm), 1 x E-Clip (3.2mm)
