23T 0.8Mod Safe-D5 Pinion Gear (ARA311006)

23T 0.8Mod Safe-D5 Pinion Gear (ARA311006)

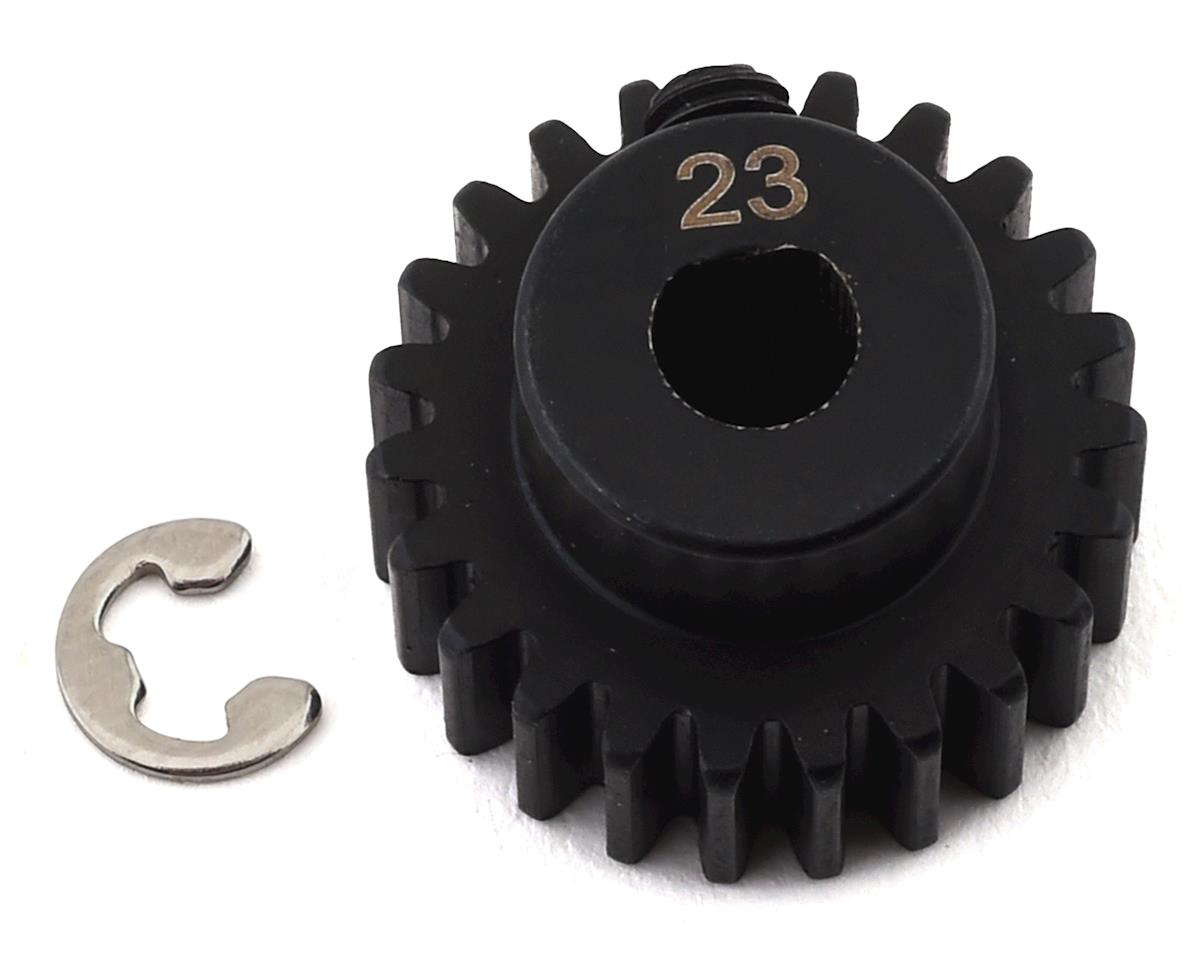

A rugged 23-tooth, 0.8-module Safe-D pinion gear designed for RC car motors, delivering smooth power transfer to the spur gear for predictable speed and torque. The Safe-D bore is a D-shaped profile that mates with the motor shaft, helping keep the gear engaged even if the set screw loosens.

Constructed from tough steel for durability in demanding RC conditions, this pinion uses a precise wide tooth form for reliable meshing with the spur gear. It fits 5mm motor shafts and comes with an M4 x 4mm set screw and a 3.2mm E-clip to secure it in place, ensuring retention during operation.

$16.99
$13.99 $16.99
Sale Sold out

Exploded View

Exploded View

Parts List

Parts List

Product Manual

Product Manual
View full details
  • 23T 0.8Mod Safe-D5 Pinion Gear (ARA311006)

Overview

The 23T 0.8 Module Safe-D Pinion Gear is constructed from tough steel, making it an essential component for your RC toolbox. This pinion gear is designed to provide exceptional durability and long-lasting performance, even under extreme conditions.

This product comes complete with a set screw (M4 x 4mm) and an E-clip (3.2mm) for added convenience and effective installation. The precision-manufactured wide tooth profile ensures smooth operation, enhancing the performance of your RC vehicle.

The 'D' shaped hole is specifically designed to match the motor shaft profile, ensuring a secure connection and preventing drive or brake loss in the event the set screw backs out. This pinion gear is compatible with motor shafts that have a diameter of 5mm. The threaded set-screw hole is also precisely manufactured, contributing to reliable performance.

Features

  • Tough steel construction for durability and long-lasting performance
  • Designed for extreme RC conditions
  • Precision manufactured wide tooth profile for smooth operation
  • 'D' shaped hole to match motor shaft profile
  • Prevents loss of drive and brakes if set screw backs out
  • Compatible with 5mm motor shaft diameter
  • Precision manufactured threaded set-screw hole
  • E-clip supplied for motor shaft pinion retention

Needed to Complete

  • Set Screw - M4 x 4mm
  • E-Clip - 3.2mm

Specifications

  • Product Type: Pinion Gear
  • Tooth Count: 23T
  • Module: 0.8
  • Material: Steel
  • Includes: 1 x 23T 0.8 Module Safe-D Pinion Gear, 1 x Set Screw - M4 x 4mm, 1 x E-Clip - 3.2mm
  • Shaft Compatibility: 5mm motor shaft diameter
  • Features: Precision manufactured for smooth operation, threaded set-screw hole, durable in extreme conditions
