Arrma (ARA)
SKU:ARA311044

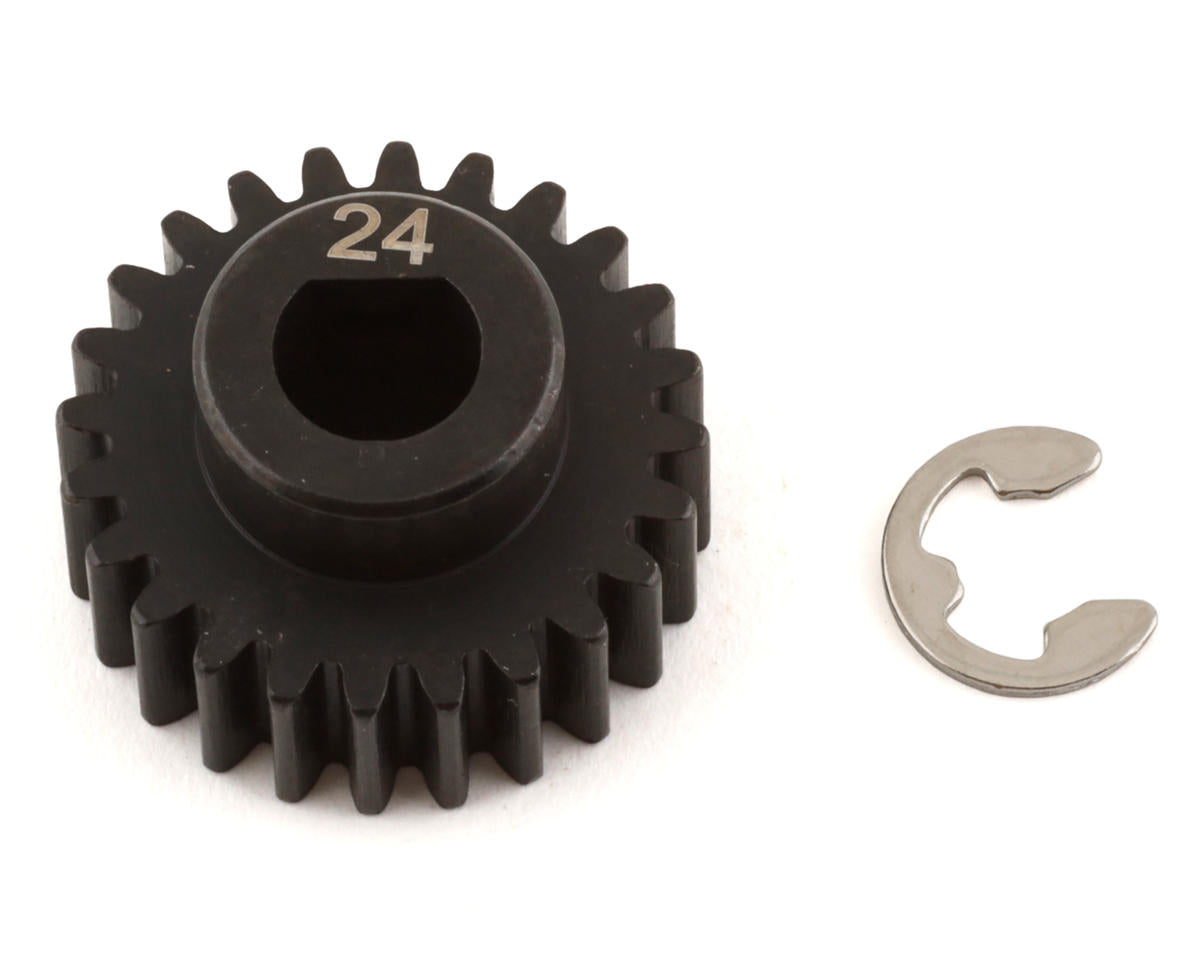

24T Mod1 Safe-D8 Pinion Gear (ARA311044)
24T Mod1 Safe-D8 Pinion Gear (ARA311044)
The 24T Mod1 Safe-D8 Pinion Gear is an essential component for any RC enthusiast. Crafted from tough steel, this pinion gear is designed to withstand the rigors of extreme RC conditions while providing long-lasting performance.
This product features a precision-manufactured wide tooth profile, ensuring smooth operation that enhances the overall performance of your RC vehicle. The 'D' shaped hole is tailored to match the motor shaft profile, which means that drive and braking efficiency remain intact even if the set screw loosens during use.
It is compatible with an 8mm motor shaft diameter, making it an excellent choice for a variety of applications. This pinion gear comes with a precision threaded set-screw hole and includes a set screw (M4 x 4mm) and an E-clip (5.6mm) for reliable motor shaft pinion retention.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual
Collapsible content
Overview
The 24T Mod1 Safe-D8 Pinion Gear is an essential component for any RC enthusiast. Crafted from tough steel, this pinion gear is designed to withstand the rigors of extreme RC conditions while providing long-lasting performance.
This product features a precision-manufactured wide tooth profile, ensuring smooth operation that enhances the overall performance of your RC vehicle. The 'D' shaped hole is tailored to match the motor shaft profile, which means that drive and braking efficiency remain intact even if the set screw loosens during use.
It is compatible with an 8mm motor shaft diameter, making it an excellent choice for a variety of applications. This pinion gear comes with a precision threaded set-screw hole and includes a set screw (M4 x 4mm) and an E-clip (5.6mm) for reliable motor shaft pinion retention.
Features
- Constructed from strong and durable steel for long-lasting performance
- Precision-manufactured wide tooth profile for smooth operation
- 'D' shaped hole to match motor shaft profile, preventing drive and braking loss if the set screw backs out
- Compatible with 8mm motor shaft diameter
- Precision threaded set-screw hole for secure attachment
- Includes set screw (M4 x 4mm) and E-clip (5.6mm) for motor shaft pinion retention
Needed to Complete
- Set Screw - M4 x 4mm
- E-Clip - 5.6mm
Specifications
- Product Name: 24T Mod1 Safe-D8 Pinion Gear
- Model Number: ARA311044
- Material: Steel
- Teeth Count: 24T
- Motor Shaft Compatibility: 8mm diameter
- Includes: 1 x 24T Mod1 Safe-D Pinion Gear, 1 x Set Screw - M4 x 4mm, 1 x E-Clip - 5.6mm
- Features: Strong and durable, precision manufactured for smooth operation, 'D' shaped hole to match motor shaft
- Application: Suitable for extreme RC conditions
