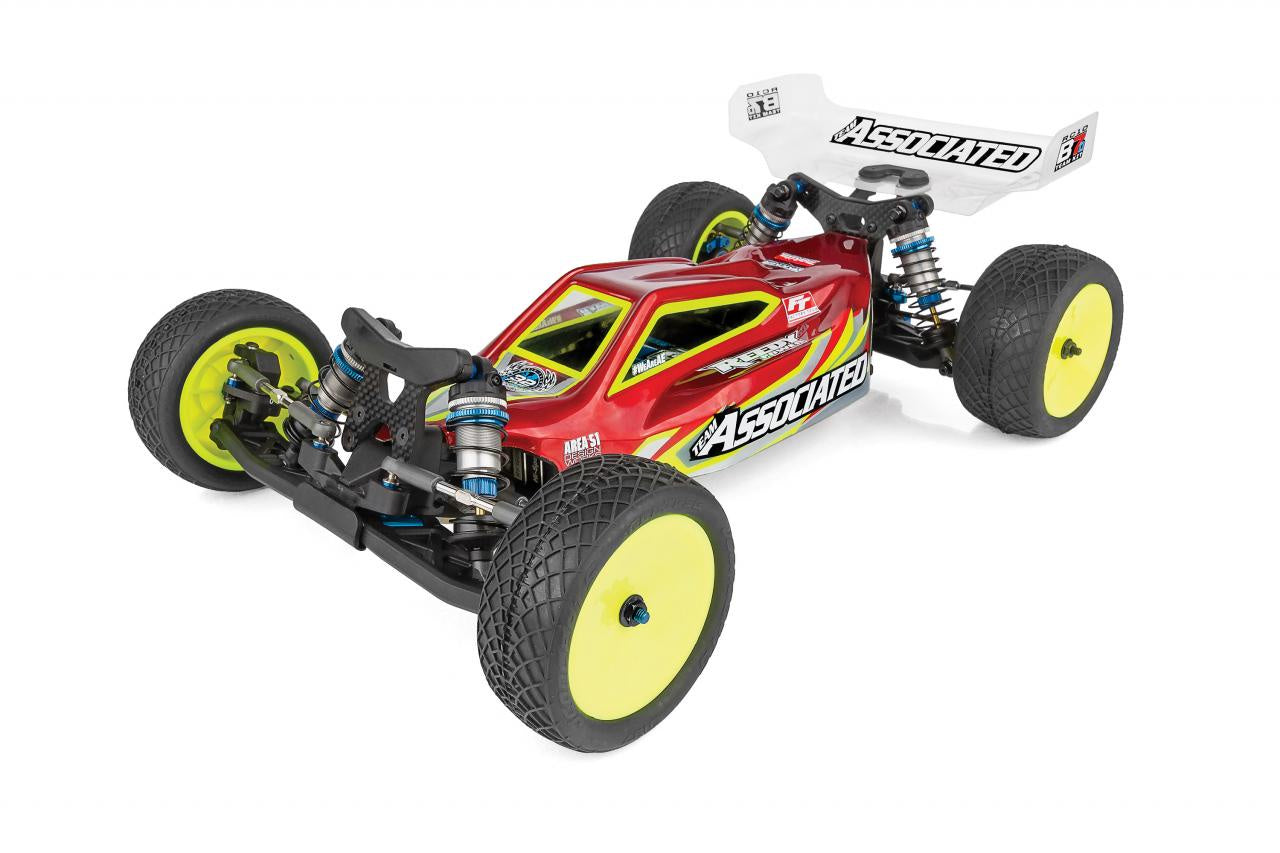

RC10B7D Team Kit (ASC90042)
RC10B7D Team Kit (ASC90042)
The RC10B7D Team Kit is a cutting-edge 1/10 scale 2WD buggy designed for those who demand performance and versatility on the track. As a continuation of Team Associated's legacy in off-road racing, this model incorporates 40 years of innovation and refinement, setting new standards in speed and handling.
This next-generation buggy features a long-arm suspension geometry that enhances grip and cornering performance, allowing for quicker lap times. The weight-centralized electronics layout and the 5-gear laydown transmission with a low profile motor mount bring the motor closer to the center of the car, contributing to improved balance and control.
The adjustable steering and caster blocks offer three tuning options, enabling customization based on driver preference and track conditions. Additional features include vertical front outer ballstuds for fine-tuning roll center and camber gain, a height-adjustable aluminum front bulkhead for further tuning, and HD 69mm CVA bones for enhanced durability.
The RC10B7D is especially suited for racing on dirt, clay, and low-grip AstroTurf tracks, equipped with a ball differential and a setup tailored for optimal performance in these environments. It maintains compatibility with the entire RC10B7 line, allowing for interchangeability of parts and configurations.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual
Collapsible content
Overview
The RC10B7D Team Kit is a cutting-edge 1/10 scale 2WD buggy designed for those who demand performance and versatility on the track. As a continuation of Team Associated's legacy in off-road racing, this model incorporates 40 years of innovation and refinement, setting new standards in speed and handling.
This next-generation buggy features a long-arm suspension geometry that enhances grip and cornering performance, allowing for quicker lap times. The weight-centralized electronics layout and the 5-gear laydown transmission with a low profile motor mount bring the motor closer to the center of the car, contributing to improved balance and control.
The adjustable steering and caster blocks offer three tuning options, enabling customization based on driver preference and track conditions. Additional features include vertical front outer ballstuds for fine-tuning roll center and camber gain, a height-adjustable aluminum front bulkhead for further tuning, and HD 69mm CVA bones for enhanced durability.
The RC10B7D is especially suited for racing on dirt, clay, and low-grip AstroTurf tracks, equipped with a ball differential and a setup tailored for optimal performance in these environments. It maintains compatibility with the entire RC10B7 line, allowing for interchangeability of parts and configurations.
Features
- 5-gear laydown transmission with low profile motor mount moves weight of motor closer to the center of the car
- Long-arm suspension geometry improves grip and predictability in all conditions
- KPI adjustable steering and caster blocks allow for fine tuning steering feel; three options included
- Vertical front outer ballstud allows fine tuning of roll center, camber gain, and link length
- Height adjustable aluminum front bulkhead for further tuning of front roll center
- Standard and HRC (High Roll Center) rear hubs included
- Highly adjustable battery holder with thumb tabs for easy battery removal and tuning of weight bias
- 7075-T6 aluminum chassis with increased departure angle and optional weight plate pockets
- HD 69mm CVA bones and differential outdrives for enhanced durability
- Lightweight molded servo mount
- One-piece rear wing mount for improved durability
- New 7-inch rear wing and 2.5-inch front wing included
- Low-profile body included
- Shock tower covers for both front and rear
- 3.5mm turnbuckles and ballcups for increased performance
Needed to Complete
- Radio gear (transmitter and receiver)
- Battery (compatible with the adjustable battery holder)
- Charger (suitable for the chosen battery type)
- Motor (for the 5-gear laydown transmission)
- Electronic speed control (ESC)
- Body paint (if custom painting the low-profile body)
- Toolset for assembly (screwdrivers, pliers, etc.)
Specifications
- Model: RC10B7D Team Kit (ASC90042)
- Scale: 1/10
- Type: 2WD Buggy
- Transmission: 5-gear laydown
- Chassis Material: 7075-T6 aluminum
- Suspension Type: Long-arm suspension geometry
- Steering: KPI adjustable with three options
- Battery Holder: Highly adjustable with thumb tabs
- Rear Wing: New 7-inch rear wing included
- Front Wing: 2.5-inch front wing included
- Body: Low-profile body included
- Durability Features: HD 69mm CVA bones and differential outdrives
- Compatibility: Fully interchangeable parts with RC10B7
- Recommended Track Surfaces: Dirt, clay, low-grip AstroTurf
