Redcat Racing (RER)

SKU:RER31524

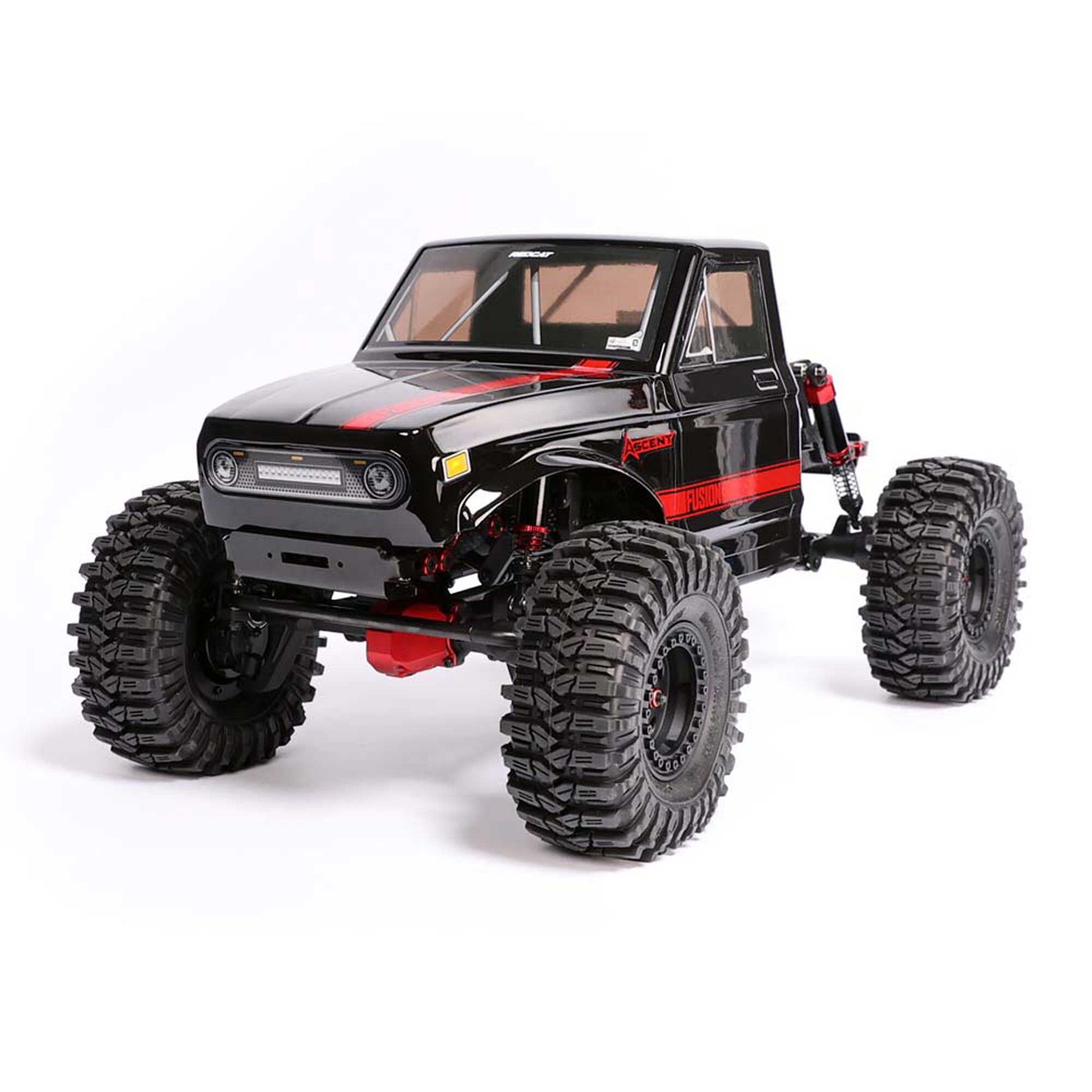

ASCENT FUSION 1/10 SCALE BRUSHLESS CRAWLER

ASCENT FUSION 1/10 SCALE BRUSHLESS CRAWLER

Introducing the Ascent Fusion 1/10-scale 4x4 rock crawler, a ready-to-run off-road machine built to tackle tough trails with power and precision. It packs a Fusion brushless power system with the speed control integrated into the motor can for a compact, efficient setup, driven by a 540-size, 1800KV, four-pole motor for strong, smooth performance. Drawing on the low center of gravity design of the Everest Ascent, the Fusion balances power and stability for confident crawling on rocks and rugged terrain.

Built for durability, it features a 3mm carbon fiber chassis with shock towers and motor mount, plus 46-gram brass portal covers and a motor lowered about 6 mm for improved balance. CNC aluminum diff covers increase steering clearance, while a HEXFLY metal-gear digital servo delivers crisp steering—0.14 seconds per 60 degrees with up to 35 kg/cm stall, or 42 kg/cm with an external 8.4V BEC. The rig includes metal portal gears, CNC spools, and a divorced transfer case with quick-change gearing—a 20% underdrive gear set installed, with 0% and 10% options included. Out of the box it features tuned aluminum oil-filled shocks, softer front outer springs, and a full complement of ball bearings, red anodized washers, black chassis braces, metal wheel hexes, low-profile bumpers, blackout wheels, and aggressive open-lug tires for capable traction on any trail.

Regular price $399.99
Regular price Sale price $399.99
Sale Sold out

  • This item is currently out of stock.

    • Nankin Hobby Farmington: 0
    • Nankin Hobby Ypsilanti: 0
    • Nankin Hobby Southgate: 0

Exploded View

Parts List

Product Manual

View full details

Collapsible content

Overview

Features

Needed to Complete

Specifications
