Axial (AXI)
SKU:AXI03025T1

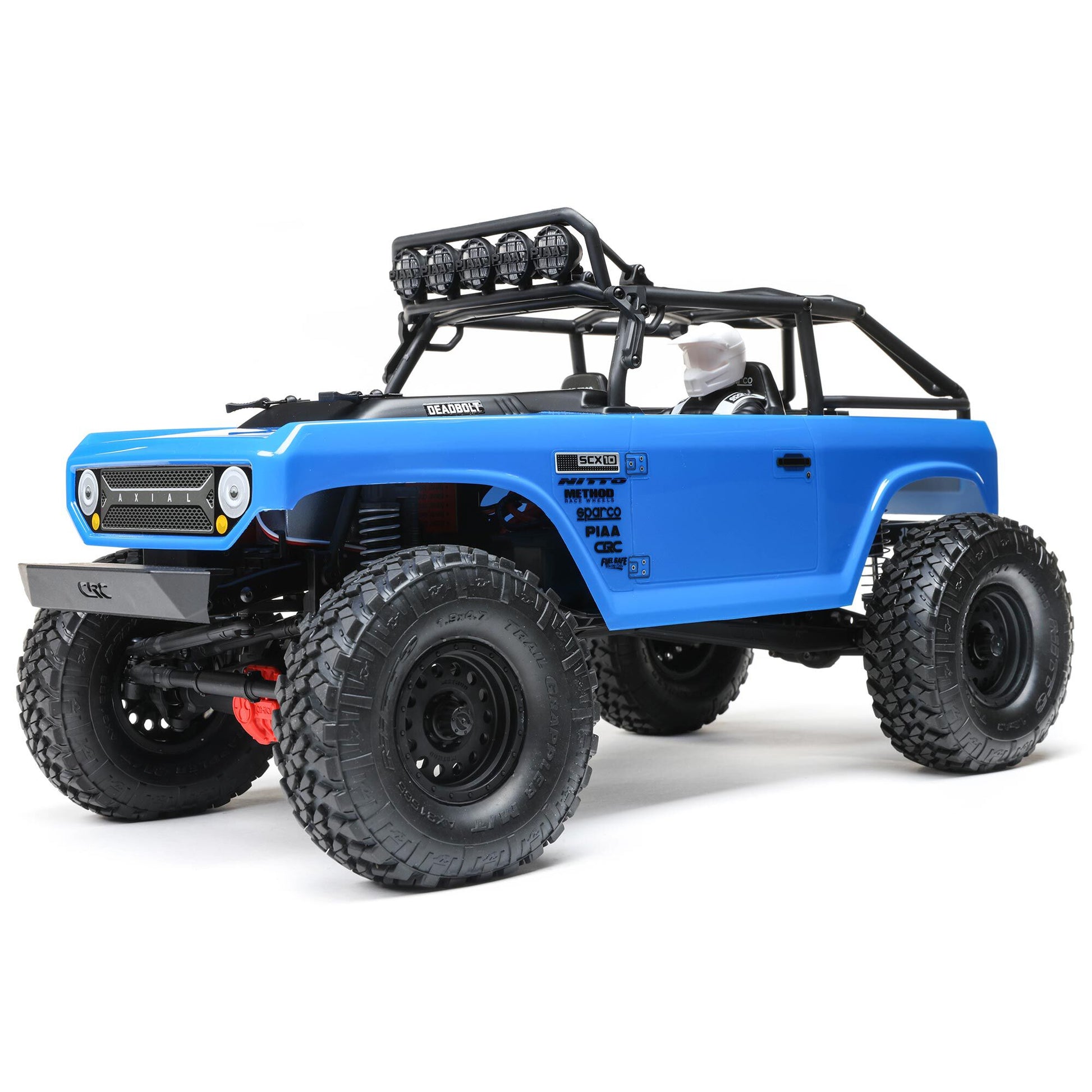

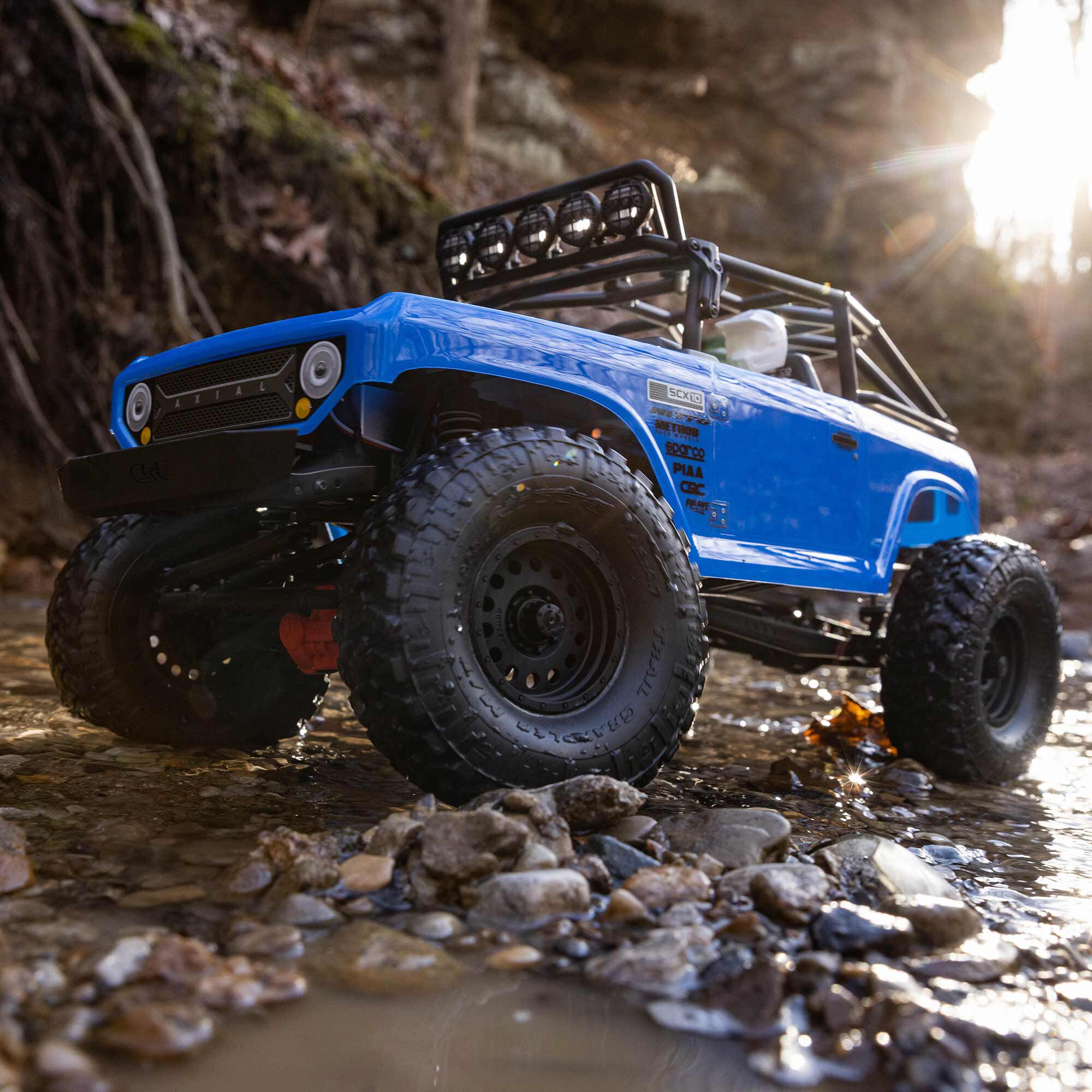

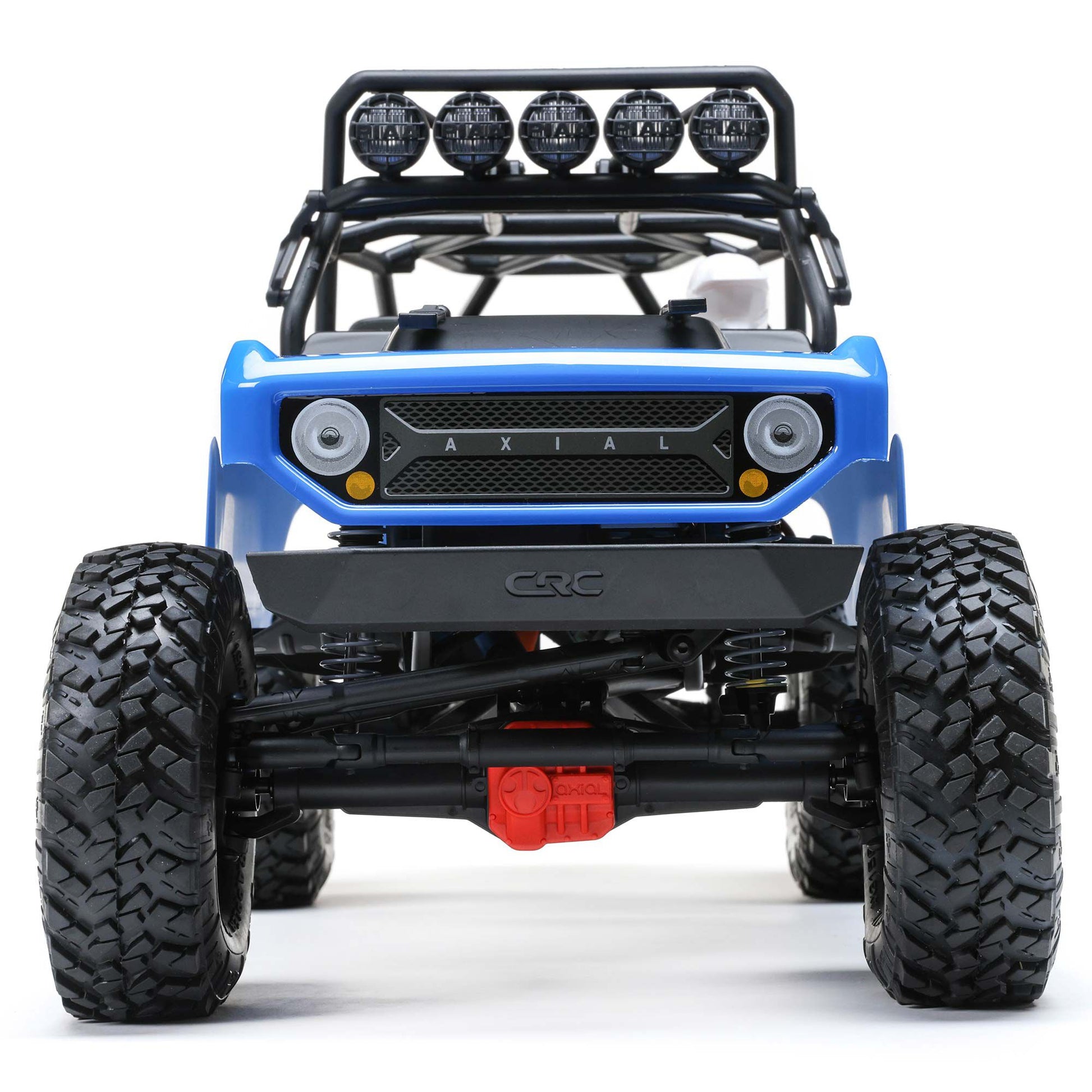

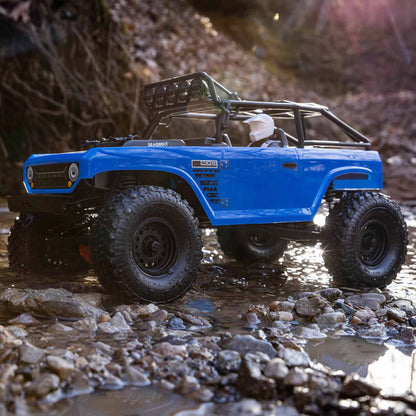

1/10 SCX10 II Deadbolt Ready to Run (Blue) (AXI03025T1)
1/10 SCX10 II Deadbolt Ready to Run (Blue) (AXI03025T1)

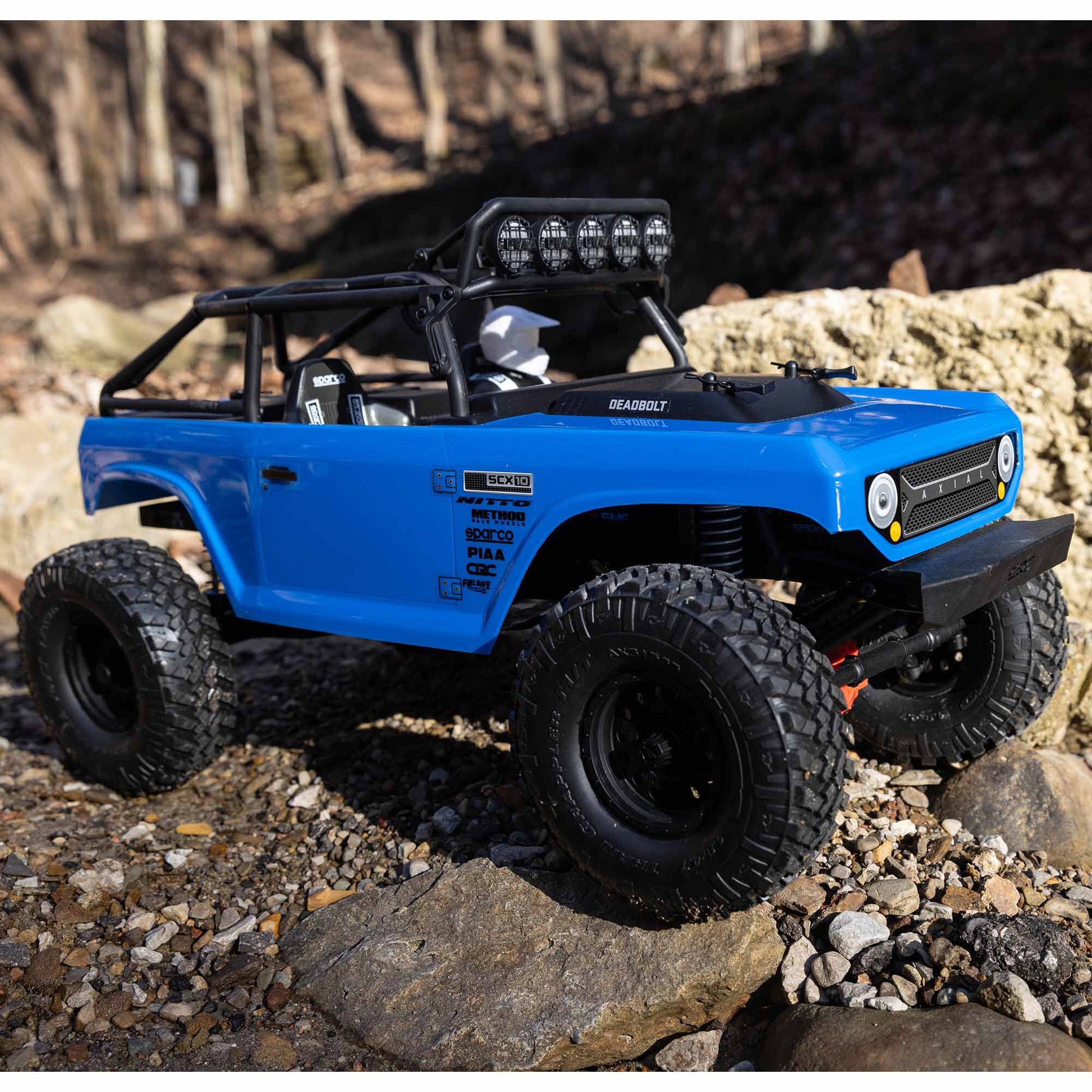

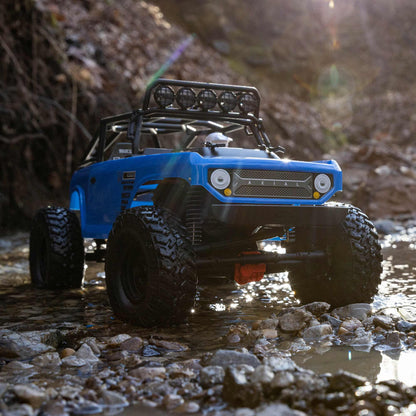

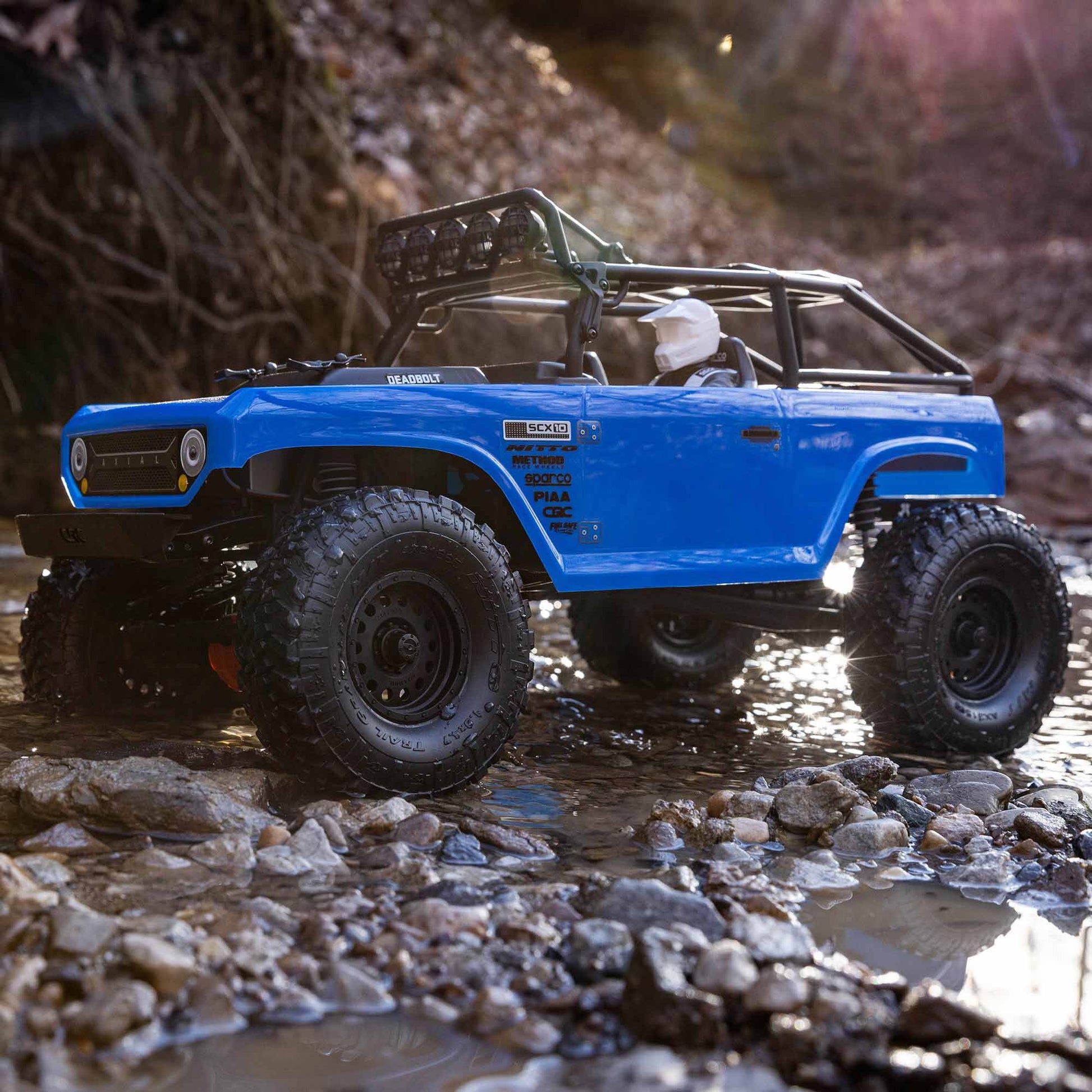

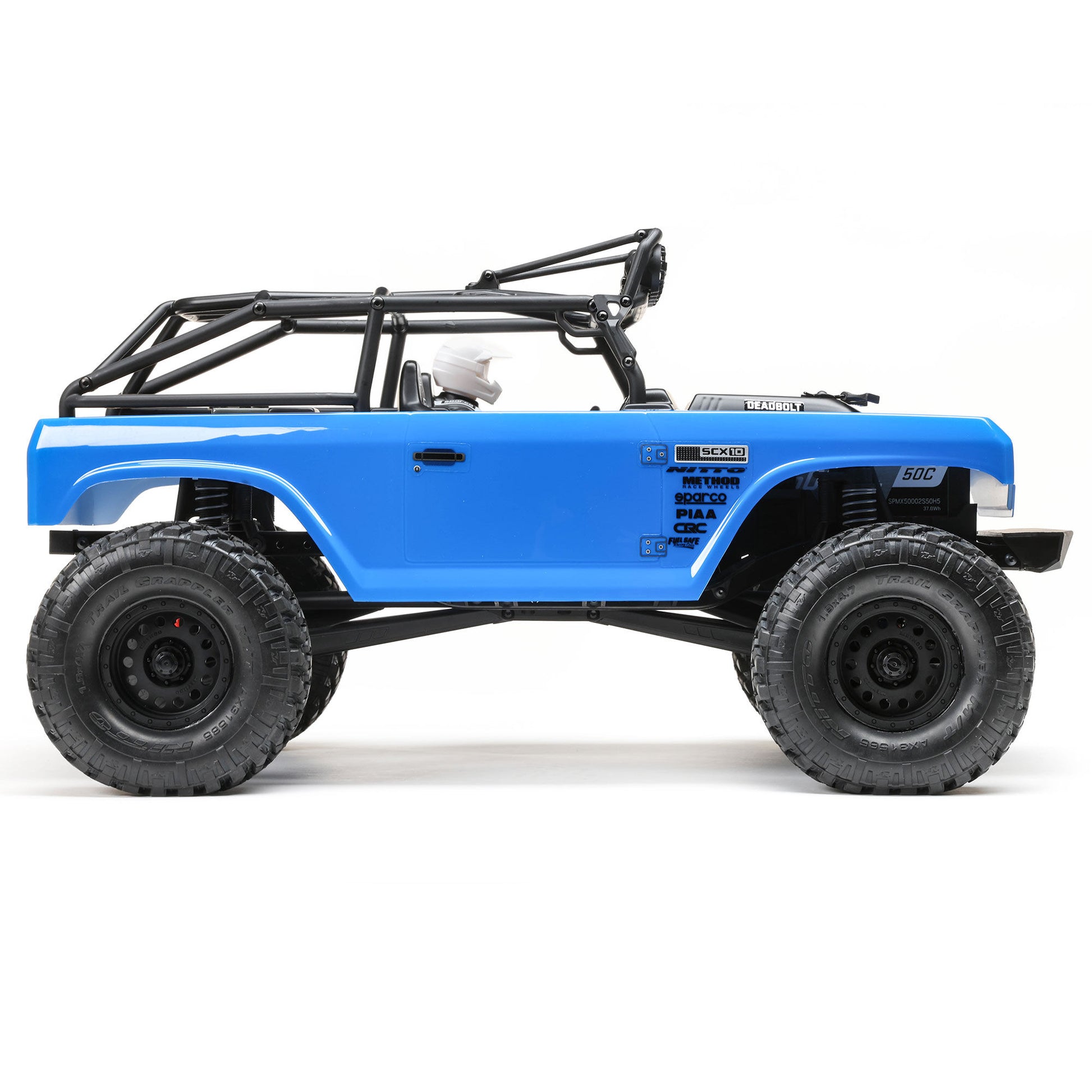

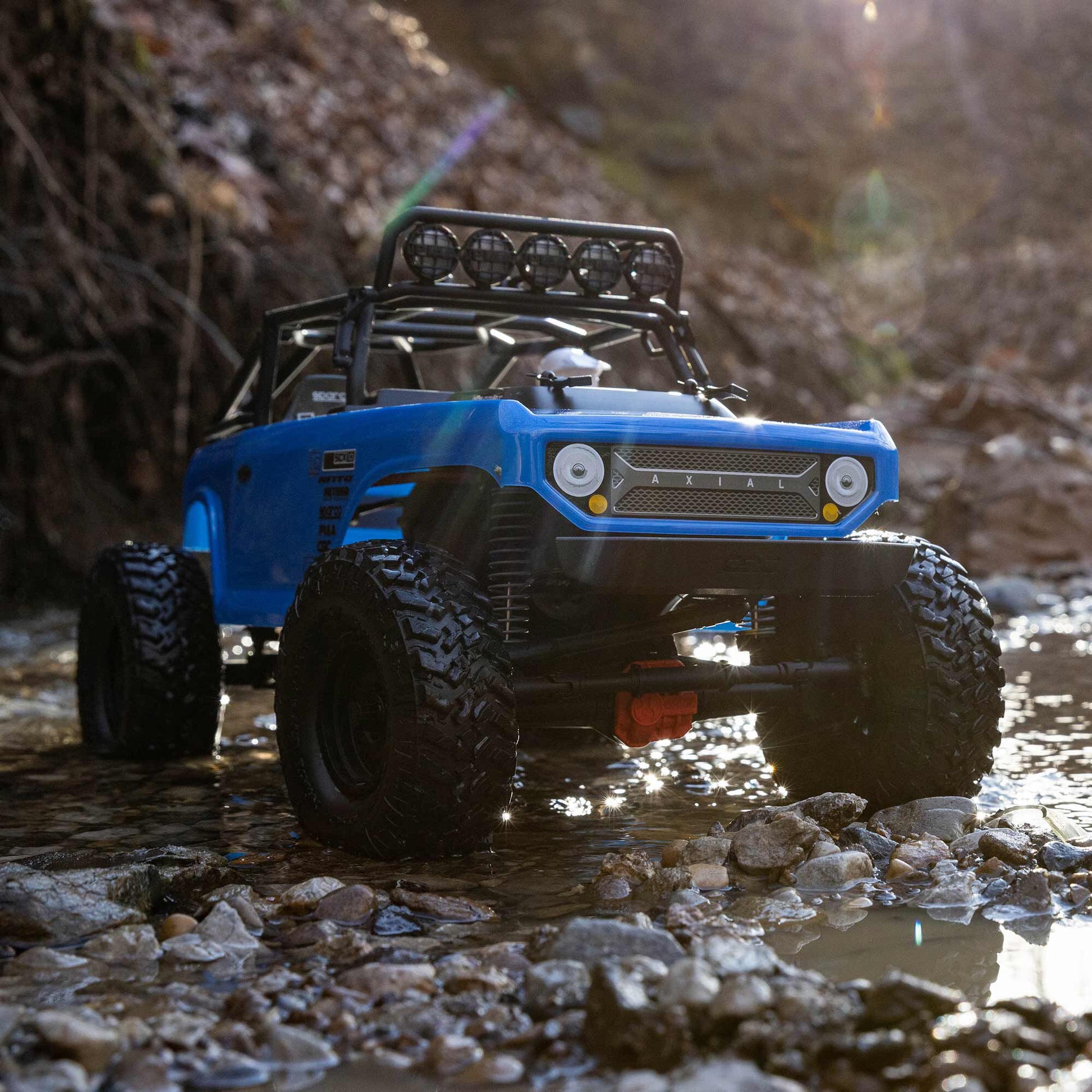

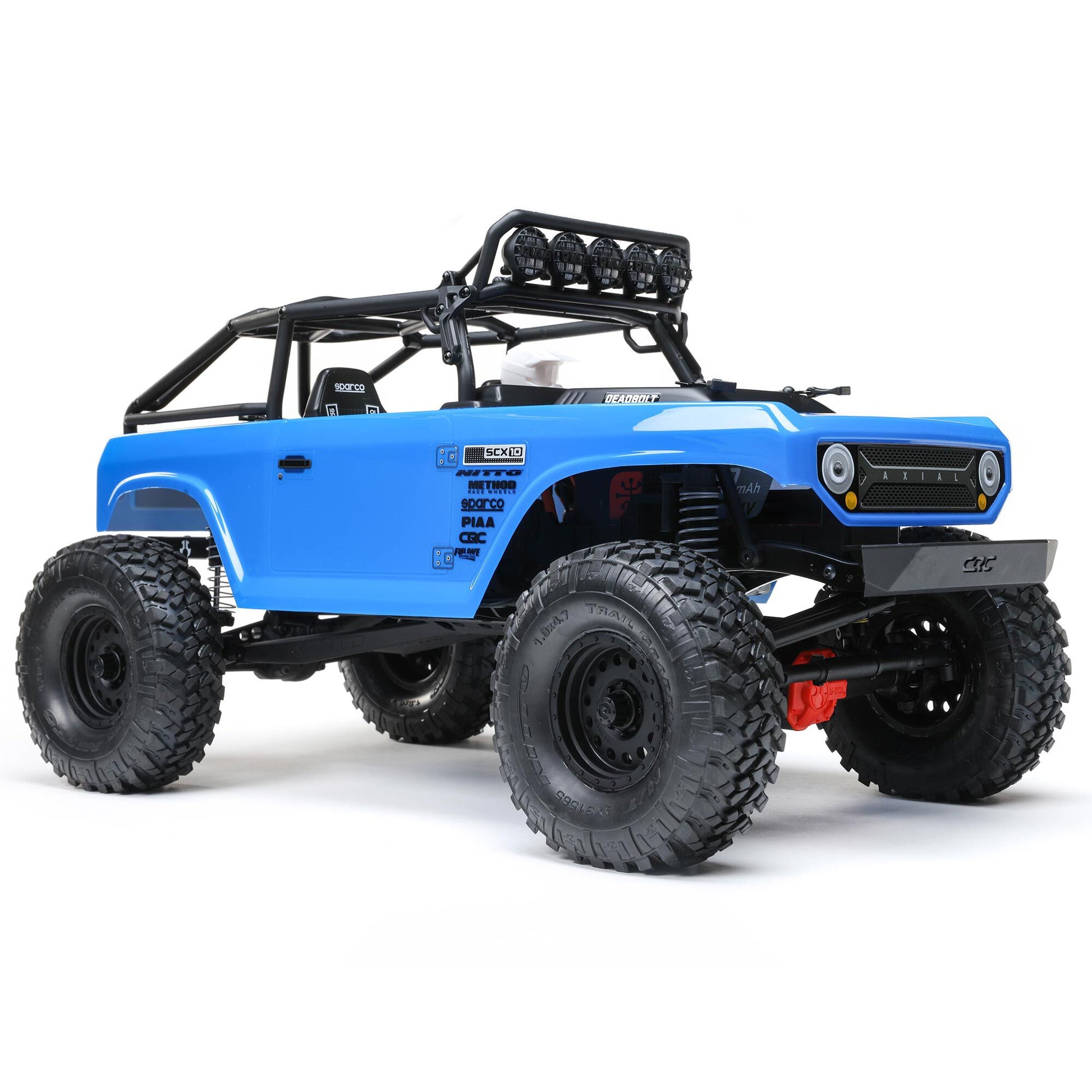

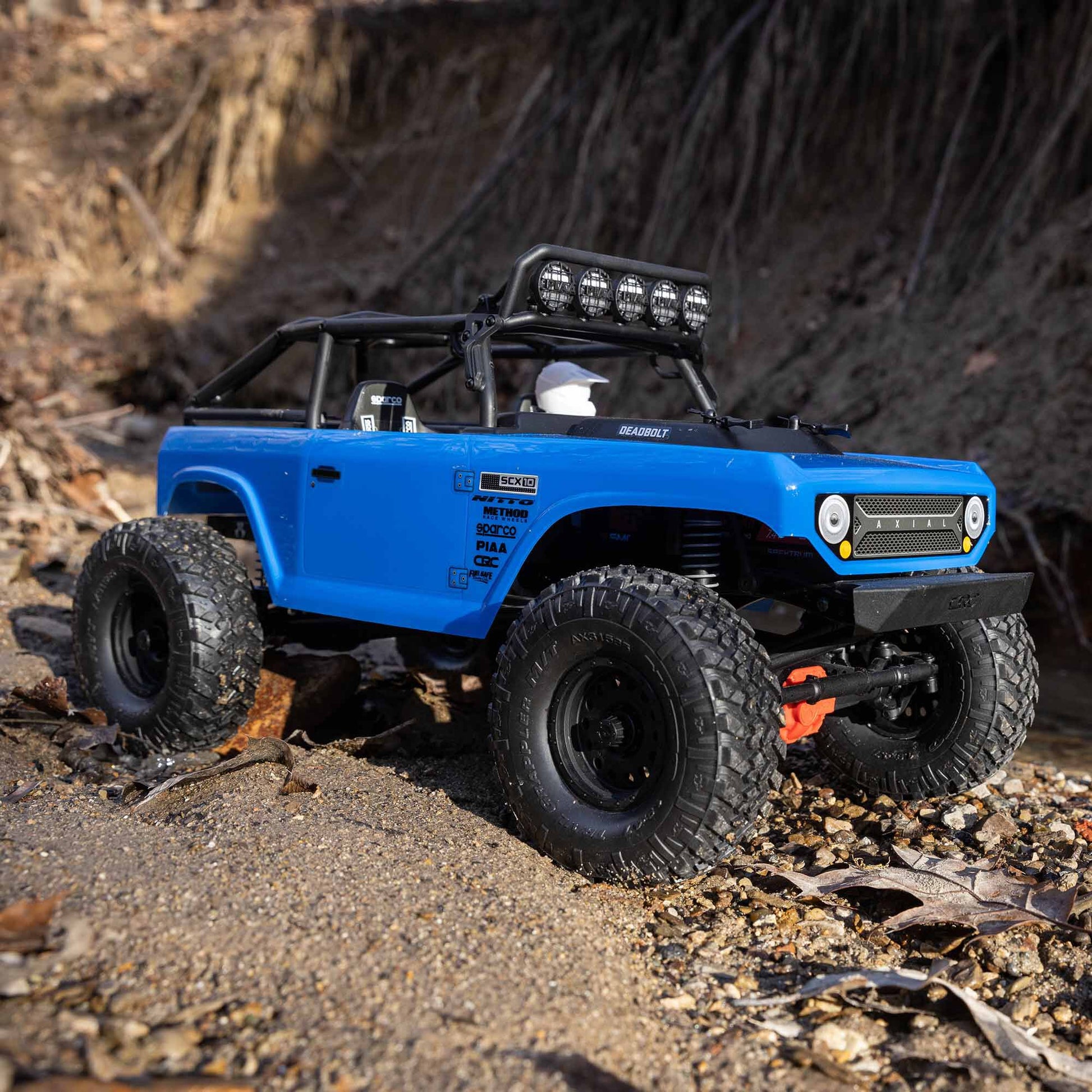

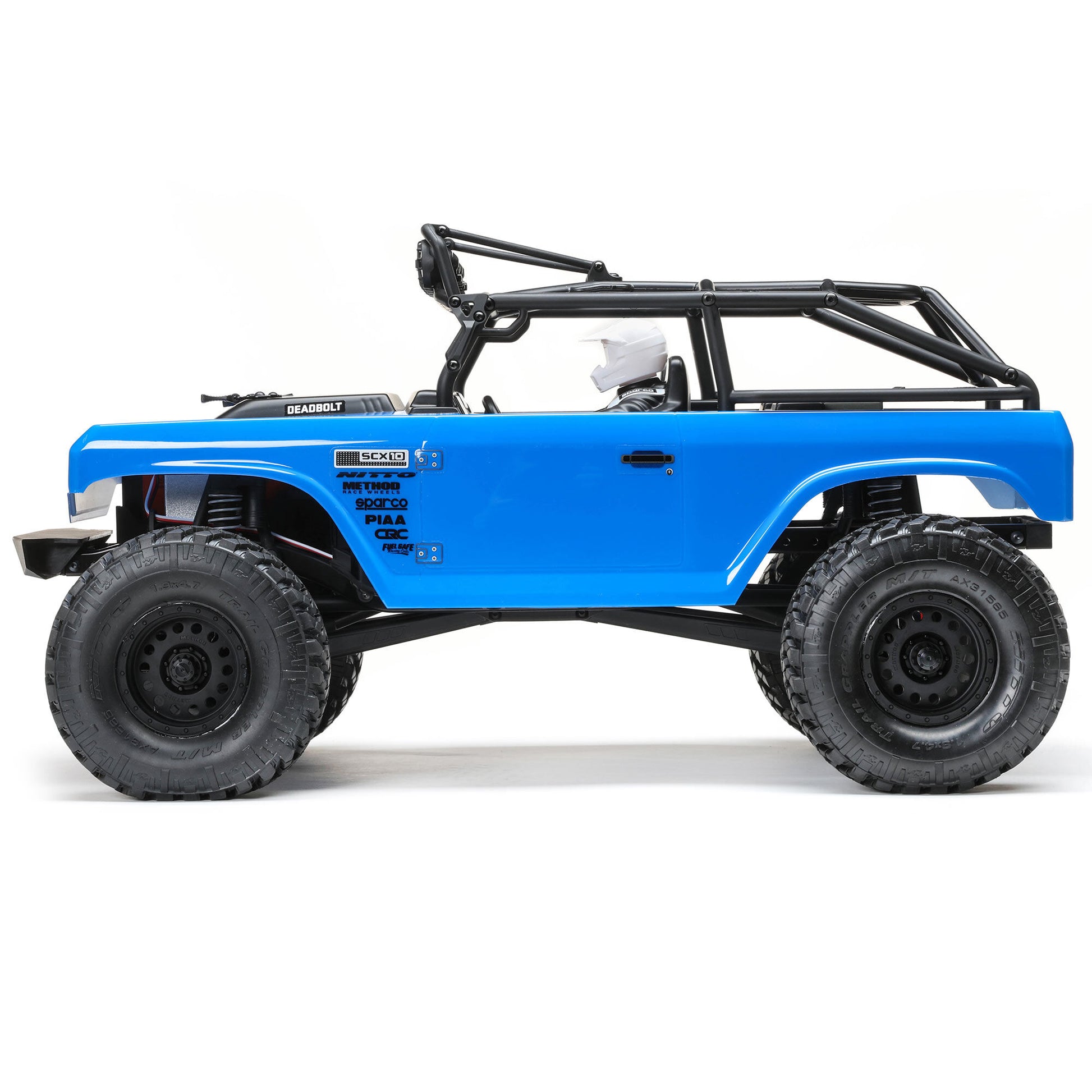

The Axial SCX10 II Deadbolt 4X4 is a standout in the world of remote-controlled rock crawlers, celebrated for its exceptional scale off-road performance and rugged durability. This ready-to-run model features a realistic and robust steel C-channel chassis, complete with cross braces for added reinforcement and rigidity. With a short wheelbase of just 12 inches, this agile rig is designed to navigate through the toughest trails with ease.
The SCX10 II Deadbolt boasts a single-piece AR44 front and rear axle, specially designed for extreme durability. The high pinion gear design enhances ground clearance and improves the driveshaft angles, allowing for a more efficient power transfer. One of the highlights of this incredible vehicle is the LCX AX10 transmission, which offers an adjustable gearing ratio for speeds suitable for both high-speed excursions and precision crawling competitions.
This model is highly adaptable, featuring an adjustable wheelbase and several customizable options such as body mounts and bumper mounts, making it easy for enthusiasts to enhance their setup. The suspension includes oil-filled, adjustable coilover shocks for optimum performance on varying terrains, while the included Nitto Trail Grappler M/T tires provide superior traction and ground clearance for off-road adventures.
Realistic detailing sets the SCX10 II Deadbolt apart, featuring a driver figure and an exterior cage with a light bar (LED lights sold separately), contributing to its scale appeal. Fully equipped with a Spektrum SLT2 2.4GHz radio system, motor, and electronic speed controller, this model is ready to hit the trails right out of the box. Simply add your choice of battery and charger, and your exciting off-road adventure awaits.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual
Collapsible content
Overview
The Axial SCX10 II Deadbolt 4X4 is a standout in the world of remote-controlled rock crawlers, celebrated for its exceptional scale off-road performance and rugged durability. This ready-to-run model features a realistic and robust steel C-channel chassis, complete with cross braces for added reinforcement and rigidity. With a short wheelbase of just 12 inches, this agile rig is designed to navigate through the toughest trails with ease.
The SCX10 II Deadbolt boasts a single-piece AR44 front and rear axle, specially designed for extreme durability. The high pinion gear design enhances ground clearance and improves the driveshaft angles, allowing for a more efficient power transfer. One of the highlights of this incredible vehicle is the LCX AX10 transmission, which offers an adjustable gearing ratio for speeds suitable for both high-speed excursions and precision crawling competitions.
This model is highly adaptable, featuring an adjustable wheelbase and several customizable options such as body mounts and bumper mounts, making it easy for enthusiasts to enhance their setup. The suspension includes oil-filled, adjustable coilover shocks for optimum performance on varying terrains, while the included Nitto Trail Grappler M/T tires provide superior traction and ground clearance for off-road adventures.
Realistic detailing sets the SCX10 II Deadbolt apart, featuring a driver figure and an exterior cage with a light bar (LED lights sold separately), contributing to its scale appeal. Fully equipped with a Spektrum SLT2 2.4GHz radio system, motor, and electronic speed controller, this model is ready to hit the trails right out of the box. Simply add your choice of battery and charger, and your exciting off-road adventure awaits.
Features

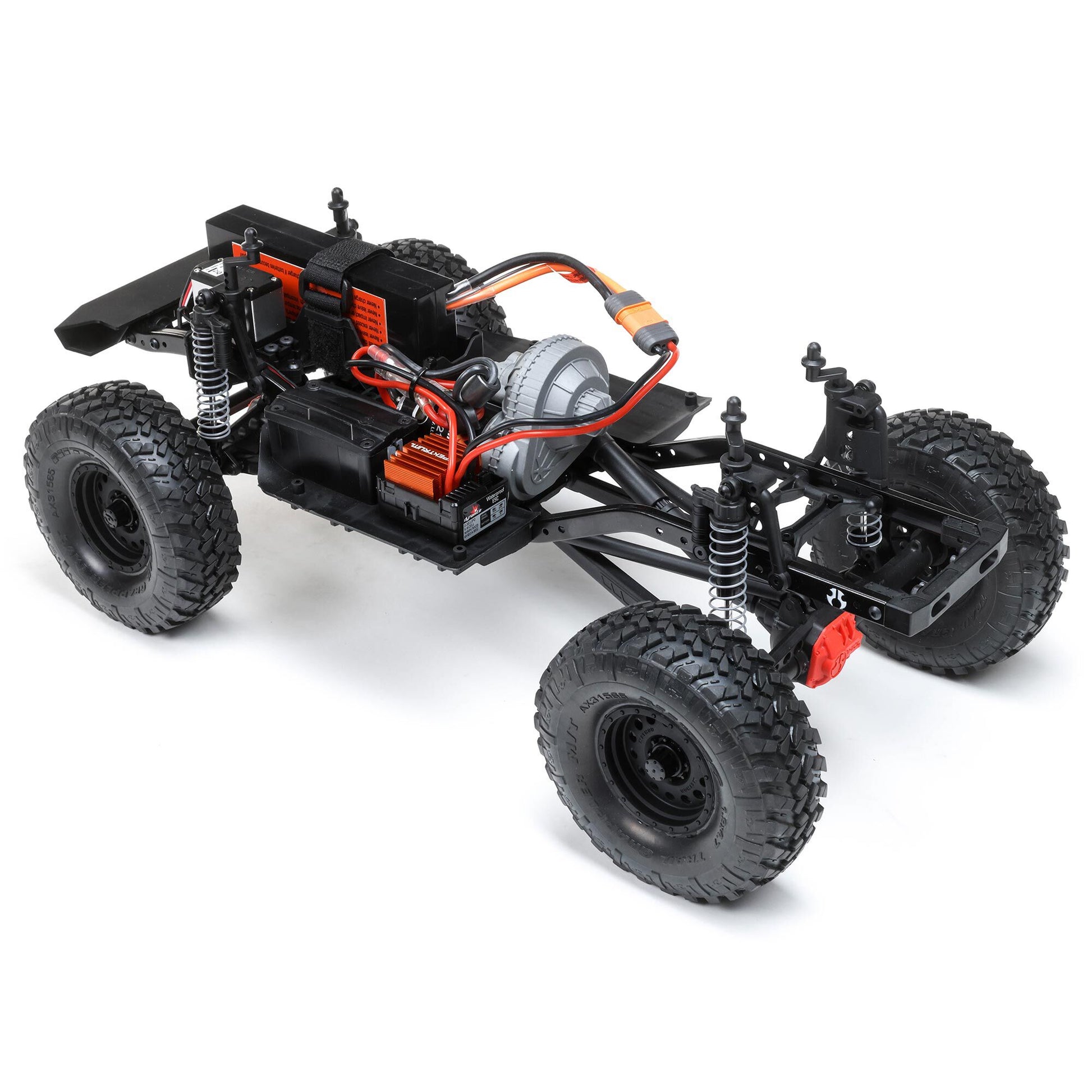

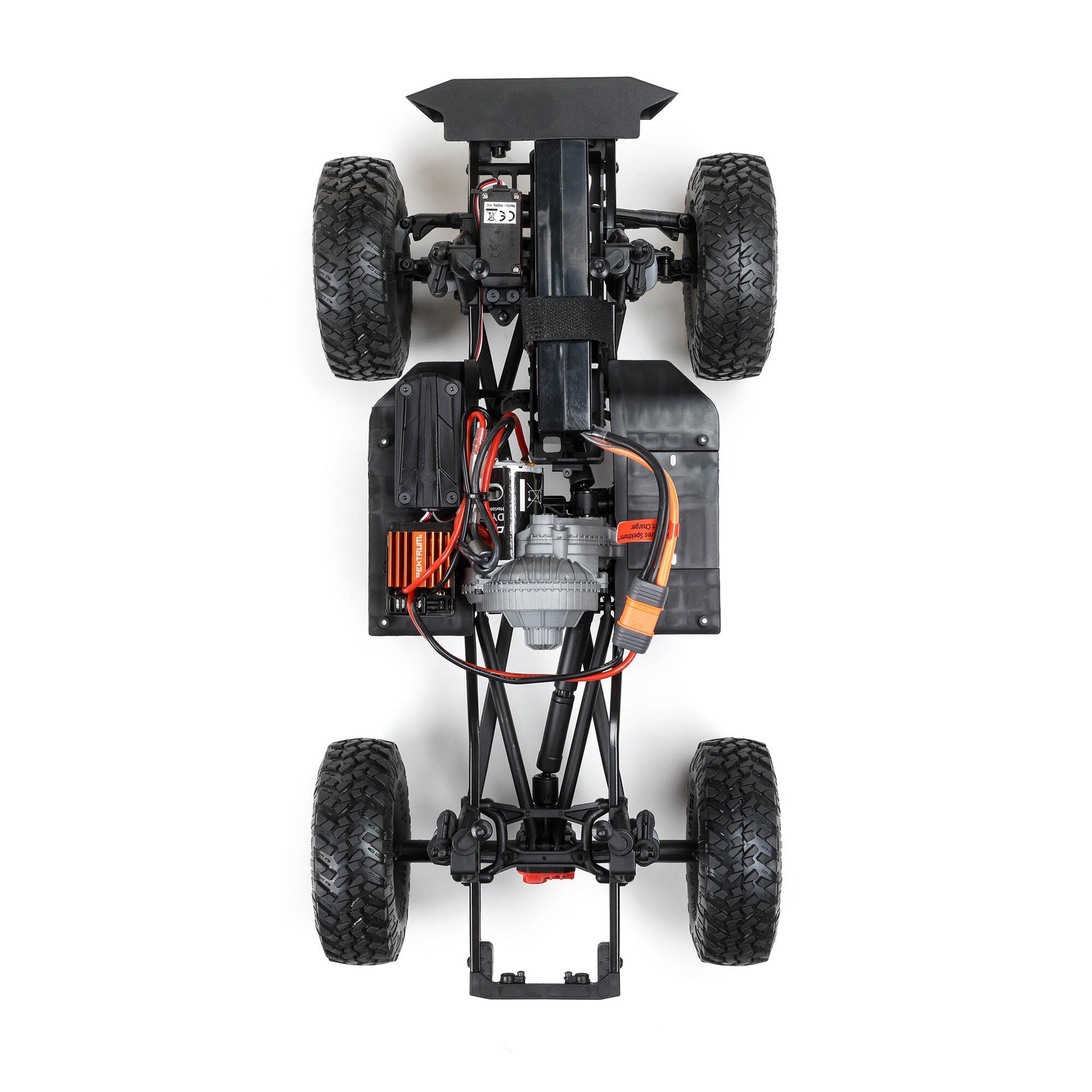

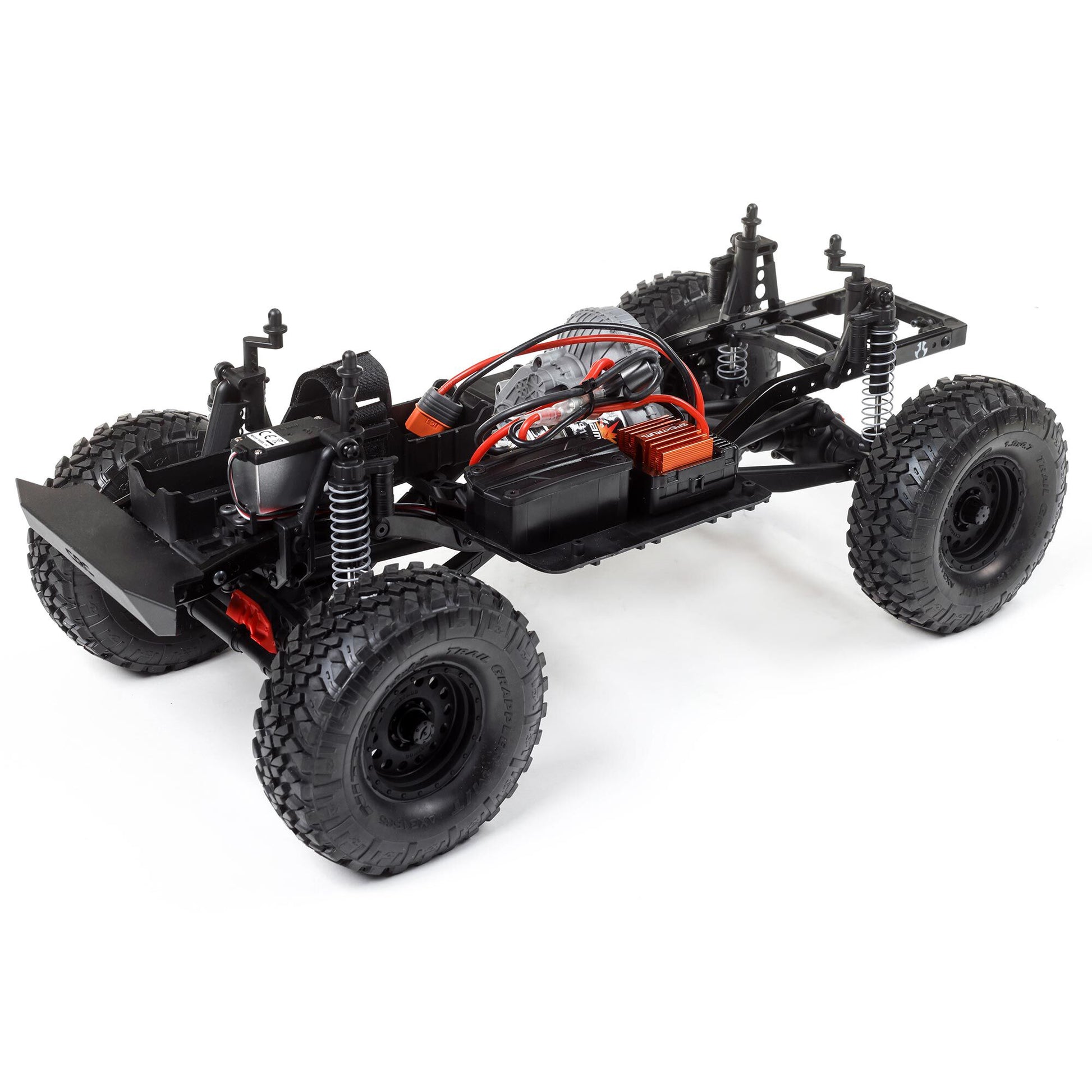

- Realistic, durable steel C-channel chassis with cross braces for reinforcement and rigidity

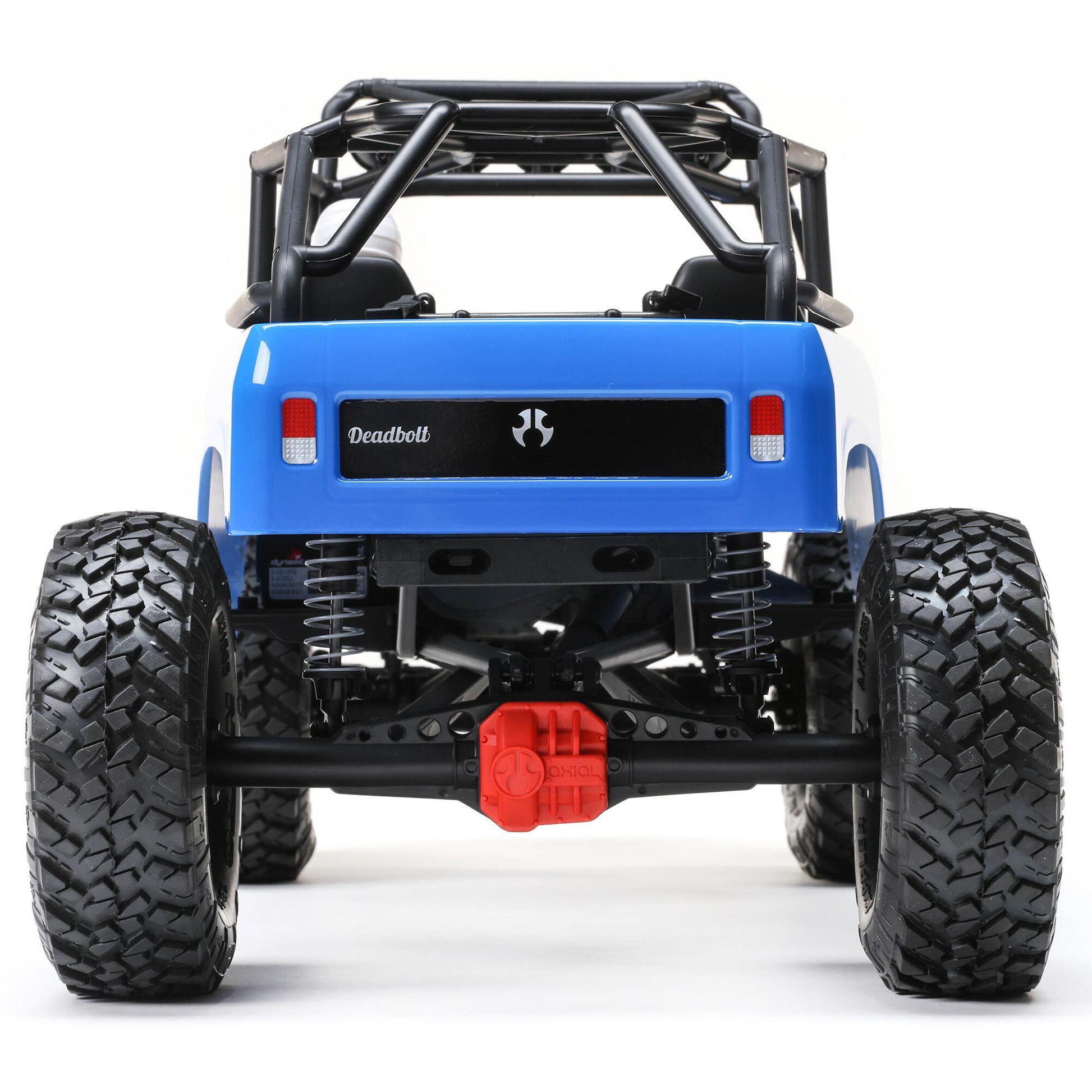

- Single-piece AR44 front and rear axles with molded truss for extreme durability
- High pinion design increases ground clearance, improves driveshaft angles, and enhances gear surface contact
- LCX AX10 transmission with adjustable gearing ratio for high speed or competition-level crawling speed
- Optimized gear ratio of 3.75 reduces torque twist
- Metal gears for enhanced durability
- Larger load rated bearings for increased robustness
- 8° Kingpin axle eliminates tire scrub

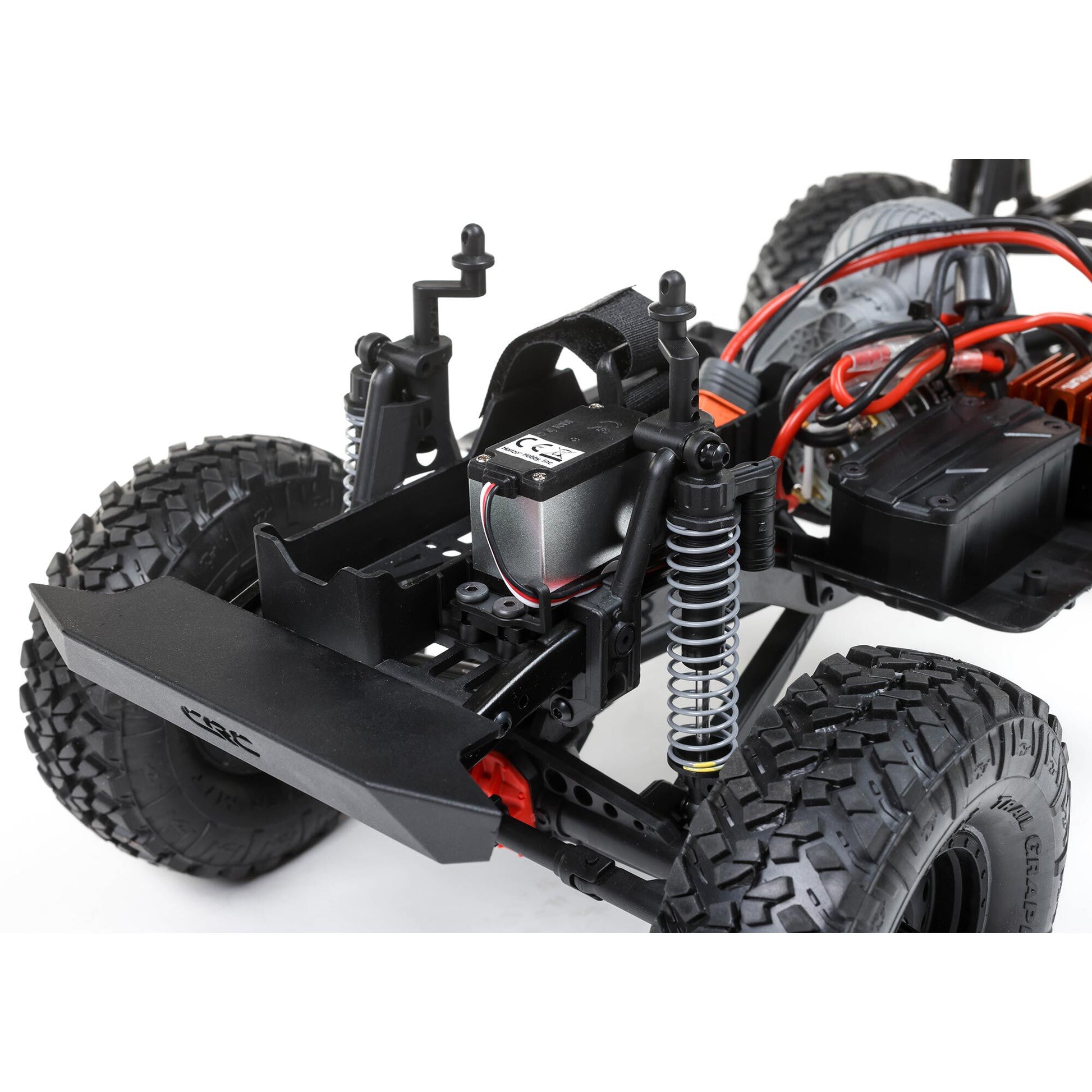

- Chassis mounted servo with adjustable mounting system

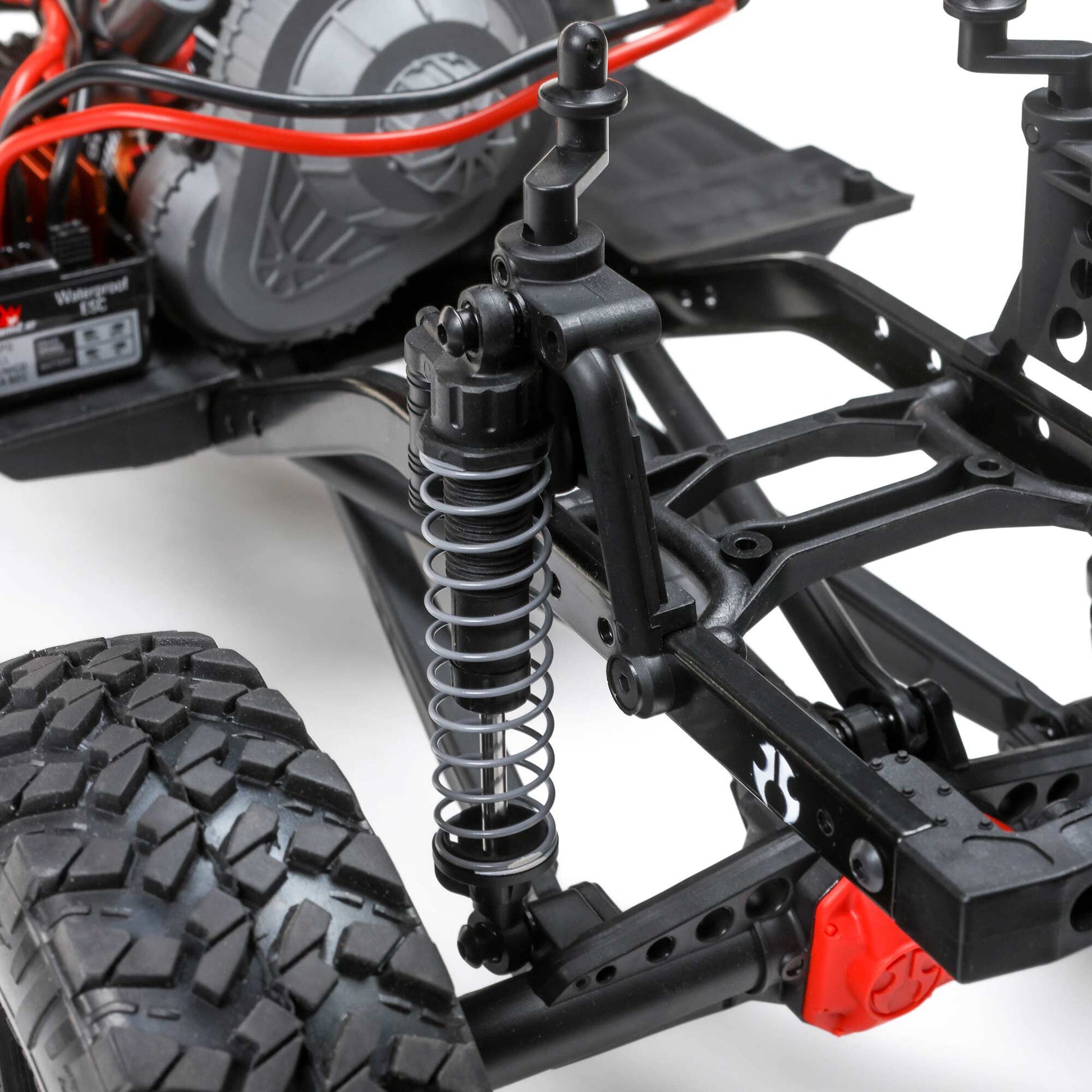

- Oil-filled, adjustable coilover shocks with threaded shock bodies
- Licensed CRC front bumper for authentic styling
- 3-piece WB8 HD Wildboar front and rear driveshafts to reduce flex and fatigue

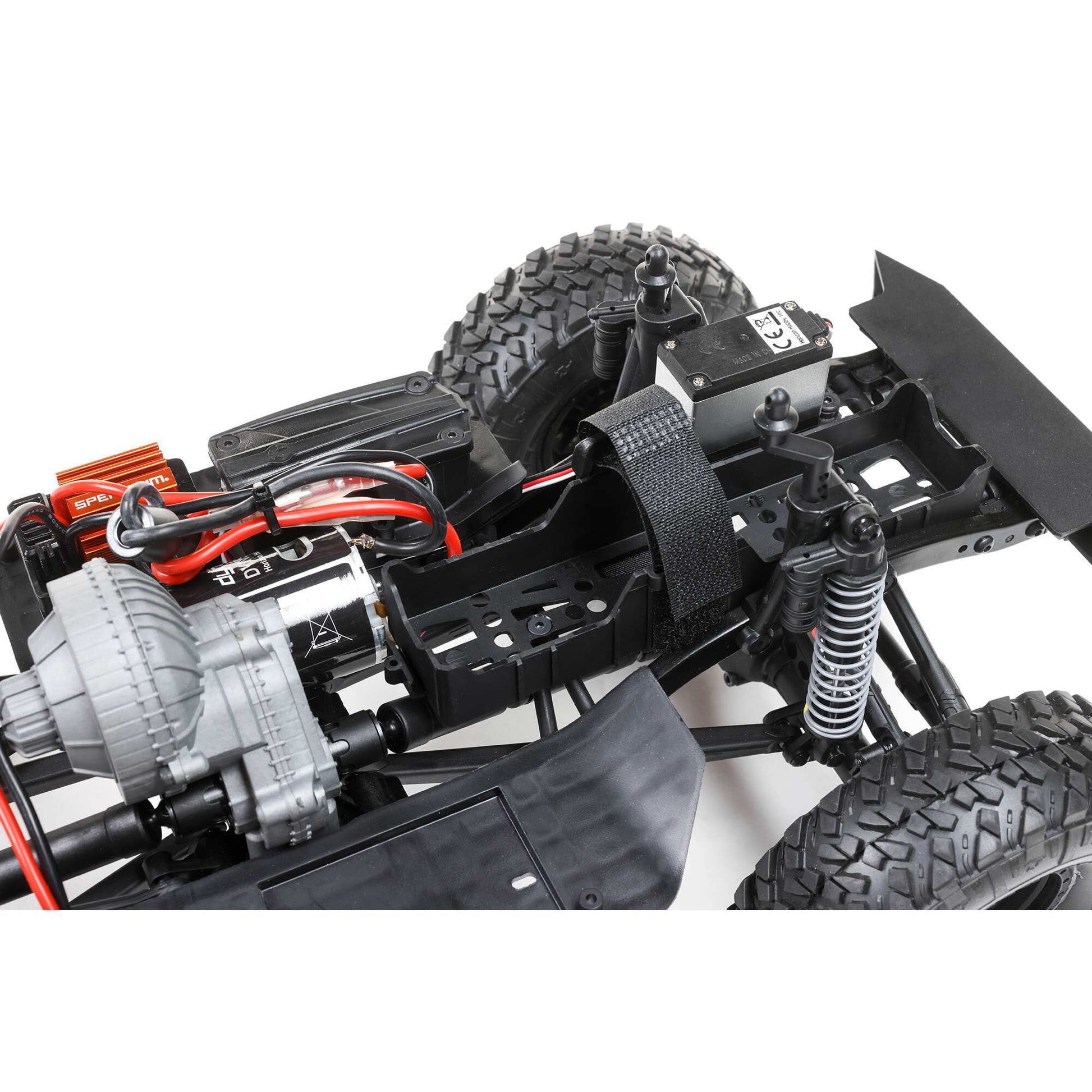

- Easy-access, water-resistant receiver box for convenience
- Adjustable wheelbase of 12" (305 mm) allows for a customized fit
- Method 307 Hole 1.9" Wheels for durability and clean looks
- Nitto Trail Grappler M/T 1.9" tires for excellent traction in all terrain
- Included Spektrum 40A Brushed ESC with IC3 connector for reliable performance
- Spektrum SLT2 2.4GHz transmitter for extended range and interference-free operation
- Water-resistant design for increased protection against the elements
- High-quality ball bearings throughout the drivetrain
Needed to Complete
- Batteries
- Charger
Specifications
- Drivetrain: 4WD
- Product Width: 8.8" (224 mm)
- Wheelbase: 12" (305 mm)
- Servos: Included
- Battery: Sold Separately
- Product Weight: 4.65 lb (2.1 kg)
- Speed Control: Included
- Motor Type: Brushed
- Connector Type: IC3
- Front Track: 7.5 in (190.5mm)
- Rear Track: 7.5 in (190.5mm)
- Charger: Sold Separately
- Spur Gear: 56T
- Ground Clearance: 2.7 in (68mm)
- Shock Type: Oil Filled
- Power Type: Electric
- Wheel Hex Size: 12mm
- Pinion: 14T
- Completion Level: Ready-To-Run
- Color Variant: Blue
- Product Length: 18.1" (460 mm)
- Motor Size: 540
- Brakes: Integral with ESC
- Water-Resistant: Yes
- Radio: Included
- Gear Pitch: 32P
- Receiver: Included
- Approximate Assembly Time: Less than 1 Hour
- Steering Type: 2WS
- Final Drive Ratio: 40.44:1
- Gear Ratio: 3.75
- Scale: 1/10
- Differential: Locked
- Vehicle Type: Rock Crawler
- Drive Type: Forward/Brake/Reverse
- Product Height: 9" (229 mm)
- Vehicle Size: Standard
- LiPo Compatibility: 3S, 2S
-
