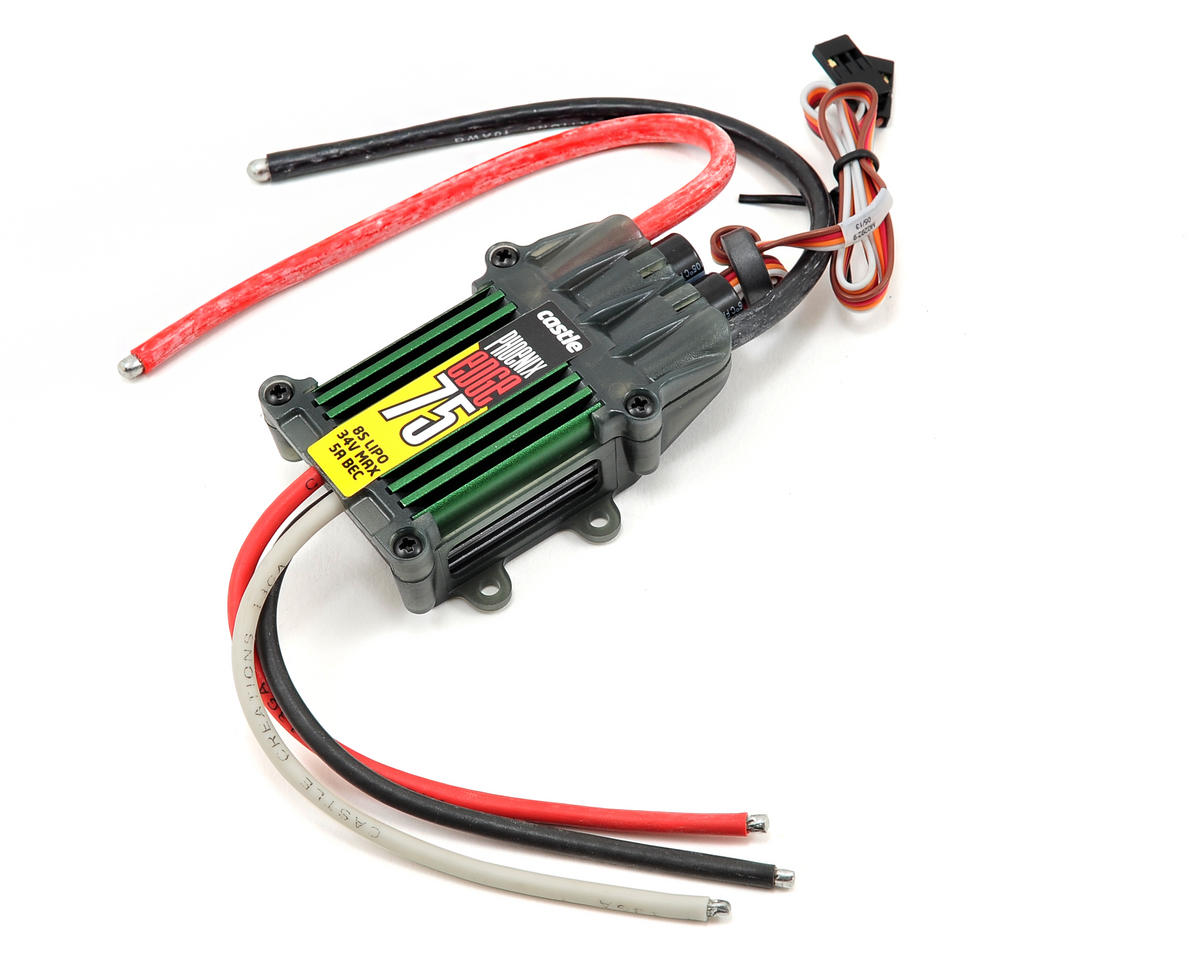

Phoenix Edge 75: 32V 75-Amp Brushless ESC (CSE010010100)

The Phoenix Edge 75 is a powerful 32V 75-Amp brushless electronic speed controller (ESC) that represents the next evolution in speed controller technology. Designed for high-performance applications, this ESC features a user-programmable auxiliary wire that allows for versatile functionality such as helicopter governor gain input adjustments mid-flight, serving as an audible beacon after an unexpected landing, acting as an RPM output for compatible 3-axis gyros, and functioning as both an ESC arming lock and a receiver arming lock. Additionally, with data logging capabilities and access to Castle's renowned software and programming tools via the Castle Link USB Adapter or the B-LINK Bluetooth Adapter, users can enjoy exceptional adaptability and control over their projects.

The Phoenix Edge 75 provides data logging functionality that can be accessed using the Castle Link USB Adapter along with Castle Link Windows software. This feature allows users to read, analyze, and store critical data recorded on the ESC, enhancing operational insights.

Equipped with advanced power system alerts, the Edge ESCs are programmed to use the motor to emit various tunes and codes alongside flashing LED patterns to notify users of key power system conditions, such as overheating, excessive load, and locked head speed.

The inclusion of an auxiliary line allows for additional functionalities, making the Edge ESCs even more versatile. Users can utilize this extra connection for adjustments or alerts, enhancing the overall functionality of the speed controller.

Measuring telemetry capabilities, the ESC can monitor battery voltages, ESC temperature, and other crucial parameters, significantly improving safety and reducing the risks of unexpected crashes. Optional purchases such as the Castle Telemetry Link for S.BUS2 or X-BUS enable enhanced compatibility with compatible radios, further elevating the user experience.

The Phoenix Edge 75 also incorporates solid protection features, including an Arming Lockout Key, preventing the controller from arming when the key is installed. The RC Arm Lock ensures the controller does not operate with an auxiliary channel reading below a certain threshold, adding a layer of safety to operations.

This ESC is fully programmable, allowing users to customize settings using the Castle Link USB Adapter and freely available Castle Link Windows software or the Castle Link iOS App. A selection of settings can also be adjusted through manual programming via the transmitter stick for added convenience.

Additionally, users benefit from free access to firmware upgrades, ensuring they always have the latest features and improvements through the Castle Link USB Programming Kit.
