Castle Creations (CSE)
SKU:CSE010011507

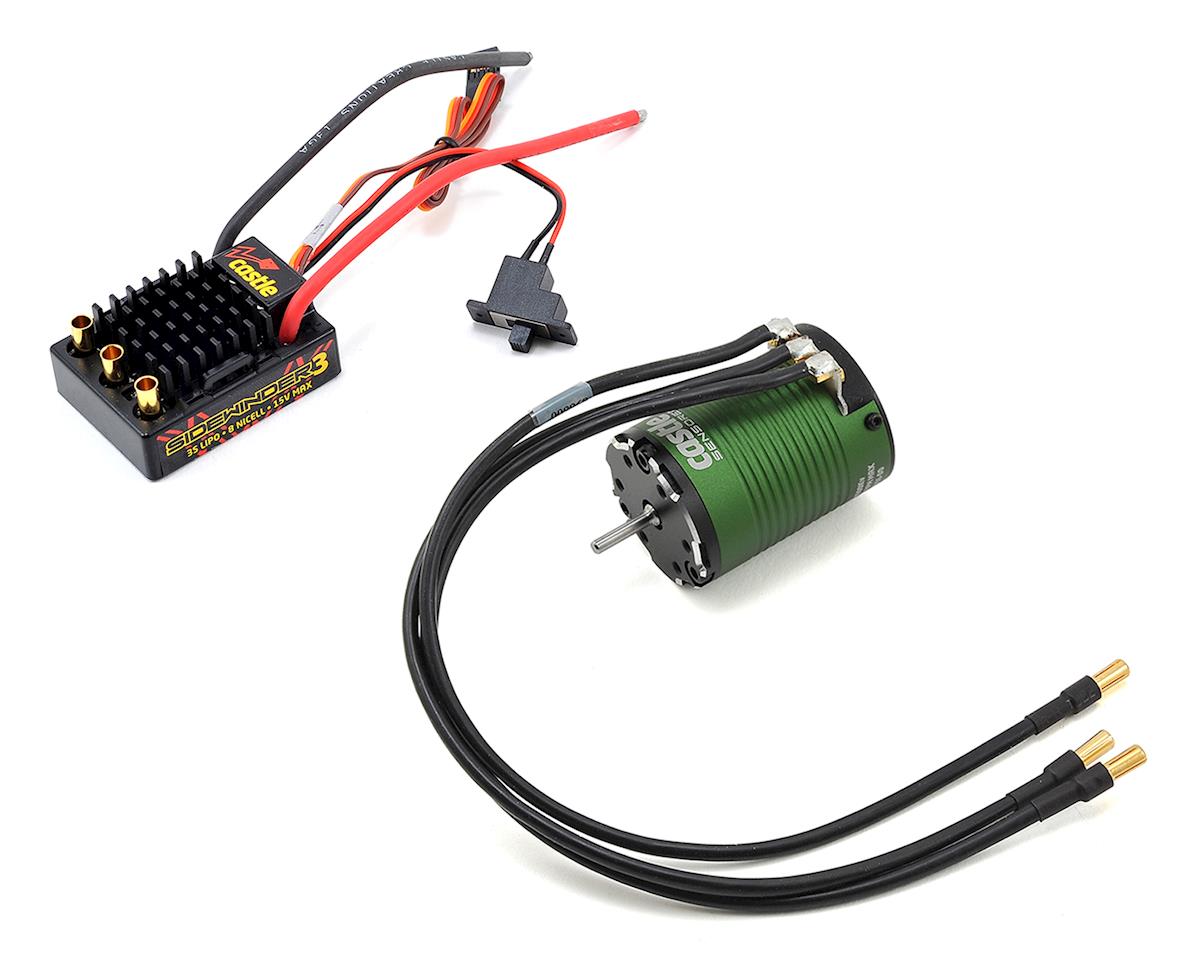

Sidewinder 3 Waterproof 1/10 Combo with Sensored Motor, 6900kV (CSE010011507)
Sidewinder 3 Waterproof 1/10 Combo with Sensored Motor, 6900kV (CSE010011507)
The Sidewinder 3 Waterproof 1/10 Combo with Sensored Motor, featuring a 6900kV system, is the ideal choice for 1:10 scale off-road and on-road vehicles utilizing up to 3S LiPo configurations. Designed for optimum performance and reliability, this combo includes a Sidewinder 3 ESC and a 1406-6900Kv sensored motor, ensuring quick response times enhanced by updated circuitry.
This combination provides a rebuilt motor option, allowing users to efficiently replace damaged motor wires with ease. Although the sensored capabilities of the motor operate in sensorless mode with the Sidewinder 3 ESC, the motor remains a superb upgrade especially for 1/10th scale on-road vehicles when used with 2S configurations. It can also be paired effectively with lightweight off-road buggies and stadium trucks when conservative gearing is employed.
The Sidewinder 3 ESC dimensions are 1.93 inches in length, 1.48 inches in width, and 0.79 inches in height, weighing just 1.96 ounces. Users need to prepare soldering 4mm female bullets for motor connection, which are sold separately. The recommended vehicle weight is up to 5 lbs. with battery, ready for action.
Moreover, this ESC can be programmed directly through the transmitter, or by utilizing a Castle Link USB adapter or a Field Link card for advanced tuning options that include brake and throttle curves, throttle response, and drag brake adjustments. Enjoy exceptional performance and responsiveness right out of the box with the Sidewinder 3 Combo!
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual
Collapsible content
Overview
The Sidewinder 3 Waterproof 1/10 Combo with Sensored Motor, featuring a 6900kV system, is the ideal choice for 1:10 scale off-road and on-road vehicles utilizing up to 3S LiPo configurations. Designed for optimum performance and reliability, this combo includes a Sidewinder 3 ESC and a 1406-6900Kv sensored motor, ensuring quick response times enhanced by updated circuitry.
This combination provides a rebuilt motor option, allowing users to efficiently replace damaged motor wires with ease. Although the sensored capabilities of the motor operate in sensorless mode with the Sidewinder 3 ESC, the motor remains a superb upgrade especially for 1/10th scale on-road vehicles when used with 2S configurations. It can also be paired effectively with lightweight off-road buggies and stadium trucks when conservative gearing is employed.
The Sidewinder 3 ESC dimensions are 1.93 inches in length, 1.48 inches in width, and 0.79 inches in height, weighing just 1.96 ounces. Users need to prepare soldering 4mm female bullets for motor connection, which are sold separately. The recommended vehicle weight is up to 5 lbs. with battery, ready for action.
Moreover, this ESC can be programmed directly through the transmitter, or by utilizing a Castle Link USB adapter or a Field Link card for advanced tuning options that include brake and throttle curves, throttle response, and drag brake adjustments. Enjoy exceptional performance and responsiveness right out of the box with the Sidewinder 3 Combo!
Features
- Designed for 1/10th scale off-road and on-road vehicles
- Waterproof construction (not intended for complete submersion)
- Supports input voltage up to 3S LiPo
- ESC Dimensions: Length 1.93 in, Width 1.48 in, Height 0.79 in, Weight 1.96 oz
- Motor Dimensions: Length 49.5mm, Diameter 36mm, M3 @ 25mm Mounting Holes
- 1406-6900Kv sensored motor provides exceptional efficiency
- Motor is rebuildable with easily replaceable parts (available soon)
- Recommended vehicle weight: Up to 5 lbs. with battery
- Includes Sidewinder 3 ESC and 1406-6900Kv sensored motor combo
- Programmable ESC settings via transmitter or Castle Link USB adapter (sold separately)
- Allows tuning of throttle curves, throttle response, drag brake, and more
- Suitable for 1/10th on-road cars and lightweight off-road vehicles with conservative gearing
- Not for use in 2WD or 4WD short course trucks
Needed to Complete
- Soldering 4mm female bullets for motor connection (sold separately)
Specifications
- Product Name: Sidewinder 3 Waterproof 1/10 Combo with Sensored Motor, 6900kV
- Model Number: CSE010011507
- Input Voltage MAX: 3s LiPo
- ESC Size: Length: 1.93 in, Width: 1.48 in, Height: 0.79 in
- ESC Weight: 1.96 oz
- Motor Size: Length: 49.5mm, Diameter: 36mm
- Motor Mounting Holes: M3 @ 25mm
- Motor RPM: 6900kV
- Rebuildable Motor: Yes
- Recommended Vehicle Weight: Up to 5 lbs. with battery, ready-to-run
- Programmable Features: Via transmitter, Castle Link USB adapter, or Field Link card
- Compatibility: Designed for 1/10 scale vehicles, not for use in 2WD or 4WD short course trucks
-
