• Talon 15: 2S-4S 15-Amp Brushless ESC (CSE010012900)
1 1

Castle Creations (CSE)

CSE010012900

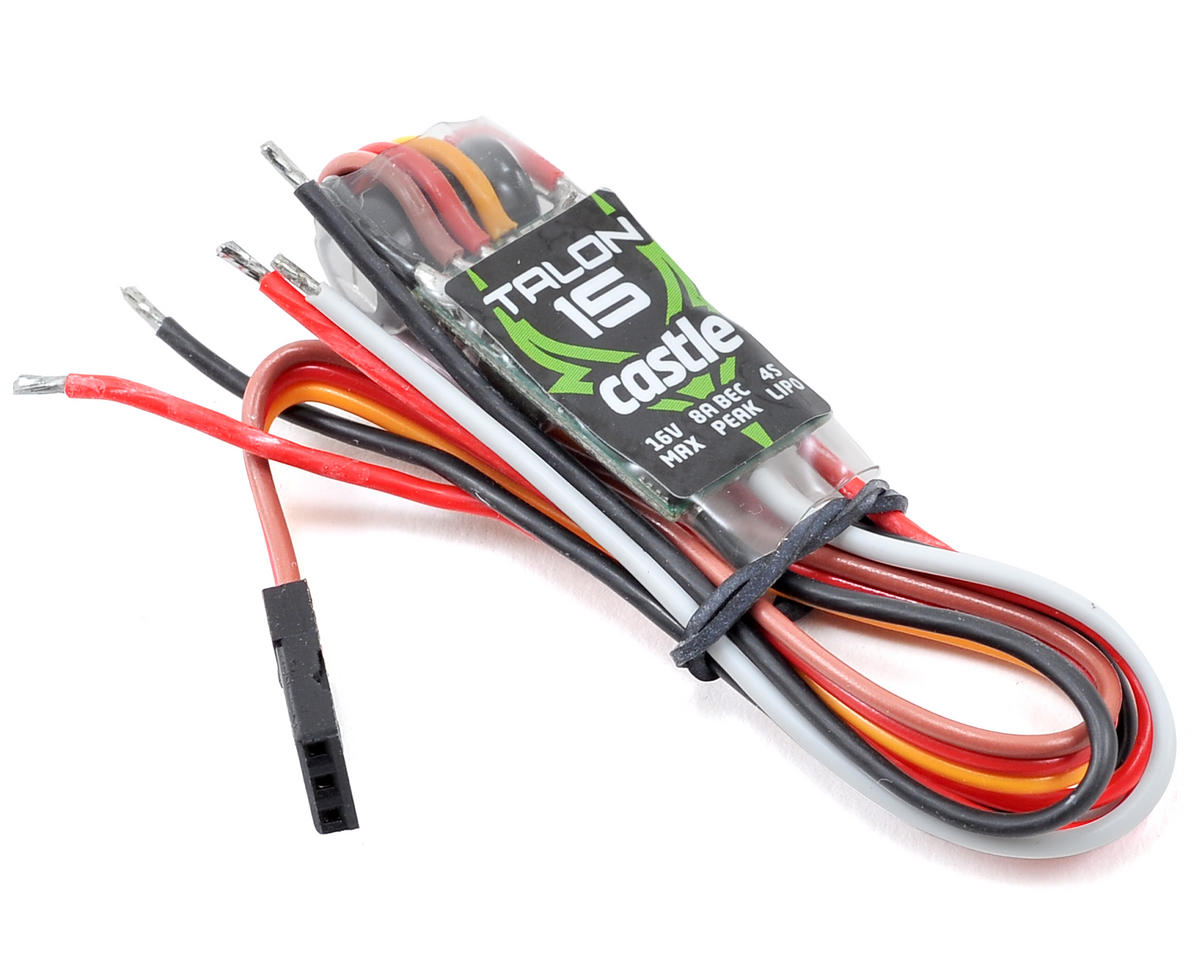

Talon 15: 2S-4S 15-Amp Brushless ESC (CSE010012900)

Talon 15: 2S-4S 15-Amp Brushless ESC (CSE010012900)

Introducing the Talon 15, a compact 15-amp brushless ESC designed for micro and foam airplanes and sub-micro helicopters using 2S to 4S LiPo packs. It delivers reliable motor control up to 15 amps and includes an 8-amp BEC to power servos and the receiver. Fully programmable via the Castle Link USB adapter and software, it supports firmware upgrades to keep features current.

Power-system alerts help you stay ahead of issues, with audible tunes and LED indicators signaling conditions such as overheating, excessive load, or a locked head speed. Telemetry capability lets you monitor battery voltage, ESC temperature, and other critical parameters, with alarms to warn about interference or a low receiver battery when paired with a compatible Telemetry Link and radio. Designed to grow with your models, the Talon 15 offers flexible programming options and ongoing firmware updates.

$39.95
$39.95 $39.95
Sale Sold out

  • Available: 1

    • Nankin Hobby Farmington: 1
    • Nankin Hobby Ypsilanti: 0
    • Nankin Hobby Southgate: 0

Exploded View

Exploded View

Parts List

Parts List

Product Manual

Product Manual
View full details
  • Talon 15: 2S-4S 15-Amp Brushless ESC (CSE010012900)

Overview

The Talon 15 is a compact yet powerful 15-amp brushless speed controller designed for a variety of applications, from foamies to micro and sub-micro helicopters. It boasts an impressive 8-amp BEC, capable of handling up to 4S batteries while pulling 15 amps. This ESC features industry-leading functions and facilitates easy programming using the Castle Link USB adapter, which comes with a coupon for a free adapter, or the Castle Field Link Portable Programmer, sold separately.

Designed with user-friendly alerts, the Talon 15 ESC emits various tunes and codes through the motor and displays flashing LED patterns to inform users about critical power system conditions, such as over temperature, excessive load, and locked head speed.

This ESC is telemetry capable, allowing for enhanced safety by monitoring battery voltages, ESC temperature, and other key parameters. With telemetry, users can also enjoy additional peace of mind while flying, thanks to alarms that notify them of potential issues, such as receiver battery levels or interference. To enable telemetry, users will need to purchase the Castle Telemetry Link compatible with their radio system.

The Talon 15 offers full programmability with the Castle feature set, accessible through the Castle Link USB adapter and the freely downloadable Castle Link Windows software as well as the Castle Link iOS App paired with a B-Link Bluetooth Adapter. A subset of settings can be accessed via manual programming through the transmitter stick as well.

Additionally, users will gain free access to all firmware updates, which may include new feature sets, using the Castle Link USB Programming Kit.

Features

  • 15-amp brushless speed controller suitable for foamies, micro, and sub-micro helicopters
  • 8-amp BEC for reliable performance
  • Compatible with up to 4S batteries, pulling up to 15 amps
  • Industry-leading functions with easy programming options
  • Includes coupon for free Castle Link USB adapter for programming
  • Supports telemetry to monitor battery voltages and ESC temperature
  • Alerts users with sound tunes and LED patterns for critical power system conditions
  • Fully programmable using Castle Link USB adapter or Castle Link iOS App with B-Link Bluetooth Adapter
  • Free access to firmware updates for added features through Castle Link USB Programming Kit

Needed to Complete

  • Castle Link USB adapter (coupon included for free adapter)
  • Castle Field Link Portable Programmer (sold separately)
  • Castle Telemetry Link for S.BUS2 (Item CSE010015200) and compatible Futaba Radio (optional)
  • Castle Telemetry Link for X-BUS (Item CSE010014800) and compatible Spektrum Radio (optional)
  • B-Link Bluetooth Adapter (for iOS App programming)

Specifications

  • Product Name: Talon 15: 2S-4S 15-Amp Brushless ESC
  • Model Number: CSE010012900
  • Max Current: 15 amps
  • Battery Compatibility: 2S to 4S
  • Built-in BEC: 8 amps
  • Telemetry Capable: Yes, requires additional purchase for telemetry link
  • Programming Interface: Castle Link USB adapter (coupon included), Castle Field Link Portable Programmer (sold separately)
  • Weight: Lightweight design suitable for micro applications
  • Firmware Updates: Free access to all updates via Castle Link USB Programming Kit
  • Power System Alerts: Sounds and LED patterns for various conditions
