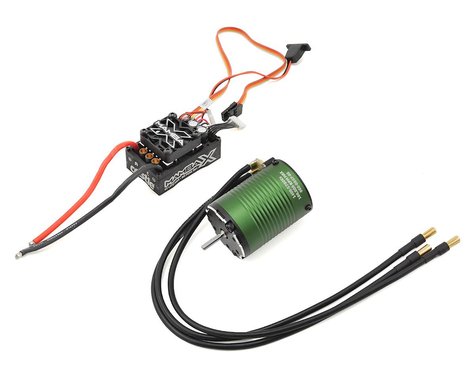

Mamba X Waterproof Sensored ESC with 5700KV 1406 Motor (CSE010015502)
Mamba X Waterproof Sensored ESC with 5700KV 1406 Motor (CSE010015502)
The Mamba X waterproof ESC paired with a 1406-5700KV sensored motor is a high-performance power system designed for 1/10-scale RC cars and trucks. It delivers reliable, water‑protected power across 2S–6S packs, providing smooth starts and strong torque for both track racing and rugged off‑road driving. SMARTSENSE uses the motor’s sensors to deliver smooth, cog‑free starts and torque, then automatically shifts to efficient sensorless operation for peak performance and cooler running.
Encased in a rugged CNC aluminum housing and potted for water resistance, the setup includes built‑in capacitors to help deliver clean power, an adjustable 8A BEC, 4mm bullet connectors, 12 AWG power wires, and a waterproof switch, plus a removable 30mm cooling fan to manage heat. Castle Link programming, data logging, and telemetry enable easy tuning and real‑time monitoring. Weighing about 101 grams, this power system is designed to fit a wide range of 1/10-scale builds and pairs readily with the included motor.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual

Collapsible content
Overview
The Mamba X Waterproof Sensored ESC with 5700KV 1406 Motor is designed to elevate the performance of your RC experience. This robust combo includes a 1/10 Mamba X Waterproof ESC and a 1406-5700KV Sensored Brushless Motor, featuring an input voltage range of 2S to 6S, making it versatile for various applications.
The waterproof ESC is built to withstand the rigors of RC racing and bashing, housed in a rugged CNC aluminum case and potted in waterproof epoxy for maximum protection. It is equipped with an adjustable 8A BEC and integrated capacitors to ensure efficient power delivery. The unit features integrated 4mm bullet connectors, a waterproof switch, and removable cooling fan for enhanced performance. With telemetry capability and data logging functionality, enthusiasts can monitor vehicle performance in real-time, enabling finer adjustments on the go.
With its exclusivity in features, the Mamba X offers seamless transitions between sensored and sensorless modes through SMARTSENSE technology, delivering smooth torque and improved efficiency. The auxiliary wire functionality allows for on-the-fly adjustments from the transmitter, giving drivers the edge in tuning torque control, max throttle, and brake settings while in action.
Equipped with Castle Link programming support, users can easily modify settings and access comprehensive tuning parameters, ensuring the perfect setup for any driving condition. The Mamba X also integrates advanced data logging capabilities to analyze performance data, including battery current, voltage, motor RPM, and temperature. This ensures that drivers can optimize both speed and battery life, making it an essential component for serious RC hobbyists.
Whether for racing, bashing, or crawling, the Mamba X Waterproof Sensored ESC and 5700KV motor combo offers unparalleled reliability and customized performance to help you conquer any terrain.
Features
- 2S to 6S input voltage range
- Sensored Motor Support
- Waterproof ESC
- Rugged CNC Aluminum Case
- 8A adjustable BEC (5.25V-8.0V)
- Castle Link Programming Support
- Data Logging capabilities
- Dimensions: 54.4mm x 35.2mm x 30.0mm (with fan)
- Telemetry capable with Castle Telemetry Devices and compatible transmitters
- Integrated Capacitors for efficient power management
- Integrated 4mm Bullet Connectors for easy setup
- Waterproof Switch for reliable operation
- 12 AWG Power Wires for high conductivity
- Removable 30mm ESC Cooling Fan
- SMARTSENSE technology for smooth and efficient motor operation
- Audible Alerts for critical notifications
- Weight: 101 grams, potted (no connector on power wires)
- Includes Castle Creations' 1-year warranty and excellent customer support
- Available as a combo with various motors for enhanced performance
Needed to Complete
- Castle Link Programming Adapter
Specifications
- Type: Waterproof Sensored ESC and Motor Combo
- Model: Mamba X Waterproof ESC / 1406-5700KV Motor (CSE010015502)
- Input Voltage Range: 2S to 6S
- Motor KV Rating: 5700KV
- ESC Dimensions: 54.4mm x 35.2mm x 30.0mm (with fan)
- Weight: 101 grams, potted (no connector on power wires)
- BEC Output: 8A adjustable (5.25V-8.0V)
- Bullet Connectors: Integrated 4mm
- Power Wires: 12 AWG
- Cooling Fan: Removable 30mm ESC Cooling Fan
- Programming Support: Castle Link Programming Support
- Telemetry: Capable with Castle Telemetry Devices and compatible transmitters
- Data Logging: Enabled by default
- Smart-Sense Technology: Enabled for smooth starts and efficient operation
- Warranty: 1-year warranty from Castle Creations
-
