Castle Creations (CSE)
SKU:CSE010015513
Mamba X SCT 1/10 Brushless Combo with Sensored Motor, 5mm Shaft, 3200kV (CSE010015513)
Mamba X SCT 1/10 Brushless Combo with Sensored Motor, 5mm Shaft, 3200kV (CSE010015513)

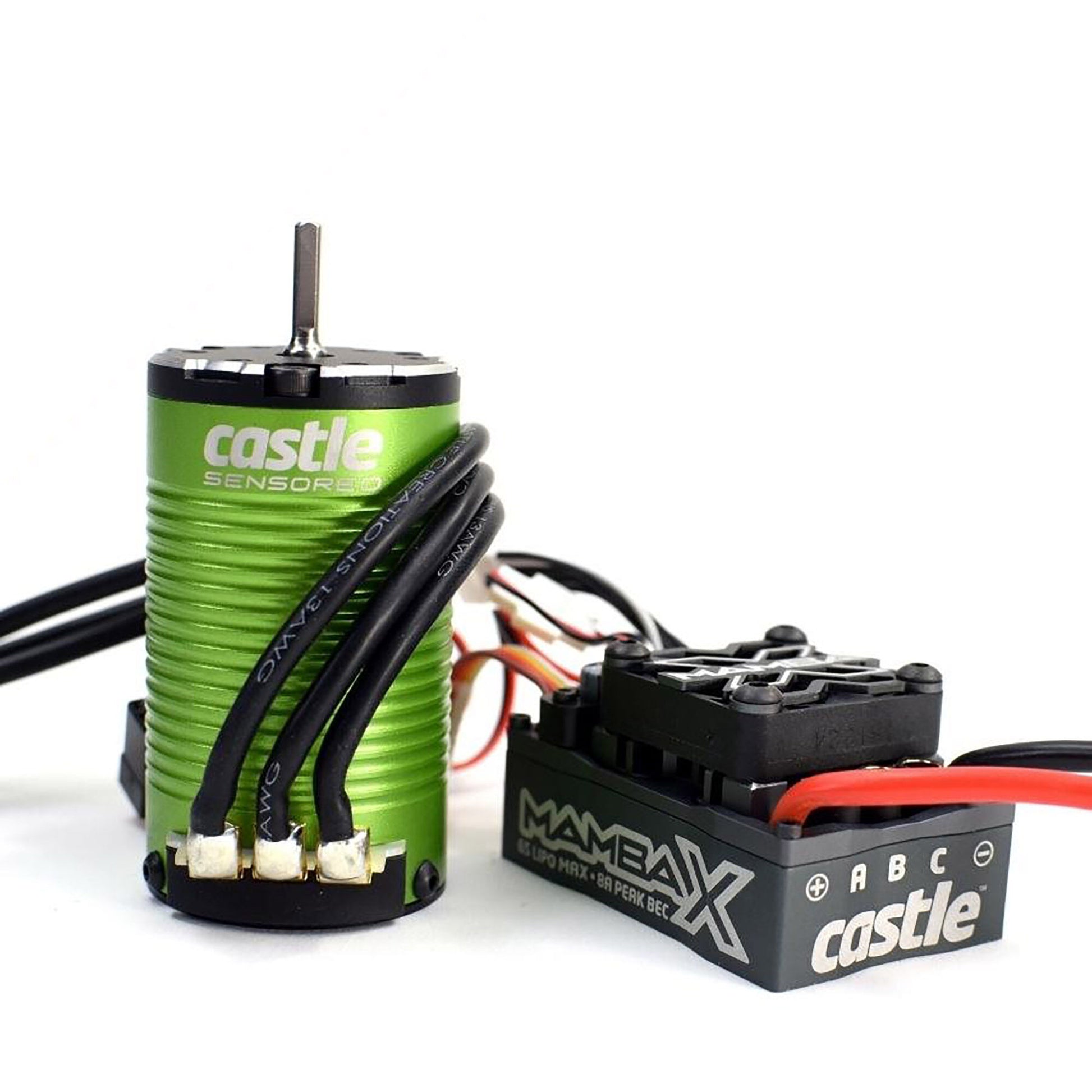

The Mamba X SCT Brushless ESC and 1412-3200Kv Sensored Motor Combo is a waterproof, high‑performance powertrain designed for 1/10-scale short course trucks and other 2WD/4x4 off‑road builds. It pairs a Mamba X ESC with a 1412-3200Kv sensored motor (5mm shaft) to deliver precise throttle response and strong torque across a wide voltage range. Compatible with 2S–6S LiPo packs, the setup is especially well suited to 2S–4S configurations with conservative gearing for dependable performance and temperature management. Castle Link programming, data logging, and alert indicators help tune the setup and diagnose issues quickly in the field.
Ideal for 1/10 SCTs and similar off‑road platforms, this combo includes robust 12 AWG power wires, integrated capacitors, a waterproof switch, and a removable 30mm cooling fan to keep temperatures in check. It also offers an adjustable BEC, transmitter programming support, and onboard diagnostics via audible and LED alerts for easy setup and reliable operation across a range of gearing and battery configurations.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual

Collapsible content
Overview
The Mamba X SCT 1/10 Brushless Combo is an innovative solution for RC enthusiasts, featuring a sensored motor with a 5mm shaft and 3200kV rating. This controller is designed to provide versatility, reliability, and superior performance, making it an excellent choice for various applications.
This powerhouse is waterproof and operates with an ESC voltage range of 2S to 6S, with compatibility for up to 3S LiPo for short course trucks, monster trucks, and rock racers that weigh up to 6.5 pounds. With the right gearing, it can also support up to 4S LiPo configurations for lighter 1/10th scale 2WD stadium trucks and buggies. The Mamba X is ruggedly built with a CNC aluminum case and includes features such as data-logging, adjustable BEC, and integrated capacitors for enhanced performance.
Included with the Mamba X are elements such as a removable 30mm cooling fan, waterproof switch, and audible alerts for easy diagnostics. The combo is ROAR Certified and RECON G6 Certified, ensuring high quality and performance standards for all users. The Mamba X also supports Castle Link programming and offers convenient transmitter programming options, making it user-friendly.
In summary, the Mamba X SCT 1/10 Brushless Combo with a sensored motor is a versatile and high-performing option that caters to the needs of modern-day RC hobbyists. Ideal for both 1/10th and 1/8th scale applications, it provides a reliable and adaptable solution for those navigating the exciting world of remote-controlled vehicles.
Features
- ESC voltage range: 2S-6S (4S maximum with the included motor)
- 1412-3200Kv Sensored Motor with 5mm shaft
- Waterproof design
- 8A Adjustable BEC (5.25V-8.0V)
- Data-logging capability
- Rugged CNC Aluminum Case for durability
- Castle Link Programming Support for customization
- Convenient Transmitter Programming for easy adjustments
- Auxiliary Wire Functionality for "on-the-fly" adjustments
- SmartSense Technology for enhanced performance
- Integrated Capacitors for stable operation
- Removable 30mm Cooling Fan for efficient heat management
- Integrated 4mm Bullet Connectors for secure connections
- 12 AWG Power Wires for robust electrical performance
- Waterproof Switch for reliability in wet conditions
- Audible Alerts and LED Alerts for easy diagnostics of common issues
- ROAR Certified ESC for competition integrity
- RECON G6 Certified ESC for proven performance
Needed to Complete
- LiPo batteries (2S-6S as per requirements)
- Compatible vehicle for installation (1/10th or 1/8th scale)
- Castle Link programming cable (for custom programming)
- Transmitter (for convenient programming)
Specifications
- Product Name: Mamba X SCT 1/10 Brushless Combo with Sensored Motor
- Motor Type: Sensored Motor
- Motor KV: 3200kV
- Voltage Compatible: 2S-6S (4S max with included motor)
- ESC BEC: 8A Adjustable (5.25V-8.0V)
- Cooling System: Removable 30mm Cooling Fan
- Enclosure Material: Rugged CNC Aluminum Case
- Programming Support: Castle Link Programming and Convenient Transmitter Programming
- Wire Gauge: 12 AWG Power Wires
- Connectors: Integrated 4mm Bullet Connectors
- Technology Features: SmartSense Technology, Integrated Capacitors
- Water Resistance: Waterproof design with Waterproof Switch
- Diagnostics: Audible Alerts and LED Alerts
- Certification: ROAR Certified, RECON G6 Certified
- Weight Capacity: Supports vehicles up to 6.5 lbs for 1/10 scale; up to 9 lbs for 1/8 scale
- Recommended Gearing: For 4S usage with lighter 1/10 scale 2WD stadium trucks and buggies
-
