Castle Creations (CSE)
SKU:CSE010016001

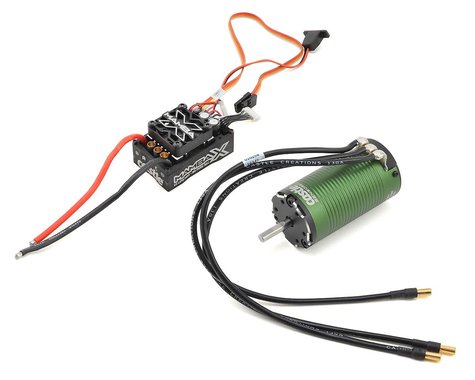

Mamba X SCT Waterproof Sensored ESC with 1415-2400KV Motor (CSE010016001)
Mamba X SCT Waterproof Sensored ESC with 1415-2400KV Motor (CSE010016001)
An all-in-one, waterproof power system for 1/10-scale RC vehicles, the Mamba X SCT Waterproof Sensored ESC paired with a high-performance sensored motor provides reliable, throttle‑responsive power for racing and bashing alike. It supports 2S to 6S operation, delivering smooth starts and strong torque while standing up to wet conditions so sessions stay consistent from start to finish.
Housed in a rugged CNC aluminum enclosure, the system includes integrated 4mm bullets, 12 AWG power wires, a waterproof switch, and a removable 30mm cooling fan for effective heat management. A built‑in 8A adjustable BEC powers servos and electronics, while data logging and telemetry enhance tuning and performance insight. SMARTSENSE delivers a smart hybrid of sensored startup and efficient sensorless running, with AUX‑wire functionality for in‑drive adjustments and Castle Link compatibility for on‑the‑fly tuning. Audible alerts, integrated capacitors, and a potted design help reliability in demanding conditions, and the unit weighs roughly 101 grams—ideal for 1/10-scale SCTs, buggies, and trucks, with available motor/ESC combos for additional options.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual

Collapsible content
Overview
Introducing the Mamba X SCT Waterproof Sensored ESC with 1415-2400KV Motor, the ultimate combo for serious RC enthusiasts. This premium system is designed to deliver exceptional performance across a variety of applications, supporting input voltages from 2S to 6S and compatible with 1/10th and 1/8th scale vehicles.
The Mamba X is built to withstand the challenges of extreme RC activities, featuring a rugged CNC-machined aluminum case that is potted in waterproof epoxy. This durable construction safeguards the internal electronics from harsh conditions while efficiently dissipating heat during operation. With an integrated 8A adjustable BEC, this controller can tackle the most demanding setups, ensuring reliability when you need it the most.
One of the standout features of the Mamba X is SMARTSENSE technology, which combines smooth sensored starts with the efficiency of sensorless operation once the motor is running. This hybrid approach provides excellent torque and low-speed drivability, optimizing performance in all driving conditions. The controller also includes auxiliary wire functionality, allowing for real-time adjustments from your transmitter, making it easier than ever to fine-tune your setup on the fly.
The comprehensive data logging capabilities of the Mamba X allow users to track vital performance metrics such as motor RPM, battery voltage, and temperature. This information can be downloaded and analyzed to enhance both performance and battery life, giving users a competitive edge. The Castle Link Programming Suite enables further customization of your ESC settings, with updates available at no additional cost.
Whether racing at the track or bashing through rugged terrain, the Mamba X SCT Waterproof ESC with 1415-2400KV Motor is engineered for versatility, reliability, and high-performance, making it an ideal choice for any serious RC enthusiast.
Features
- 2S to 6S input voltage range
- Sensored motor support for improved performance
- Waterproof electronic speed control (ESC)
- Rugged CNC aluminum case for durability
- 8A adjustable BEC (5.25V-8.0V) for stable power output
- Castle Link programming support for customization
- Data logging capabilities for performance analysis
- Compact dimensions: 54.4mm x 35.2mm x 30.0mm (including fan)
- Telemetry capable with Castle telemetry devices and compatible transmitters
- Integrated capacitors for enhanced reliability
- Integrated 4mm bullet connectors for easy installation
- Waterproof switch for added weather resistance
- 12 AWG power wires for high-current applications
- Removable 30mm ESC cooling fan for thermal management
- SMARTSENSE technology for smooth and efficient performance
- Audible alerts for enhanced user feedback
- Weight: 101 grams (no connector on power wires)
- Castle Creations' 1-year warranty and exceptional customer support
- Available as a combo with various motor options
Needed to Complete
- Castle Link adapter (for programming and tuning)
Specifications
- Product Name: Mamba X SCT Waterproof Sensored ESC with 1415-2400KV Motor
- Model Number: CSE010016001
- Input Voltage Range: 2S to 6S
- Motor Support: Sensored motor support
- ESC Features: Waterproof
- Case Material: CNC aluminum
- Adjustable BEC: 8A (5.25V-8.0V)
- Programming Support: Castle Link
- Data Logging: Yes
- Dimensions: 54.4mm x 35.2mm x 30.0mm (with fan)
- Telemetry Capable: Yes, with Castle telemetry devices
- Capacitors: Integrated
- Connectors: Integrated 4mm bullet connectors
- Switch: Waterproof switch
- Power Wires: 12 AWG
- Cooling Fan: Removable 30mm
- SMARTSENSE Technology: Yes
- Audible Alerts: Yes
- Weight: 101 grams (potted, no connector on power wires)
- Warranty: 1-year warranty from Castle Creations
- Additional Information: Available as a combo with various motors
-
