Castle Creations (CSE)
SKU:CSE010016902

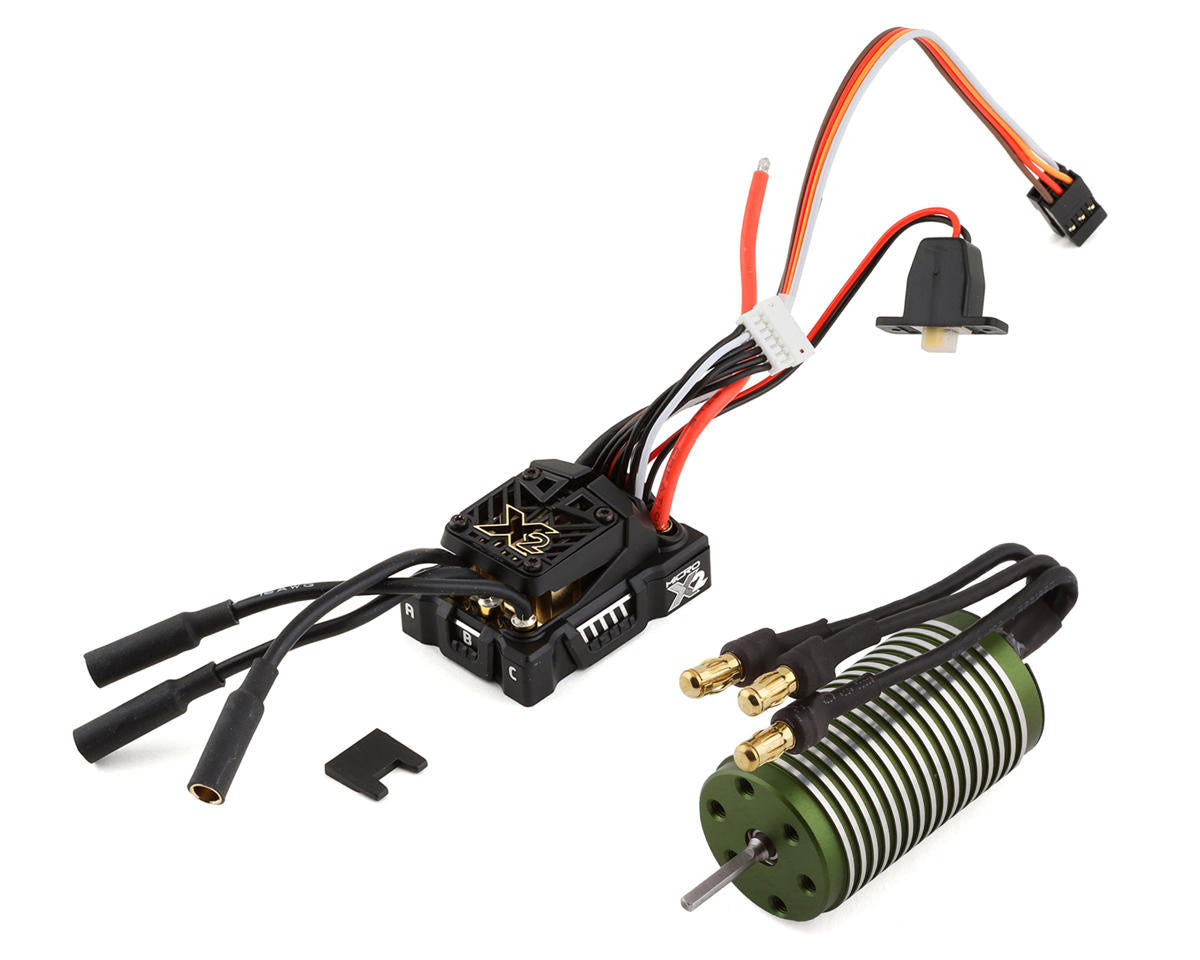

Mamba Micro X2 Waterproof 1/18 Scale Brushless Combo, 5300kV (CSE010016902)
Mamba Micro X2 Waterproof 1/18 Scale Brushless Combo, 5300kV (CSE010016902)
The Mamba Micro X2 Waterproof Brushless Combo is an exceptional upgrade for your 1:18 scale RC vehicles, offering a powerful 5300kV motor and a robust ESC capable of handling up to 3S LiPo power. Designed for vehicles weighing up to 2.25 lbs, this combo enhances performance for popular models like the Traxxas Slash 4x4 1/16th, Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, and Axial Yeti Jr.
This upgraded ESC features an increased maximum input voltage of 4S and incorporates advanced technologies like DATA LOGGING and CRYO-DRIVE Technology, which allows the ESC to operate cooler and more efficiently under partial throttle. The Mamba Micro X2 is waterproof and equipped with a 2 amp peak BEC, making it suitable for a range of driving conditions while providing sensored motor support with an optional sensor harness.
With convenient features such as adjustable voltage options, telemetry compatibility, and auxiliary wire functionality for on-the-fly adjustments, the Mamba Micro X2 ensures excellent performance and flexibility for your RC experience. Easy programming options via transmitter and notifications for potential issues further enhance the user experience.
As a testament to quality, this product is proudly designed and manufactured in Olathe, Kansas, and comes backed by a one-year warranty, ensuring reliability and peace of mind for every RC enthusiast.
Please note that while the Mamba Micro X2 is waterproof, it is not intended for operation while submerged in liquid. If operated in wet conditions, it should be rinsed with fresh water to remove any dirt or corrosives, and then fully dried.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual
Collapsible content
Overview
The Mamba Micro X2 Waterproof Brushless Combo is an exceptional upgrade for your 1:18 scale RC vehicles, offering a powerful 5300kV motor and a robust ESC capable of handling up to 3S LiPo power. Designed for vehicles weighing up to 2.25 lbs, this combo enhances performance for popular models like the Traxxas Slash 4x4 1/16th, Losi Mini-T 2.0, Traxxas LaTrax Rally, Traxxas LaTrax Teton, and Axial Yeti Jr.
This upgraded ESC features an increased maximum input voltage of 4S and incorporates advanced technologies like DATA LOGGING and CRYO-DRIVE Technology, which allows the ESC to operate cooler and more efficiently under partial throttle. The Mamba Micro X2 is waterproof and equipped with a 2 amp peak BEC, making it suitable for a range of driving conditions while providing sensored motor support with an optional sensor harness.
With convenient features such as adjustable voltage options, telemetry compatibility, and auxiliary wire functionality for on-the-fly adjustments, the Mamba Micro X2 ensures excellent performance and flexibility for your RC experience. Easy programming options via transmitter and notifications for potential issues further enhance the user experience.
As a testament to quality, this product is proudly designed and manufactured in Olathe, Kansas, and comes backed by a one-year warranty, ensuring reliability and peace of mind for every RC enthusiast.
Please note that while the Mamba Micro X2 is waterproof, it is not intended for operation while submerged in liquid. If operated in wet conditions, it should be rinsed with fresh water to remove any dirt or corrosives, and then fully dried.
Features
- Upgraded Mamba Micro X2 ESC with 5300kV motor for 1:18 scale RC vehicles.
- Compatible with 2S-4S LiPo batteries.
- Waterproof design for enhanced durability in various conditions.
- 2 amp peak BEC with adjustable output of 5.5V or 7.5V (default 5.5V).
- Sensored motor support with optional sensor harness for improved performance.
- Telemetry ready, compatible with S.BUS2 Telemetry Link and select Futaba transmitters.
- Convenient transmitter programming for six common adjustable settings.
- Auxiliary wire functionality for on-the-fly adjustments such as Max Power and Max Brake.
- Audible alerts for calibration issues and error conditions.
- Data logging capabilities for performance tracking.
- Incorporates CRYO-DRIVE technology for cooler operation at partial throttle.
- Includes coupon for software updates via Castle Link and a USB adapter.
- Designed and manufactured in Olathe, Kansas.
- Backed by a 1-year warranty for added assurance.
Needed to Complete
- Optional sensor harness for sensored motor support
- Castle Link software and USB adapter for additional settings and software updates
- B-LINK Bluetooth Adapter for mobile app connectivity (sold separately)
Specifications
- Product Type: Brushless Combo
- Scale: 1/18
- Motor: 0808-5300KV
- ESC: Mamba Micro X2
- Input Voltage Range: 2S-4S LiPo
- Weight Capacity: Up to 2.25 lbs
- Peak BEC: 2 amp, adjustable 5.5V or 7.5V
- Waterproof: Yes, rinse with fresh water after wet operation
- Sensored Motor Support: Yes (optional harness required)
- Telemetry Ready: Yes, compatible with S.BUS2 Telemetry Link
- Programming: Convenient transmitter programming for six settings
- Auxiliary Wire Functionality: Yes, for on-the-fly adjustments
- Audible Alerts: Yes, for calibration and error notifications
- Data Logging: Yes
- CRYO-DRIVE Technology: Yes, for cooler operation at partial throttle
- Warranty: 1 year
-
