• Mamba Micro X2 Crawler Waterproof Sensored Brushless ESC (CSE010017100)
1 1

Castle Creations (CSE)

CSE010017100

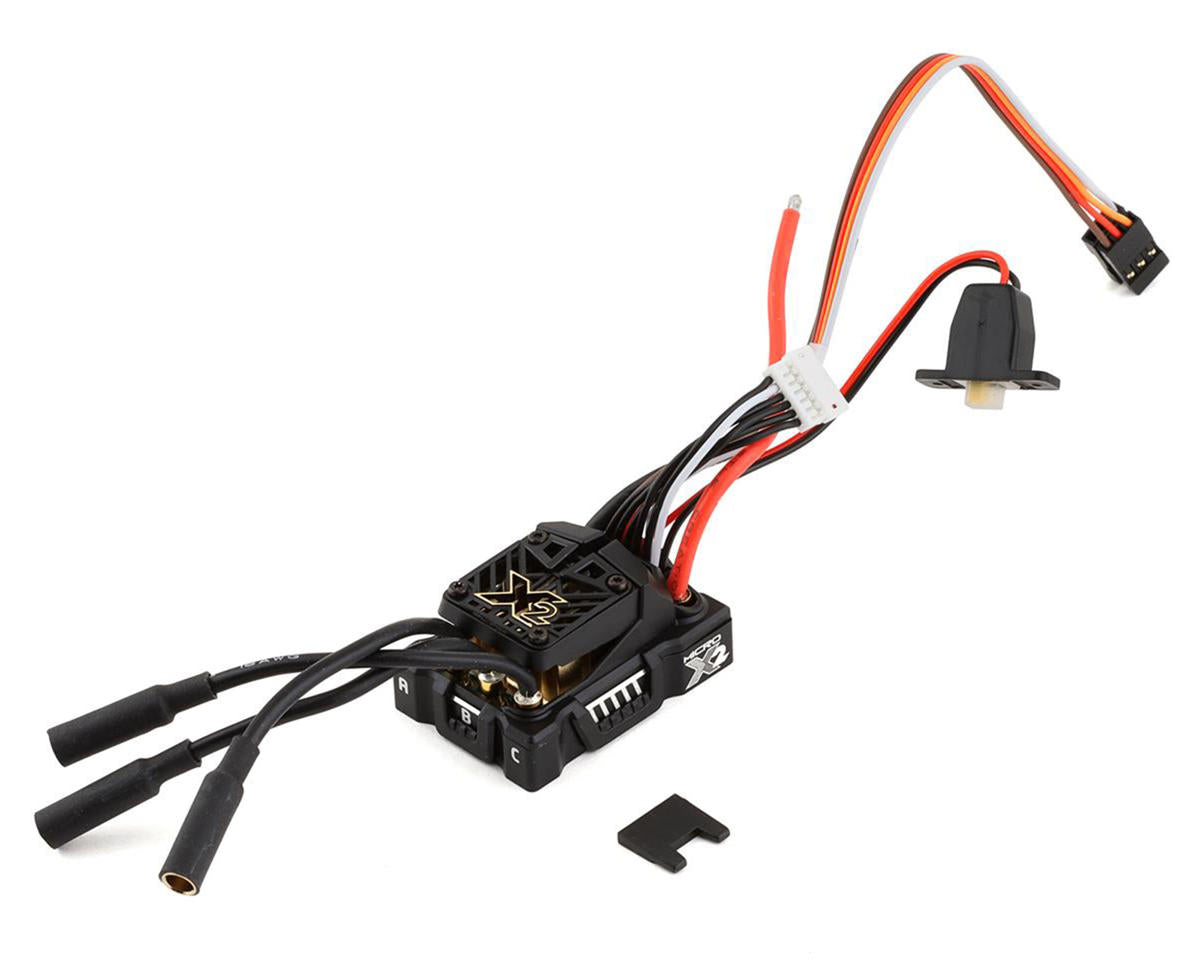

Mamba Micro X2 Crawler Waterproof Sensored Brushless ESC (CSE010017100)

Mamba Micro X2 Crawler Waterproof Sensored Brushless ESC (CSE010017100)

Introducing the Mamba Micro X2 Waterproof Sensored Brushless ESC, a compact electronic speed controller designed for 1:18-scale crawlers and other small RC builds that demand precise, reliable motor control. It handles 2S–4S LiPo input (up to 16.8V) and supports sensored motors for smooth throttle response, with a waterproof design built to handle wet conditions. Ideal for 2WD or 4WD crawlers up to about 2.25 pounds, it delivers controlled power at low speeds for confident crawling.

Beyond rugged waterproofing, the Mamba Micro X2 features Cryo-Drive technology for cooler, more efficient operation at partial throttle, plus data logging and telemetry readiness. Programming is accessible via Castle Link software on Windows or the Castle Link App with a Bluetooth adapter, and six common settings are easy to adjust. Audible alerts help flag calibration or error conditions, while auxiliary wiring enables on-the-fly adjustments like Max Power and Max Brake. This ESC is backed by a one-year warranty and pairs well with Castle's Slate Crawler motors, with compatibility for some 1:10-scale crawlers that require low-speed control.

$89.95
$89.95 $89.95
Sale Sold out

Exploded View

Exploded View

Parts List

Parts List

Product Manual

Product Manual
View full details
  • Mamba Micro X2 Crawler Waterproof Sensored Brushless ESC (CSE010017100)

Overview

The Mamba Micro X2 Crawler Waterproof Sensored Brushless ESC is a powerful upgrade for your 1:18 scale 2WD or 4WD vehicles weighing up to 2.25 lbs. With a maximum input voltage increase to 4S, this ESC features cutting-edge data logging and CryoDrive technology, allowing for cooler and more efficient operation at partial throttle.

This revised version of Castle's popular ESC supports sensored motors, enhancing performance and precision. The unit comes with an adjustable BEC that operates at 5.5V or 7.5V, providing a peak current of 2A. Its waterproof design ensures durability in various conditions, making it suitable for crawlers as well as other applications.

Convenient transmitter programming allows users to make on-the-fly adjustments for settings like max power and max brake, while telemetry readiness is compatible with S.BUS2 Telemetry Link and select Futaba transmitters. Audible alerts are integrated to notify users of calibration issues or error conditions, ensuring seamless operation.

As a special update, the Mamba Micro X2 now includes an external 10-amp CC BEC, enhancing its current capacity and voltage versatility. Designed and manufactured in Olathe, Kansas, this ESC is backed by a 1-year warranty, providing peace of mind for enthusiasts.

Features

  • Input Voltage range: 2S-4S
  • Adjustable BEC: 5.5V or 7.5V (2A Peak), default 5.5V
  • Waterproof design for durability in various conditions
  • Sensored Motor capable (with optional sensor harness)
  • Additional settings and software updates via Windows-based Castle Link software and USB adapter (coupon included with purchase) or the Castle Link App for Android or iOS (B-LINK Bluetooth Adapter sold separately)
  • Convenient transmitter programming for six common adjustable settings
  • Telemetry ready, compatible with S.BUS2 Telemetry Link and select Futaba transmitters
  • Auxiliary Wire Functionality for "on-the-fly" adjustments of Max Power and Max Brake
  • Audible Alerts for possible calibration and error conditions
  • Includes an external 10-amp CC BEC for enhanced current capacity
  • Designed and manufactured in Olathe, Kansas
  • Backed by a 1-year warranty

Needed to Complete

  • Optional sensor harness for sensored motor capability
  • Castle Link software and USB adapter for additional settings and updates (included coupon for purchase)
  • B-LINK Bluetooth Adapter for use with Castle Link App (sold separately)

Specifications

  • Model: Mamba Micro X2 Crawler Waterproof Sensored Brushless ESC
  • SKU: CSE010017100
  • Input Voltage Range: 2S-4S
  • Adjustable BEC: 5.5V or 7.5V (2A Peak), default 5.5V
  • Waterproof: Yes
  • Sensored Motor Capability: Yes (with optional sensor harness)
  • Software Compatibility: Windows-based Castle Link software and USB adapter, Castle Link App for Android/iOS (B-LINK adapter sold separately)
  • Transmitter Programming: Yes, for six common adjustable settings
  • Telemetry Ready: Yes, compatible with S.BUS2 and select Futaba transmitters
  • Auxiliary Wire Functionality: Yes, for "on-the-fly" adjustments
  • Audible Alerts: Yes
  • External BEC: Included, 10-amp CC BEC
  • Manufacturer Location: Olathe, Kansas
  • Warranty: 1-year
