Castle Creations (CSE)
SKU:CSE010017101

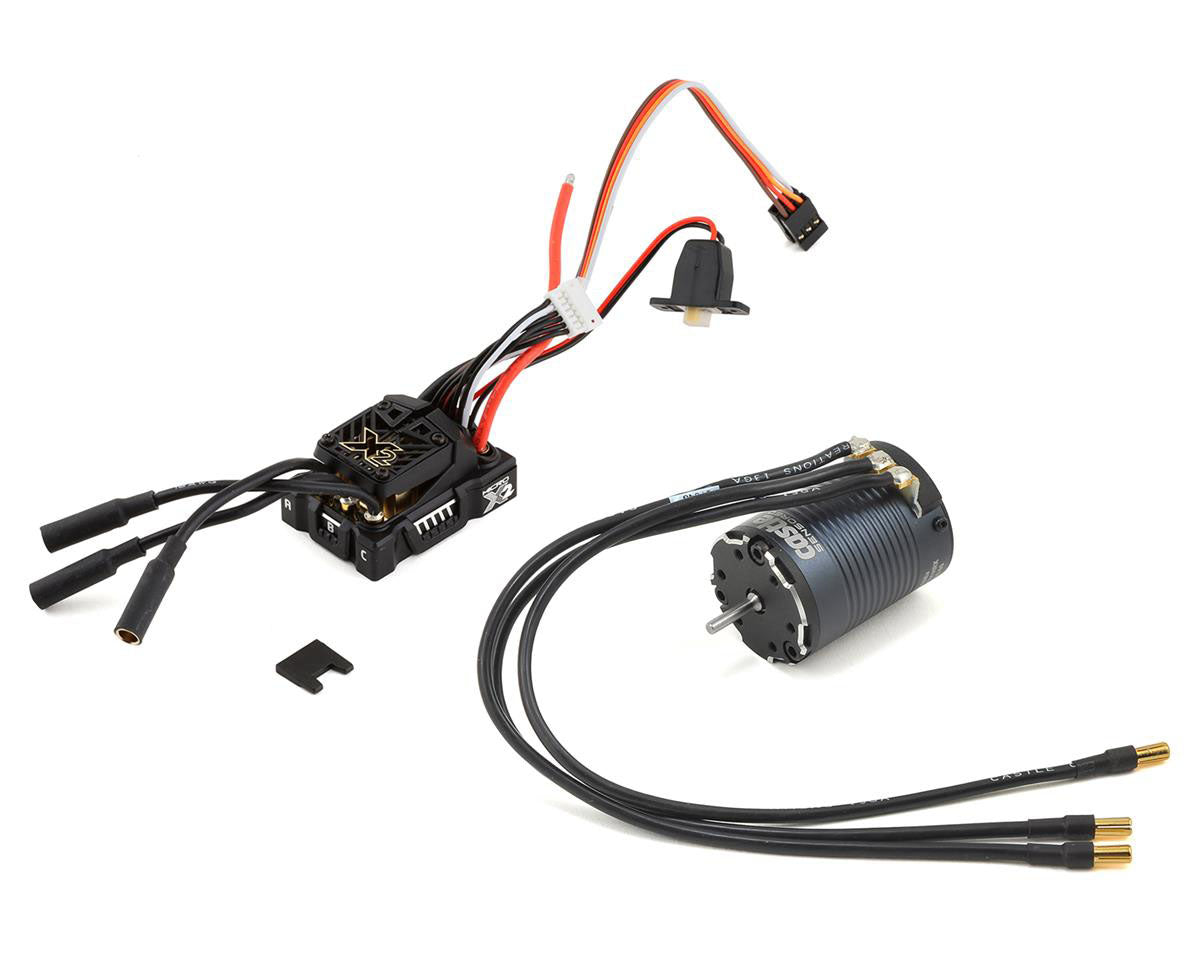

Mamba Micro X2 Crawler Waterproof Sensored Combo, 1900kV (CSE010017101)
Mamba Micro X2 Crawler Waterproof Sensored Combo, 1900kV (CSE010017101)
Meet the Mamba Micro X2 Crawler Waterproof Sensored Combo — a compact, sensor-ready brushless ESC paired with a 1900KV motor, built for 1:18-scale crawlers that demand precise, low-speed control. It supports 2S to 4S LiPo power, features Cryo-Drive cooling to keep temperatures down at partial throttle, and includes data logging plus a 2A peak BEC. Sensor-ready operation is supported with an optional harness, and the unit is waterproof for use in damp conditions. Tuning and telemetry can be done via Castle Link on Windows or the Castle Link App for Android and iOS (Bluetooth adapter sold separately), with six transmitter-programmable settings for quick adjustments.
Perfect for 1:18-scale 2WD and 4WD builds up to roughly 2.25 pounds, and it can unlock low-speed capability in some 1:10 crawlers as well. The waterproof design protects sensitive electronics, though it isn't intended for full submersion; if exposure occurs, rinse with fresh water and dry thoroughly. With telemetry compatibility and Castle Link software support, throttle response, braking, and power delivery can be tuned to match your crawl line.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual

Collapsible content
Overview
The Mamba Micro X2 Crawler Waterproof Sensored Combo, 1900kV is a powerful and efficient solution for those seeking high performance in a compact form. This ESC and motor combo is designed with the weight-conscious builder in mind, making it ideal for 1:10 scale low-speed rock crawlers and trail runners on 3S-4S setups that weigh less than 8lbs. It can also be effectively used in lighter 1:10 scale touring cars, stadium trucks, or buggies weighing up to 5lbs, providing versatility for various applications.
Featuring an upgraded design, the Mamba Micro X2 enhances the capabilities of the popular Mamba Micro X. It now supports a maximum input voltage of 4S and includes advanced data logging and Cryo-Drive technology, which allows the ESC to operate cooler and more efficiently at partial throttle. This combination of features ensures that it is perfect for a range of vehicles including both 1:18th scale 2WD and 4WD vehicles up to 2.25 lbs, as well as low-speed operations in select 1:10th scale crawlers.
The ESC provides a waterproof design, sensored motor support, and includes convenient features such as adjustable voltage settings and telemetry readiness. Enhanced with a 2 amp peak BEC, the Mamba Micro X2 ensures reliable performance under a variety of conditions. Additionally, it offers user-friendly programming through a transmitter, allowing for quick adjustments while on the go. With audible alerts for potential calibration issues and a one-year warranty, this combo not only delivers reliability but also peace of mind for users.
Note: This product is waterproof but not intended for operation while submerged in liquid. If used in wet conditions, it should be rinsed with fresh water to maintain its performance and longevity.
Features
- Input Voltage Range: 2S-4S
- Adjustable BEC Voltage: 5.5V or 7.5V (2A Peak), default 5.5V
- Waterproof design for reliable operation in wet conditions
- Sensored motor capability (requires optional sensor harness)
- Additional settings and software updates via Windows-based Castle Link software and USB adapter (coupon included), or Castle Link App for Android/iOS with Bluetooth adapter (sold separately)
- Convenient transmitter programming for six common adjustable settings
- Telemetry ready, compatible with S.BUS2 Telemetry Link and select Futaba transmitters
- Auxiliary wire functionality for on-the-fly adjustments (Max Power and Max Brake)
- Audible alerts for calibration and error condition notifications
- Designed and manufactured in Olathe, Kansas
- Backed by a 1-year warranty
Needed to Complete
- Optional sensor harness for sensored motor support
- Castle Link software and USB adapter for additional settings and updates (coupon included with purchase)
- B-LINK Bluetooth Adapter for wireless settings adjustments (sold separately)
Specifications
- Model: Mamba Micro X2 Crawler Waterproof Sensored Combo
- Motor KV Rating: 1900kV
- ESC Type: Waterproof Sensored ESC
- Max Input Voltage: 16.8V (4S)
- Weight Capacity: Suitable for vehicles weighing up to 8lbs (1:10 scale crawlers) and up to 5lbs (1:10 scale touring cars, stadium trucks, or buggies)
- PEC: 2A Peak BEC
- Dimensions: Compact design for weight-conscious builders
- Telemetry Compatibility: S.BUS2 Telemetry Link and select Futaba transmitters
- Recommended Use: 1:10 scale low-speed rock crawlers/trail runners
- Operating Temperature: Designed to run cooler with Cryo-Drive technology
- Warranty: 1 year
-
