• 14-Series Motor Endbell Kit (CSE011013300)
1 1

Castle Creations (CSE)

CSE011013300

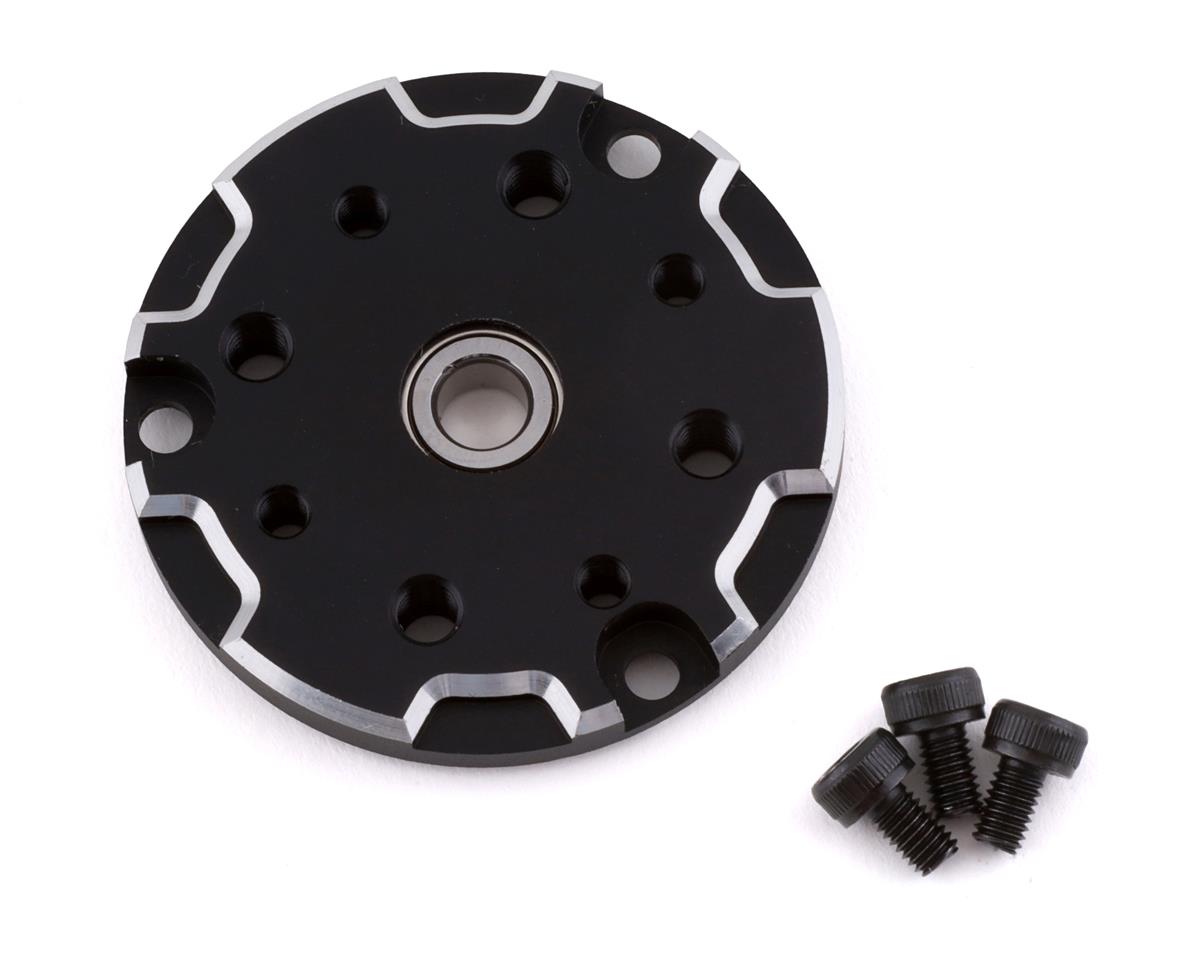

14-Series Motor Endbell Kit (CSE011013300)

14-Series Motor Endbell Kit (CSE011013300)

Replacement endbell kit for 14-series motors, designed to restore a damaged or worn front end and maintain proper rotor-to-stator alignment for smooth operation.

To install, remove the front endbell screws with a 2.5mm hex key, pull the damaged endbell away while keeping the shaft and endbell concentric, then attach the new endbell. The rotor will be magnetically attracted to the stator, so the endbell must center the rotor. After installation, apply removable threadlocker to the screw threads and tighten until snug for secure retention. Compatible with both 14-series and 14XX-series motors.

$14.95
$14.95 $14.95
Sale Sold out

  • This item is currently out of stock.

    • Nankin Hobby Farmington: 0
    • Nankin Hobby Ypsilanti: 0
    • Nankin Hobby Southgate: 0

Exploded View

Exploded View

Parts List

Parts List

Product Manual

Product Manual
View full details
  • 14-Series Motor Endbell Kit (CSE011013300)

Overview

The 14-Series Motor Endbell Kit (CSE011013300) is designed specifically for the 14XX series sensored motors, providing an essential replacement part for maintaining optimal motor performance.

This kit includes all necessary components to replace a damaged endbell, ensuring an easy and effective repair process. Installation involves removing the front endbell screws with a 2.5mm hex key, carefully pulling the damaged endbell away while keeping the shaft and endbell concentric, and then replacing it with the new endbell. It is important to apply removable threadlocker to the screws before tightening them until snug to secure the new endbell in place.

This product is ideal for hobbyists and enthusiasts looking to ensure the longevity and efficiency of their 14XX series sensored motors.

Features

  • Replacement kit for 14XX series sensored motors
  • Includes all necessary components for endbell replacement
  • Instructions for easy installation provided
  • Requires a 2.5mm hex key for screw removal
  • Ensures proper alignment of rotor and stator during installation
  • Removable threadlocker is recommended for secure screw installation

Needed to Complete

  • 2.5mm hex key
  • Removable threadlocker

Specifications

  • Product Name: 14-Series Motor Endbell Kit
  • SKU: CSE011013300
  • Compatibility: 14XX series sensored motors
  • Installation Instructions: Remove front endbell screws using a 2.5mm hex key, pull damaged endbell away, replace with new endbell, apply removable threadlocker, and torque screws until snug
  • Investment for motor maintenance: Essential replacement part for motor performance
