Castle Creations (CSE)
SKU:CSE060005900

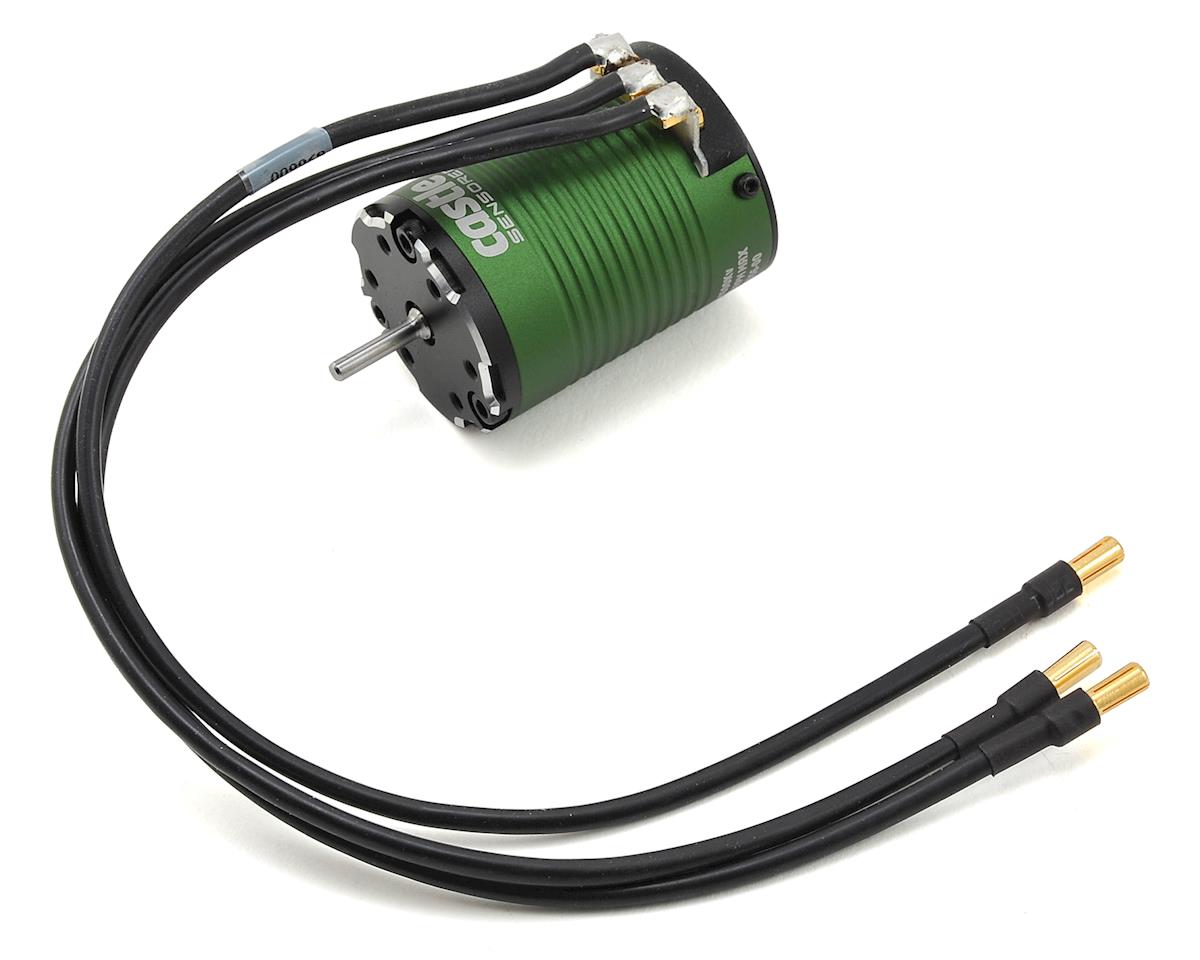

1406 Sensored 4-Pole Brushless Motor, 7700kV (CSE060005900)
1406 Sensored 4-Pole Brushless Motor, 7700kV (CSE060005900)
The 1406 Sensored 4-Pole Brushless Motor, 7700kV (CSE060005900) is designed for 1/10 scale applications and offers advanced performance with its innovative features. The 4-pole 12-slot design ensures exceptional efficiency while minimizing heat production, making it ideal for extended use in various racing and crawling scenarios.
Equipped with oversized gold plated solder tabs, this motor reduces resistance for easier soldering and reliable connections. The QUIETSENSE Technology effectively shields magnetic field noise generated by the motor coils, ensuring that the motor and ESC remain in sync, which results in higher precision and more efficient startups.
The motor's optimized design eliminates the need for mechanical timing adjustments, while the state-of-the-art sensor alignment method delivers uniform timing and torque in both directions automatically. Furthermore, the rebuildable design allows users to replace components like the front end bell with bearings or the rotor with the shaft, adding to its longevity.
Features such as a ROAR standard sensor port, high-strength neodymium sintered magnets, and high-purity copper windings add to the overall build quality. Additionally, the motor includes hardened stainless steel shafts, Kevlar-wrapped rotors, and a robust 6061-T6 billet aluminum heatsink can. High RPM oversized bearings and high-quality steel laminations further enhance its durability while low-resistance gold plated bullet connectors ensure optimal power transfer.
The 1406 Sensored 4-Pole Brushless Motor is perfect for r/c enthusiasts seeking a reliable and high-performance motor that caters to both crawling and racing needs. It seamlessly combines advanced technology with practical design, making it a four-pole solution for all your brushless motor requirements.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual
Collapsible content
Overview
The 1406 Sensored 4-Pole Brushless Motor, 7700kV (CSE060005900) is designed for 1/10 scale applications and offers advanced performance with its innovative features. The 4-pole 12-slot design ensures exceptional efficiency while minimizing heat production, making it ideal for extended use in various racing and crawling scenarios.
Equipped with oversized gold plated solder tabs, this motor reduces resistance for easier soldering and reliable connections. The QUIETSENSE Technology effectively shields magnetic field noise generated by the motor coils, ensuring that the motor and ESC remain in sync, which results in higher precision and more efficient startups.
The motor's optimized design eliminates the need for mechanical timing adjustments, while the state-of-the-art sensor alignment method delivers uniform timing and torque in both directions automatically. Furthermore, the rebuildable design allows users to replace components like the front end bell with bearings or the rotor with the shaft, adding to its longevity.
Features such as a ROAR standard sensor port, high-strength neodymium sintered magnets, and high-purity copper windings add to the overall build quality. Additionally, the motor includes hardened stainless steel shafts, Kevlar-wrapped rotors, and a robust 6061-T6 billet aluminum heatsink can. High RPM oversized bearings and high-quality steel laminations further enhance its durability while low-resistance gold plated bullet connectors ensure optimal power transfer.
The 1406 Sensored 4-Pole Brushless Motor is perfect for r/c enthusiasts seeking a reliable and high-performance motor that caters to both crawling and racing needs. It seamlessly combines advanced technology with practical design, making it a four-pole solution for all your brushless motor requirements.
Features
- 4-POLE 12-SLOT design for exceptional efficiency and reduced heat production
- Oversized gold plated solder tabs minimize resistance for easy soldering
- QUIETSENSE Technology shields against magnetic field noise for consistent motor and ESC sync
- Higher precision and efficient startups
- Optimized design eliminates mechanical timing adjustments
- Uniform timing and torque in both directions via sensor alignment method
- Rebuildable design allows for easy replacement of parts
- ROAR standard sensor port and clearly labeled connections
- High strength 180°C neodymium sintered magnets
- Temperature-stabilized high-quality sensors
- High-purity, high-temperature copper windings
- Hardened stainless steel shaft for durability
- 13 AWG high strand wire with silicone insulation
- Kevlar wrapped rotor for enhanced strength
- 6061-T6 Billet aluminum heatsink can
- High RPM NMB oversized bearings for smooth operation
- High quality 0.2mm steel laminations for improved performance
- Low resistance gold plated bullet connectors
Needed to Complete
- Castle Creations sensor supported ESC (e.g., MAMBA MAX PRO or MAMBA MONSTER X)
- Castle Link software for advanced tuning capabilities
Specifications
- Model: 1406 Sensored 4-Pole Brushless Motor
- KV Rating: 7700kV
- Design: 4-Pole 12-Slot
- Bullet Connector Size: 4mm
- Weight: 200g
- Max Temperature Rating: 180°C
- Winding Type: High-purity copper windings
- Sensor Type: Temperature-stabilized sensors
- Wire Gauge: 13 AWG with silicone insulation
- Magnet Type: High strength neodymium sintered magnets
- Heatsink Material: 6061-T6 Billet aluminum
- Shaft Material: Hardened stainless steel
- Bearings: High RPM NMB oversized bearings
- Lamination Thickness: 0.2mm steel laminations
-
