Castle Creations (CSE)

CSE10016602

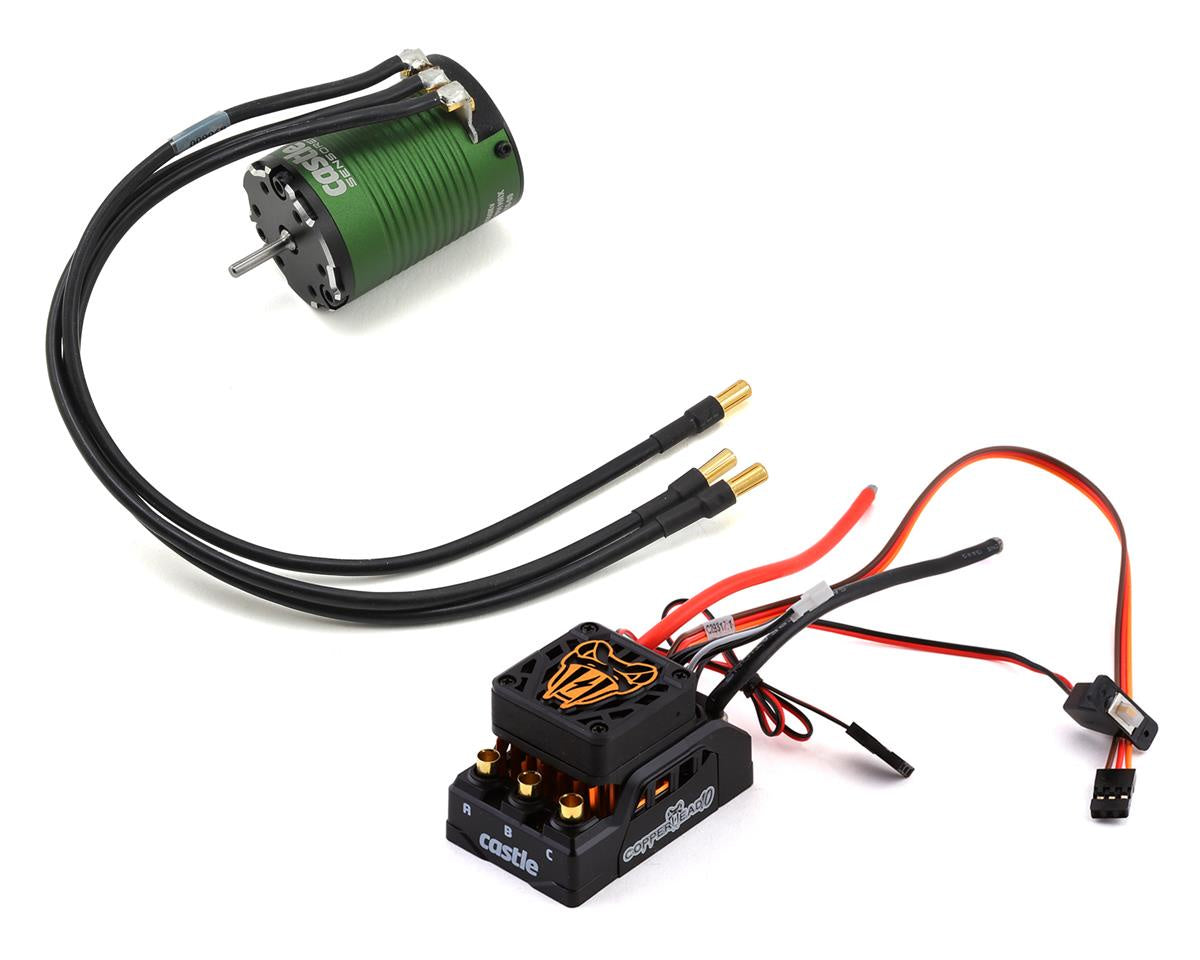

COPPERHEAD 10 1406-5700KV COMBO (CSE10016602)

COPPERHEAD 10 1406-5700KV COMBO (CSE10016602)

Copperhead 10 1406-5700KV sensored brushless ESC and motor combo is a complete power system for 1/10-scale RC vehicles, designed to deliver precise throttle response and strong torque across 2S–4S configurations. This package pairs a 1406-5700KV sensored motor with an ESC featuring CRYO-DRIVE technology to keep temperatures cooler and maintain smooth power in partial-throttle driving, whether crawling, bashing, or cornering. An internal BEC provides 5.5V or 7.5V up to 6A to power high-torque servos, and a dual-use fan guard offers protection or can be removed for crawler setups to run with passive cooling.

To fit a wide range of builds, Copperhead 10 is offered with multiple motor options—dozens of 4-pole, 12-slot sensored configurations designed for basher, crawler, on-road, short course, and monster truck use. Data Logging Lite records essential metrics such as battery voltage, ripple, controller temperature, motor RPM and motor temperature, accessible via Castle Link to fine-tune performance and efficiency. SMARTSENSE technology ensures cog-free starts and strong low-speed drivability, then switches to efficient sensorless timing once the motor is turning. The system operates on 2S–4S and is backed by Castle Creations' one-year warranty.

$179.95
$179.95 $179.95
Sale Sold out

  • Available: 1

    • Nankin Hobby Farmington: 0
    • Nankin Hobby Ypsilanti: 1
    • Nankin Hobby Southgate: 0

Exploded View

Exploded View

Parts List

Parts List

Product Manual

Product Manual
View full details

Overview

The Copperhead 10 1406-5700KV Combo is a state-of-the-art sensored brushless ESC/motor combo designed for 1:10 scale vehicles, striking an ideal balance between entry-level upgrades and extreme performance. This sophisticated system incorporates CRYO-DRIVE technology, sensored motor support, and data logging capabilities, all backed by Castle's renowned reliability and performance. Whether you're navigating rough terrains, enjoying backyard bashing, or tackling high-speed turns, the versatility of the Copperhead 10 makes it a perfect choice for a wide array of enthusiasts.

This advanced combo is engineered for 2S-4S use, featuring the innovative CRYO-DRIVE technology which minimizes heat generation within the ESC’s electrical components. This results in better thermal performance, allowing for longer run times and more power when operating under partial throttle—a common scenario during use.

The Copperhead 10 also includes DATA LOGGING LITE, enabling the capture and analysis of critical data points such as battery voltage, controller temperature, and motor RPM via Castle Link software. While it doesn't offer the full extent of the Mamba X's data logging abilities, the information provided is invaluable for maximizing performance and battery life.

Equipped with SMARTSENSE technology, the Copperhead 10 ensures smooth and cog-free starts while seamlessly transitioning to sensorless mode for optimal efficiency during driving. An internal BEC is included, with selectable voltages of 5.5V or 7.5V to supply power to today's high-torque servos, eliminating the need for an external BEC.

Additionally, the dual-use fan guard can be easily removed for setups that do not require active cooling, preserving the sleek look of the ESC while providing protection. Each combo comes specifically packaged with a variety of 4-pole, 12-slot sensored motor options, facilitating an effortless upgrade choice for bashers, crawlers, on-road vehicles, short course racers, or monster trucks.

Proudly designed and manufactured in Olathe, Kansas, the Copperhead 10 is supported by a one-year warranty from Castle Creations. Be prepared for the exhilarating experience that comes with overpowering your R/C vehicle; side effects may include uncontrollable smiles and an urge to expand your R/C collection with Castle upgrades.

Features

  • Compatible with 2S-4S battery systems for 1:10 scale vehicles
  • Incorporates CRYO-DRIVE technology for improved thermal performance
  • Equipped with DATA LOGGING LITE for capturing essential performance data
  • Features SMARTSENSE technology for cog-free starts and efficient sensorless operation
  • Includes a selectable internal BEC with 5.5V or 7.5V output (6A peak) for high-torque servos
  • Dual-use fan guard can be removed for a streamlined appearance or for crawlers that do not require cooling
  • Designed with application-specific motor combos for a tailored power upgrade experience
  • Proudly designed and manufactured in Olathe, Kansas, USA
  • Backed by a one-year warranty from Castle Creations

Needed to Complete

  • Castle Link software for data logging analysis
  • Compatible batteries (2S-4S) to power the system
  • High-torque servos (if additional power supply is needed)
  • Castle brushless motor (for optimal performance with SMARTSENSE technology)

Specifications

  • Model: Copperhead 10 1406-5700KV Combo
  • Type: Sensored Brushless ESC/Motor Combo
  • Compatibility: 1:10 Scale Vehicles
  • Battery Compatibility: 2S-4S
  • Motor KV: 5700KV
  • Technology: CRYO-DRIVE
  • Data Logging: DATA LOGGING LITE
  • BEC Output: Selectable 5.5V or 7.5V (6A peak)
  • Country of Manufacture: USA
  • Warranty: One Year
