Castle Creations (CSE)

SKU:CSE10016604

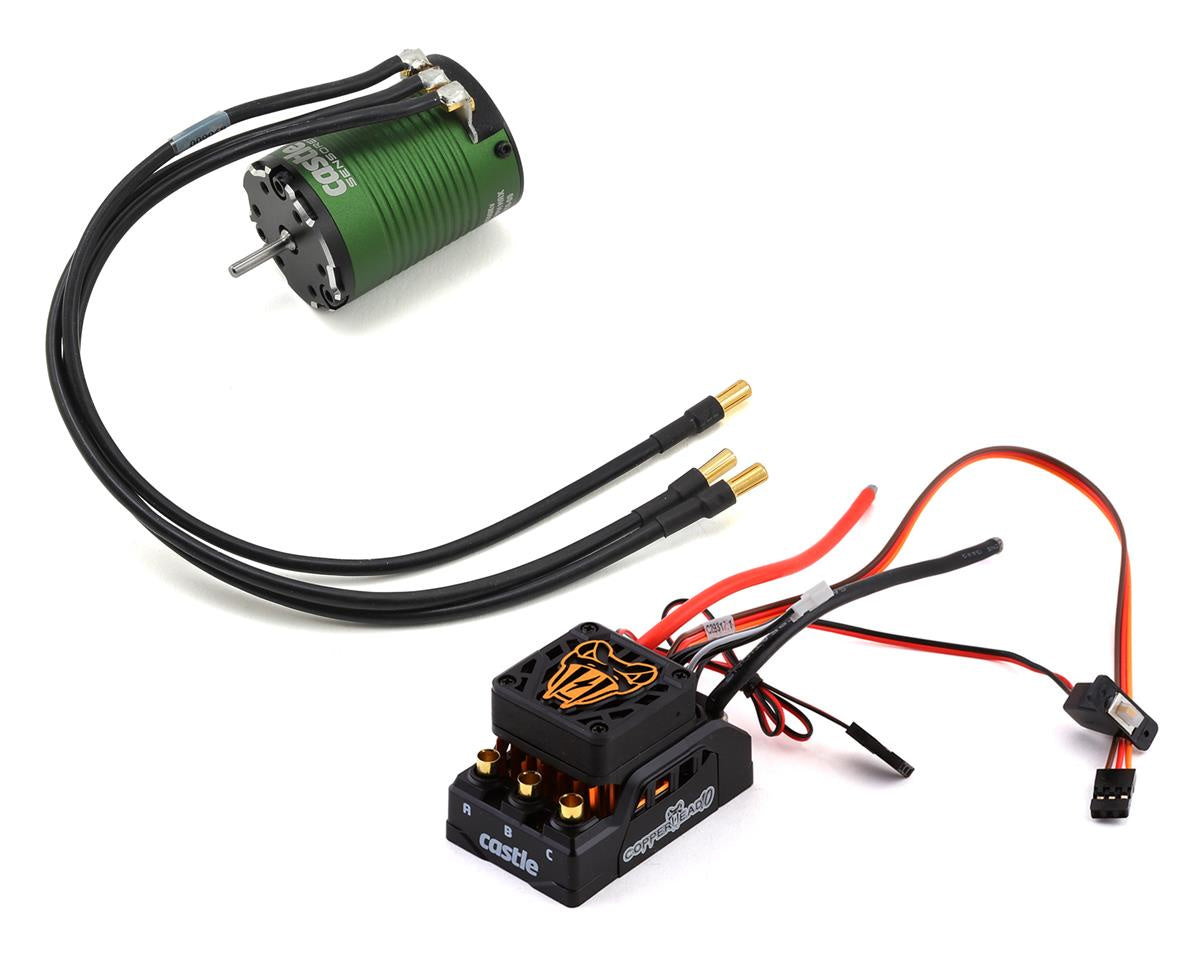

COPPERHEAD 7700KV COMBO (CSE10016604)

COPPERHEAD 7700KV COMBO (CSE10016604)

Copperhead 7700KV Brushless ESC/Motor Combo for 1:10-scale RC vehicles is a high-performance power package that pairs Castle Creations' Copperhead ESC with a sensored 7700KV motor. Designed for 2S–4S LiPo power, it delivers smooth throttle response and strong torque for crawlers, bashers, and on-road machines alike. The setup features CRYO-DRIVE heat management, DATA LOGGING LITE, SMARTSENSE technology, an internal BEC to power high-torque servos, and a dual-use fan guard with a selection of motor options to fit different driving styles.

Designed for 1:10-scale use, this combo offers multiple 4-pole, 12-slot sensored motors to tailor performance for crawlers, short-course, on-road cars and monster trucks. CRYO-DRIVE minimizes heat during partial throttle, extending run times and preserving power. DATA LOGGING LITE records key data such as battery voltage, ripple, controller temperature, motor RPM and motor temperature for tuning via Castle Link. SMARTSENSE uses the motor's sensors at startup to deliver cog-free starts and then smoothly transitions to efficient sensorless timing for peak performance, while the selectable internal BEC provides 5.5V or 7.5V up to 6A to power today's high-torque servos. The dual-use fan guard protects the unit while allowing easy cooling when needed.

Regular price $179.95
Regular price $179.95 Sale price $179.95
Sale Sold out

  • Available: 1

    • Nankin Hobby Farmington: 1
    • Nankin Hobby Ypsilanti: 0
    • Nankin Hobby Southgate: 0

Exploded View

Parts List

Product Manual

View full details

Collapsible content

Overview

The Copperhead 7700KV Combo is an exceptional sensored brushless ESC/motor combination designed specifically for 1/10 scale vehicles. It features CRYO-DRIVE technology, which minimizes heat generation in the ESC's electrical components, enhancing thermal performance during partial throttle operation. This results in cooler temperatures, extended runtime, and increased power output during use.

Equipped with DATA LOGGING LITE capabilities, the Copperhead Combo allows users to capture and analyze essential performance data, including battery voltage, ripple, controller temperature, motor RPM, and motor temperature via Castle Link software. This insightful information is invaluable for optimizing performance and battery life.

The SMARTSENSE technology incorporated in the Copperhead Combo provides smooth, cog-free starts with excellent low-speed drivability, transitioning seamlessly to sensorless operation for peak efficiency while driving. An internal BEC eliminates the need for an external power supply, providing selectable voltage options to support high-torque servos.

For added convenience, the dual-use fan guard can be easily removed when not needed, maintaining the sleek look of the Copperhead 10 while offering protection. This product features a selection of application-specific motor combos to simplify the process of selecting the right brushless upgrade for various types of vehicles, including bashers, crawlers, on-road vehicles, short course trucks, and monster trucks.

The Copperhead 7700KV Combo is designed and manufactured in Olathe, Kansas, USA, and is backed by a one-year warranty for peace of mind. Enjoy the exhilarating performance this combo brings, but be warned: it may lead to excessive grinning and a strong urge to expand your R/C vehicle collection.

Features

  • Designed for 2s-4s use in 10th scale vehicles
  • CRYO-DRIVE technology for improved thermal performance
  • DATA LOGGING LITE functionality for key performance metrics
  • SMARTSENSE Technology for cog-free starts and low-speed drivability
  • Internal BEC with selectable 5.5V or 7.5V outputs
  • Dual-use fan guard for flexibility in setups
  • Application-specific motor combos to simplify selection
  • Manufactured in Olathe, Kansas, USA
  • Backed by a one-year warranty

Needed to Complete

  • Castle Link software for data analysis
  • High-torque servos compatible with internal BEC

Specifications

  • Model: Copperhead 7700KV Combo (CSE10016604)
  • Type: 1/10 Copperhead 1406-7700Kv Sensored Brushless ESC/Motor Combo
  • Compatibility: 2s-4s use in 1/10 scale vehicles
  • Technology: CRYO-DRIVE technology
  • Data Logging: DATA LOGGING LITE
  • Motor Support: SMARTSENSE Technology
  • Internal BEC: Selectable 5.5V or 7.5V (6A peak)
  • Fan Guard: Dual-use, removable fan guard
  • Motor Options: Application specific motor combos available
  • Warranty: One-year warranty
  • Manufacturing Location: Olathe, Kansas, USA
