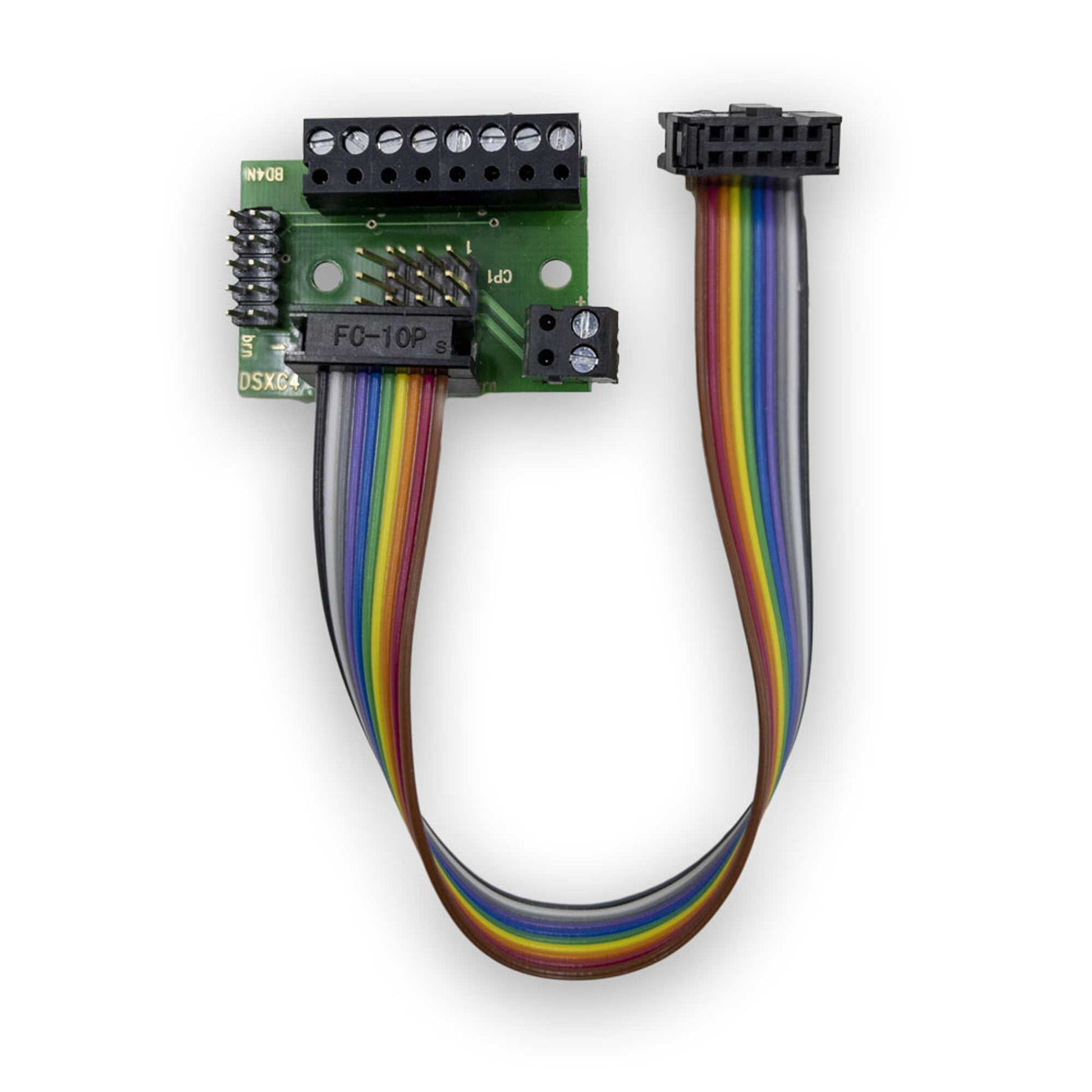

Connect Board for DS74 Inputs (DGTDSXC4)

The DS74 Input Connect Board is a compact interconnect module that makes wiring for DS74 input systems quick and reliable, delivering plug-and-play connectivity for DS74 inputs. Included ribbon cable plugs into the DS74’s 10-pin input header to streamline setup.

It supports up to four DSXCP1 fascia controls and provides a direct ribbon cable path to BD4N detectors, while an 8-pin screw-terminal offers optional access to eight input lines. This arrangement helps create tidy, scalable DS74-based installations with dependable connections and flexible wiring options.
