Pro Axle Guide (DWXPAG01)

Pro Axle Guide (DWXPAG01)

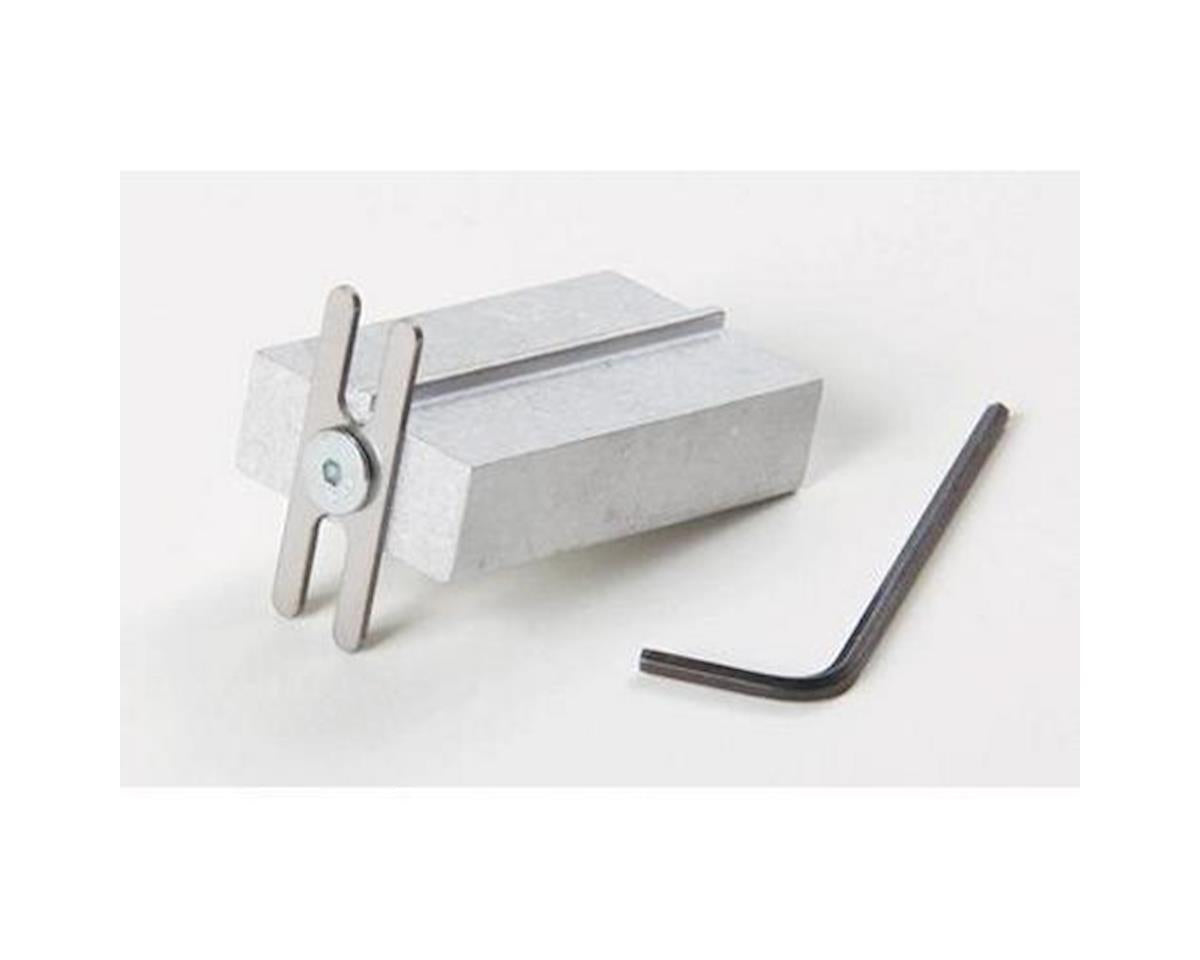

Pro Axle Guide is a precision CNC‑machined aluminum block with a laser-cut tab that fits into the axle slot of most pinewood derby bodies. The tab precisely spaces the wheels from the body, ensuring accurate axle alignment and wheel positioning for consistent, high-performance builds. The block can also be used on the flat side for extended wheelbase cars.

Designed to speed assembly and improve reliability, it guides axle insertion, establishes the correct wheel‑to‑body gap, and provides support to the wood around the slot during installation to minimize damage. This makes it a practical, durable aid for repeatable, predictable results on race day.

$10.95
$10.95 $10.95
Sale Sold out

  • Available: 4

    • Nankin Hobby Farmington: 2
    • Nankin Hobby Ypsilanti: 2
    • Nankin Hobby Southgate: 0

Exploded View

Exploded View

Parts List

Parts List

Product Manual

Product Manual
View full details
  • Pro Axle Guide (DWXPAG01)

Overview

The Pro Axle Guide is a precision C.N.C. machined aluminum block with a laser cut tab, designed to fit in the axle slot of most Pinewood Derby (P.W.D) race car bodies. The ingenious tab ensures precise spacing of the wheels from the body of the car. Additionally, the block can be utilized on the flat side for extended wheelbase cars.

With the Pro Axle Guide, users will experience enhanced speed in their derby cars due to increased accuracy in axle mounting. The primary advantages of this tool include:

Firstly, the guide ensures accurate mounting of axles in their designated slots to enhance alignment, which is crucial for achieving top speeds. Secondly, it establishes the correct gap between the wheel hub and the car body, effectively minimizing car wander and reducing excessive contact between the body and wheels. Lastly, the Pro Axle Guide provides support to the wood around the axle slot during the insertion process, significantly reducing the risk of damage.

Features

  • Precision C.N.C. machined aluminum block for durability
  • Laser cut tab designed for most Pinewood Derby race car bodies
  • Ensures accurate axle mounting for improved speed and alignment
  • Establishes correct wheel-to-body spacing to minimize car wander
  • Reduces excess contact between wheel hubs and car body
  • Provides support during axle insertion to minimize risk of damage
  • Can be used for extended wheelbase cars on the flat side

Needed to Complete

    Specifications

    • Material: C.N.C. machined aluminum
    • Compatibility: Fits most Pinewood Derby race car bodies
    • Function: Ensures accurate axle mounting and spacing
    • Usage: Can be used for standard and extended wheelbase cars
    • Benefits: Improves speed, alignment, and reduces damage risk
