Derby Worx (DWX)
SKU:DWXPBJ01

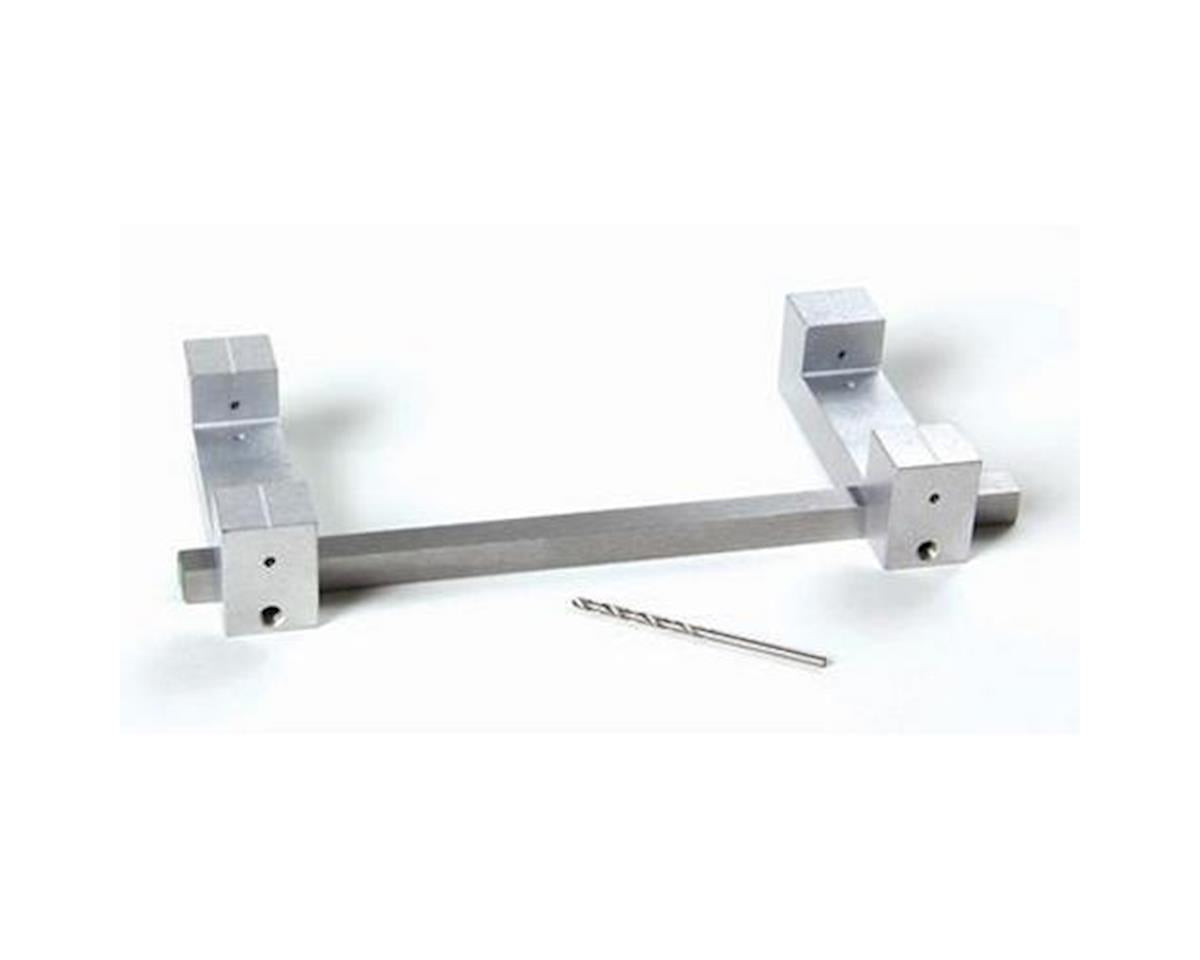

Pro Body Jig (DWXPBJ01)
Pro Body Jig (DWXPBJ01)
The Pro Body Jig is an adjustable tool designed to accurately create new axle holes and lower the center of gravity on BSA and Pine-Car derby kits, using a hand drill. A #44 drill bit is included to match the standard axle holes.
Locking all four axle points in one setting, the Pro Body Jig improves alignment and precision. It’s fully adjustable for any wheel—from standard BSA to a fully extended wheelbase for maximum performance. It helps minimize ground clearance and optimize weight placement, and it includes offset drill guide holes for a raised-hole option. It is not recommended for use with slots.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual
Collapsible content
Overview
The Pro Body Jig (DWXPBJ01) is an innovative adjustable tool designed to enhance the precision of creating new axle holes and lowering the center of gravity in BSA and Pine-Car derby kits. This tool includes a required #44 drill bit, ensuring that users are equipped to get started right away. It is important to note that the Pro Body Jig is not recommended for use with kits that require slots.
This tool improves the accuracy of the body block by securely locking all four axle points together in a single setting. Its adjustable design accommodates various wheel types, from the standard BSA to a fully extended wheelbase, optimizing performance for different racing conditions. The Pro Body Jig is specially engineered to help builders reduce ground clearance and achieve lower weight placement, which significantly contributes to improved speed and stability. Additionally, it features offset drill guide holes, providing an option for a raised hole configuration.
For those interested in visual learning, a video overview is available, demonstrating the capabilities and functionalities of the Pro Body Jig.
Features
- Adjustable tool for precise axle hole creation
- Designed for BSA and Pine-Car derby kits
- Includes #44 drill bit for immediate use
- Locks all 4 axle points together for improved accuracy
- Fully adjustable for standard and extended wheelbases
- Minimizes ground clearance and optimizes weight placement
- Features offset drill guide holes for raised hole option
- Not recommended for use with slots
Needed to Complete
- #44 drill bit
Specifications
- Model Number: DWXPBJ01
- Tool Type: Adjustable Pro Body Jig
- Included Drill Bit: #44 drill bit
- Compatibility: BSA and Pine-Car derby kits
- Axle Points Locking: All 4 points locked in 1 setting
- Wheel Base Adjustment: Fully adjustable for performance
- Ground Clearance: Designed to minimize ground clearance
- Weight Placement: Lowers weight for improved performance
- Drill Guide Holes: Offset holes for raised options
- Slots Compatibility: Not compatible with slots
-
