Overview

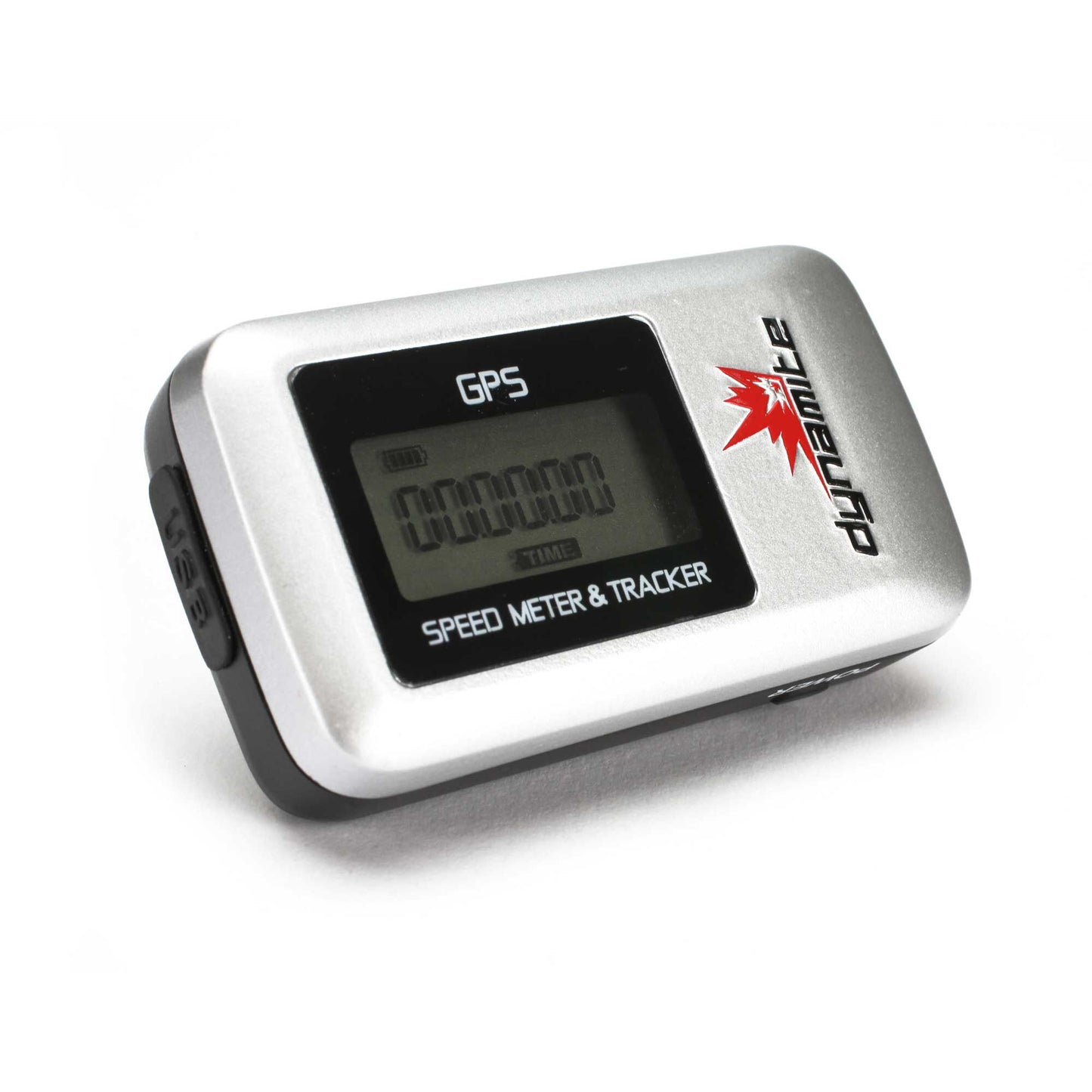

The GPS Speed Meter 2.0 (DYN4403) is an advanced tracking device designed for car, truck, boating, and air enthusiasts alike. This compact and lightweight GPS unit simplifies tracking top speeds, locations, and altitude, making it perfect for a wide range of RC applications, including large-scale aircraft and smaller radio control vehicles.
Equipped with built-in WASS/EGNOS/MSAS/RTCM global positioning compatibility, this device works seamlessly worldwide. The GPS Speed Meter boasts a refreshing rate of up to 10Hz, ensuring rapid and accurate response to changes in position while utilizing low power consumption for up to 4 hours of continuous tracking. The weather-resistant design allows for use in various conditions, enhancing its versatility.
The user-friendly LCD screen provides real-time feedback, displaying average, current, and peak speed along with altitude, total distance, and GPS coordinates. Users can enhance their experience by mapping their drive or flight using the Dynamite GPS Logger software alongside Google mapping products. The device supports readings of speeds up to 560 MPH and features a USB cable for easy charging.
The GPS Speed Meter is ideal for anyone looking to enhance their RC experience with reliable and precise tracking technology. With dimensions of 65mm x 40mm x 20mm and weighing only 45 grams, it's designed for easy integration into almost any setup.
Features
- Tracks location, speed, altitude, and more
- Compatible with RC planes, helicopters, cars, trucks, and boats
- Compact and lightweight design for easy integration in most RC applications
- Built-in high-capacity LiPo battery provides up to 4 hours of continuous tracking
- Includes USB cable for convenient charging
- PC interface for mapping on Google map products
- Records and downloads GPS map data
- Usable globally in real-world applications
- Reads speeds up to 560 MPH (900 KPH)
- Switch between Metric and Imperial units using PC software
- Concurrent reception of GPS and GLONASS signals
- Built-in antenna with L1, 1575.42 MHz receiver
- Satellite signal reception sensitivity up to -167 dBm
- Update frequency ranges from 1Hz to 10Hz
- Dimensions: 65mm x 40mm x 20mm
- Lightweight at 45 grams (1.58 oz)
- Operating temperature range: 0°C to +40°C
- Storage temperature range: -10°C to +70°C
- Operating humidity range: 5% to 90%
- Built-in flash memory capacity of 1MB
- 200 mAh LiPo built-in battery
- Operating time up to 150 minutes
- Recording time of up to 18 hours at 1Hz
- Recording time of up to 2 hours at 10Hz
- Includes USB cable and speed meter
Needed to Complete
Specifications
- Tracks: Location, speed, altitude, and more
- Compatibility: RC planes, helicopters, cars, trucks, and boats
- Dimensions: 65mm x 40mm x 20mm (2.6 in x 1.6 in x 0.8 in)
- Weight: 45 g (1.58 oz)
- Battery: Built-in 200 mAh LiPo
- Operating Time: Up to 150 minutes
- Recording Time at 1Hz: Up to 18 hours - default setting
- Recording Time at 10Hz: Up to 2 hours
- Update Frequency: 1 – 10Hz
- Concurrent Reception: GPS and GLONASS
- Receiver: L1, 1575.42 MHz
- Satellite Signal Reception Sensitivity: -167 dBm
- Antenna Type: Built-in
- Operating Temperature: 0°C to +40°C
- Storage Temperature: -10°C to +70°C
- Operating Humidity: 5% to 90%
- Built-in Flash Memory: 1MB
- Includes: USB cable, speed meter
- Reads Speeds up to: 560 MPH (900 KPH)
- Unit Switching: Metric and Imperial via PC software
