Spektrum (SPM)

SKU:SPMXSEM0500

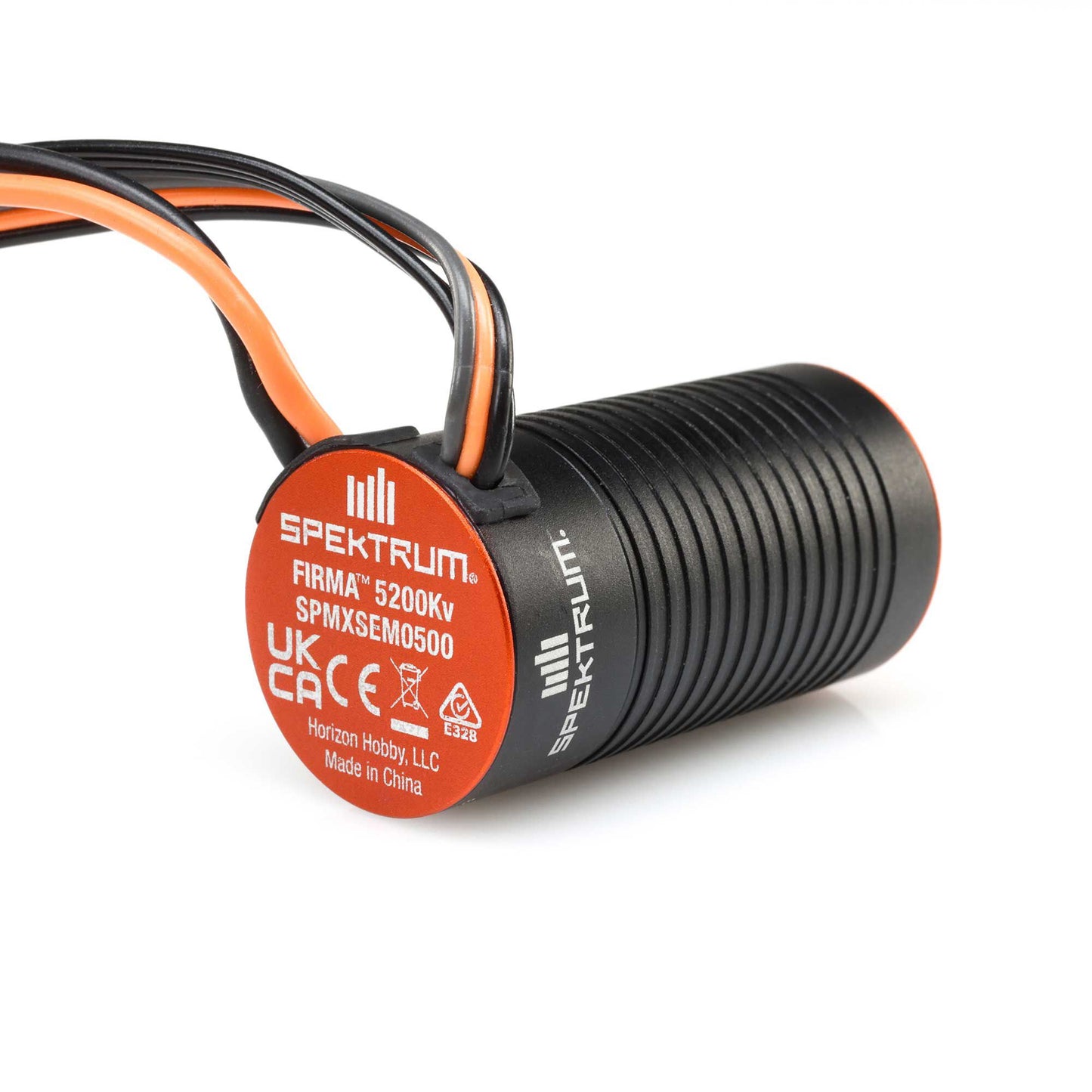

Firma 5200Kv Sensored Brushless Motor and ESC 2-in-1 Combo (SPMXSEM0500)

Firma 5200Kv Sensored Brushless Motor and ESC 2-in-1 Combo (SPMXSEM0500)

Spektrum Firma 5200Kv Sensored Brushless Motor and ESC 2-in-1 Combo is a waterproof power system designed for the 1/18 Losi Mini LMT 4X4 Monster Truck RTR. It pairs a 5200Kv sensored motor with a 30-amp sensored ESC to deliver precise throttle response, thanks to a high-precision magnetic encoder and rotor-position sensor that translates your throttle input into RPM with a one-to-one feel at any speed or angle.

Built for 2S or 3S LiPo power, this compact unit is ready to install—no soldering required. Aluminum construction aids heat dissipation, while an adjustable high-power BEC and IC2 connectors (backwards compatible with EC2) ensure reliable power delivery. It also features over-current protection, automatic LiPo low-voltage cutoff, thermal protection, and a failsafe, making it a solid choice for both casual bashing and competitive running.

Regular price $99.99
Regular price $79.99 Sale price $99.99
Sale Sold out

Exploded View

Parts List

Product Manual

View full details

Collapsible content

Overview

The Spektrum Firma 30-amp Sensored Brushless ESC and motor 2-in-1 combo is waterproof and specifically designed for the 1/18 Losi Mini LMT 4X4 Monster Truck RTR. This advanced combo elevates the excitement of the Mini LMT with its high-precision magnetic encoder and rotor position sensor, providing an exceptional one-to-one control feel when driving at any speed and angle. This level of precision in sensored motor control allows for seamless matching between the throttle input and the motor's RPM.

Whether you're bashing or competing, this ESC and motor setup is ideal for completing your 1/18 Losi Mini LMT 4X4 Monster Truck with either 2S or 3S LiPo power. The system is designed for easy installation with no soldering required, making it accessible for hobbyists of all skill levels.

This 2-in-1 combo boasts features such as a fast, powerful 32-bit ARM M4 processor, multi-point protection including over-current and low-voltage cutoff, and thermal protection to enhance reliability during intense use. The Spektrum Firma 5200Kv Sensored Brushless motor adds both high performance and durability to your setup, while its aluminum construction aids in heat dissipation.

With an adjustable high-power BEC and high heat-resistant IC2 connectors that are backward compatible with EC2 connectors, setup and operation are straightforward. This motor and ESC combination is a perfect match for those looking to upgrade their Mini LMT and enjoy enhanced performance on any terrain.

Features

  • Waterproof design for durability in various conditions
  • Fast and powerful 32-bit ARM M4 processor for responsive control
  • Includes high-performance Spektrum Firma 5200kV sensored brushless motor
  • Easy installation with no soldering required
  • Compact size for fitting in most applications
  • Aluminum construction for improved heat dissipation
  • Multi-point protection:
    • Over-current protection
    • Automatic LiPo low-voltage cutoff
    • Thermal protection
    • Failsafe protection
  • Adjustable high-power BEC output (6V/7.4V, continuous current 2A)
  • High heat-resistant IC2 connectors, backward compatible with EC2 connectors
  • Developed in collaboration with leading ESC manufacturers
  • Designed specifically for the 1/18 Losi Mini LMT 4X4 Monster Truck RTR
  • Compatible with 2S and 3S LiPo batteries
  • Shaft diameter: 0.07" (2 mm) and shaft length: 0.53" (13 mm)
  • Maximum continuous current: 30A
  • Product weight: 2.7 oz.
  • Product dimensions: 1.8" (46 mm) length, 0.94" (24 mm) diameter

Needed to Complete

  • 2S or 3S LiPo battery
  • Compatible battery charger

Specifications

  • Product Number: SPMXSEM0500
  • Motor Type: Brushless
  • RPM/Volt (Kv): 5200Kv
  • Number of Poles: 4
  • Maximum Continuous Current: 30A
  • BEC Type: Switching
  • BEC Continuous Current: 2A
  • Output: 6V/7.4V Adjustable, Continuous Current 2A
  • Input Voltage: 2S LiPo
  • LiPo Compatibility: 2S, 3S
  • Number of Cells: 2-3S LiPo, 6-9 Cells NiMH
  • Overload Protection: Yes
  • Auto Cutoff: Yes
  • Connector Type: IC2
  • Product Weight: 2.7 oz.
  • Product Length: 1.8" (46 mm)
  • Outer Diameter: 0.94" (24 mm)
  • Shaft Diameter: 0.07" (2 mm)
  • Shaft Length: 0.53" (13 mm)
  • Application: Losi Mini LMT
