Traxxas (TRA)

TRA109076-4-RED

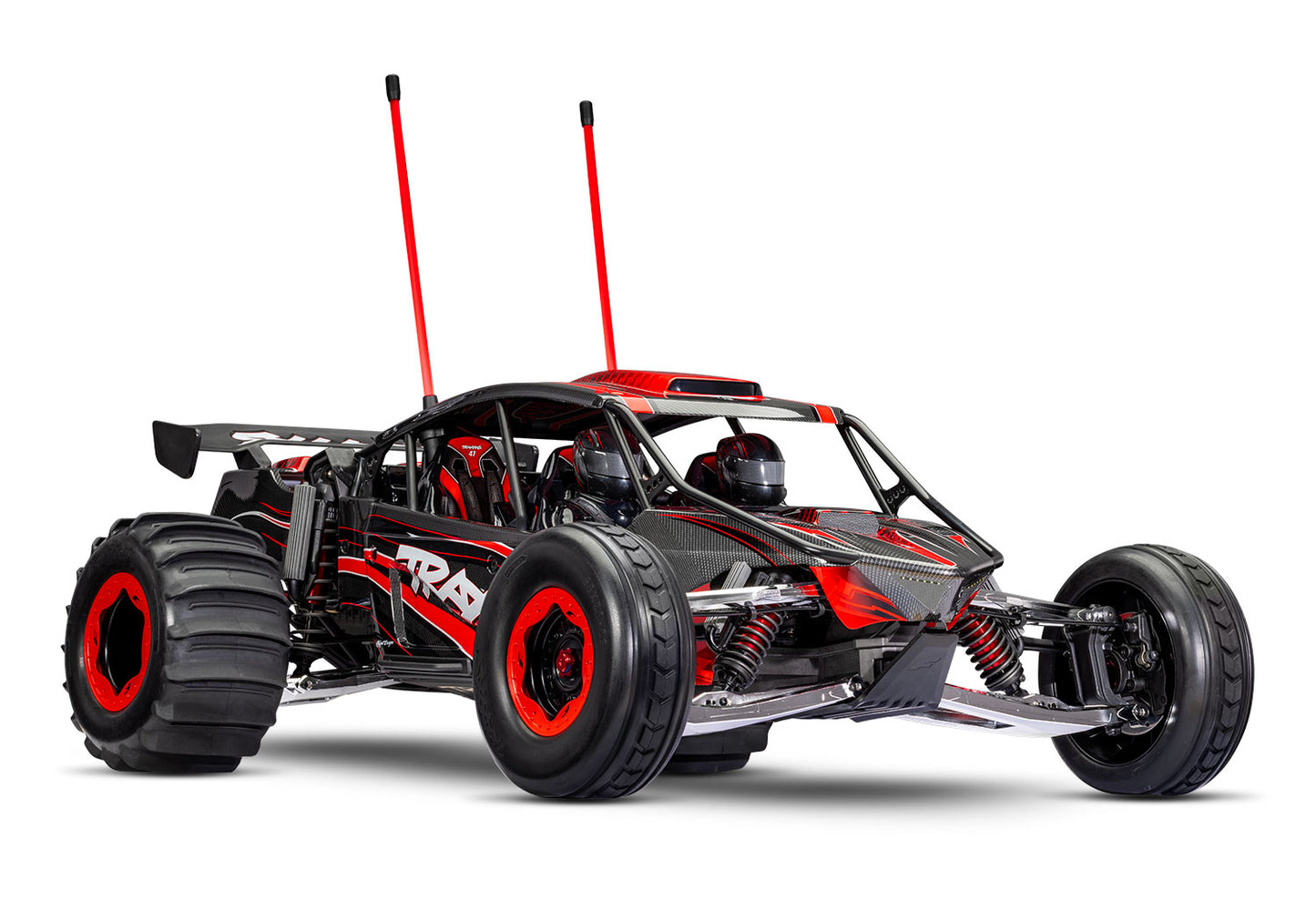

Funco Motorsports Pro Scale Sand Car Ready to Run (Red) (TRA109076-4-RED)

Funco Motorsports Pro Scale Sand Car Ready to Run (Red) (TRA109076-4-RED)

This item is available for Local Pickup ONLY and cannot be shipped.

$1,299.95
$1,299.95 $1,299.95
Sale Sold out
 More payment options
View full details

Overview

Experience the exhilarating rush of driving a sand car, a thrill like no other. Equipped with over 1000 horsepower engines and advanced long-travel suspension systems, these vehicles can reach speeds exceeding 150 mph and perform wheelies with just a tap of the throttle. The Traxxas Pro Scale Sand Car has been designed to replicate this excitement, offering a thrilling 55+ mph experience that mirrors the full-size Funco Motorsports car in spectacular X-Series scale.

Scale:Speed:Battery and Charger:
X-Series55+ mphNot Included
Pro Scale Experience

Pro Scale Experience

Traxxas re-engineered the X-Series platform to create a sand car that would accurately replicate not just the look of the Funco machine, but also its mind-blowing driving dynamics. Grab full throttle on the Traxxas Pro Scale Sand Car and you’ll experience the thrill and excitement of driving a top-tier 1000+ horsepower sand car for yourself.
New 2WD X-Series Chassis

New 2WD X-Series Chassis

A new low-CG 2WD chassis was engineered with focused development on even more strength and resistance to flex. A thick reinforcing brace unifies the front bulkhead and chassis into one cohesive structure for incredible strength and impact resilience. The rear bulkhead was redesigned to accommodate the ultra-heavy-duty transmission and differential.
8s Brushless Power System

8s Brushless Power System

The Sand Car’s VXL-8s speed control features an aggressive tune that maximizes power output across the entire rpm range. The additional mid-range punch hits hard for rolling wheelies on demand. The Velineon 1200XL brushless motor is an 8s powerhouse that features increased cooling from a massive heatsink and dual fans.
Clipless Convenience

Clipless Convenience

The Pro Scale Sand Car’s clipless body easily removes and installs in just seconds, all while locking in place with incredible strength and security. The system uses a rigid internal cage to minimize flex body flex and hold the wing firmly in place. The LED whip lights use a single quick-disconnect plug to make body removal a snap.
All-New 2WD Transmission

All-New 2WD Transmission

30+ years of innovation have created the strongest transmission ever fitted to a Traxxas vehicle. The massively reinforced case holds the gears in perfect alignment with heavy-duty bearings for smooth power transfer. Huge, wide-face 1.5 module steel gears put extra strength where it’s needed most for dependable power delivery.
TQi Radio System

TQi Radio System

The high-output Traxxas TQi™ 2.4 GHz radio system delivers superior range, 30-model memory, and maximum control. Add the Traxxas Link Wireless Module (6511, sold separately) to send real-time telemetry to your smart phone using the free Traxxas Link™ app.
Secure Battery Storage

Secure Battery Storage

The Pro Scale Sand Car protects your batteries by positioning them deep in the chassis with full side protection. Rugged snap-lock retainers keep a firm grip on the batteries for intense action and high-flying fun.
Traxxas Stability Management

Traxxas Stability Management

Driving a powerful two-wheel-drive vehicle on loose sand can be challenging for even the best drivers. Traxxas Stability Management® (TSM) makes it easy for any driver to harness the Sand Car’s brutal 8s power for all-out acceleration and control. TSM lets you adjust the amount of assistance from off to 100% right from your transmitter. Learn More
High-Visibility Whip Lights

High-Visibility Whip Lights

The Sand Car’s whip lights are color-matched to the body to provide a clear and bright visibility marker when running at high speed. The whip lights feature Flex Tech spring-loaded mounts, allowing them to bend without breaking in case of rollovers.
Optional Pro Scale LED Lights

Optional Pro Scale LED Lights

Take your Sand Car to the next level of scale realism with accessory Pro Scale LED lights (sold separately). Blaze a trail ahead with the front and rear LED light bars with high beam function and working brake/reverse lights. Add even more detail with the shock-mounted rock lights and side-mount pod lights or add underbody lighting for a dramatic look.

Features

X-Series Size

Both longer and wider than the legendary X-Maxx®, the Pro Scale Sand Car is the largest member of the X-Series family. This immense size gives the Sand Car incredible scale detail, authentic driving dynamics, and an imposing presence. The Sand Car’s huge footprint provides extra stability to blast down desert trails and fly over dunes with ease.

Scale Details

Traxxas pulled out all the stops to replicate the full-size Funco GTU Sand Car in exact detail. The Pro Scale Sand Car features a full interior with dashboard and driver figures and replica remote-reservoir 3.5″ shocks. The engine is a work of art, comprised of 9 different pieces, including licensed R2C air filters and a Whipple supercharger.

Front Disc Brakes

Powerful front disc brakes work in tandem with the rear motor braking for powerful and controlled 4-wheel stopping power. Sheathed cables clamp the calipers down on drilled stainless steel rotors for scale authenticity. A digital 2075 servo actuates the brakes through an adjustable linkage for greater braking precision and control.

Belted Paddle Tires

The Pro Scale Sand Car’s aggressive paddle tires feature twice the traditional number of ribs for extreme traction off the line. A belted carcass prevents the paddles from distorting for maximum forward bite in the sand and powerful acceleration.

Internal Tube Frame

A rugged tube frame supports the entire Pro Scale Sand Car body from end to end. The heavily reinforced structure protects the car in case of rollovers and provides a rigid mounting point for the wing and clipless mounts. When it’s time to release the body, simply pull on the self-energizing latches and the entire structure lifts off in seconds.

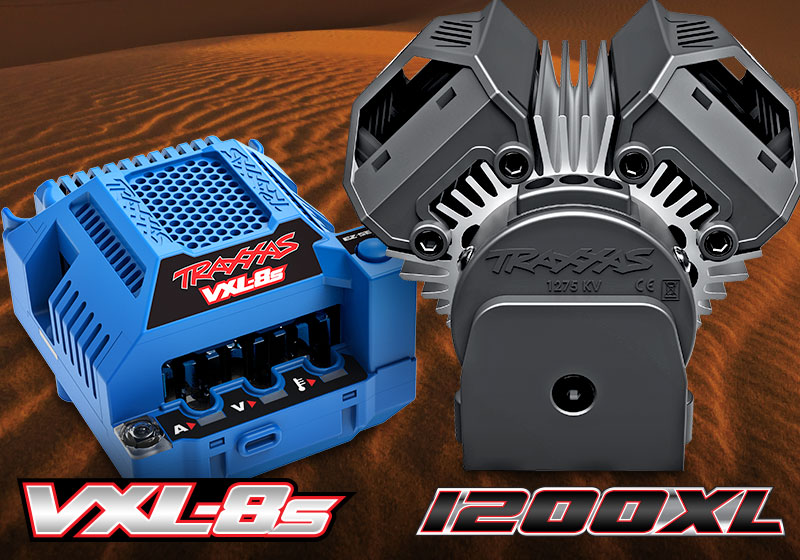

VXL-8s Power System

The Pro Scale Sand Car features Traxxas’ most powerful brushless system, the Velineon® VXL-8s™ speed control and 1200XL motor. The high-performance VXL-8s maximizes power output across the entire rpm range. Bury the throttle at any speed and the Sand Car instantly wheelies until you back off…or run out of desert.

Precision Driveline

With 30+ volts of brushless power going only to the rear wheels, the Pro Scale Sand Car needs a radically strong driveline. Inside the massively reinforced case, huge module 1.5 wide-face transmission gears feed uninterrupted power to the wheels. A beefed-up X-Maxx differential with larger output cups engages steel driveshafts to form the toughest driveline ever outfitted to a Traxxas vehicle.

High-Visibility Whip Lights

Colorful whip lights rise over 10 inches above the body to provide a clear and bright visibility marker when storming dunes at 55+ mph. The lights are color-matched to the body to give the car a dramatic look. New Flex-Tech™ spring-loaded mounts allow the whip lights to bend without breaking in case of rollovers.

    Replica Funco Sand Car Clipless Body

  • Full-length tube frame support
  • Detailed interior with driver figures
  • Replica engine with licensed accessories
  • 10″ color-matched whip lights
  • Spring-loaded Flex Tech mounts for rollover protection
  • High-performance rear wing
  • Wheelie bar (included)

    VXL-8s Waterproof Electronic Speed Control

  • Aggressive tuning for more power at any rpm
  • Built-in cooling fan
  • Real-time telemetry via Traxxas Link (requires 6511 Wireless Module)
  • Machined heat sink
  • 10-gauge silicone wire
  • Integrated protection circuits
  • LED status lights

    Velineon 1200XL Brushless Motor

  • “Big Block” brushless motor
  • 4-pole 1275 Kv
  • 5 mm output shaft
  • Oversize aluminum heatsink for improved cooling
  • Dual cooling fans

    55+ mph with Two 4s LiPo Batteries and included optional speed gearing

    Traxxas Stability Management® (TSM)

  • Improves straight line acceleration and braking on low-traction surfaces
  • Never dulls throttle or slows the truck
  • Adjusts from off to 100% assistance from the transmitter

    TQi 2.4 GHz 2-Channel High Output Radio System

  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Programmable multi-function knob
  • 5-channel micro receiver (6533) with fail-safe security
  • Patented waterproof receiver box with easy-access plug

    Ultra-Heavy-Duty 8s Driveline

  • Steel CV driveshafts & axles
  • New larger X-Series differential output yokes
  • Fully machined aluminum stub axles

    Direct-Drive Transmission

  • 1.5 mod steel gears
  • 1.0 mod steel pinion and spur gears
  • Fixed gear mesh system

    Rear Differential

  • Huge 1.5 module straight-cut ring gear
  • Sealed 4-gear design
  • Splined outdrives attached with external thru-bolt method
  • Reinforced bulkhead and covers for increased bearing support

    Rock-Solid Motor Mounting System

  • Precise preset gear mesh adjustments
  • 4 keyed pins lock the motor in place
  • Motor retention separate from gear mesh

    GT Maxx Shocks

  • Machined aluminum threaded body
  • Extra-large bore and capacity
  • Height-adjustable spring retainer
  • Heavy-duty composite shock caps with pivot balls
  • Lower spring perches bolted on

    SuspensionPolished aluminum-finish suspension arms

  • Polished aluminum-finish suspension arms Made from cold-weather HD composite
  • Made from cold-weather HD composite
  • Performance-optimized geometry
  • Double-shear connections
  • High-strength steel suspension pins with retainers
  • 4 mm machined pivot balls
  • Fixed high-strength camber and toe links
  • Heavy-duty steering blocks and axle carriers
  • Oversized wheel bearings

    Braking

  • Electronic rear brakes
  • Powerful front disc brakes with spring-loaded calipers
  • Operated by 2075 high-torque servo
  • Sheathed brake cables
  • Steel slotted and drilled brake rotors

    Low-CG Chassis Design

  • Modular chassis with interlocking bulkheads
  • Low CG for improved handling
  • Flat bottom design
  • Interlocking skid plates
  • High-strength buttressing on shock towers
  • Dual snap-lock battery compartments
  • Protects batteries from side impacts
  • Allows secondary battery-clip security
  • Interlocking components for tight tolerances
  • Wire management for clean appearance

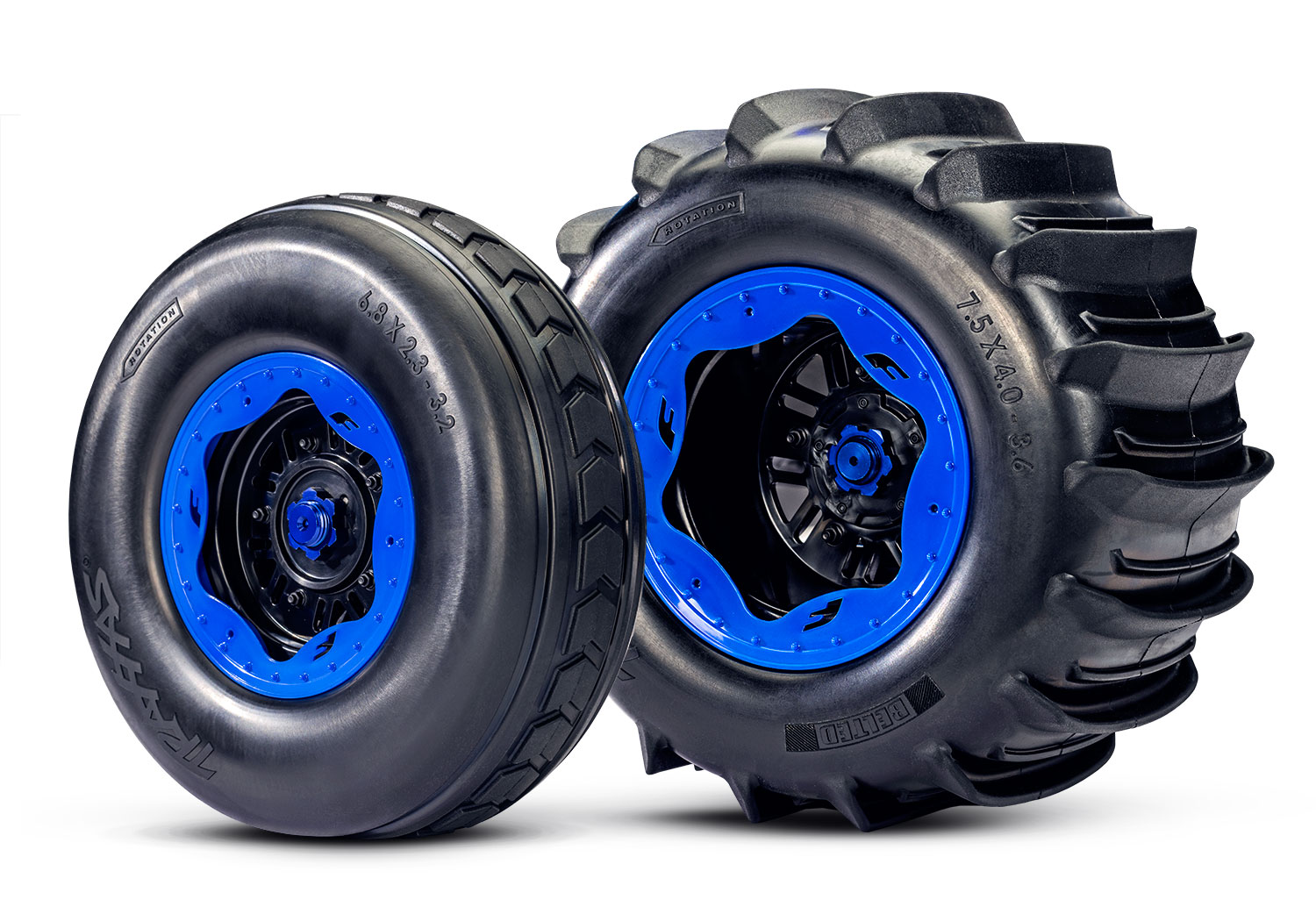

    Wheels and Tires

  • 7.5" Rear paddle tires
  • Aggressive paddle design
  • Optimized for sand performance
  • Belted carcass resists ballooning

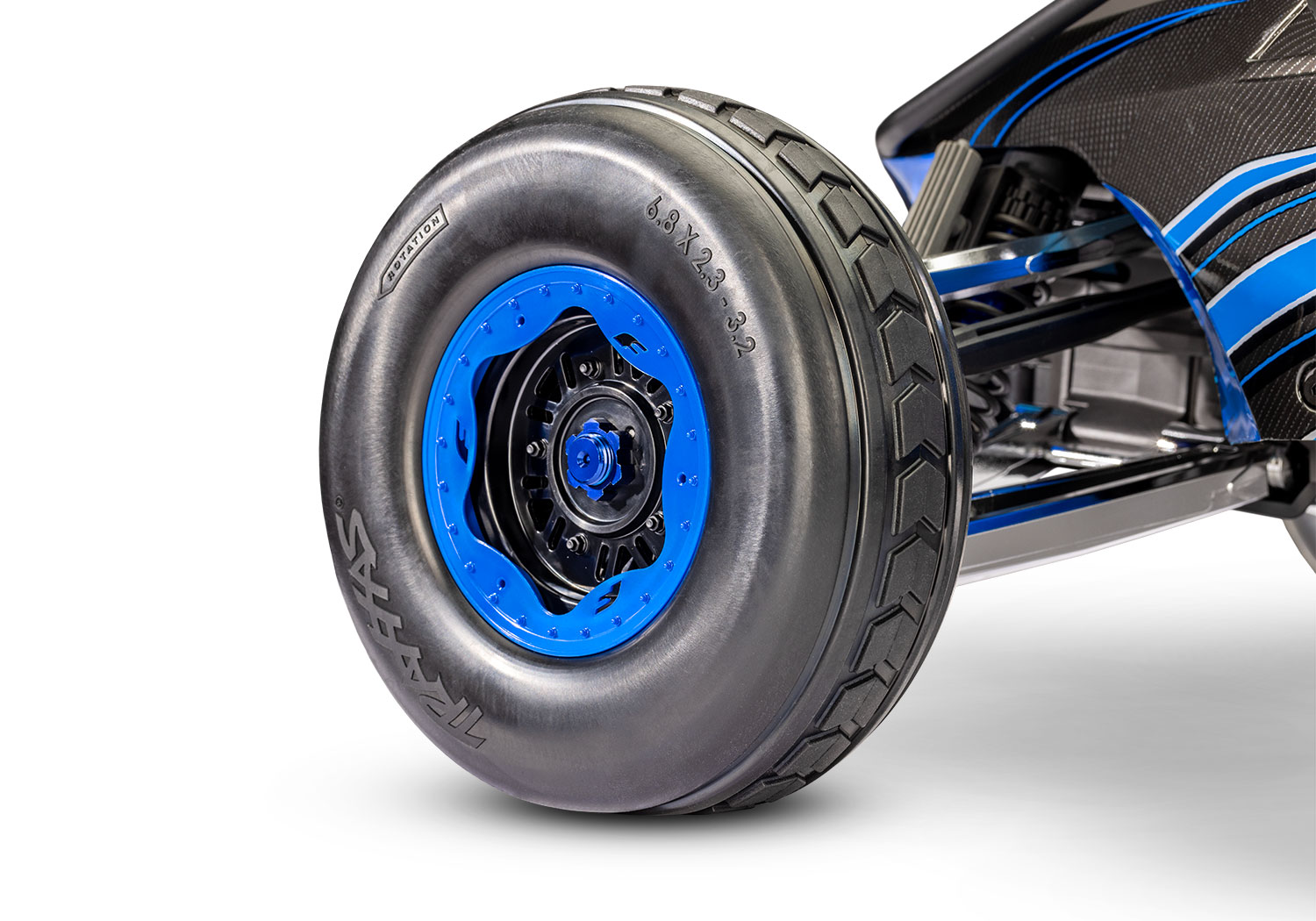

  • 6.8" front arrow-pattern tires
  • Excellent traction on sand, dirt, and pavement
  • Replica Funco beadlock wheel design
  • Color-matched beadlock rings and axle nuts
  • High-strength glue and bead design
  • Huge 24 mm splined wheel hubs

    Steering

  • Powerful 450 oz-in steering servo (2085XL)
  • Cam-style servo saver
  • Dirt evacuation channels
  • Fully waterproof

    Sealed Ball Bearings

    Hex hardware with Rust-Resistant Black Oxide Coating

High-Performance Wing

A high-performance rear wing provides added stability for high-speed runs and integrates neatly with the clipless body for a highly accurate scale appearance. The wing mounts directly to the tube frame to soak up even the hardest landings.

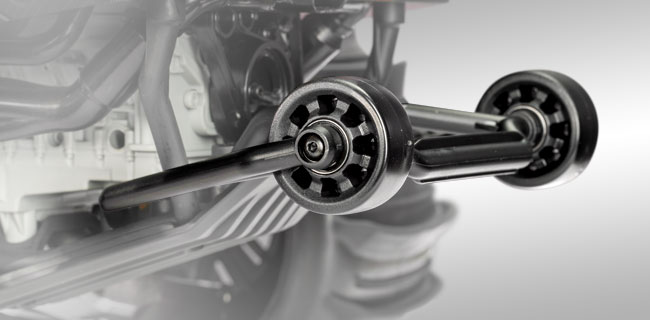

Wheelie Bar

8s power and aggressive paddle tires make the Pro Scale Sand Car a wheelie monster. The wheelie bar not only prevents backflips, but it also helps to absorb impacts on less-than-perfect landings.

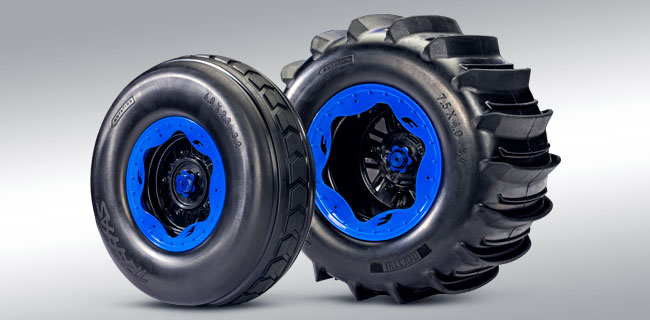

High-Performance Tires

The Pro Scale Sand Car comes prepped for desert duty with aggressive paddle tires that bite into sand for relentless acceleration and massive roosts. The arrow-pattern front tires provide the perfect amount of float for easy driving in deep sand. On hard packed surfaces the front tread pattern delivers a beefy contact patch for responsive steering and excellent braking.

Replica Beadlock Wheels

The Pro Scale Sand Car uses all-new 3.6″ wheels modeled after the full-size Funco car. Bright simulated beadlock rings and color-matched aluminum axle nuts contrast the black wheels for a unique look.

Detailed Interior

The Pro Scale Sand Car elevates scale authenticity with a fully detailed interior. A molded steering wheel and shifters are spaced accurately for the driver figure in front of the fully detailed dashboard with authentically replicated screens and gauges.

Smooth Undertray

Interlocking skid plates integrate precisely with the Sand Car’s chassis to create a smooth undertray that glides over sand and absorbs ground impacts uniformly for predictable performance.

GT Maxx Shocks

Aluminum GT Maxx shocks with adjustable ride-height collars are built to replicate the huge 3.5″ diameter shocks found on the Funco Sand Car. Replica remote reservoirs give the shocks a fully authentic appearance. New extended aluminum bodies and shafts in the rear shocks provide additional travel to tame the toughest desert terrain.

Integrated Shock Towers

The Sand Car’s shock towers are an integral part of the frame with massive buttresses to dissipate shock loads throughout the chassis. Heavy-duty receivers secure the clipless body latches directly to the towers for maximum strength.

Low-CG Chassis

The Pro-Scale Sand Car’s performance-focused chassis lowers the center of gravity for superior handling and stability. The dual 6700 4s batteries and steering servo position weight as low as possible in the chassis to improve performance and provide protection for these critical components.

Aluminum Heatsink with Dual Fans

The Velineon 1200XL uses an aluminum heatsink that wraps around nearly 75% of the motor’s exposed surface to pull out more heat. Dual electric fan shrouds draw cooling air from the body vents through the oversized fins for more effective cooling performance and longer run times.

Rock Solid Motor Mount

A rock-solid motor mount cradles the motor and locks it in place so it can’t flex or slip out of position. Four keyed pins set the gear mesh, eliminating the need for complicated adjustments.

Snap-Lock Battery Retainers

Hook and loop battery hold down straps are messy, frustrating, and steal time away from your driving fun. Traxxas engineering solves this with our proven snap-lock solution that securely holds and protects batteries.

Waterproof Electronics

You can never tell what’s over the next dune, so Traxxas outfitted the Sand Car with fully waterproof electronics. A sealed receiver box with an easy access port protects the TQi receiver for all-weather driving.

High-Performance Steering Design

Dual-bellcrank steering delivers sharp handling and fast reflexes with the security of a heavy-duty servo saver. The double-shear servo horn is bearing supported to eliminate flex for precise steering at high speeds. Special vents keep everything running smoothly by evacuating sand away from the steering components.

Rugged Skid Plates

Three rugged skid plates key together tightly to protect the Sand Car’s chassis from damage. The front skid plate tapers up to meet the body to prevent the nose from digging into the sand after a hard landing.

Heavy-Duty Suspension Arms

Heavy-duty suspension arms are made from Traxxas' toughest material with captured double-shear connections for incredible strength. A polished aluminum finish gives the long-travel arms a fully authentic look to match the full-scale car.

Oversized Sealed Bearings

Extreme HD front and rear hub carriers feature oversize bearings to send the Sand Car's brutal 8s power efficiently and reliably to the wheels. Full-contact bearing seals help to keep out sand and grime for less time spent on cleaning and maintenance.

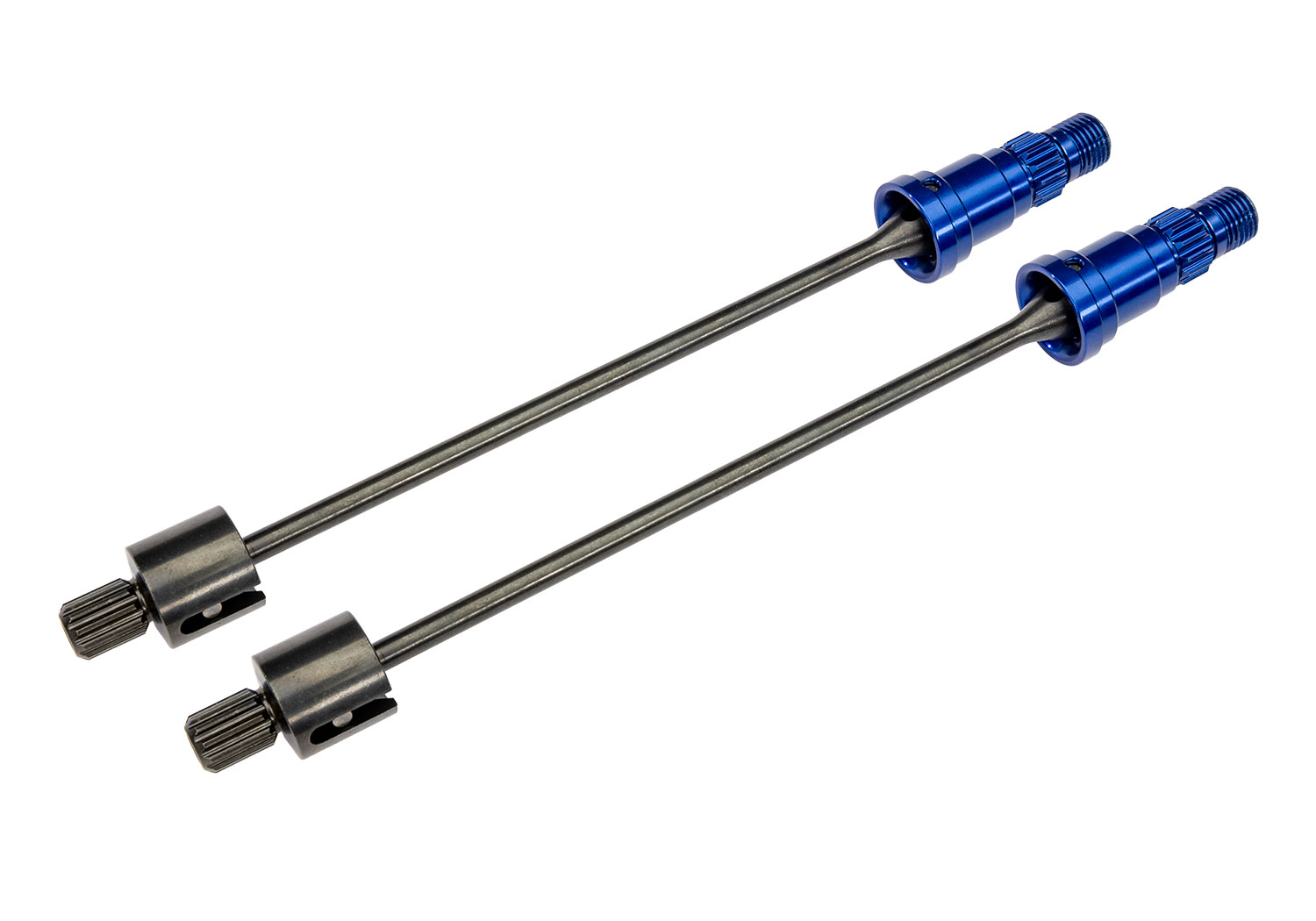

Ultra-Heavy-Duty Driveshafts

The Sand Car’s rear driveshafts are the toughest ever fitted to a Traxxas vehicle. New beefed-up differential output yokes are even larger than X-Maxx. Power feeds to 17 mm splined aluminum axles through steel CV driveshafts to maximize suspension travel and durability.

Sealed 4-Gear Differential

The Sand Car uses the same battle-tested internal differential gears from X-Maxx, but the housing has been massively beefed up with a huge 1.5 module ultra-HD straight-cut ring gear for uncompromising durability. The differential is sealed to allow limited-slip tuning with different viscosity oils.

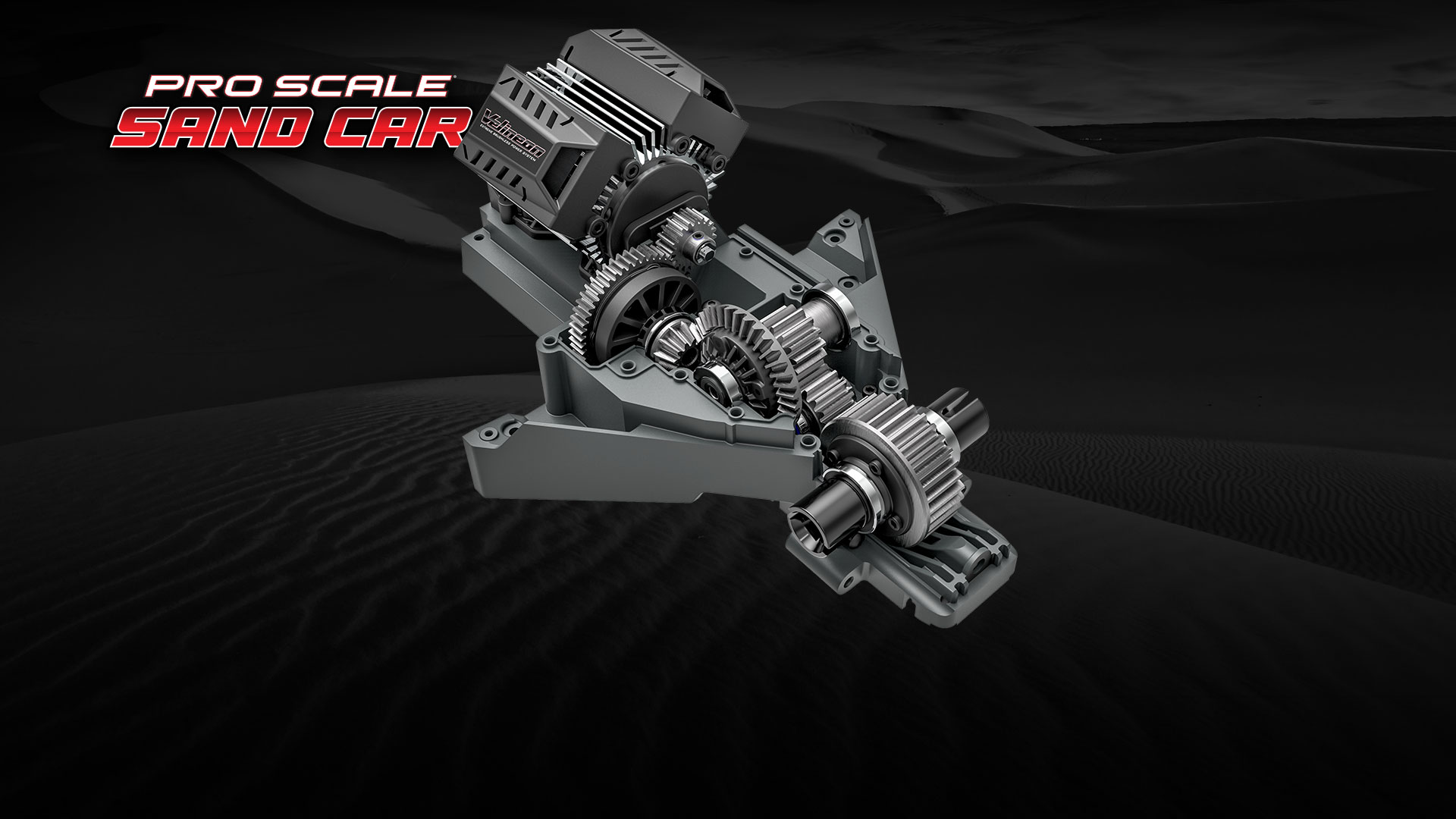

Direct-Drive Transmission

A direct-drive transmission provides instant throttle response and uninterrupted power delivery. Traxxas reinforced the Pro Scale Sand Car’s transmission case and outfitted it with huge 1.5 module gears for bombproof durability.

1.5 Module Transmission Gears

The Sand Car’s ultra-HD transmission gears are cut to a massive 1.5 module profile that’s 50% larger than standard X-Series gears. The wide-face profile provides a larger contact surface to ensure maximum durability in the face of extreme 8s power.

Functional Disc Brakes

A 2075 digital servo actuates the powerful front disc brakes through an adjustable linkage for fine tuning. The braided-steel brake cables are sheathed in a protective casing and secured to the suspension arms to guard against damage.

Realistic Brake Rotors

The brake cables operate a cam lever which squeezes brake pads onto the rotor for powerful braking performance. The calipers are spring loaded to reduce friction when not in use. Stainless steel brake rotors are slotted and drilled for added cooling and an authentic appearance.

Specifications

    Vehicle

  • Length: 32 inches (812 mm)
  • Width: 21.7 inches (551 mm)
  • Ground Clearance: 1.98 inches (50 mm)
  • Weight: 22.06 pounds (10 kg)
  • Height: 11.1 inches (283 mm) - body 19.6 inches (498 mm) - with whip lights
  • Wheelbase: 21.4 inches (543 mm)
  • Shock Length: 5.08 inches (129 mm) (front) 7.13 inches (181 mm) (rear)
  • Tires (Arrow Pattern, Front): 6.8″ x 2.3″ (173 mm x 58 mm)
  • Tires (Paddle, Rear): 7.5″ x 4.0″ (191 mm x 102 mm)
  • Wheels (Front): 3.2″ (82 mm, inner) x 4.9″ (125 mm, outer)
  • Wheels (Rear): 3.6″ (91 mm, inner) x 4.7″ (120 mm, outer)
  • Speed Control: Velineon® VXL-8s
  • Motor (electric): Velineon® 1200XL Brushless with heat sink and dual fan shrouds
  • Overall Drive Ratio: 16.4:1 (21/50 motor pinion and spur gear)
  • Differential Type: Sealed, four-gear, limited-slip
  • Gear Pitch: Module 1.5 (transmission) Module 1.0 (pinion & spur)
  • Chassis Structure/Material: Reinforced Nylon Tub
  • Brake Type: Electronic (rear) Dual slotted & drilled discs (front)
  • Drive System: Direct-drive, RWD
  • Steering: Bellcrank
  • Radio System: TQi™ 2.4 GHz Transmitter with TSM® receiver
  • Steering Servo: 2085XL metal gear (450 oz-in.)
  • Top Speed: 55+ mph with two 4s LiPo batteries and included speed gearing
  • Skill Level: 5
  • Battery Tray: 186 mm x 51 mm x 44 mm
  • Required Batteries: 4 “AA” (transmitter) and 4-cell LiPo battery with iD® (x2)
  • Overall Drive Ratio: 16.4:1 (21/50 motor pinion and spur gear)
  • Differential Type: Sealed, four-gear, limited-slip
  • Gear Pitch: Module 1.5 (transmission) Module 1.0 (pinion & spur)
  • Chassis Structure/Material: Reinforced Nylon Tub
  • Brake Type: Electronic (rear) Dual slotted & drilled discs (front)
  • Drive System: Direct-drive, RWD
  • Steering: Bellcrank
  • Radio System: TQi™ 2.4 GHz Transmitter with TSM® receiver
  • Steering Servo: 2085XL metal gear (450 oz-in.)
  • Top Speed: 55+ mph with two 4s LiPo batteries and included speed gearing
  • Skill Level: 5
  • Battery Tray: 186 mm x 51 mm x 44 mm
  • Required Batteries: 4 “AA” (transmitter) and 4-cell LiPo battery with iD® (x2)

    Motor

  • Type: 1275 Kv sensorless brushless
  • Weight: 665 grams (23.44 ounces)
  • Length: 4.32 inches (110 mm)
  • Diameter: 1.88 inches (48 mm)
  • Connector Type: Traxxas 6.5 mm bullet connectors

    ESC

  • Input Voltage: 8s LiPo (max 33.6 volts)
  • Case Size: 2.23″ (58 mm) / 2.83″ (72 mm) / 1.81″ (46 mm)
  • Weight: 215.5 grams (7.60 ounces)
  • BEC Voltage: 6.0 volts
  • BEC Current Continuous: 10 amps
  • BEC Current Peak: 20 amps
  • Motor Connectors: Traxxas 6.5 mm bullet connectors
  • Battery Connectors: Traxxas High-Current Connectors
  • Power Wire: 10-gauge Maxx Cable
  • Ports: RX input, auxiliary fan, accessory port

Overview

Experience the exhilarating rush of driving a sand car, a thrill like no other. Equipped with over 1000 horsepower engines and advanced long-travel suspension systems, these vehicles can reach speeds exceeding 150 mph and perform wheelies with just a tap of the throttle. The Traxxas Pro Scale Sand Car has been designed to replicate this excitement, offering a thrilling 55+ mph experience that mirrors the full-size Funco Motorsports car in spectacular X-Series scale.

Scale:Speed:Battery and Charger:
X-Series55+ mphNot Included
Pro Scale Experience

Pro Scale Experience

Traxxas re-engineered the X-Series platform to create a sand car that would accurately replicate not just the look of the Funco machine, but also its mind-blowing driving dynamics. Grab full throttle on the Traxxas Pro Scale Sand Car and you’ll experience the thrill and excitement of driving a top-tier 1000+ horsepower sand car for yourself.
New 2WD X-Series Chassis

New 2WD X-Series Chassis

A new low-CG 2WD chassis was engineered with focused development on even more strength and resistance to flex. A thick reinforcing brace unifies the front bulkhead and chassis into one cohesive structure for incredible strength and impact resilience. The rear bulkhead was redesigned to accommodate the ultra-heavy-duty transmission and differential.
8s Brushless Power System

8s Brushless Power System

The Sand Car’s VXL-8s speed control features an aggressive tune that maximizes power output across the entire rpm range. The additional mid-range punch hits hard for rolling wheelies on demand. The Velineon 1200XL brushless motor is an 8s powerhouse that features increased cooling from a massive heatsink and dual fans.
Clipless Convenience

Clipless Convenience

The Pro Scale Sand Car’s clipless body easily removes and installs in just seconds, all while locking in place with incredible strength and security. The system uses a rigid internal cage to minimize flex body flex and hold the wing firmly in place. The LED whip lights use a single quick-disconnect plug to make body removal a snap.
All-New 2WD Transmission

All-New 2WD Transmission

30+ years of innovation have created the strongest transmission ever fitted to a Traxxas vehicle. The massively reinforced case holds the gears in perfect alignment with heavy-duty bearings for smooth power transfer. Huge, wide-face 1.5 module steel gears put extra strength where it’s needed most for dependable power delivery.
TQi Radio System

TQi Radio System

The high-output Traxxas TQi™ 2.4 GHz radio system delivers superior range, 30-model memory, and maximum control. Add the Traxxas Link Wireless Module (6511, sold separately) to send real-time telemetry to your smart phone using the free Traxxas Link™ app.
Secure Battery Storage

Secure Battery Storage

The Pro Scale Sand Car protects your batteries by positioning them deep in the chassis with full side protection. Rugged snap-lock retainers keep a firm grip on the batteries for intense action and high-flying fun.
Traxxas Stability Management

Traxxas Stability Management

Driving a powerful two-wheel-drive vehicle on loose sand can be challenging for even the best drivers. Traxxas Stability Management® (TSM) makes it easy for any driver to harness the Sand Car’s brutal 8s power for all-out acceleration and control. TSM lets you adjust the amount of assistance from off to 100% right from your transmitter. Learn More
High-Visibility Whip Lights

High-Visibility Whip Lights

The Sand Car’s whip lights are color-matched to the body to provide a clear and bright visibility marker when running at high speed. The whip lights feature Flex Tech spring-loaded mounts, allowing them to bend without breaking in case of rollovers.
Optional Pro Scale LED Lights

Optional Pro Scale LED Lights

Take your Sand Car to the next level of scale realism with accessory Pro Scale LED lights (sold separately). Blaze a trail ahead with the front and rear LED light bars with high beam function and working brake/reverse lights. Add even more detail with the shock-mounted rock lights and side-mount pod lights or add underbody lighting for a dramatic look.

Features

X-Series Size

Both longer and wider than the legendary X-Maxx®, the Pro Scale Sand Car is the largest member of the X-Series family. This immense size gives the Sand Car incredible scale detail, authentic driving dynamics, and an imposing presence. The Sand Car’s huge footprint provides extra stability to blast down desert trails and fly over dunes with ease.

Scale Details

Traxxas pulled out all the stops to replicate the full-size Funco GTU Sand Car in exact detail. The Pro Scale Sand Car features a full interior with dashboard and driver figures and replica remote-reservoir 3.5″ shocks. The engine is a work of art, comprised of 9 different pieces, including licensed R2C air filters and a Whipple supercharger.

Front Disc Brakes

Powerful front disc brakes work in tandem with the rear motor braking for powerful and controlled 4-wheel stopping power. Sheathed cables clamp the calipers down on drilled stainless steel rotors for scale authenticity. A digital 2075 servo actuates the brakes through an adjustable linkage for greater braking precision and control.

Belted Paddle Tires

The Pro Scale Sand Car’s aggressive paddle tires feature twice the traditional number of ribs for extreme traction off the line. A belted carcass prevents the paddles from distorting for maximum forward bite in the sand and powerful acceleration.

Internal Tube Frame

A rugged tube frame supports the entire Pro Scale Sand Car body from end to end. The heavily reinforced structure protects the car in case of rollovers and provides a rigid mounting point for the wing and clipless mounts. When it’s time to release the body, simply pull on the self-energizing latches and the entire structure lifts off in seconds.

VXL-8s Power System

The Pro Scale Sand Car features Traxxas’ most powerful brushless system, the Velineon® VXL-8s™ speed control and 1200XL motor. The high-performance VXL-8s maximizes power output across the entire rpm range. Bury the throttle at any speed and the Sand Car instantly wheelies until you back off…or run out of desert.

Precision Driveline

With 30+ volts of brushless power going only to the rear wheels, the Pro Scale Sand Car needs a radically strong driveline. Inside the massively reinforced case, huge module 1.5 wide-face transmission gears feed uninterrupted power to the wheels. A beefed-up X-Maxx differential with larger output cups engages steel driveshafts to form the toughest driveline ever outfitted to a Traxxas vehicle.

High-Visibility Whip Lights

Colorful whip lights rise over 10 inches above the body to provide a clear and bright visibility marker when storming dunes at 55+ mph. The lights are color-matched to the body to give the car a dramatic look. New Flex-Tech™ spring-loaded mounts allow the whip lights to bend without breaking in case of rollovers.

    Replica Funco Sand Car Clipless Body

  • Full-length tube frame support
  • Detailed interior with driver figures
  • Replica engine with licensed accessories
  • 10″ color-matched whip lights
  • Spring-loaded Flex Tech mounts for rollover protection
  • High-performance rear wing
  • Wheelie bar (included)

    VXL-8s Waterproof Electronic Speed Control

  • Aggressive tuning for more power at any rpm
  • Built-in cooling fan
  • Real-time telemetry via Traxxas Link (requires 6511 Wireless Module)
  • Machined heat sink
  • 10-gauge silicone wire
  • Integrated protection circuits
  • LED status lights

    Velineon 1200XL Brushless Motor

  • “Big Block” brushless motor
  • 4-pole 1275 Kv
  • 5 mm output shaft
  • Oversize aluminum heatsink for improved cooling
  • Dual cooling fans

    55+ mph with Two 4s LiPo Batteries and included optional speed gearing

    Traxxas Stability Management® (TSM)

  • Improves straight line acceleration and braking on low-traction surfaces
  • Never dulls throttle or slows the truck
  • Adjusts from off to 100% assistance from the transmitter

    TQi 2.4 GHz 2-Channel High Output Radio System

  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Programmable multi-function knob
  • 5-channel micro receiver (6533) with fail-safe security
  • Patented waterproof receiver box with easy-access plug

    Ultra-Heavy-Duty 8s Driveline

  • Steel CV driveshafts & axles
  • New larger X-Series differential output yokes
  • Fully machined aluminum stub axles

    Direct-Drive Transmission

  • 1.5 mod steel gears
  • 1.0 mod steel pinion and spur gears
  • Fixed gear mesh system

    Rear Differential

  • Huge 1.5 module straight-cut ring gear
  • Sealed 4-gear design
  • Splined outdrives attached with external thru-bolt method
  • Reinforced bulkhead and covers for increased bearing support

    Rock-Solid Motor Mounting System

  • Precise preset gear mesh adjustments
  • 4 keyed pins lock the motor in place
  • Motor retention separate from gear mesh

    GT Maxx Shocks

  • Machined aluminum threaded body
  • Extra-large bore and capacity
  • Height-adjustable spring retainer
  • Heavy-duty composite shock caps with pivot balls
  • Lower spring perches bolted on

    SuspensionPolished aluminum-finish suspension arms

  • Polished aluminum-finish suspension arms Made from cold-weather HD composite
  • Made from cold-weather HD composite
  • Performance-optimized geometry
  • Double-shear connections
  • High-strength steel suspension pins with retainers
  • 4 mm machined pivot balls
  • Fixed high-strength camber and toe links
  • Heavy-duty steering blocks and axle carriers
  • Oversized wheel bearings

    Braking

  • Electronic rear brakes
  • Powerful front disc brakes with spring-loaded calipers
  • Operated by 2075 high-torque servo
  • Sheathed brake cables
  • Steel slotted and drilled brake rotors

    Low-CG Chassis Design

  • Modular chassis with interlocking bulkheads
  • Low CG for improved handling
  • Flat bottom design
  • Interlocking skid plates
  • High-strength buttressing on shock towers
  • Dual snap-lock battery compartments
  • Protects batteries from side impacts
  • Allows secondary battery-clip security
  • Interlocking components for tight tolerances
  • Wire management for clean appearance

    Wheels and Tires

  • 7.5" Rear paddle tires
  • Aggressive paddle design
  • Optimized for sand performance
  • Belted carcass resists ballooning
  • 6.8" front arrow-pattern tires
  • Excellent traction on sand, dirt, and pavement
  • Replica Funco beadlock wheel design
  • Color-matched beadlock rings and axle nuts
  • High-strength glue and bead design
  • Huge 24 mm splined wheel hubs

    Steering

  • Powerful 450 oz-in steering servo (2085XL)
  • Cam-style servo saver
  • Dirt evacuation channels
  • Fully waterproof

    Sealed Ball Bearings

    Hex hardware with Rust-Resistant Black Oxide Coating

High-Performance Wing

A high-performance rear wing provides added stability for high-speed runs and integrates neatly with the clipless body for a highly accurate scale appearance. The wing mounts directly to the tube frame to soak up even the hardest landings.

Wheelie Bar

8s power and aggressive paddle tires make the Pro Scale Sand Car a wheelie monster. The wheelie bar not only prevents backflips, but it also helps to absorb impacts on less-than-perfect landings.

High-Performance Tires

The Pro Scale Sand Car comes prepped for desert duty with aggressive paddle tires that bite into sand for relentless acceleration and massive roosts. The arrow-pattern front tires provide the perfect amount of float for easy driving in deep sand. On hard packed surfaces the front tread pattern delivers a beefy contact patch for responsive steering and excellent braking.

Replica Beadlock Wheels

The Pro Scale Sand Car uses all-new 3.6″ wheels modeled after the full-size Funco car. Bright simulated beadlock rings and color-matched aluminum axle nuts contrast the black wheels for a unique look.

Detailed Interior

The Pro Scale Sand Car elevates scale authenticity with a fully detailed interior. A molded steering wheel and shifters are spaced accurately for the driver figure in front of the fully detailed dashboard with authentically replicated screens and gauges.

Smooth Undertray

Interlocking skid plates integrate precisely with the Sand Car’s chassis to create a smooth undertray that glides over sand and absorbs ground impacts uniformly for predictable performance.

GT Maxx Shocks

Aluminum GT Maxx shocks with adjustable ride-height collars are built to replicate the huge 3.5″ diameter shocks found on the Funco Sand Car. Replica remote reservoirs give the shocks a fully authentic appearance. New extended aluminum bodies and shafts in the rear shocks provide additional travel to tame the toughest desert terrain.

Integrated Shock Towers

The Sand Car’s shock towers are an integral part of the frame with massive buttresses to dissipate shock loads throughout the chassis. Heavy-duty receivers secure the clipless body latches directly to the towers for maximum strength.

Low-CG Chassis

The Pro-Scale Sand Car’s performance-focused chassis lowers the center of gravity for superior handling and stability. The dual 6700 4s batteries and steering servo position weight as low as possible in the chassis to improve performance and provide protection for these critical components.

Aluminum Heatsink with Dual Fans

The Velineon 1200XL uses an aluminum heatsink that wraps around nearly 75% of the motor’s exposed surface to pull out more heat. Dual electric fan shrouds draw cooling air from the body vents through the oversized fins for more effective cooling performance and longer run times.

Rock Solid Motor Mount

A rock-solid motor mount cradles the motor and locks it in place so it can’t flex or slip out of position. Four keyed pins set the gear mesh, eliminating the need for complicated adjustments.

Snap-Lock Battery Retainers

Hook and loop battery hold down straps are messy, frustrating, and steal time away from your driving fun. Traxxas engineering solves this with our proven snap-lock solution that securely holds and protects batteries.

Waterproof Electronics

You can never tell what’s over the next dune, so Traxxas outfitted the Sand Car with fully waterproof electronics. A sealed receiver box with an easy access port protects the TQi receiver for all-weather driving.

High-Performance Steering Design

Dual-bellcrank steering delivers sharp handling and fast reflexes with the security of a heavy-duty servo saver. The double-shear servo horn is bearing supported to eliminate flex for precise steering at high speeds. Special vents keep everything running smoothly by evacuating sand away from the steering components.

Rugged Skid Plates

Three rugged skid plates key together tightly to protect the Sand Car’s chassis from damage. The front skid plate tapers up to meet the body to prevent the nose from digging into the sand after a hard landing.

Heavy-Duty Suspension Arms

Heavy-duty suspension arms are made from Traxxas' toughest material with captured double-shear connections for incredible strength. A polished aluminum finish gives the long-travel arms a fully authentic look to match the full-scale car.

Oversized Sealed Bearings

Extreme HD front and rear hub carriers feature oversize bearings to send the Sand Car's brutal 8s power efficiently and reliably to the wheels. Full-contact bearing seals help to keep out sand and grime for less time spent on cleaning and maintenance.

Ultra-Heavy-Duty Driveshafts

The Sand Car’s rear driveshafts are the toughest ever fitted to a Traxxas vehicle. New beefed-up differential output yokes are even larger than X-Maxx. Power feeds to 17 mm splined aluminum axles through steel CV driveshafts to maximize suspension travel and durability.

Sealed 4-Gear Differential

The Sand Car uses the same battle-tested internal differential gears from X-Maxx, but the housing has been massively beefed up with a huge 1.5 module ultra-HD straight-cut ring gear for uncompromising durability. The differential is sealed to allow limited-slip tuning with different viscosity oils.

Direct-Drive Transmission

A direct-drive transmission provides instant throttle response and uninterrupted power delivery. Traxxas reinforced the Pro Scale Sand Car’s transmission case and outfitted it with huge 1.5 module gears for bombproof durability.

1.5 Module Transmission Gears

The Sand Car’s ultra-HD transmission gears are cut to a massive 1.5 module profile that’s 50% larger than standard X-Series gears. The wide-face profile provides a larger contact surface to ensure maximum durability in the face of extreme 8s power.

Functional Disc Brakes

A 2075 digital servo actuates the powerful front disc brakes through an adjustable linkage for fine tuning. The braided-steel brake cables are sheathed in a protective casing and secured to the suspension arms to guard against damage.

Realistic Brake Rotors

The brake cables operate a cam lever which squeezes brake pads onto the rotor for powerful braking performance. The calipers are spring loaded to reduce friction when not in use. Stainless steel brake rotors are slotted and drilled for added cooling and an authentic appearance.

Specifications

    Vehicle

  • Length: 32 inches (812 mm)
  • Width: 21.7 inches (551 mm)
  • Ground Clearance: 1.98 inches (50 mm)
  • Weight: 22.06 pounds (10 kg)
  • Height: 11.1 inches (283 mm) - body 19.6 inches (498 mm) - with whip lights
  • Wheelbase: 21.4 inches (543 mm)
  • Shock Length: 5.08 inches (129 mm) (front) 7.13 inches (181 mm) (rear)
  • Tires (Arrow Pattern, Front): 6.8″ x 2.3″ (173 mm x 58 mm)
  • Tires (Paddle, Rear): 7.5″ x 4.0″ (191 mm x 102 mm)
  • Wheels (Front): 3.2″ (82 mm, inner) x 4.9″ (125 mm, outer)
  • Wheels (Rear): 3.6″ (91 mm, inner) x 4.7″ (120 mm, outer)
  • Speed Control: Velineon® VXL-8s
  • Motor (electric): Velineon® 1200XL Brushless with heat sink and dual fan shrouds
  • Overall Drive Ratio: 16.4:1 (21/50 motor pinion and spur gear)
  • Differential Type: Sealed, four-gear, limited-slip
  • Gear Pitch: Module 1.5 (transmission) Module 1.0 (pinion & spur)
  • Chassis Structure/Material: Reinforced Nylon Tub
  • Brake Type: Electronic (rear) Dual slotted & drilled discs (front)
  • Drive System: Direct-drive, RWD
  • Steering: Bellcrank
  • Radio System: TQi™ 2.4 GHz Transmitter with TSM® receiver
  • Steering Servo: 2085XL metal gear (450 oz-in.)
  • Top Speed: 55+ mph with two 4s LiPo batteries and included speed gearing
  • Skill Level: 5
  • Battery Tray: 186 mm x 51 mm x 44 mm
  • Required Batteries: 4 “AA” (transmitter) and 4-cell LiPo battery with iD® (x2)
  • Overall Drive Ratio: 16.4:1 (21/50 motor pinion and spur gear)
  • Differential Type: Sealed, four-gear, limited-slip
  • Gear Pitch: Module 1.5 (transmission) Module 1.0 (pinion & spur)
  • Chassis Structure/Material: Reinforced Nylon Tub
  • Brake Type: Electronic (rear) Dual slotted & drilled discs (front)
  • Drive System: Direct-drive, RWD
  • Steering: Bellcrank
  • Radio System: TQi™ 2.4 GHz Transmitter with TSM® receiver
  • Steering Servo: 2085XL metal gear (450 oz-in.)
  • Top Speed: 55+ mph with two 4s LiPo batteries and included speed gearing
  • Skill Level: 5
  • Battery Tray: 186 mm x 51 mm x 44 mm
  • Required Batteries: 4 “AA” (transmitter) and 4-cell LiPo battery with iD® (x2)

    Motor

  • Type: 1275 Kv sensorless brushless
  • Weight: 665 grams (23.44 ounces)
  • Length: 4.32 inches (110 mm)
  • Diameter: 1.88 inches (48 mm)
  • Connector Type: Traxxas 6.5 mm bullet connectors

    ESC

  • Input Voltage: 8s LiPo (max 33.6 volts)
  • Case Size: 2.23″ (58 mm) / 2.83″ (72 mm) / 1.81″ (46 mm)
  • Weight: 215.5 grams (7.60 ounces)
  • BEC Voltage: 6.0 volts
  • BEC Current Continuous: 10 amps
  • BEC Current Peak: 20 amps
  • Motor Connectors: Traxxas 6.5 mm bullet connectors
  • Battery Connectors: Traxxas High-Current Connectors
  • Power Wire: 10-gauge Maxx Cable
  • Ports: RX input, auxiliary fan, accessory port
