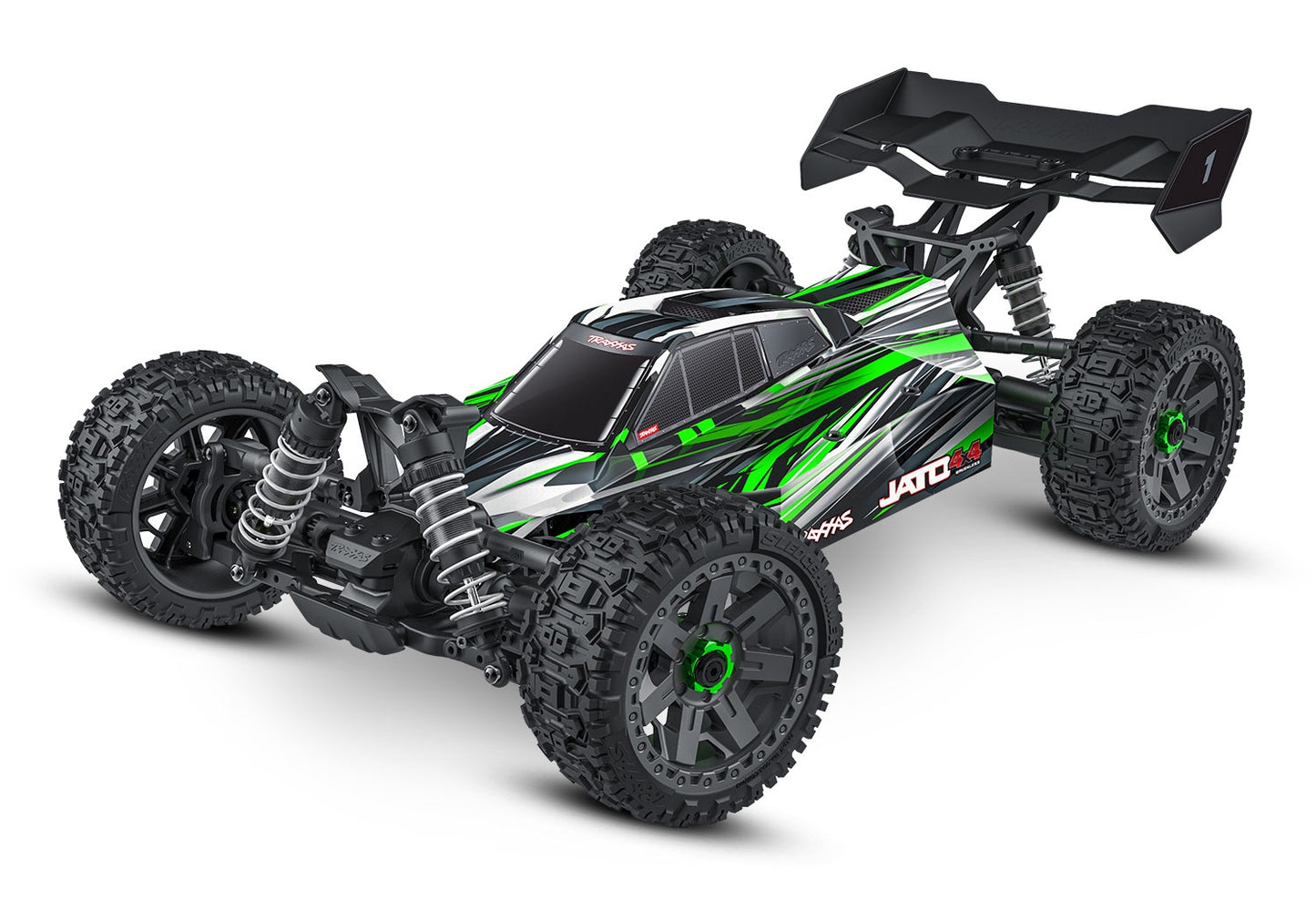

Jato 4x4 BL-2S (Green) (TRA90154-4-GRN)

The Jato 4x4 combines agility and resilience in a 4x4 platform engineered for fun and performance. Its low-CG chassis features optimized suspension geometry and precise weight distribution, resulting in a vehicle with sharp, responsive handling that rivals race buggies, paired with the durability expected from Traxxas’ toughest off-road trucks.

Powered by the advanced BL-2s brushless system, Jato 4x4 delivers up to 60% more speed and quicker acceleration compared to standard brushed systems. High-speed ball bearings and an internal cooling fan enhance efficiency, allowing the Jato 4x4 to run through multiple batteries for continuous action. The BL-2s 3300 Kv motor is designed for longevity with minimal maintenance, thanks to its brushless design.

Built with factory-installed Extreme Heavy Duty Upgrade components, Jato 4x4 achieves unparalleled strength. A reinforced T-Bar chassis, Extreme HD shock towers, and massive Maxx-Duty driveshafts ensure that all of the motor’s power transfers seamlessly to the wheels, maintaining exceptional durability and performance.

With its low, wide stance, Jato 4x4 achieves optimal handling. Its extended GTR shocks and Sledgehammer buggy tires maximize traction, while an optional sway bar kit (sold separately) allows for even flatter cornering and elevated on-track control. The aerodynamically designed clipless body reduces drag and maintains stability at high speeds. Robust clipless latches keep the body firmly attached, yet allow quick battery changes. A high-downforce wing from Sledge keeps the Jato 4x4 grounded with added rollover protection for secure, thrilling off-road driving.

• Clipless Body
• Holds tight for intense action
• Quick and easy removal
• High-downforce wing
• Extreme Heavy Duty Upgrade Kit Installed
• Strengthened C-hubs, axle carriers, and steering blocks
• Heavy duty one-piece camber & toe links
• Maxx-duty driveshafts
• Oversize diameter
• 6 mm axles
• 17 mm hex hubs
• Aluminum wheel nuts
• TQ™ 2.4 GHz Transmitter
• Full-size 2-channel transmitter
• All-day comfort with precise long-range control
• Steering
• Chassis-mounted 2075 servo
• Dual bellcrank design with integrated servo saver
• BL-2s™ Waterproof Electronic Speed Control
• Heat sink accepts accessory cooling fan (3340)
• Three Programmable Drive Profiles
• Sport Mode - Forward / Brake / Reverse
• Race Mode - Forward / Brake
• Training Mode™ - 50% Forward / Brake / 50% Reverse (patented)
• Traxxas EZ-Set® one-button setup
• Built-in two-stage low-voltage detection for LiPo batteries
• NiMH battery packs: 6-7 cells (7.2 to 8.4 volts)
• LiPo battery packs: 2 cells (7.4 volts)
• 3300 Kv Brushless Motor
• Integrated cooling fan
• Low-maintenance design
• Efficient ball bearings
• 3300 Kv
• Chassis
• T-Bar chassis stiffener
• Modular composite tub design
• Secure battery hold-down latch
• Low-CG design
• High-clearance skid plate
• Suspension
• Heavy duty shock towers
• Reinforced shock mounts
• Double-shear camber link connections
• Heavy duty suspension arms
• Oil-filled GTR shocks
• Threaded shock collars for precise ride height adjustment
• Large oil capacity for consistent damping
• White powder-coated springs
• Driveline
• Full-time shaft-driven 4-wheel drive
• Sealed steel gear front and rear differentials
• Heavy-duty slipper clutch
• Large 32-pitch spur gear
• Wheels and Tires
• 3″ gray buggy wheels
• Sledgehammer® tires
• Sealed Ball Bearings
• Hex hardware with Rust-Resistant Black Oxide Coating

• 4 “AA” batteries for the transmitter
• Vehicle battery (compatible with the battery compartment: 165 mm x 50 mm x 23/26 mm)
• Compatible charger for the vehicle battery

• Length: 20.4 inches (517 mm)
• Front Track: 12 inches (305 mm)
• Rear Track: 12 inches (305 mm)
• Ground Clearance: 1.02 inches (26 mm) (center)
• Weight (no battery): 5.2 pounds (2.36 kg)
• Height (overall): 7 inches (179 mm)
• Wheelbase: 12.6 inches (320 mm)
• Shock Length (front): 3.98 inches (101 mm) - XX-long
• Shock Length (rear): 3.98 inches (101 mm) - XX-long
• Speed Control: BL-2s™ electronic speed control
• Motor (electric): BL-2s™ 3300 Kv sensorless brushless
• Overall Drive Ratio: 12.80:1
• Differential Type: Hardened steel bevel, sealed, limited slip
• Gear Pitch: 32
• Chassis Structure/Material: Composite tub
• Drive System: Shaft-driven 4WD
• Steering: Dual-bellcrank with integrated servo saver
• Tires: Sledgehammer® with foam inserts
• Tire Diameter: 4.5 inches (114 mm) (front and rear)
• Wheels (front/rear): 3″ Gray buggy wheels
• Wheel Diameter: 3″ inches (78 mm)
• Radio System: TQ™ 2.4 GHz (2-channel)
• Servo: Waterproof digital 2075 servo (125 oz-in torque)
• Skill Level: 1
• Battery Compartment (L/W/H): 165 mm x 50 mm x 23/26 mm
• Required Batteries: 4 “AA” (transmitter), Vehicle
