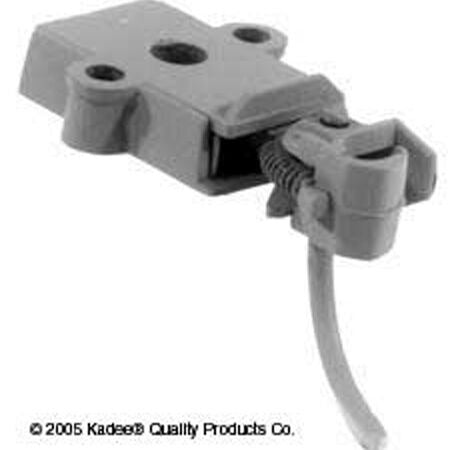

3 #5 Univ M-M Couplers Asmb (4 (KAD3)

The 20-Series Kadee Magne-Matic Couplers are designed for either Talgo (truck) or body mounting.

The #28 Kadee Magne-Matic Coupler features a very strong plastic isolated coupler, #634 Centering Spring, insulated #232 Draft Gear Box and Lid with side and center screw holes for mounting and the insulated #213 Universal Adaptor Plate.

The #28 Coupler easily installs in existing Talgo-mounted draft gear boxes or can be body mounted with the supplied #232 draft gear box with side and center screw holes for mounting or with the supplied #213 Universal Adaptor Plate.

It is important to note that the 20-Series assembly may be mounted from the top or bottom, but the #634 Centering Spring must always be mounted on top of the coupler shank.
