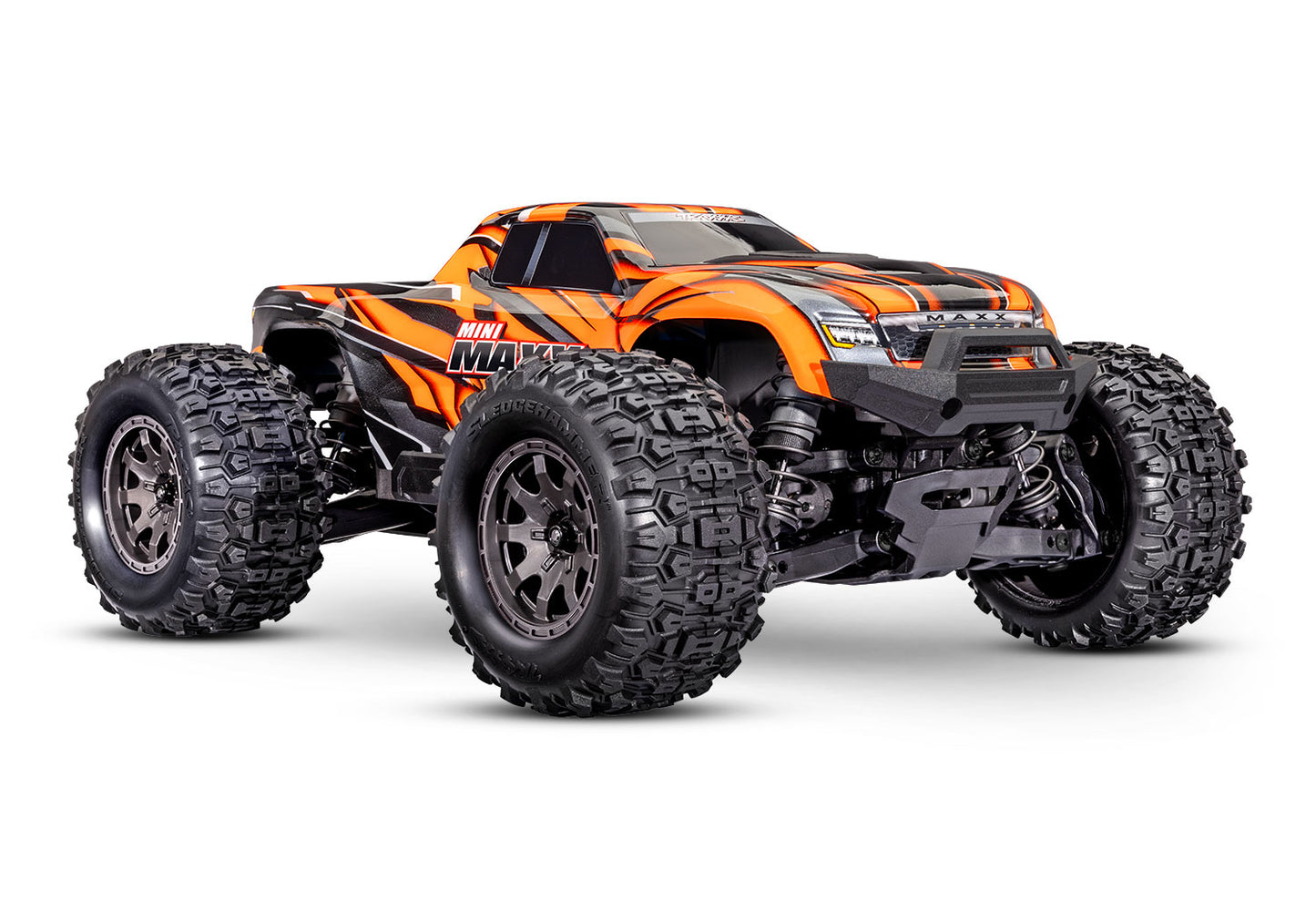

Overview
The brand-new Mini Maxx is designed to exceed expectations with its robust engineering, incredible power, and exceptional durability that embodies the essence of Maxx performance. Perfectly sized for portability, the Mini Maxx can reach speeds of over 30 mph while maintaining the legendary toughness Maxx is known for, making it easy to slip into a backpack for on-the-go fun.
| Scale: | Speed: | Battery and Charger: |
|---|---|---|
| Mini | 30+ mph | Included |
Includes LiPo Battery and Charger
Mini Maxx comes fully equipped with a 3500 mAh 2-cell LiPo battery optimized for maximum punch and long run times in a compact size. The included 2-amp USB-C LiPo balance charger provides quick and reliable charging with Traxxas iD® safety and simplicity.
Modular Design
Mini Maxx's chassis tightly integrates beefy skid plates, high-strength bulkheads, triangulated shock towers, and massive bumpers to absorb and dissipate impact energy without breakage or damaging flex. It also allows quick access to critical components for easy maintenance and repairs.
1/10 Scale 4X4 Driveline
A shaft driven 4-wheel-drive system is rugged simplicity at its finest, delivering solid power and unstoppable traction to all four corners. With driveshafts and differentials originally designed for Traxxas’ toughest 1/10 scale trucks, there’s nothing Mini Maxx can’t handle. For additional tuning performance, install the optional center differential (part 10760, sold separately).
Full-Size Servo
Mini Maxx uses same 2056 servo found in full-size 1/10 scale Traxxas trucks. With that much torque on hand, Mini Maxx powers through the thickest grass, sand, and mud without missing a beat. Need even more power? Mini Maxx accepts most standard size servo upgrades.
New 4″ Sledgehammer Tires
With so much power on tap, Traxxas developed a new version of the popular Sledgehammer® tires to handle Mini Maxx’s over-the-top performance. At 4″ tall, the new Sledgehammers give Mini Maxx powerful grip and towering ground clearance to overcome any obstacle that gets in its way.
Full-Featured TQ Radio System
The TQ™ 2.4 GHz radio system keeps the focus on having fun, not worrying about interference from other vehicles. The TQ radio’s advanced programming provides long-range control with smooth, glitch-free performance and its ergonomic design is comfortable for all-day driving.
1/10 Scale BL-2s Power System
Mini Maxx carries on the Maxx tradition of extreme power with the 1/10 scale BL-2s Brushless Power System on board. Lightning-quick acceleration and 30+ mph speed are at your fingertips for hours of non-stop fun.
Waterproof Electronics
Traxxas, the innovator and leader in waterproof solutions, designed Mini Maxx to deliver the same go-anywhere driving freedom as other Maxx trucks. Reliable waterproof construction extends your playground into water, snow, and mud for unlimited fun, regardless of the weather.
Optional High-Output Off-Road LED Light Kit
Take Mini Maxx to the next level with the optional high-output off-road LED light kit (part 10795, sold separately). The light kit includes new bumpers with LED lights and a new roof skid plate with white LED lights in the front and red in the rear. A regulated 3-volt power supply provides consistent, flicker-free performance from beginning to end.
Support
- Mini Maxx® (107154-1) Manual - English
- Mini Maxx® (107154-1) Manual - French
- Mini Maxx® (107154-1) Manual - Spanish
- Mini Maxx® (107154-1) Manual - German
Product Manuals
- Mini Maxx® (107154-1) Body Assembly Exploded View
- Mini Maxx® (107154-1) Chassis Assembly Exploded View
- Mini Maxx® (107154-1) Front Assembly Exploded View
- Mini Maxx® (107154-1) Modular Assembly Exploded View
- Mini Maxx® (107154-1) Rear Assembly Exploded View
Exploded Views
- Mini Maxx® (107154-1) Parts List
Parts Lists
- Mini Maxx LED Underbody Light Kit (10799) Installation Instructions - English
- Mini Maxx LED Underbody Light Kit (10799) Installation Instructions - French
- Mini Maxx LED Underbody Light Kit (10799) Installation Instructions - Spanish
- Mini Maxx LED Underbody Light Kit (10799) Installation Instructions - German
- Mini Maxx LED Light Kit (10795) Installation Instructions - English
Instruction Sheets
- Mini Maxx® (107154-1) Box Panels
Box Reference
Features
1/10 Scale Power System
The BL-2s Brushless Power System is already proven to deliver extreme power and wheel-standing torque in Traxxas 1/10 scale vehicles. Installed in Mini Maxx, BL-2s power punches well above its weight for lightning-quick acceleration and 30+ mph top speed.
1/10 Scale 4X4 Driveline
Mini Maxx is engineered to a higher standard with 1/10 scale 4X4 driveline components. Large steel- gear differentials, beefy 32-pitch gears, and heavy-duty U-joint driveshafts far exceed requirements for strength and long life.
Maxx Chassis Technology
Mini Maxx fits in a backpack but it’s built to withstand all the bumps and bruises of the full-size world. Just one look at the rigid, unified structure and you know it’s a Maxx. A Maxx chassis is always engineered for ultimate strength, and Mini Maxx packs it all up in a supremely compact design.
Long-Travel Suspension
1/10 scale Ultra Shocks™ and a long-travel independent suspension deliver WideMaxx® handling and performance in a compact package. Mini Maxx’s beefy long travel suspension delivers superior strength and refined damping control to maintain composure over the roughest terrain.
30+ mph top speed
- Heat sink accepts accessory cooling fan (3340)
- Three programmable drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection
BL-2s™ waterproof electronic speed control
- Integrated cooling fan
- Low-maintenance design
- Efficient ball bearings
- 3300 Kv
BL-2s™ Brushless Motor
- High-capacity 2-cell LiPo battery
- 7.4 volts
- 3500 mAh for extended run time
- 2-amp USB-C charger
- iD® technology for faster, safer charging
Battery and Charger Included
- Full-size 2-channel transmitter
- All-day comfort with precise long-range control
TQ™ 2.4 GHz Transmitter
- Quick and easy installation and removal
- Nerf bar channels for side body support
- Reinforced for extra protection against tearing
Clipless Body Mount System
- Full-time shaft-driven 4-wheel drive
- 1/10 scale extreme-duty telescoping driveshafts
- Direct-drive (no transmission)
- Fixed gear mesh system
- Large 32-pitch gears
- Sealed planetary steel-gear differentials
- Fixed gear mesh system
1/10 Scale 4X4 Drivetrain
- Modular chassis with interlocking front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt
Modular Composite Chassis
- Battery is protected deep in the chassis
- Battery hold-down pivots for easy access
- More secure than conventional retention systems
Easy Battery Access
- 1/10 scale 2056 waterproof high-torque servo
- Heavy-duty double-shear bellcranks
- Cam-style servo saver
Steering
- Heavy-duty, double-shear suspension arms
- Dual wishbone design
- Extra tough outer suspension components
Suspension
- Full size 1/10 scale shocks
- Large oil capacity
- Easy to tune
Oil-Filled Ultra Shocks™

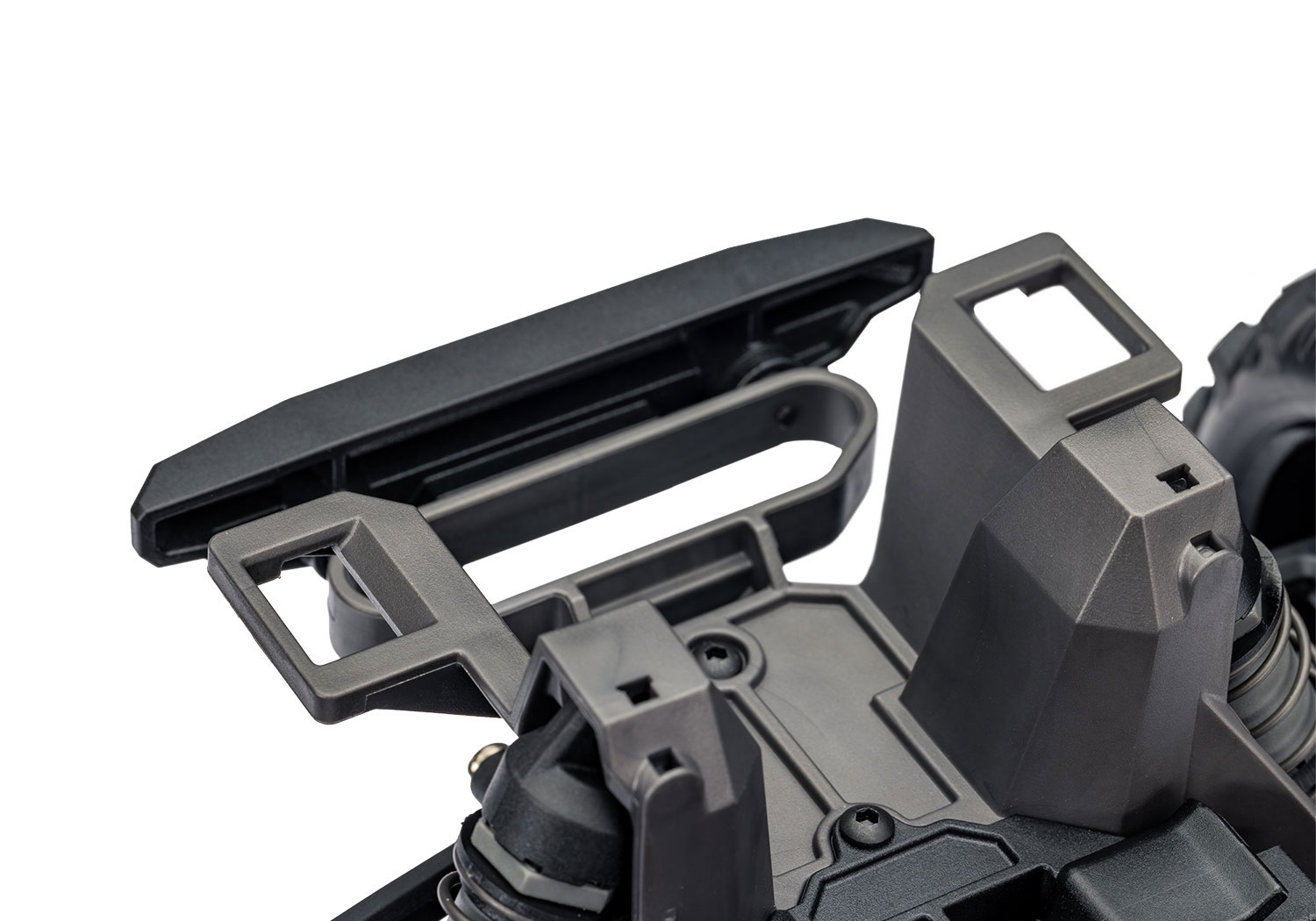

- Tough energy absorbing bumpers
- High-angle front skid plate
- Rugged interlocking skid plates
- Smooth undertray eliminates snags
- Integrated nerf bars for side impact resistance
Bumpers and Skid Plates
- Dual-profile black multi-spoke wheels
- 4″ Sledgehammer® tires with foam inserts
- Wide treadblock design
- Multiple layers of biting edges
Wheels and Tires
Hex Hardware with Rust-Resistant Black Oxide Coating
Sealed Ball Bearings
Specifications
- Length: 13.58 inches (345 mm)
- Front Track: 9.94 inches (253 mm)
- Rear Track: 9.94 inches (253 mm)
- Ground Clearance: 1.06 inches (27 mm)
- Weight: 3.62 pounds (1.64 kg)
- Height: 5.39 inches (137 mm)
- Wheelbase: 8.66 inches (220 mm)
- Shock Length: 3.45 inches (88 mm)
- Tire Diameter: 3.93 inches (100 mm)
- Wheel Diameter: 2.1″ (53 mm) outer, 2.6″ (66 mm) inner
- Speed Control: BL-2s brushless ESC
- Motor (electric): BL-2s sensorless brushless (3300 Kv)
- Transmission: Direct-drive
- Overall Drive Ratio: 9.20:1
- Differential Type: Planetary, steel gear
- Gear Pitch: 32
- Chassis Structure/Material: Composite modular tub
- Brake Type: Electronic
- Drive System: Shaft-driven 4WD
- Steering: Double-shear bellcrank
- Wheels & Tires: Dual-profile wheels with pre-glued 4″ Sledgehammer® tires
- Radio System: TQ™ 2.4 GHz (2-channel)
- Servo: Waterproof high-torque 2056
- Top Speed: 30+ mph
- Skill Level: 1
- Battery Tray: 113 mm L x 41 mm W x 22 mm H
- Required Batteries: 4 “AA” (transmitter)
- Differential Type: Planetary, steel gear
- Gear Pitch: 32
- Chassis Structure/Material: Composite modular tub
- Brake Type: Electronic
- Drive System: Shaft-driven 4WD
- Steering: Double-shear bellcrank
- Wheels & Tires: Dual-profile wheels with pre-glued Sledgehammer® tires
- Radio System: TQ™ 2.4 GHz (2-channel)
- Servo: Waterproof high-torque 2056
- Top Speed: 30+ mph
- Skill Level: 1
- Battery Tray: 113 mm L x 41 mm W x 22 mm H
- Required Batteries: 4 “AA” (transmitter)
Vehicle
- Type: BL-2s 3300 Kv sensorless brushless motor
- Weight: 7.51 ounces (213 g)
- Length: 3.15 inches (80 mm)
- Diameter: 1.42 inches (36 mm)
- Connector Type: Traxxas Quick Connect Motor Plug
Motor
- Input Voltage (cells): 6-7 Cells NiMH / 2s LiPo
- Case Size: 1.53″ (39 mm) x 2.31″ (59 mm) x 1.21″ (31 mm)
- Weight: 3.07 ounces (87 g)
- BEC Voltage: 6.0 volts
- Reverse Delay: Yes, with lockout
- Thermal Protection: Two-stage thermal shutdown
- Ports: Auxiliary fan
ESC
