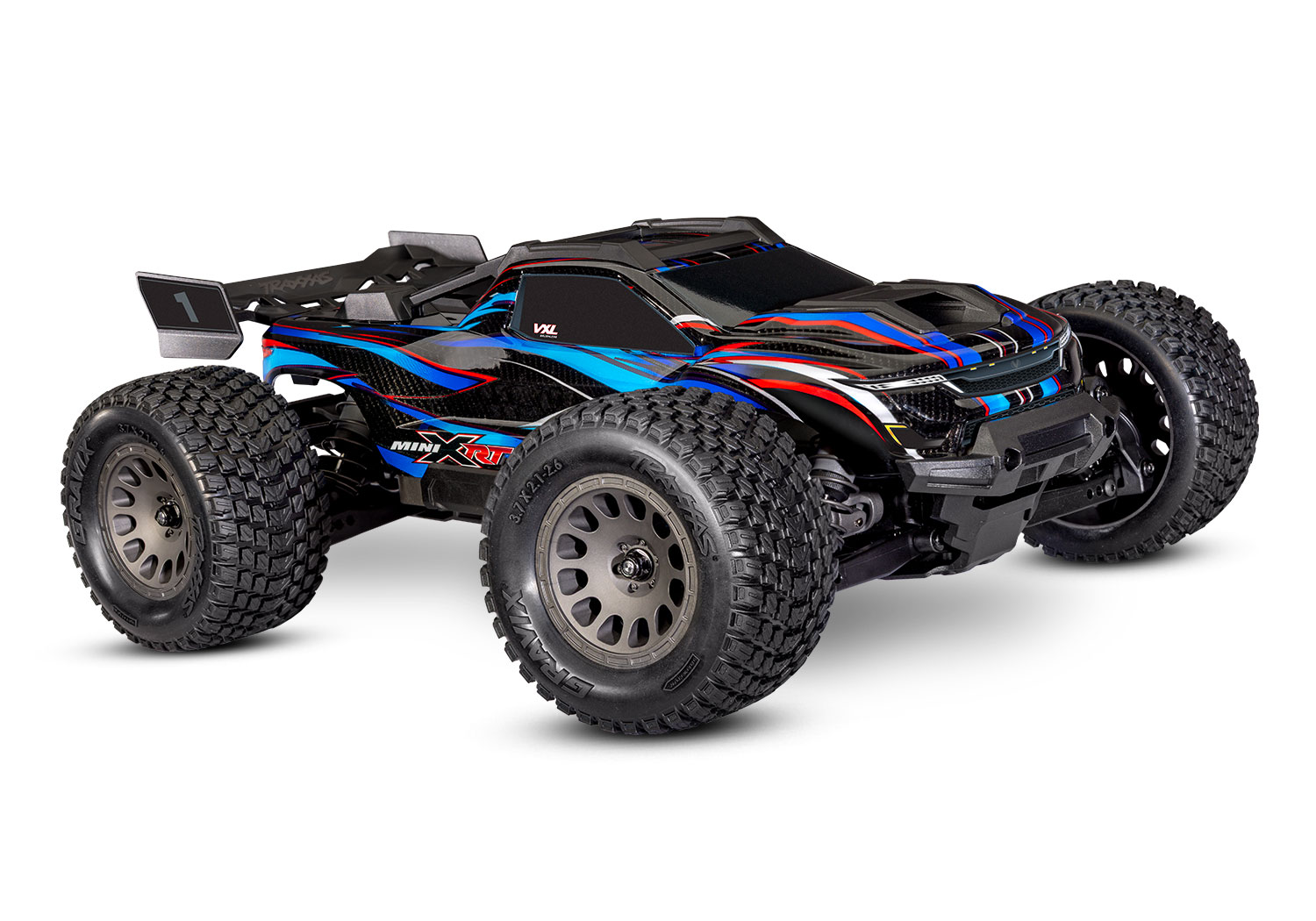

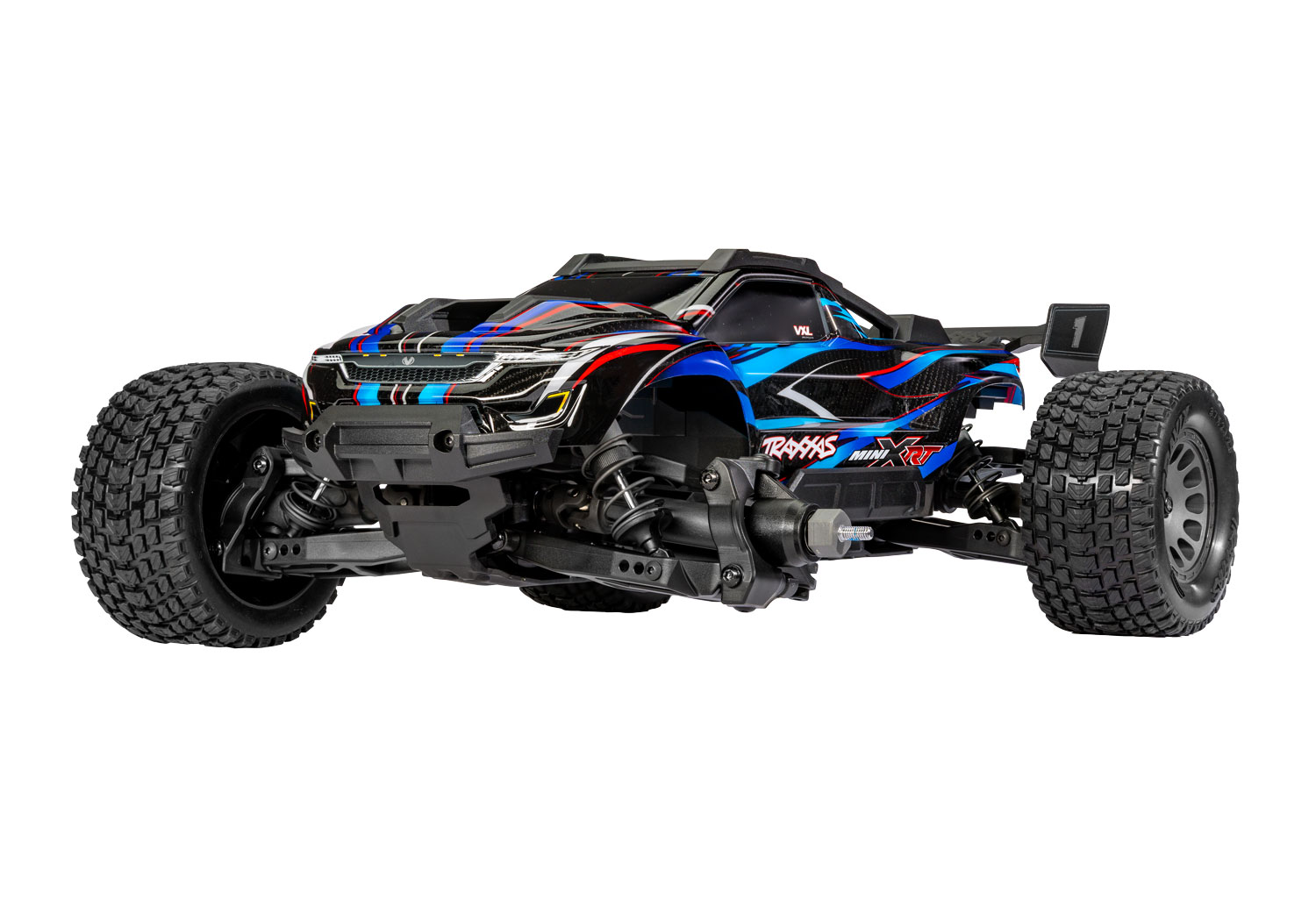

Overview

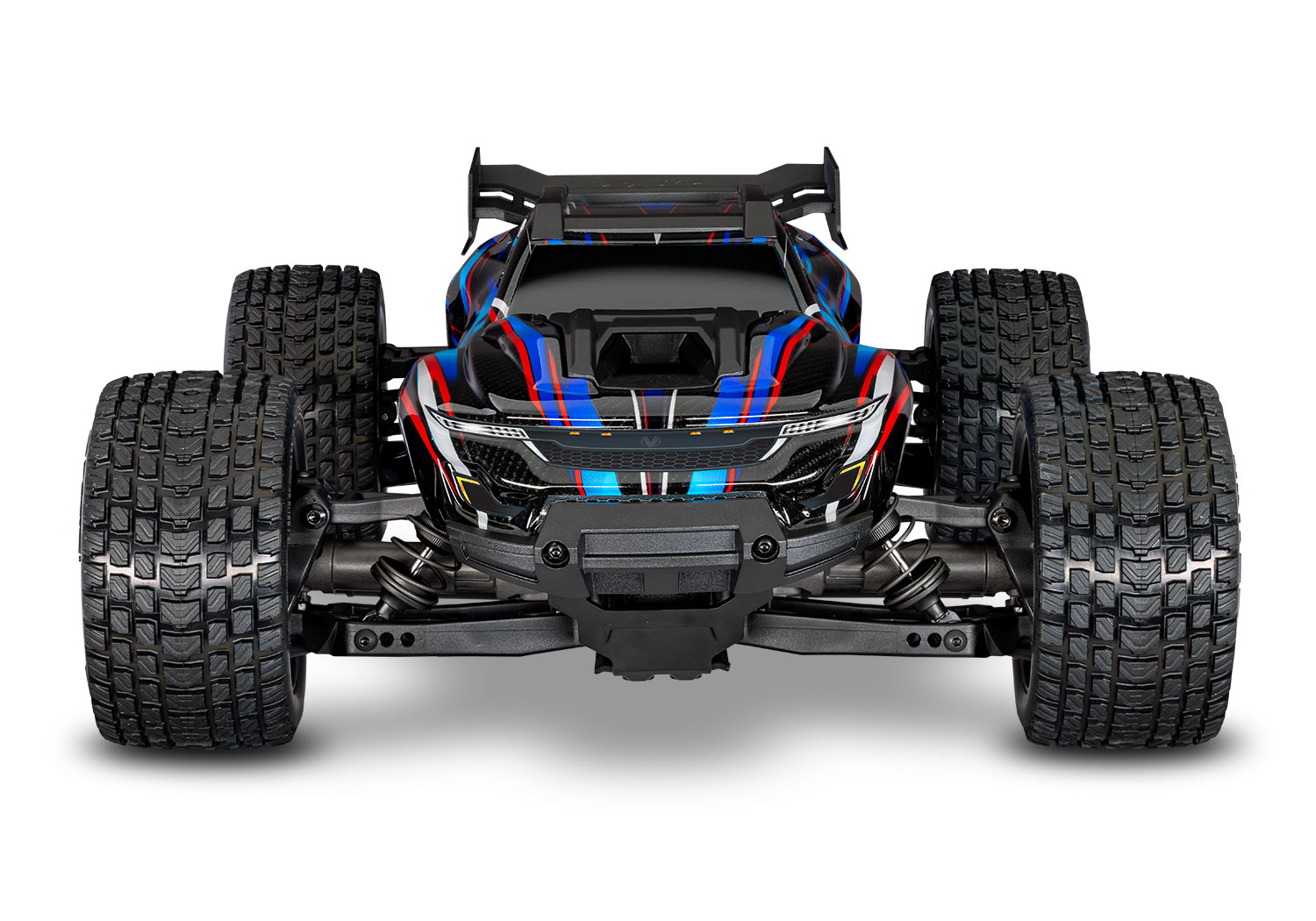

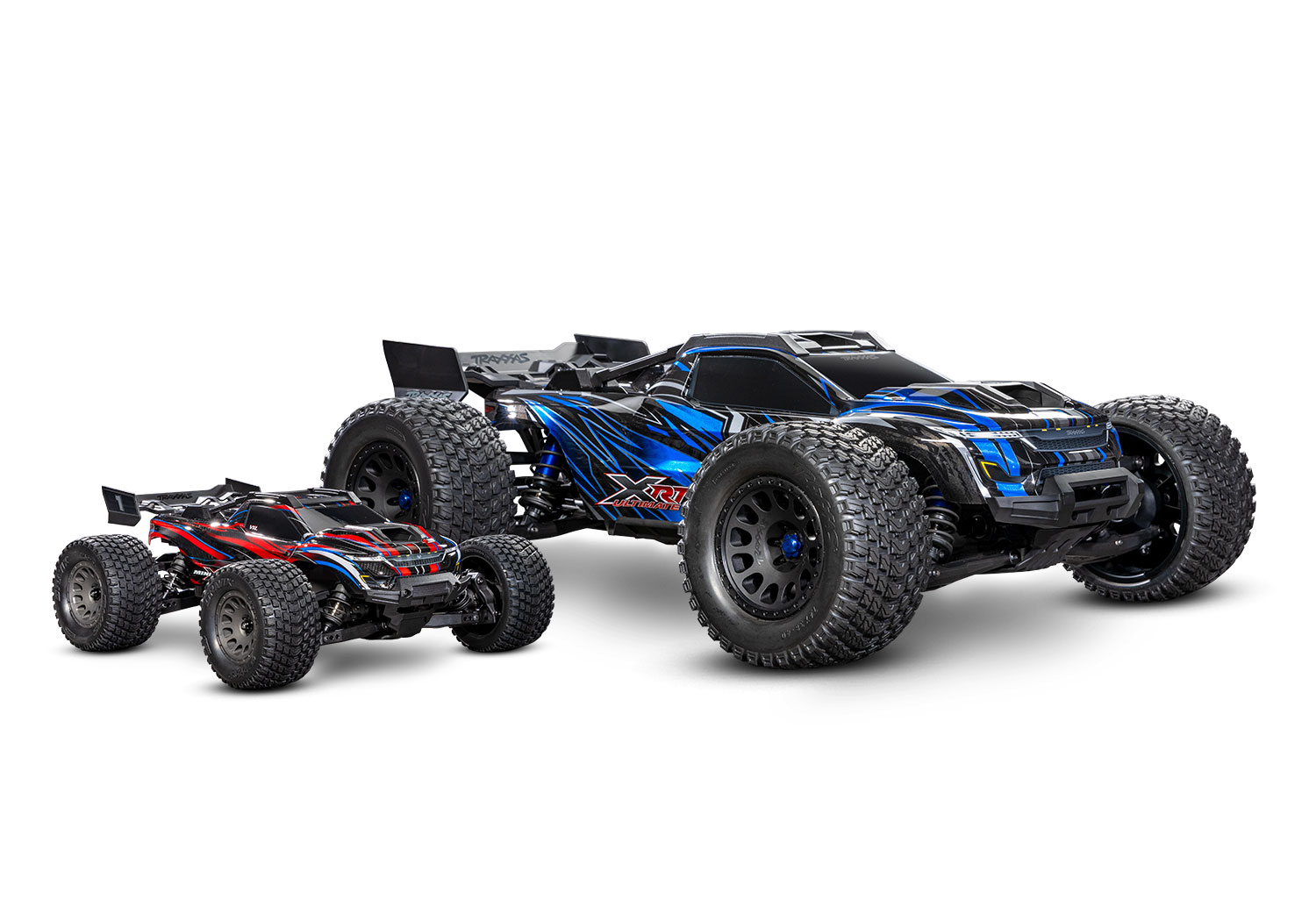

The Mini XRT is a remarkable speedster featuring a powerful 1/10 scale Velineon 3s brushless motor in a compact design that's easy to take anywhere. It delivers incredible speeds exceeding 55 mph and impressive acceleration, supported by race-inspired engineering and unmatched durability. The Mini XRT exceeds all expectations, offering high-performance capabilities in a backpack-friendly size.
| Scale: | Speed: | Battery and Charger: |
|---|---|---|
| Mini | 55+ mph | Included |

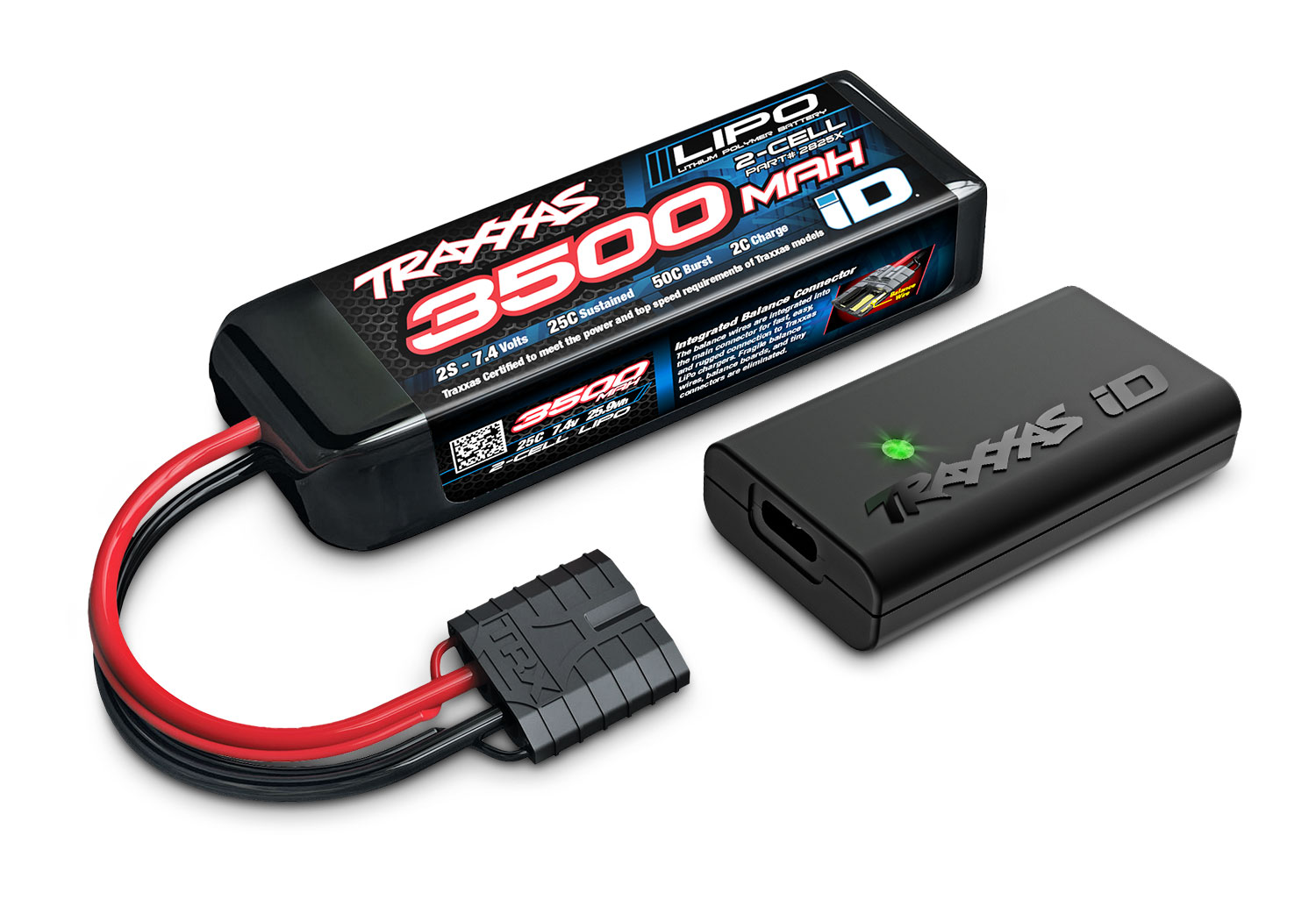

Includes LiPo Battery and Charger
Mini XRT includes a 3500 mAh 2-cell LiPo battery for strong punch, long run times, and 40+ mph speed. The included 2-amp USB-C LiPo balance charger provides quick and reliable charging with Traxxas iD® safety and simplicity. Step up to 3s power (battery 2824X, sold separately) to unleash 55 mph speed with no gearing change required.

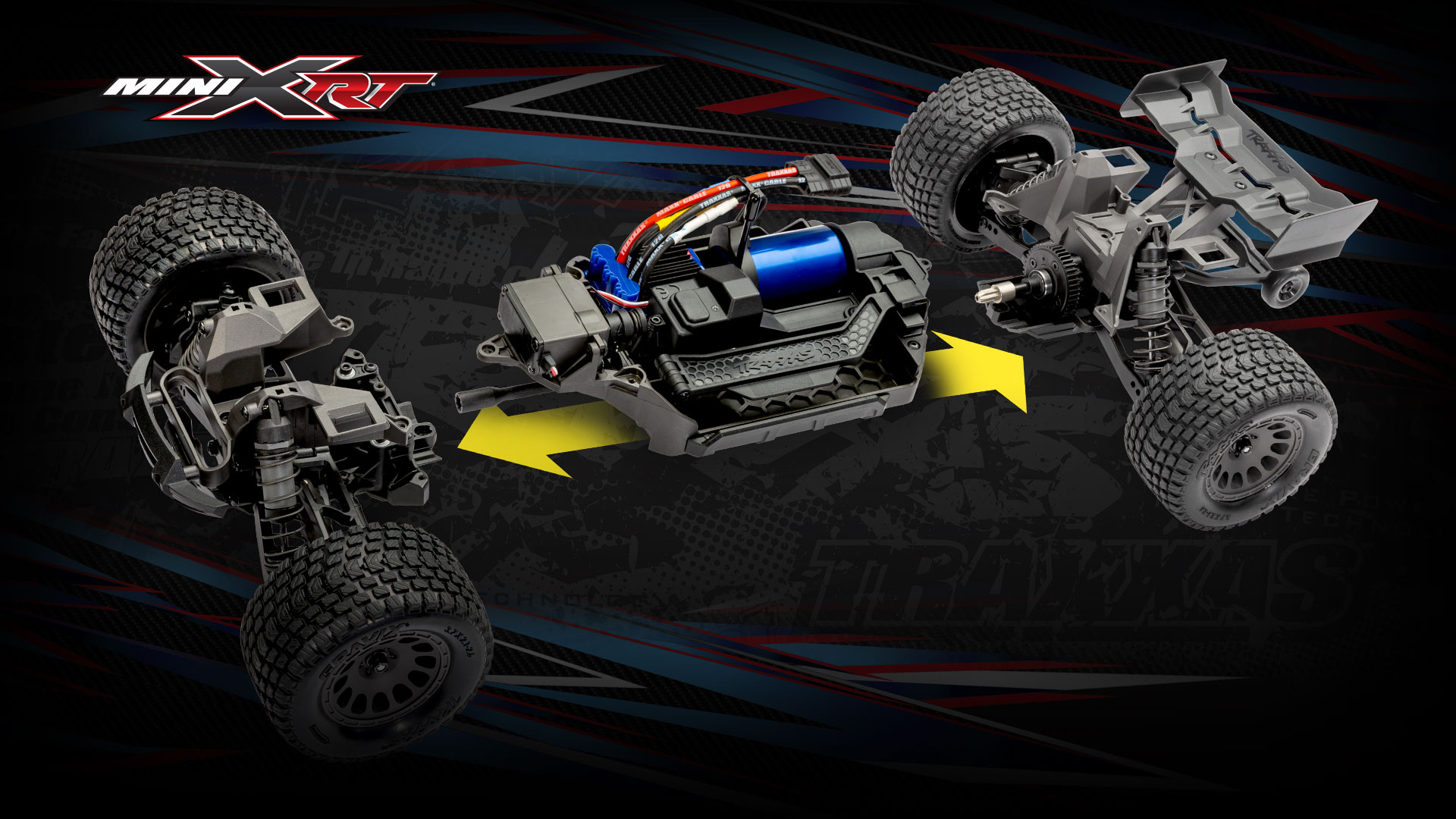

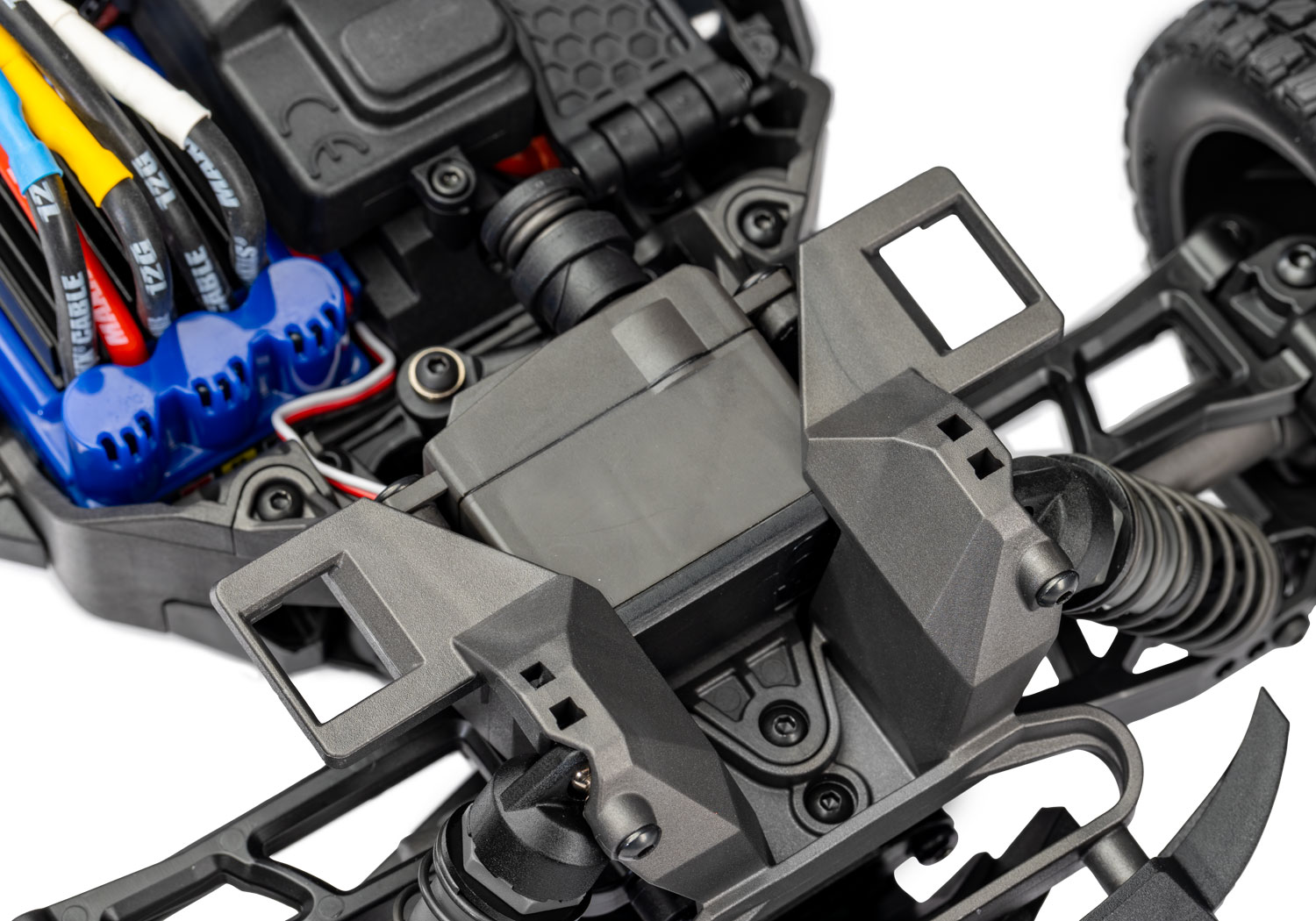

Modular Design
Mini XRT’s chassis tightly integrates beefy skid plates, high-strength bulkheads, triangulated shock towers, and reinforced bumpers to absorb and dissipate impact energy without breakage or damaging flex. It also allows quick access to critical components for easy maintenance and repairs.

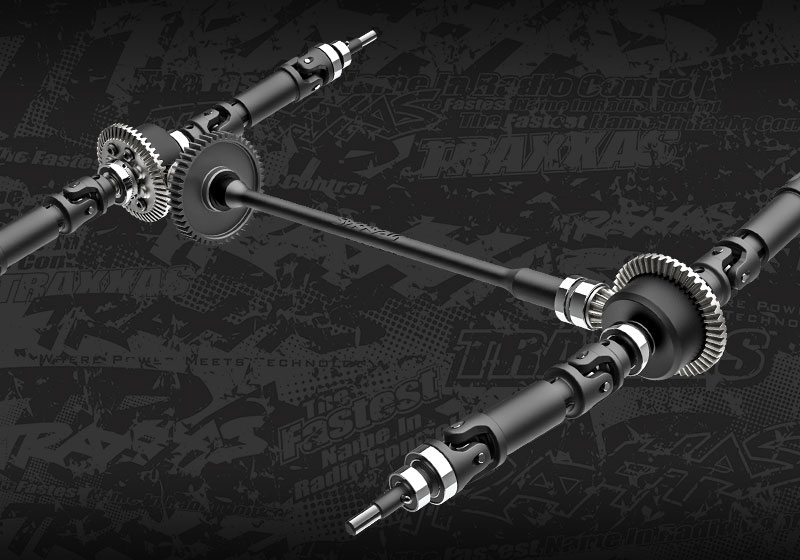

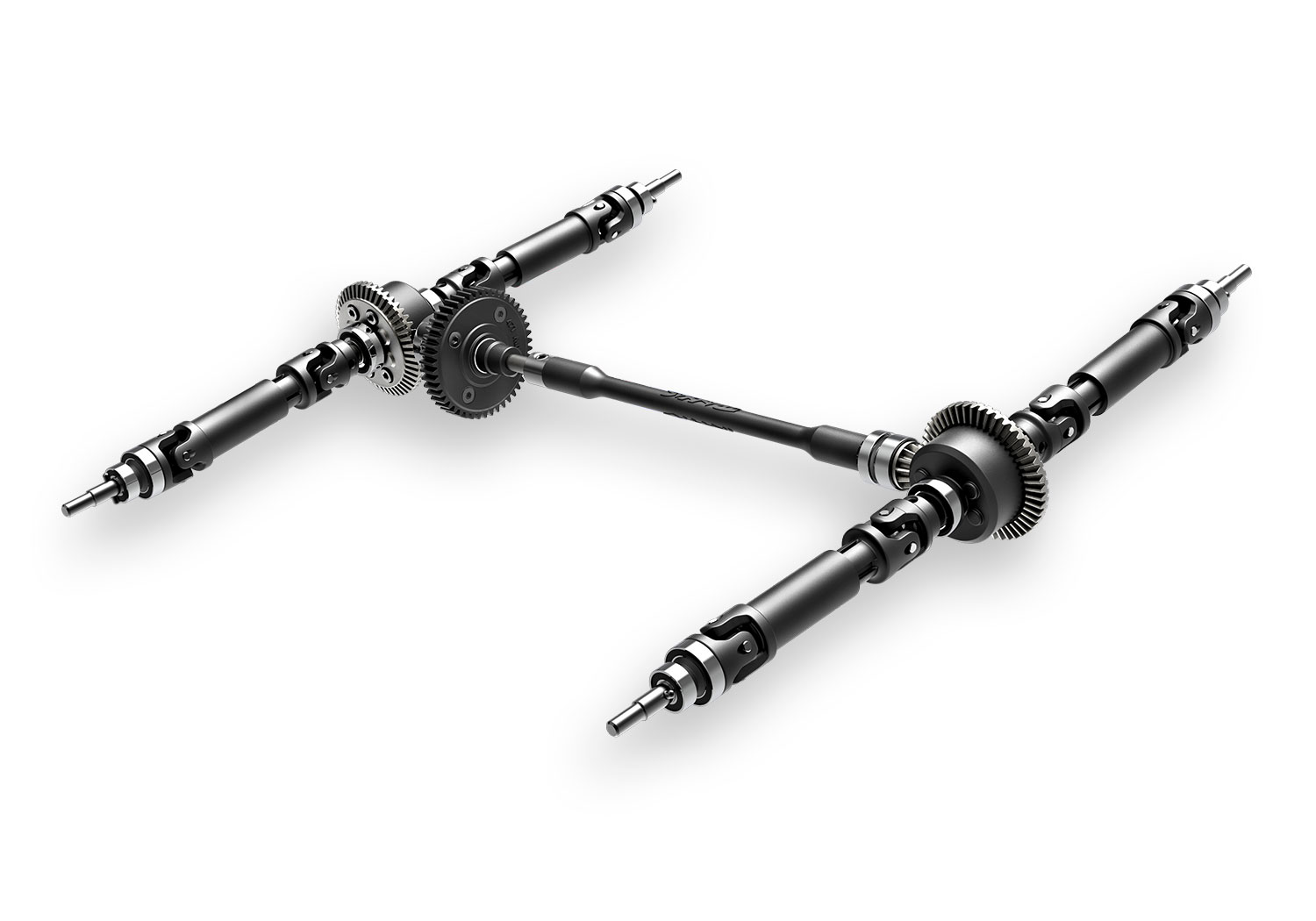

1/10 Scale 4X4 Driveline
Mini XRT’s shaft-driven 4X4 driveline is as rugged as it is efficient. With driveshafts and differentials originally designed for Traxxas’ toughest 1/10 scale trucks, Mini XRT delivers 3s brushless power and unstoppable traction to all four corners. A center differential absorbs driveline shocks and allows fine tuning for different surfaces.

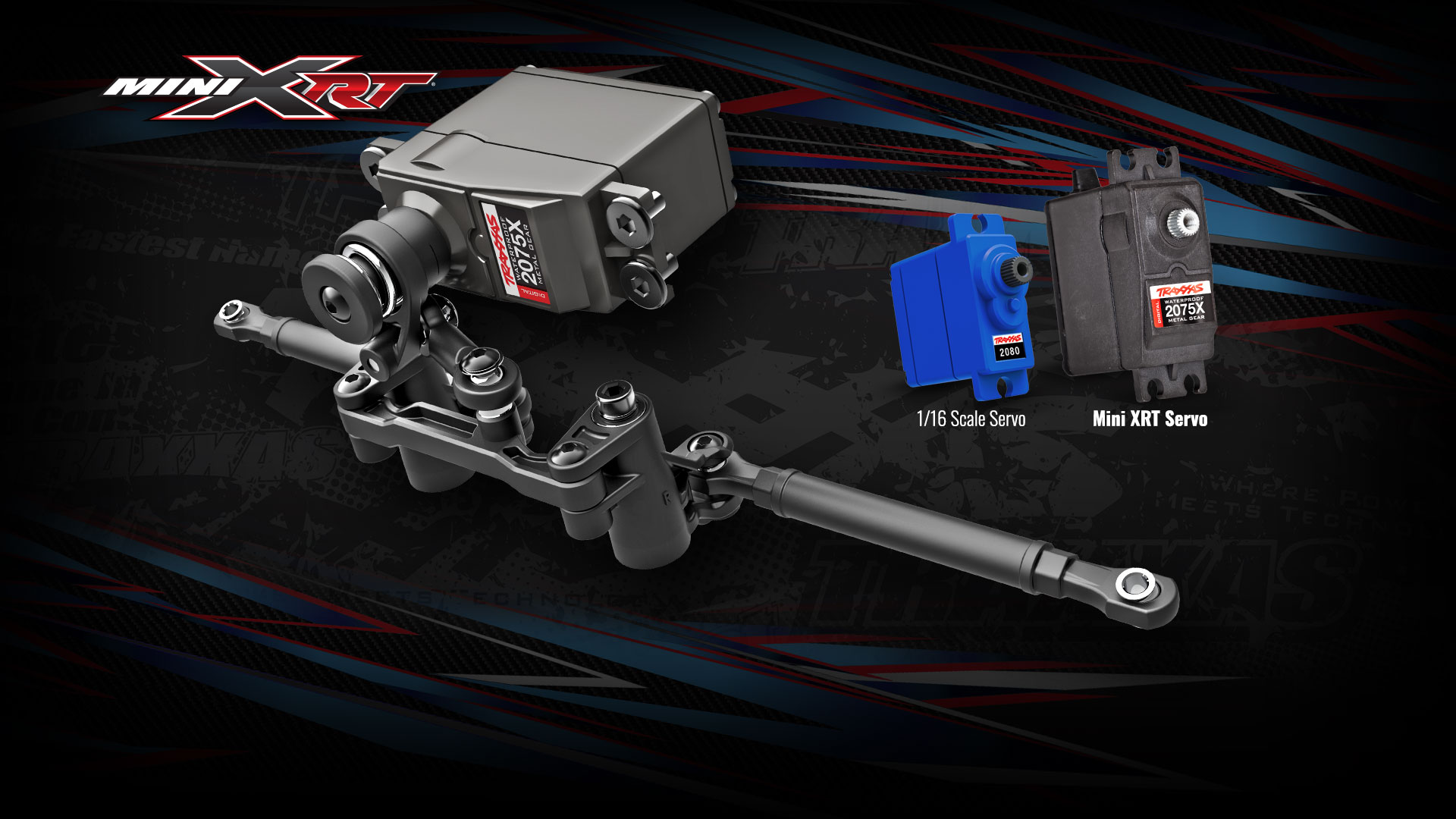

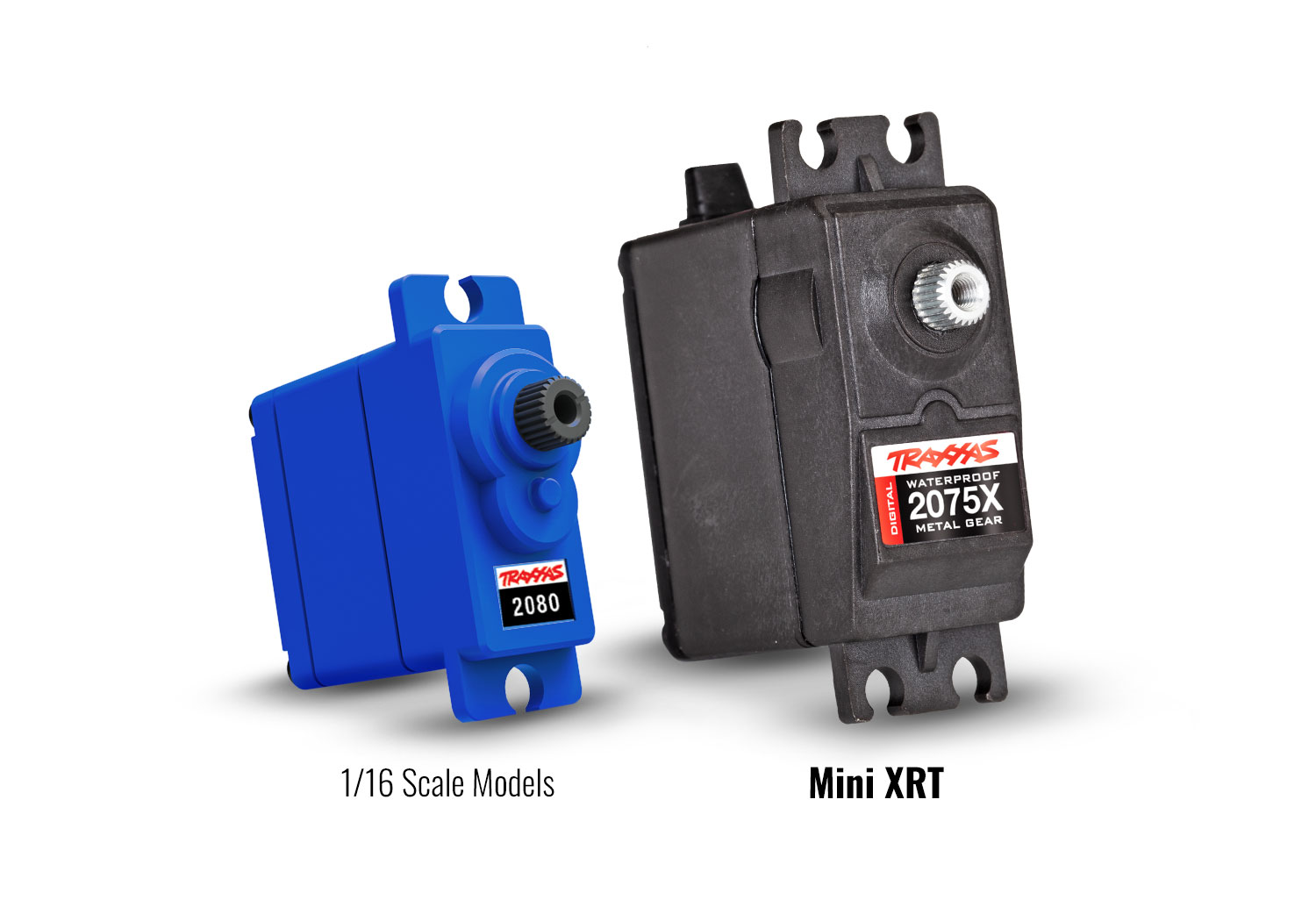

Full-Size Metal-Gear Servo
Mini XRT uses the same high-performance 2075X metal-gear servo found in full-size 1/10 scale Traxxas trucks. The 2075X delivers digital precision and metal-gear durability along with 125 oz-in of tire-wrenching torque. With so much power on hand, Mini XRT muscles through the thickest grass, sand, and mud without missing a beat.

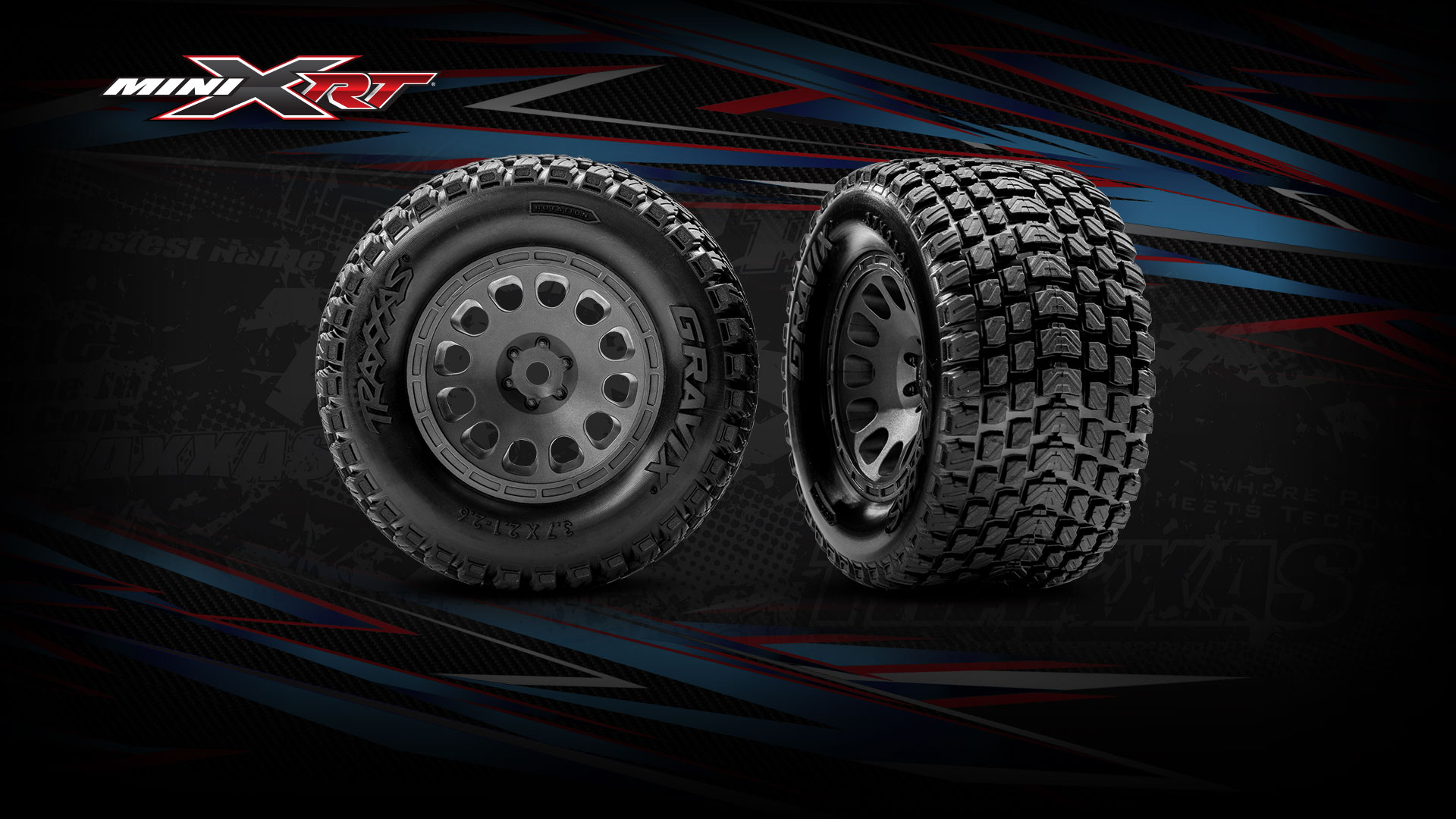

New 3.7″ Gravix Tires
New 3.7″ versions of XRT’s revolutionary Gravix® tires put maximum power to the ground for breathtaking acceleration and razor-sharp reflexes on any terrain. Their directional tread pattern runs quieter than typical off-road tires with a thick center carcass to limit ballooning at high speed.

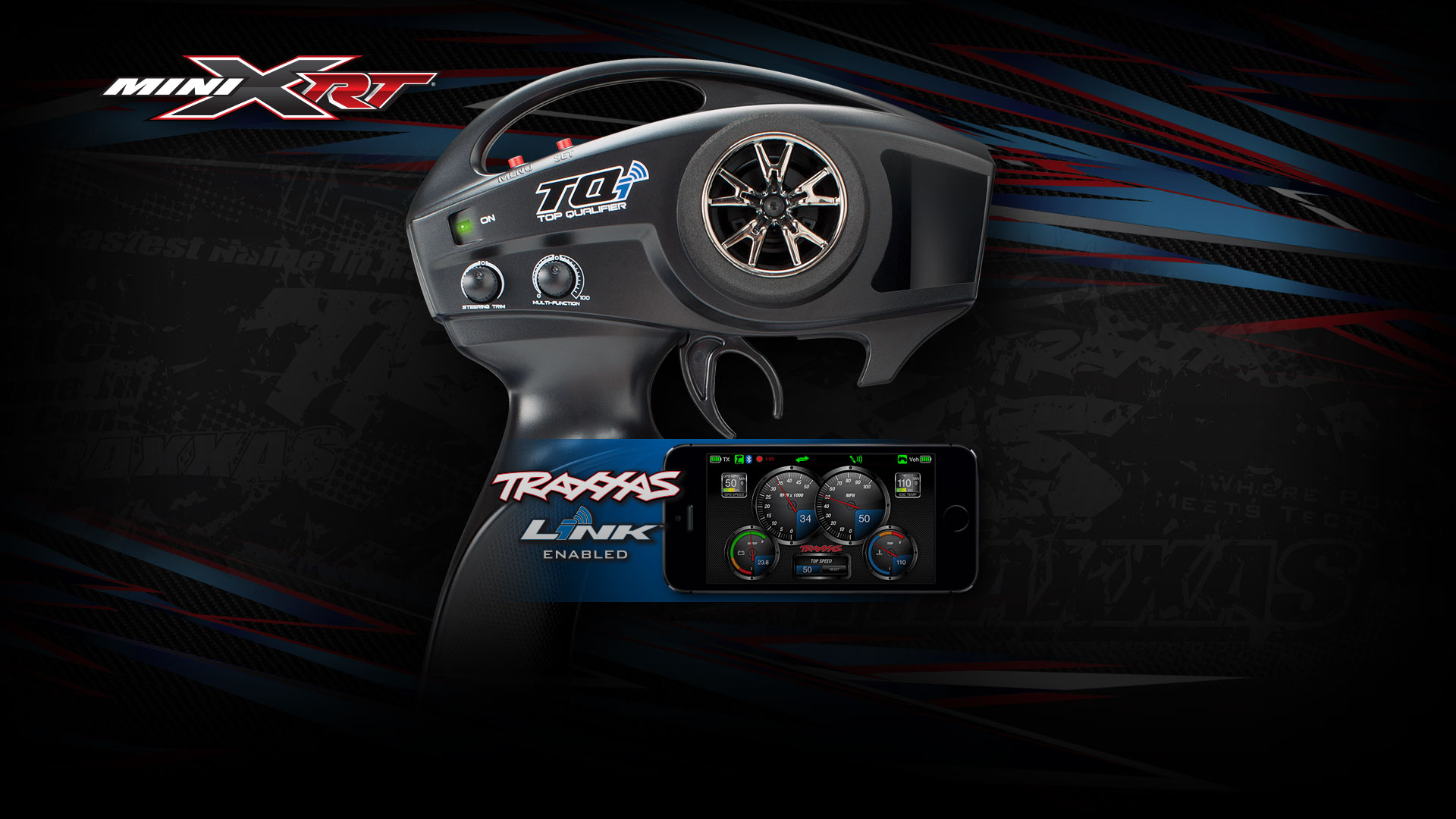

TQi Radio System
The high-output Traxxas TQi™ 2.4 GHz radio system delivers superior range, 30-model memory, and the precise control required for a high-speed machine. Add sensors and the Traxxas Link Wireless Module, (both sold separately) to send real-time telemetry to your smart phone using the free Traxxas Link™ app.
Traxxas Stability Management
With so much hard-hitting power on tap, even the best drivers sometimes need a helping hand. Traxxas Stability Management® (TSM) is there when you need it to help harness Mini XRT’s brutal 3s power for all-out acceleration and control. TSM lets you adjust the amount of assistance from off to 100% right from your transmitter.

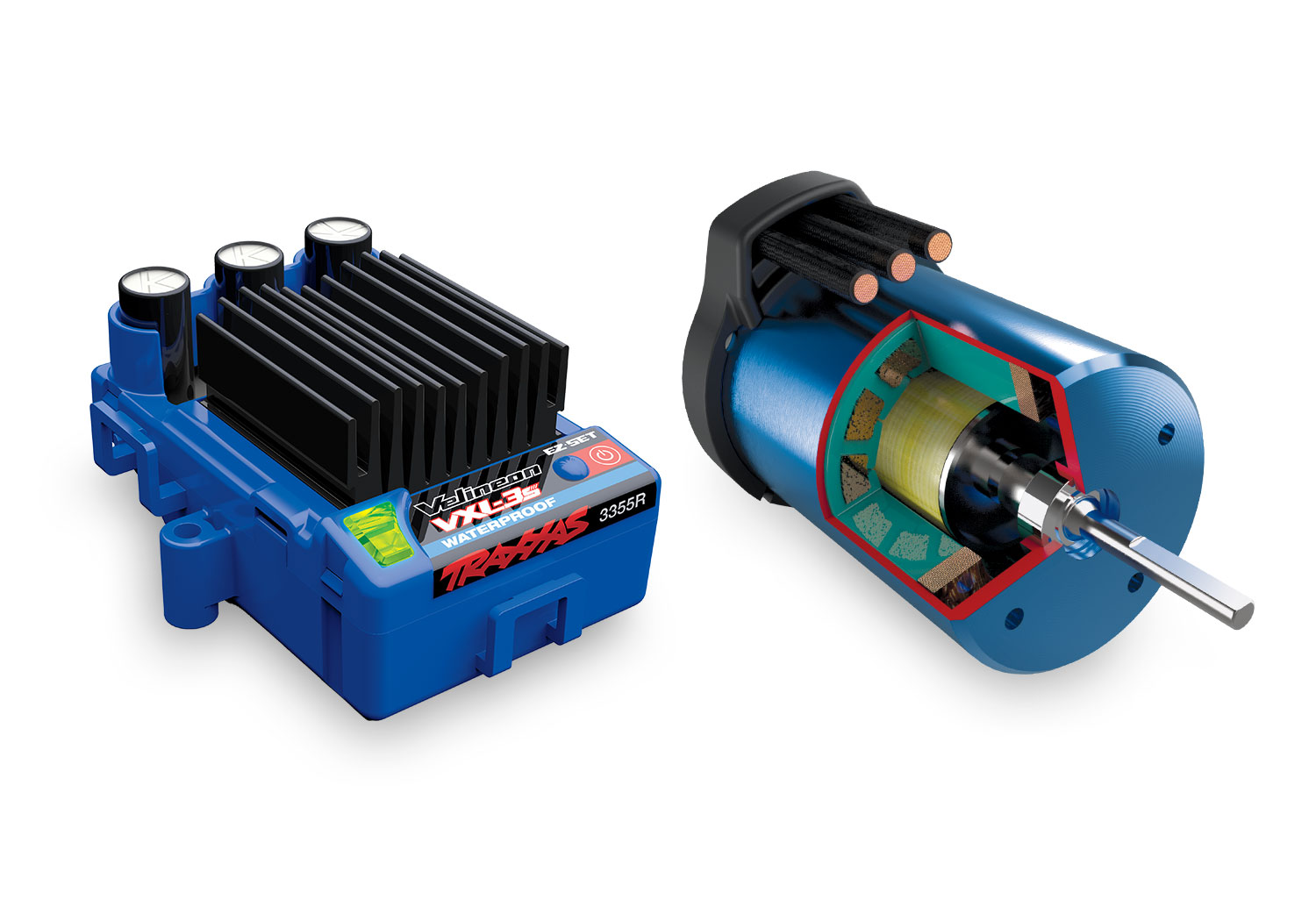

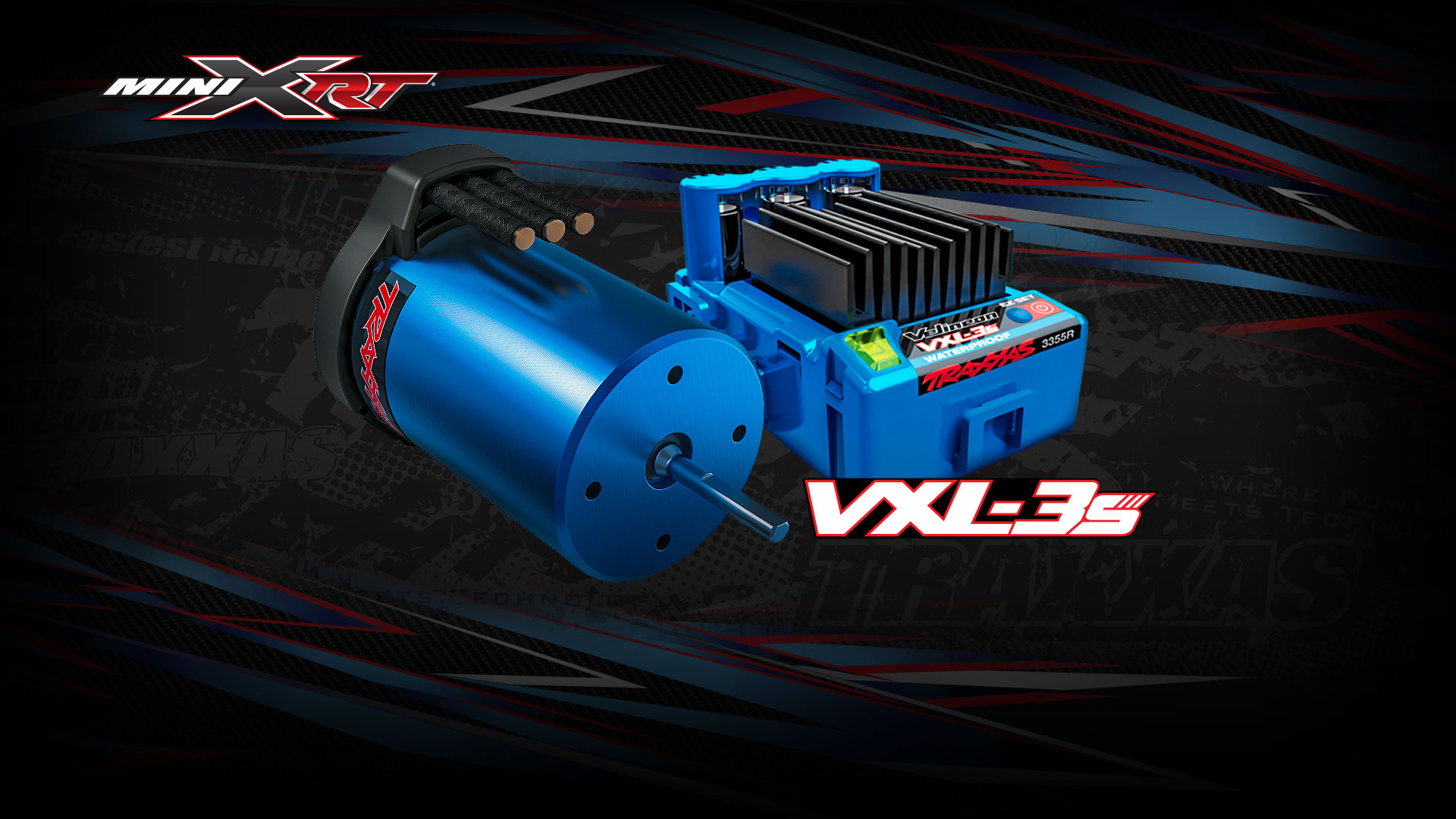

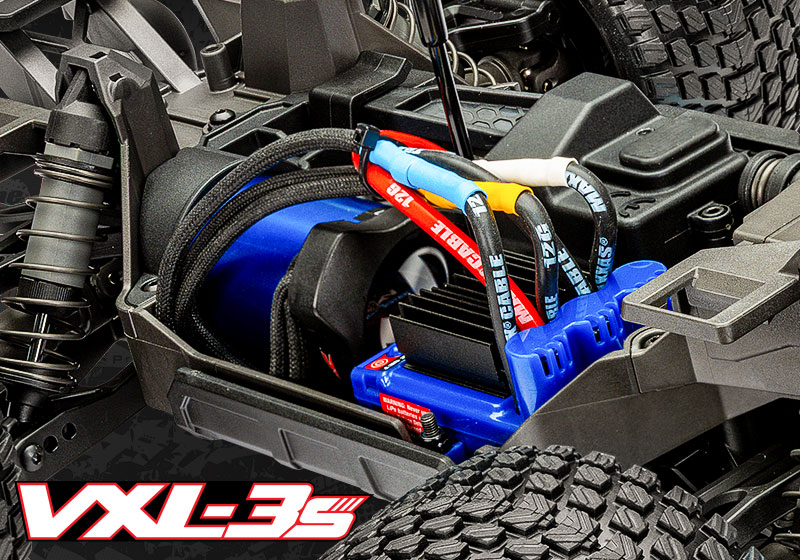

Extreme 1/10 Scale Brushless Power
The Velineon VXL-3s brushless power system is the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. For the first time ever, this extreme 11.1-volt powerplant now comes installed in a compact platform. The result is astonishing acceleration, 55+ mph speed, and wheel-standing power at any rpm.
Waterproof Electronics
Traxxas, the innovator and leader in waterproof solutions, designed Mini XRT to deliver the same go-anywhere driving freedom as its full-size counterpart. Reliable waterproof construction extends your playground into water, snow, and mud for unlimited fun, regardless of the weather.

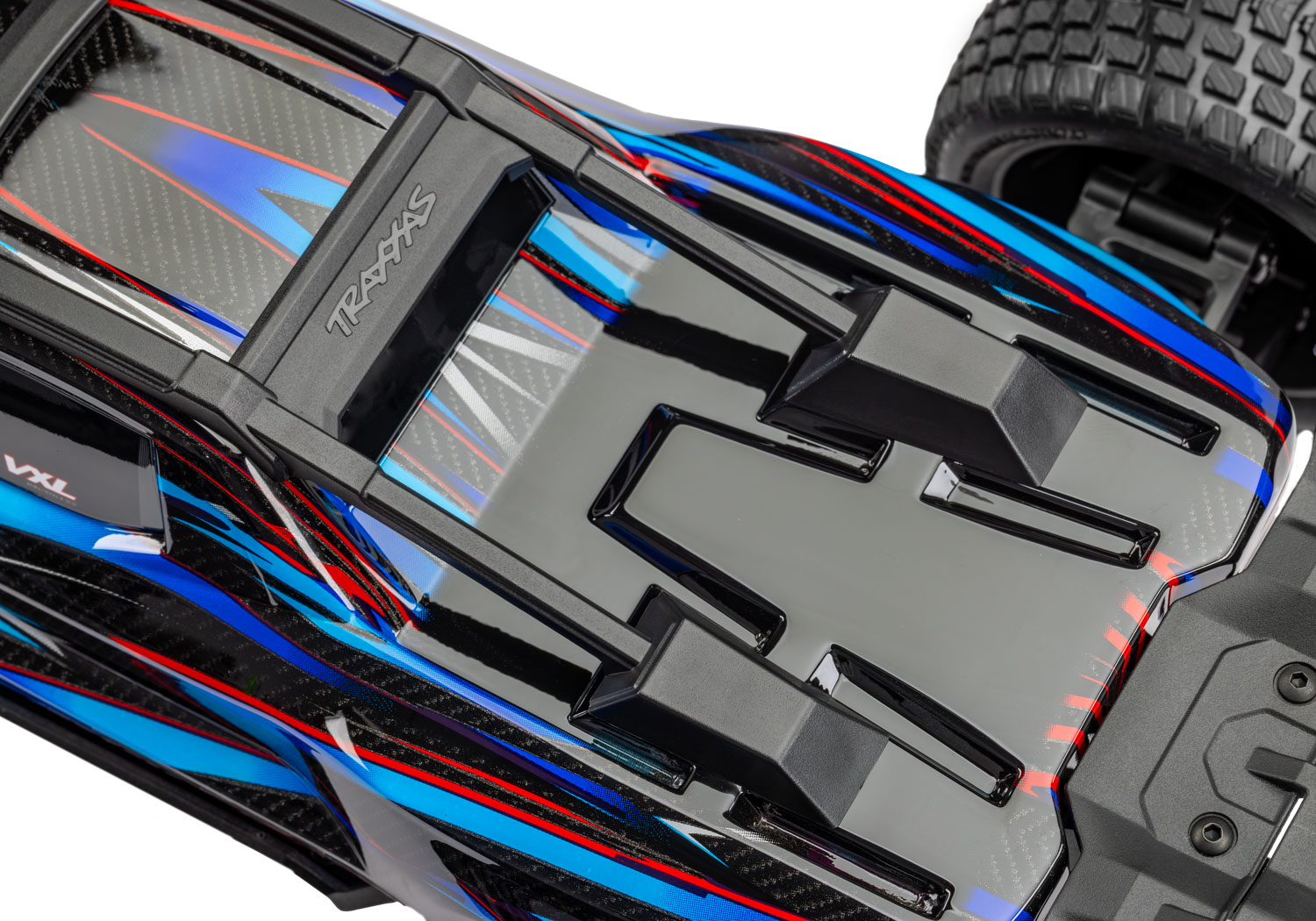

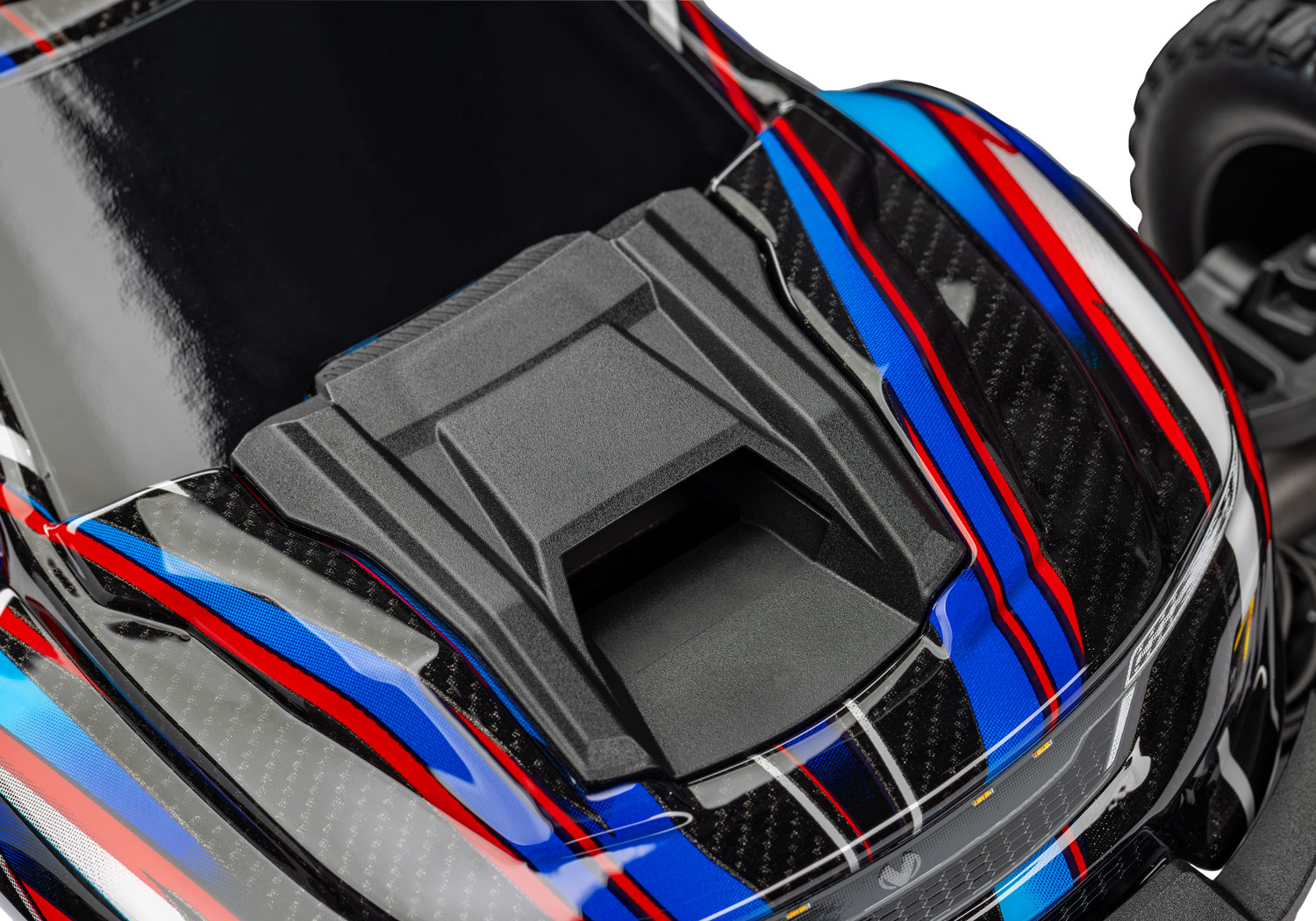

Clipless Convenience
Mini XRT’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis. Nothing else is faster or latches more securely.

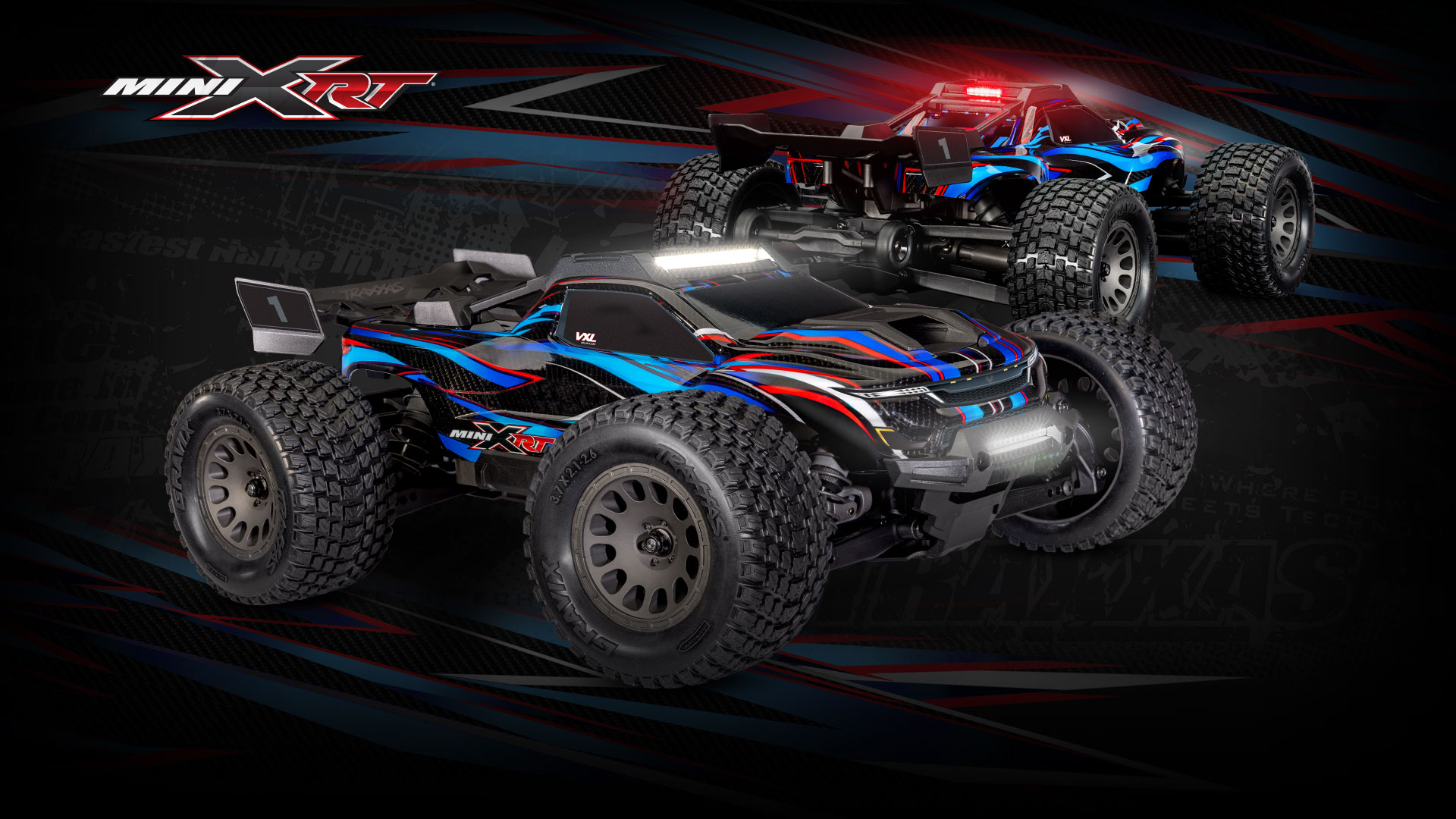

Optional High-Output Off-Road LED Light Kit
Take Mini XRT to the next level with the optional high-output off-road LED light kit (part 10785, sold separately). The light kit includes new bumpers with LED lights and a new roof skid plate with white LED lights in the front and red in the rear. A regulated 3-volt power supply provides consistent, flicker-free performance from beginning to end.
Features
1/10 Scale VXL-3s Brushless Power
The Velineon VXL-3s brushless power system is the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. For the first time ever, this extreme 11.1-volt powerplant now comes installed in a compact platform. The result is astonishing acceleration, 55+ mph speed, and wheel-standing power at any rpm.

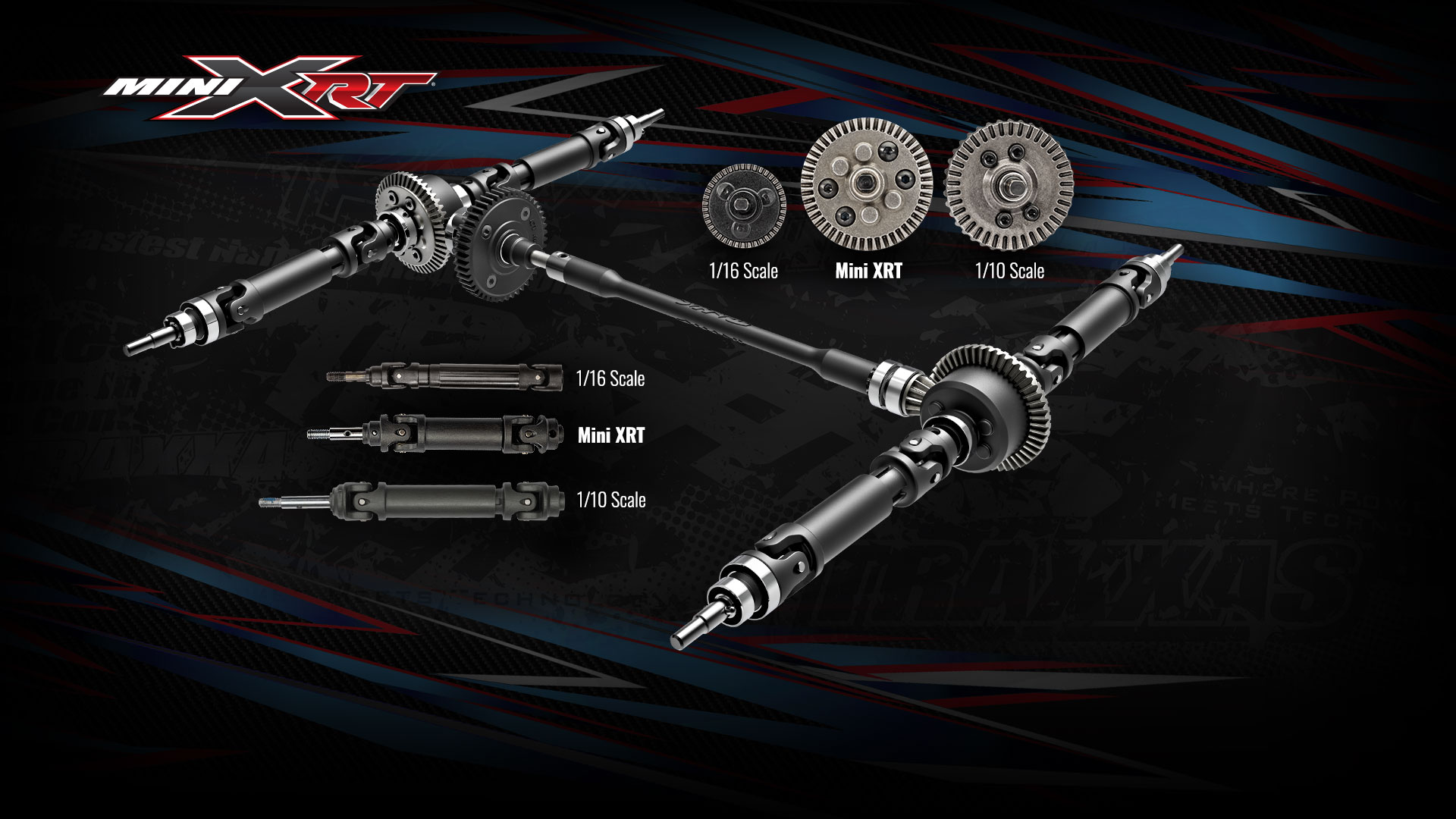

1/10 Scale 4X4 Driveline
Adding 3s Velineon power to a compact platform requires bold engineering. Mini XRT comes outfitted with the proven driveline components of Traxxas’ toughest 1/10 scale 4X4 trucks. Front, center, and rear steel-gear differentials, along with 32-pitch gearing and HD driveshafts, far exceed requirements for strength and long life.
Maxx Chassis Technology
Mini XRT is the newest truck to use the revolutionary chassis design pioneered in Mini Maxx®. Perfectly sized to fit into a backpack, Mini XRT transforms full-scale performance and durability into a supremely compact chassis. Just one look at the rigid, unified structure and you know it’s built Maxx tough.
WideMaxx Suspension
Mini XRT relies on proven WideMaxx® suspension design to deliver sure-footed grip and laser-focused handling. Mini XRT sits low and wide for hard cornering and maximum stability at speed. The long-travel suspension delivers refined damping control to maintain composure over the roughest terrain.

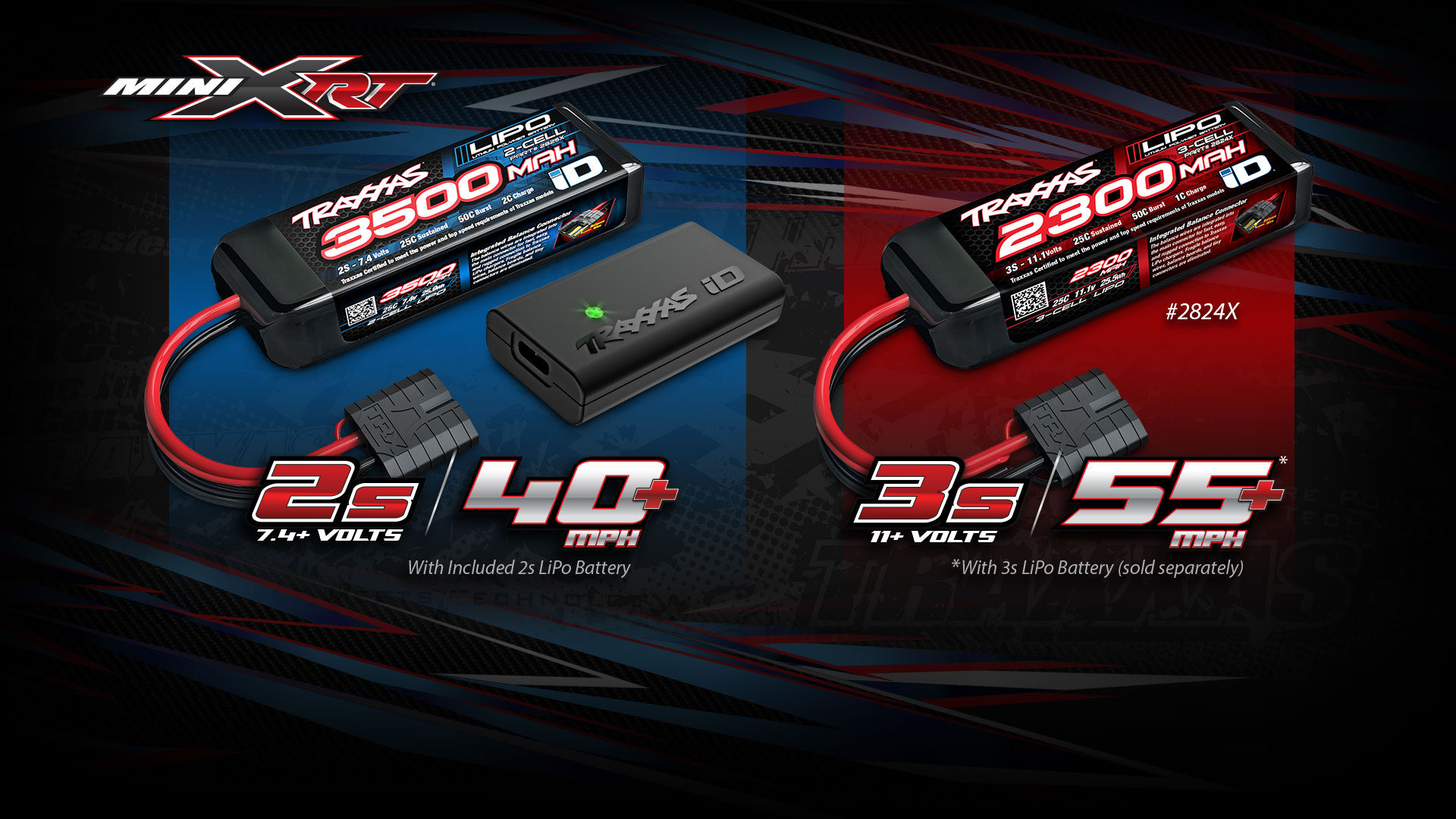

40+ mph with included 2-cell LiPo Battery. 55+ mph with optional 3-Cell LiPo Battery (sold separately)
- Quick and easy installation and removal

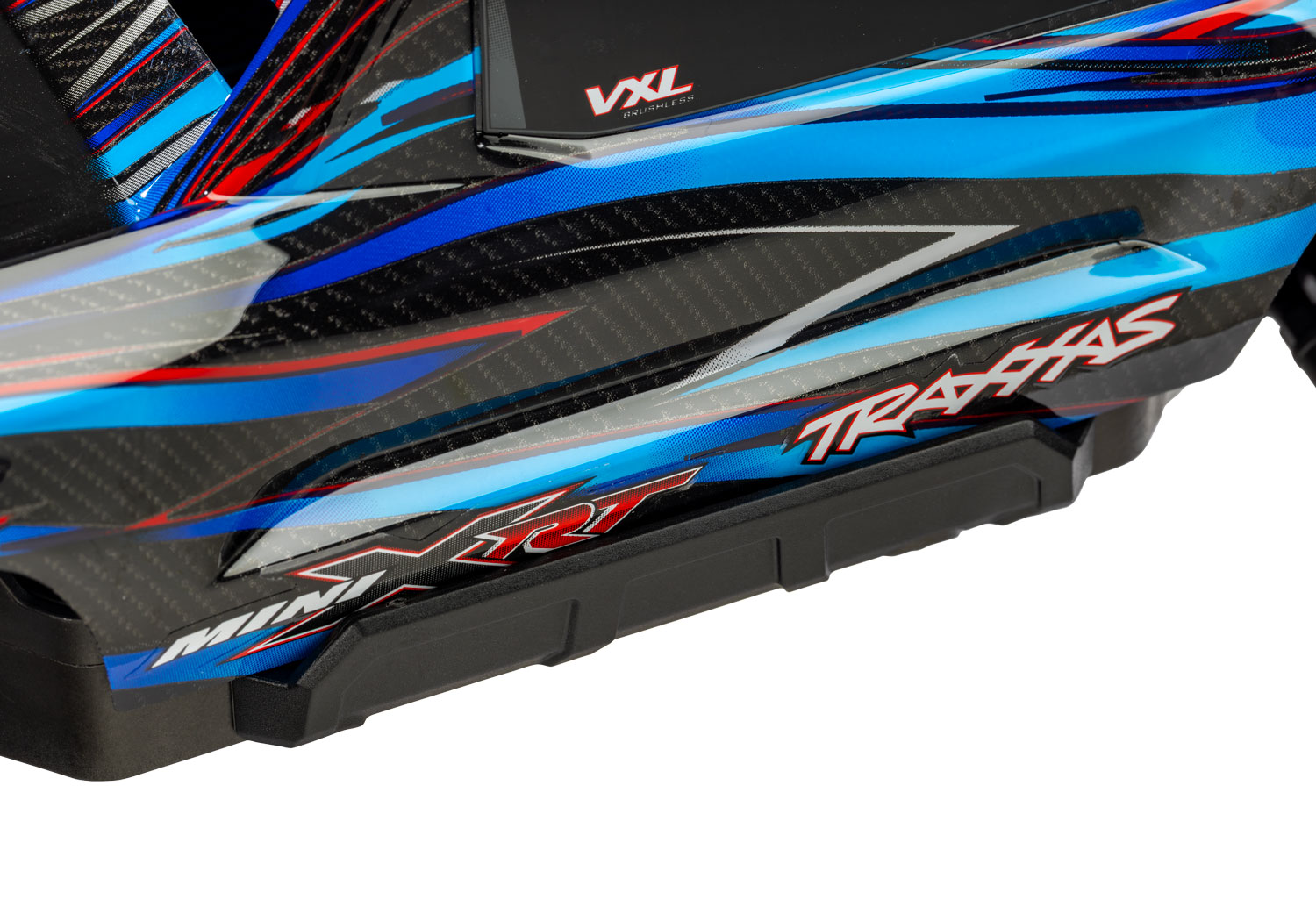

- Nerf bar channels for side body support
- Reinforced for extra protection against tearing

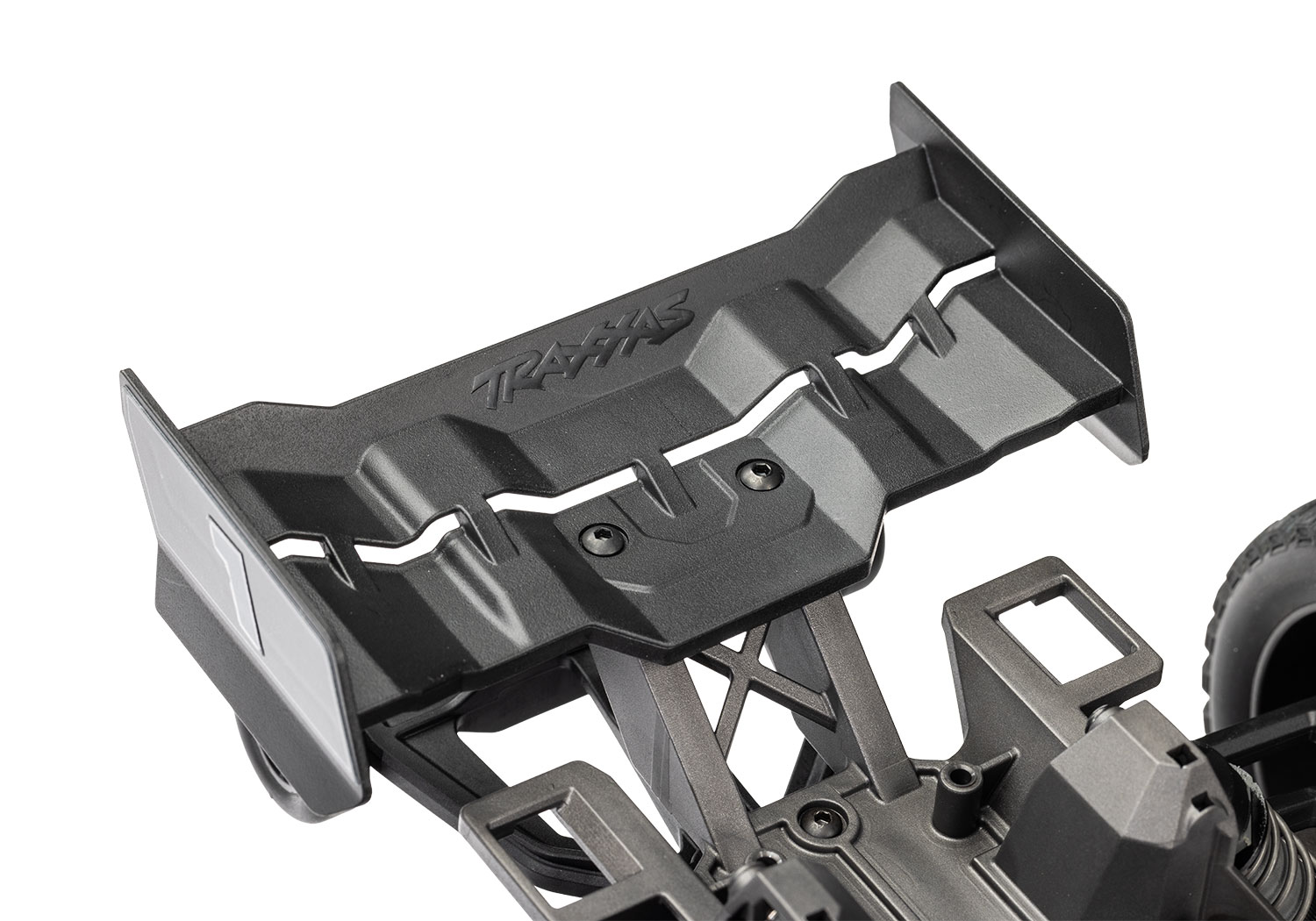

- Functional rear wing

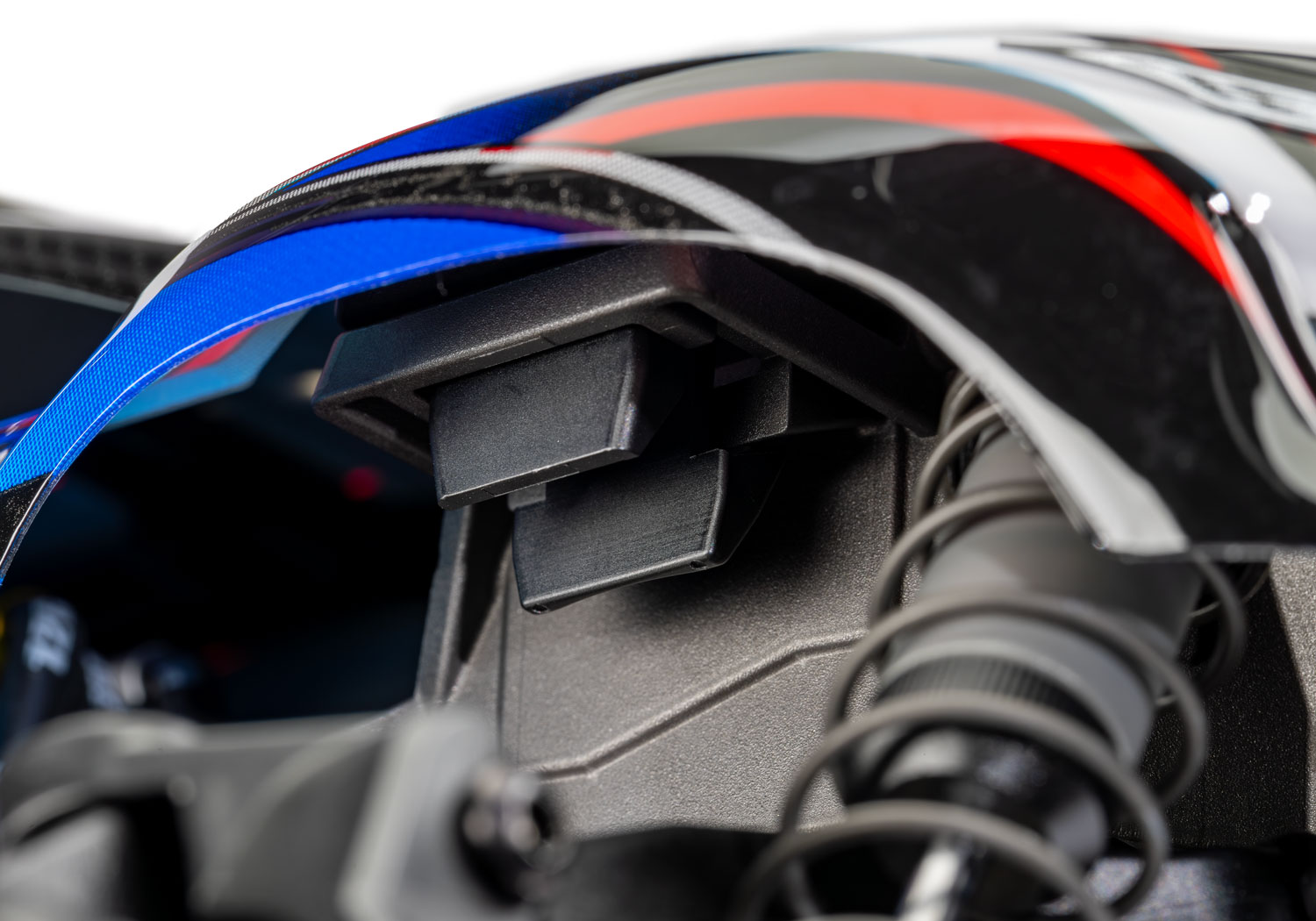

Clipless Body Mount System
- Three programmable drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse
- Heat sink accepts accessory cooling fan (3340)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection
VXL-3s Waterproof Electronic Speed Control
- Ultra high-temperature sintered neodymium magnets
- Low-maintenance design
- Precision-balanced rotor
- Efficient high-speed ball bearings
- 3500 Kv
- Brilliant blue-anodized finish
Velineon Brushless Motor
- High-capacity 2-cell LiPo battery
- 7.4 volts
- 3500 mAh for extended run time
- 2-amp USB-C charger
- iD® technology for faster, safer charging
Battery and Charger Included
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- 5-channel micro receiver (6533) with fail-safe security

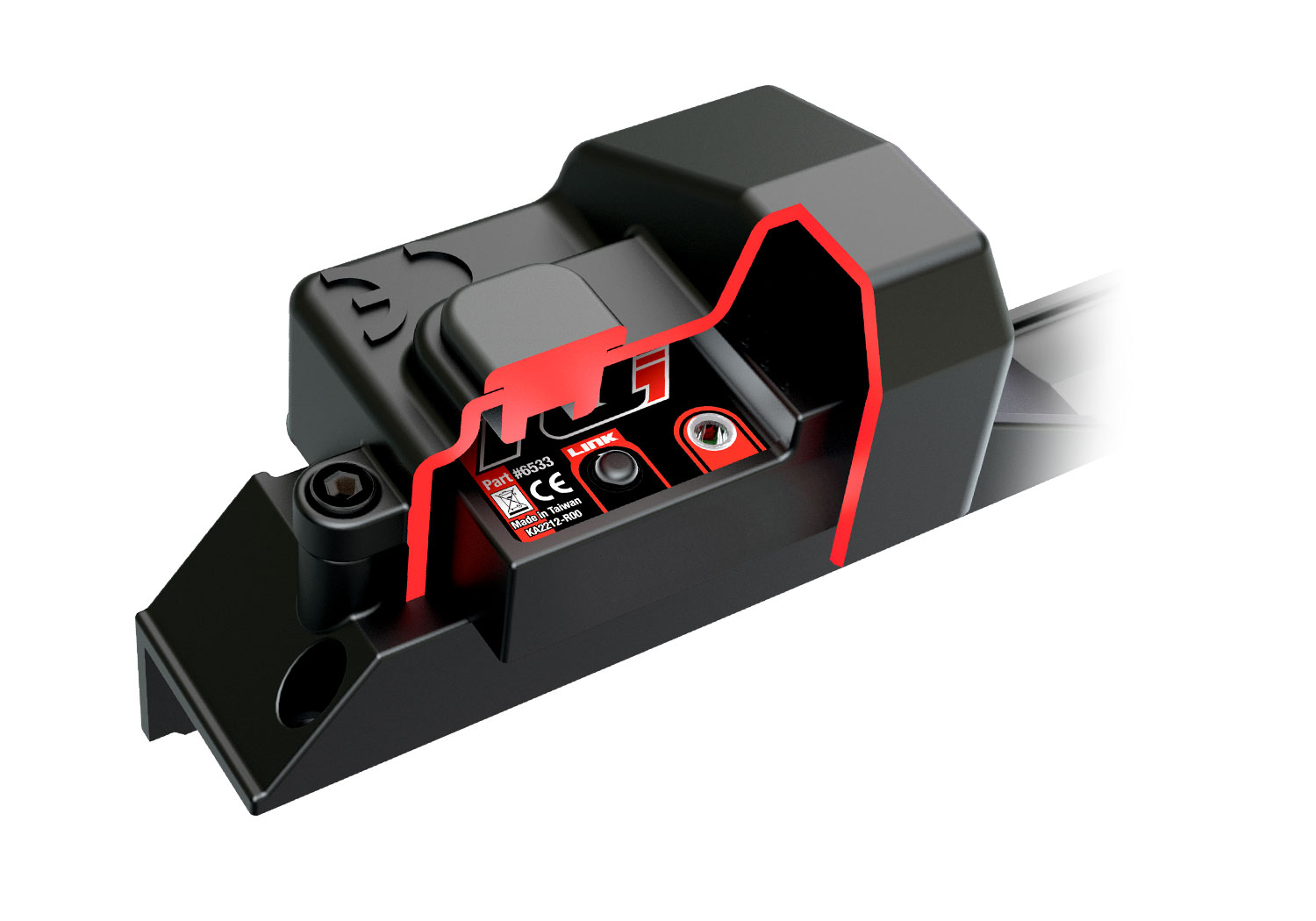

- Patented waterproof receiver box with easy-access plug
TQi 2.4 GHz High Output 2-Channel Radio System
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
Traxxas Stability Management (TSM)
- Full-time shaft-driven 4-wheel drive

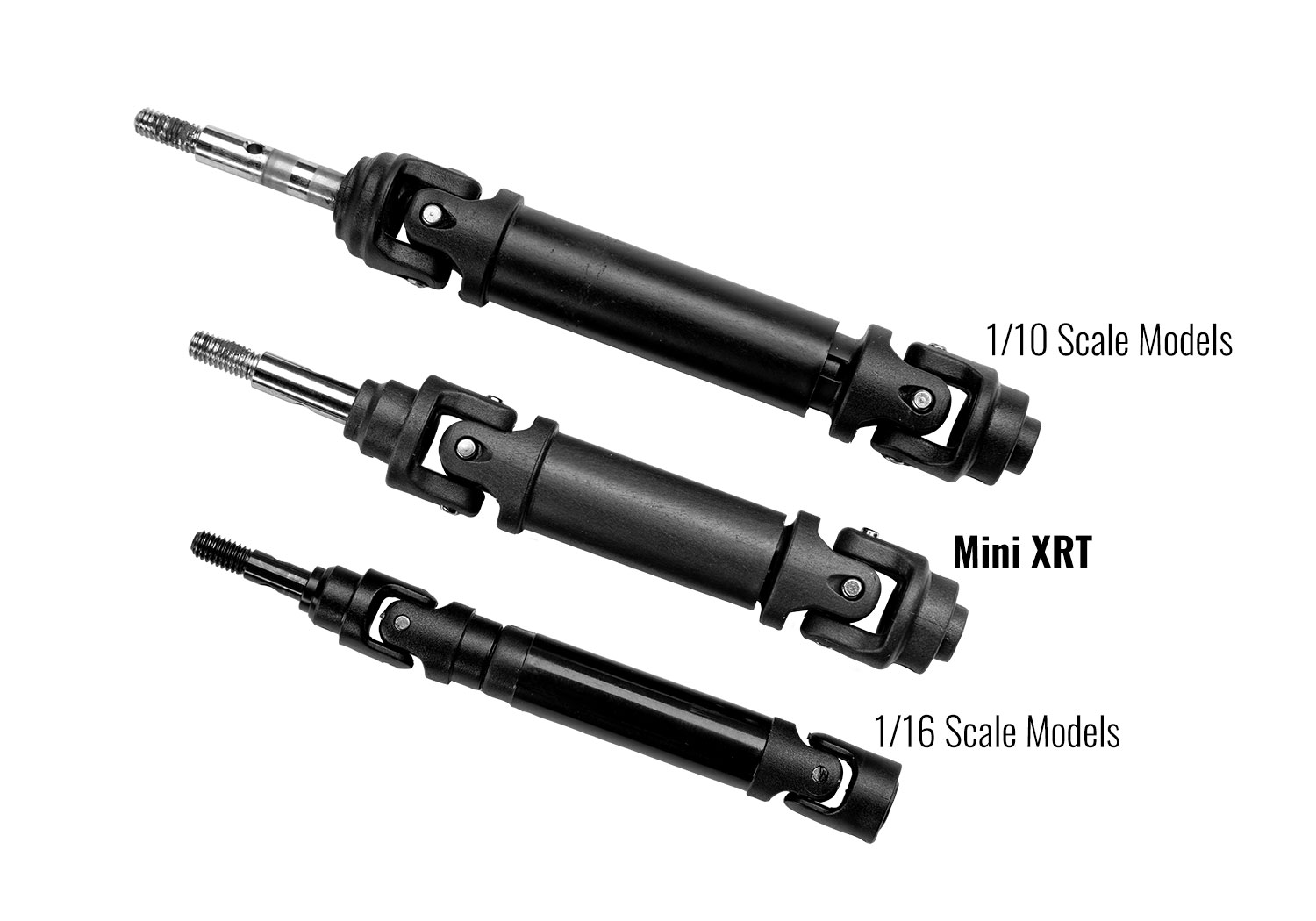

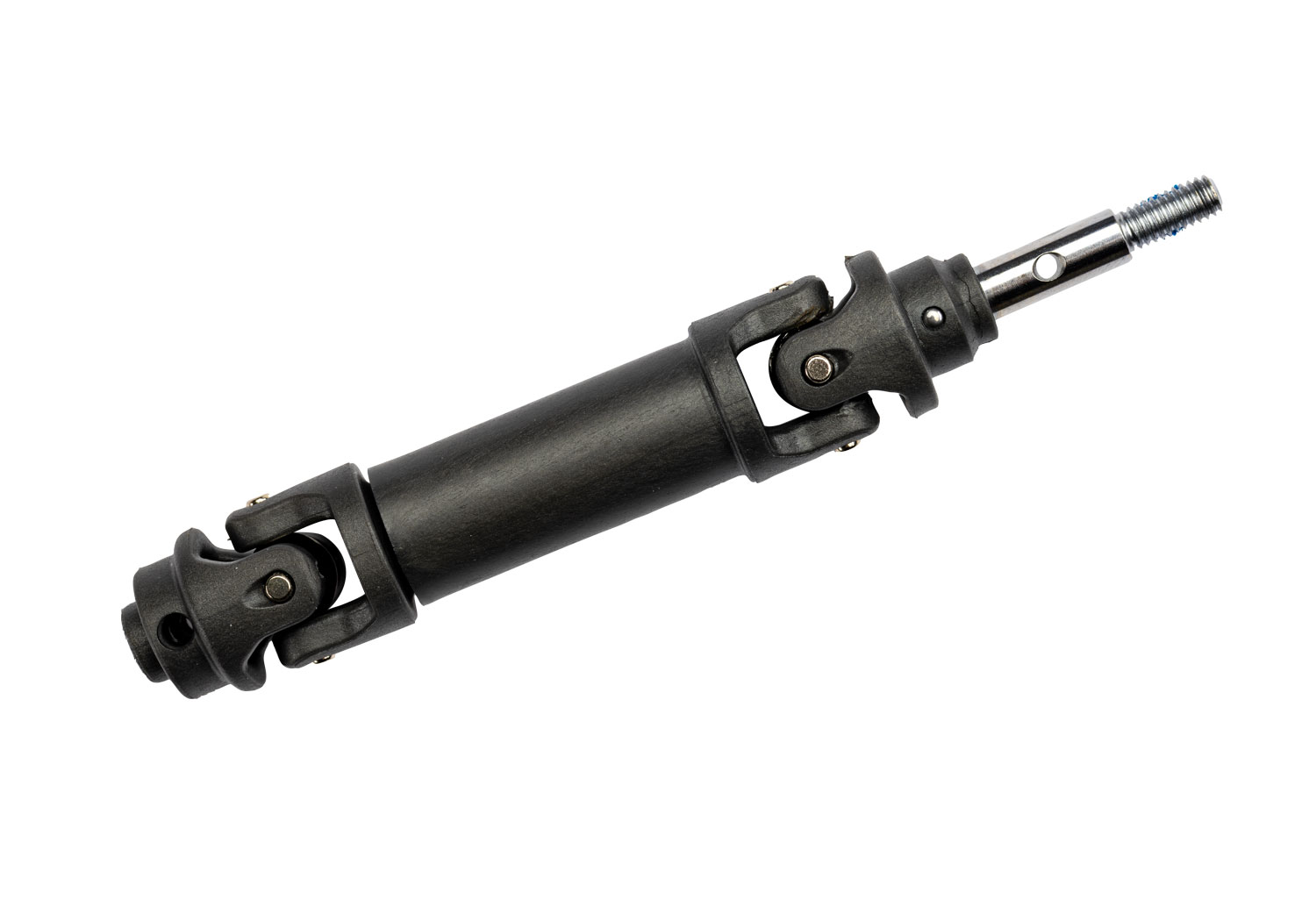

- 1/10 scale extreme-duty telescoping driveshafts
- Direct-drive (no transmission)
- Sealed center differential

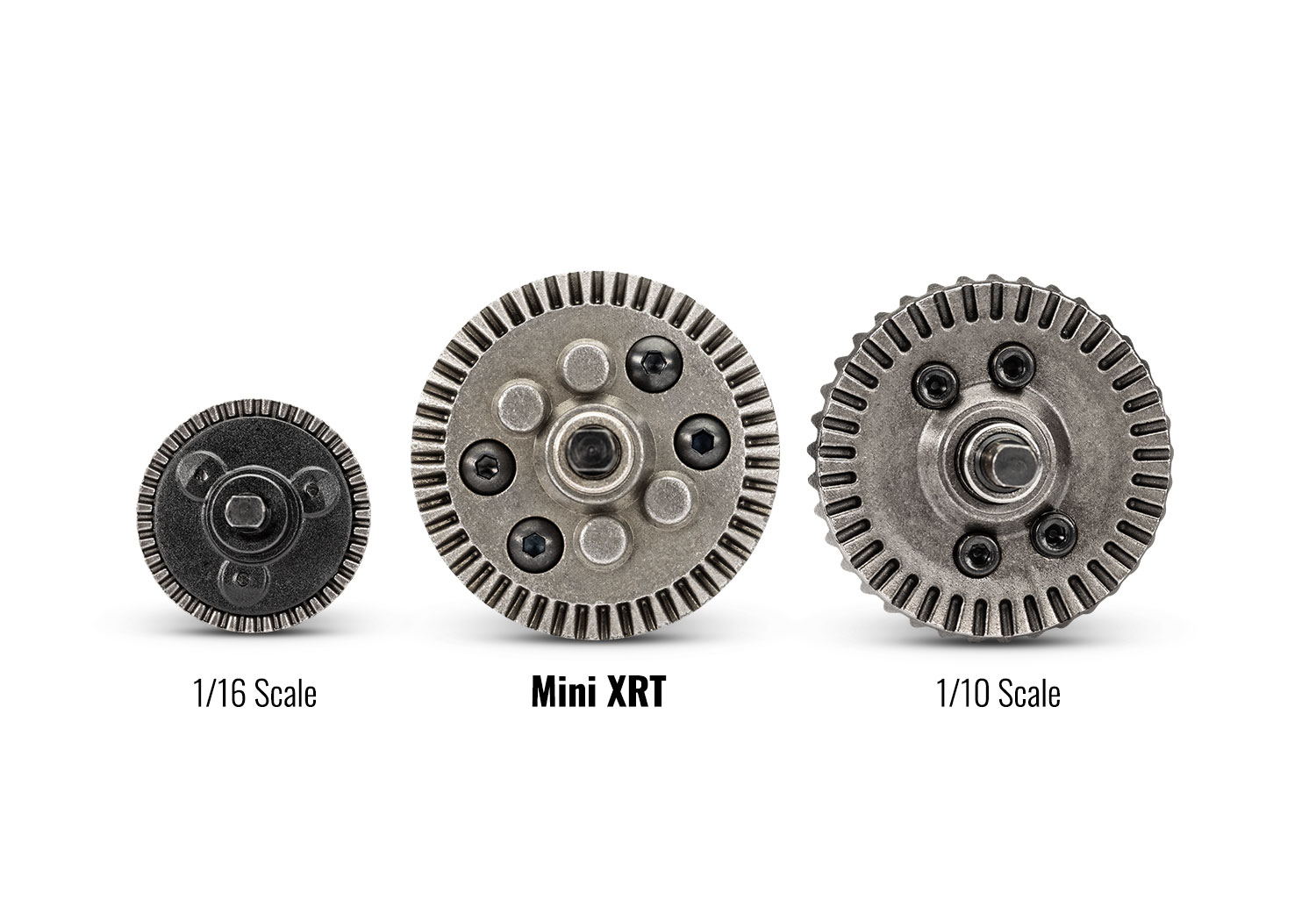

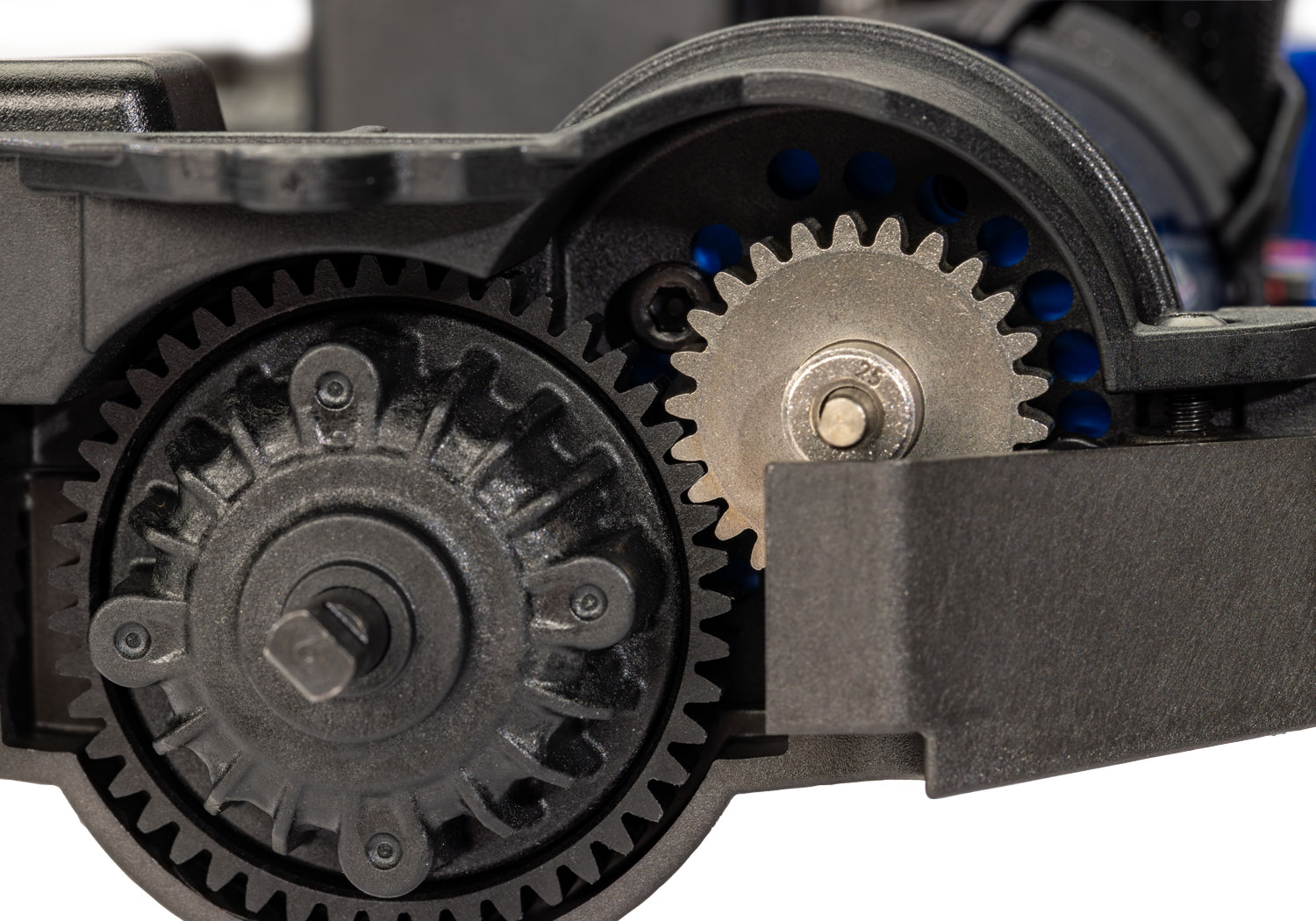

- Large 32-pitch gears
- Sealed planetary steel-gear differentials (F&R)
- Fixed gear mesh system

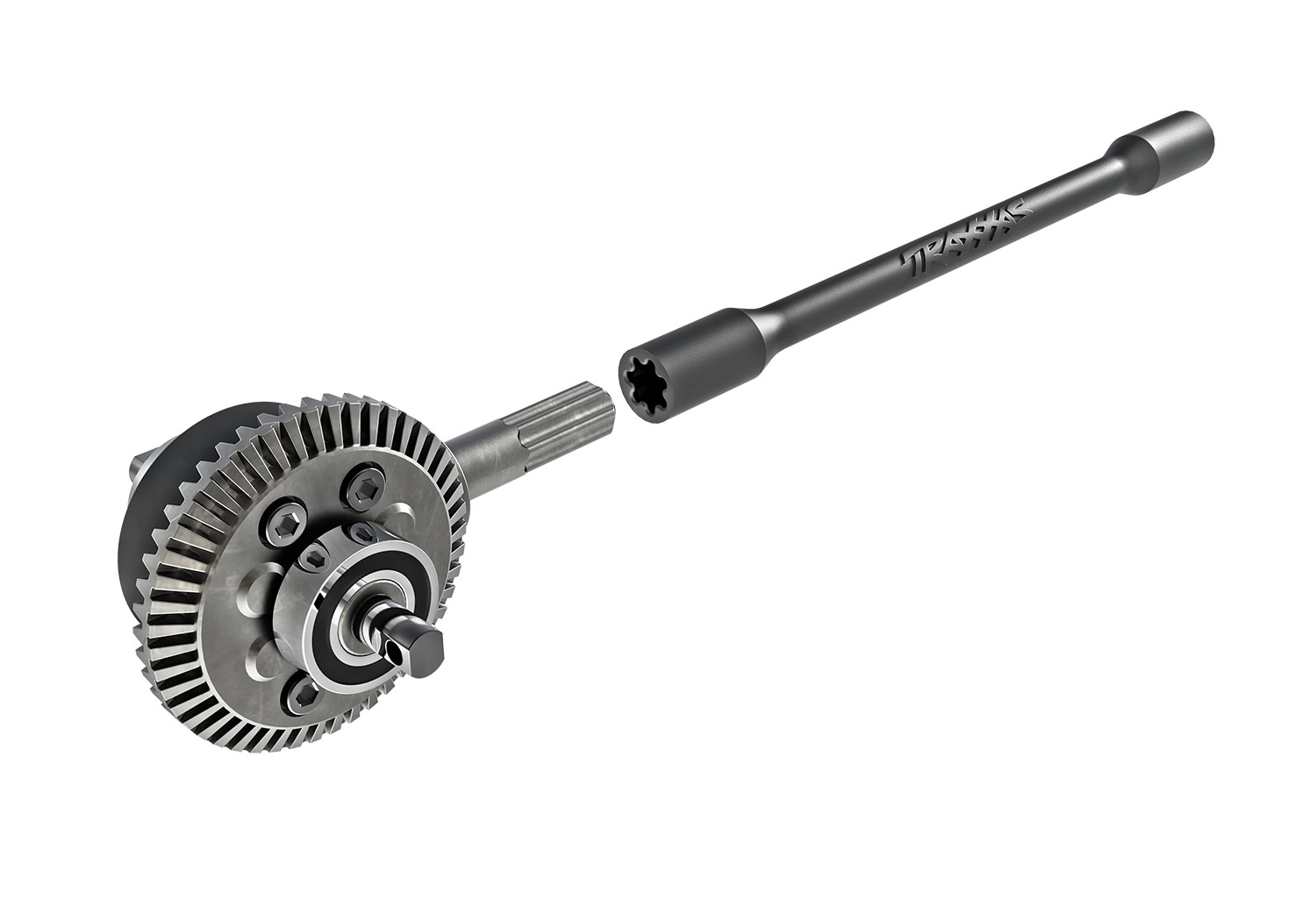

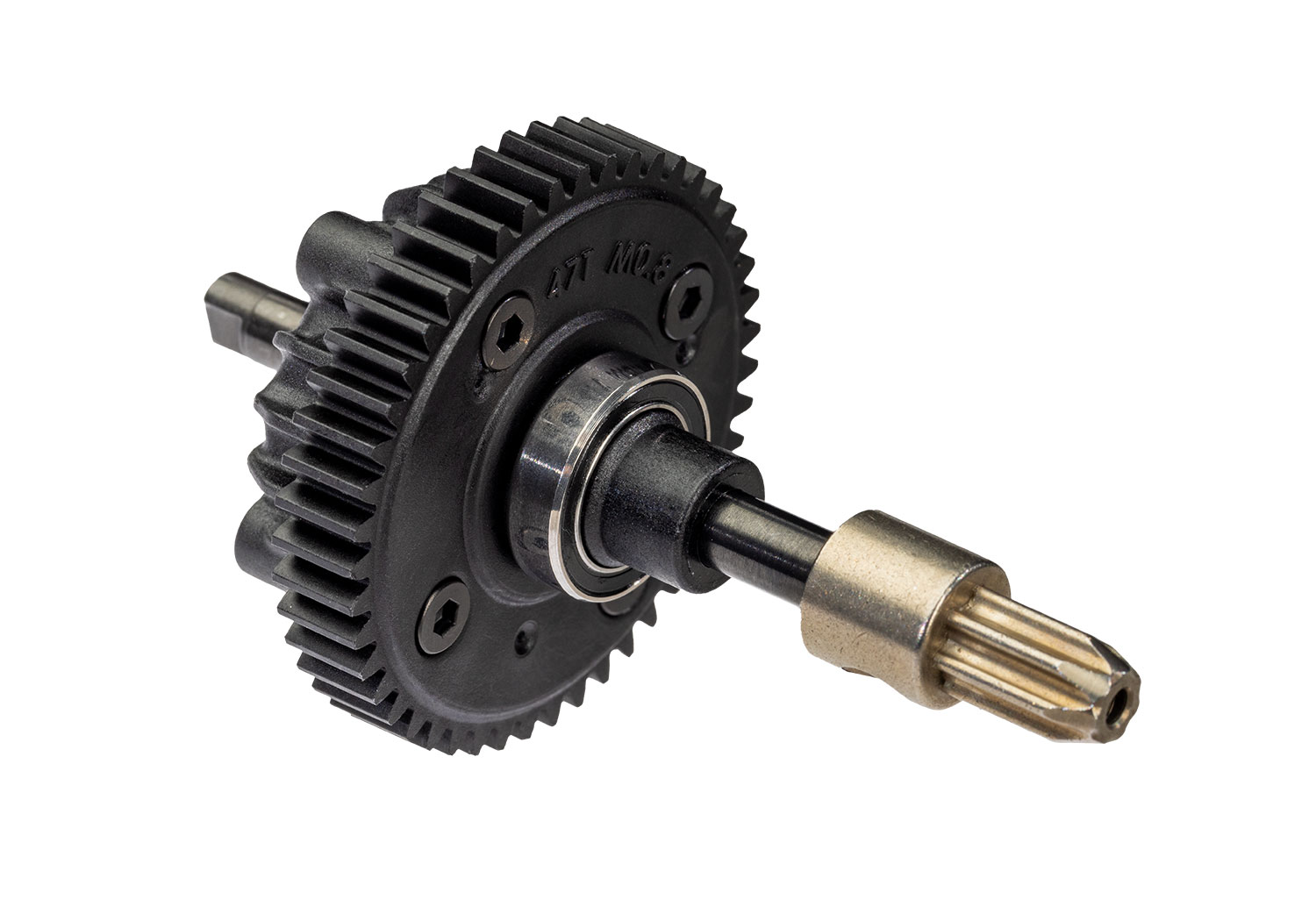

1/10 Scale 4X4 Drivetrain

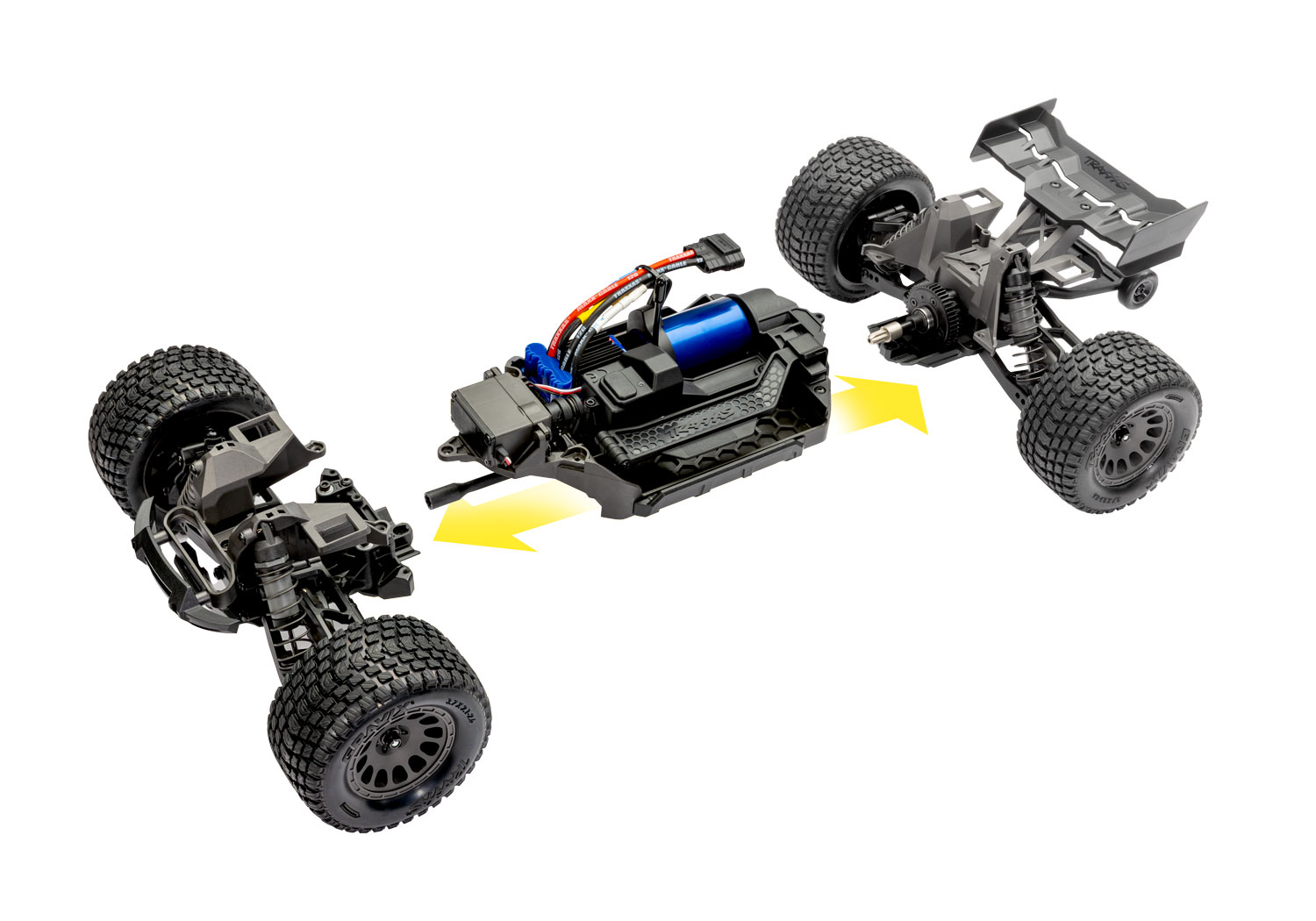

- Modular chassis with interlocking front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt

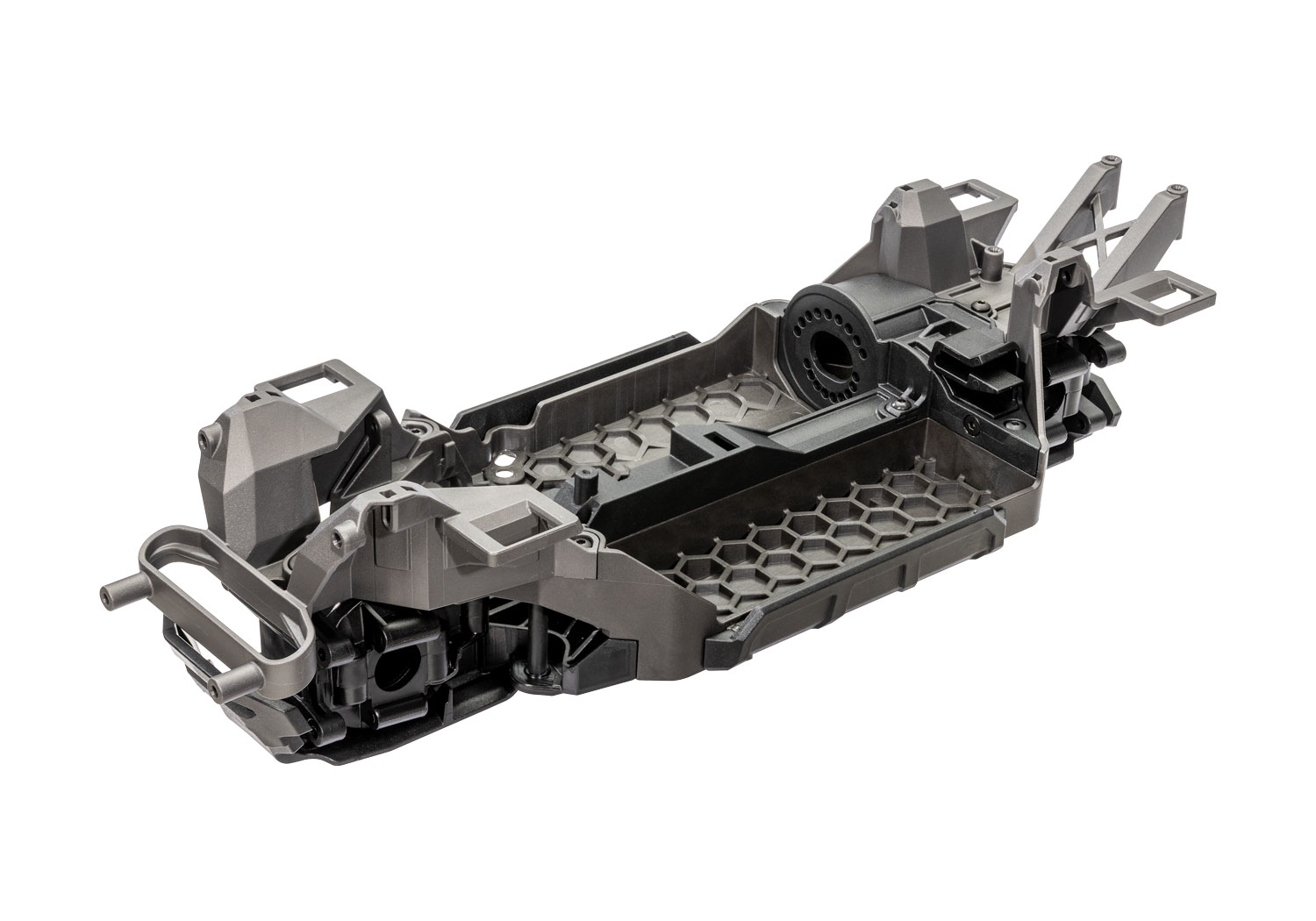

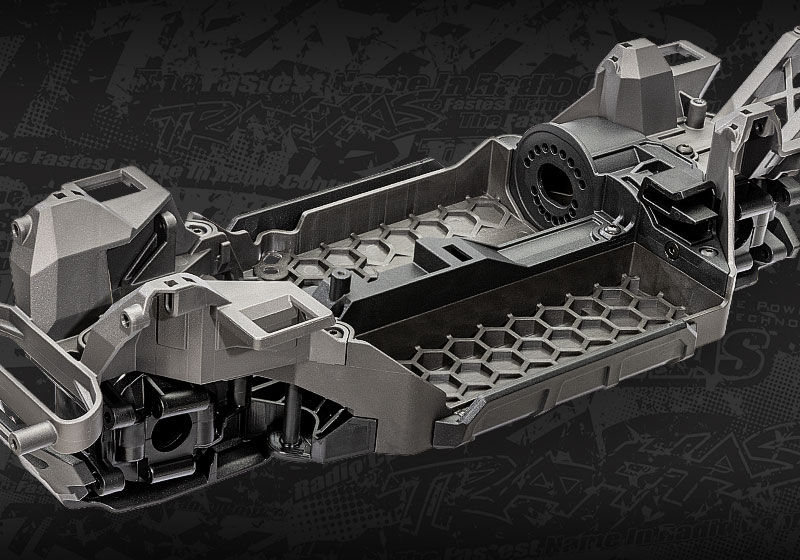

Modular Composite Chassis
- Battery is protected deep in the chassis
- Battery hold-down pivots for easy access
- More secure than conventional retention systems

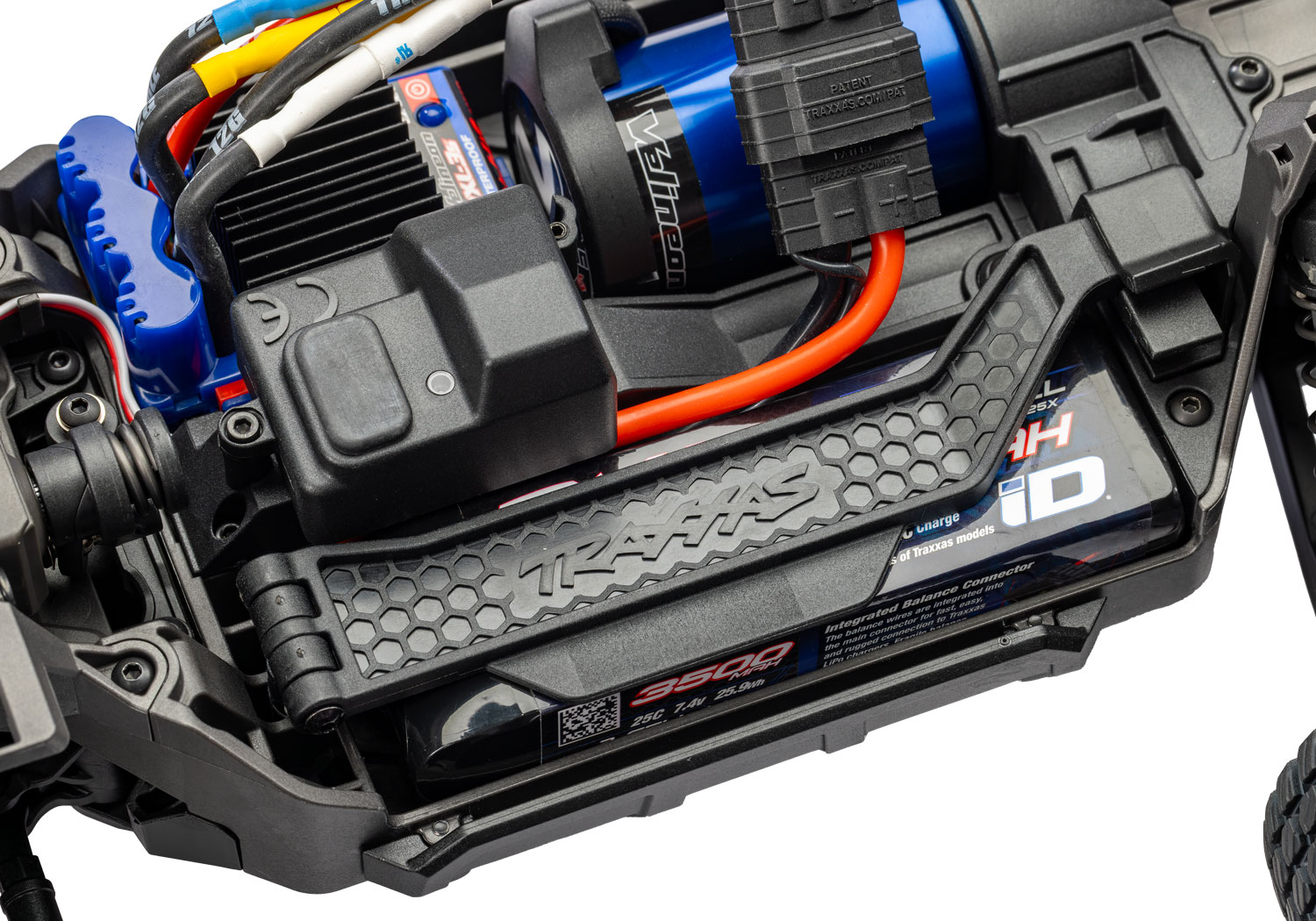

Easy Battery Access

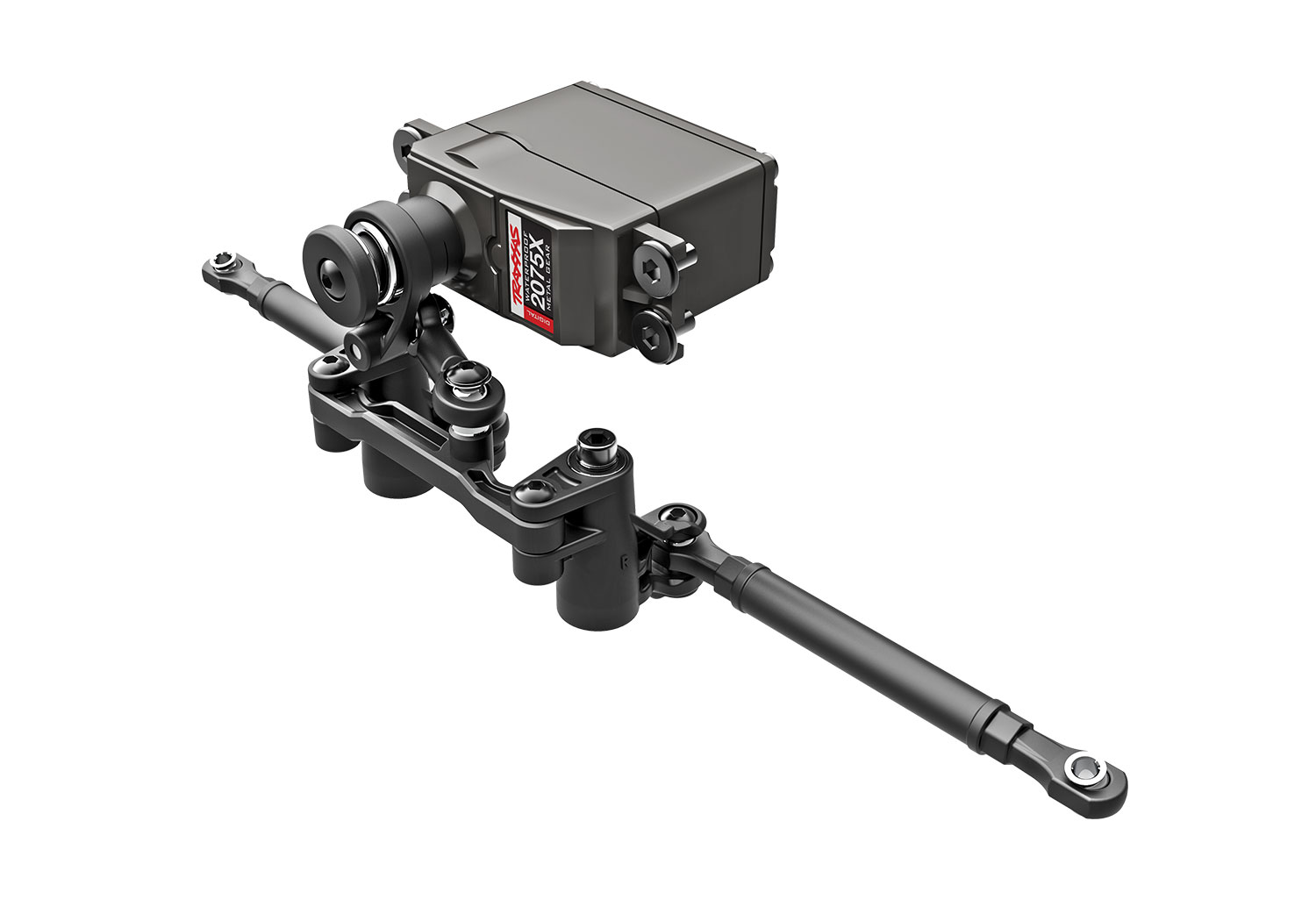

- 1/10 scale 2075X waterproof high-torque, metal-gear servo
- Heavy-duty double-shear bellcranks
- Cam-operated servo saver
Steering

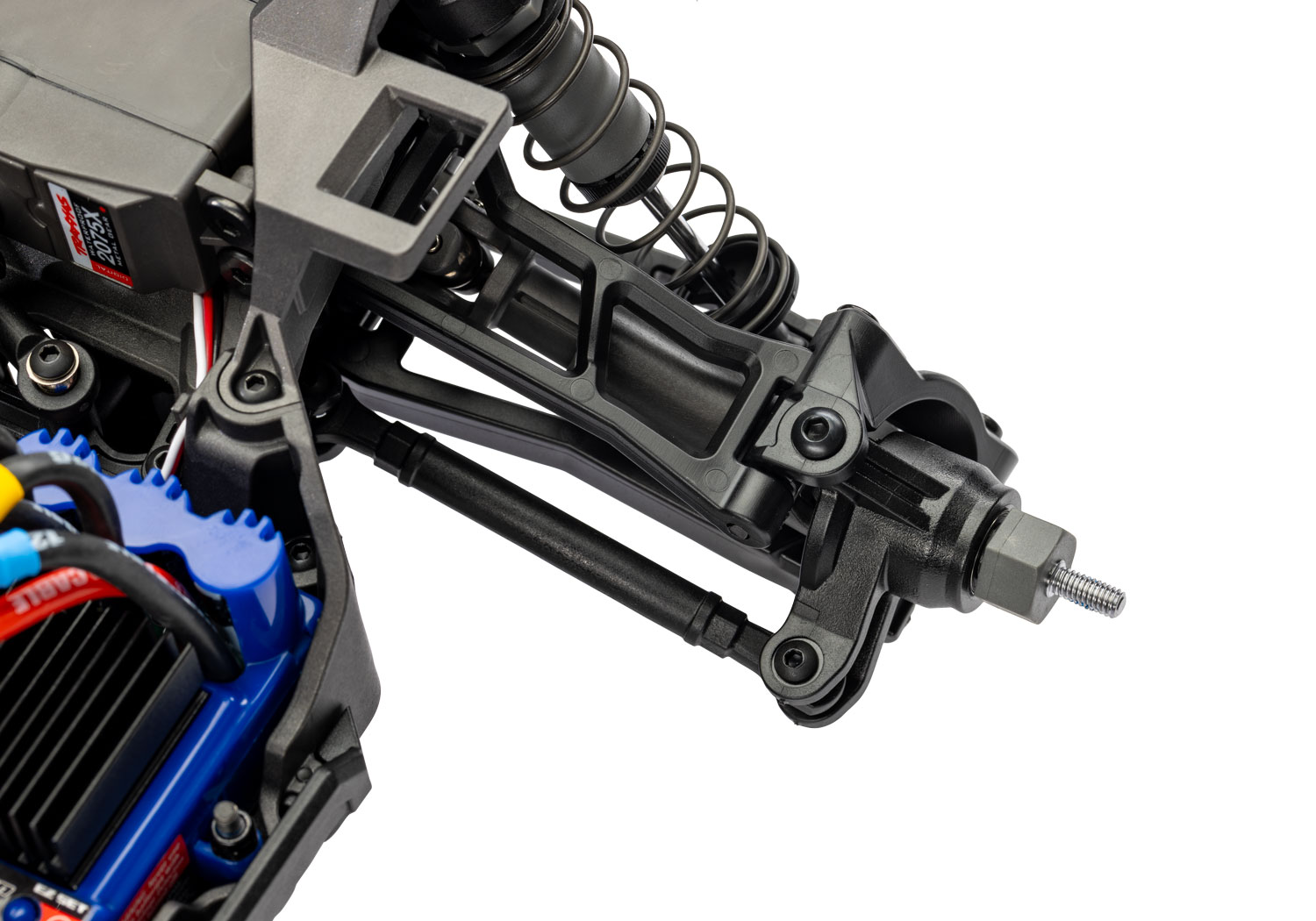

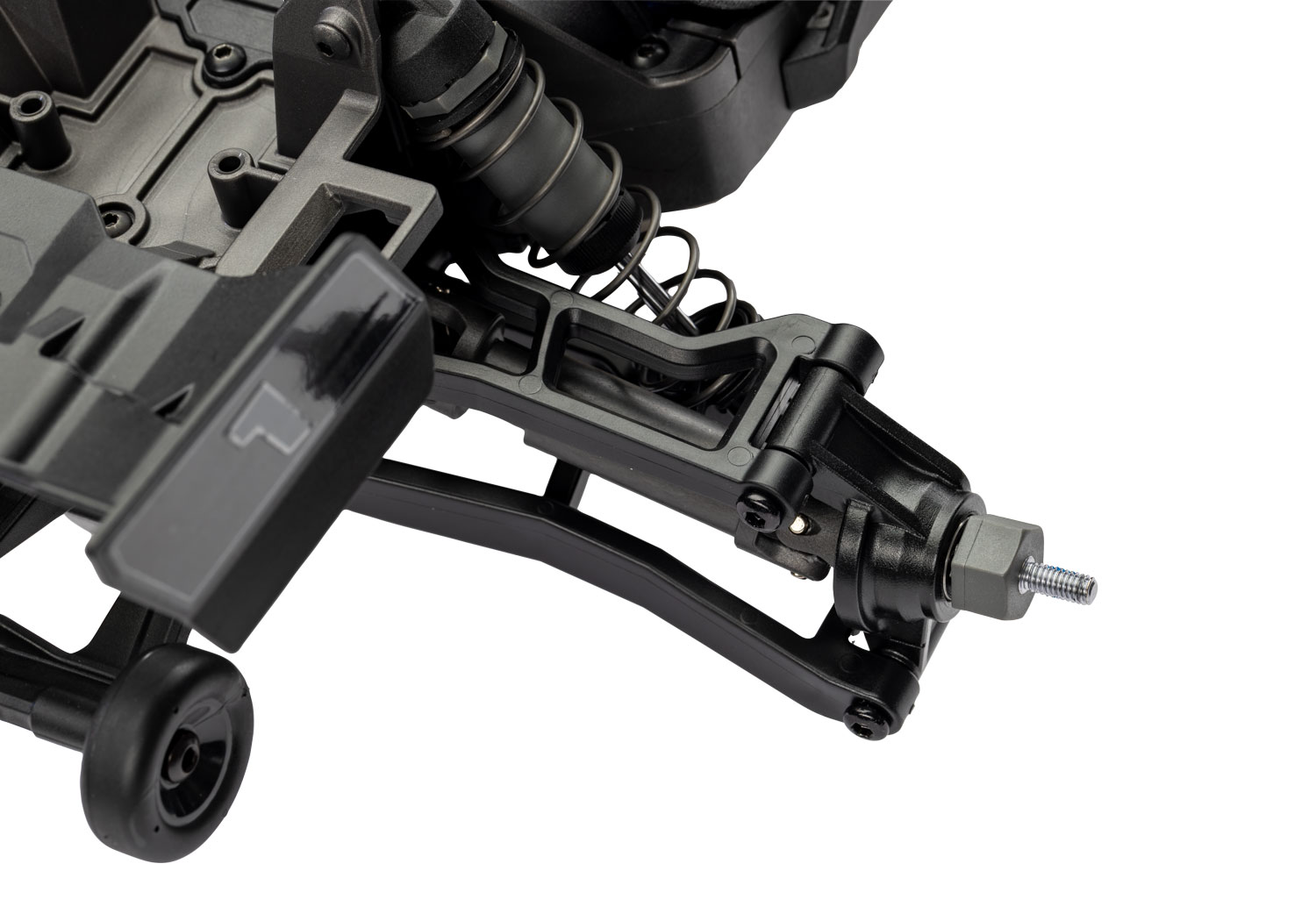

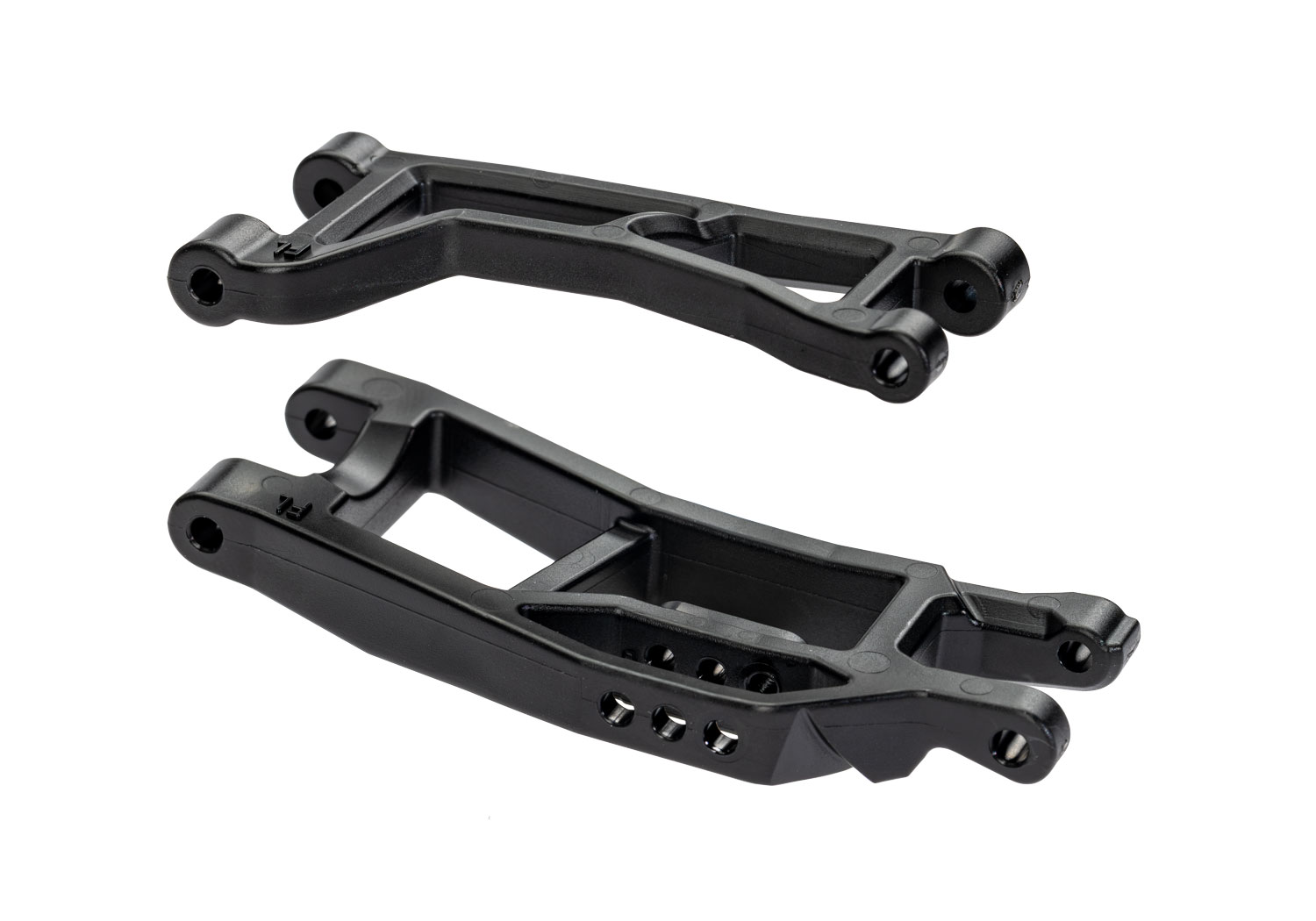

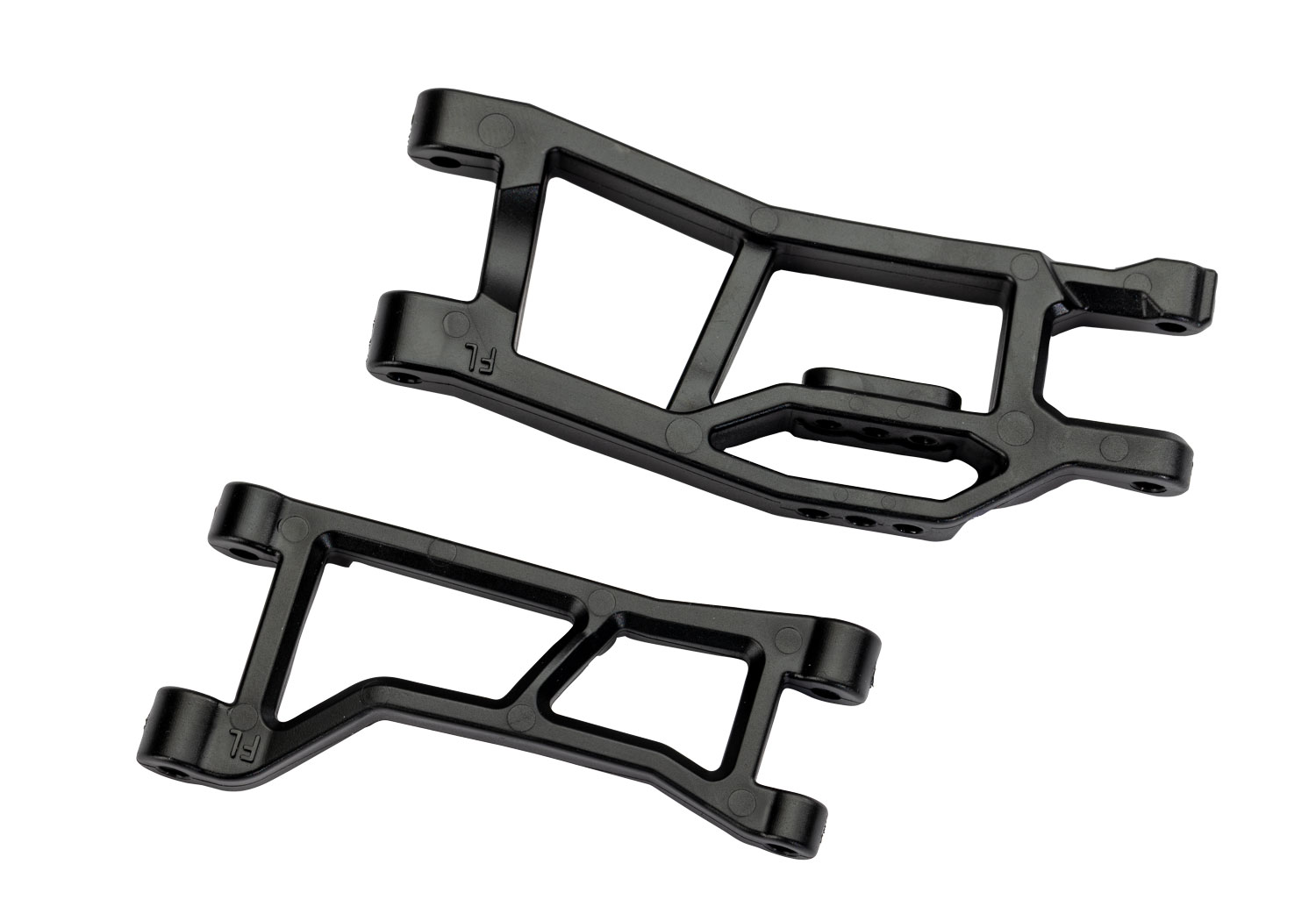

- Heavy-duty, double-shear suspension arms
- Dual-wishbone design
- Extra tough outer suspension components
Suspension

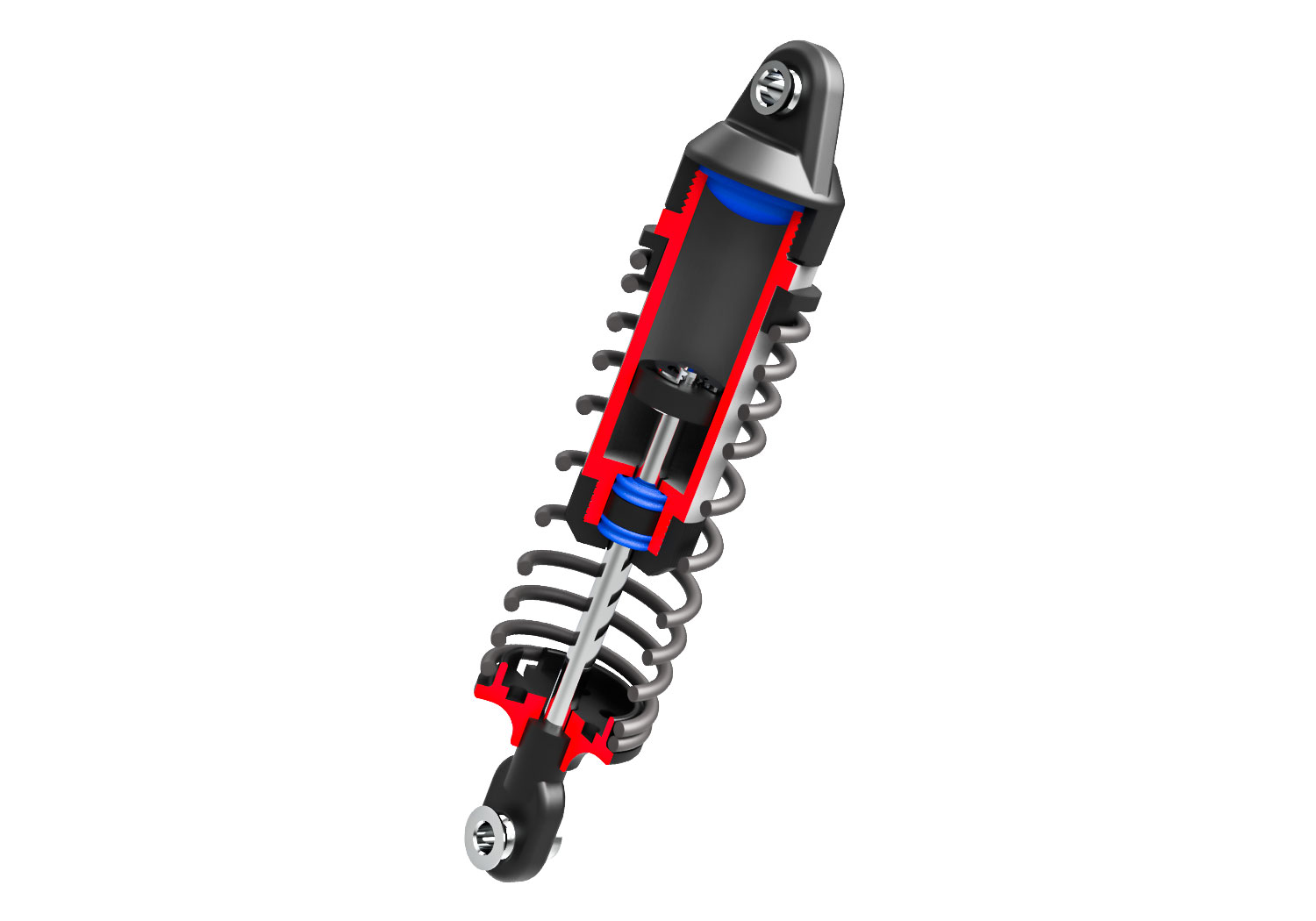

- 1/10 scale shocks
- Large oil capacity
- Easy to tune
Oil-Filled Ultra Shocks™

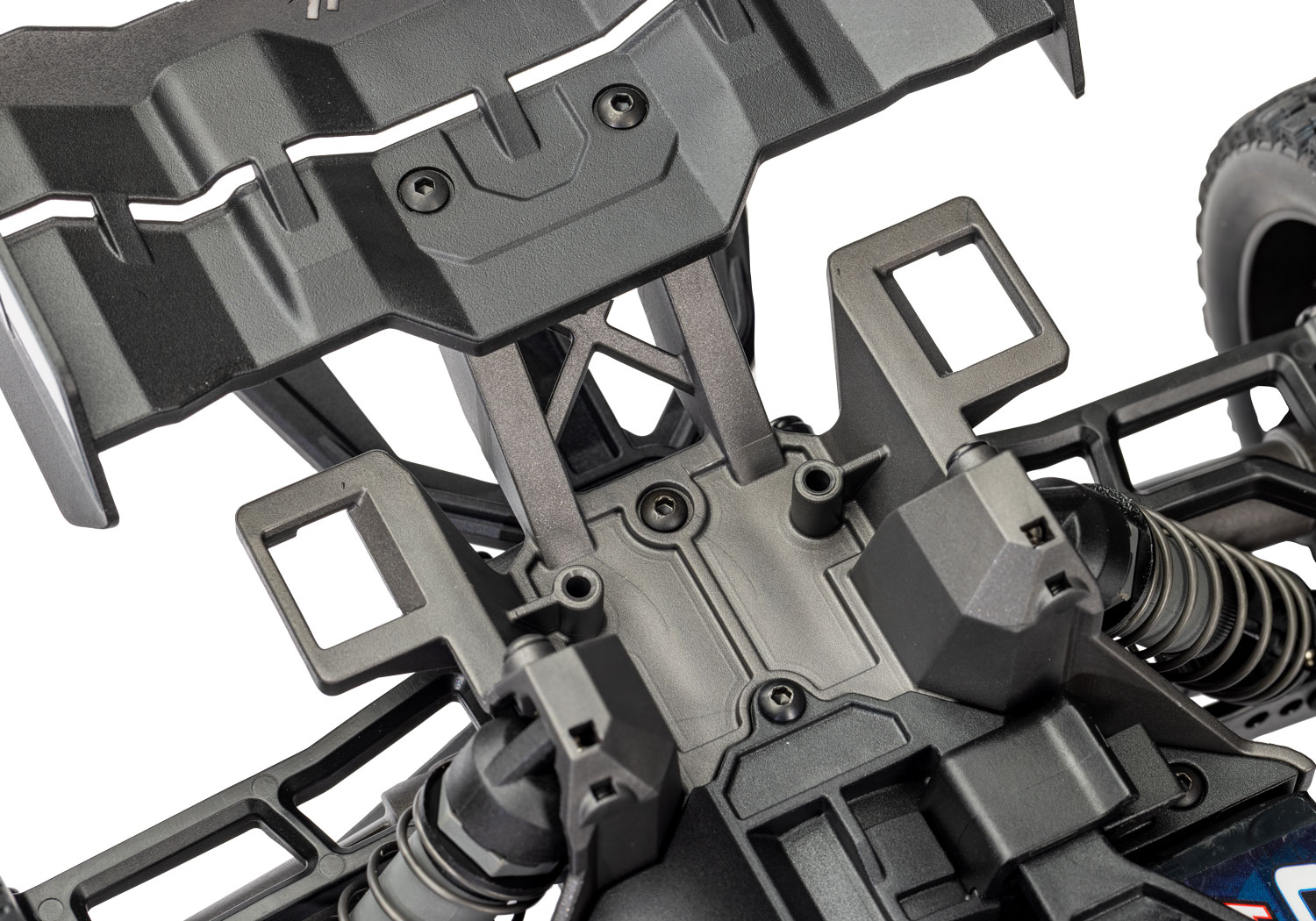

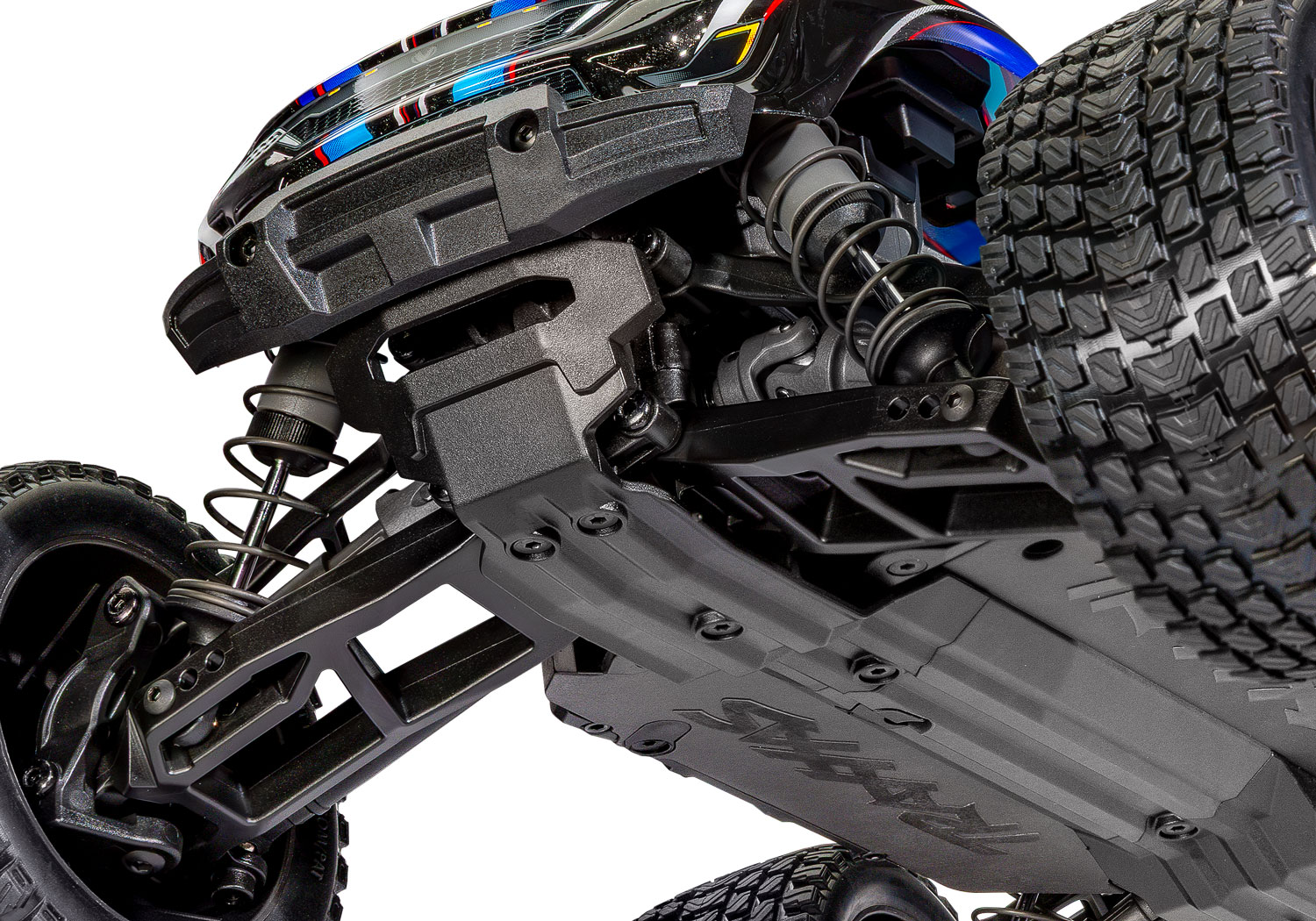

- Tough energy absorbing front bumper
- High-angle front skid plate
- Rugged interlocking skid plates
- Smooth undertray eliminates snags
- Integrated nerf bars for side impact resistance

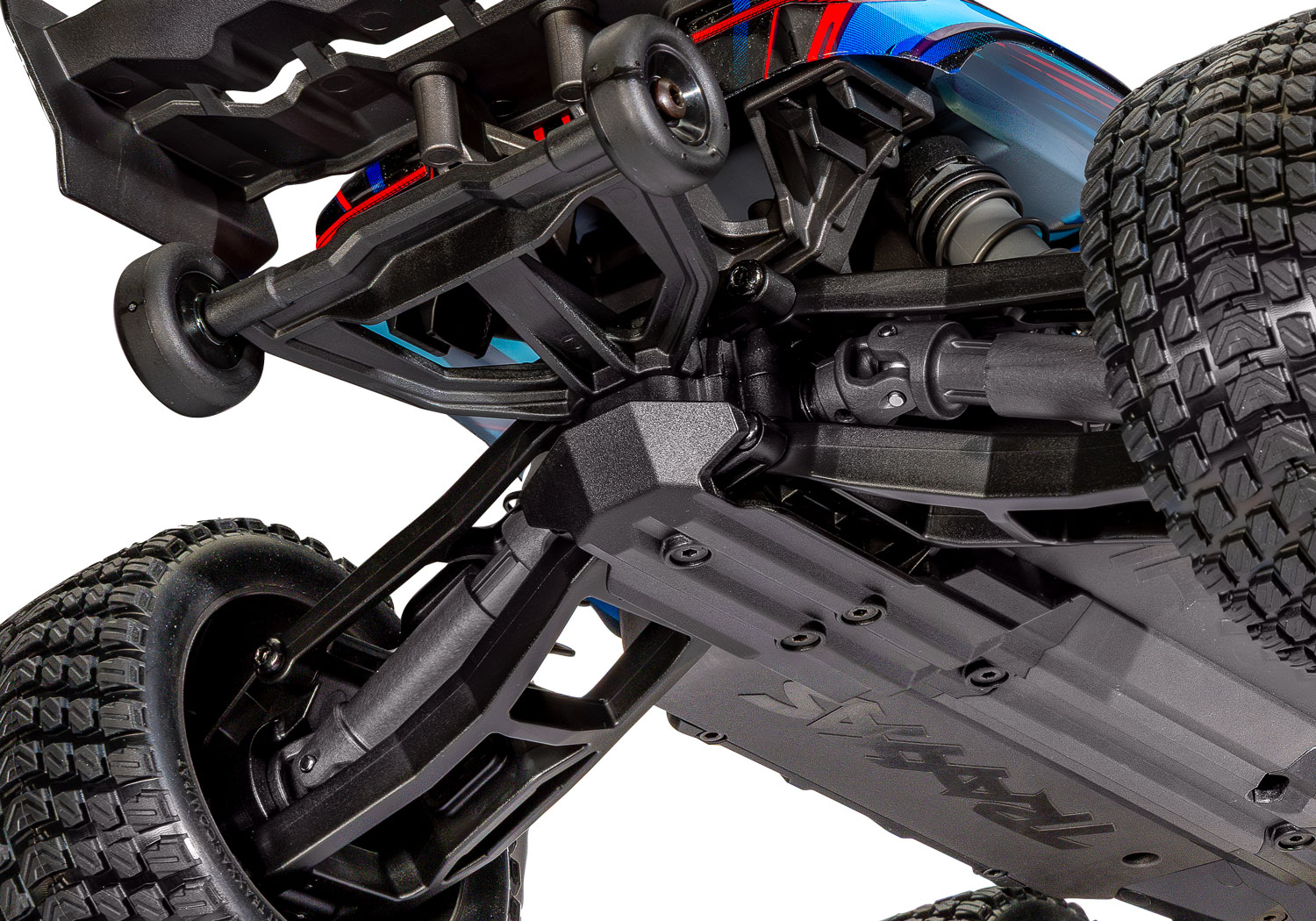

Bumpers and Skid Plates

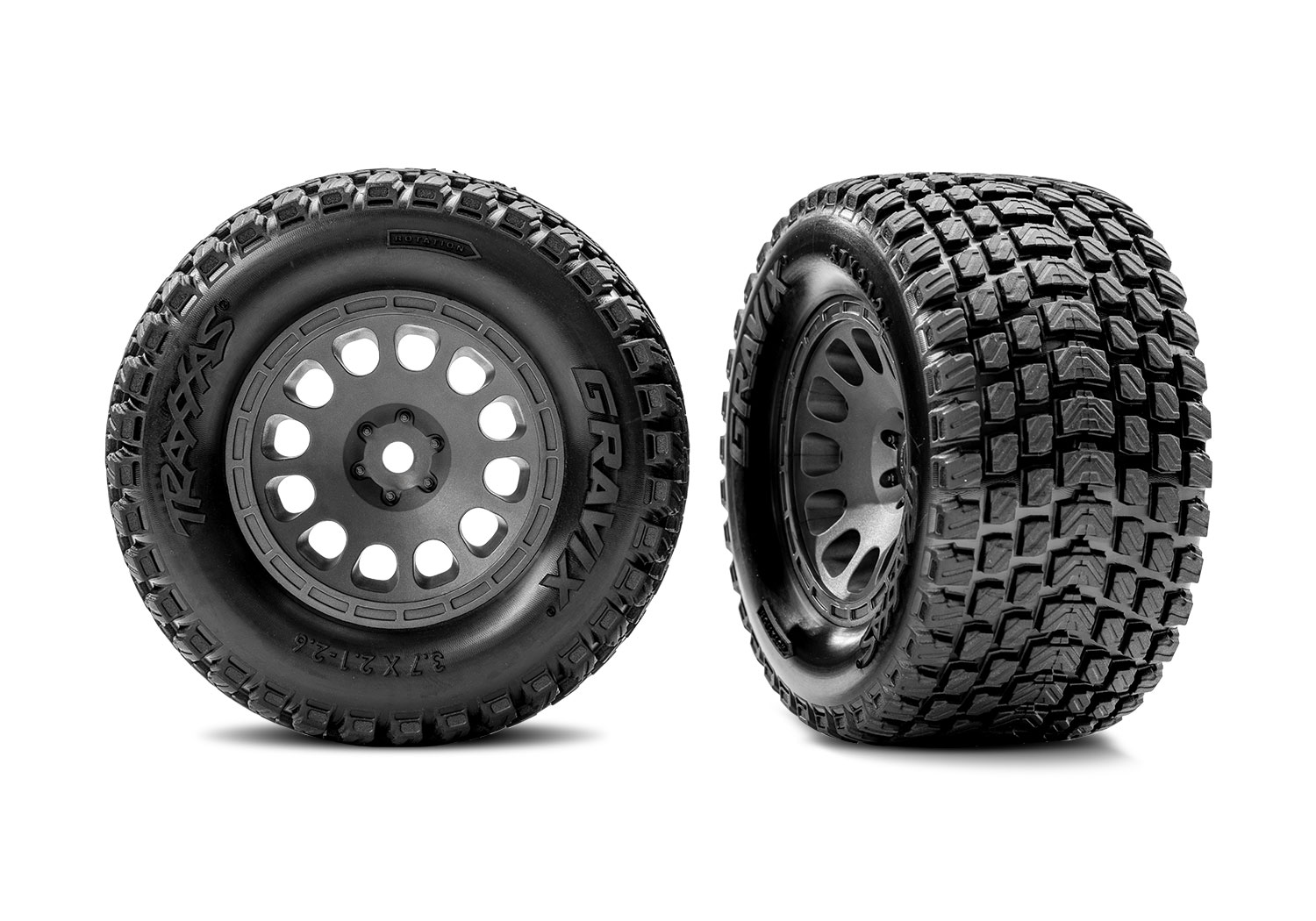

- New graphite gray mini XRT wheels
- Gravix tires with foam inserts
- Excellent traction on or off the road
- Directional tread pattern for quieter running
- Thick center carcass resists ballooning
Wheels and Tires
Hex Hardware with Rust-Resistant Black Oxide Coating
Sealed Ball Bearings
Specifications
- Length: 14.8 inches (376 mm)
- Front Track: 11 inches (279 mm)
- Rear Track: 11 inches (279 mm)
- Ground Clearance: 1.06 inches (27 mm)
- Weight: 3.99 pounds (1.81 kg)
- Height: 5 inches (127 mm)
- Wheelbase: 8.66 inches (220 mm)
- Shock Length: 3.45 inches (88 mm)
- Tire Diameter: 3.7 inches (94 mm)
- Wheel Diameter: 2.1″ (53 mm) outer, 2.6″ (66 mm) inner
- Speed Control: VXL-3s brushless ESC
- Motor (electric): Velineon 3500 (3500 Kv)
- Transmission: Direct-drive with center differential
- Overall Drive Ratio: 7.36:1
- Differential Type: Planetary, steel gear
- Gear Pitch: 32
- Chassis Structure/Material: Composite modular tub
- Brake Type: Electronic
- Drive System: Shaft-driven 4WD
- Steering: Double-shear bellcrank
- Wheels & Tires: Black dual-profile XRT wheels with pre-glued 4″ Gravix tires
- Radio System: TQi 2.4 GHz high output(2-channel) w/ TSM
- Servo: Waterproof high-torque, metal-gear 2075X
- Top Speed: 55+ mph
- Skill Level: 1
- Battery Tray: 113 mm L x 41 mm W x 22 mm H
- Required Batteries: 4 “AA” (transmitter)
- Differential Type: Planetary, steel gear
- Gear Pitch: 32
- Chassis Structure/Material: Composite modular tub
- Brake Type: Electronic
- Drive System: Shaft-driven 4WD
- Steering: Double-shear bellcrank
- Wheels & Tires: Black dual-profile XRT wheels with pre-glued 4″ Gravix tires
- Radio System: TQi 2.4 GHz high output(2-channel) w/ TSM
- Servo: Waterproof high-torque, metal-gear 2075X
- Top Speed: 55+ mph
- Skill Level: 1
- Battery Tray: 113 mm L x 41 mm W x 22 mm H
- Required Batteries: 4 “AA” (transmitter)
Vehicle
- Type: Velineon 3500 Kv sensorless brushless
- Weight: 9.24 ounces (262 g)
- Length: 3.03 inches (77 mm)
- Diameter: 1.41 inches (36 mm)
- Connector Type: 3.5 mm bullet
Motor
- Input Voltage (cells): 7.4 – 11.1 volts, 2s–3s LiPo
- Case Size: 2.19″ (56 mm) x 1.54″ (39 mm) x 1.3″ (33 mm)
- Weight: 3.84 ounces (109 g)
- BEC Voltage: 6.0 volts
- Reverse Delay: Yes, with lockout
- Thermal Protection: Two-stage thermal shutdown
- Ports: Auxiliary fan
ESC
Image Gallery
×
![]()
Overview
The Mini XRT is a remarkable speedster featuring a powerful 1/10 scale Velineon 3s brushless motor in a compact design that's easy to take anywhere. It delivers incredible speeds exceeding 55 mph and impressive acceleration, supported by race-inspired engineering and unmatched durability. The Mini XRT exceeds all expectations, offering high-performance capabilities in a backpack-friendly size.
| Scale: | Speed: | Battery and Charger: |
|---|---|---|
| Mini | 55+ mph | Included |
Includes LiPo Battery and Charger
Mini XRT includes a 3500 mAh 2-cell LiPo battery for strong punch, long run times, and 40+ mph speed. The included 2-amp USB-C LiPo balance charger provides quick and reliable charging with Traxxas iD® safety and simplicity. Step up to 3s power (battery 2824X, sold separately) to unleash 55 mph speed with no gearing change required.
Modular Design
Mini XRT’s chassis tightly integrates beefy skid plates, high-strength bulkheads, triangulated shock towers, and reinforced bumpers to absorb and dissipate impact energy without breakage or damaging flex. It also allows quick access to critical components for easy maintenance and repairs.
1/10 Scale 4X4 Driveline
Mini XRT’s shaft-driven 4X4 driveline is as rugged as it is efficient. With driveshafts and differentials originally designed for Traxxas’ toughest 1/10 scale trucks, Mini XRT delivers 3s brushless power and unstoppable traction to all four corners. A center differential absorbs driveline shocks and allows fine tuning for different surfaces.
Full-Size Metal-Gear Servo
Mini XRT uses the same high-performance 2075X metal-gear servo found in full-size 1/10 scale Traxxas trucks. The 2075X delivers digital precision and metal-gear durability along with 125 oz-in of tire-wrenching torque. With so much power on hand, Mini XRT muscles through the thickest grass, sand, and mud without missing a beat.
New 3.7″ Gravix Tires
New 3.7″ versions of XRT’s revolutionary Gravix® tires put maximum power to the ground for breathtaking acceleration and razor-sharp reflexes on any terrain. Their directional tread pattern runs quieter than typical off-road tires with a thick center carcass to limit ballooning at high speed.
TQi Radio System
The high-output Traxxas TQi™ 2.4 GHz radio system delivers superior range, 30-model memory, and the precise control required for a high-speed machine. Add sensors and the Traxxas Link Wireless Module, (both sold separately) to send real-time telemetry to your smart phone using the free Traxxas Link™ app.
Traxxas Stability Management
With so much hard-hitting power on tap, even the best drivers sometimes need a helping hand. Traxxas Stability Management® (TSM) is there when you need it to help harness Mini XRT’s brutal 3s power for all-out acceleration and control. TSM lets you adjust the amount of assistance from off to 100% right from your transmitter.
Extreme 1/10 Scale Brushless Power
The Velineon VXL-3s brushless power system is the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. For the first time ever, this extreme 11.1-volt powerplant now comes installed in a compact platform. The result is astonishing acceleration, 55+ mph speed, and wheel-standing power at any rpm.
Waterproof Electronics
Traxxas, the innovator and leader in waterproof solutions, designed Mini XRT to deliver the same go-anywhere driving freedom as its full-size counterpart. Reliable waterproof construction extends your playground into water, snow, and mud for unlimited fun, regardless of the weather.
Clipless Convenience
Mini XRT’s innovative clipless body is rock solid and easy to use. Just drop the body onto the chassis and snap it into place for a secure hold. When it’s time to change the battery, depress the tabs under the wheel wells and lift to access the chassis. Nothing else is faster or latches more securely.
Optional High-Output Off-Road LED Light Kit
Take Mini XRT to the next level with the optional high-output off-road LED light kit (part 10785, sold separately). The light kit includes new bumpers with LED lights and a new roof skid plate with white LED lights in the front and red in the rear. A regulated 3-volt power supply provides consistent, flicker-free performance from beginning to end.
Features
1/10 Scale VXL-3s Brushless Power
The Velineon VXL-3s brushless power system is the heart of Traxxas’ fastest and most powerful 1/10 scale vehicles. For the first time ever, this extreme 11.1-volt powerplant now comes installed in a compact platform. The result is astonishing acceleration, 55+ mph speed, and wheel-standing power at any rpm.
1/10 Scale 4X4 Driveline
Adding 3s Velineon power to a compact platform requires bold engineering. Mini XRT comes outfitted with the proven driveline components of Traxxas’ toughest 1/10 scale 4X4 trucks. Front, center, and rear steel-gear differentials, along with 32-pitch gearing and HD driveshafts, far exceed requirements for strength and long life.
Maxx Chassis Technology
Mini XRT is the newest truck to use the revolutionary chassis design pioneered in Mini Maxx®. Perfectly sized to fit into a backpack, Mini XRT transforms full-scale performance and durability into a supremely compact chassis. Just one look at the rigid, unified structure and you know it’s built Maxx tough.
WideMaxx Suspension
Mini XRT relies on proven WideMaxx® suspension design to deliver sure-footed grip and laser-focused handling. Mini XRT sits low and wide for hard cornering and maximum stability at speed. The long-travel suspension delivers refined damping control to maintain composure over the roughest terrain.
40+ mph with included 2-cell LiPo Battery. 55+ mph with optional 3-Cell LiPo Battery (sold separately)
- Quick and easy installation and removal
- Nerf bar channels for side body support
- Reinforced for extra protection against tearing
- Functional rear wing
Clipless Body Mount System
- Three programmable drive profiles
- Sport Mode - forward / brake / reverse
- Race Mode - forward / brake
- Training Mode™ - 50% forward / brake / 50% reverse
- Heat sink accepts accessory cooling fan (3340)
- Traxxas EZ-Set® one-button setup
- Built-in two-stage low-voltage detection
VXL-3s Waterproof Electronic Speed Control
- Ultra high-temperature sintered neodymium magnets
- Low-maintenance design
- Precision-balanced rotor
- Efficient high-speed ball bearings
- 3500 Kv
- Brilliant blue-anodized finish
Velineon Brushless Motor
- High-capacity 2-cell LiPo battery
- 7.4 volts
- 3500 mAh for extended run time
- 2-amp USB-C charger
- iD® technology for faster, safer charging
Battery and Charger Included
- Programmable multi-function knob
- Adjustable steering and throttle percentage (dual rates)
- Adjustable steering and throttle sensitivity (exponential)
- Adjustable steering and throttle end points
- 5-channel micro receiver (6533) with fail-safe security
- Patented waterproof receiver box with easy-access plug
TQi 2.4 GHz High Output 2-Channel Radio System
- Improves straight line acceleration and braking on low-traction surfaces
- Maintains steering composure to allow throttle-on powerslides
- Never dulls throttle or slows the truck
- Adjusts from off to 100% assistance from the transmitter
Traxxas Stability Management (TSM)
- Full-time shaft-driven 4-wheel drive
- 1/10 scale extreme-duty telescoping driveshafts
- Direct-drive (no transmission)
- Sealed center differential
- Large 32-pitch gears
- Sealed planetary steel-gear differentials (F&R)
- Fixed gear mesh system
1/10 Scale 4X4 Drivetrain
- Modular chassis with interlocking front and rear bulkheads
- Absorbs and distributes impact energy
- Easy to service and access components
- Driveline is sealed in the chassis to keep out dirt
Modular Composite Chassis
- Battery is protected deep in the chassis
- Battery hold-down pivots for easy access
- More secure than conventional retention systems
Easy Battery Access
- 1/10 scale 2075X waterproof high-torque, metal-gear servo
- Heavy-duty double-shear bellcranks
- Cam-operated servo saver
Steering
- Heavy-duty, double-shear suspension arms
- Dual-wishbone design
- Extra tough outer suspension components
Suspension
- 1/10 scale shocks
- Large oil capacity
- Easy to tune
Oil-Filled Ultra Shocks™
- Tough energy absorbing front bumper

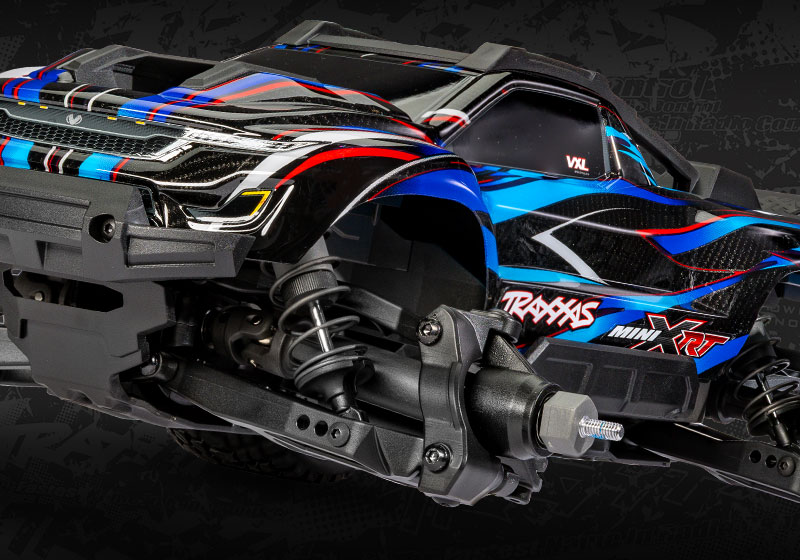

- High-angle front skid plate
- Rugged interlocking skid plates
- Smooth undertray eliminates snags
- Integrated nerf bars for side impact resistance
Bumpers and Skid Plates
- New graphite gray mini XRT wheels
- Gravix tires with foam inserts
- Excellent traction on or off the road
- Directional tread pattern for quieter running
- Thick center carcass resists ballooning
Wheels and Tires
Hex Hardware with Rust-Resistant Black Oxide Coating
Sealed Ball Bearings
Specifications
- Length: 14.8 inches (376 mm)
- Front Track: 11 inches (279 mm)
- Rear Track: 11 inches (279 mm)
- Ground Clearance: 1.06 inches (27 mm)
- Weight: 3.99 pounds (1.81 kg)
- Height: 5 inches (127 mm)
- Wheelbase: 8.66 inches (220 mm)
- Shock Length: 3.45 inches (88 mm)
- Tire Diameter: 3.7 inches (94 mm)
- Wheel Diameter: 2.1″ (53 mm) outer, 2.6″ (66 mm) inner
- Speed Control: VXL-3s brushless ESC
- Motor (electric): Velineon 3500 (3500 Kv)
- Transmission: Direct-drive with center differential
- Overall Drive Ratio: 7.36:1
- Differential Type: Planetary, steel gear
- Gear Pitch: 32
- Chassis Structure/Material: Composite modular tub
- Brake Type: Electronic
- Drive System: Shaft-driven 4WD
- Steering: Double-shear bellcrank
- Wheels & Tires: Black dual-profile XRT wheels with pre-glued 4″ Gravix tires
- Radio System: TQi 2.4 GHz high output(2-channel) w/ TSM
- Servo: Waterproof high-torque, metal-gear 2075X
- Top Speed: 55+ mph
- Skill Level: 1
- Battery Tray: 113 mm L x 41 mm W x 22 mm H
- Required Batteries: 4 “AA” (transmitter)
- Differential Type: Planetary, steel gear
- Gear Pitch: 32
- Chassis Structure/Material: Composite modular tub
- Brake Type: Electronic
- Drive System: Shaft-driven 4WD
- Steering: Double-shear bellcrank
- Wheels & Tires: Black dual-profile XRT wheels with pre-glued 4″ Gravix tires
- Radio System: TQi 2.4 GHz high output(2-channel) w/ TSM
- Servo: Waterproof high-torque, metal-gear 2075X
- Top Speed: 55+ mph
- Skill Level: 1
- Battery Tray: 113 mm L x 41 mm W x 22 mm H
- Required Batteries: 4 “AA” (transmitter)
Vehicle
- Type: Velineon 3500 Kv sensorless brushless
- Weight: 9.24 ounces (262 g)
- Length: 3.03 inches (77 mm)
- Diameter: 1.41 inches (36 mm)
- Connector Type: 3.5 mm bullet
Motor
- Input Voltage (cells): 7.4 – 11.1 volts, 2s–3s LiPo
- Case Size: 2.19″ (56 mm) x 1.54″ (39 mm) x 1.3″ (33 mm)
- Weight: 3.84 ounces (109 g)
- BEC Voltage: 6.0 volts
- Reverse Delay: Yes, with lockout
- Thermal Protection: Two-stage thermal shutdown
- Ports: Auxiliary fan
ESC
Image Gallery
×
![]()
