1/24 Big Bore Scaler Shocks 50mm for Axial SCX24, AX24 (4) (PRO639100)
1/24 Big Bore Scaler Shocks 50mm for Axial SCX24, AX24 (4) (PRO639100)

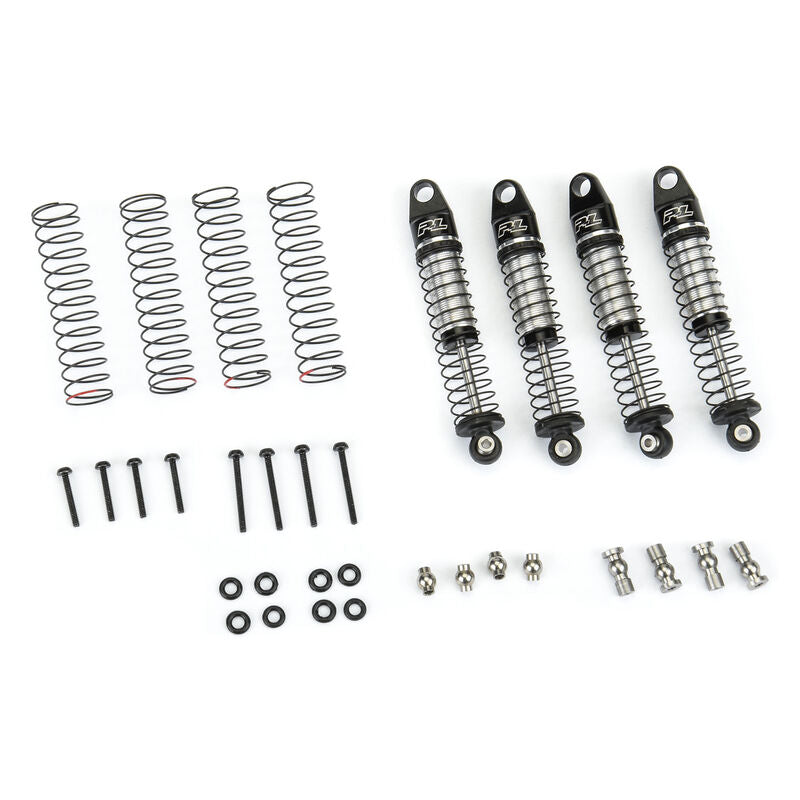

These 1/24 Big Bore Scaler Shocks, 50mm long, comprise a four-shock set designed for Axial AX24 and SCX24 crawlers. They upgrade the stock suspension with a larger 5mm bore for extra oil capacity and smoother, more controlled damping. The shocks feature CNC-machined aluminum shock caps, bodies, and bottom caps, a polished steel shaft, and a leak-free double O-ring seal, with mounting hardware included for direct AX24 or SCX24 installation.
Two spring options are included: standard springs for stock or near-stock rigs and stiffer springs (red-painted) for heavier bodies or tuned setups. The 50mm length serves as a direct AX24 replacement and can also be used as an extended-travel option on the SCX24. To install, simply add 20wt silicone shock oil, replace the cap, and compress the shock a few times to lubricate the shaft before mounting to the chassis.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual

Collapsible content
Overview
Introducing the Big Bore Scaler Shocks, designed specifically for the Axial AX24 and SCX24 models, offering an impressive upgrade to your small-scale adventures. These shocks utilize CNC machined aluminum components including shock caps, threaded bodies, bottom caps, and polished steel shock shafts, ensuring both style and durability. The large 5mm bore creates a true performance advantage, allowing for a greater oil volume, which enhances overall shock performance.
With a length of 50mm, these long-travel shocks are a direct replacement for the AX24 and can also serve as extended-travel options for the SCX24. Each set comes pre-assembled with all necessary mounting hardware, requiring only silicone shock oil (20wt is recommended) to be added for full functionality. Simply unscrew the top cap, fill, replace the cap, and compress the shock a few times to lubricate the shaft, and you’re ready for action.
The Big Bore Scaler Shocks come with two sets of springs: a standard spring rate perfect for stock vehicles, as well as optional stiffer springs marked with red paint for heavier setups or specific tuning needs. Whether seeking enhanced performance or a stylish upgrade, these mini shocks deliver both. Don't miss your chance to own the best-performing shocks in their class.
Product Code: PRO639100 | Big Bore Scaler Shocks 50mm (4) for SCX24 and AX24.
Features
- Ultimate performance shocks for AX24 and SCX24 models
- CNC machined aluminum shock caps, bodies, and bottom caps
- True Big Bore design holds more oil for enhanced performance
- Pre-assembled for convenience; just add oil (20wt oil recommended)
- Leak-free double O-ring seal for smooth operation
- Polished steel shock shaft for added durability
- Includes optional stiffer springs, ideal for heavier bodies
- All necessary hardware included for easy mounting on AX24 or SCX24
- Extended length: 50mm (eye-to-eye)
- Collapsed length: 35.25mm (eye-to-eye)
- Stroke length: 14.75mm
- Included spring length: 36mm
Needed to Complete
- Silicone shock oil (20wt recommended)
Specifications
- Product Code: PRO639100
- Compatibility: AX24, SCX24
- Extended Length: 50mm (eye-to-eye)
- Collapsed Length: 35.25mm (eye-to-eye)
- Stroke: 14.75mm
- Spring Length: 36mm
- Material: CNC machined aluminum and polished steel
- Recommended Oil: 20wt silicone shock oil
- Included Components: Set of 4 shocks, mounting hardware, 2 sets of springs
-
