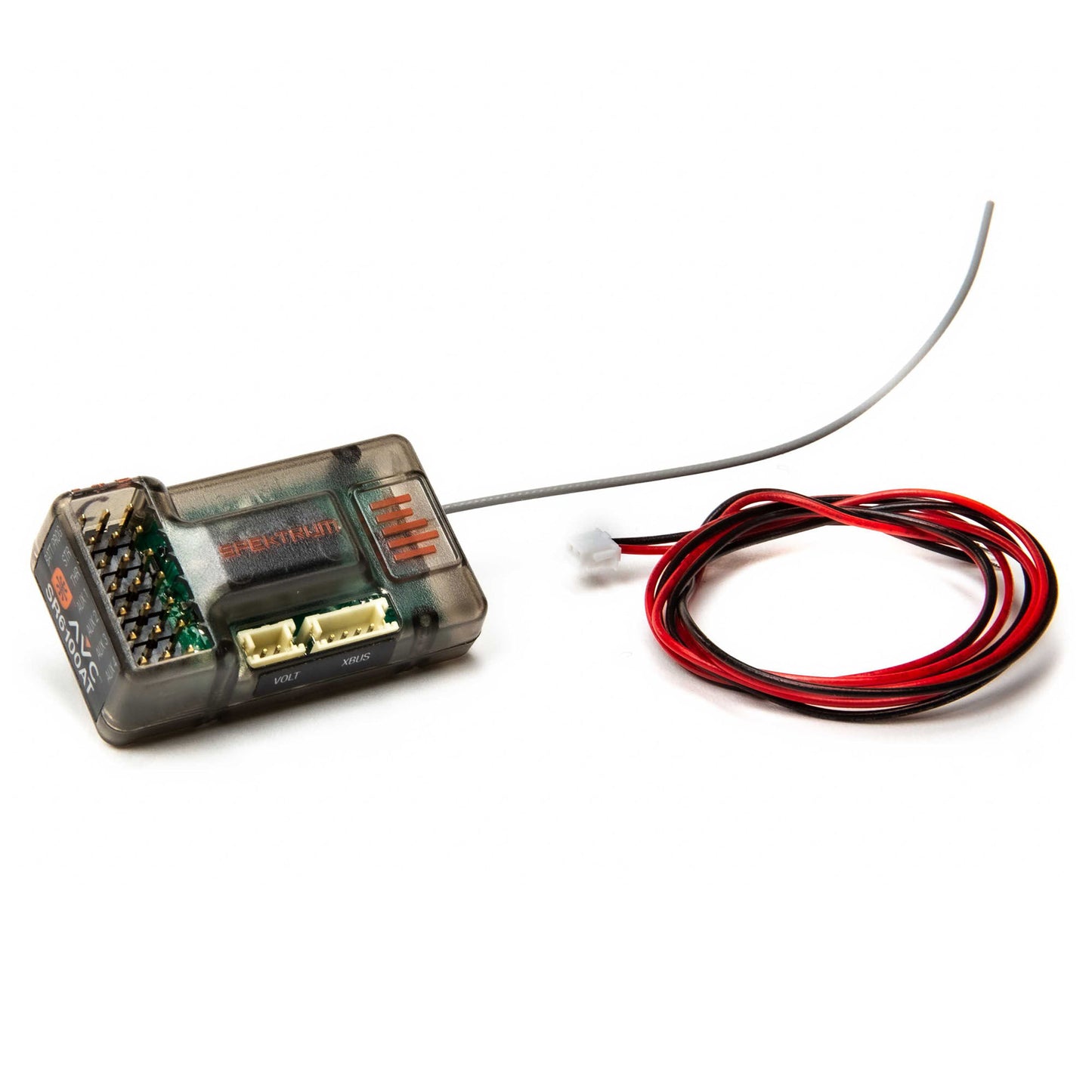

SR6100AT 6-Channel Receiver with AVC and Telemetry (SPMSR6100AT)

The Spektrum SR6100AT 6-channel receiver is engineered for unmatched range and response, utilizing frequency-agile DSMR technology to maintain superior performance even in crowded 2.4GHz environments. This advanced receiver features Spektrum’s patented AVC (Active Vehicle Control) technology, delivering up to 180 real-time adjustments per second to steering and throttle for unparalleled stability. Whether you’re driving on slick surfaces or tackling challenging terrain, AVC actively senses your control inputs and vehicle direction, providing enhanced handling and control.

Equipped with Smart Throttle in its throttle port, the SR6100AT automatically detects Smart electronic speed controls (ESC) and engages Smart Throttle mode, enabling seamless telemetry data communication when paired with Spektrum Smart LiPo batteries with IC connectors. This receiver also includes two integrated telemetry ports, compatible with telemetry-capable DSMR transmitters, providing users with real-time feedback on battery and system health, essential for performance optimization. For standard ESC or servo setups, the throttle port operates like a conventional receiver, offering versatile compatibility with various RC configurations.

The SR6100AT allows any vehicle in your collection to benefit from AVC technology, simply by installing the receiver and binding it to an AVC-compatible transmitter. With advanced 3-axis gyro stabilization, AVC technology manages your vehicle’s attitude and dynamics, creating a more controlled and enjoyable driving experience. Calibration is easy; the SR6100AT automatically communicates steering and throttle endpoint settings from your transmitter to the receiver, eliminating manual calibration. Simply power on, place the vehicle on a flat surface, and let AVC’s automatic calibration initialize, allowing you to hit the track or trail in seconds.

Note: Ensure your transmitter firmware is updated to version 2.03 and receiver firmware to 2.40.11 or higher for optimal performance with the SR6100AT receiver.

• 6-channel DSMR / DSM2 receiver
• Full-range telemetry capabilities with Spektrum Firma Smart ESC
• Great for models that will benefit from AVC Technology and need additional channels for lights, shift servos, and other accessories
• Steering priority puts the driver in complete control
• Fully adjustable — set the precise amount of stability you want or turn off if desired
• Water-resistant "Realkote" coating protects electronics
• Voltage sensor data port, voltage sensor included
• Works with any RC car, truck, or buggy
• Compatible with all DSMR transmitters

• Antenna Length: 4.7" (120mm)
• Band: 2.4GHz
• Bind Method: Bind Button
• Channels: 6
• Data Port: No
• Failsafe: Yes
• Flight Log Compatible: Yes
• Input Voltage: 3.5 - 9.6V
• Modulation: DSMR
• Part Type: Electronics
• Product Height: 0.59" (15.1mm)
• Product Length: 1.7" (42.4mm)
• Product Weight: 0.35oz (10g)
• Product Width: 0.94" (23.9mm)
• Programmable: Yes
• Range: Full
• Resolution: 1024
• Rev Limiter: No
• Technology: Smart
• Telemetry: Compatible
• Water-Resistant: Yes
