Share
Spektrum (SPM)
SKU:SPMX22004S30

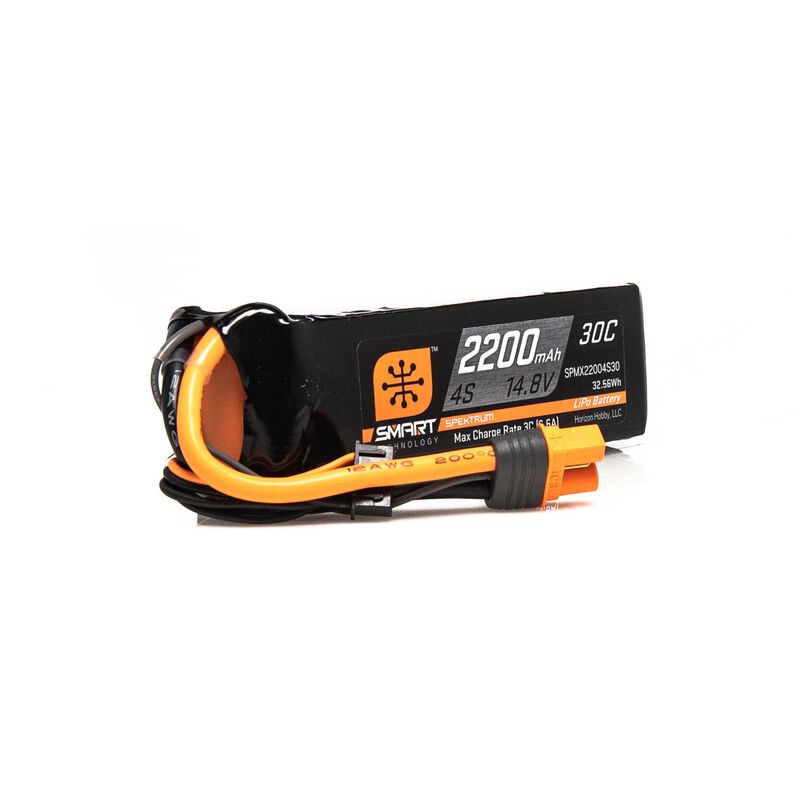

2200mAh 14.8V 30C 4S Smart LiPo Battery Pack with IC3 Plug (SPMX22004S30)
2200mAh 14.8V 30C 4S Smart LiPo Battery Pack with IC3 Plug (SPMX22004S30)

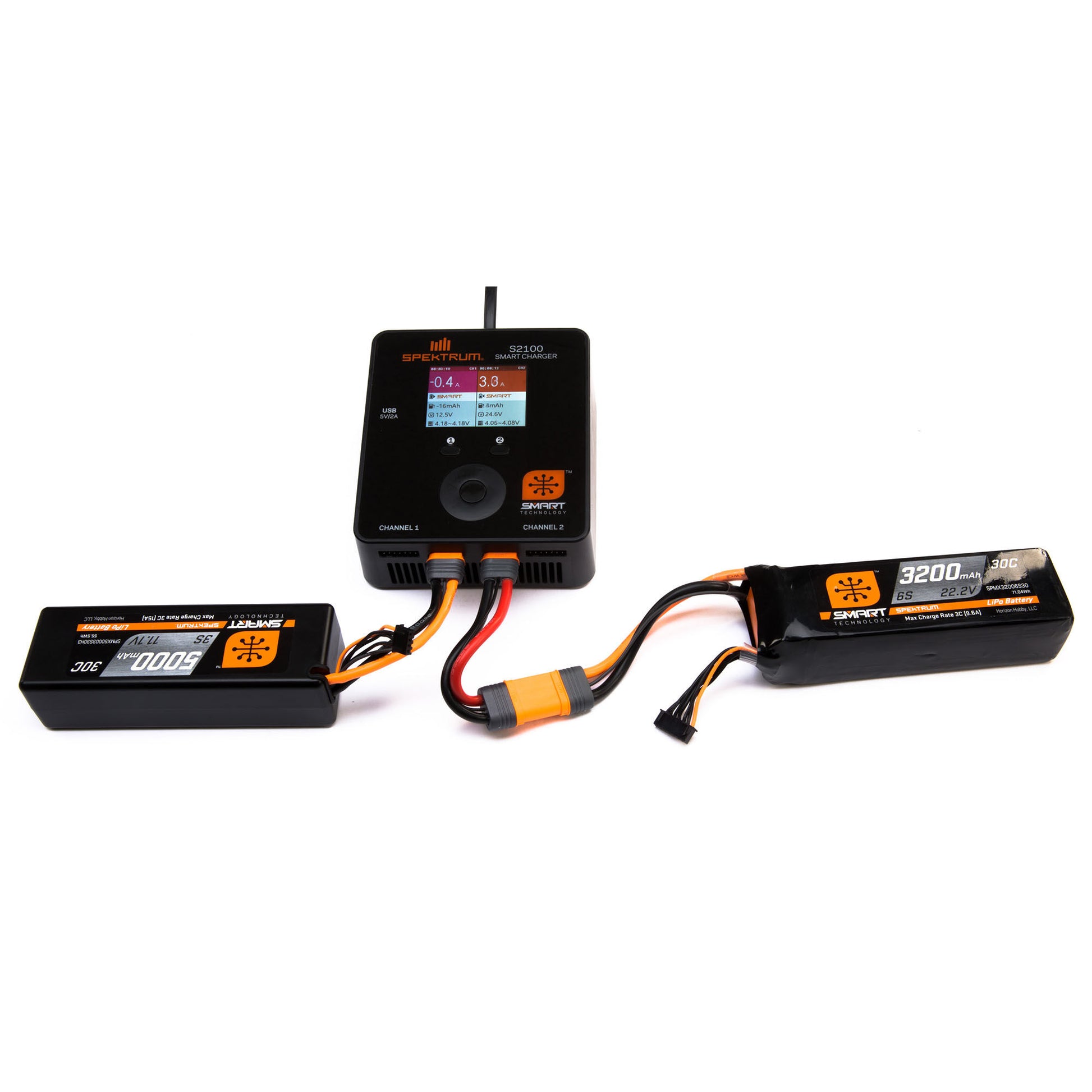

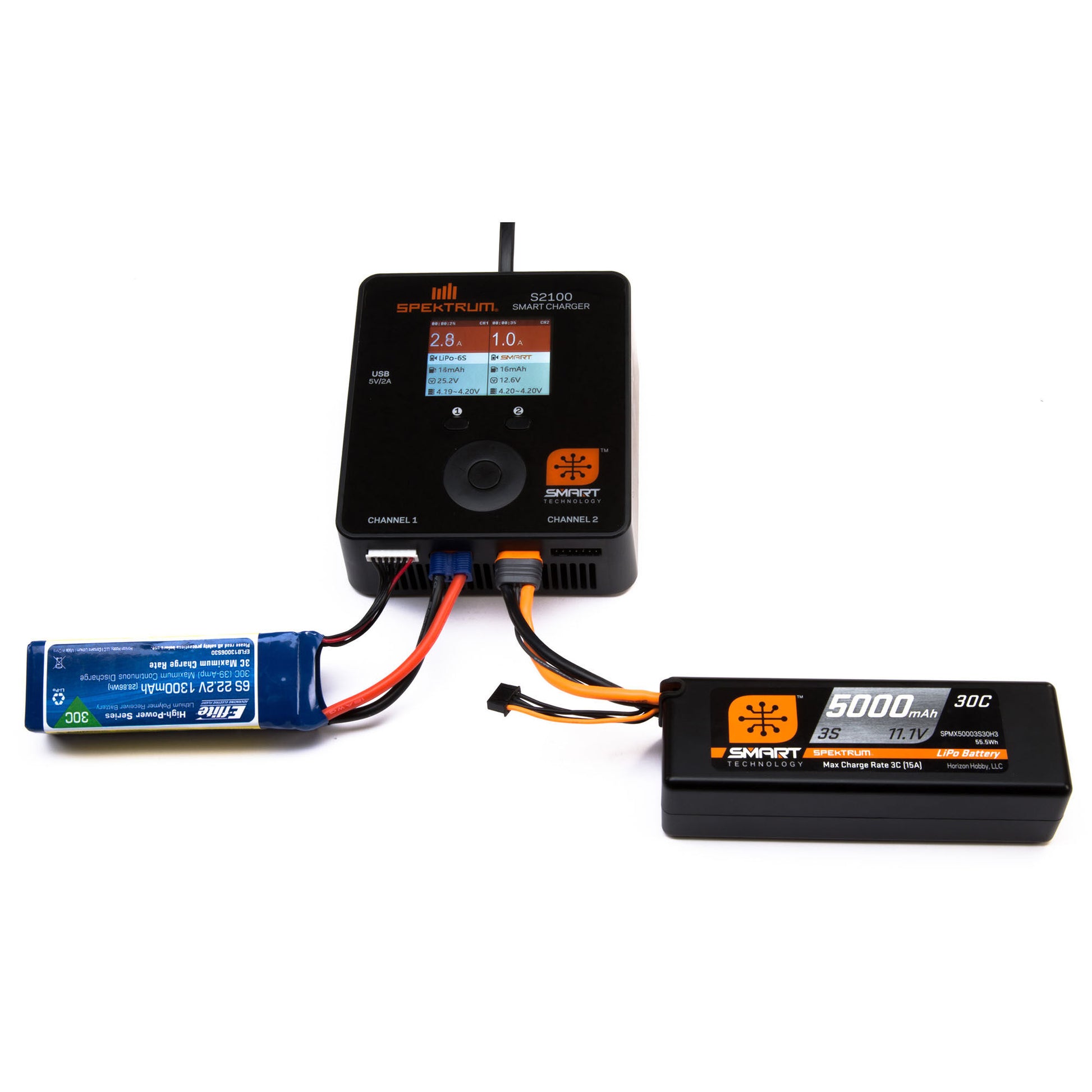

Powerful and compact, this 14.8V 4S 2200mAh Smart LiPo battery with an IC3 connector is designed for RC models that demand dependable power. When used with a Spektrum Smart charger, its built‑in memory communicates charging and storage preferences automatically, so a single press of Start handles the setup and the charge.
The integrated microchip stores key data such as chemistry, cell count, capacity, charging cycles, temperature, and internal resistance, along with logs of events like over‑charge or over‑temperature. This data helps you plan for field or track sessions and helps maximize battery life. The IC3/IC5 connector family provides a solid, heat‑resistant connection and remains backward compatible with EC3/EC5 systems, making it easy to integrate with existing gear. Smart Discharge automatically brings the pack to a safe storage voltage after a user‑selected idle period, preserving cell chemistry and extending performance over time.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual

Collapsible content
Overview
The 14.8V 2200mAh 4S 30C Smart LiPo Battery with IC3 connector is a cutting-edge power solution designed for high-performance applications, particularly in air-based models. This battery utilizes smart technology to provide an enhanced user experience and longevity.
Equipped with Spektrum Smart Technology, this battery simplifies the charging and maintenance processes. An integrated microchip stores unique parameters and health data for each battery, ensuring users can easily manage their power sources with minimal hassle. This technology enables users to set preferred charge rates and self-discharge options, allowing for efficient and convenient charging with just the press of a button on a compatible Spektrum Smart charger.
This Smart LiPo battery is designed for versatility, featuring new IC3 and IC5 connectors that are compatible with traditional EC3 and EC5 connectors. Therefore, it can be easily integrated into existing systems while providing upgraded features and performance.
Smart Discharge functionality is also included, automatically discharging to a safe voltage after a specified period. This important feature extends the battery's life by preventing it from remaining fully charged for too long, which can harm lithium polymer cells.
With a capacity of 2200mAh, a discharge rate of 30C, and dimensions of 4.3 inches in length, 1.3 inches in width, and 1.2 inches in height, this battery is a powerful and efficient choice for your modeling needs. Whether you are a seasoned professional or a newcomer to the hobby, the 14.8V 2200mAh 4S 30C Smart LiPo Battery provides exceptional performance and reliability.
Features
- Spektrum Smart Technology simplifies charging and maintenance
- Integrated microchip stores unique parameters for each battery

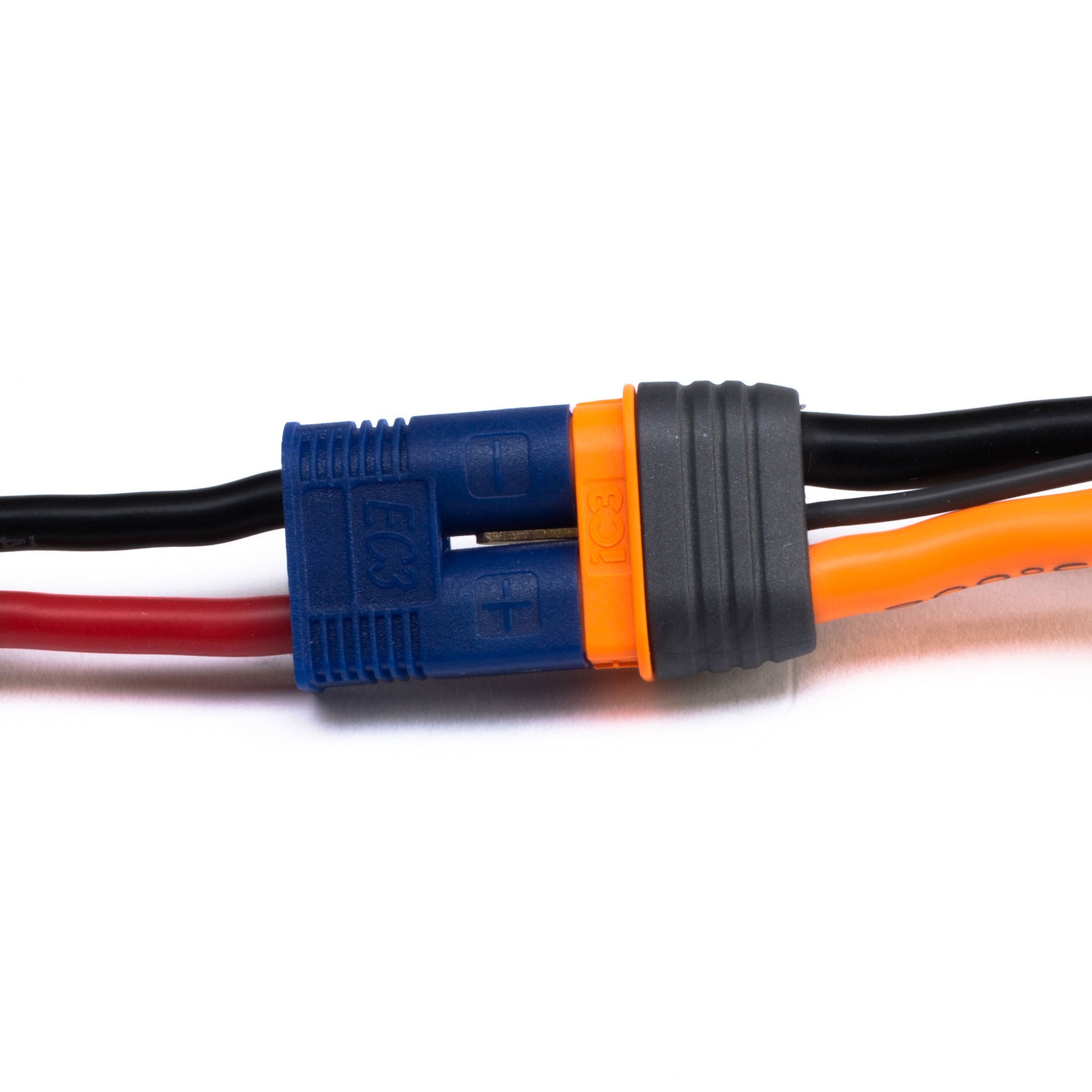

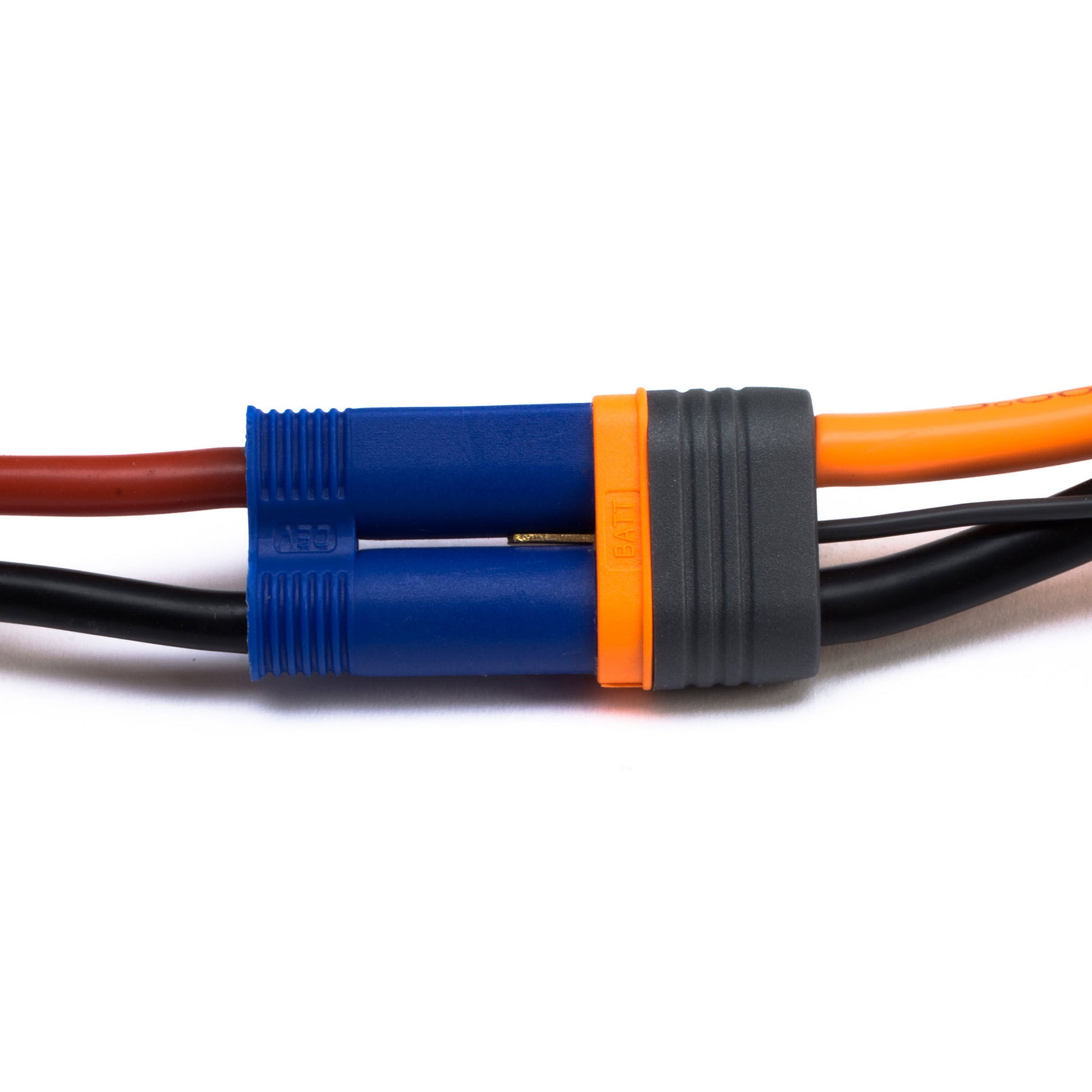

- Compatible with IC3 and IC5 connectors, backwards compatible with EC3 and EC5
- Improves battery life and saves time and hassle
- Smart Discharge feature automatically discharges to a safe voltage
- Capacity: 2200mAh
- Voltage: 14.8V
- Discharge Rate: 30C
- Number of Cells: 4 (4S)
- Dimensions: 4.3 in (110mm) length, 1.3 in (34mm) width, 1.2 in (30mm) height
- Weight: 200g to 299g
- Battery Type: LiPo (3.7V per cell)
- Smart Technology: G1 Technology
- Auto Storage feature included
- Material: Soft Case
- Application: Air
Needed to Complete
- Spektrum Smart Charger
Specifications
- Battery Voltage: 14.8V
- Capacity: 2200mAh
- Number of Cells: 4
- Discharge Rate: 30C
- Maximum Continuous Discharge Rate: 30C
- Product Length: 4.3 in (110mm)
- Product Width: 1.3 in (34mm)
- Product Height: 1.2 in (30mm)
- Product Weight: 200g to 299g
- Battery Type: LiPo (3.7V per cell)
- Connector Type: IC3
- Technology: Smart
- Auto Storage: Yes
- Material: Soft Case
- Application: Air
- Smart Technology: G1 Technology
-
