Tamiya (TAM)
SKU:TAM58721A

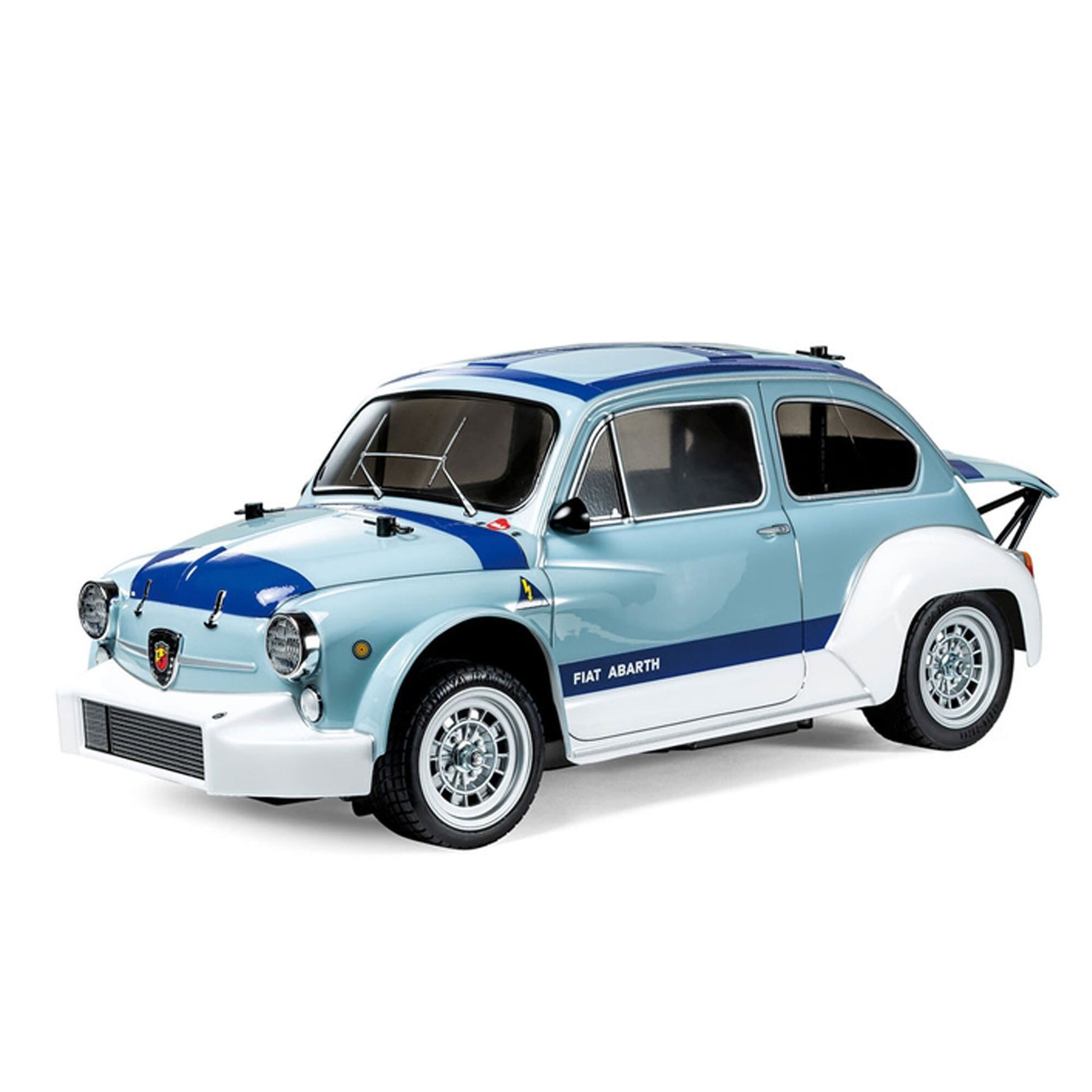

1/10 Fiat Abarth 1000 TCR Berlina Corse MB-01 2WD Touring Kit (TAM58721A)
1/10 Fiat Abarth 1000 TCR Berlina Corse MB-01 2WD Touring Kit (TAM58721A)
Take command of a 1/10 scale on-road touring kit built around the MB-01 chassis. This Fiat Abarth 1000 TCR Berlina Corse MB-01 2WD Touring Kit offers six setup options drawn from three wheelbase configurations and the option to run front- or rear-wheel drive, letting you tailor handling to track or street. The kit includes a faithful Fiat Abarth 1000 TCR Berlina Corse body to recreate the look of the compact racer inspired by the Fiat 600, delivering authentic styling and performance cues.
Inside, a 540-size motor and ESC are included, paired with a 5.83:1 gear ratio using a standard 29T pinion. The combination of 55mm front tires and 60mm rear tires reproduces the car’s stance and grip. The MB-01 platform uses a unitized motor mount and final gears for straightforward assembly and maintenance, while a four-wheel double wishbone suspension with a symmetrical design and dampers provides stable, predictable handling. Drive configuration can be swapped between front- and rear-wheel drive by adjusting final gears and steering linkage, and the motor position can be set for rear-drive layouts. Hop-Up Option parts for M- and TT-chassis can be added to fine-tune performance, making this kit a flexible choice for on-road racing and track days.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual

Collapsible content
Overview
Features
Needed to Complete
Specifications
-
