1/10 RC XV-02RS PRO Chassis Kit (TAM58726)
1/10 RC XV-02RS PRO Chassis Kit (TAM58726)
The XV-02RS PRO 1/10-scale on-road chassis kit is built for precise, track-ready handling. It features a carbon fiber reinforced rigid lower chassis, dedicated 3.5 mm carbon fiber damper stays, and aluminum-cylinder oil dampers tuned for on-road performance. Rolling on 18-spoke wheels with racing semi-slick tires and a front midship motor layout with identical-length front and rear long prop shafts, this kit emphasizes balanced power delivery and stable cornering.

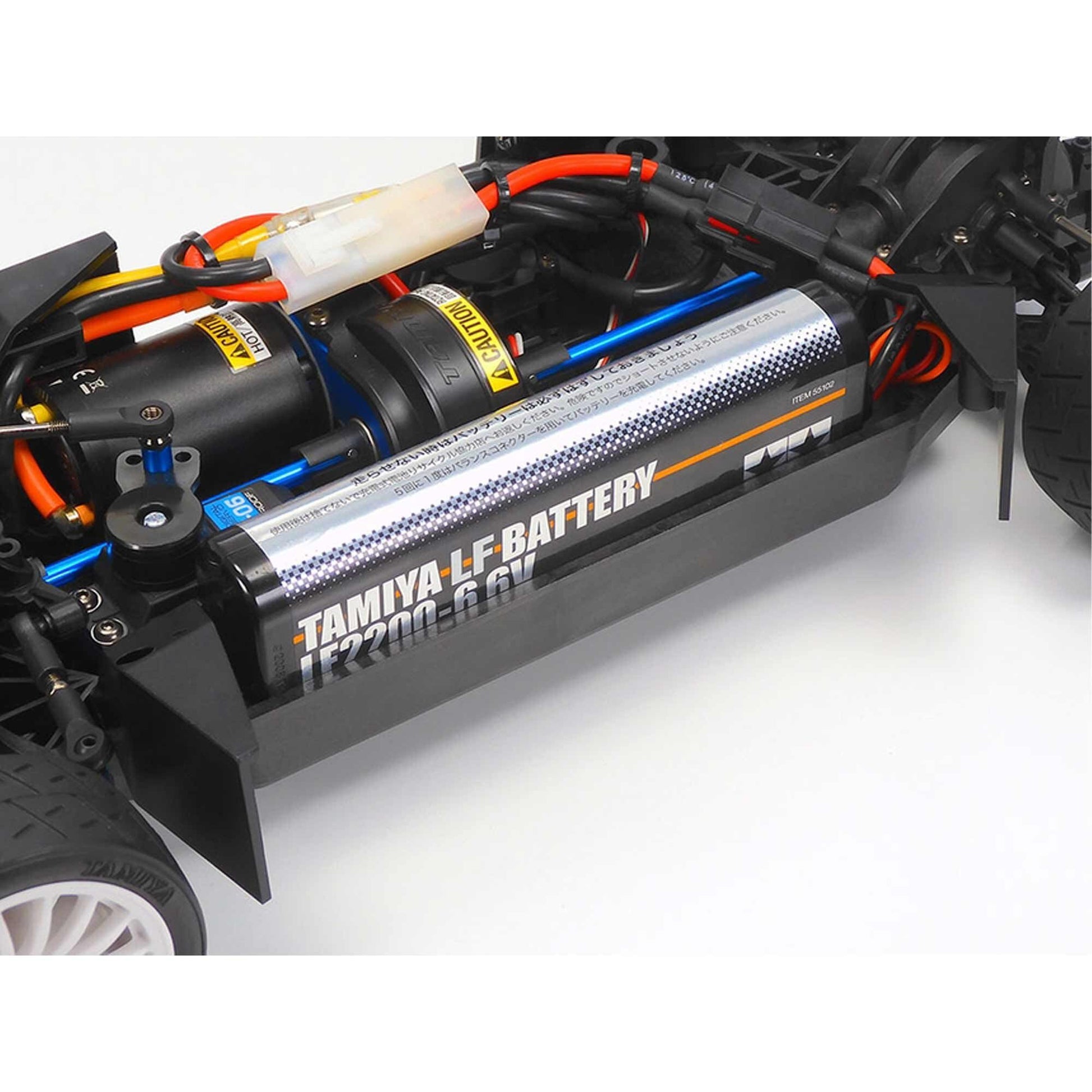

Weight balance is optimized with a center-left longitudinal battery position, while the flat chassis bottom and a skid-friendly front bumper help minimize surface contact at speed. Six-degree caster blocks, front and rear universal drive shafts, and an aluminum servo mount contribute to stiffness and durability. Gearing options include two 39T diffs and one 40T to tailor drive bias; the standard setup uses 39T gears with 15T pinions on both ends, with the ability to bias drive toward the front or rear by adjusting the gear configuration.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual

Collapsible content
Overview
Features
Needed to Complete
Specifications
-
