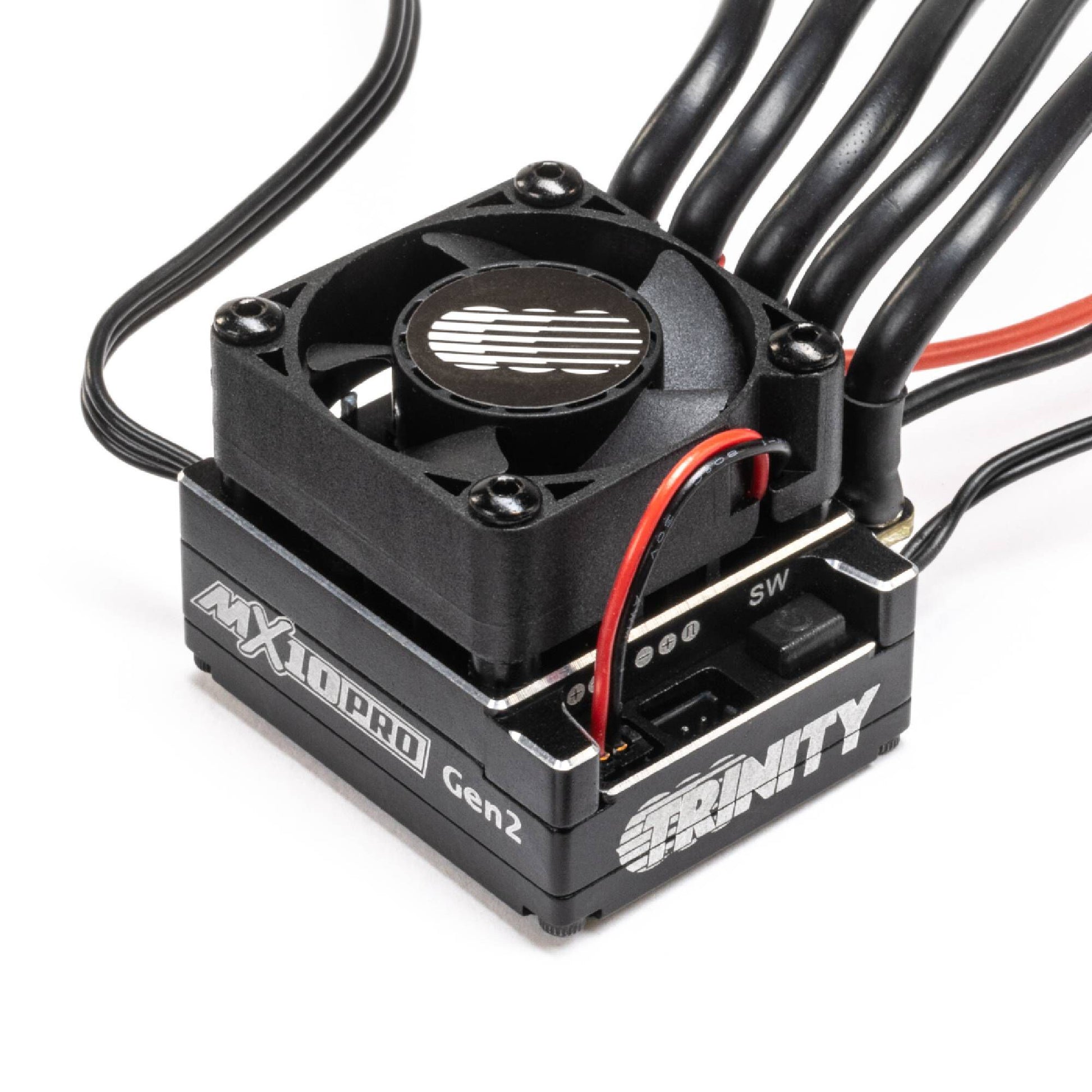

MX10 Gen 2 200A Sensored ESC (TEP0013)

Trinity MX10 Gen 2 200A Sensored ESC is a high-performance electronic speed controller designed for competitive 1/10 and 1/12-scale RC racing. It offers a 200A continuous current rating with up to 1000A bursts, delivering precise, linear power to sensored brushless motors for smooth starts and confident throttle control. Housed in a black machined aluminum case with an efficient heat-dissipation system, including a dedicated heat sink and a 30mm fan, the ESC stays cool under demanding race conditions, while a 32-bit microprocessor provides powerful processing for accurate motor output. Real-time data logging records ESC temperature, motor RPM, voltage and more for tuning insights.

Installation is streamlined with high-strand count, high-flex 13-gauge wires and a shortened receiver lead to keep wiring tidy. Programmable via the MX Gen 2 Wireless Module and Trinity Programming App, it features adjustable BEC output (6.0V/7.4V), a 2-pole 3.5T motor limit, and protections such as low-voltage cut-off, overheat protection and throttle signal loss protection. Compatible with 2S–3S LiPo packs, this ESC also includes proprietary boost and turbo functionality to enhance throttle response, acceleration and drivability.
