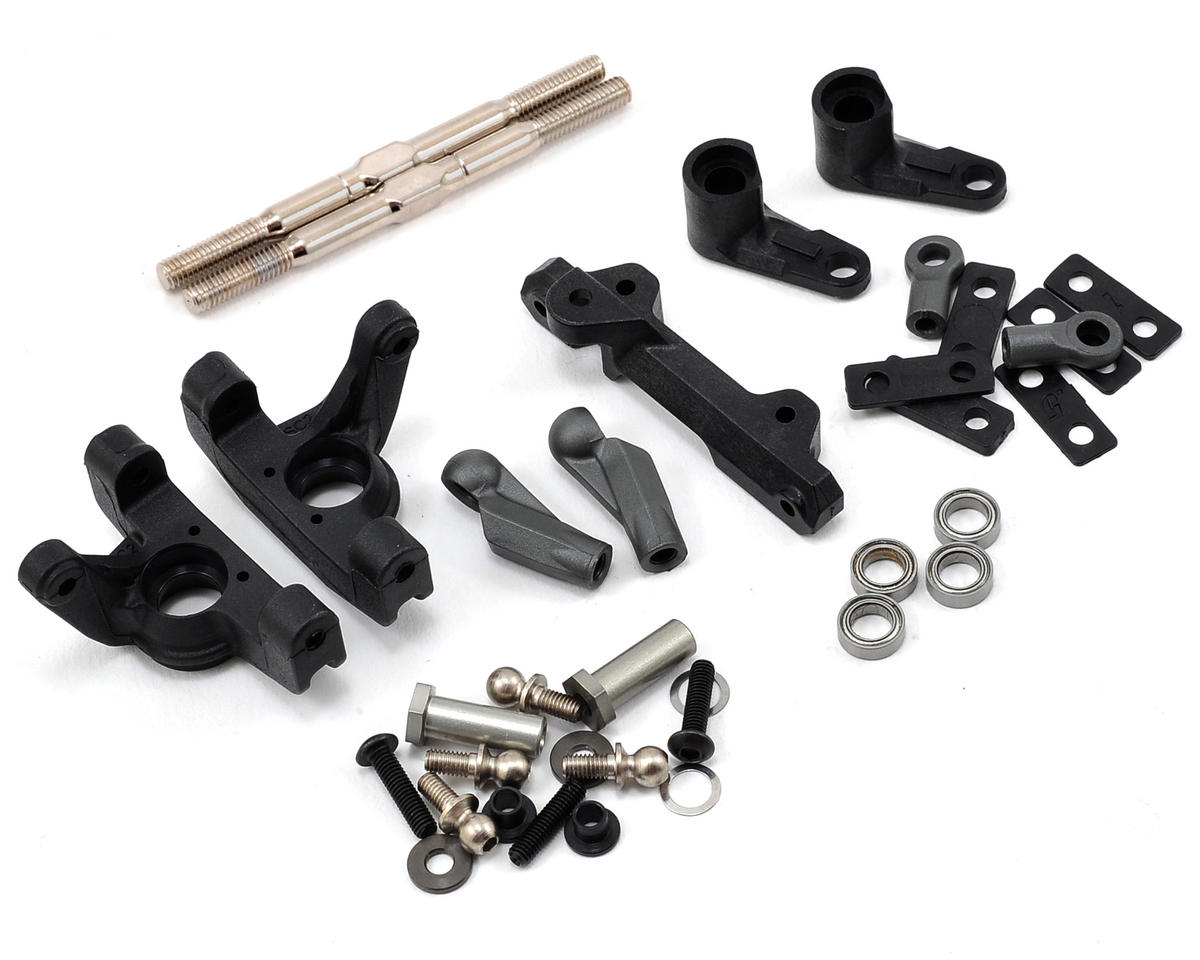

Bell Crank Steering System with Hardware for 22/2.0/SCT (TLR231027)

Bell Crank Steering System with Hardware for TLR 22 Series Vehicles is a bolt-on upgrade that refines steering geometry on Team Losi Racing's 22 platform, including the 22, 22 2.0, and 22SCT variants. The bell cranks mount on ball bearings to deliver quicker, more responsive steering with less off-center aggressiveness. By reducing Ackermann across the turning throw, it increases the outside wheel angle at low speed for improved cornering control.

Installation is a direct bolt-on with no modifications to the front bulkhead, servo mounts, or servo location. The kit includes all required parts, including a spindle specific to the 22.0 and 22SCT variants and a hardy M3.5 x 50mm HD turnbuckle to complete the conversion. Ackermann is adjustable by adding or removing ball stud washers to fine-tune steering feel and response. The bell cranks ride on bearings for smooth, durable operation and reduced wear, delivering a precise and confident steering upgrade for the 22 platform family.
