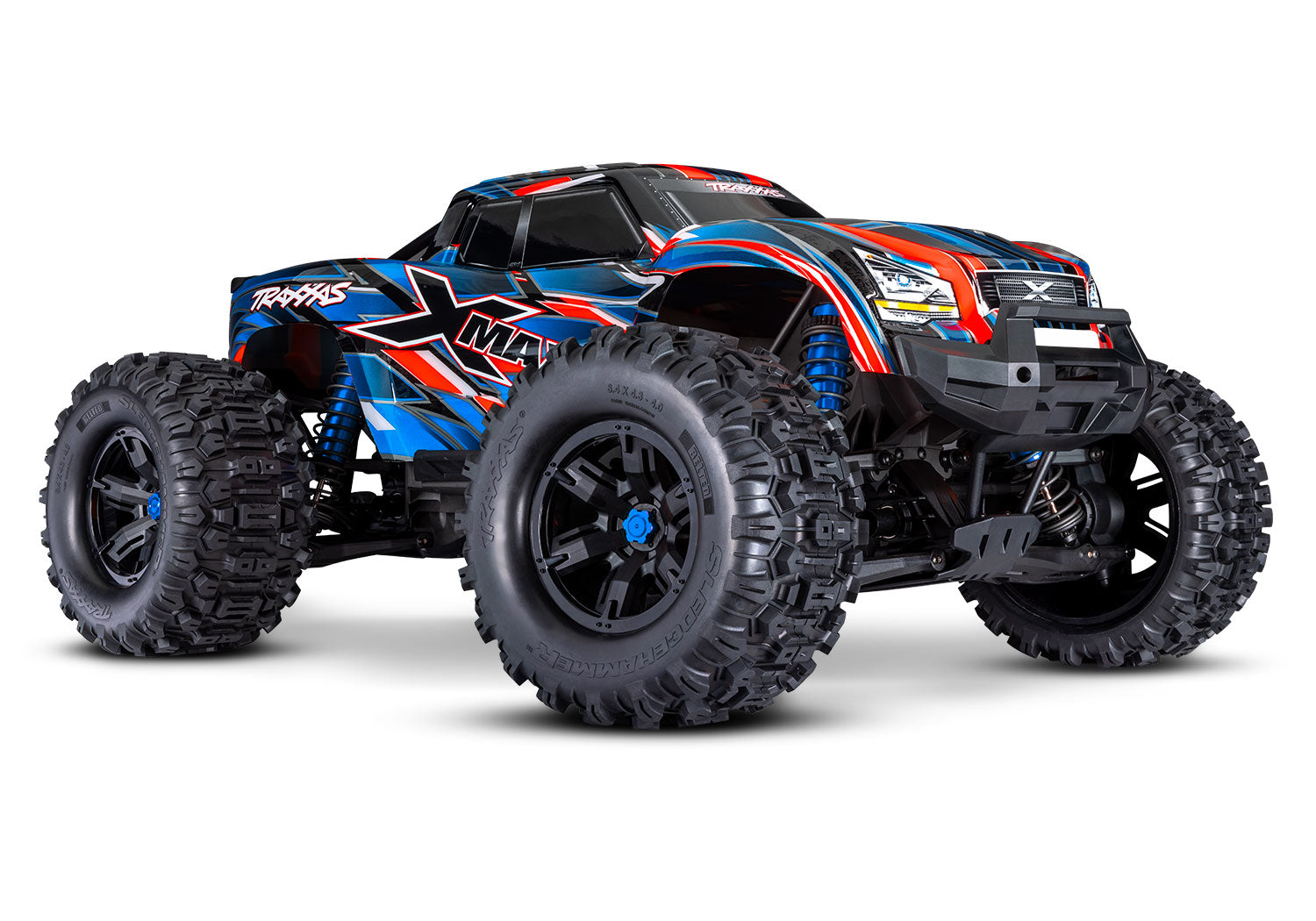

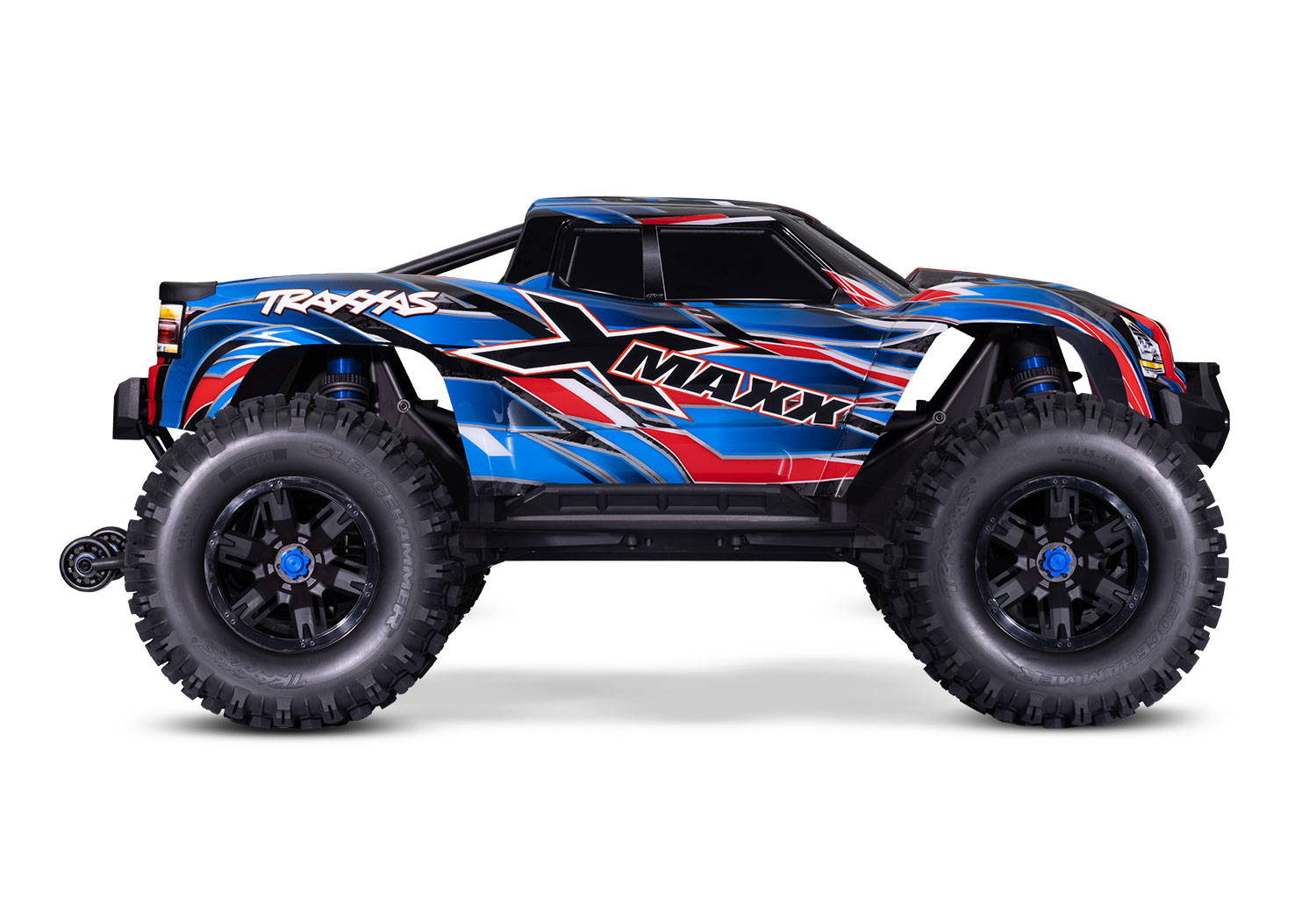

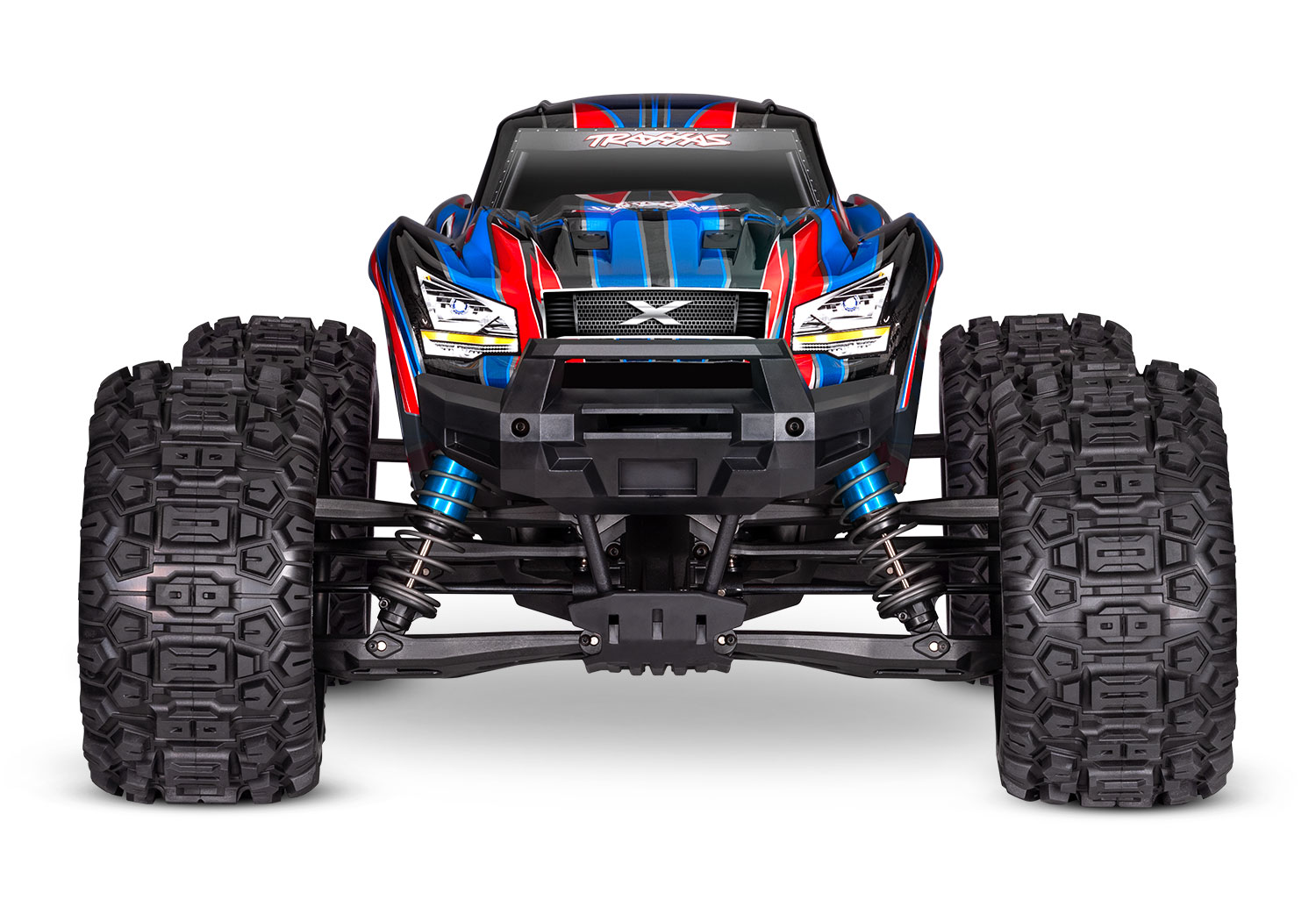

X-Maxx 8S with Belted Sledgehammer Tires (Blue) (TRA77096-4-BLUE)

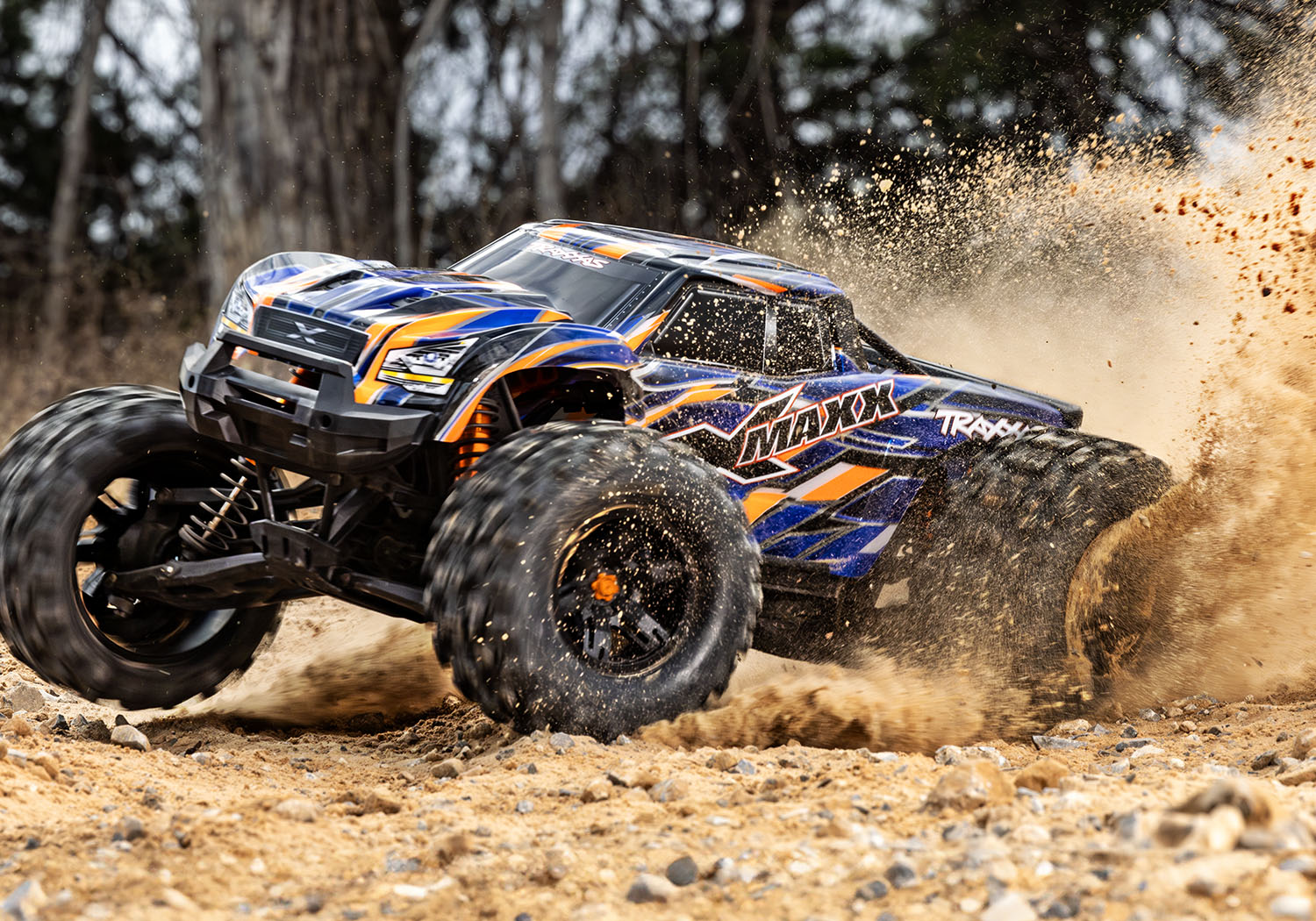

Experience the pinnacle of 4X4 power and innovation with the Traxxas X-Maxx Monster Truck. Built for ultimate performance, X-Maxx features a mammoth size and a durable design that sets a new standard for off-road vehicles. With over 30 volts of extreme 8s power, this monster truck delivers jaw-dropping acceleration and can reach speeds of 50+ mph. The advanced Velineon VXL-8s Brushless Power System propels the X-Maxx with unparalleled ferocity, ensuring breathtaking performance and responsiveness.

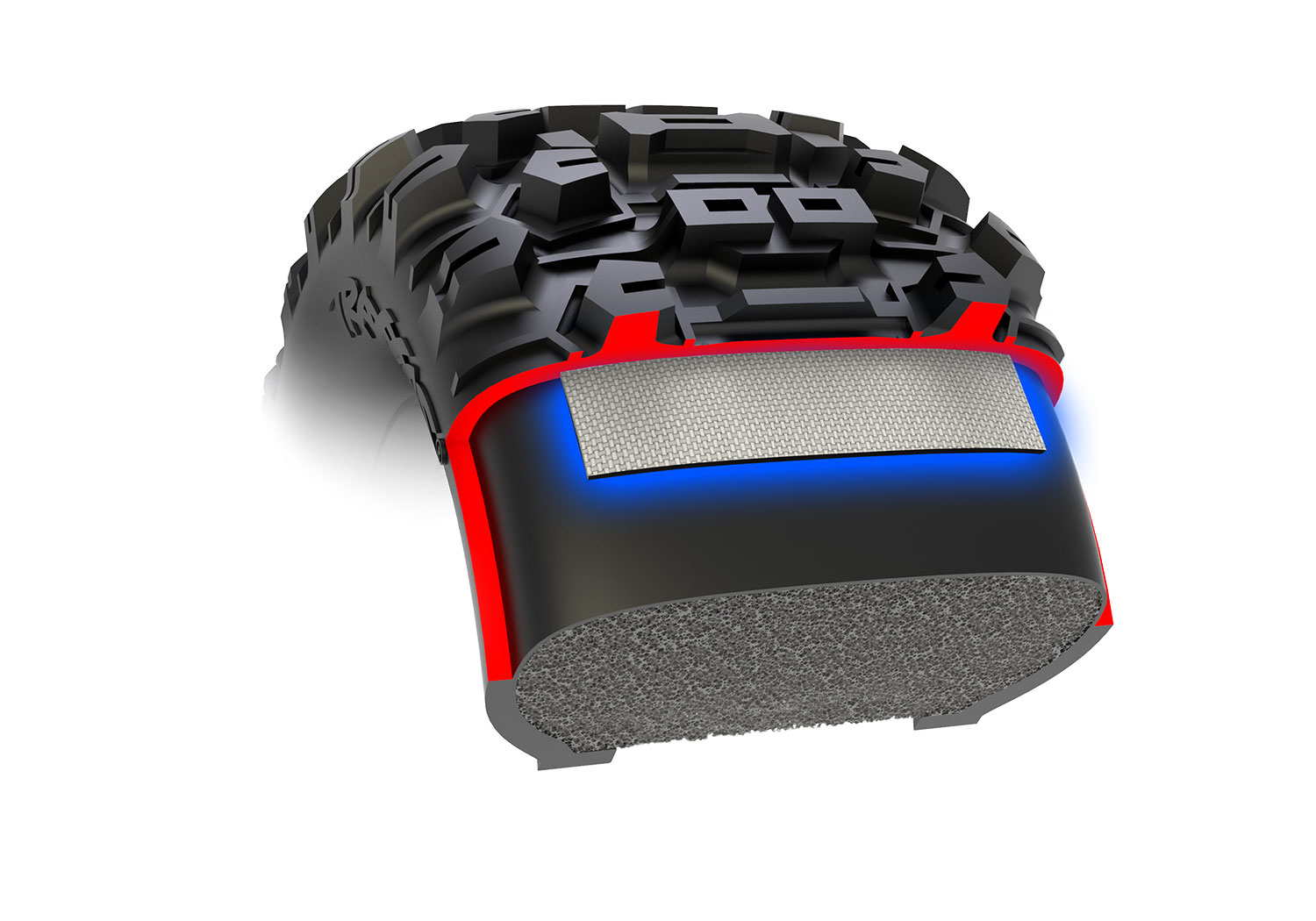

X-Maxx's massive 8-inch belted Sledgehammer tires are engineered for high-speed stability and maximum grip on the toughest terrains. The rugged long-arm suspension and exceptional ground clearance allow it to conquer obstacles effortlessly, providing unstoppable monster truck action. The robust all-metal drivetrain, equipped with the Cush Drive system, extruded aluminum center shaft, and reinforced steel driveshafts, ensures reliable power transfer and durability even under the most demanding conditions.

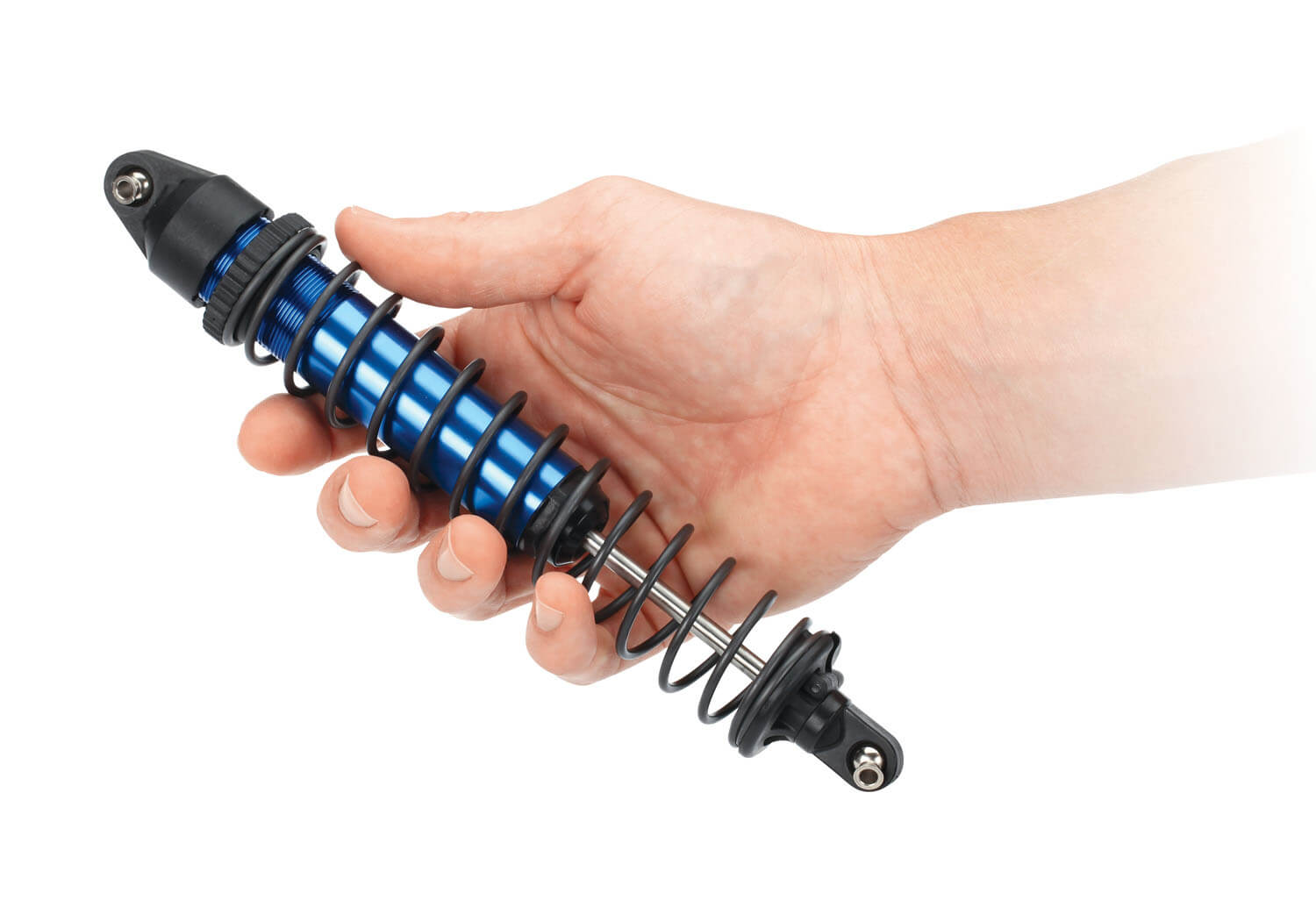

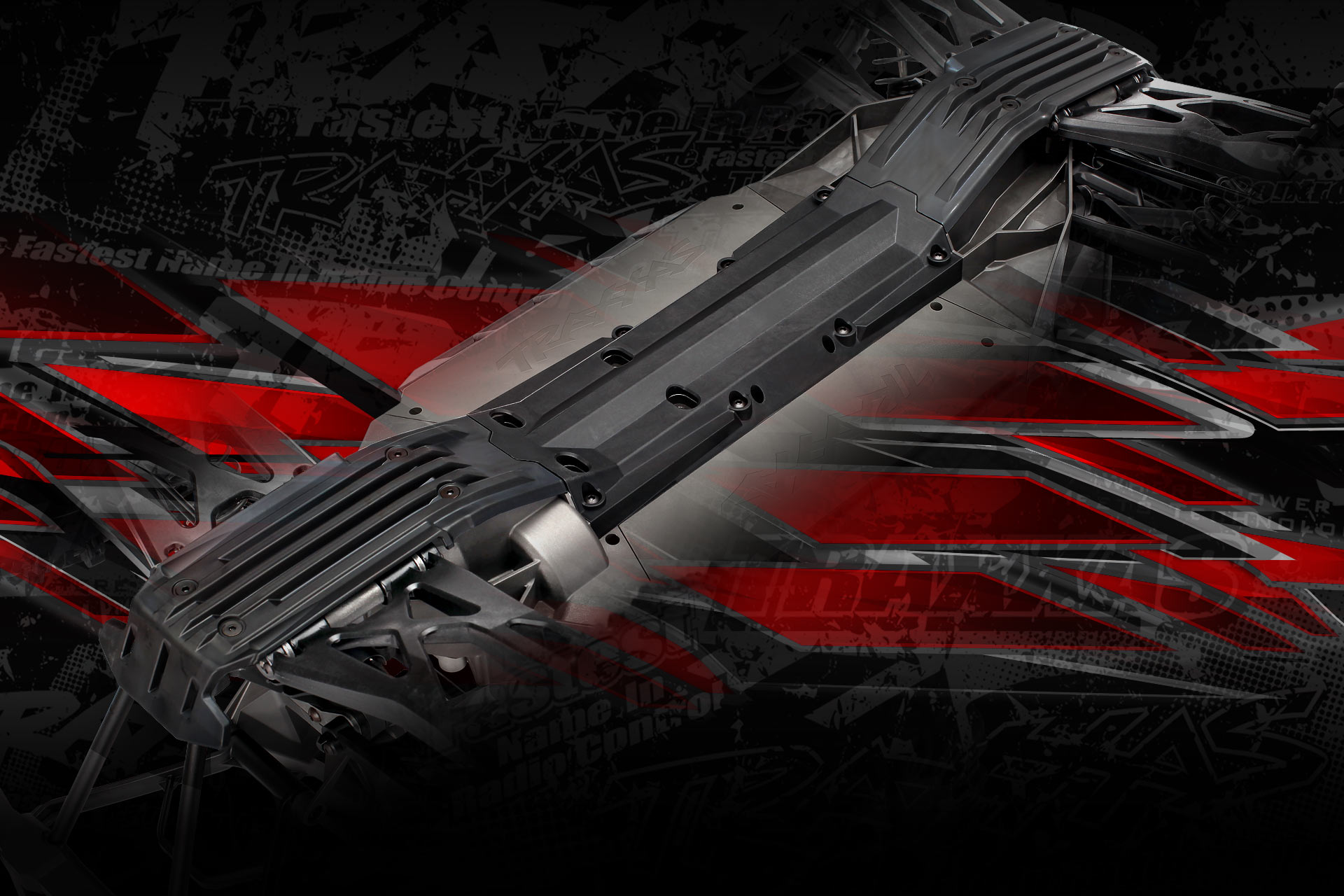

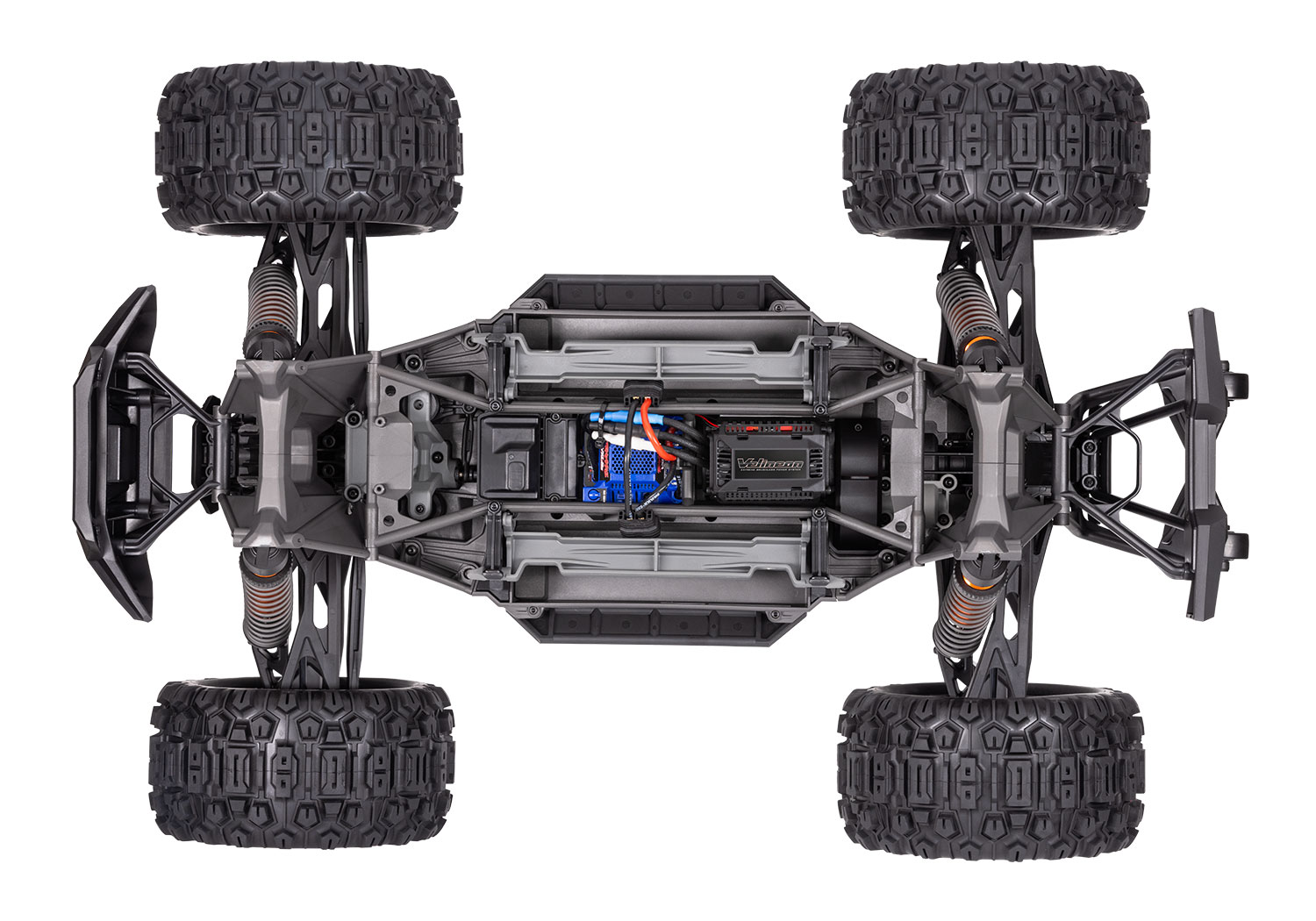

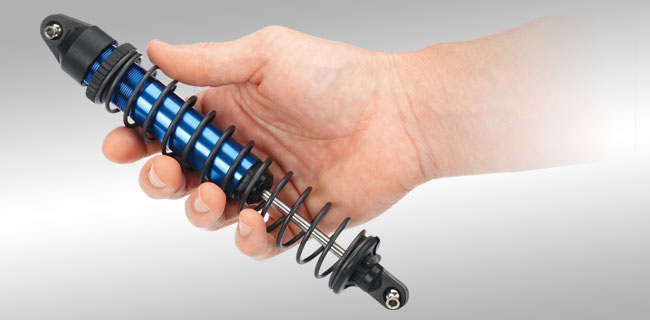

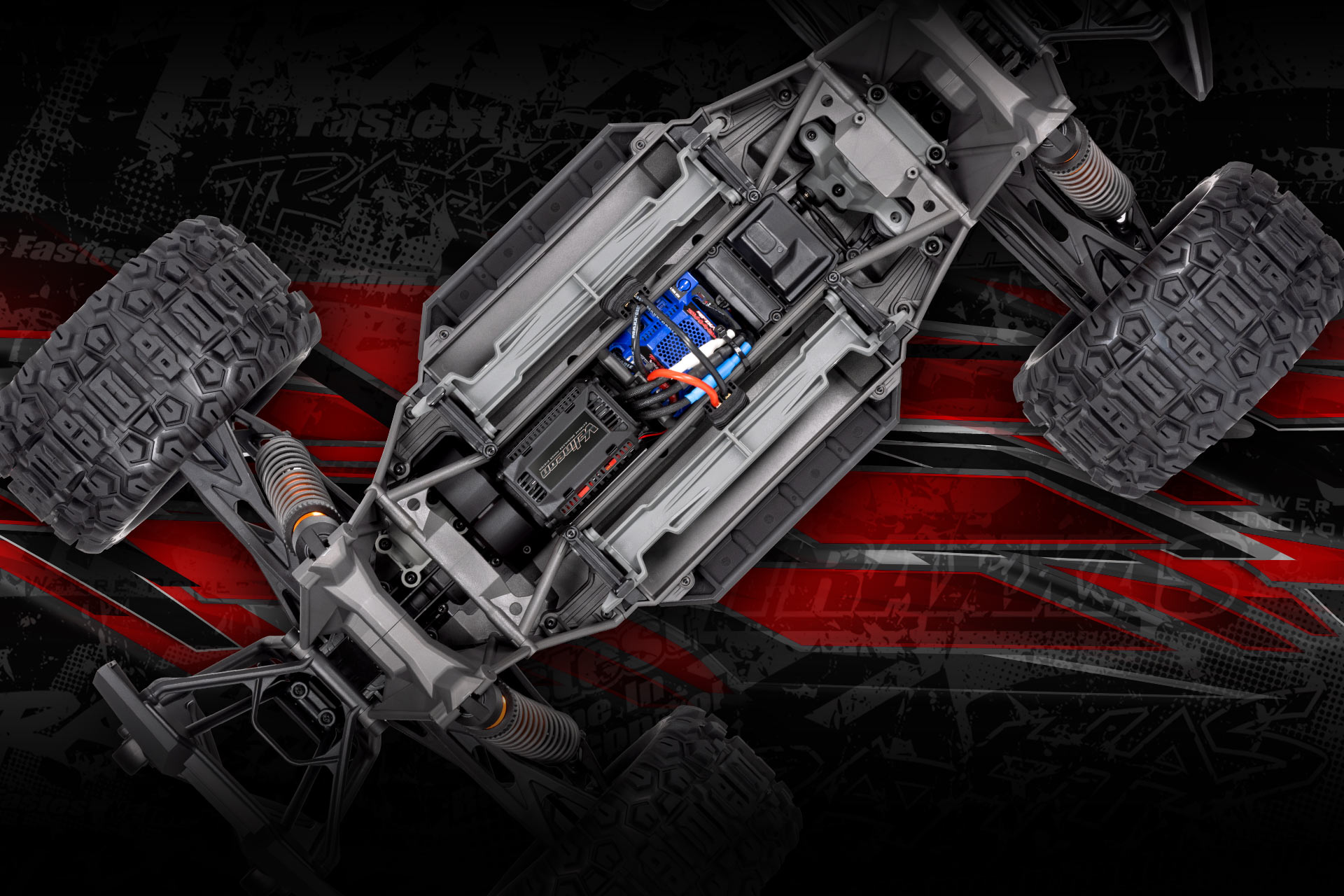

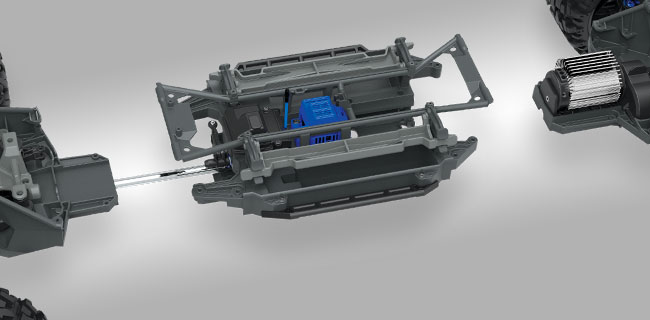

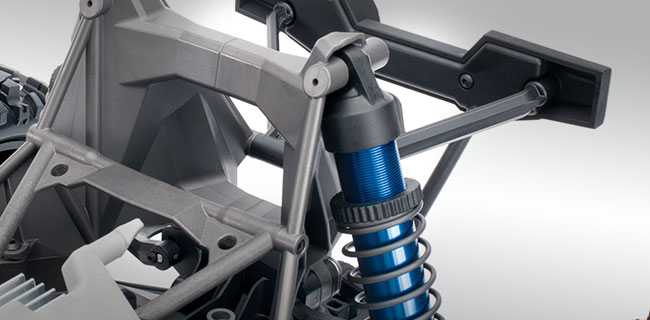

The modular chassis design keeps the motor and gear drive securely together, virtually eliminating flex for consistent performance. Accessing key components for maintenance is a breeze. The enormous GTX aluminum shocks are oil-filled for superior damping, providing a smooth, plush ride and heat dissipation for extended runs. The shock towers add to the vehicle's structural integrity, serve as carry handles, and offer support for easy cleaning.

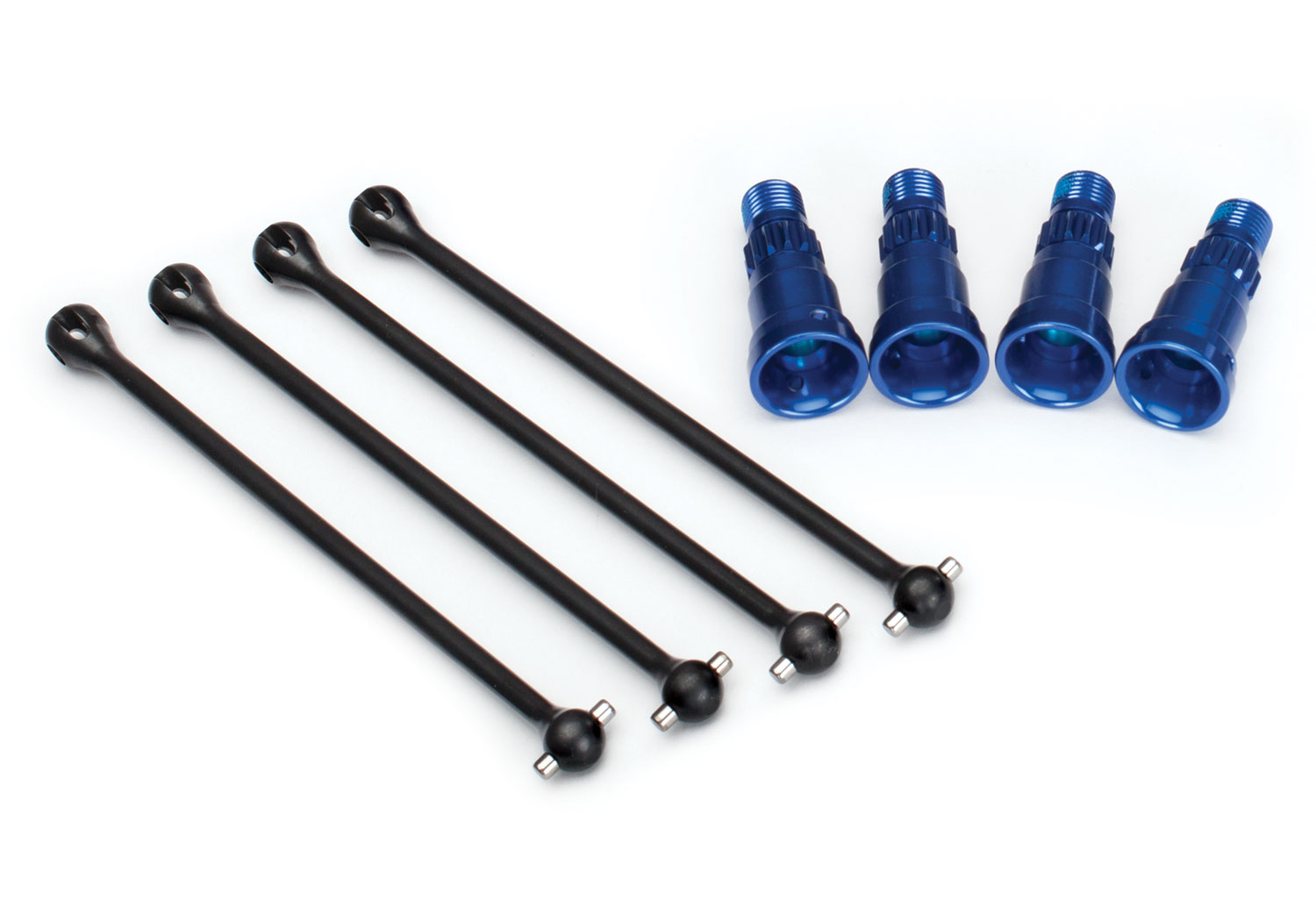

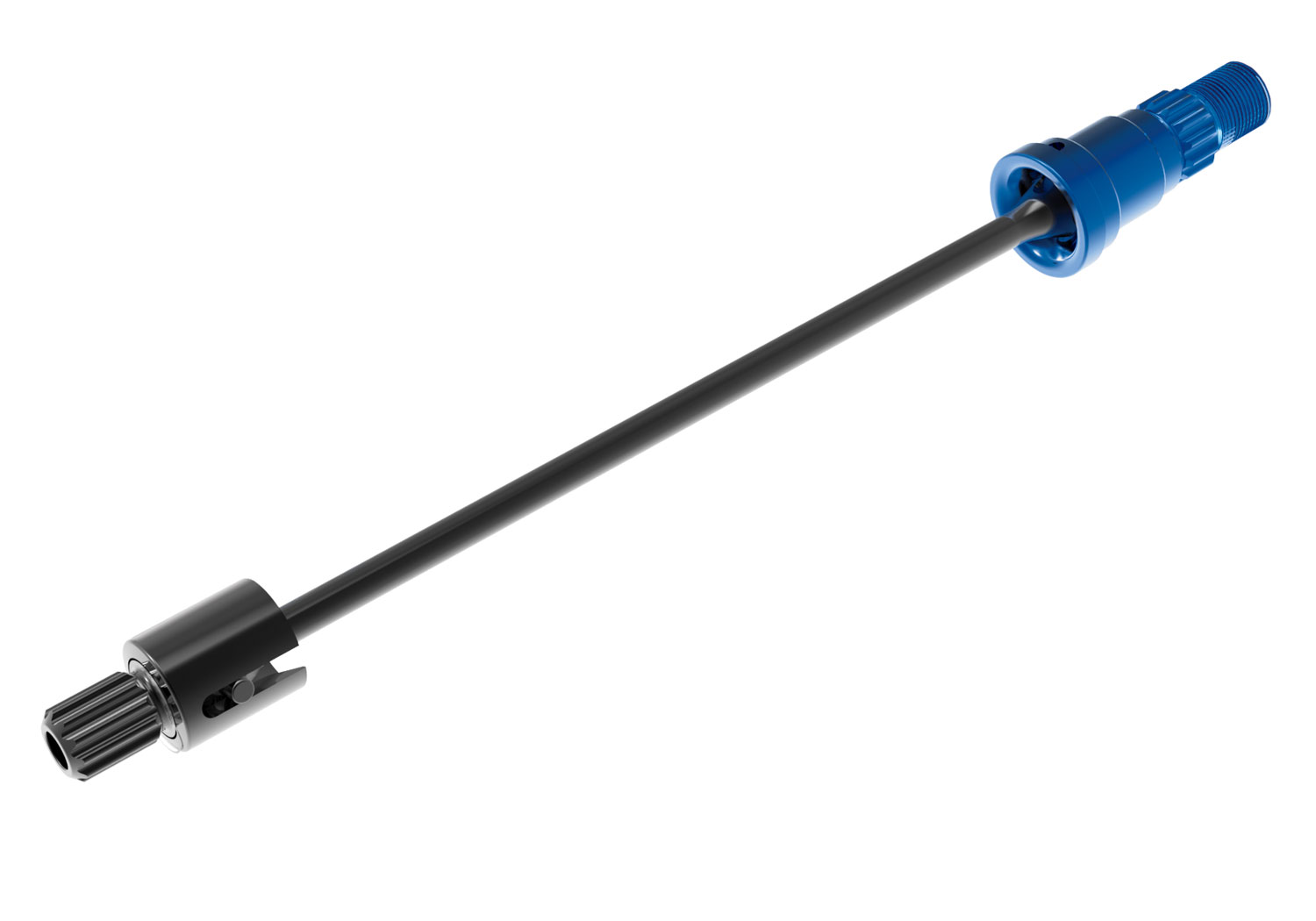

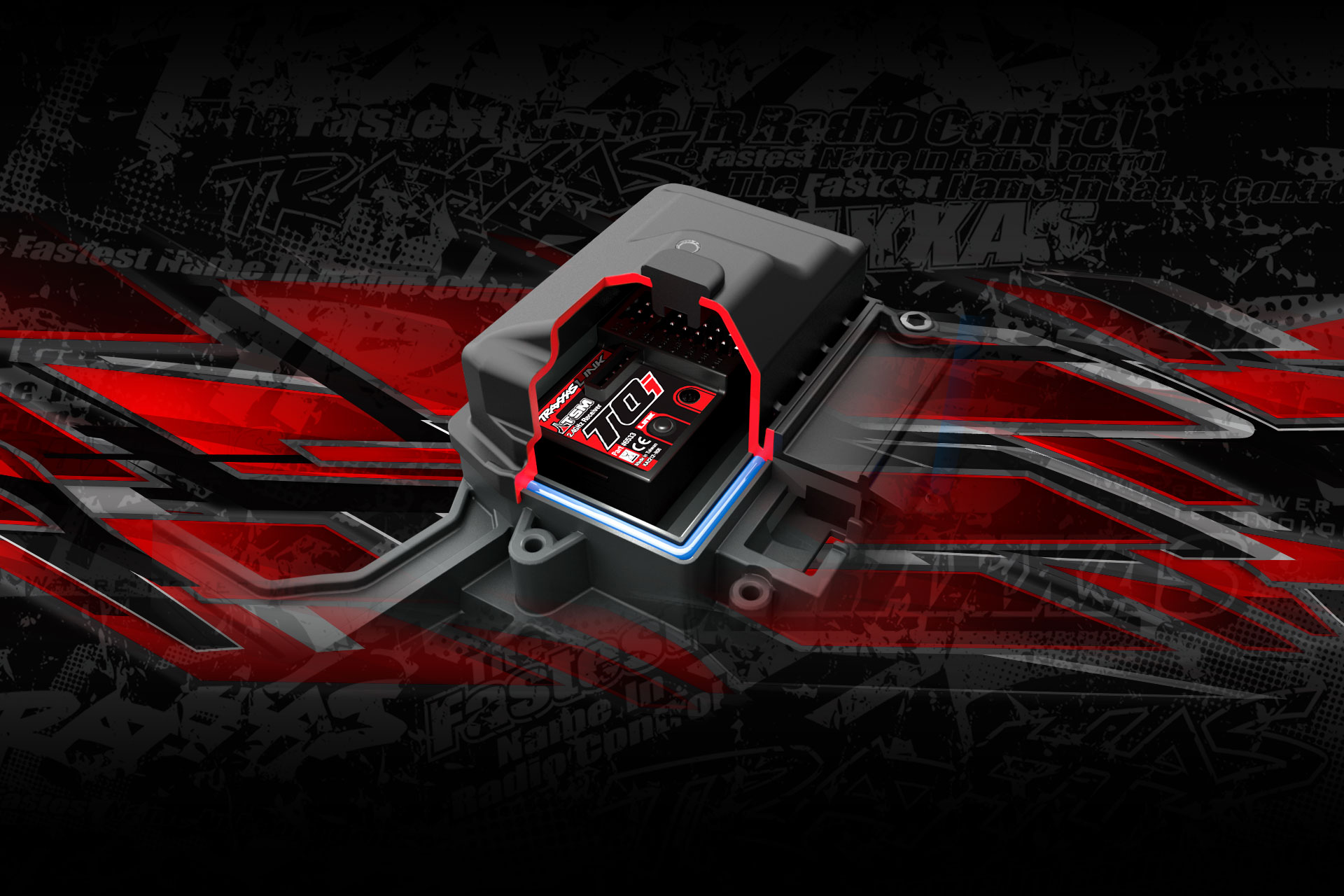

Advanced features like the dual-fan cooling motor mount and energy-absorbing impact cushion behind the front bumper make X-Maxx even more resilient. The heavy-duty CV driveshafts and Torque-Biasing Center Drive ensure seamless power distribution and improved driveline durability. The fully waterproof design allows X-Maxx to handle mud, snow, and water with ease, while the double shear connections and high-strength suspension components redefine toughness.

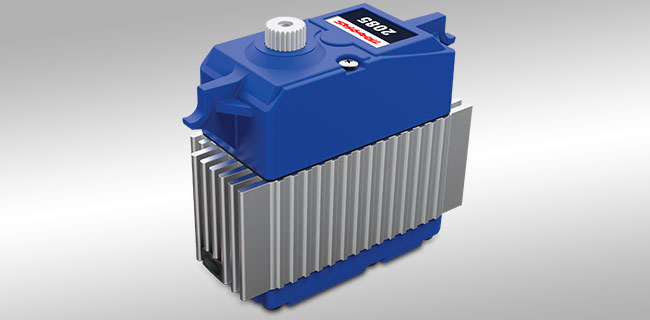

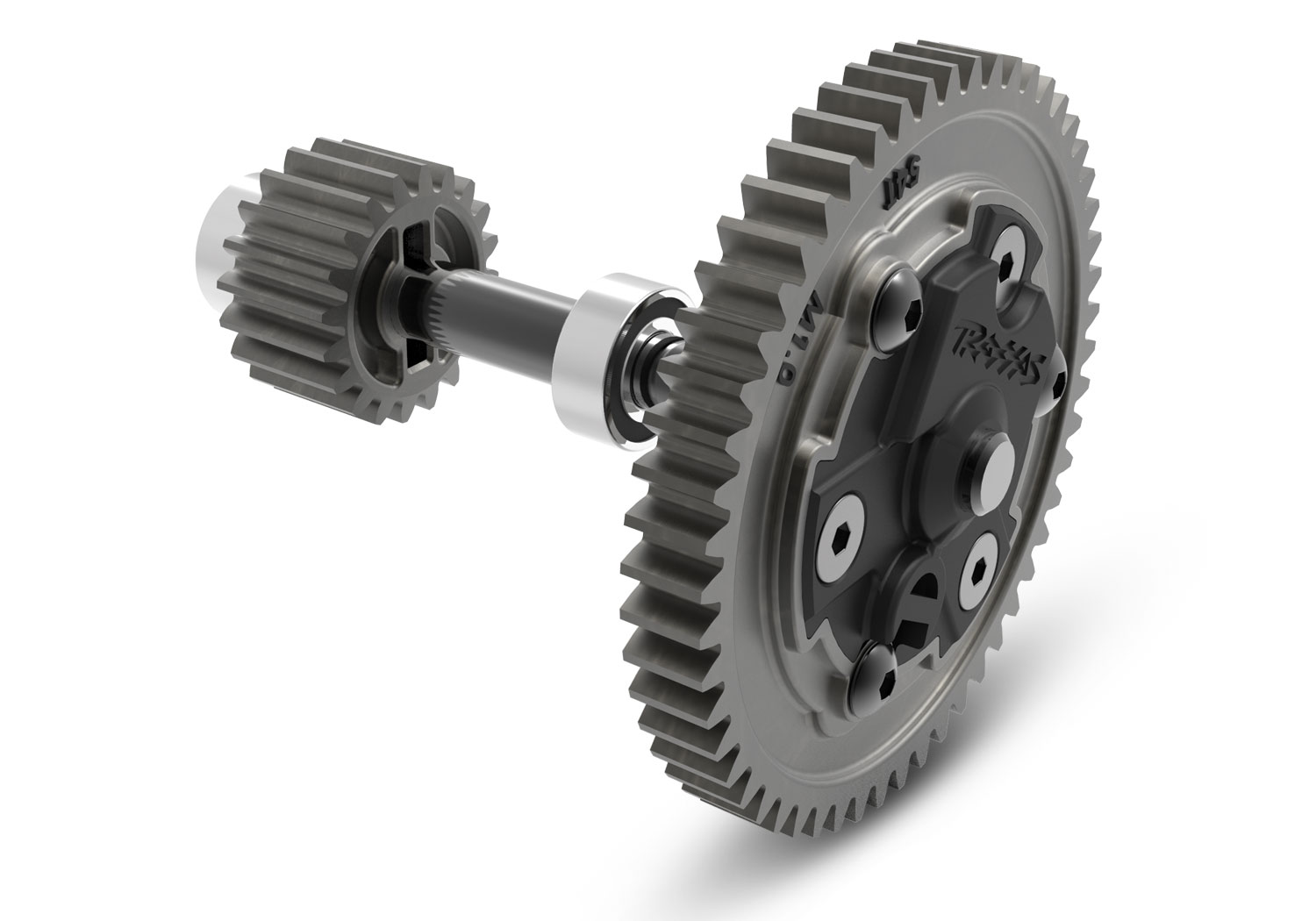

X-Maxx's high-output 2085 steering servo provides precise control and a tight turning radius, enhancing the truck’s agility despite its massive size. Sealed, limited-slip differentials and full-contact bearings keep dirt and grime out, reducing maintenance time and extending run time. The shock-absorbing Cush Drive system, splined aluminum driveshaft, and max-duty sealed diffs are engineered to handle extreme torque loads and ensure long-lasting performance.

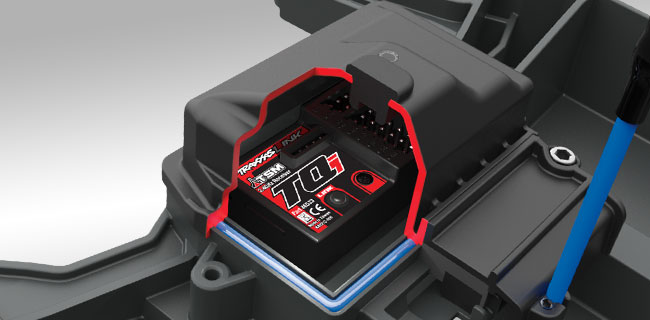

Equipped with the TQi 2.4 GHz radio system with Traxxas Stability Management (TSM), X-Maxx delivers superior control, helping prevent spinouts and maintaining stability. The clipless body mount system allows for quick, hassle-free body installation and removal, while the robust suspension and GTX shocks maximize durability and handling. For those ready to push limits, the X-Maxx is your ultimate monster truck for relentless off-road domination.

• Unleashes over 50 MPH speed with 8s power using two 4s LiPo batteries

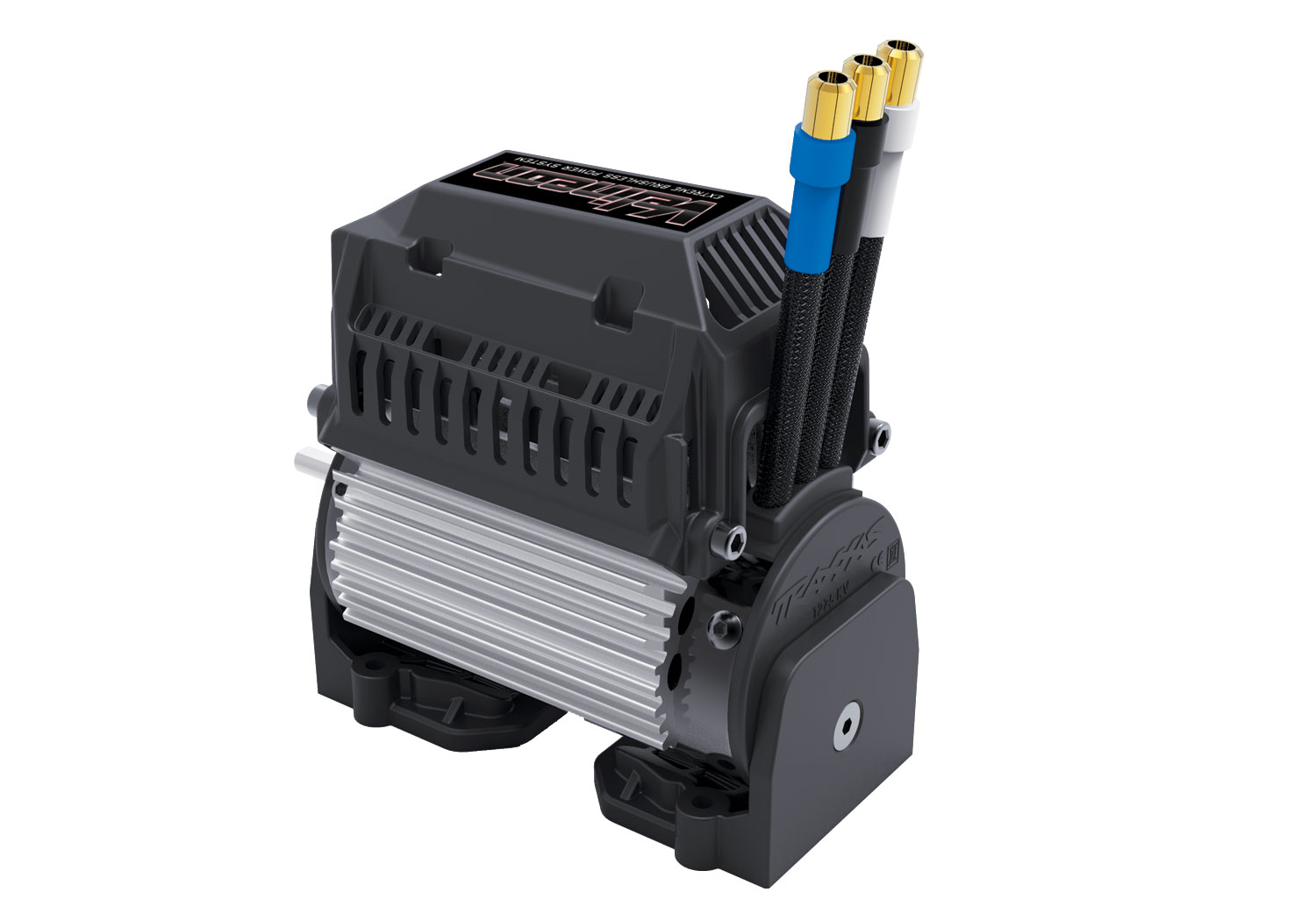

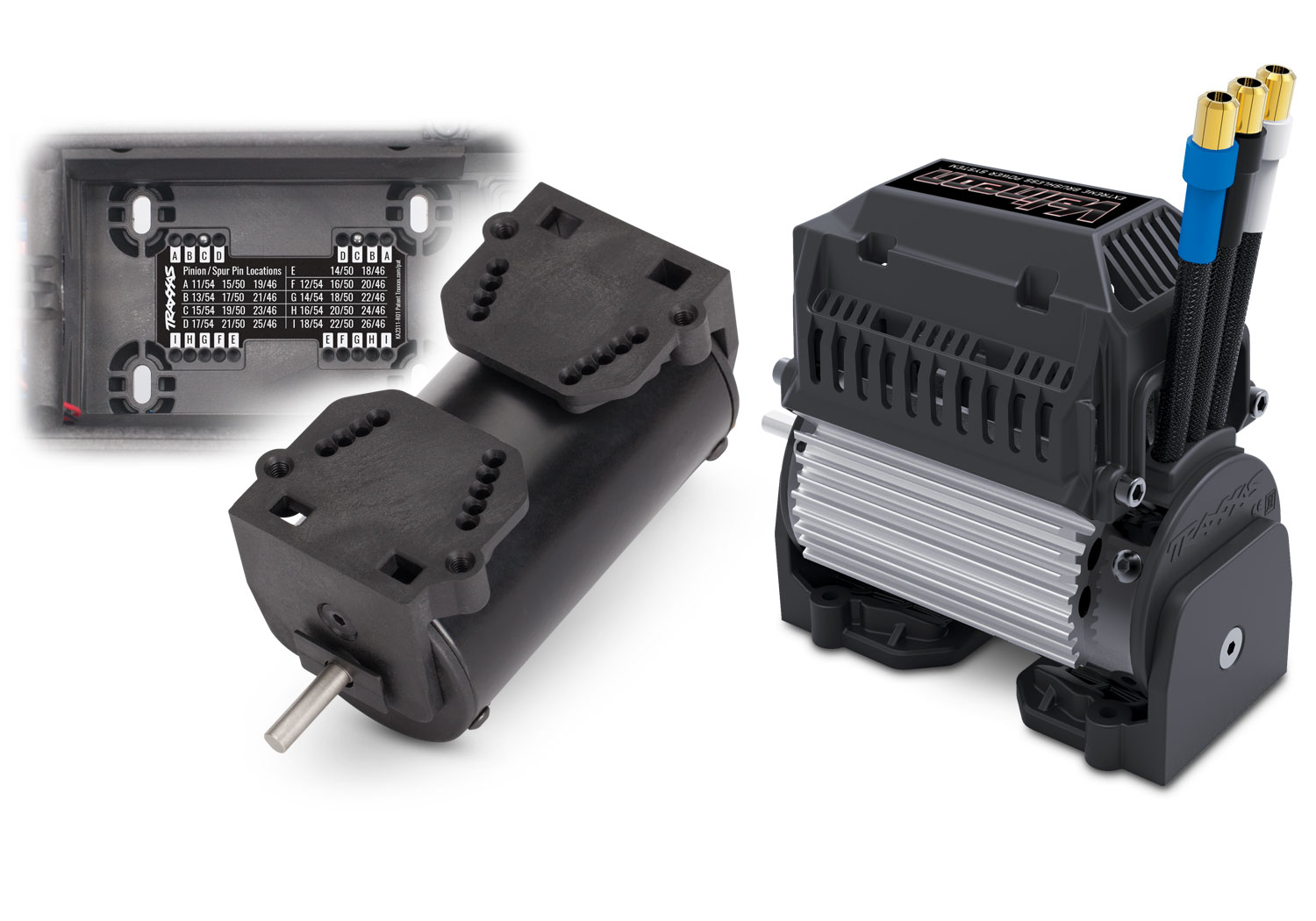

• Velineon VXL-8s Brushless Power System with 1275 Kv Big Block motor

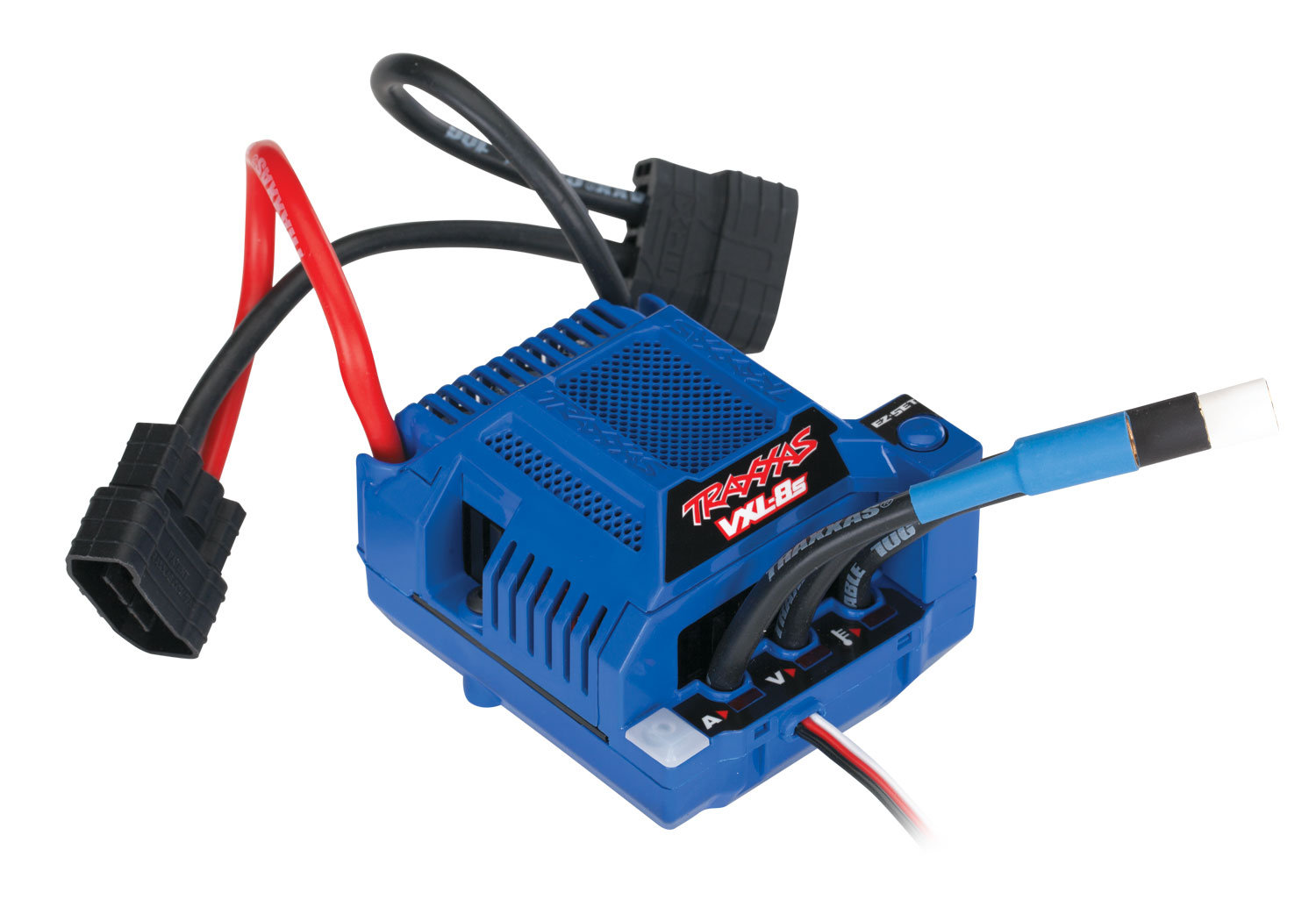

• VXL-8s Waterproof Electronic Speed Control with cooling fan, real-time telemetry, and LED status lights

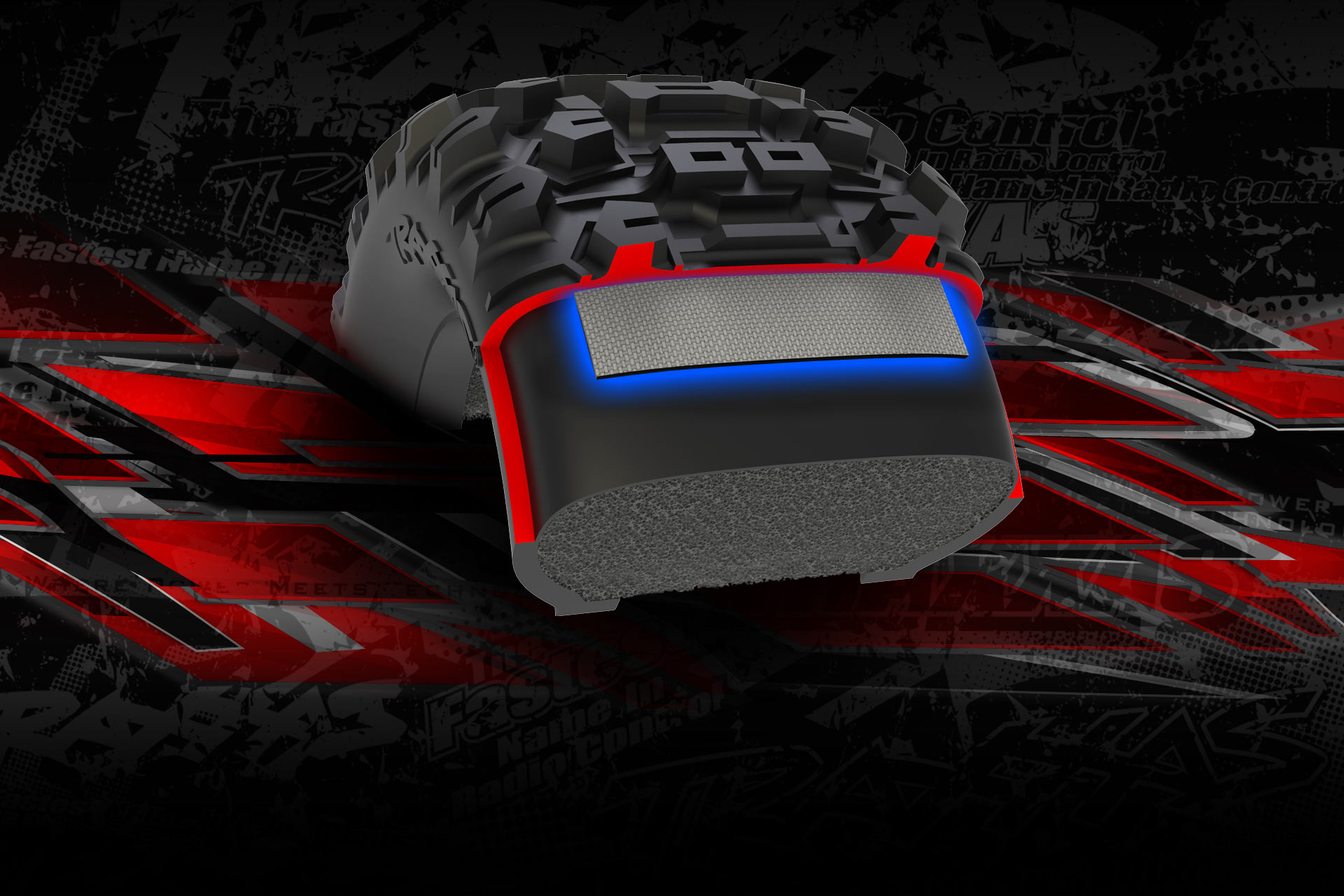

• Massive 8-inch belted Sledgehammer tires for extreme terrain and high-speed stability

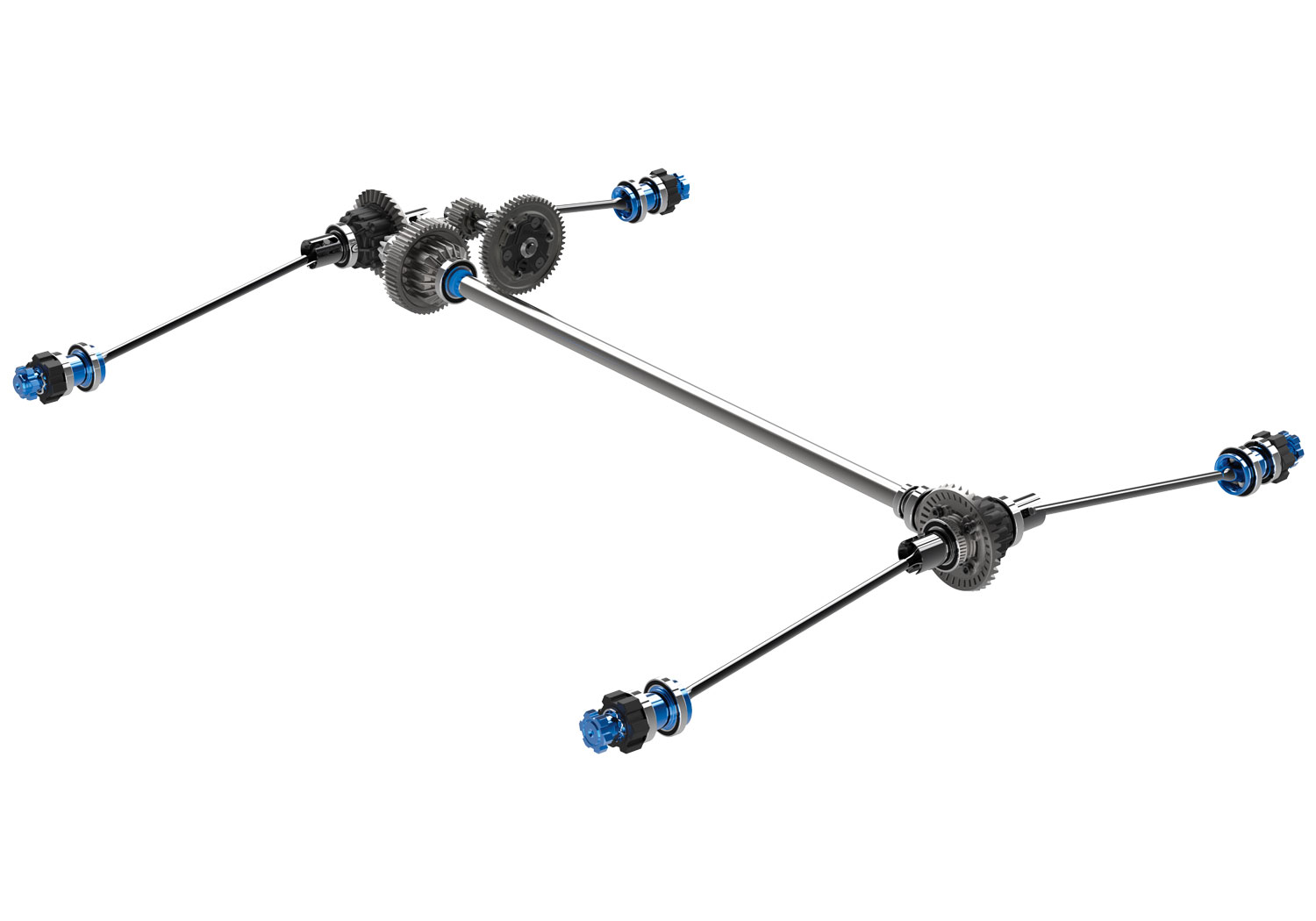

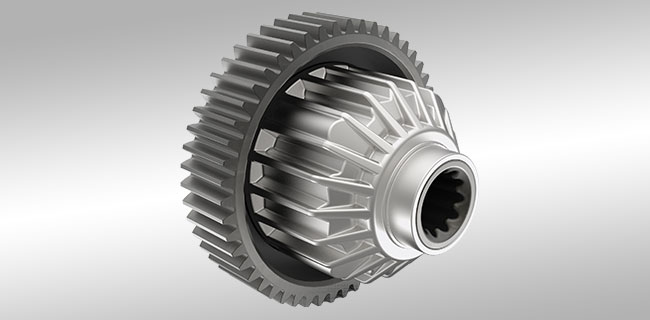

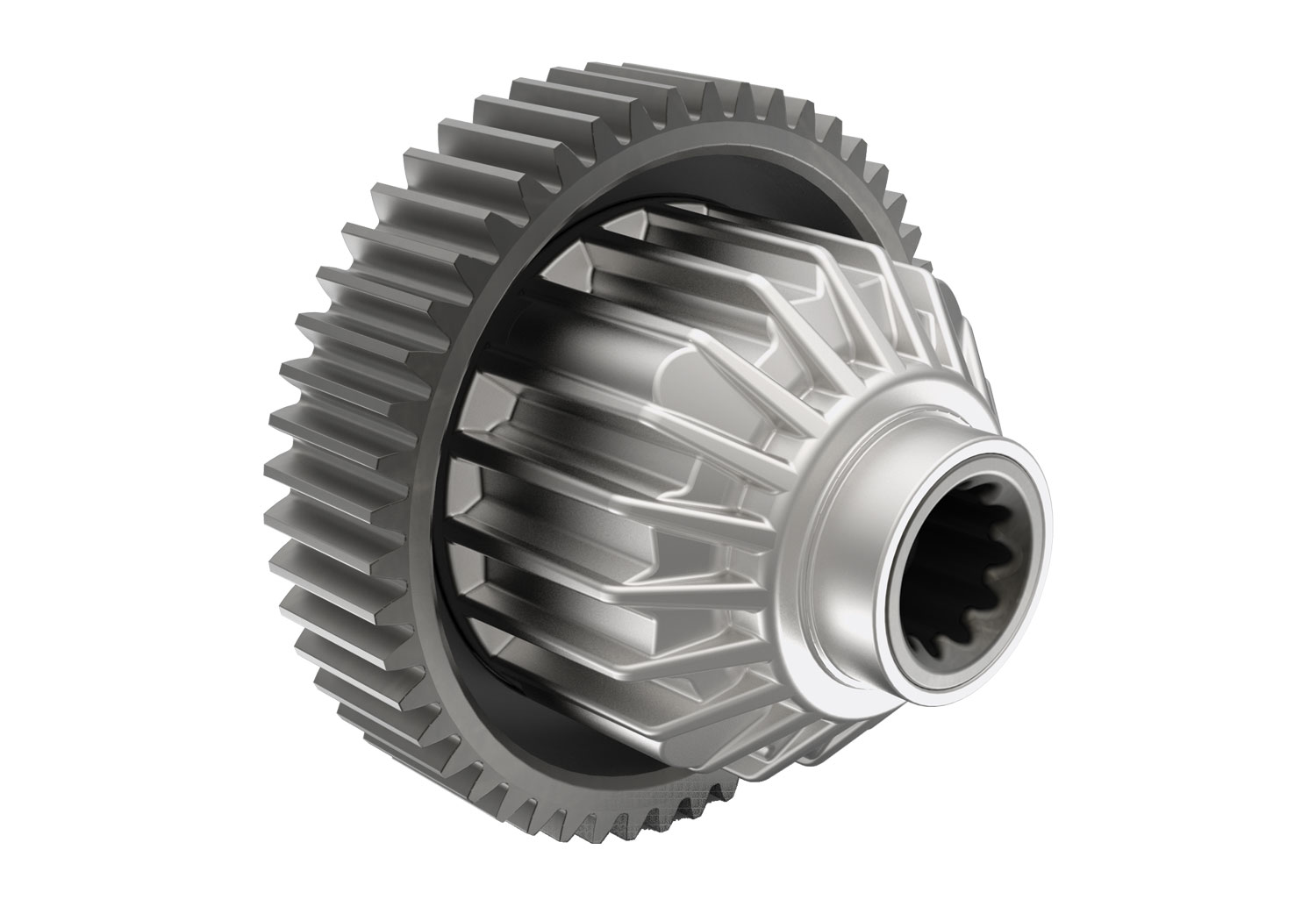

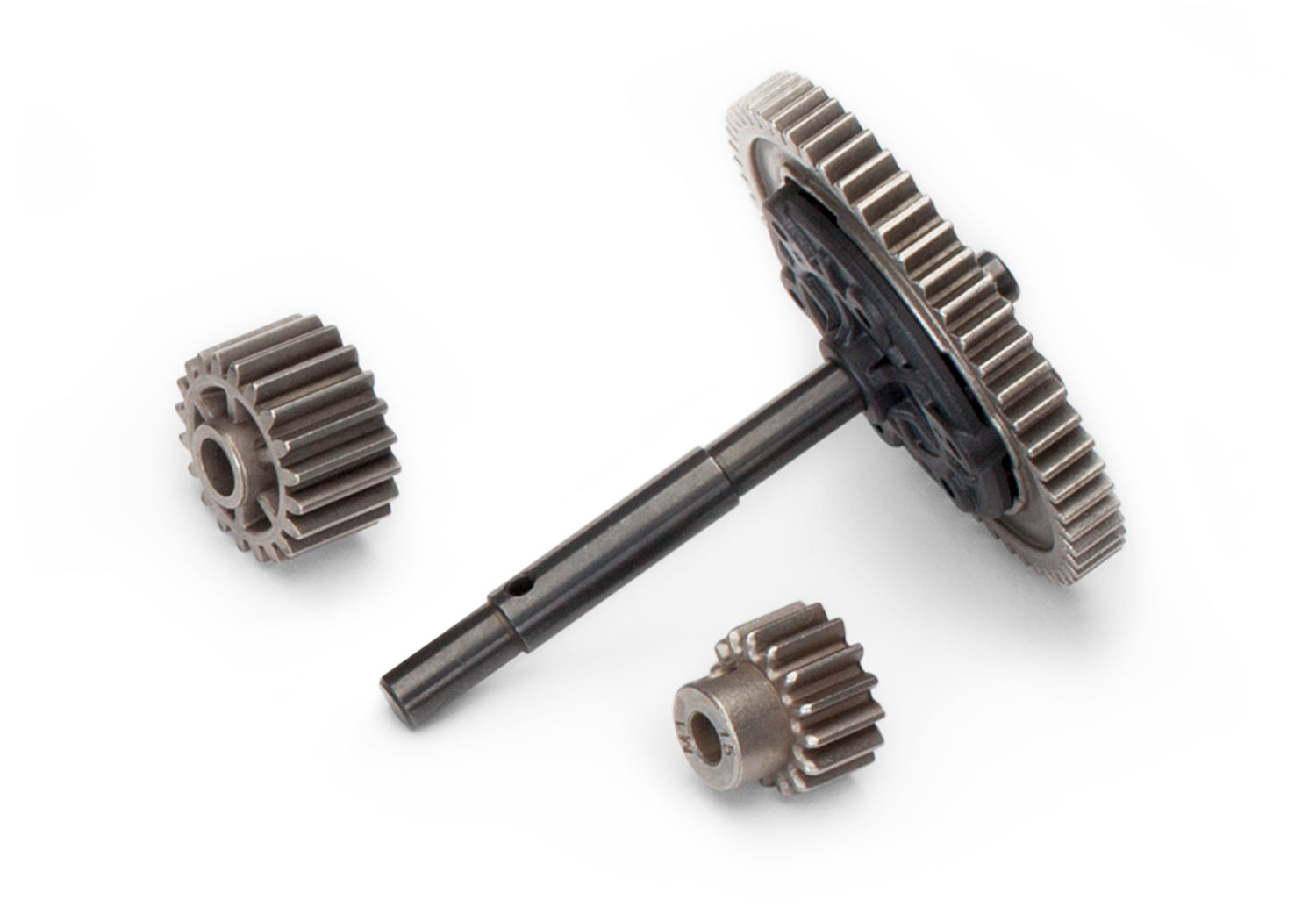

• All-metal 8s driveline with high-strength extruded aluminum center shaft and Cush Drive system

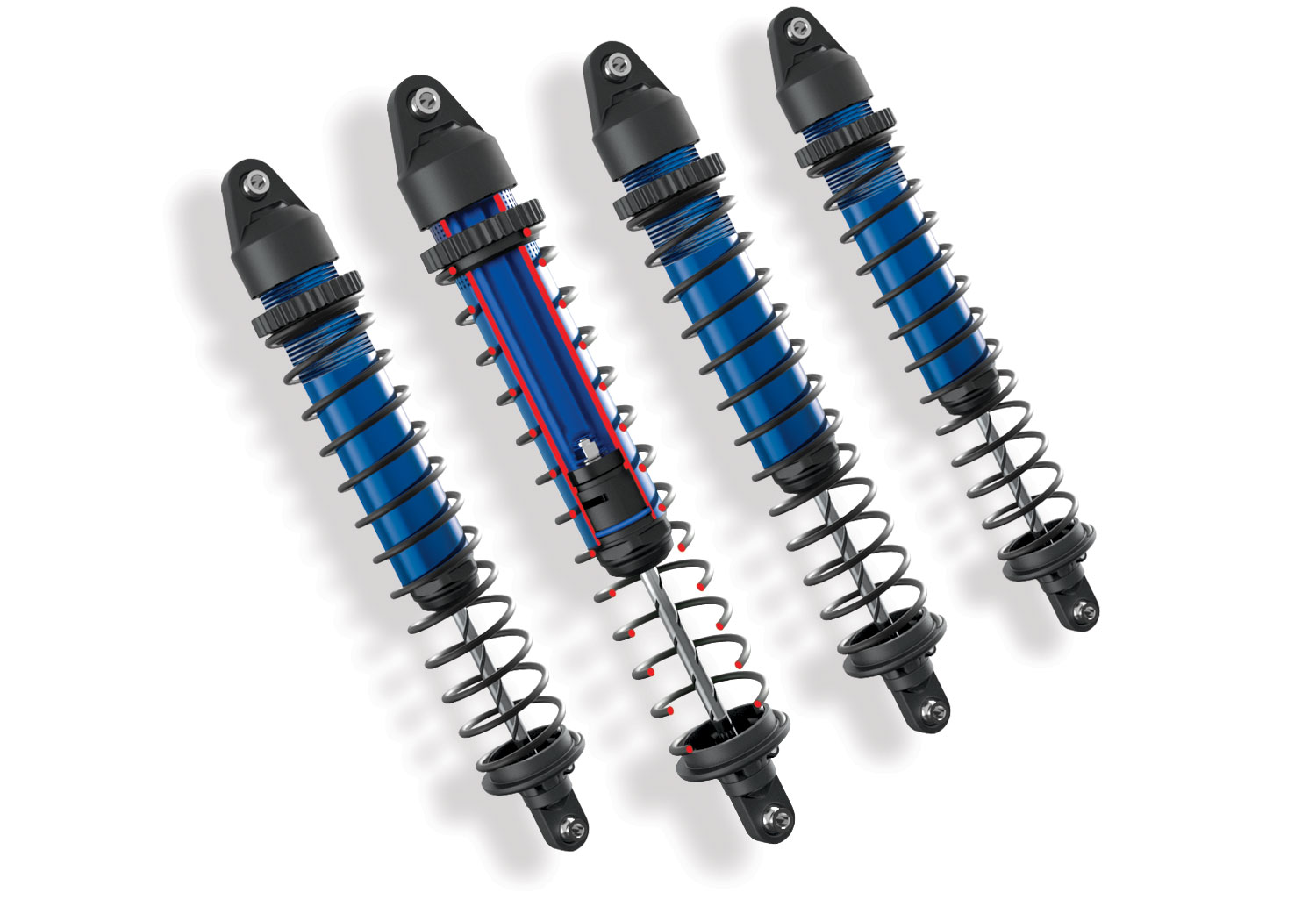

• GTX oil-filled aluminum shocks for smooth performance and heat dissipation

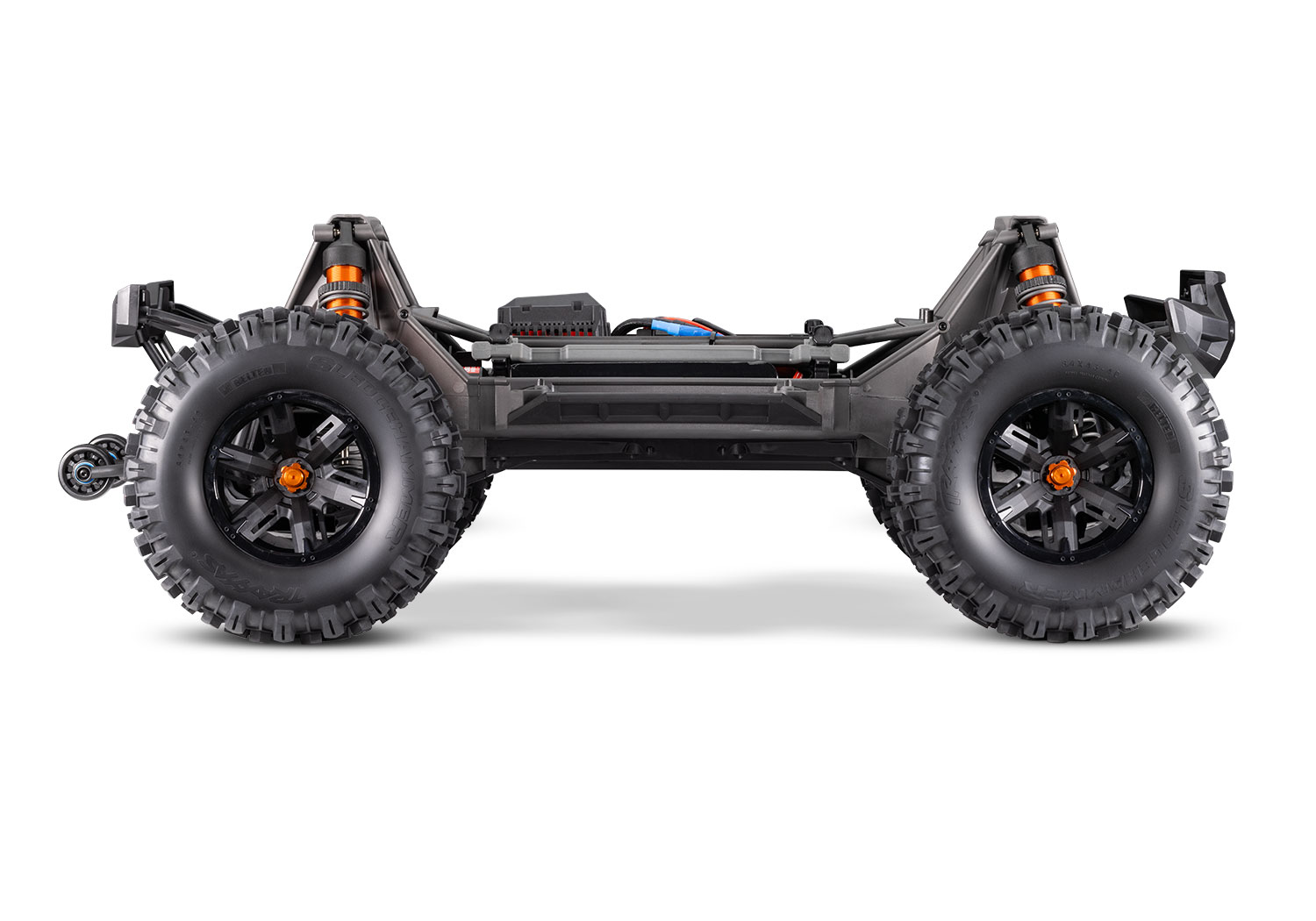

• Rigid modular chassis design reduces gear-crunching flex and simplifies maintenance

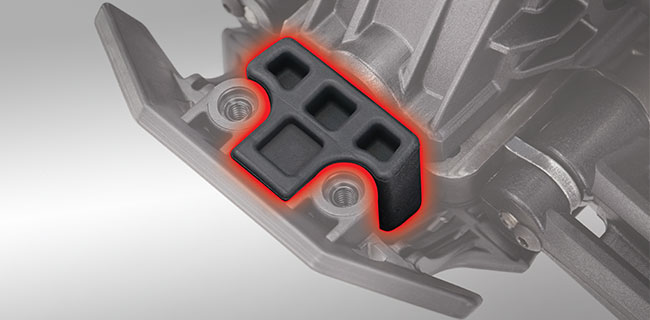

• Shock-absorbing impact cushion behind front bumper for added durability
• Energy-absorbing front and rear bumpers with integrated skids for impact resistance
• Double shear connections for reinforced strength in suspension and steering components
• Powerful 2085 servo provides unmatched steering authority with tight turning circle

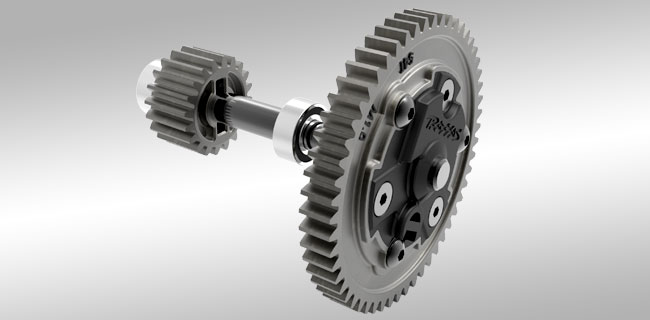

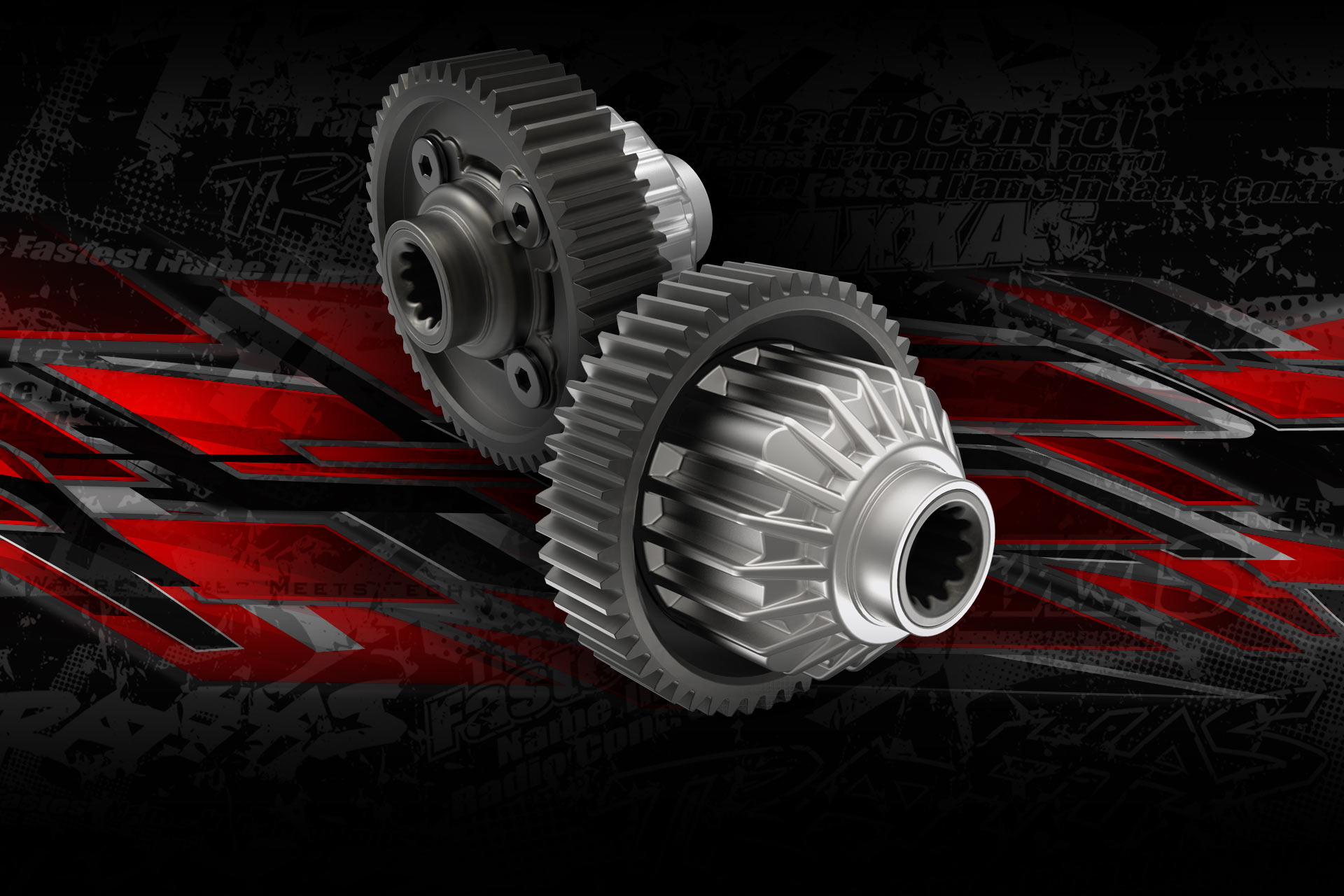

• Shaft-driven 4WD system with Torque-Biasing Center Drive for superior power distribution
• Clipless body mounting system for quick and secure body installation

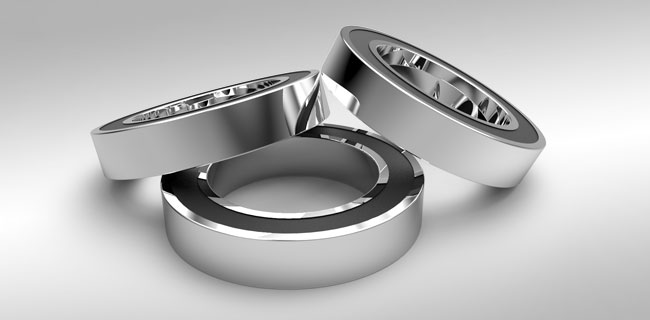

• High-quality sealed bearings throughout to keep out dirt and debris

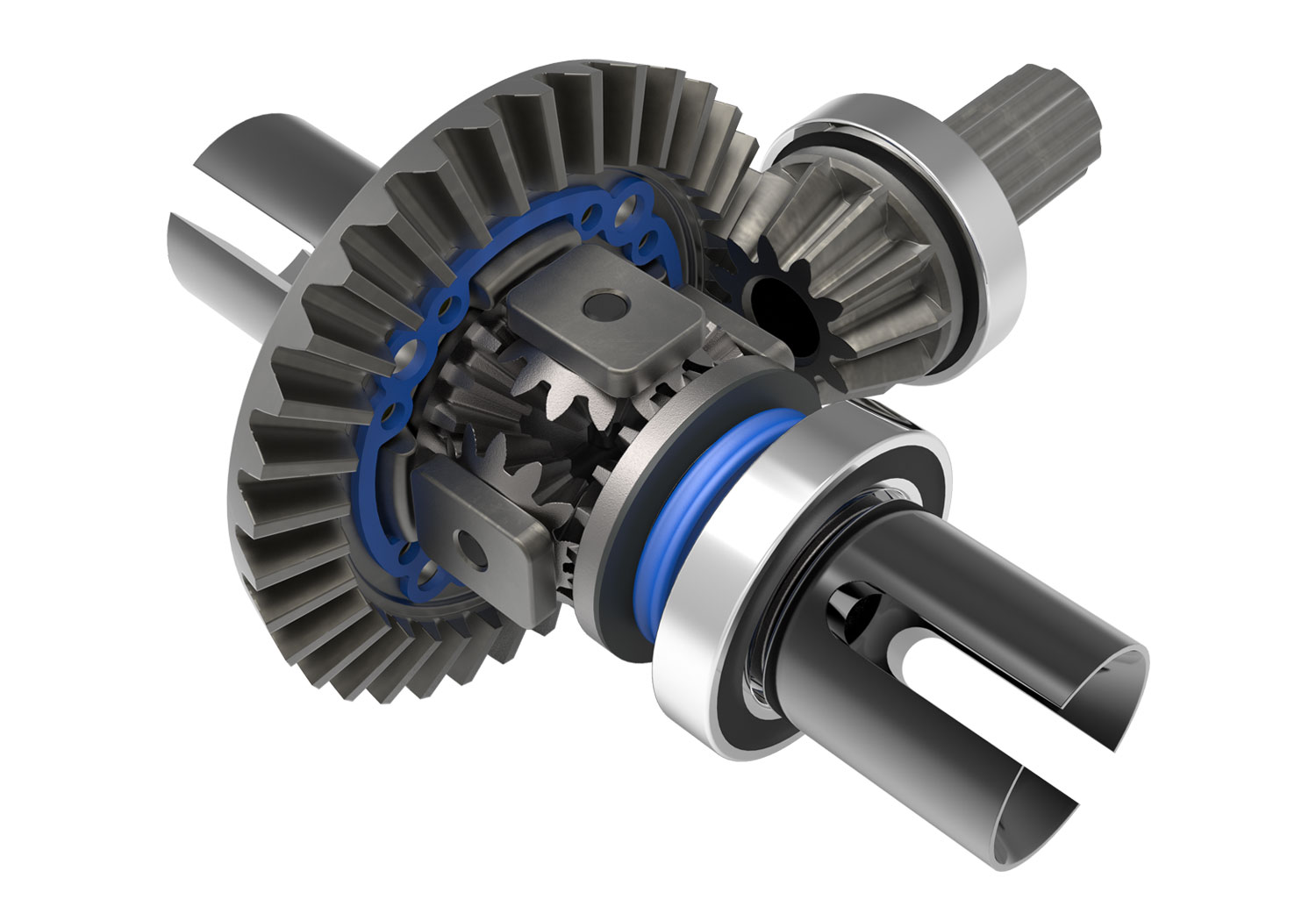

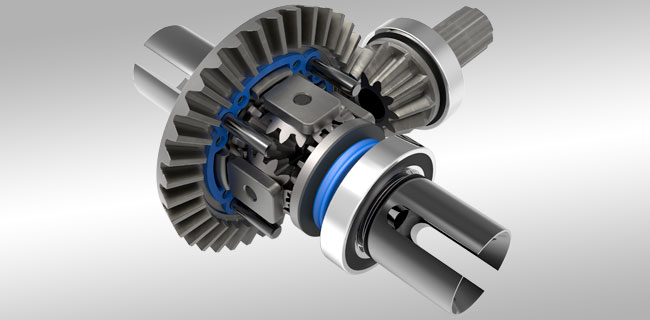

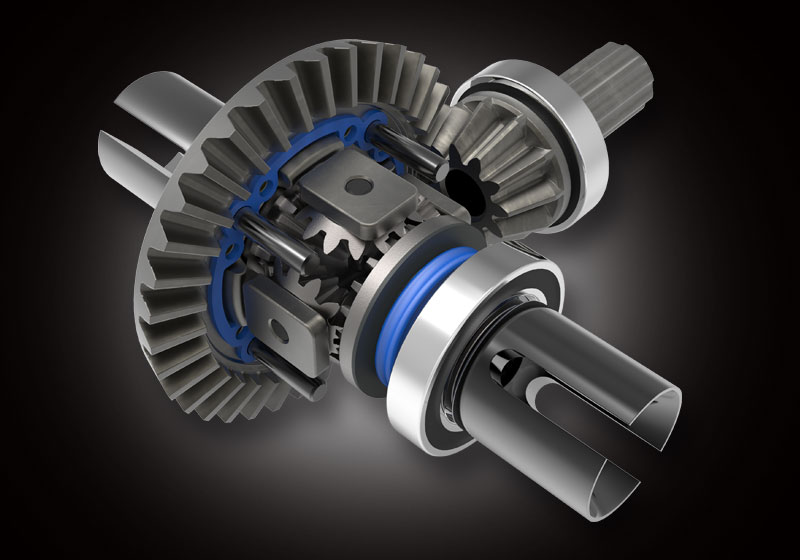

• Sealed, hardened steel bevel limited-slip differentials with large module gears

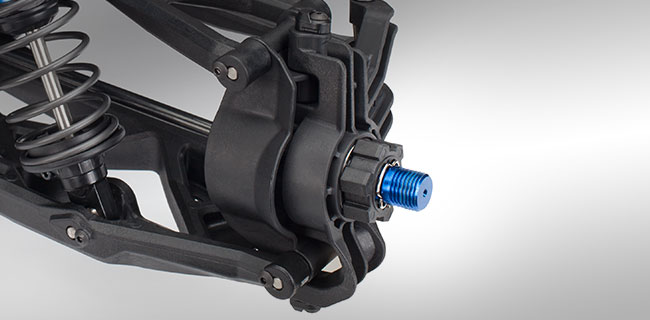

• Adjustable suspension geometry with engineered double shear strength at critical points
• Full contact sealed bearings reduce downtime and increase run time

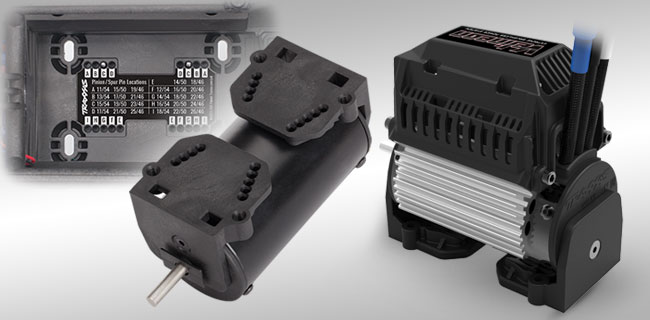

• Energy-efficient dual cooling fans on motor for extended performance
• Traxxas Stability Management (TSM) for enhanced control and prevention of spinouts

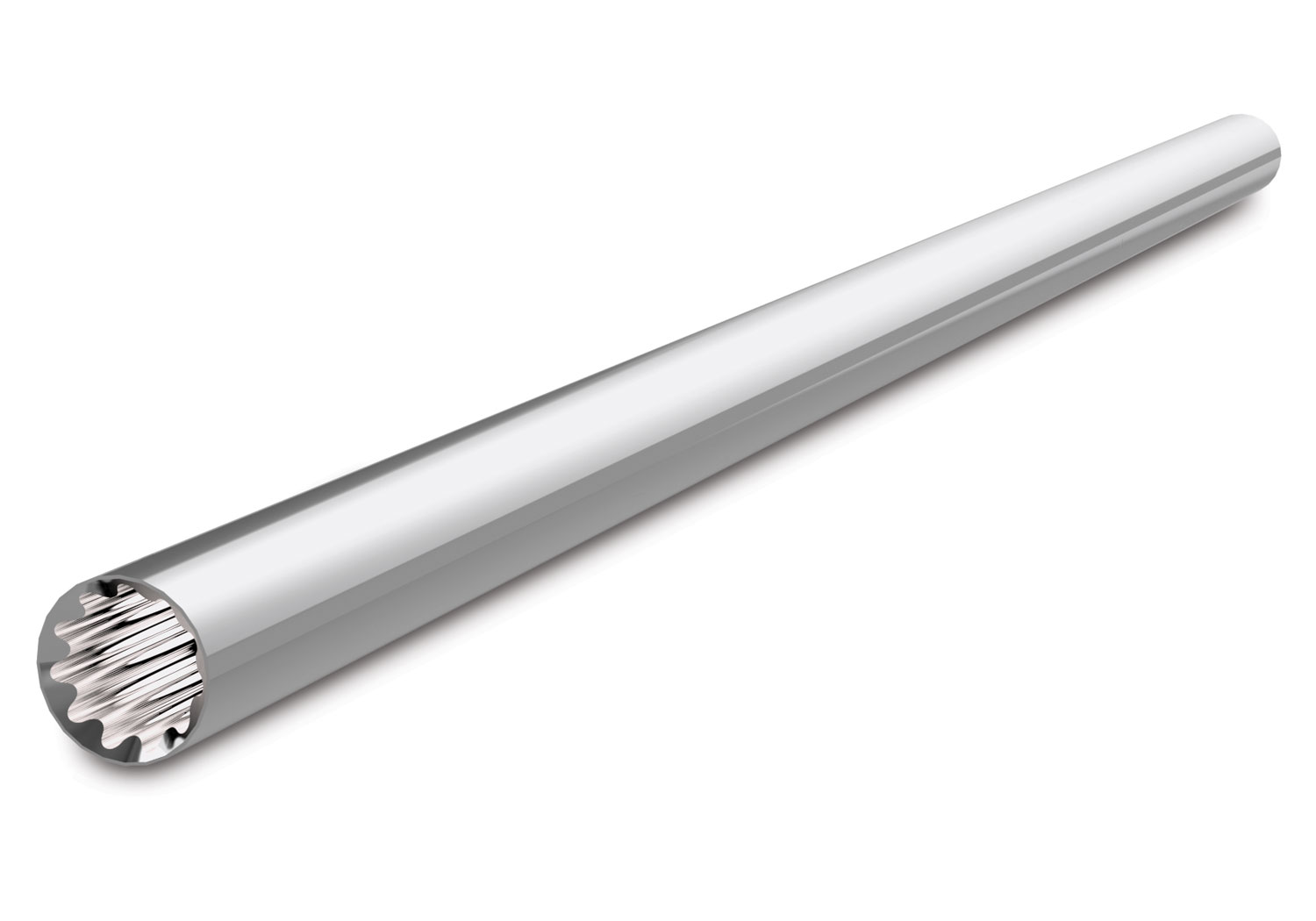

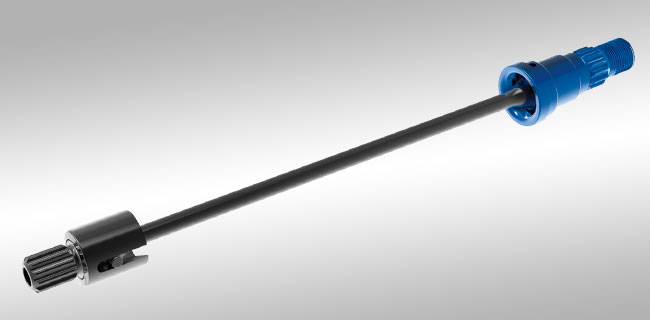

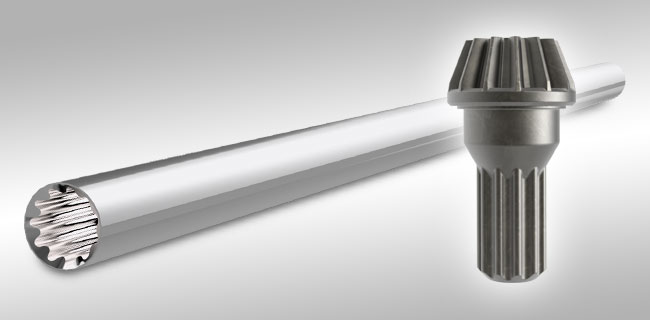

• Large aluminum splined driveshaft for robust power transfer
• Integrated nerf bars for added side impact resistance

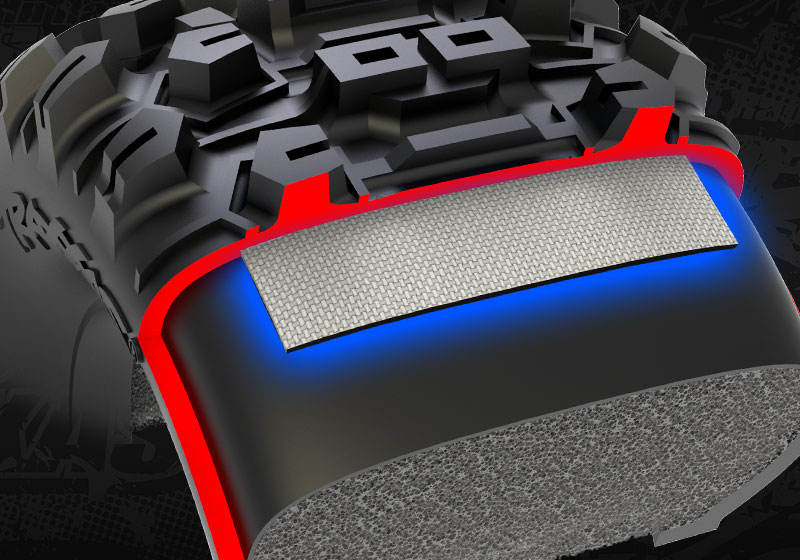

• High-strength glue and bead design on tires to prevent ballooning

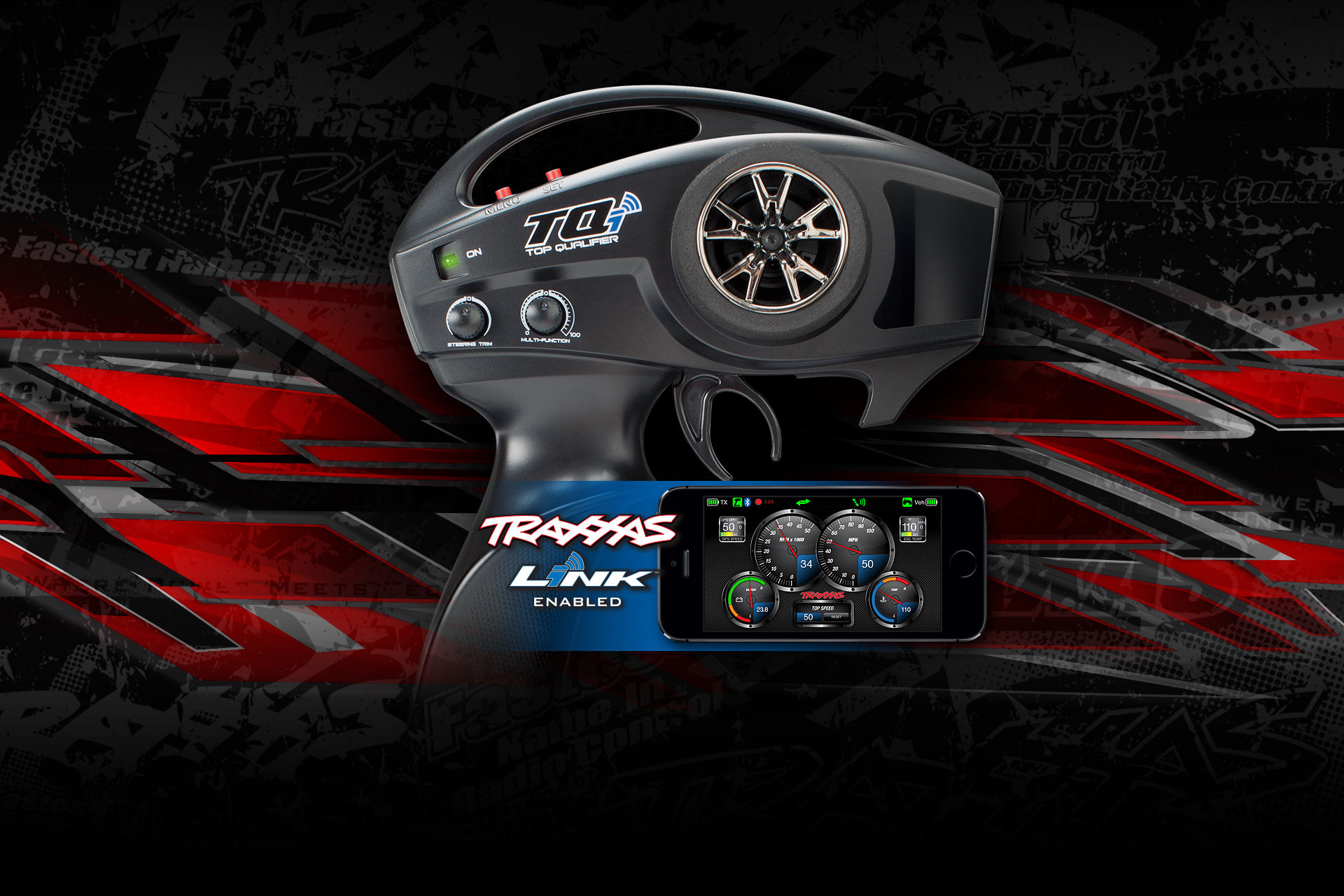

• TQi 2.4 GHz High Output Radio System with real-time telemetry and multiple model memory
• Adjustable steering and throttle settings for precise control and customization
• Steering bell cranks with high-output servo and double-shear support
• Includes high-quality maintenance tools and a Quick Start Guide

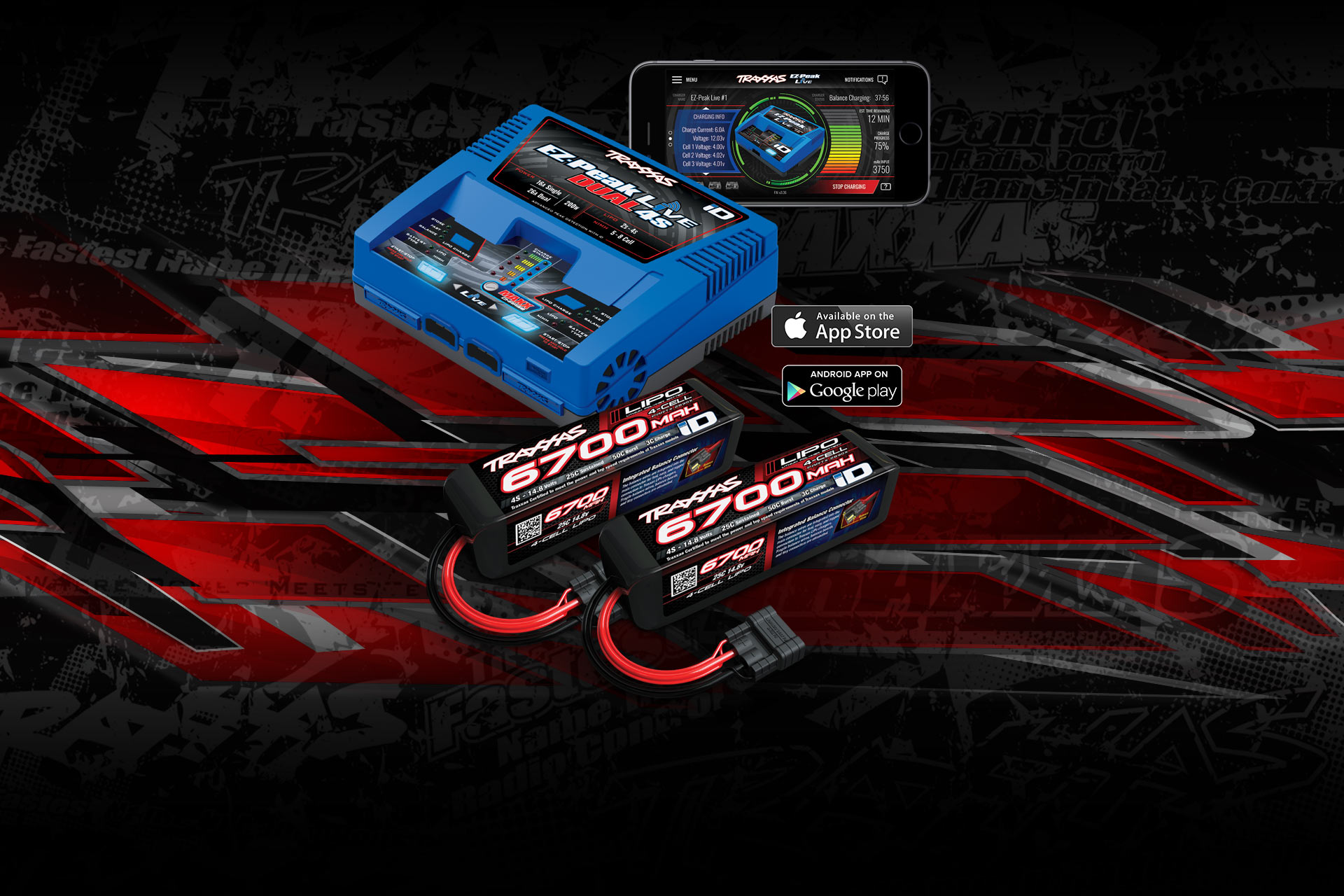

• Requires Traxxas 4-Cell, 6700 mAh Power Cell LiPo batteries for optimal performance (sold separately)

• Length: 30.67 inches (779 mm)
• Front Track: 21.3 inches (540 mm)
• Rear Track: 21.3 inches (540 mm)
• Ground Clearance: 4 inches (102 mm)
• Weight: 19.1 pounds (8.66 kg)
• Height (ride): 13.79 inches (350 mm)
• Wheelbase: 18.92 inches (480 mm)
• Shock Length: 7.4 inches (187 mm)
• Tires (pre-glued): 8.0x4.0 inches (203 mm)
• Wheels: 4.3x5.7 inches (110x145 mm)
• Wheel Hex Size: 24 mm splined hex
• Speed Control: Velineon VXL-8s
• Motor (electric): Velineon 1200XL
• Transmission: Single-speed
• Overall Drive Ratio: 8.11 (stock, out-of-box)
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: 1.0 pitch
• Chassis Structure/Material: Composite Nylon tub
• Brake Type: Electronic
• Drive System: Shaft-driven 4WD
• Steering: Bellcrank
• Radio System: TQi 2.4 GHz Transmitter with TSM receiver
• Servo: Torque: 365 oz/in, Speed: 0.17 sec/60° (6.0 V)
• Top Speed: 50+ MPH with two 4s LiPo batteries and optional gearing
• Skill Level: 6
• Battery Tray: 197 mm x 51.5 mm x 44 mm
• Required Batteries: 4 “AA” (transmitter) and 3-cell LiPo battery (x2) or 4-cell LiPo battery (x2)
• Motor Specs: 1275 Kv Sensorless Brushless
• Motor Weight: 23.44 ounces (665 g)
• Motor Length: 4.32 inches (110 mm)
• Motor Diameter: 1.88 inches (48 mm)
• Motor Connector Type: Traxxas 6.5 mm bullet connectors
• ESC Specs: 8s LiPo (Max 33.6 volts)
• ESC Case Size: 2.23″ (58 mm) / 2.83″ (72 mm) / 1.81″ (46 mm)
• ESC Weight: 7.6 ounces (215.5 g)
• BEC Voltage: 6.0 volts
• BEC Current Continuous: 10 amps
• BEC Current Peak: 20 amps
• ESC Motor Connectors: Traxxas 6.5 mm bullet connectors
• ESC Battery Connectors: Traxxas High-Current Connectors
• ESC Power Wire: 10 gauge Maxx Cable
• ESC Ports: RX input, auxiliary fan, accessory port
• Velineon VXL-8s Power System: Brushless, waterproof ESC and motor
• ESC Features: Built-in cooling fan, real-time telemetry, LED status lights
• Motor Features: 4-pole 1275 Kv, aluminum heat sink, dual cooling fans
• Speed: 50+ MPH with two 4s LiPo batteries
• Traxxas Stability Management: Adjustable assistance from off to 100%
• Radio System Features: Multi-function knob, telemetry-ready, high frame rate

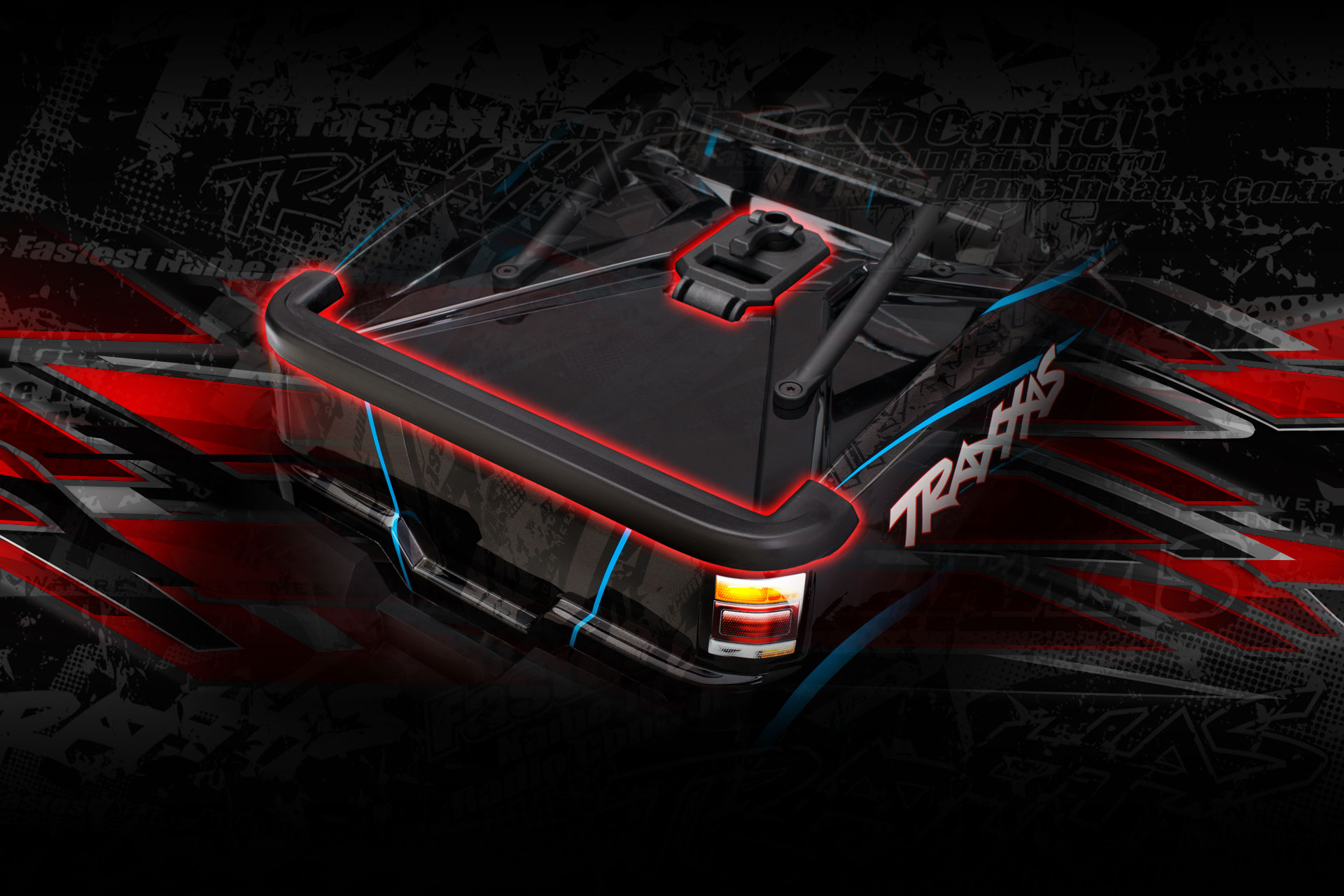

• Body Mount System: Clipless, quick one-hand installation and removal
• Steering: High-output servo, fully supported case

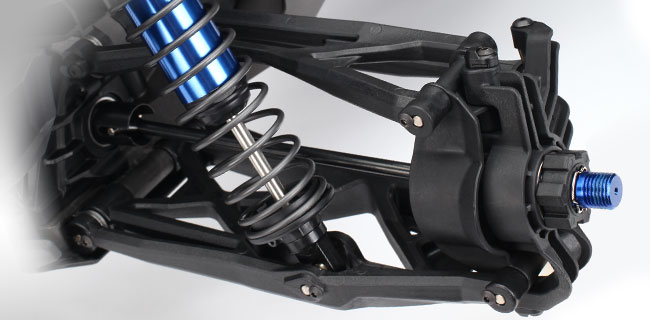

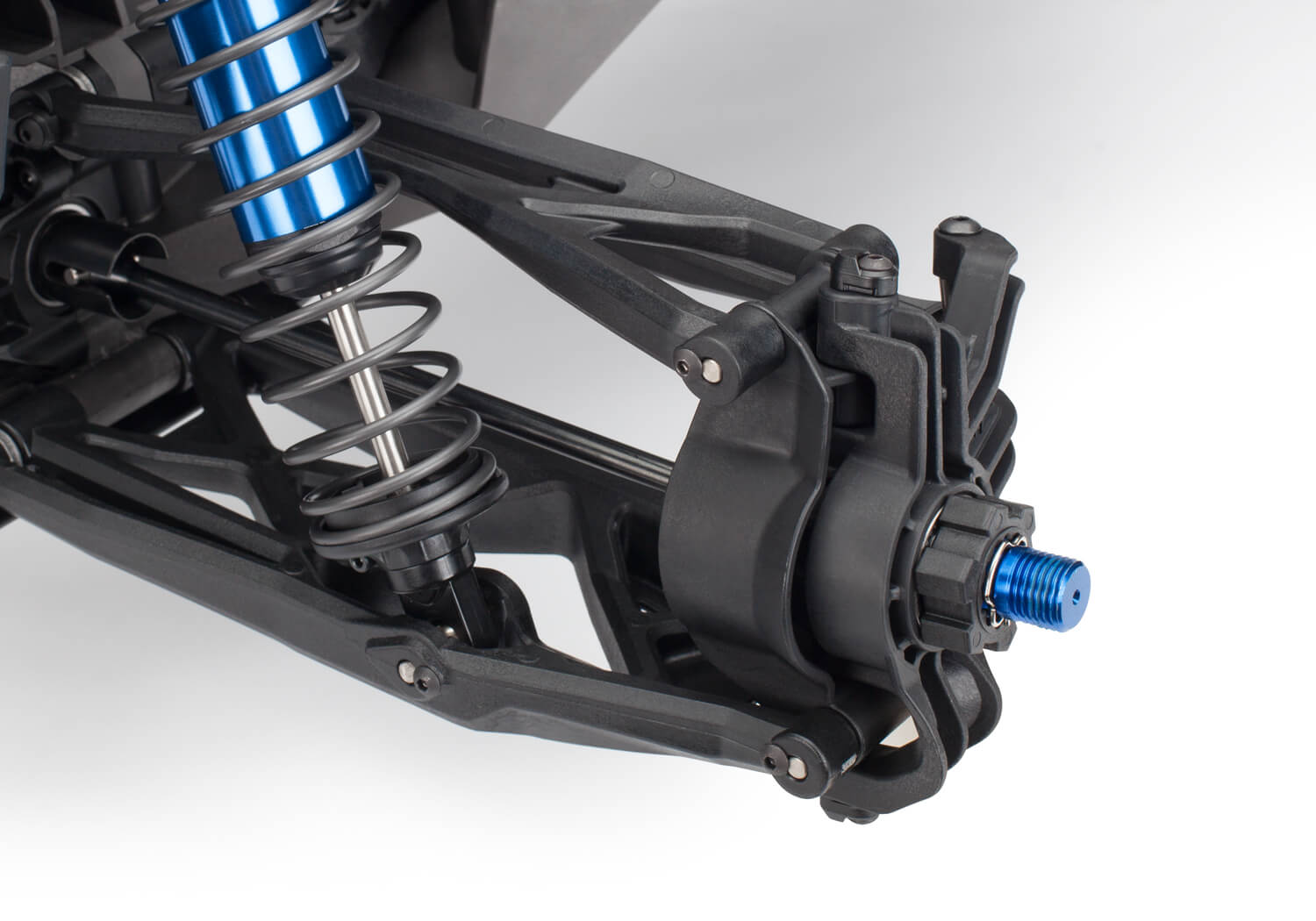

• Suspension: Double shear strength, adjustable roll center, full contact sealed bearings
• Shocks: GTX aluminum, oil-filled, adjustable upper spring retainer
• Bumpers: Front impact cushion, integrated nerf bars
• Tires: 8.4" Belted Sledgehammer, high-strength glue, dual-diameter wheels
• Included: X-Maxx, VXL-8s ESC, TQi 2.4 GHz radio, maintenance tools
• Required: LiPo batteries with Traxxas High Current Connectors, 4 AA batteries
