Overview

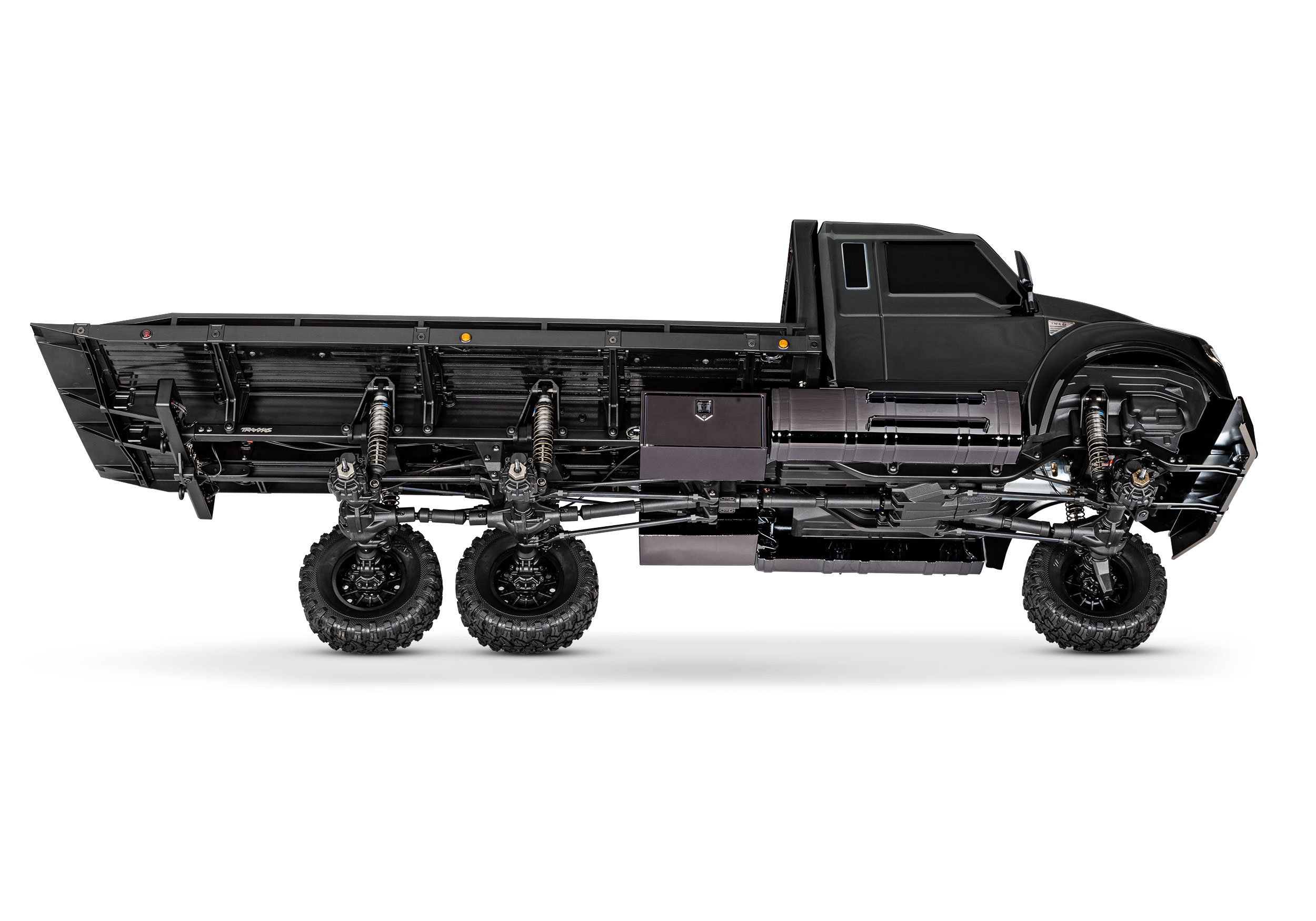

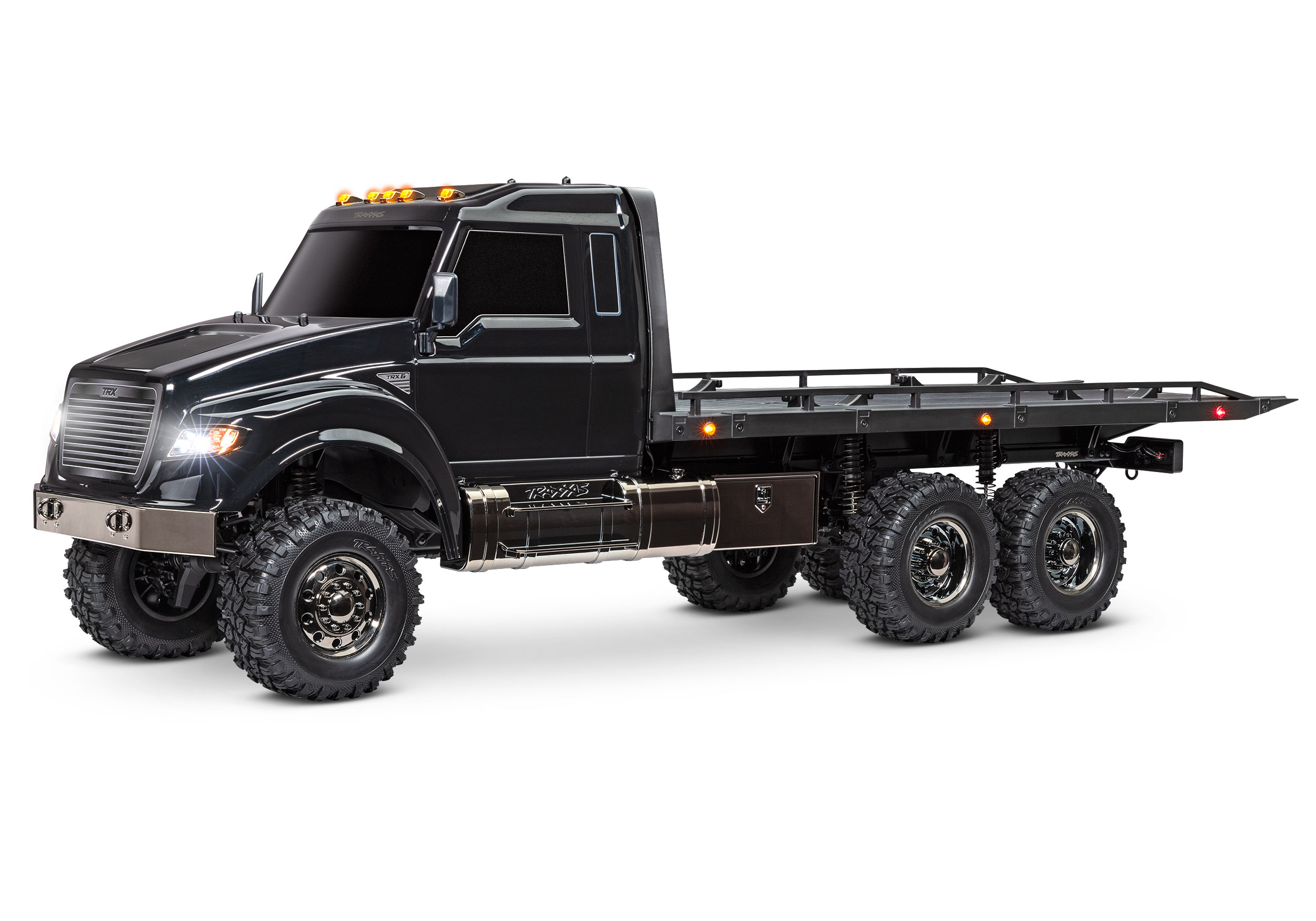

The 1/10 TRX-6 Ultimate Hauler is a high-performance RC vehicle designed to dominate the road and off-road trails. With its impressive features and capabilities, this model is perfect for transporting your 4-Tec models in style.
| Scale: | Speed: | Battery and Charger: |
|---|---|---|
| 1/10 | Crawler | Not Included |

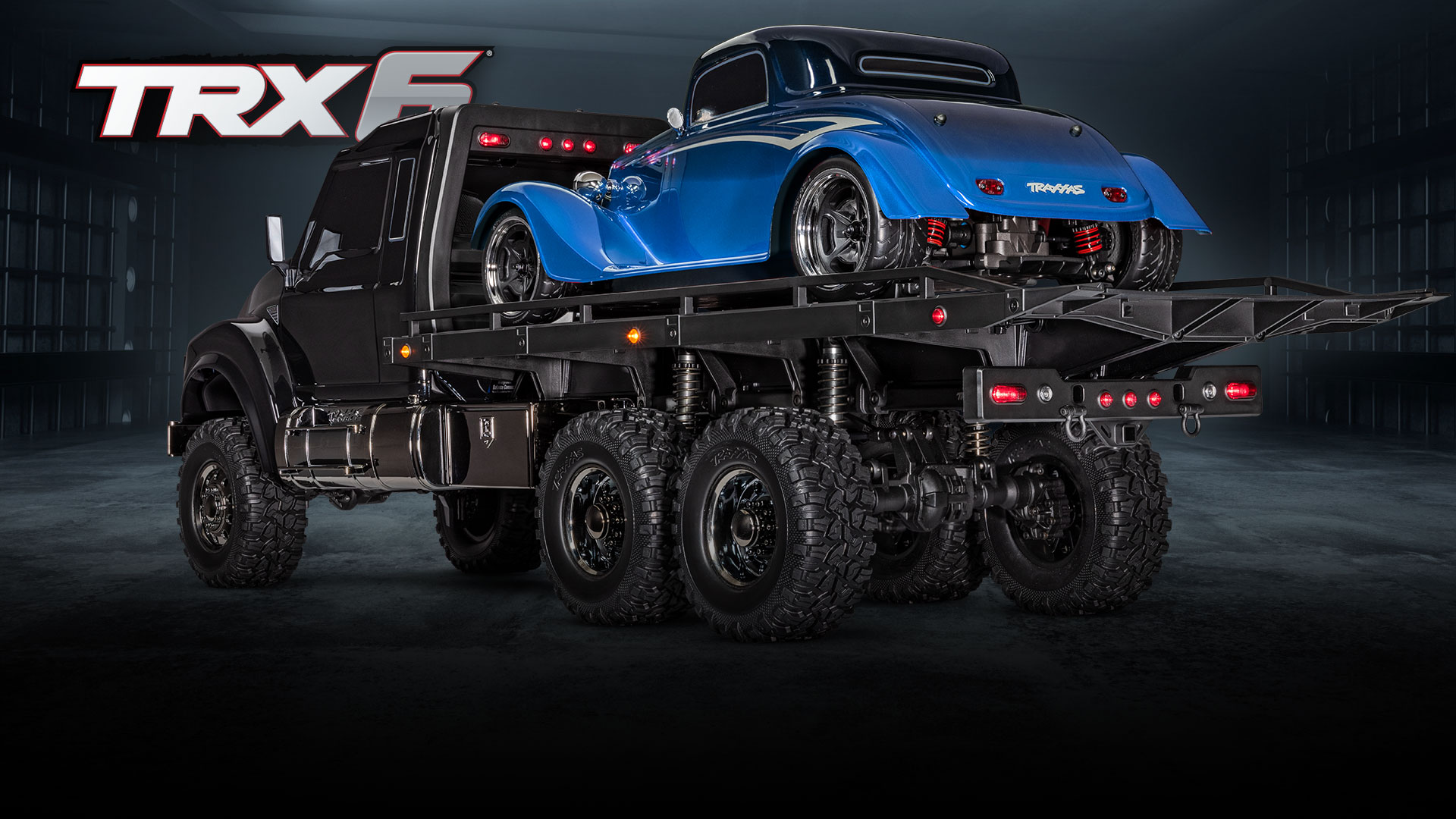

Scale Details
The Ultimate RC Hauler checks all the boxes with molded side mirrors, unique bumpers, gas tanks, and big rig wheels. LED lighting on the cab and tow bed score extra detail points whether you’re cruising unloaded or carrying your prized 4-Tec®.

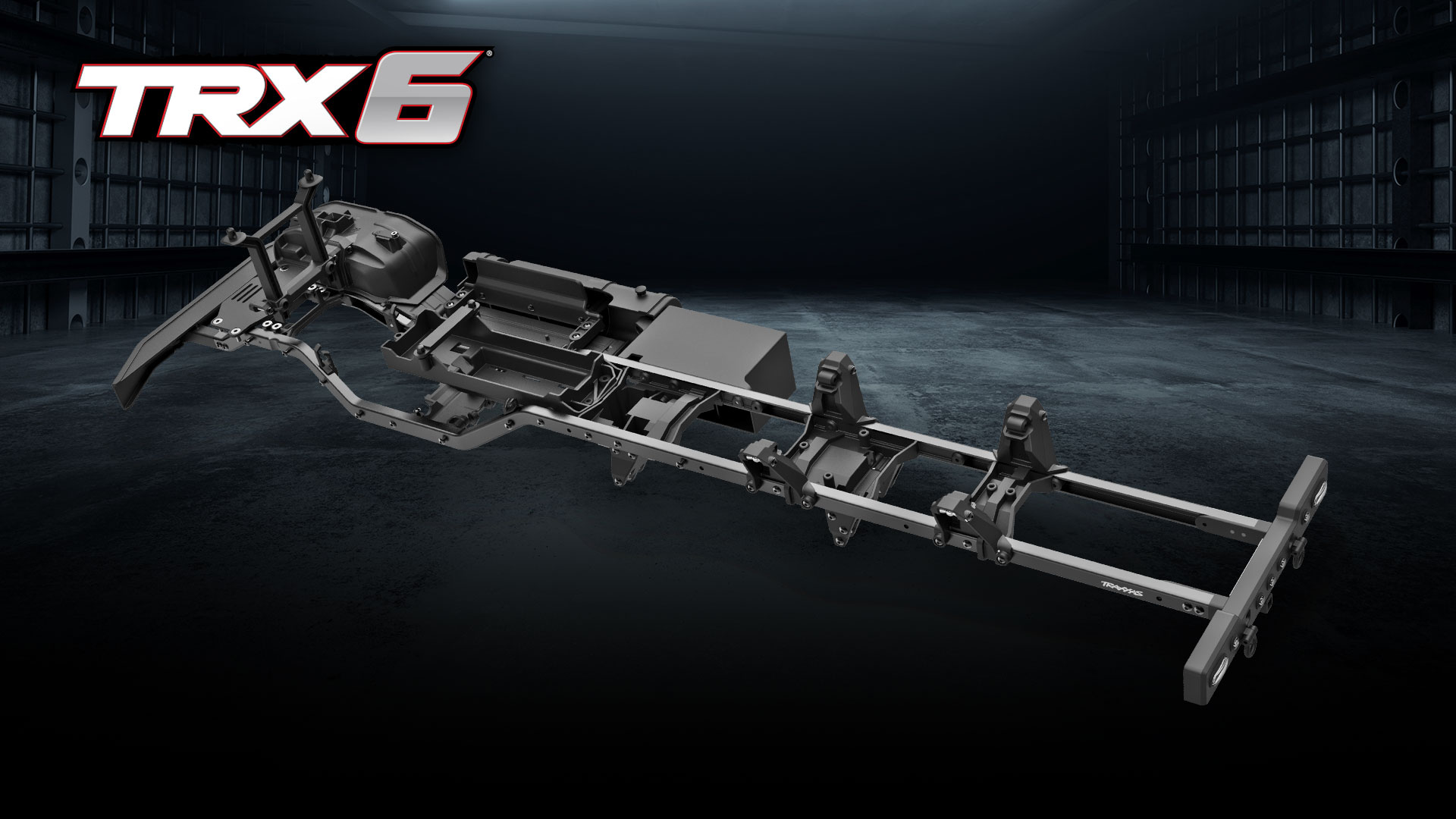

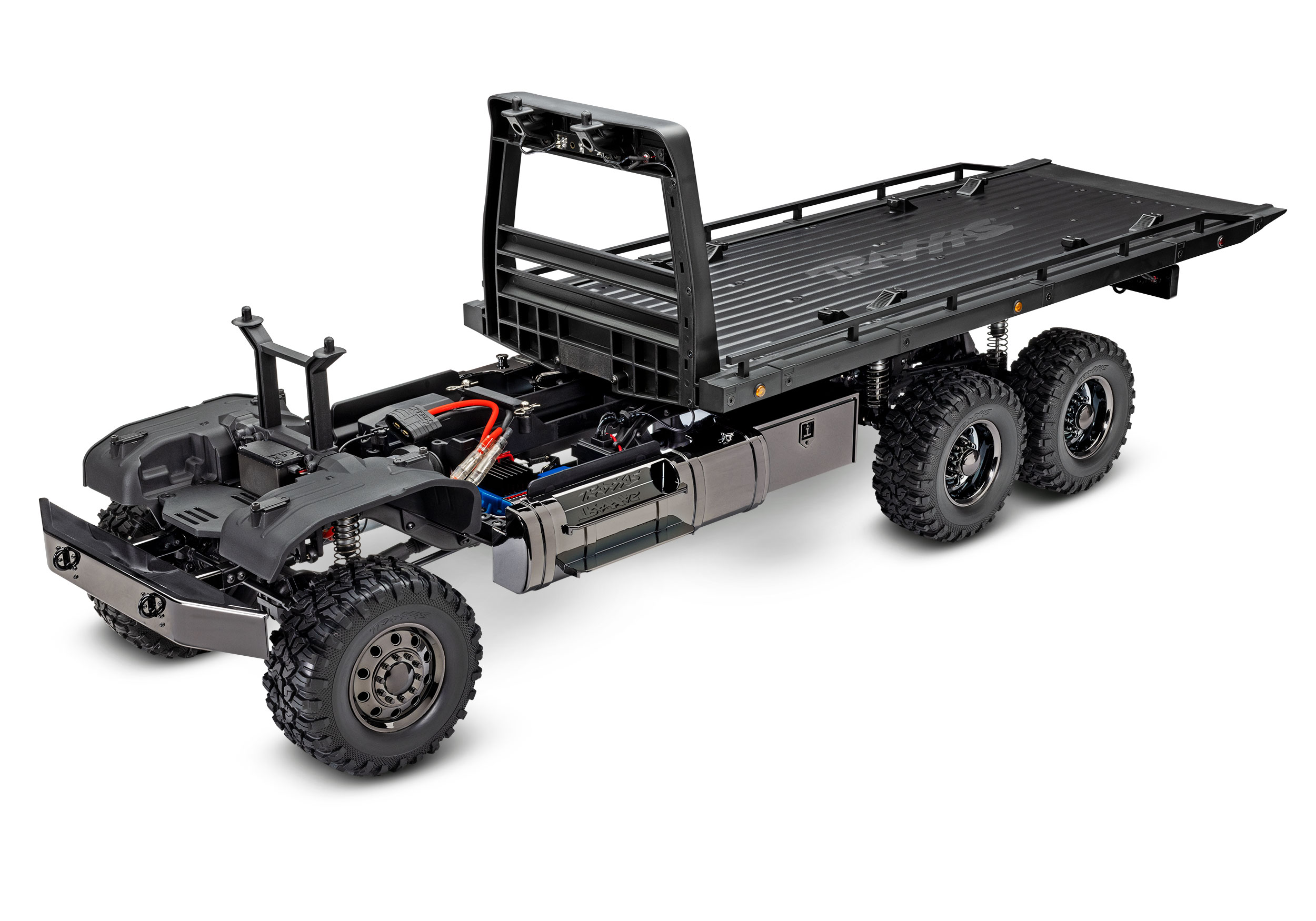

Extended Length Steel Chassis
The RC Hauler maintains its rigid structure by using single-piece frame rails from bumper to bumper. Each frame rail is over 30″ long and reinforced at multiple points for maximum strength.

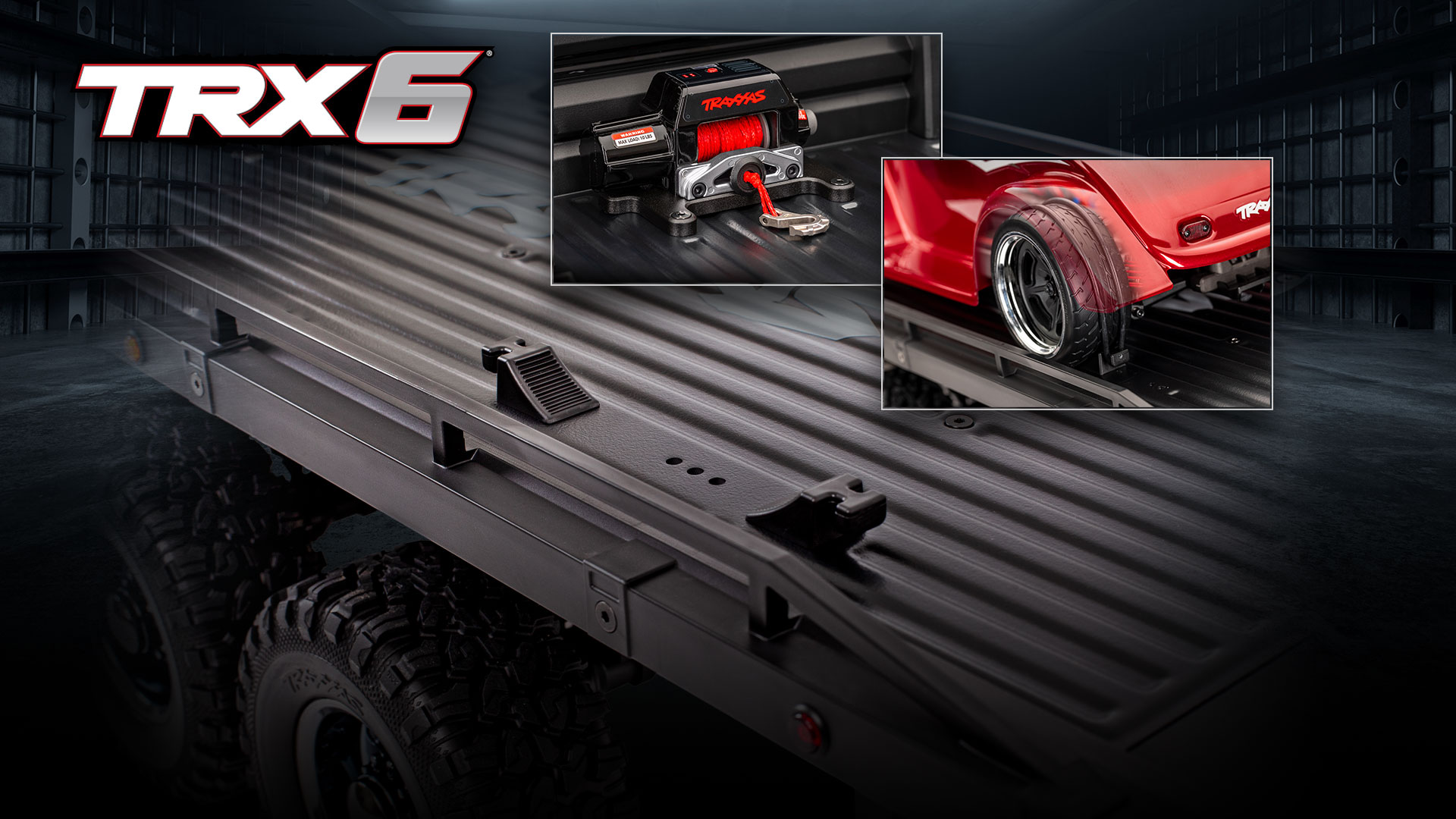

Realistic Tow Truck Bed
The Hauler’s tow bed features full-length side rails and adjustable wheel chocks with tie-down bands to accommodate the different wheelbases of all 4-Tec 2.0 or 3.0 models. For a new level of realism, the Hauler now features a factory-installed Pro Scale® Winch to pull your car into position. (Learn more)

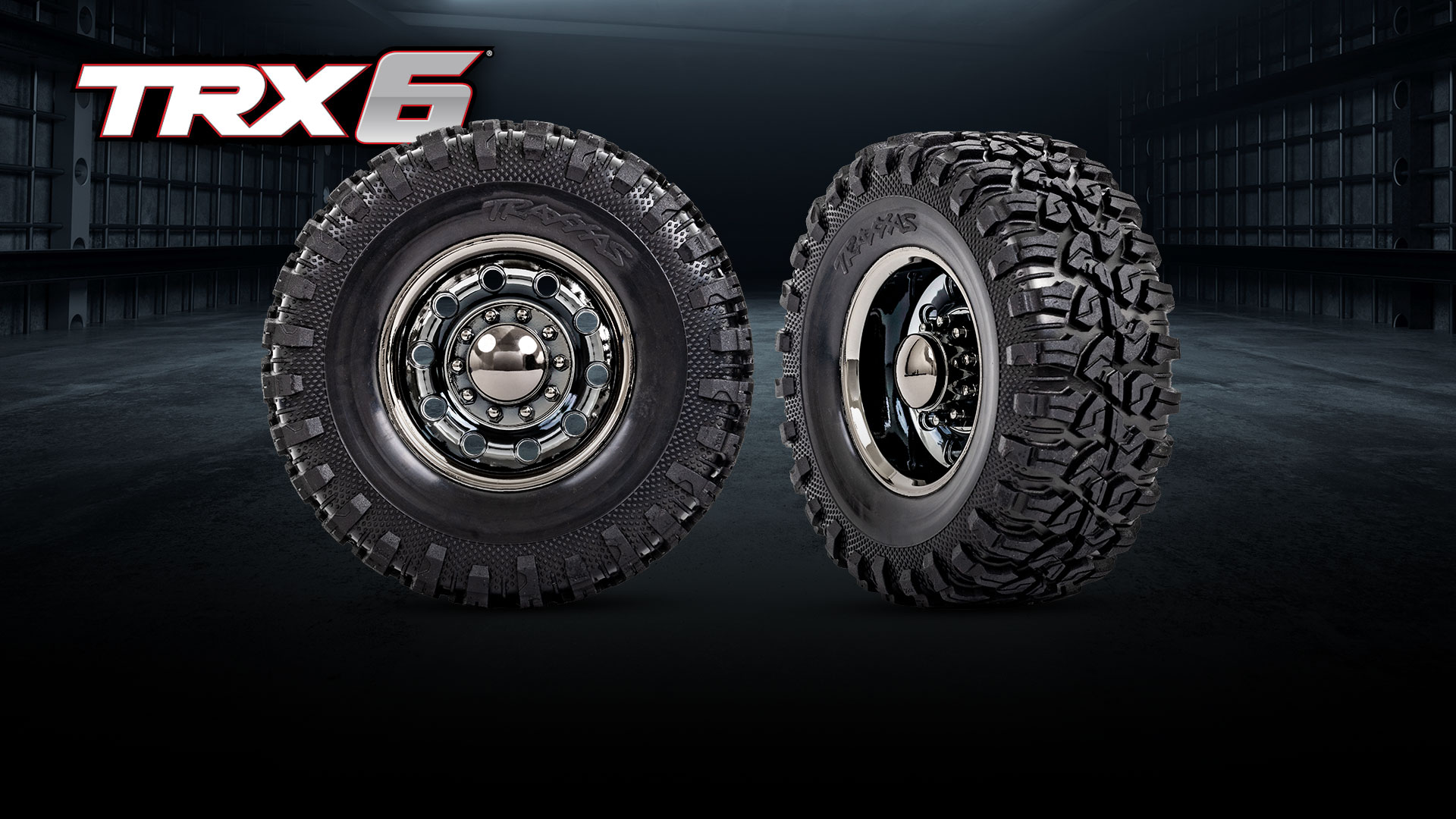

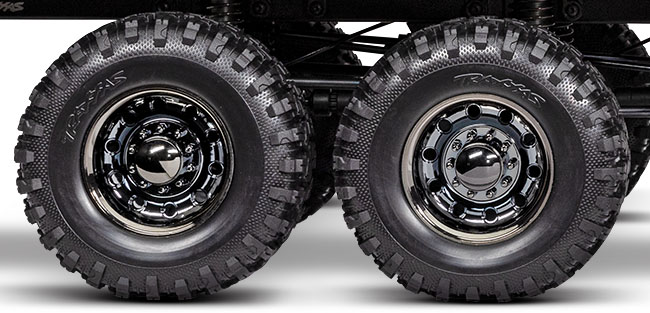

Detailed Big Rig Style Wheels
Deep-dish black chrome wheels are styled to look just like real thing with unique front and rear designs. Replica 10-lug caps conceal the wheel lugs for a perfect scale appearance.

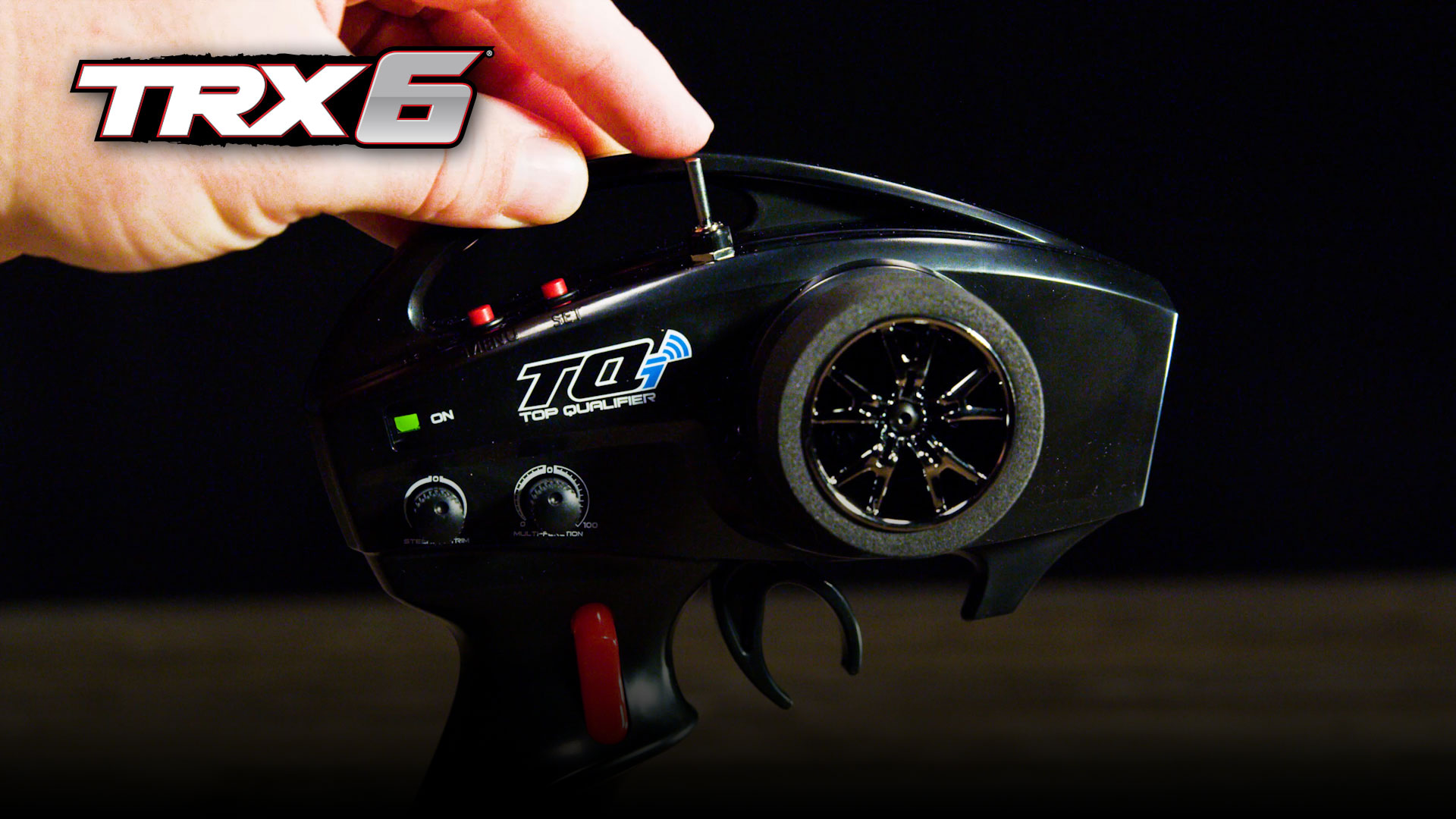

T-Lock™ Remote Locking Differentials
Leave the Hauler’s differentials unlocked to get in and out of tight spaces. When venturing off-road, flip the rocker switch on the transmitter to lock just the front differential or lock all three differentials for extreme 6-wheel-drive traction. Sleeved micro cables control the differential action for reliable performance in all conditions.

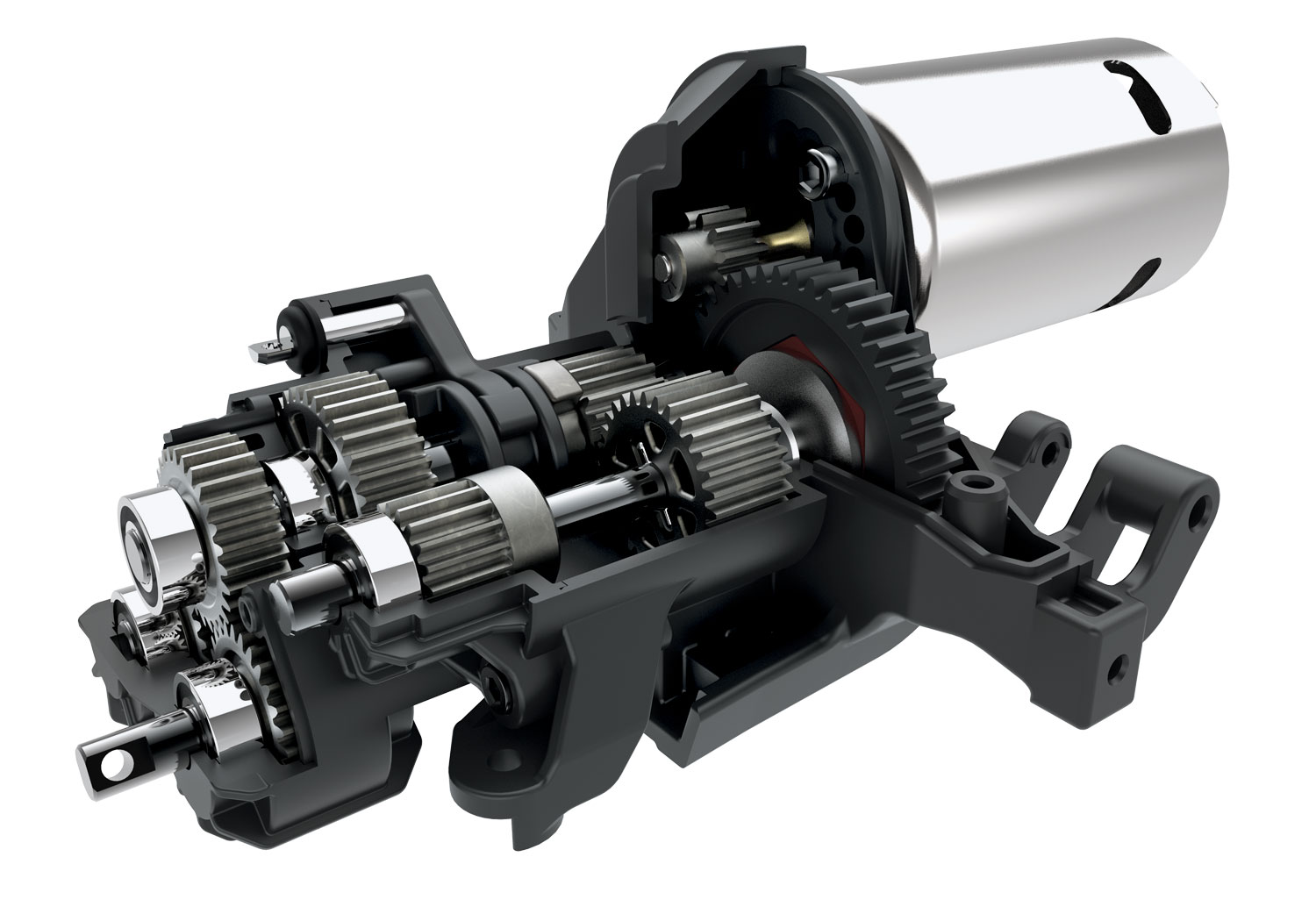

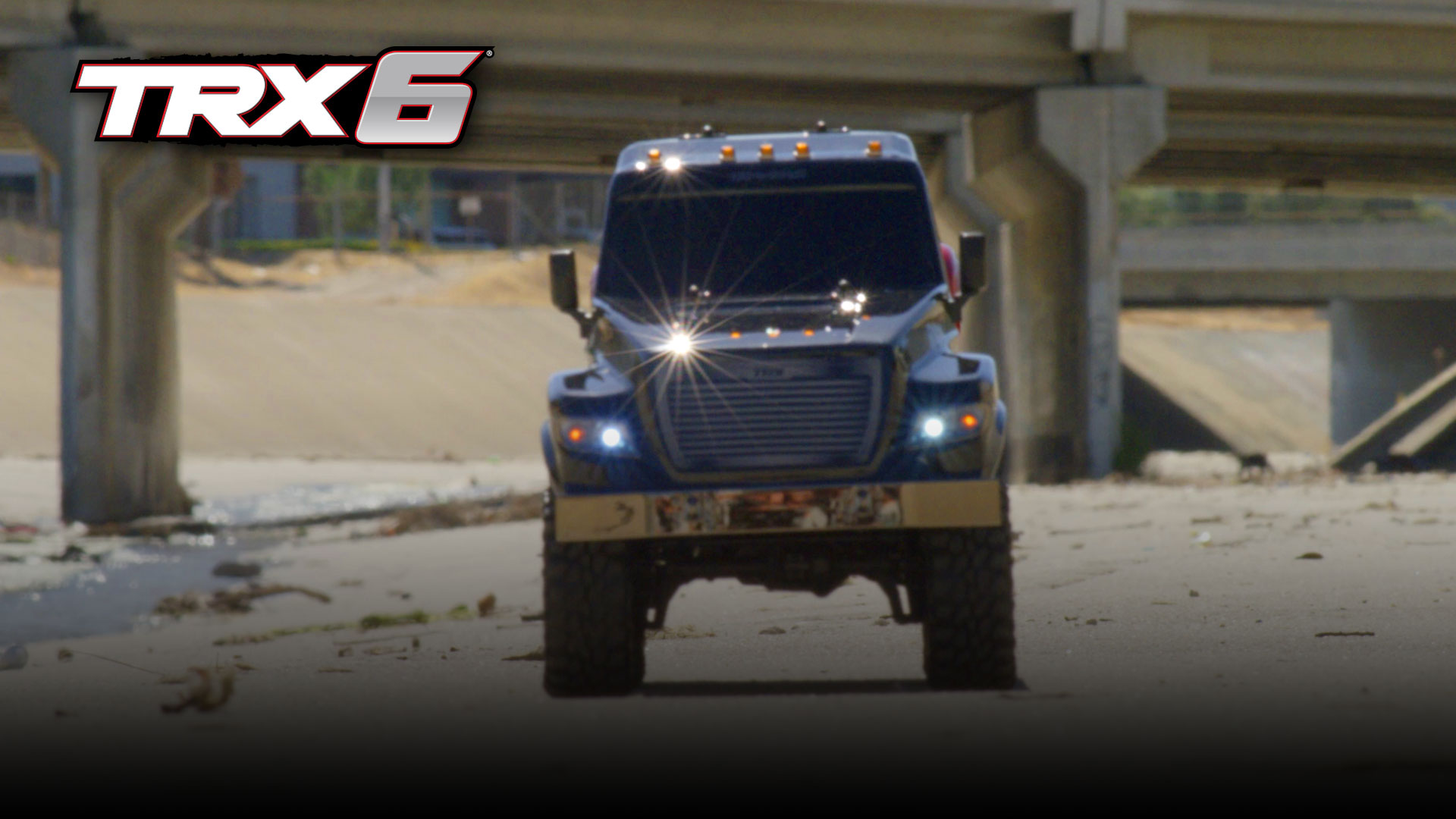

High/Low Range Transmission
Low range gearing provides plenty of torque for climbing the steepest grades, even when fully loaded. When the road opens up, shift into high range and the big rig makes quick work of even the longest hauls.

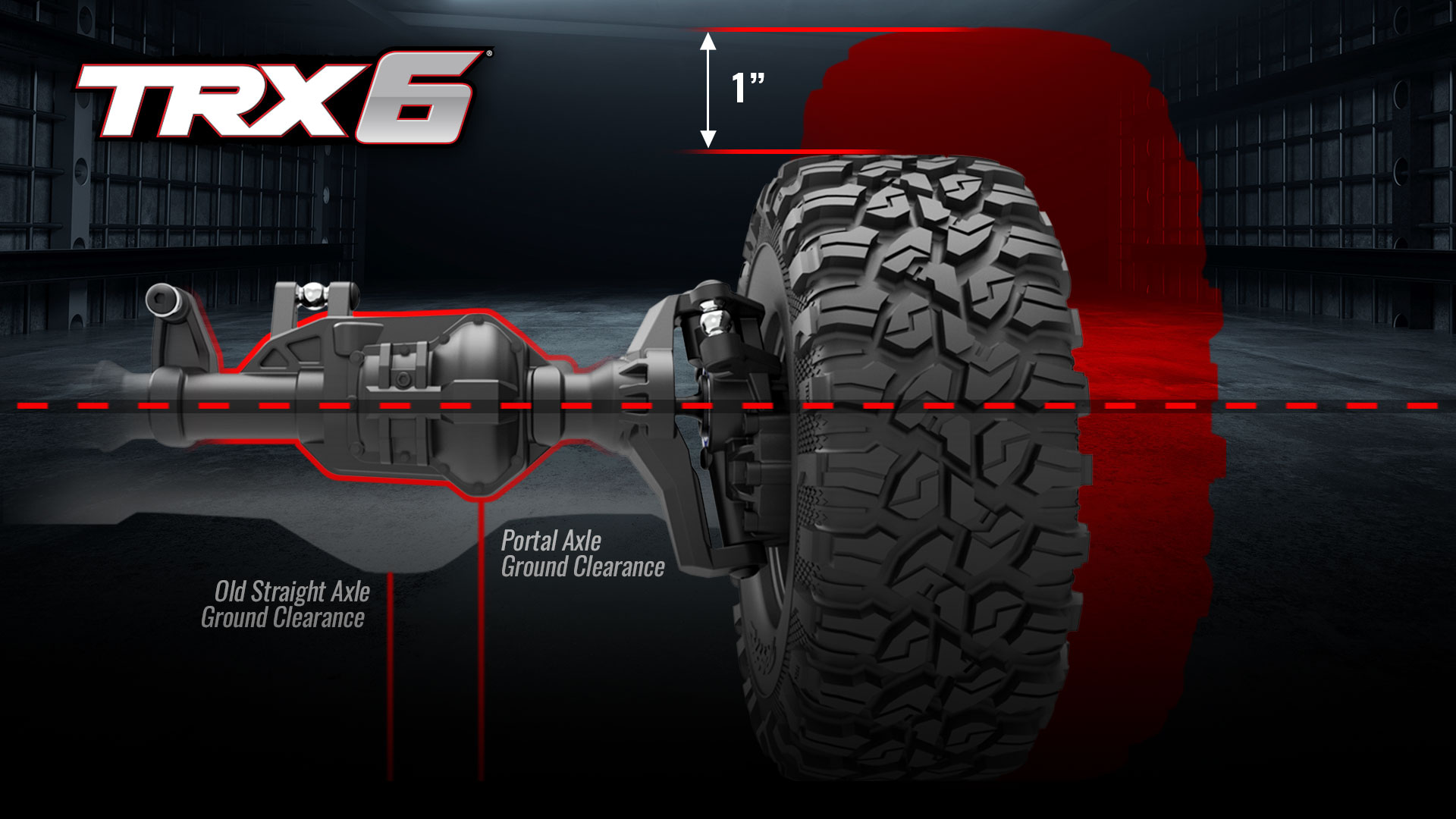

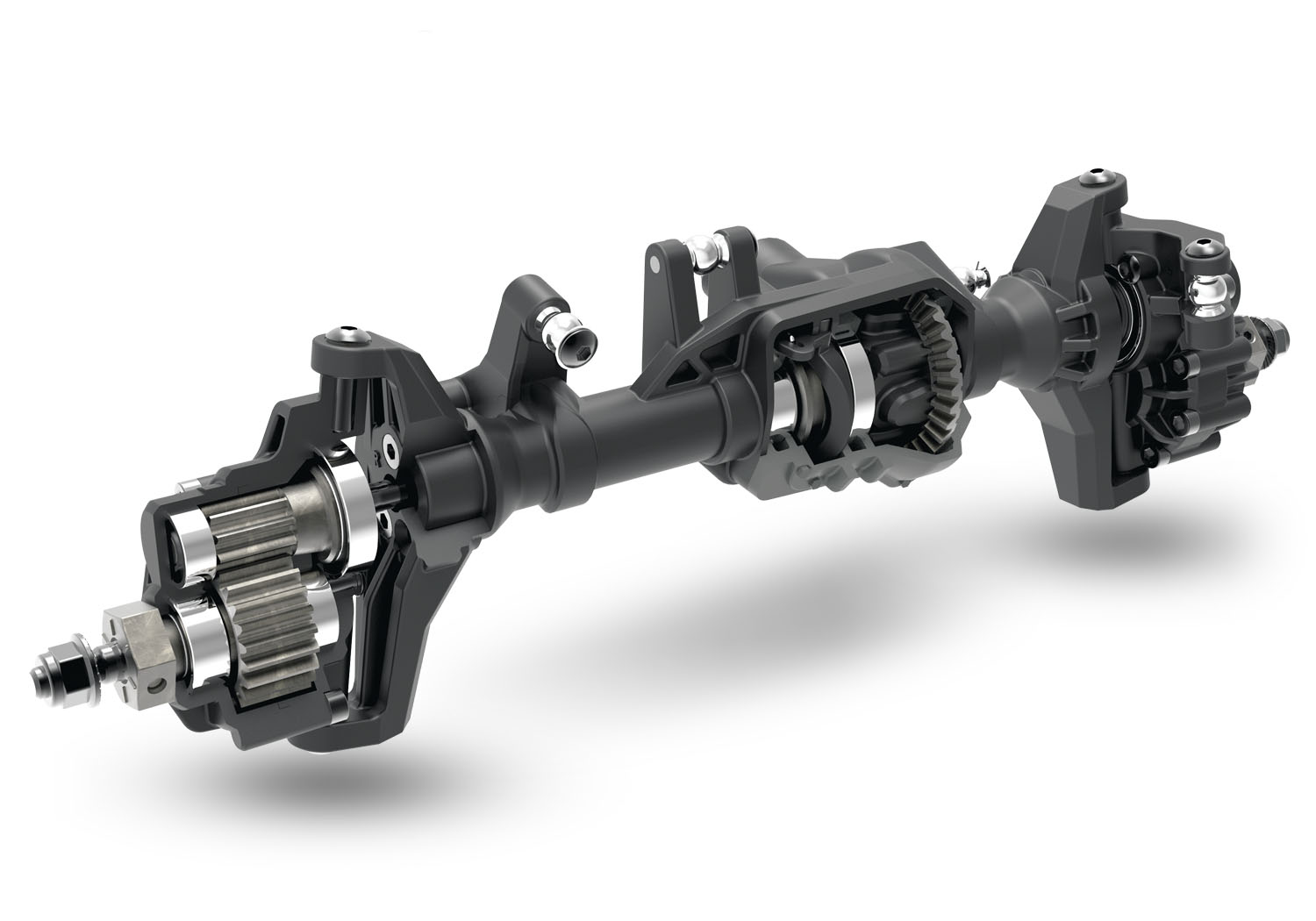

The Power Of Portals
Portal axles lift the truck at the wheels for huge center pumpkin ground clearance. In order to achieve the same clearance with straight axles, your tires would have to be over an inch taller than the tires on the TRX-6.

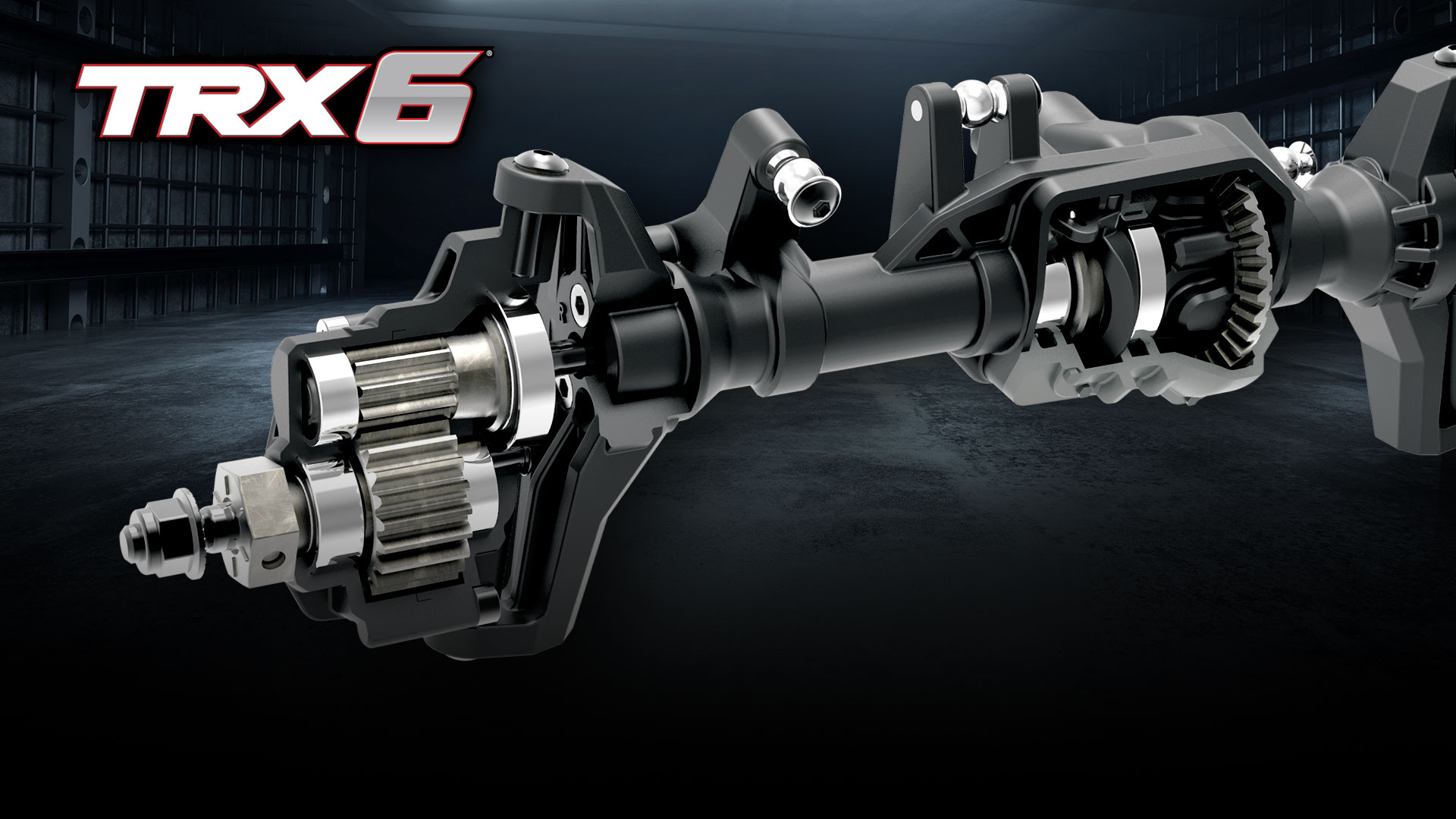

Torque Twist Eliminated
Portal axles use gear reduction at the wheels to virtually eliminate torque twist. That’s especially important with longer vehicles like the RC Hauler. Rather than wasting energy flexing the chassis, the Titan motor’s torque translates into powerful forward motion.

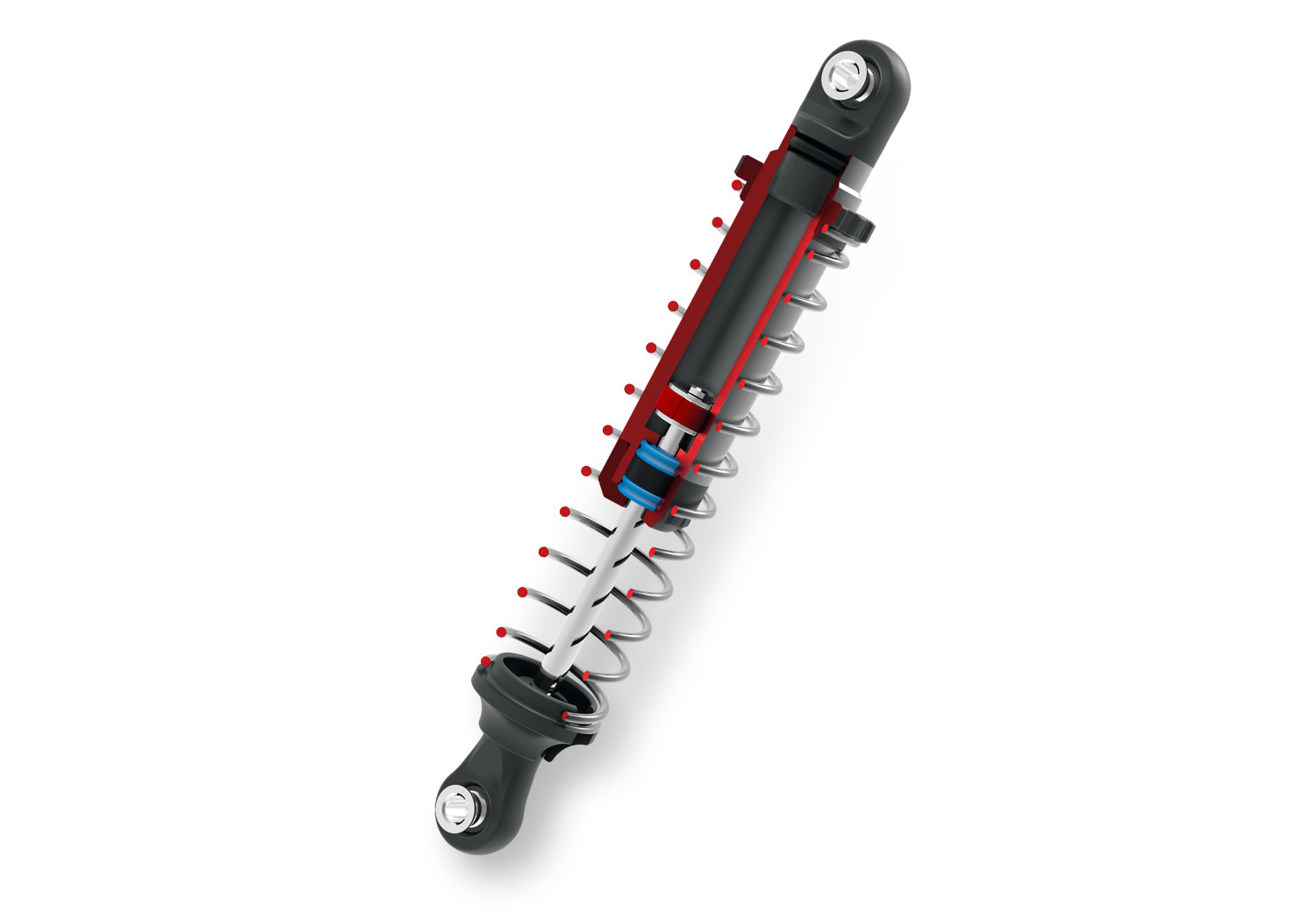

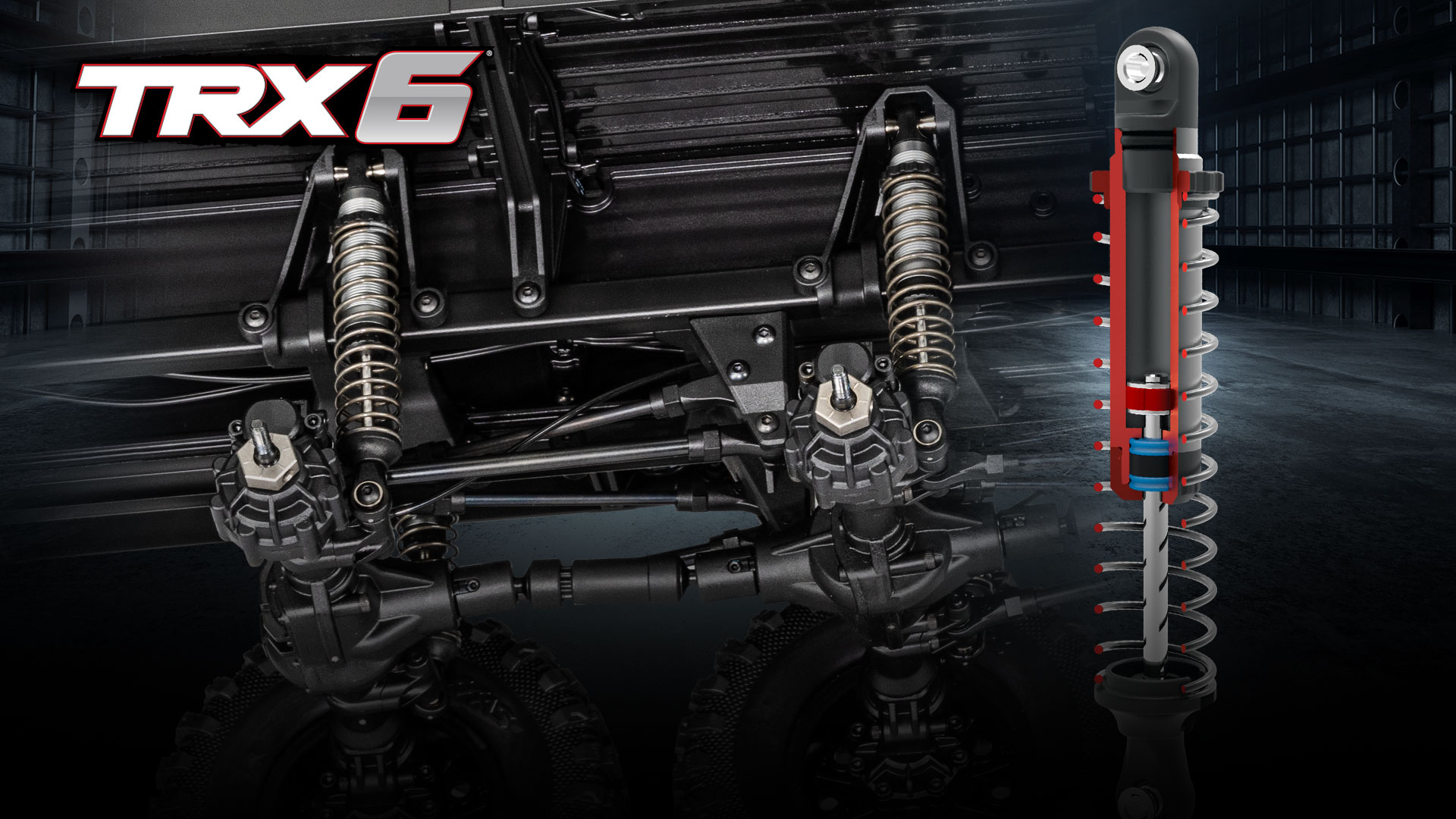

GTS Aluminum Shocks
Six oil-filled coil-over GTS shocks deliver silky-smooth damping performance and a smooth ride for your cargo. Threaded aluminum shock bodies allow for easy ride height adjustment to compensate for loaded and unloaded configurations.

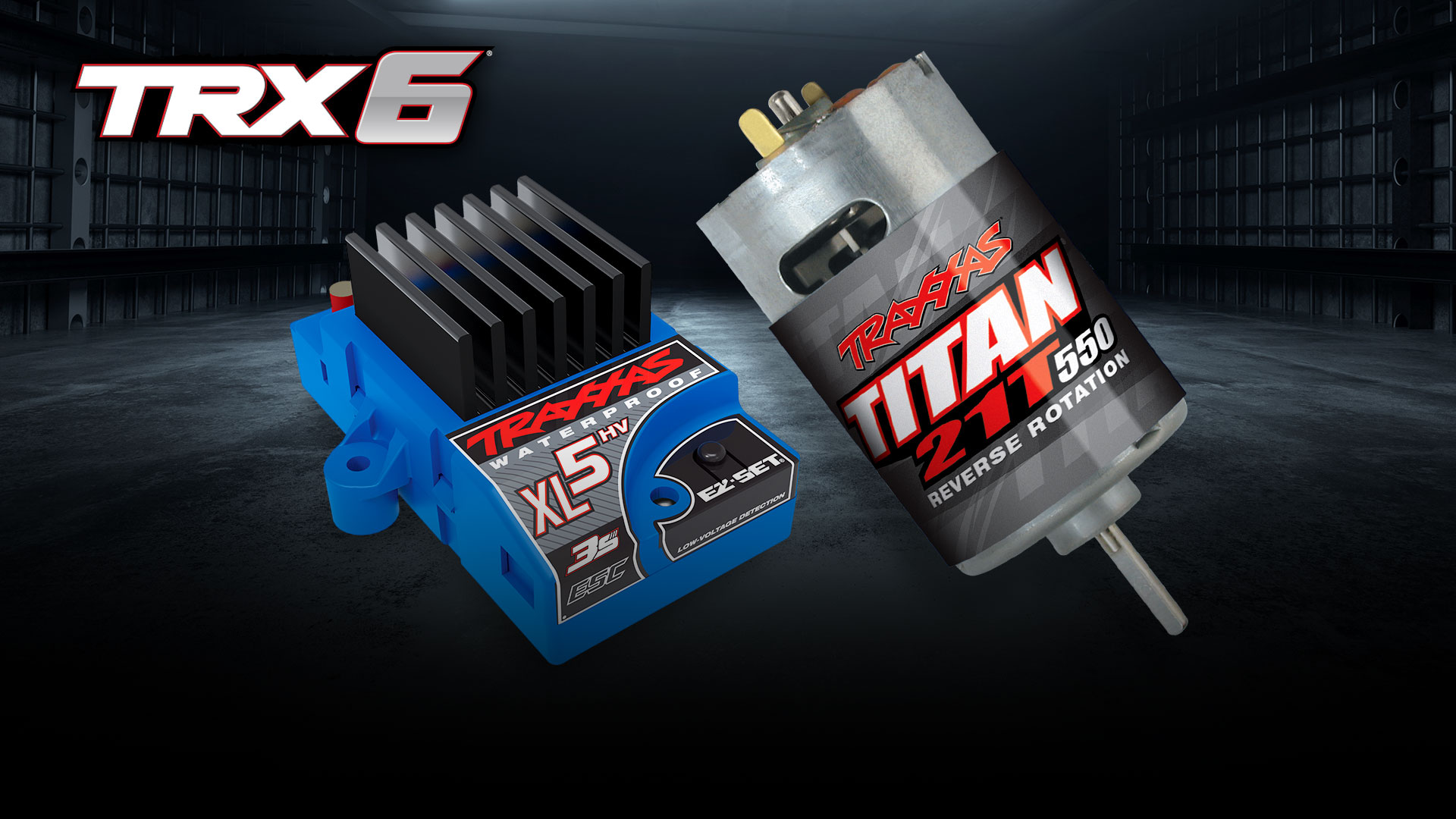

3s Power System
The XL-5™ HV electronic speed control brings 3s LiPo capability for strong efficient running. The powerful 21T Titan® motor provides torque for hauling heavy loads and climbing steep grades. This efficient system provides exceptional run time with a Traxxas 3s 5000 mAh LiPo battery pack!

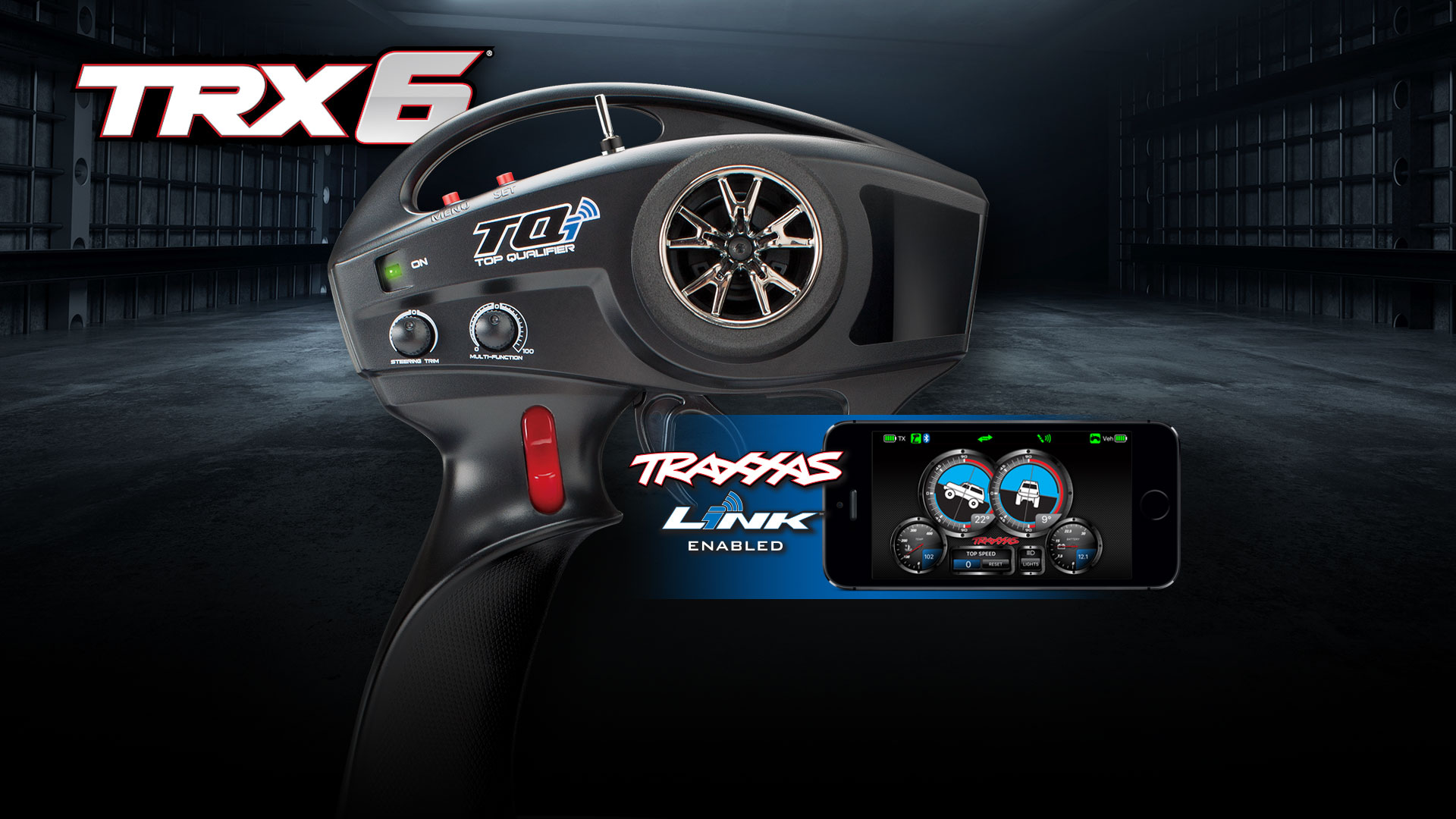

TQi™ Radio System With Cruise Control
The Traxxas TQi features our exclusive cruise control to make long-distance hauls a breeze. Set your speed using the transmitter and then use the multi-function knob to fine-tune it faster or slower. Add a 6511 Traxxas Link Wireless Module (sold separately) to enhance your driving experience with real-time telemetry capability, inclinometer gauges, and more!

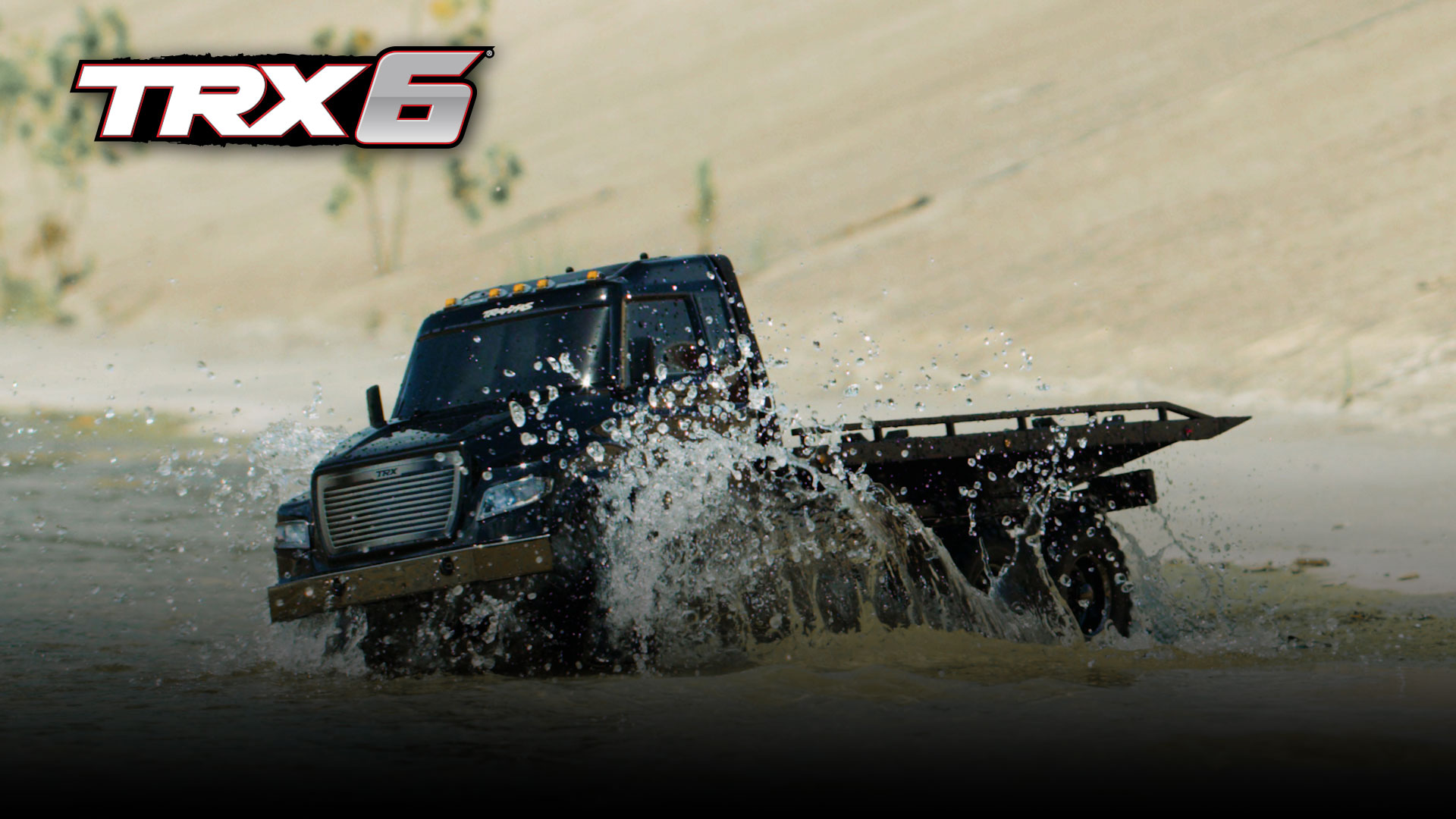

Waterproof Electronics
The TRX-6 is fully waterproof, not “splash resistant.” There is a big difference. Traxxas’ patented innovation gives you the freedom to haul your cargo through water, snow, and mud without worrying about your electronics.
Support
- TRX-6® Ultimate RC Hauler (88086-84) Manual - English
- TRX-6® Ultimate RC Hauler (88086-84) Manual - French
- TRX-6® Ultimate RC Hauler (88086-84) Manual - Spanish
- TRX-6® Ultimate RC Hauler (88086-84) Manual - German
Product Manuals
- TRX-6® Ultimate RC Hauler (88086-84) Body Assembly Exploded View
- TRX-6® Ultimate RC Hauler (88086-84) Chassis Assembly Exploded View
- TRX-6® Ultimate RC Hauler (88086-84) Flatbed Assembly Exploded View
- TRX-6® Ultimate RC Hauler (88086-84) Front Assembly Exploded View
- TRX-6® Ultimate RC Hauler (88086-84) Intermediate Assembly Exploded View
Exploded Views
- TRX-6® Ultimate RC Hauler (88086-84) Parts List
Parts Lists
- TRX-6® Ultimate RC Hauler (88086-84) Box Panels
Box Reference
Features
Built to Haul

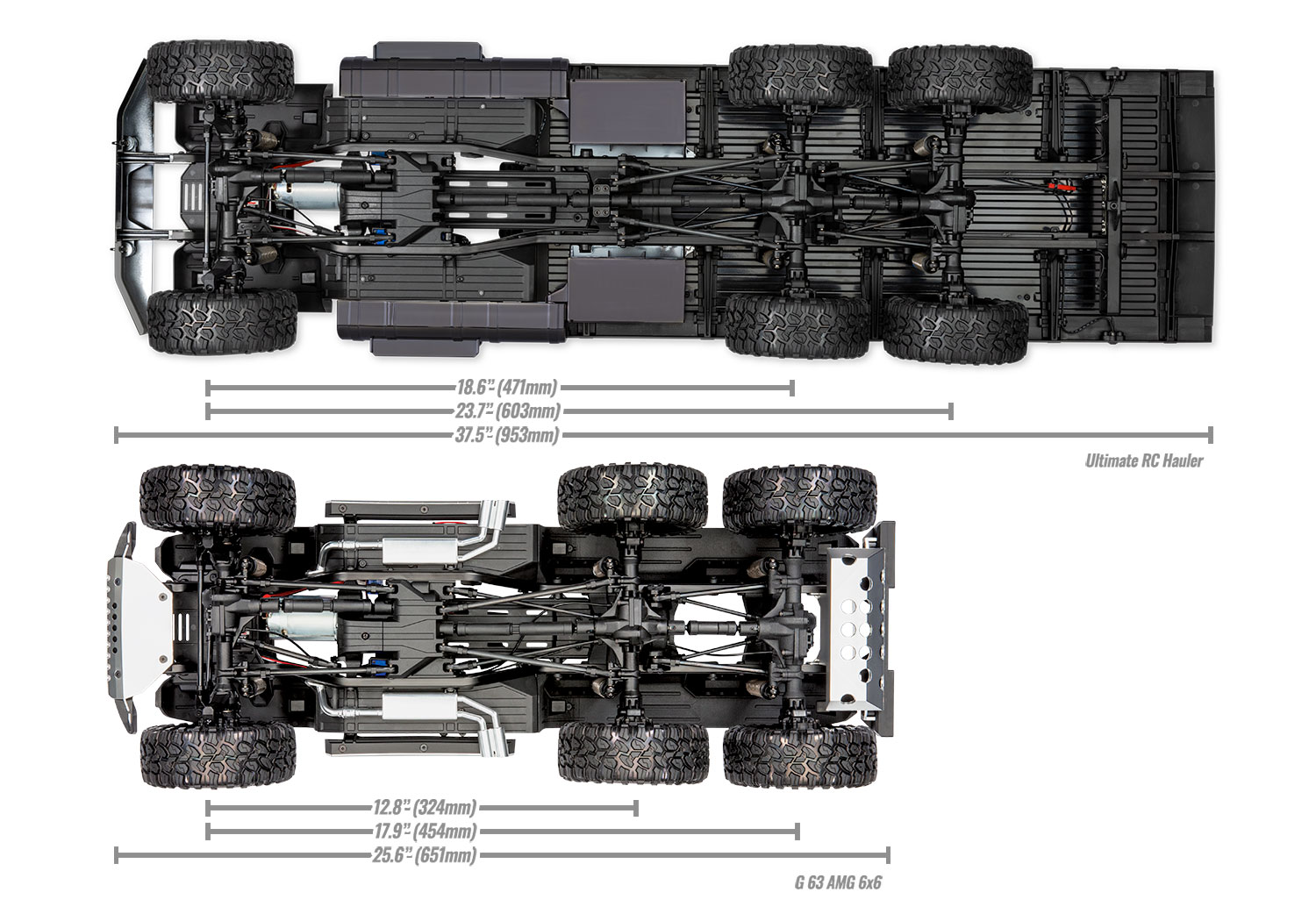

The Ultimate RC Hauler is the largest TRX-6® model with an extra long 23.7″ (603 mm) wheelbase and oversize bed to haul your 4-Tec models in style. The highly detailed truck features deep gloss black paint over molded black chrome body accessories for an intimidating look to match its big rig attitude.

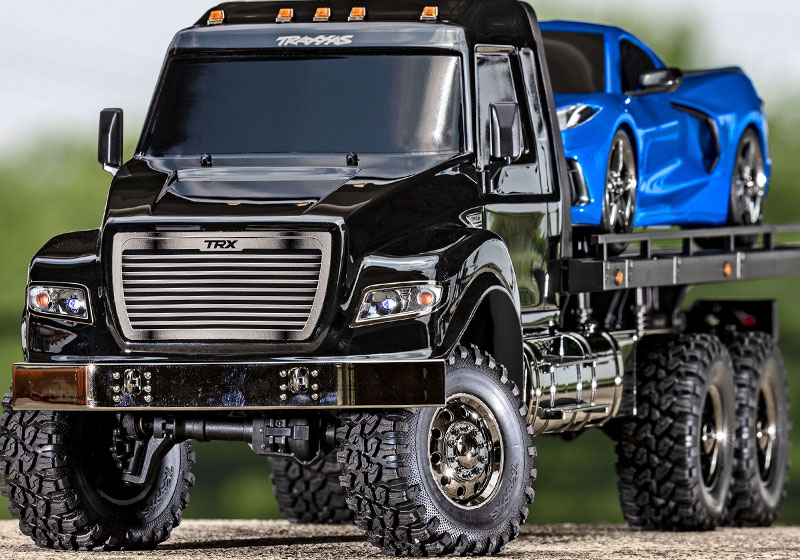

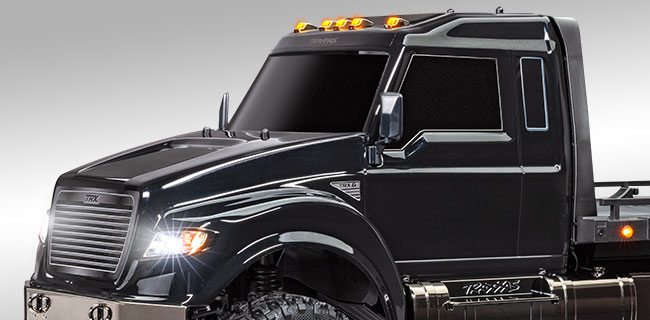

Detailed Truck Body
The Ultimate RC Hauler transports your 4-Tec in style with scale looks to match its rugged performance. Whether you’re cruising down the road or blazing an off-road trail, the RC Hauler gets there in style.

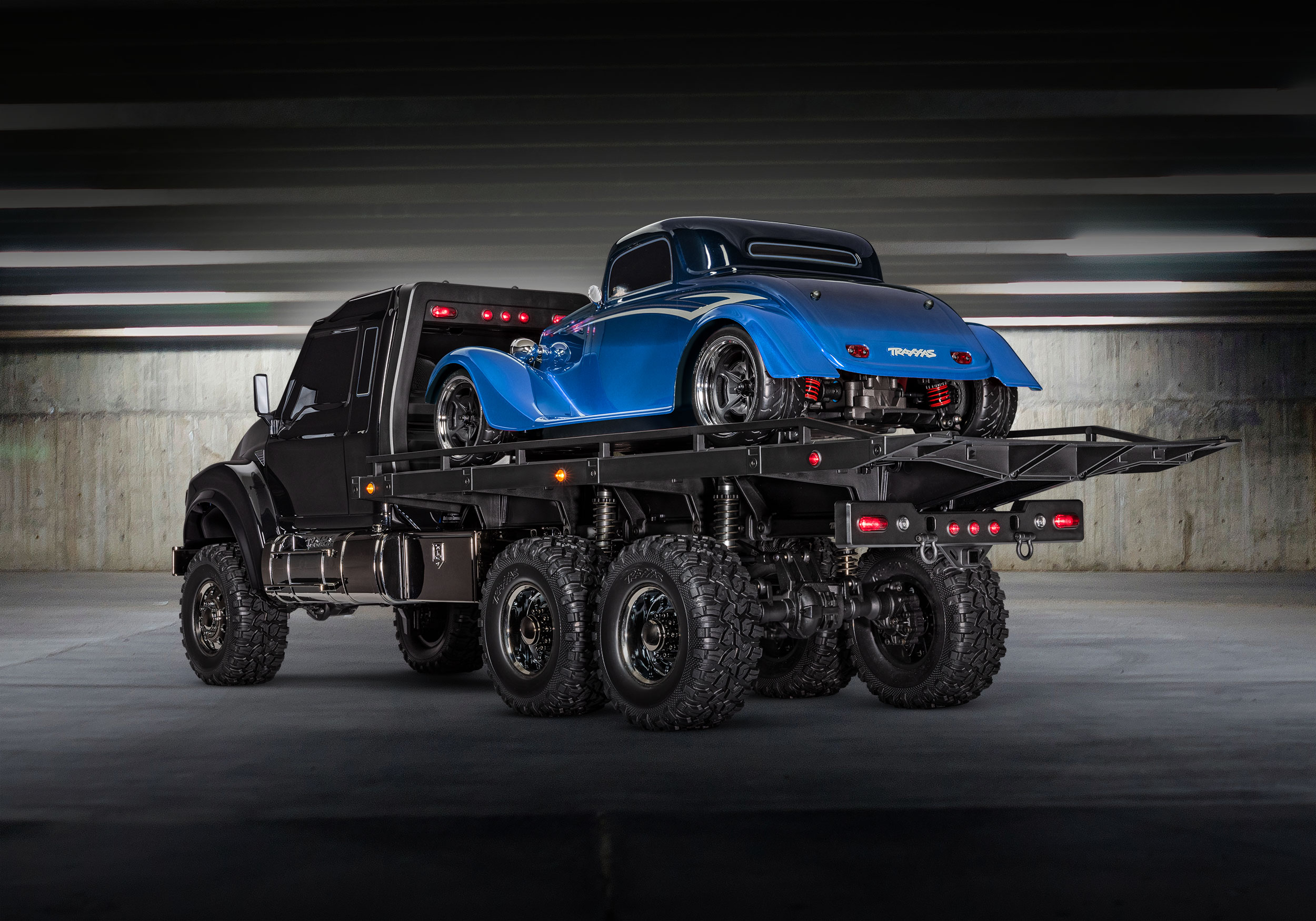

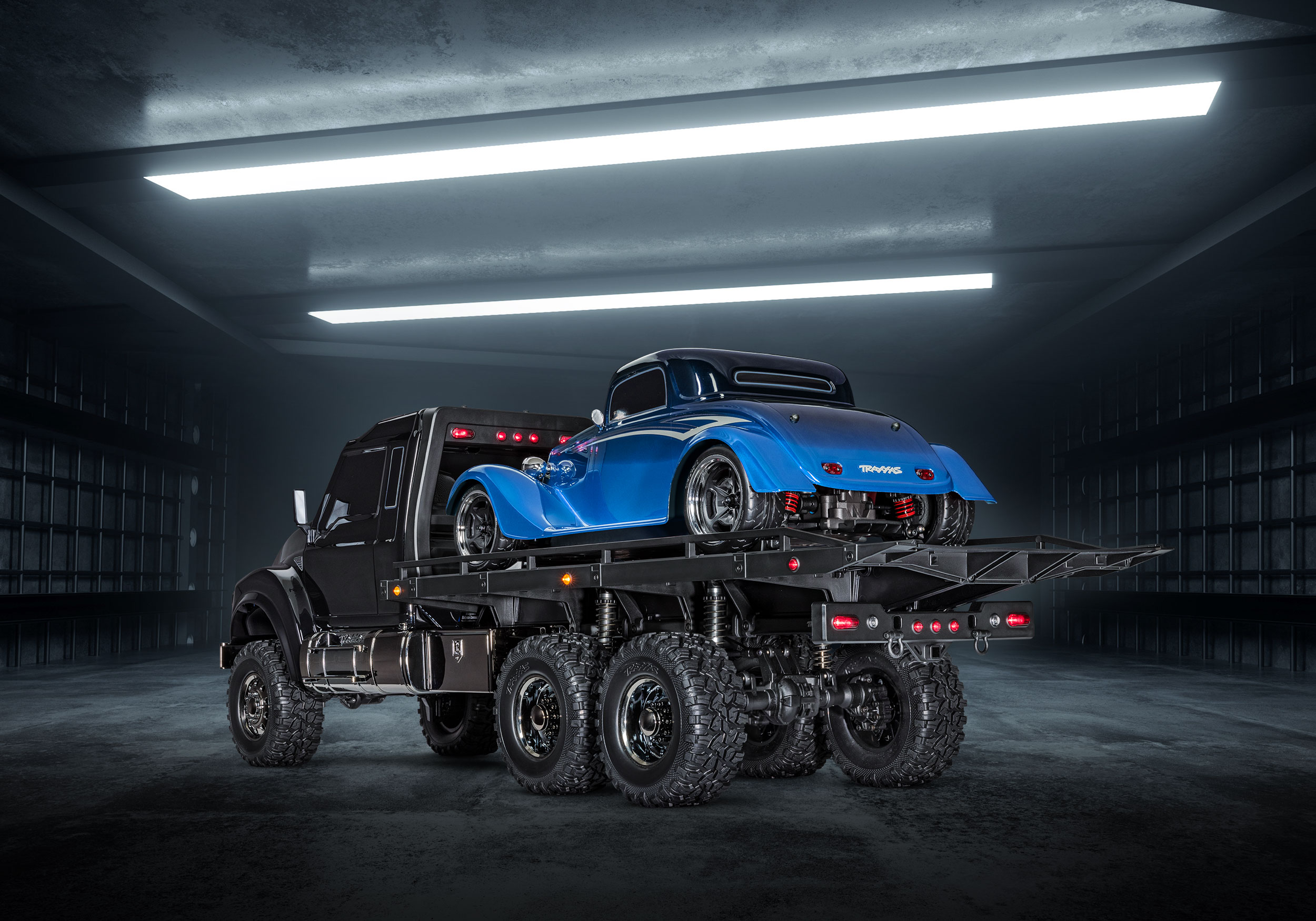

Real Hauling Capability
Load up the full range of 4-Tec 2.0 or 3.0 models with RC Hauler's unique full-length bed with adjustable wheel chocks. Transport your GR Supra GT4 or Corvette Stingray to race events or display your Factory Five Hot Rod with show-stopping style.

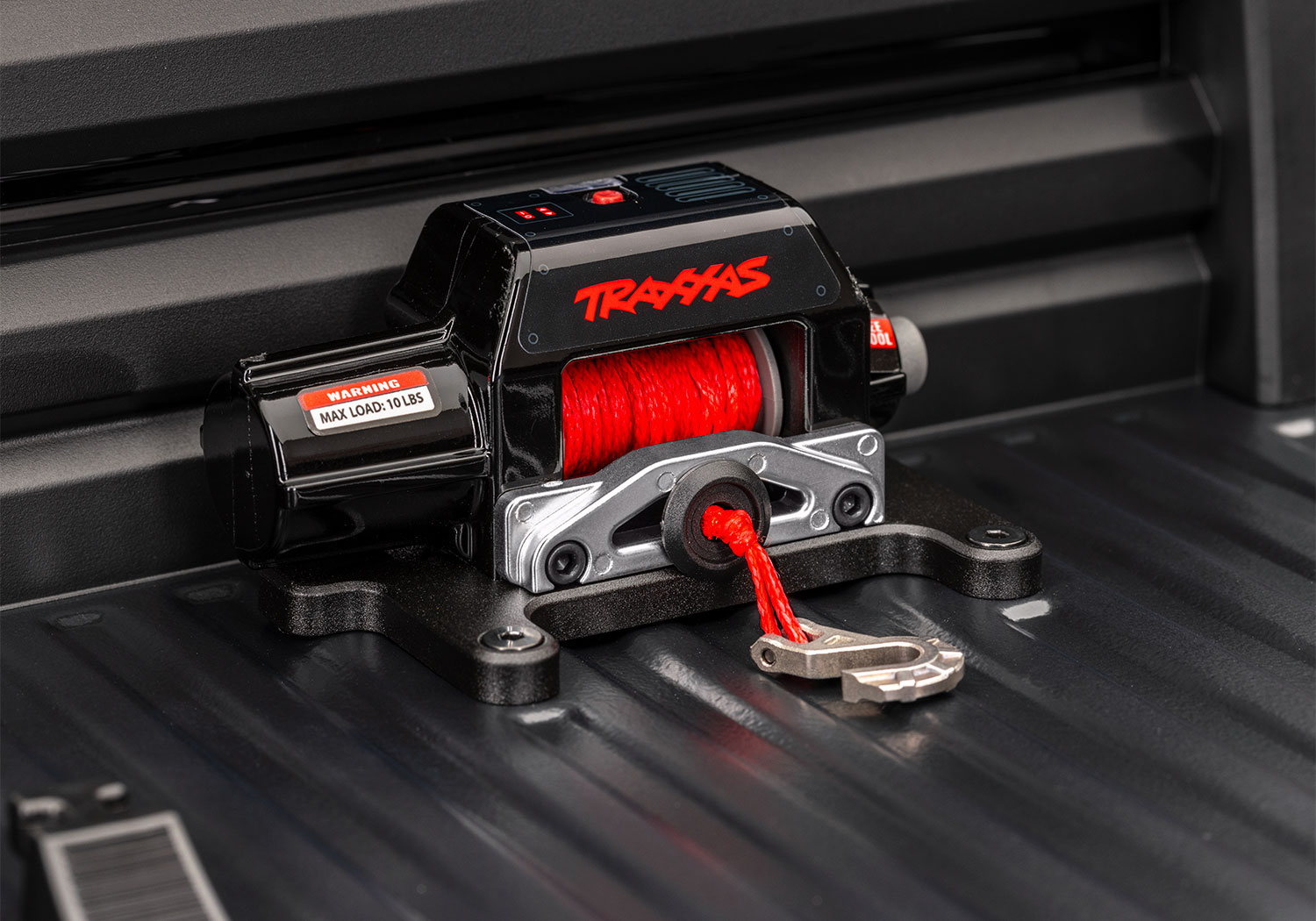

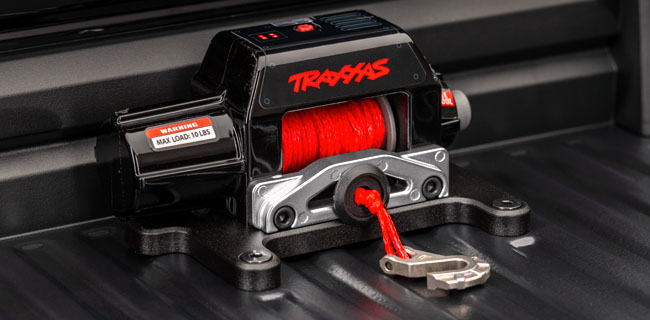

Factory-Installed Pro Scale Winch
The Ultimate RC Hauler includes the Pro Scale Winch. This extra dose of scale realism is fully functional with an included remote to help pull cars onto the realistic tow truck bed.

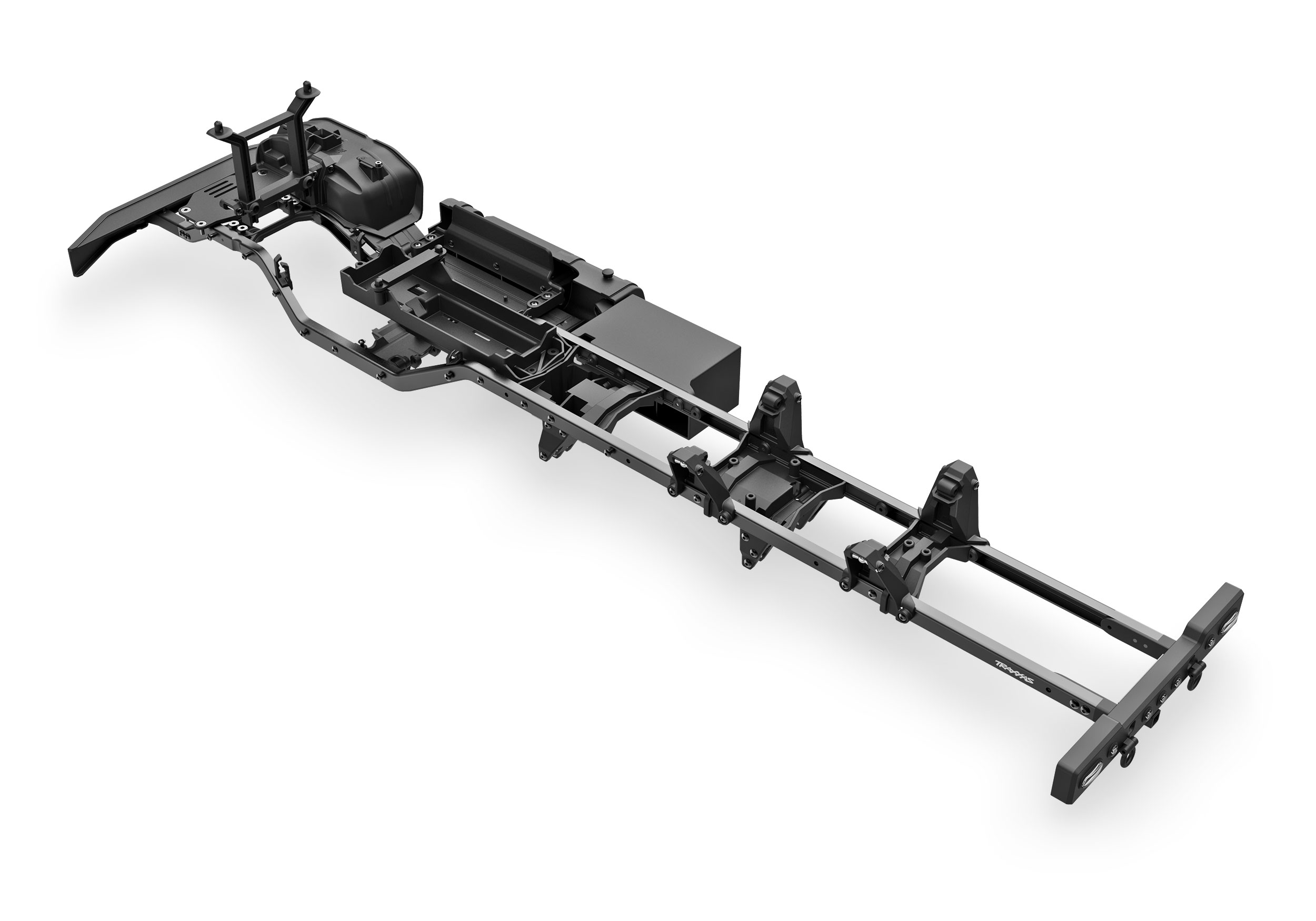

One-Piece Steel Frame Rails
The key to the RC Hauler’s robust chassis are its one-piece frame rails. At over 30″ long, these strong steel rails run from bumper to bumper for class-leading strength and maximum torsional rigidity.
Factory-Installed LED Lighting
With 25 separate LEDs and a regulated power supply, the Ultimate RC Hauler sets a new standard for scale lighting. Bright white headlights, marker and clearance lights, and a full array of red tail lights track your progress.

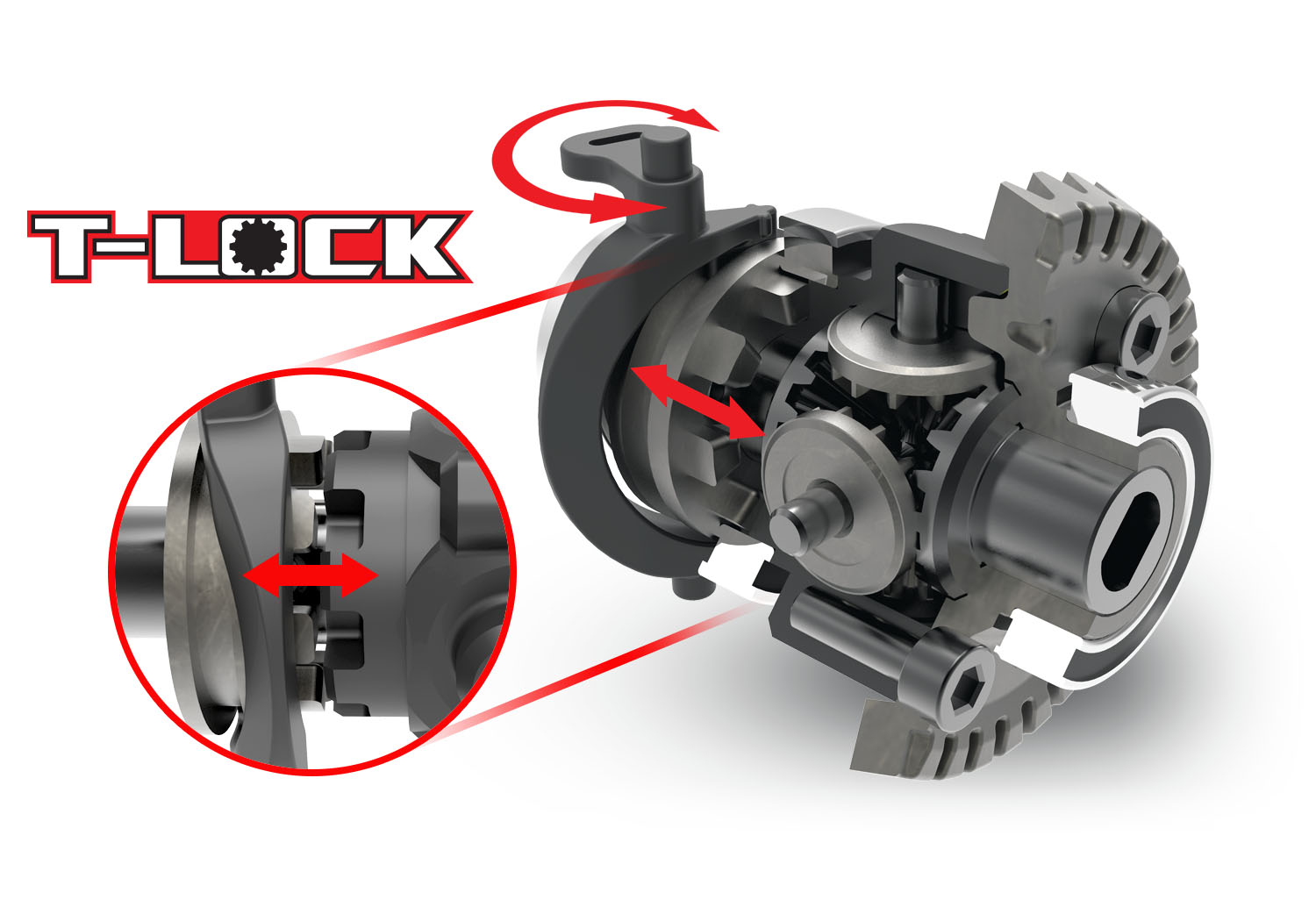

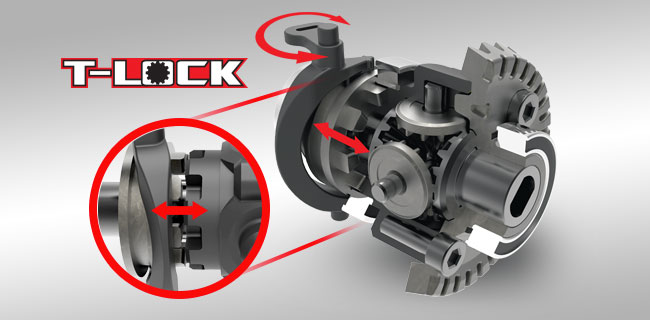

T-Lock Differentials
Traxxas gives you the freedom and versatility to lock and unlock both the front and rear differentials remotely from your transmitter. With its differentials unlocked, the RC Hauler defies its length with a tight turning radius and easy maneuverability. When heading off-road, lock just the front or lock the front and both rear axles for superior pull and grip over any terrain.

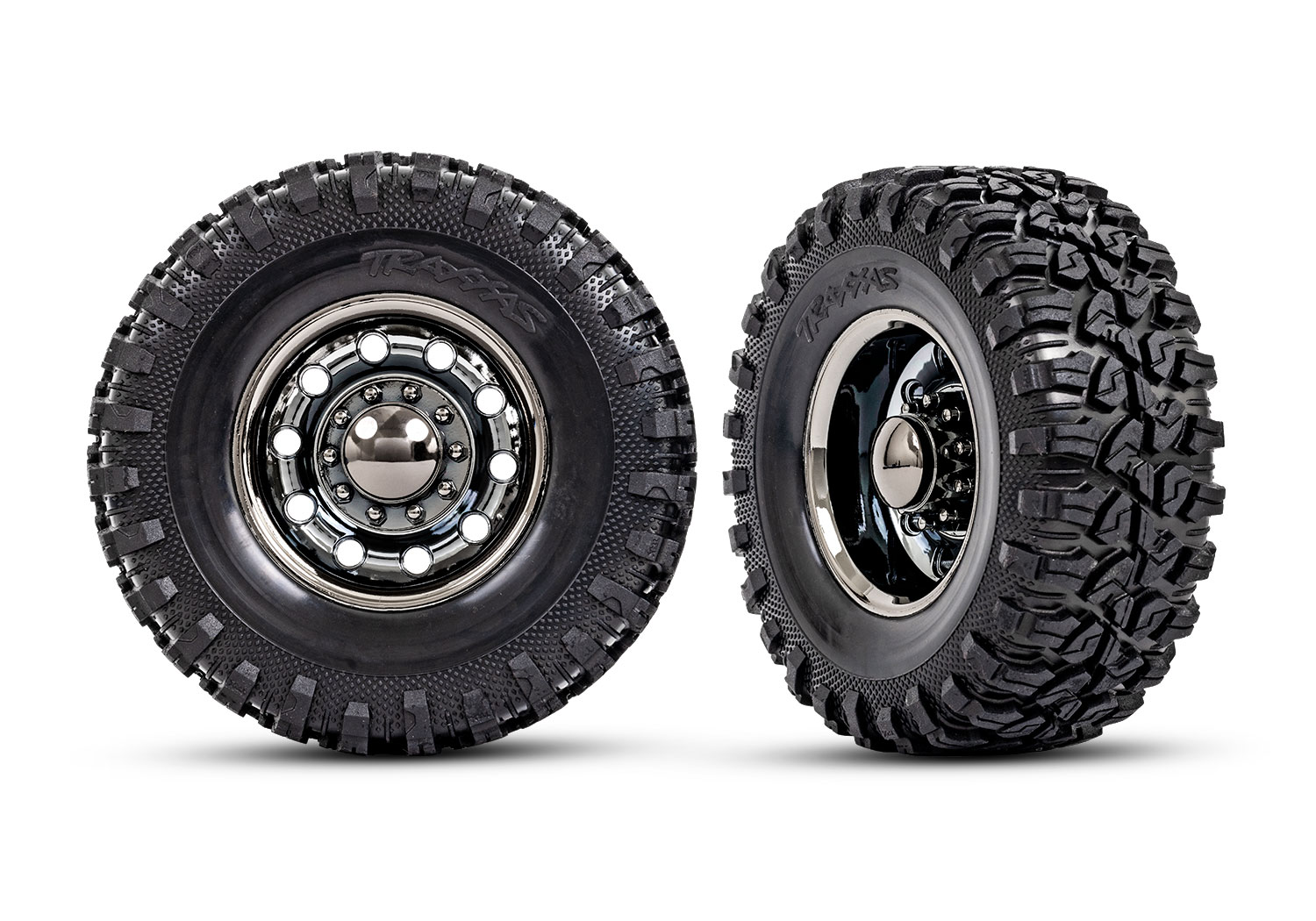

4.6 x 2.2” Canyon RT Tires
Large 2.2″ big rig wheels come pre-glued to aggressive 4.6″ Canyon RT tires. Deep tread blocks on the soft-compound tires flex to provide unparalleled grip on all types of terrain. A standard 12 mm hex provides compatibility across the full line of TRX-4 wheels and tires.

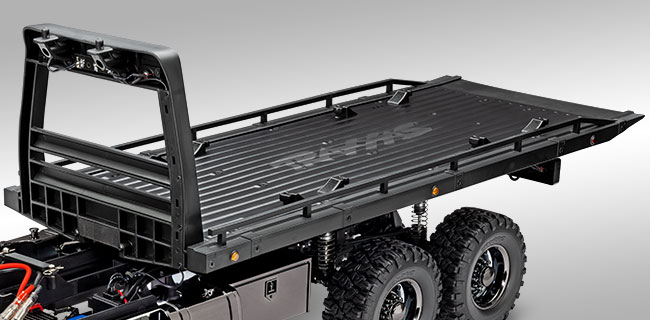

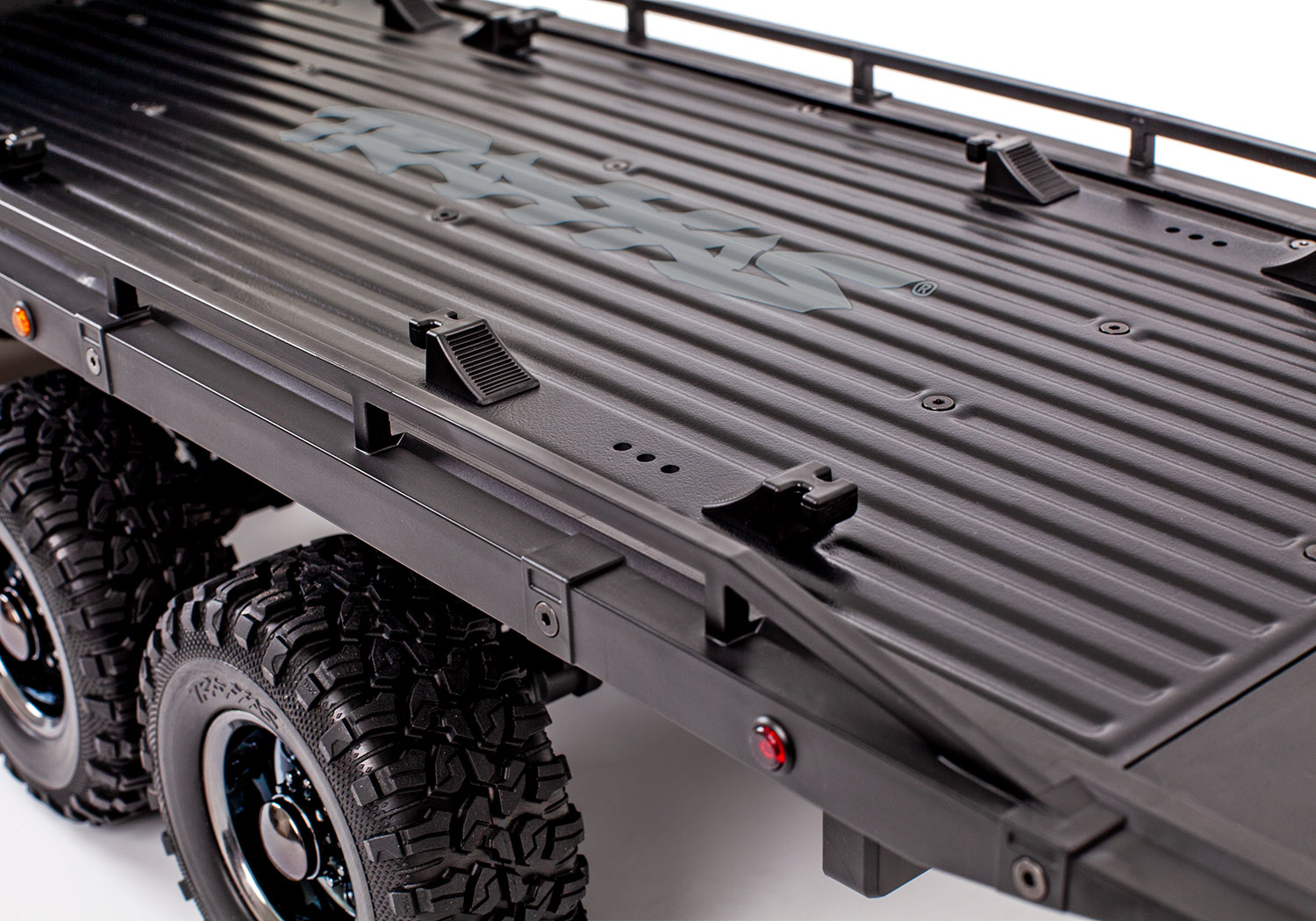

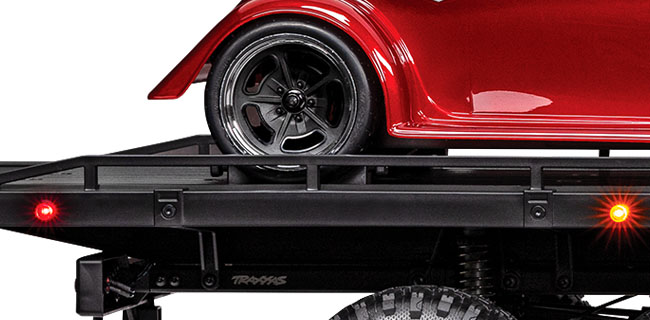

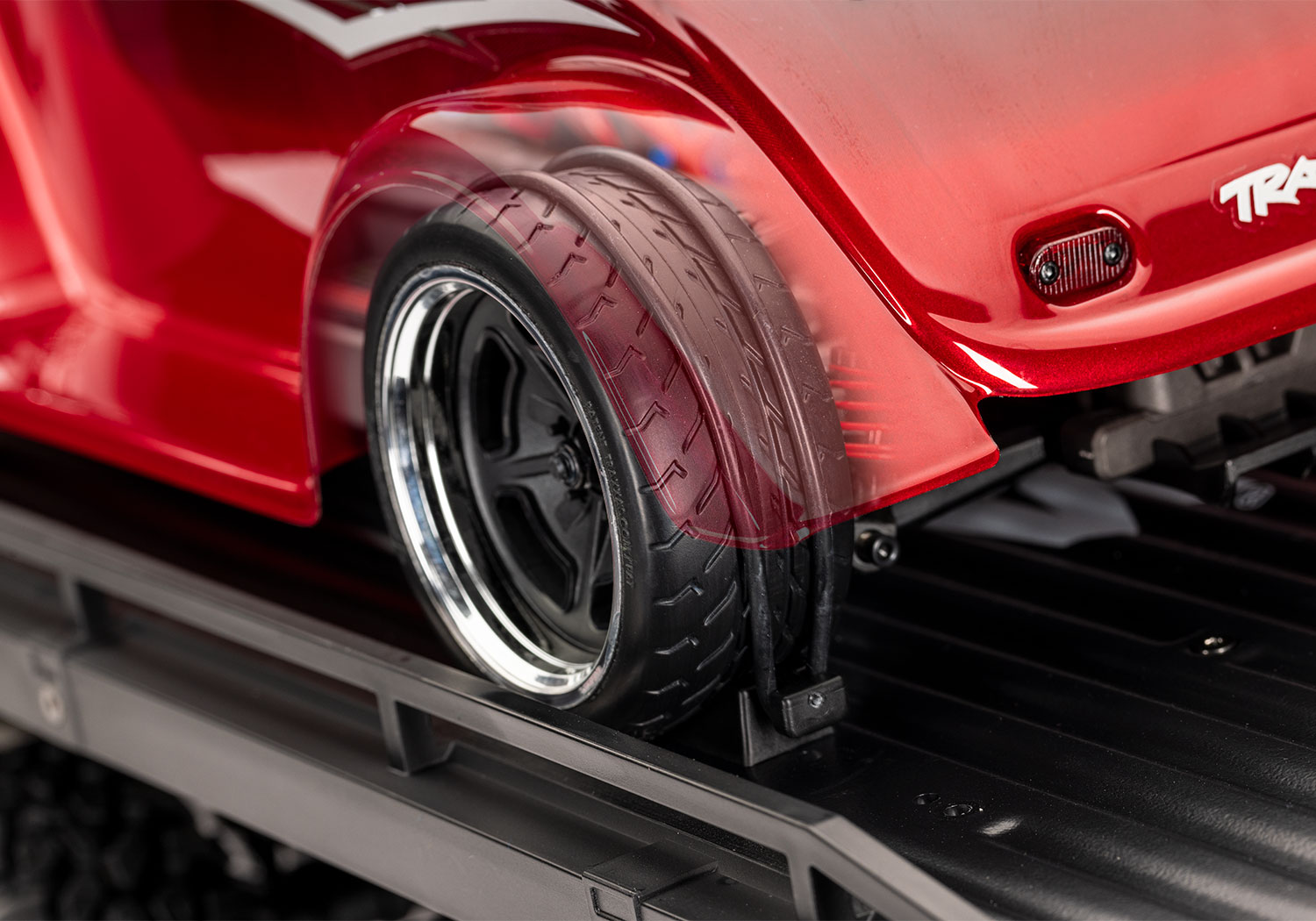

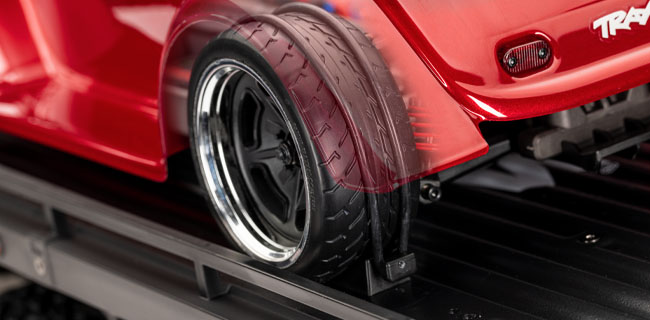

Detailed Tow Truck Bed
The realistic tow bed features adjustable wheel chocks with tie-down bands to secure your 4-Tec for transport. Full-length bed rails and functional LED lighting provide an extra layer of scale detail to the Hauler.
Realistic Black Chrome Details
Molded black chrome body accessories give the Ultimate RC Hauler an aggressive look on the trail or the road. Detailed fuel tanks, tool boxes, big rig wheels, and rugged scale bumpers pair with blacked out paint and windows for a sinister presence.

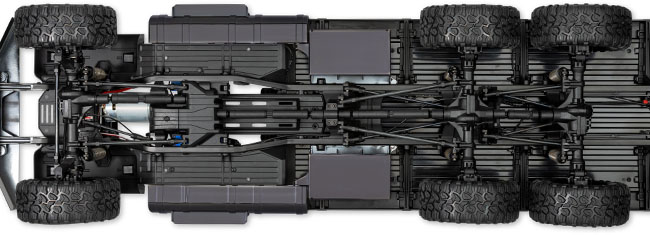

Extended 6X6 Driveline
The Ultimate RC Hauler uses the same style hardened steel U-joints and center driveshafts as all proven TRX-4 models. A new bearing-supported center carrier reinforces the intermediate shaft to maintain alignment throughout the extended wheelbase design.

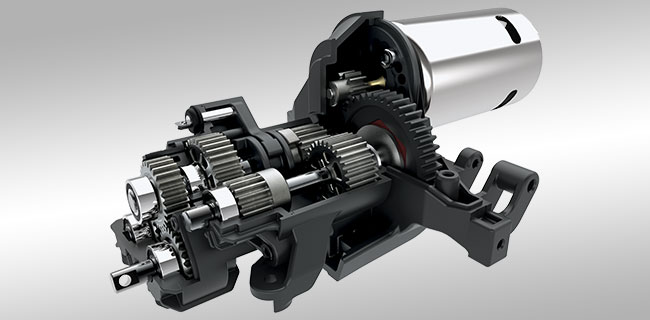

High/Low 2-Speed Transmission
Big rigs utilize multi-gear transmissions to move heavy loads and climb steep grades. Use low gear to get your RC Hauler moving in rougher terrain, and then shift into high gear on the fly to make quick work of longer transits with the transmitter’s Cruise Control function.

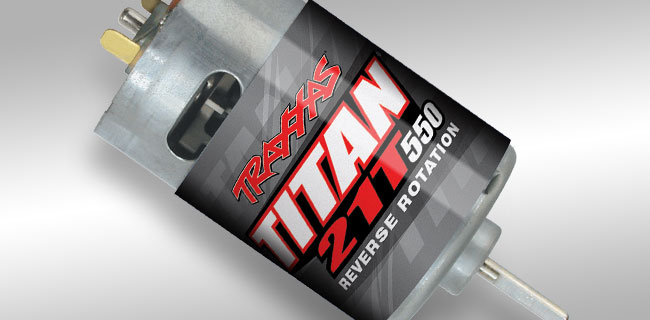

Titan 21T Motor
Moving heavy loads requires massive torque, and the TRX-6’s proven Titan motor is tuned to get things underway smoothly. An integrated cooling fan keeps temperatures down for long hauls and more fun behind the wheel.
Portal Axles
Three independent portal axles lift the center pumpkins higher than standard axles for superior ground clearance. Their innovative design also improves axle geometry and reduces axle strain on the driveshafts. Steel internals provide trouble-free performance haul after haul.

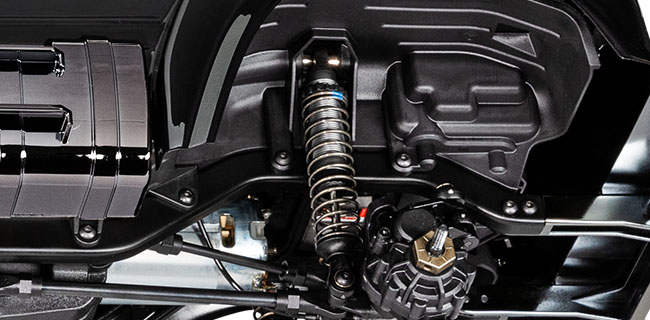

GTS Aluminum Shocks
Six oil-filled coil-over GTS shocks smooth out bumpy roads for secure transport. These silver-anodized aluminum shocks deliver silky-smooth damping with threaded bodies for easy right height adjustment. They look great and perform even better with an O-ring cap seal and dual X-ring shaft seals.

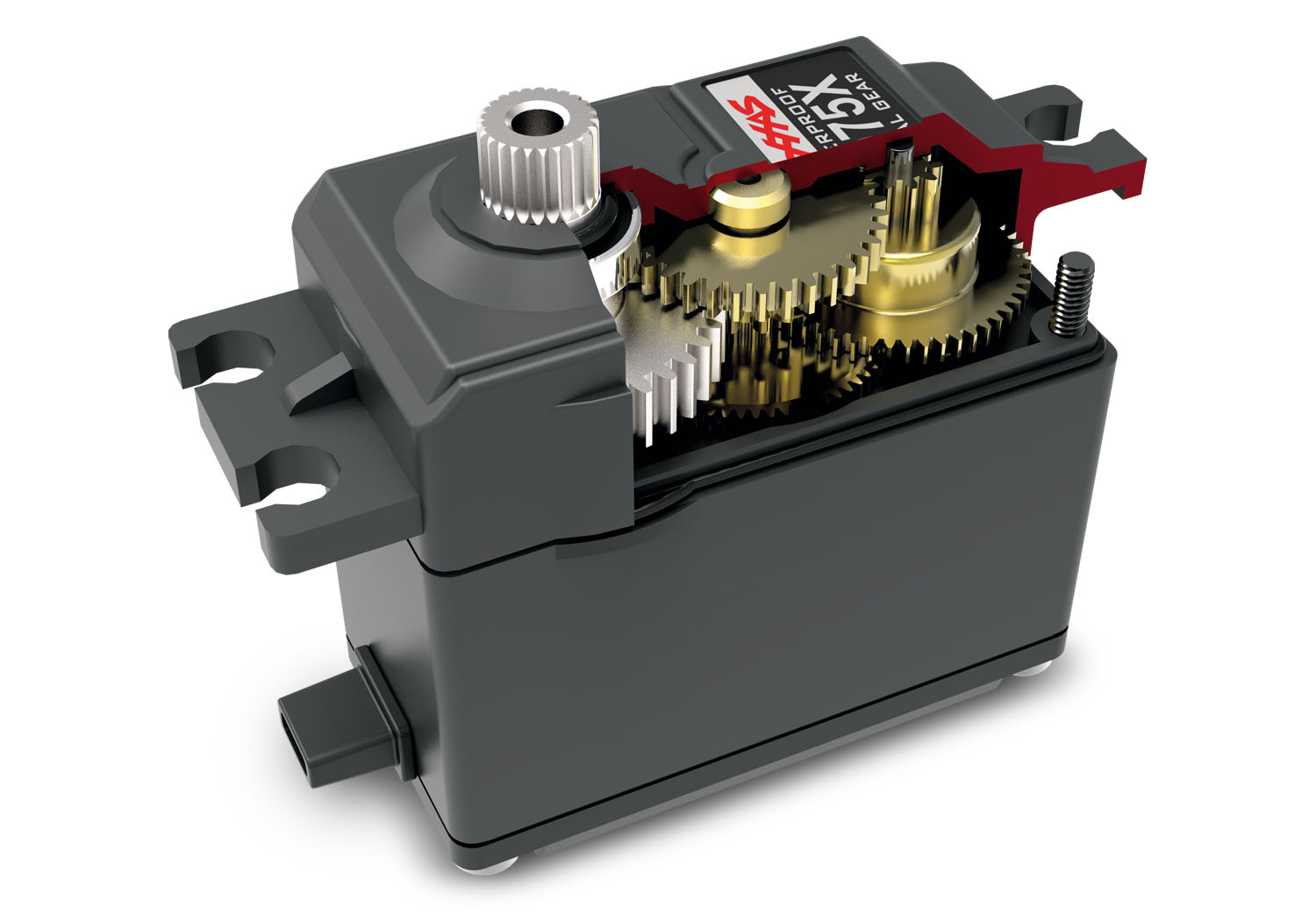

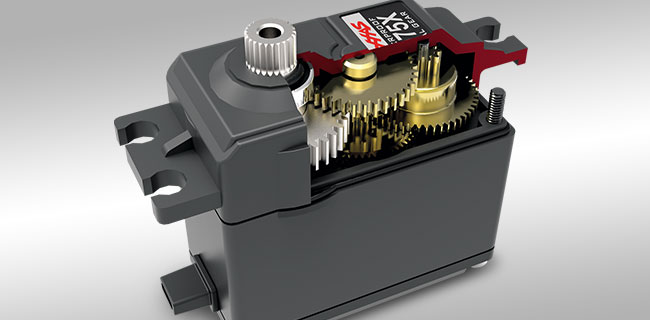

Metal Gear Steering Servo
The Hauler’s metal gear digital servo and steel servo horn provide the durability and steering authority you need to confidently and reliably power through tough challenges.
Specifications

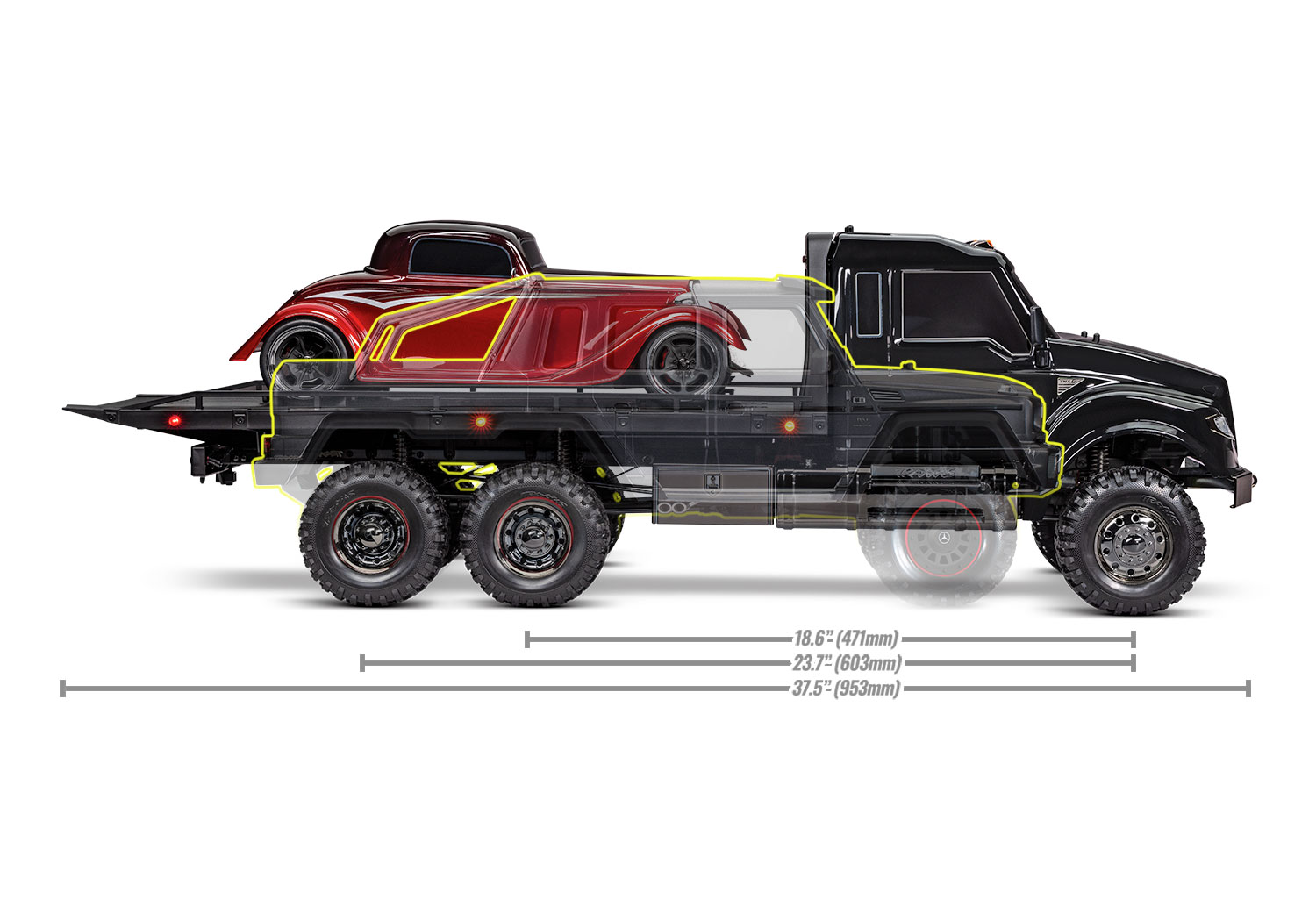

- Length (overall): 37.5 inches (953 mm)
- Length (chassis): 34.0 inches (863 mm)
- Front Track: 9.8 inches (245 mm)
- Rear Track: 9.8 inches (249 mm)
- Ground Clearance: 3.14 inches (80 mm)
- Weight: 10.7 pounds (4.83 kg)
- Height (overall): 11.9 inches (303 mm)

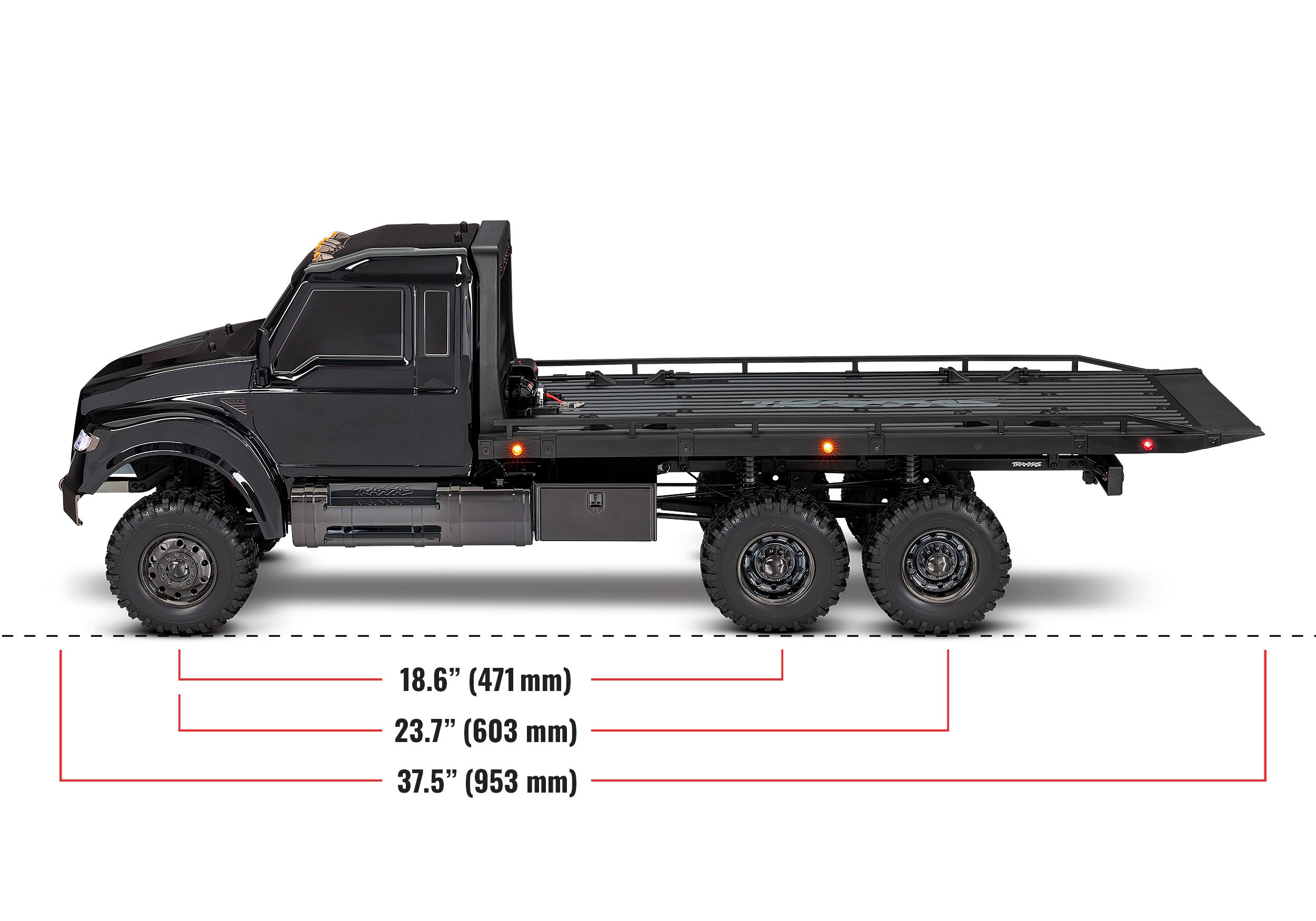

- Wheelbase (front & intermediate axle): 18.6 inches (471 mm)
- Wheelbase (front & rear most axle): 23.7 inches (603 mm)
- Approach Angle: 60°
- Departure Angle: 55°
- Breakover Angle: 57°
- Front Shock Length: 3.54 inches (90 mm)
- Rear Shock Length: 3.54 inches (90 mm)
- Front Wheels: 2.2 x 1.02 inches (56 x 26 mm)
- Rear Wheels: 2.2 x 1.02 inches (56 x 26 mm)
- Battery Tray: 158.75 L x 47 W x 23/26 mm H
- Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
- Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
- Hex Size: 12 mm
- Speed Control: XL-5™ HV
- Motor (electric): Titan® 21T reverse rotation
- Transmission: 2-speed high/low, remote shifting
- Gear Pitch: 32 pitch
- Differential Type: 4 gear, remote locking
- Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft-driven 6WD
- Steering: Chassis mounted servo
- Servo: 2075X metal gear
- Transmitter: TQi™ 2.4 GHz 4-channel transmitter
- Receiver: 6533
- Skill Level: 1
- Battery Tray: 158.75 L x 47 W x 23/26 mm H
- Front Tires: 4.64 x 1.89 inches (118 x 48 mm)
- Rear Tires: 4.64 x 1.89 inches (118 x 48 mm)
- Hex Size: 12 mm
- Speed Control: XL-5™ HV
- Motor (electric): Titan® 21T reverse rotation
- Transmission: 2-speed high/low, remote shifting
- Gear Pitch: 32 pitch
- Differential Type: 4 gear, remote locking
- Chassis Structure / Material: Steel ladder frame with Nylon composite crossmembers
- Brake Type: Electronic “Hill Hold”
- Drive System: Shaft-driven 6WD
- Steering: Chassis mounted servo
- Servo: 2075X metal gear
- Transmitter: TQi™ 2.4 GHz 4-channel transmitter
- Receiver: 6533
- Skill Level: 1
Vehicle
- Type: High-torque brushed motor
- Size: 550
- Weight: 13.76 ounces (390 g)
- Length: 3.071″ (78 mm) overall length, 2.25″ (57 mm) can length, 1.532″ (38.9 mm diameter)
- Turns: 21T reverse rotation
- Voltage: 16.8 volts
Motor
- Input Voltage: 6–7 cells NiMH, 2–3s LiPo
- Case Size: 1.23″ W x 2.18″ D x 1.04″ H
- Weight: 2.6 ounces (74 g)
- Motor Limit: 21 turns (550 size)
- On Resistance Forward: 0.004 ohms
- On Resistance Reverse: 0.004 ohms
- Peak Current - Forward: 100 amps
- Peak Current - Reverse: 100 amps
- Braking Current: 60 amps
- Continuous Current: 18 amps
- BEC Voltage: 6.0 volts
- BEC Current: 1 amp
- Power Wire: 14 gauge / 5″
- Input Harness Wire: 26 gauge / 14.5″
- Transistor Type: MOSFET
- PWM Frequency: 1700 Hz
- Low Voltage Detection (LVD): 2-stage indicators, switchable (on or off)
- Thermal Protection: Thermal shutdown
- Profile selection: Sport Mode: 100% FWD, 100% brakes, 100% REV Race Mode: 100% FWD, 100% brakes, no REV Training Mode:* 50% FWD, 100% brakes, 50% REV Trail Mode: 100% FWD, 100% Brake, 100% REV, Trail-Tuned Brake on Neutral Crawl Mode: 100% FWD, 100% Instant REV, 100% Brake on Neutral
- Single-button setup: Traxxas EZ-Set®
ESC
