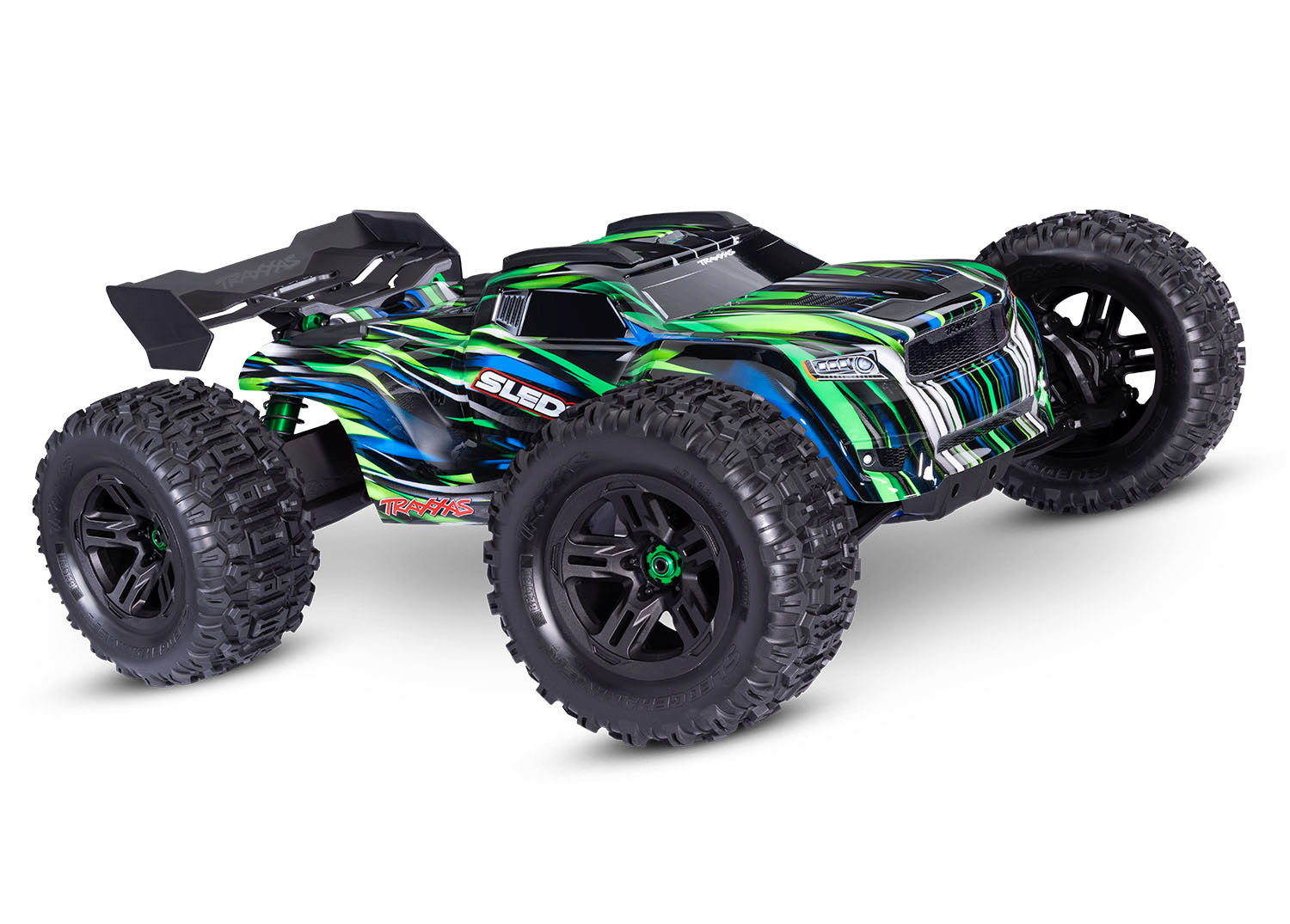

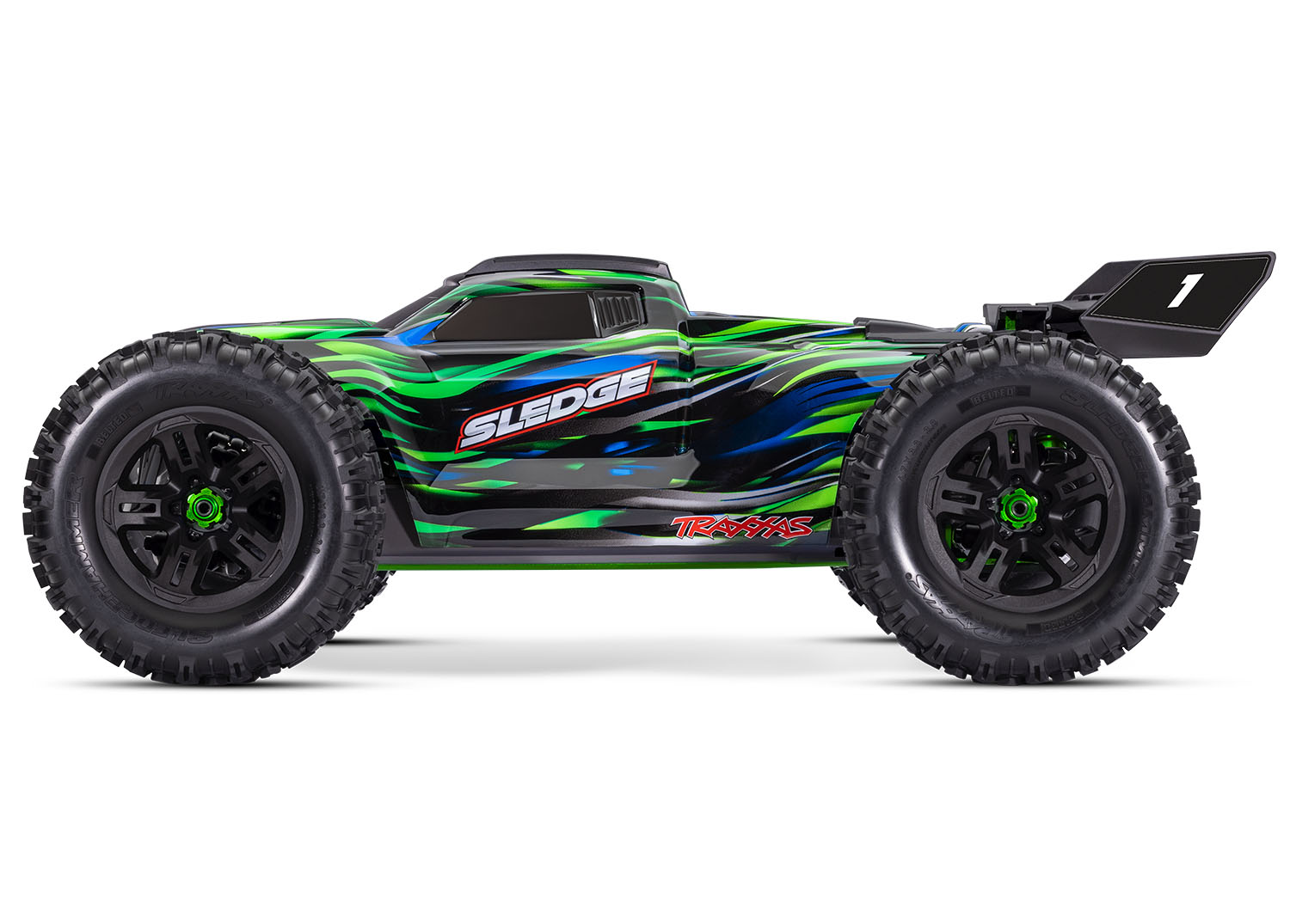

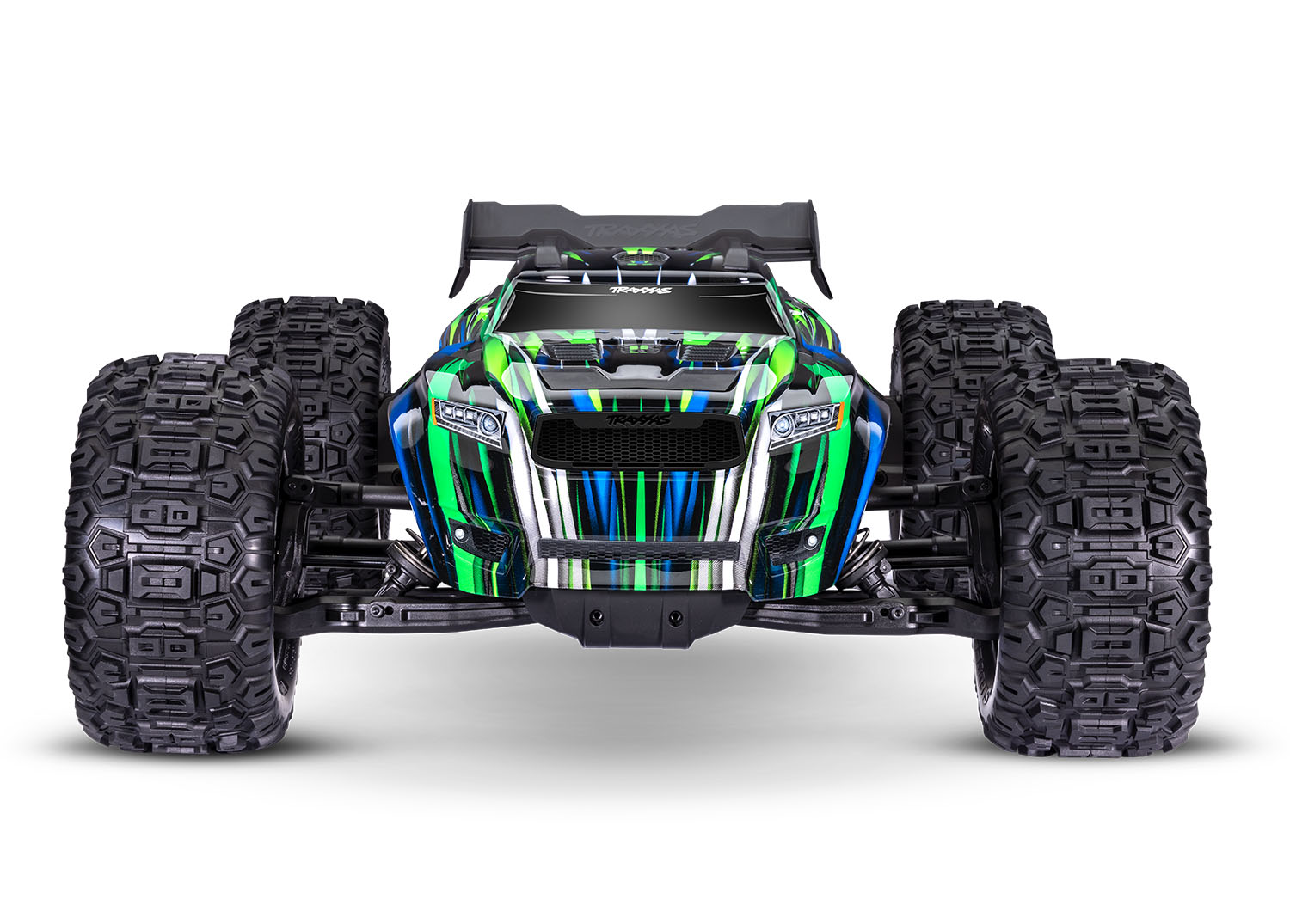

• A studio shot of the 1/8 Sledge with Belted Sledgehammer Tires Ready to Run (Green) (TRA95096-4-GRN).
1 1

Traxxas (TRA)

TRA95096-4-GRN

1/8 Sledge with Belted Sledgehammer Tires Ready to Run (Green) (TRA95096-4-GRN)

1/8 Sledge with Belted Sledgehammer Tires Ready to Run (Green) (TRA95096-4-GRN)

$799.95
$769.95 $799.95
Sale Sold out
View full details
  • A studio shot of the 1/8 Sledge with Belted Sledgehammer Tires Ready to Run (Green) (TRA95096-4-GRN).

Overview

Engineered, tested, and crafted to a higher standard, the Sledge® is designed to surpass expectations in quality, durability, and excitement. Its robust chassis, powerful steel drivetrain, and impressive 6s power deliver a thrilling performance that outshines competitors. Featuring new belted Sledgehammer® tires, this vehicle minimizes high-speed tire expansion for an expanded, flatter contact patch that revolutionizes high-speed precision and control.

Scale:Speed:Battery and Charger:
1/870+ mphNot Included

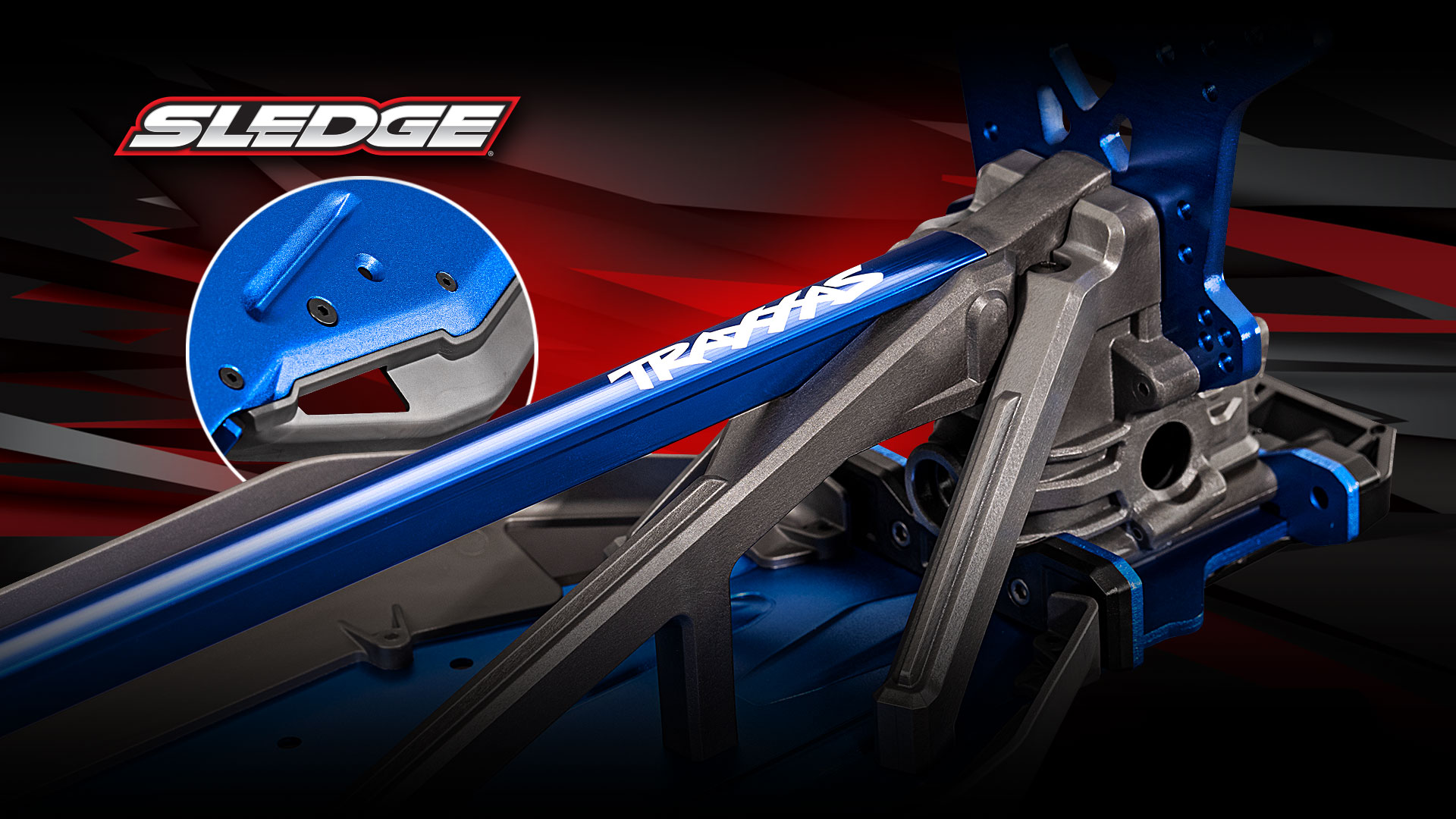

Precision Engineering

Precision Engineering

Look anywhere on Sledge to find parts that are beautifully integrated, formed, and assembled with precisely maintained tolerances. Overall fit, finish, and attention to detail on Sledge are superb.

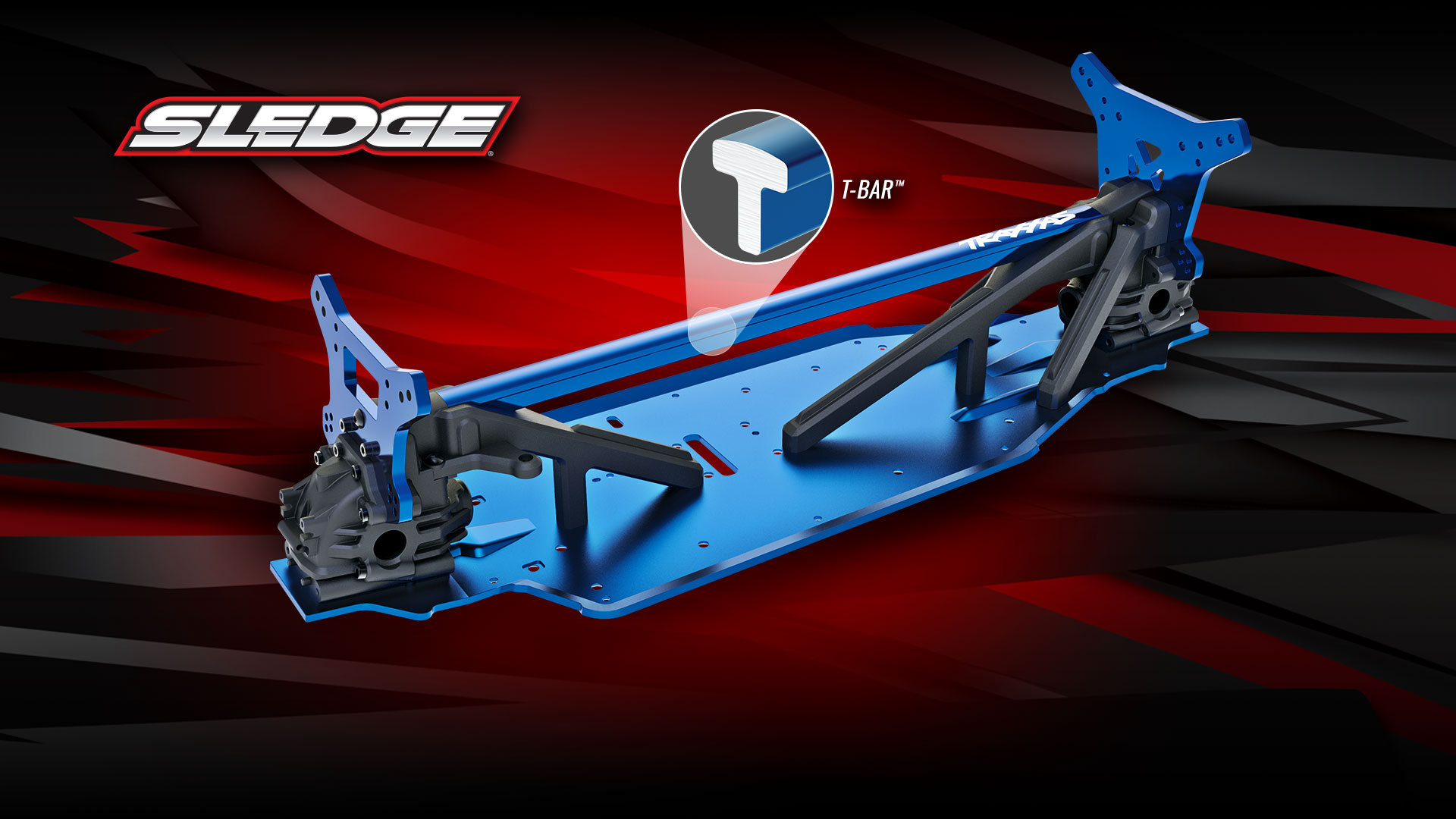

Ultra-Solid Foundation

Ultra-Solid Foundation

A full-length formed-edge aluminum chassis with four stiffening ribs is just the beginning. Huge front and rear support trusses attach at six points across the chassis and then integrate seamlessly into the patent-pending aluminum T-Bar™. Each of these engineered solutions combine to deliver class-leading chassis strength that has been proven in thousands of hours of brutal testing.

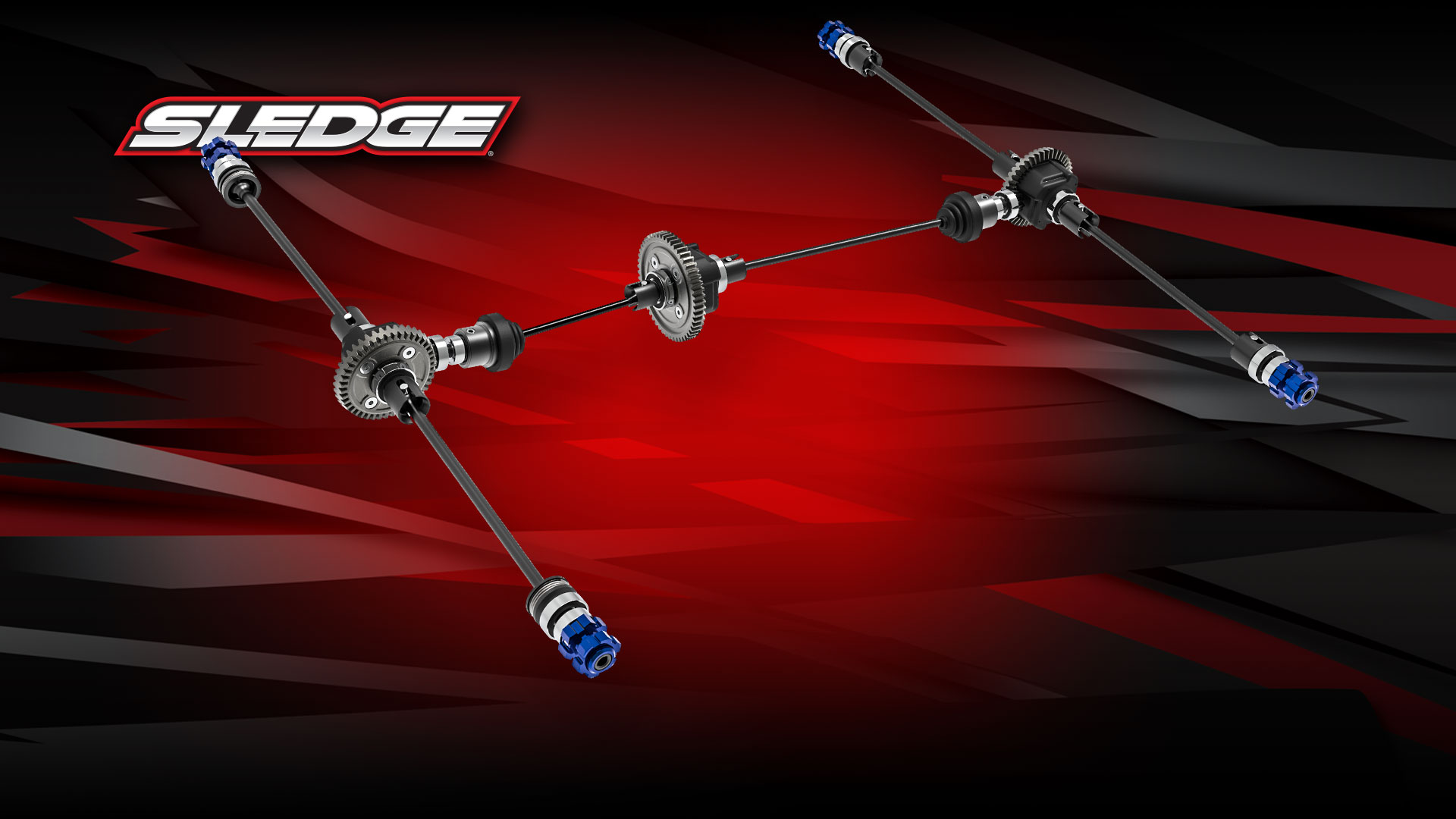

Strength to the Extreme

Strength to the Extreme

Sledge channels explosive 6s brushless power through a properly sized all-steel driveline that is engineered for maximum strength and long life. Massive steel gears and proven 4-gear differentials transfer the power to high-strength steel driveshafts. Smooth-running CV joints are used in front. The center shafts feature greased and boot-protected outboard joints for cool-running, long-lasting performance.

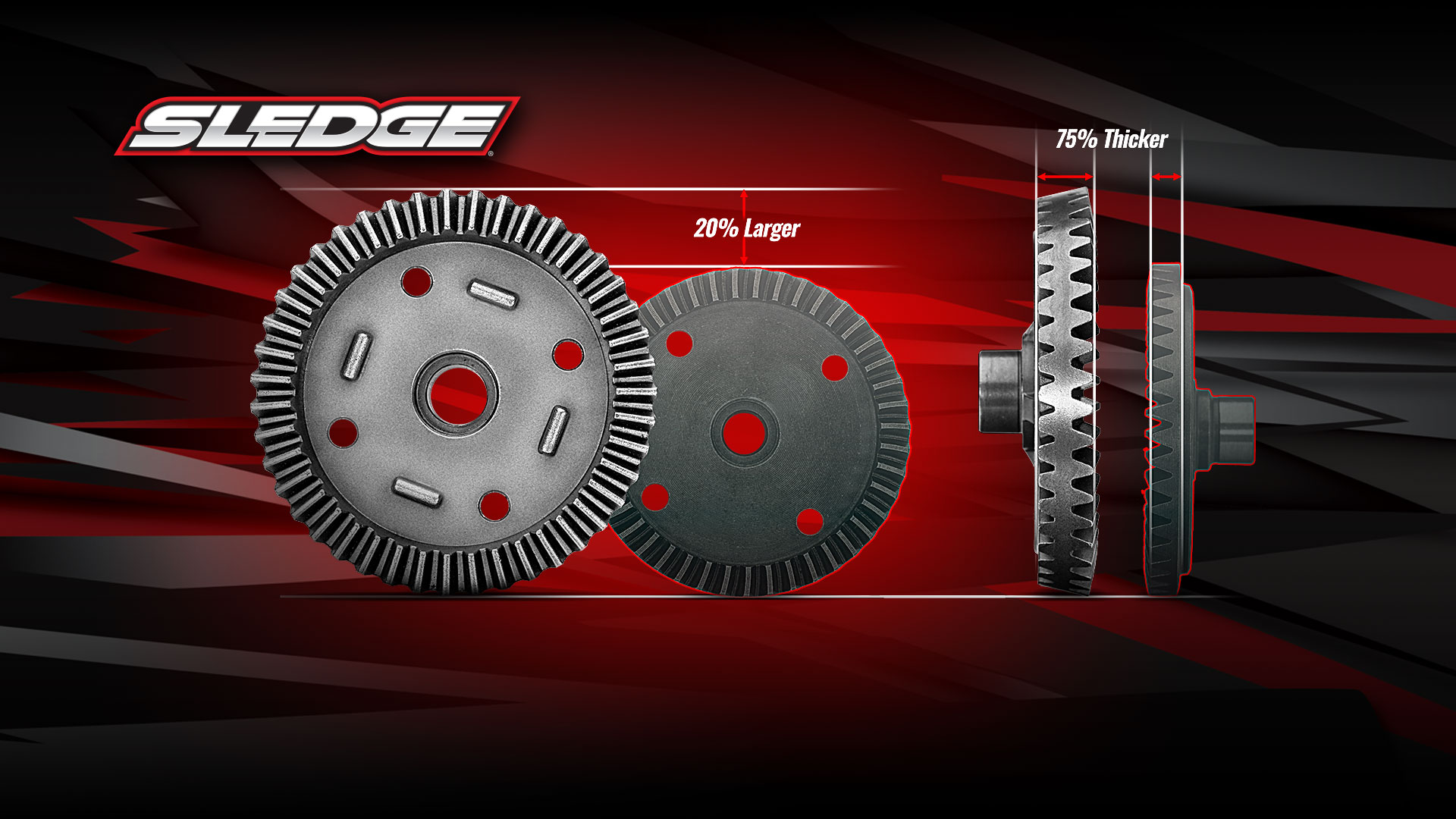

Engineered for 6s Power

Engineered for 6s Power

Steel differential gears are built to handle the Velineon’s aggressive power curve. Sledge’s ring gears pack on 20% more steel than traditional 1/8 scale trucks so you can hammer the throttle and not hold back.

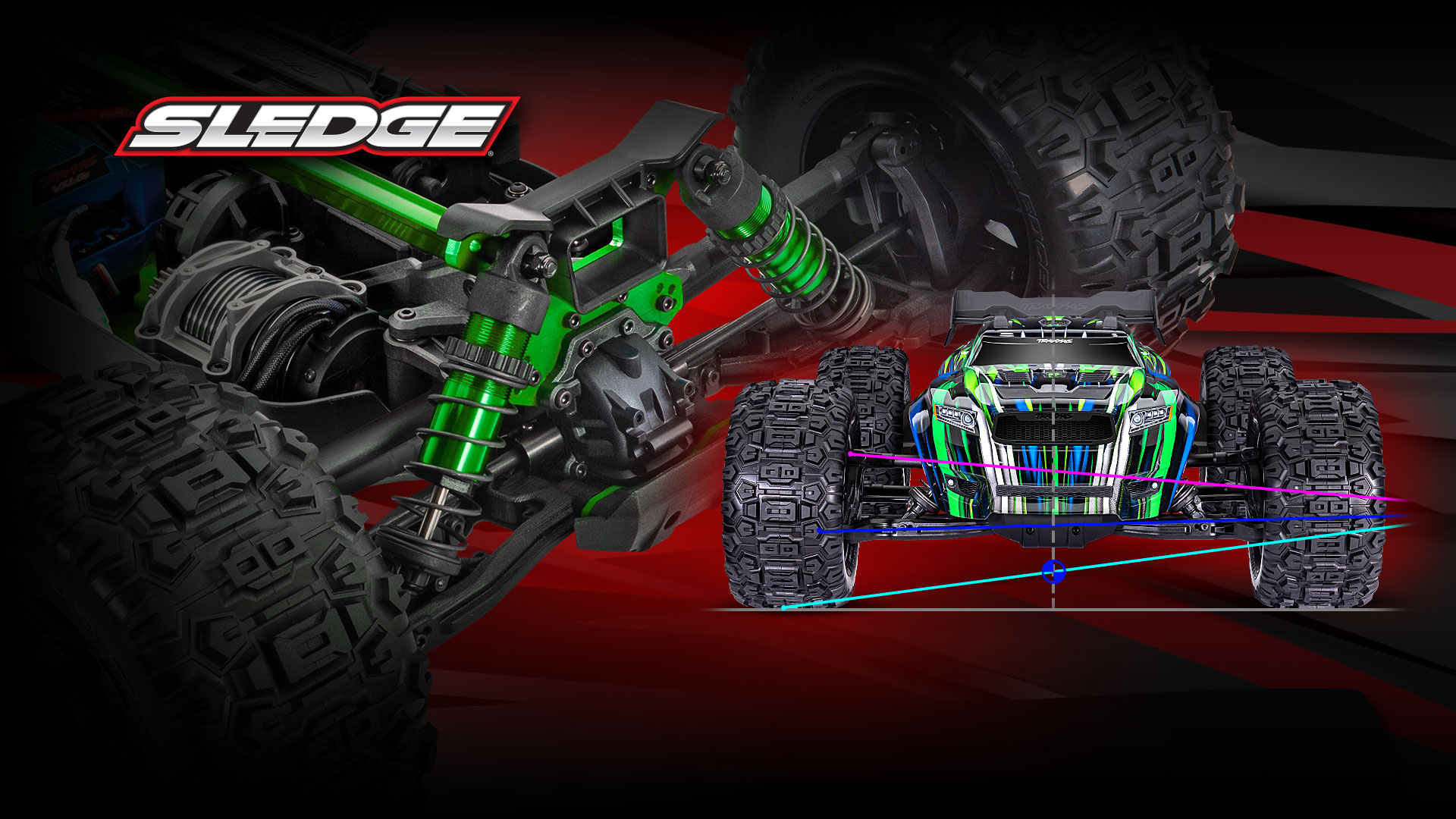

Razor Sharp Handling

Razor Sharp Handling

Sledge delivers track-worthy handling thanks to superior design and an ultra-low center of gravity. Color-matched GT-Maxx aluminum shocks and precisely tuned spring rates combine for outstanding response and control.

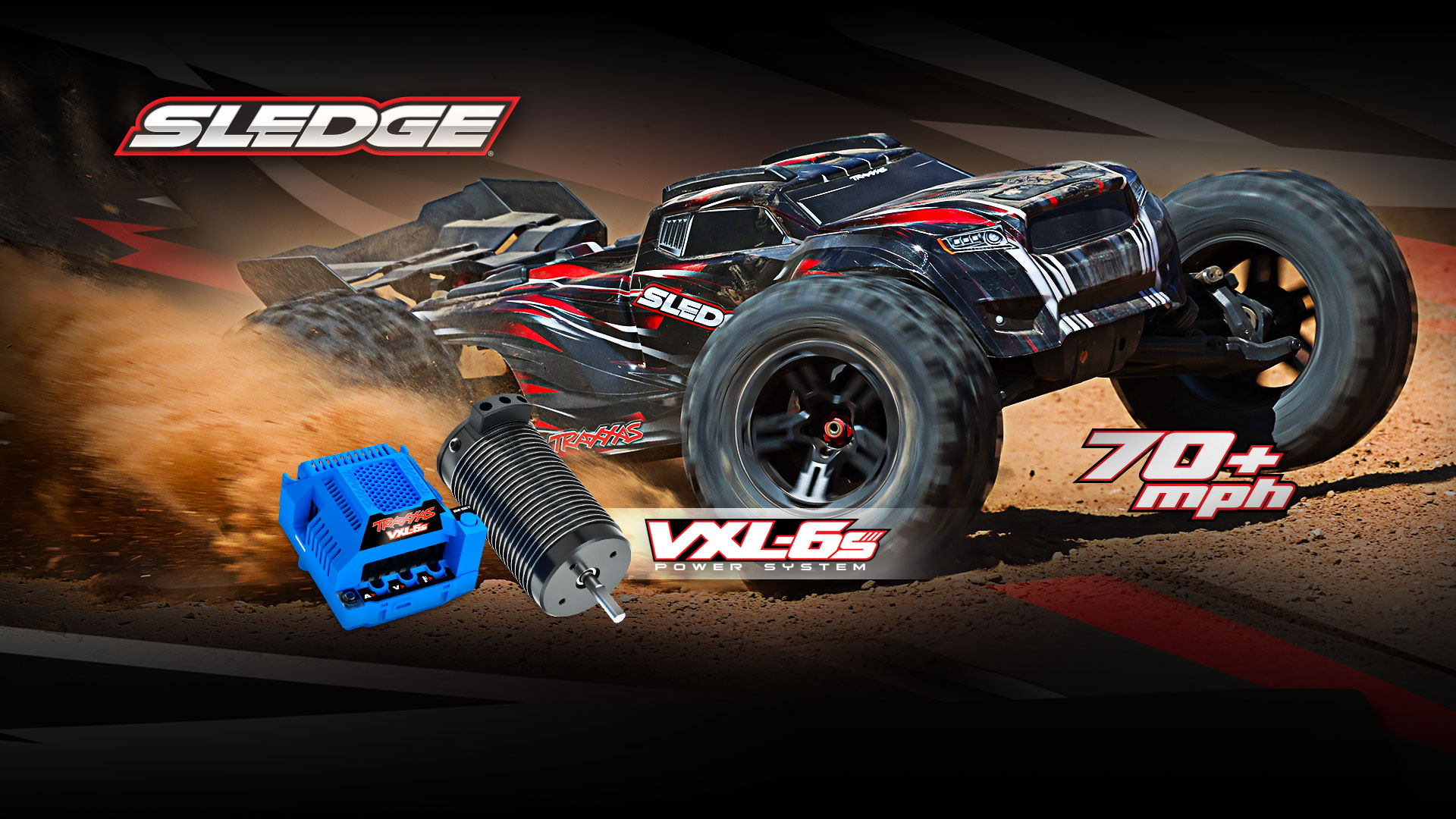

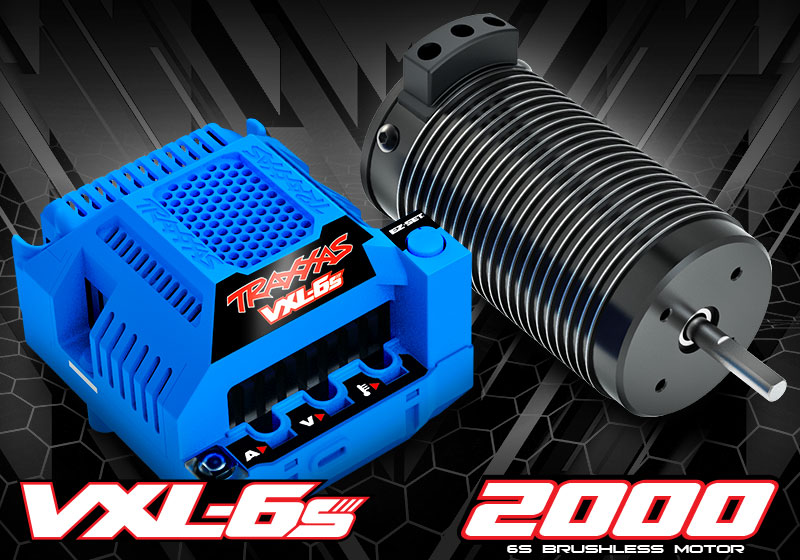

Our Most Potent VXL-6s Power System

Our Most Potent VXL-6s Power System

The VXL-6s speed control is loaded with a hot new tune to extract maximum torque from the all-new Velineon 2000 Kv motor. Greater efficiency delivers more power under the curve for additional mid-range punch and acceleration you can see and feel. Cooling fins are machined into the motor housing for cooler running and peak power.

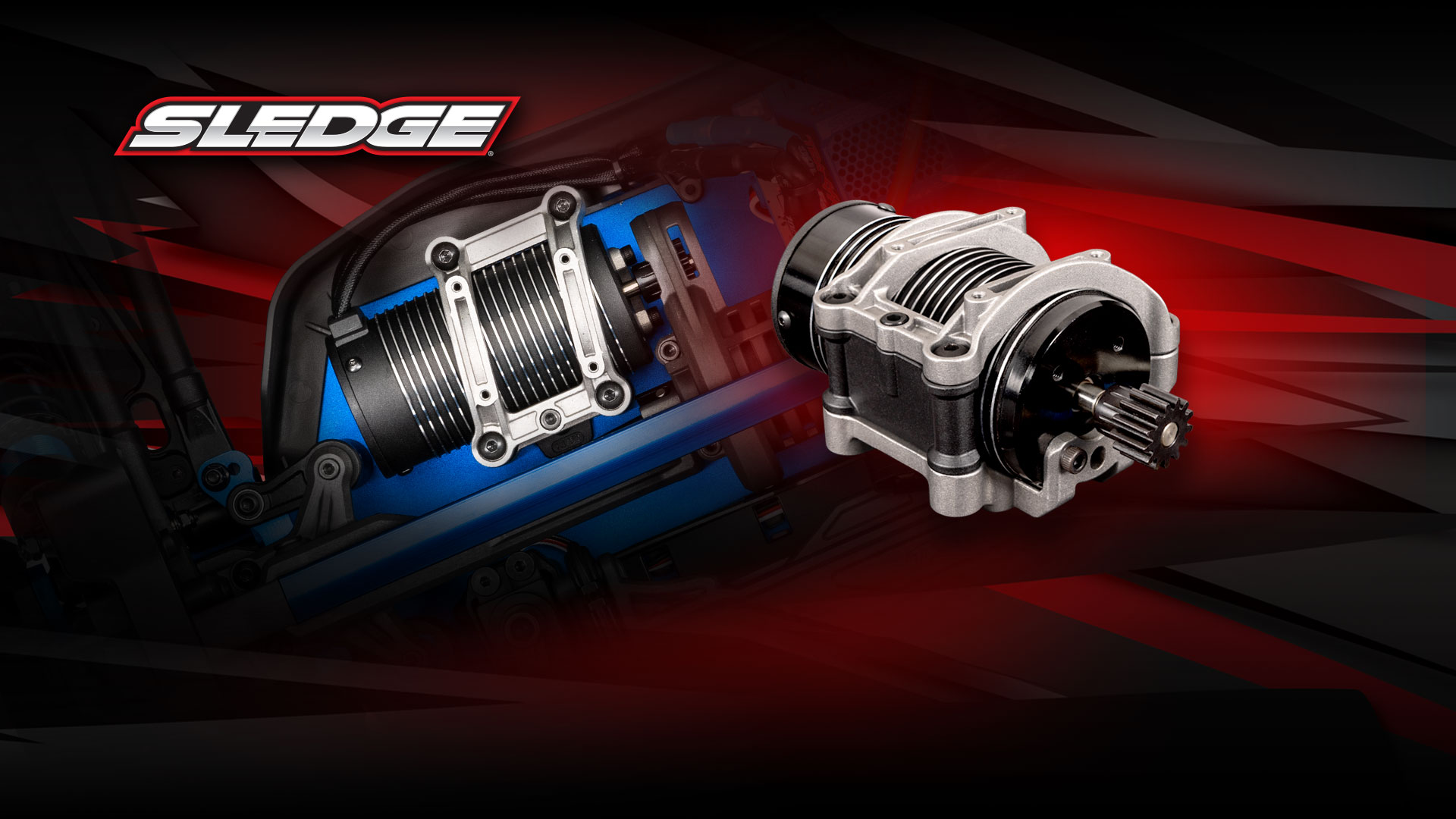

Zero-Flex Aluminum Motor Cradle

Zero-Flex Aluminum Motor Cradle

A cast aluminum motor cradle with fixed gear mesh provides full-contact support for the entire motor. The cradle dissipates heat through the chassis, and features an integrated fan mount that allows for installation of an optional cooling fan (3476). Zero motor movement. Zero spur and pinon crash. Period.
Rugged C-Hubs

Rugged C-Hubs

Sledge's heavy-duty C-hub front suspension design allowed Traxxas engineers to make the parts bigger and tougher for ultimate durability and impact-resistance. Precise steering alignment and geometry are maintained while the steel pin bushing inserts minimize wear. Beefy hardened-steel suspension pins are secured with locknuts for extra security.

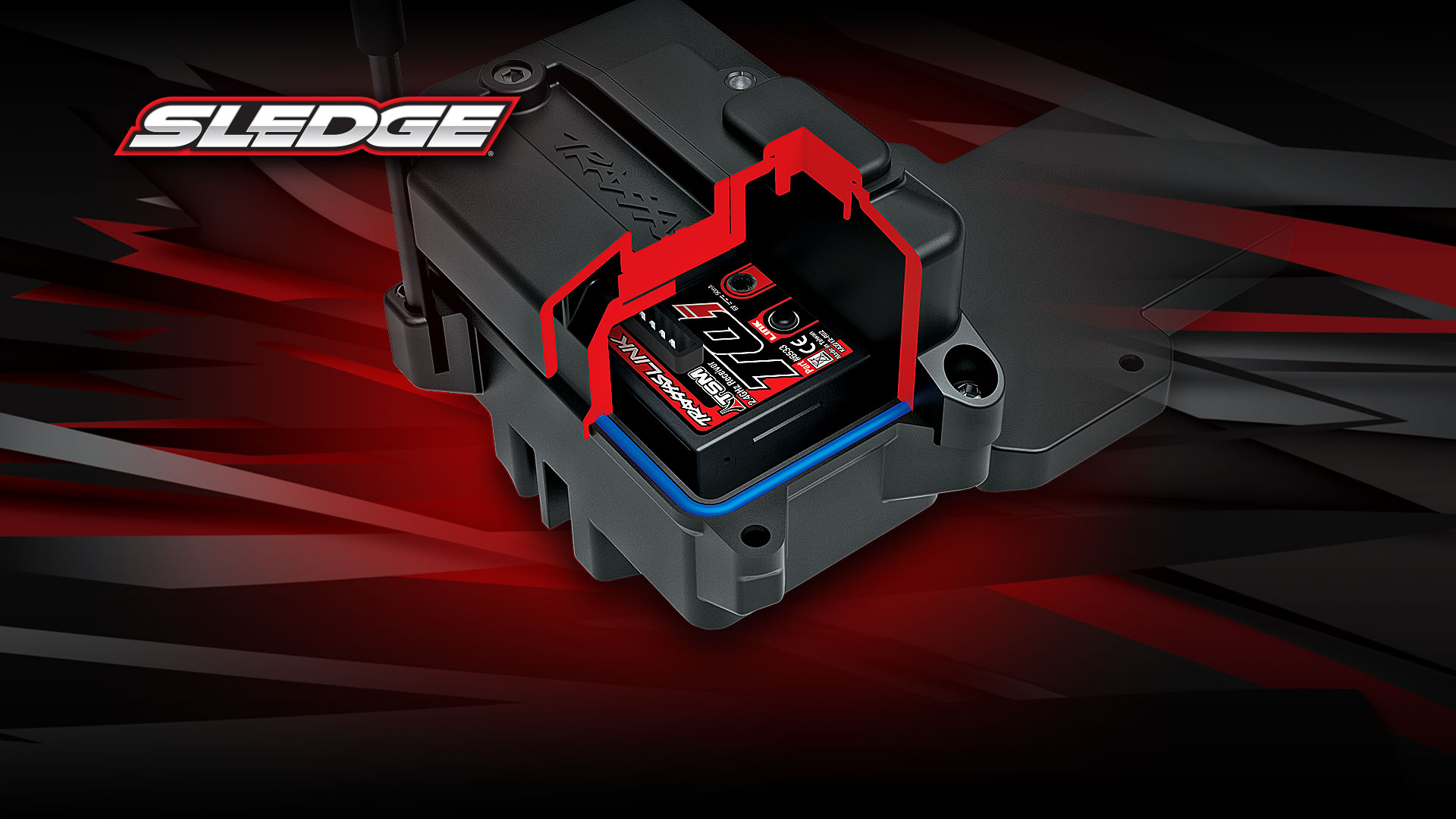

Fully Waterproof

Fully Waterproof

There’s a difference between waterproof and water resistant. Sledge continues the Traxxas legacy with our patented, industry-leading waterproofing solutions.

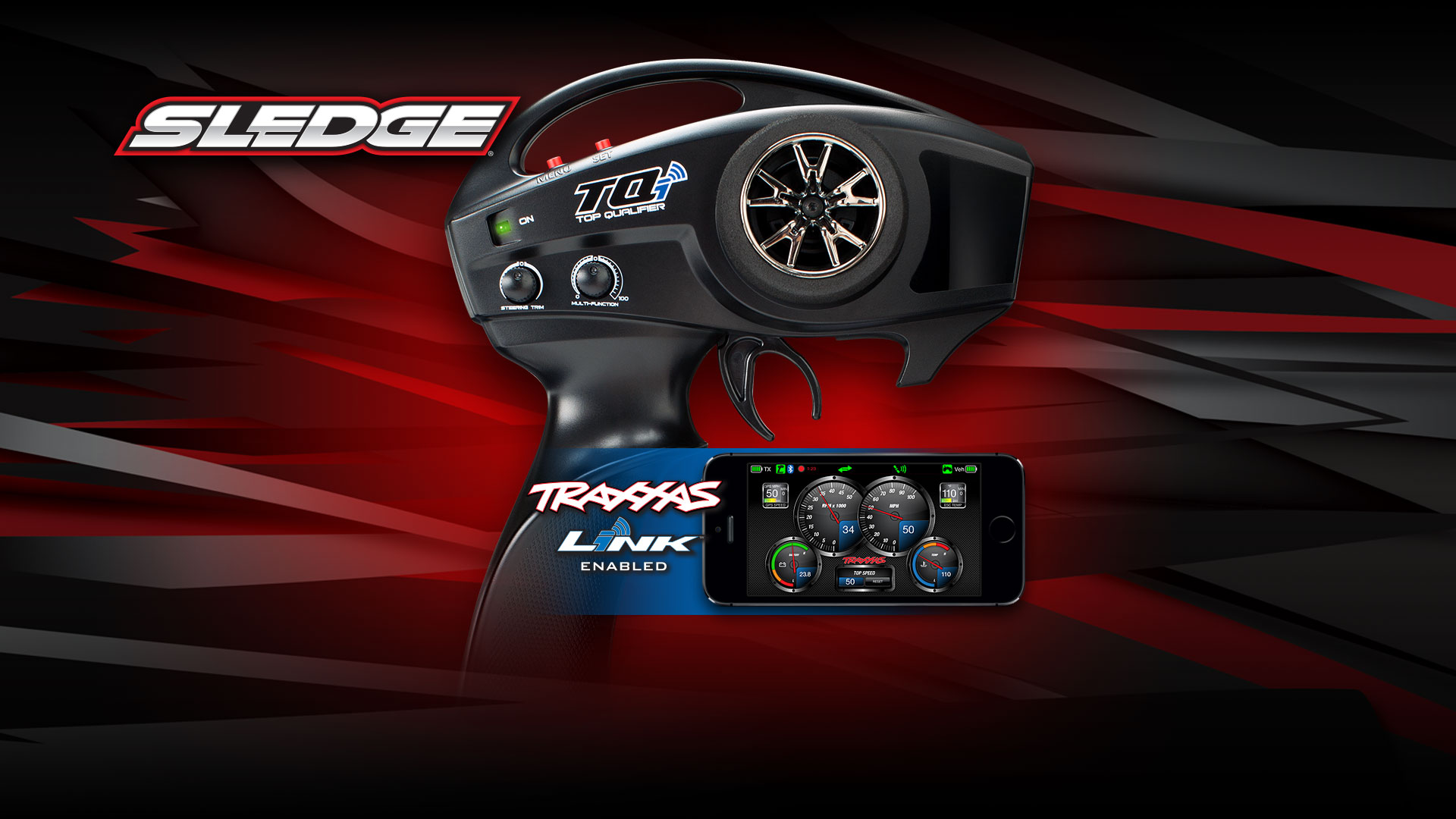

TQi Radio System

TQi Radio System

The high-output Traxxas TQi™ 2.4 GHz radio system delivers superior range, 30-model memory, and maximum control. Add the Traxxas Link™ Wireless Module (part 6511, sold separately) to send real-time telemetry to your smart phone using the free Traxxas Link app.
Traxxas Stability Management

Traxxas Stability Management

Traxxas Stability Management (TSM)® makes it easy for anyone to experience full 6s Velineon horsepower. TSM works behind the scenes to control oversteer, avoid spinouts, and keep the focus on high-performance fun. Learn More

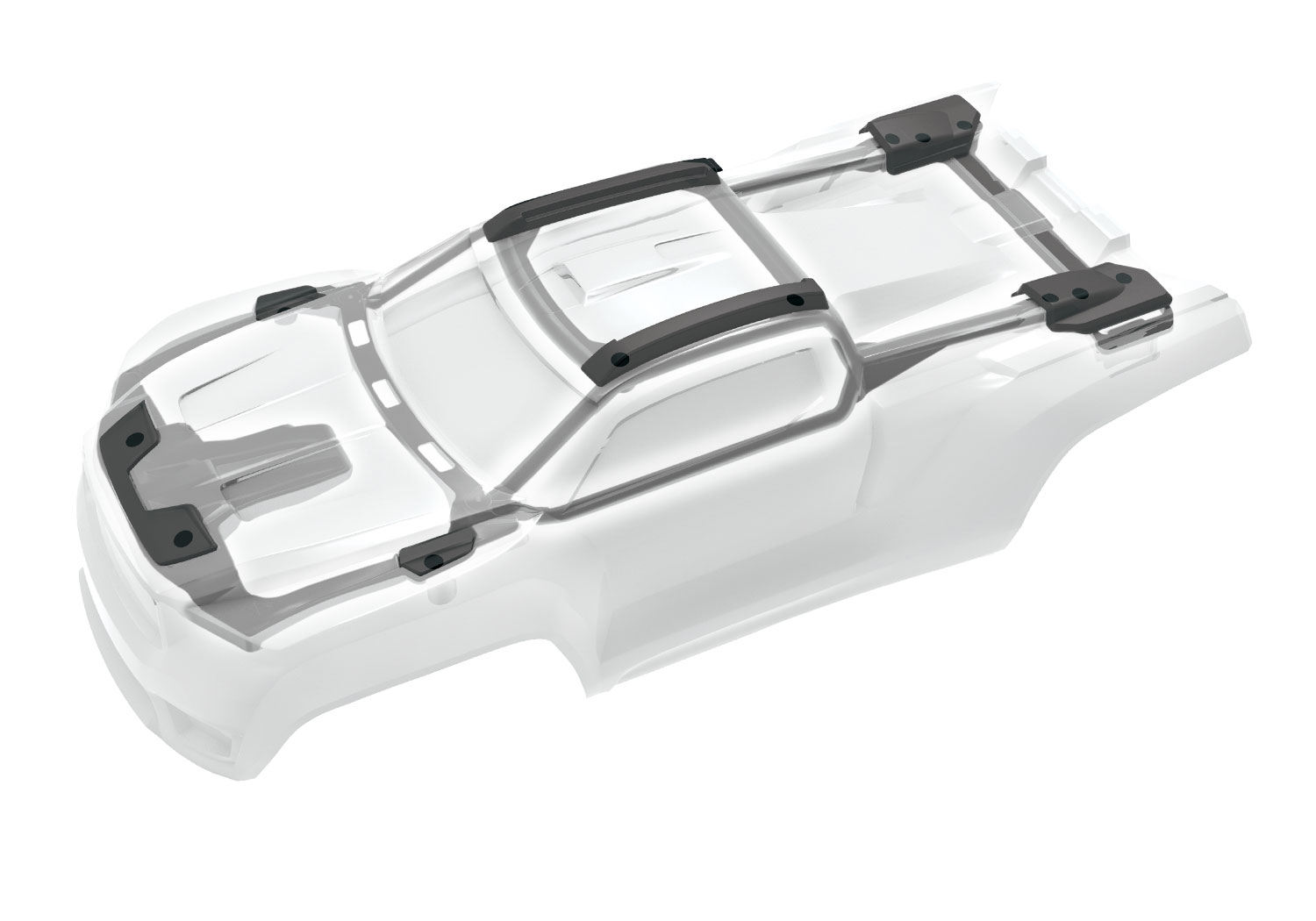

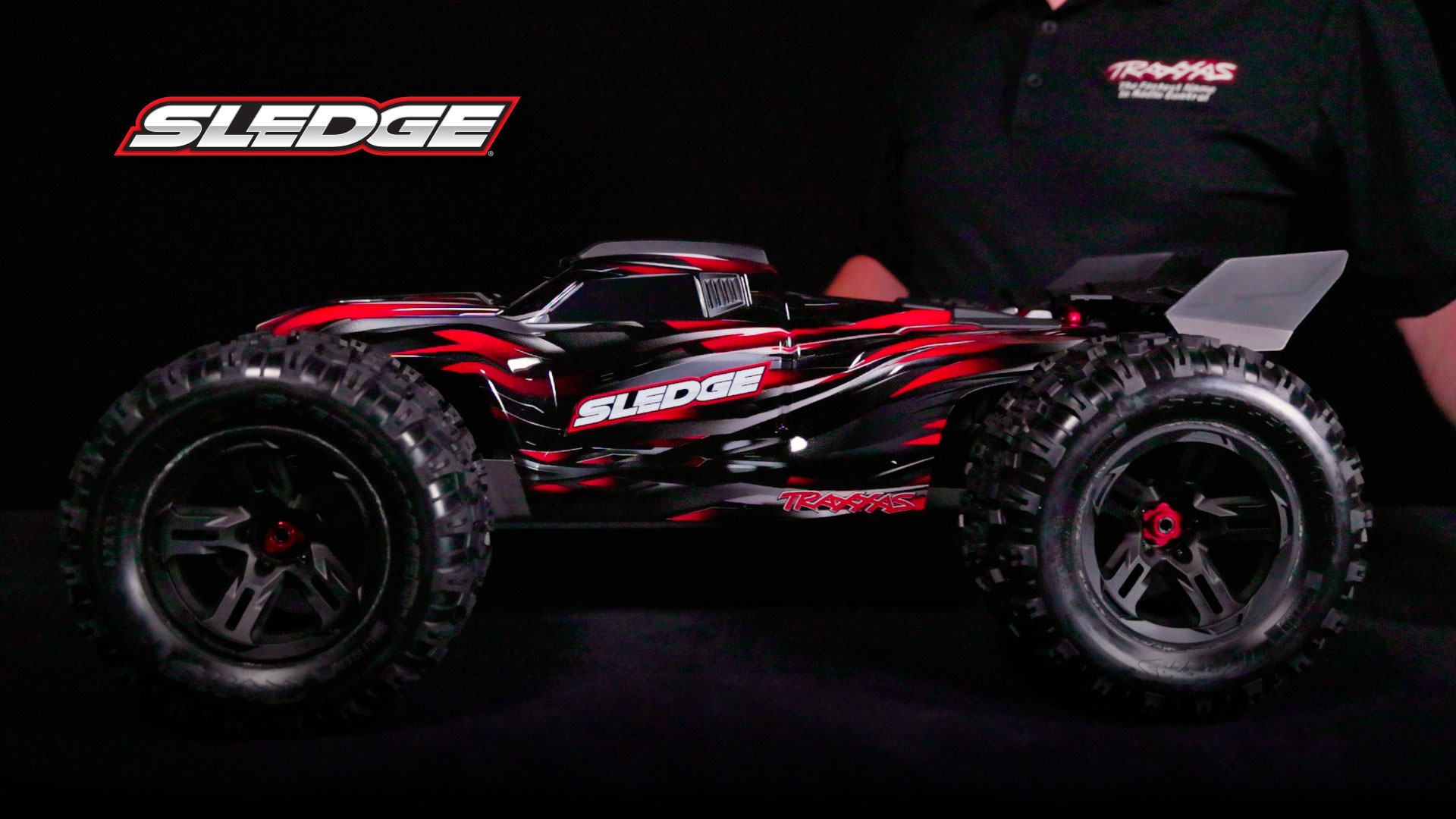

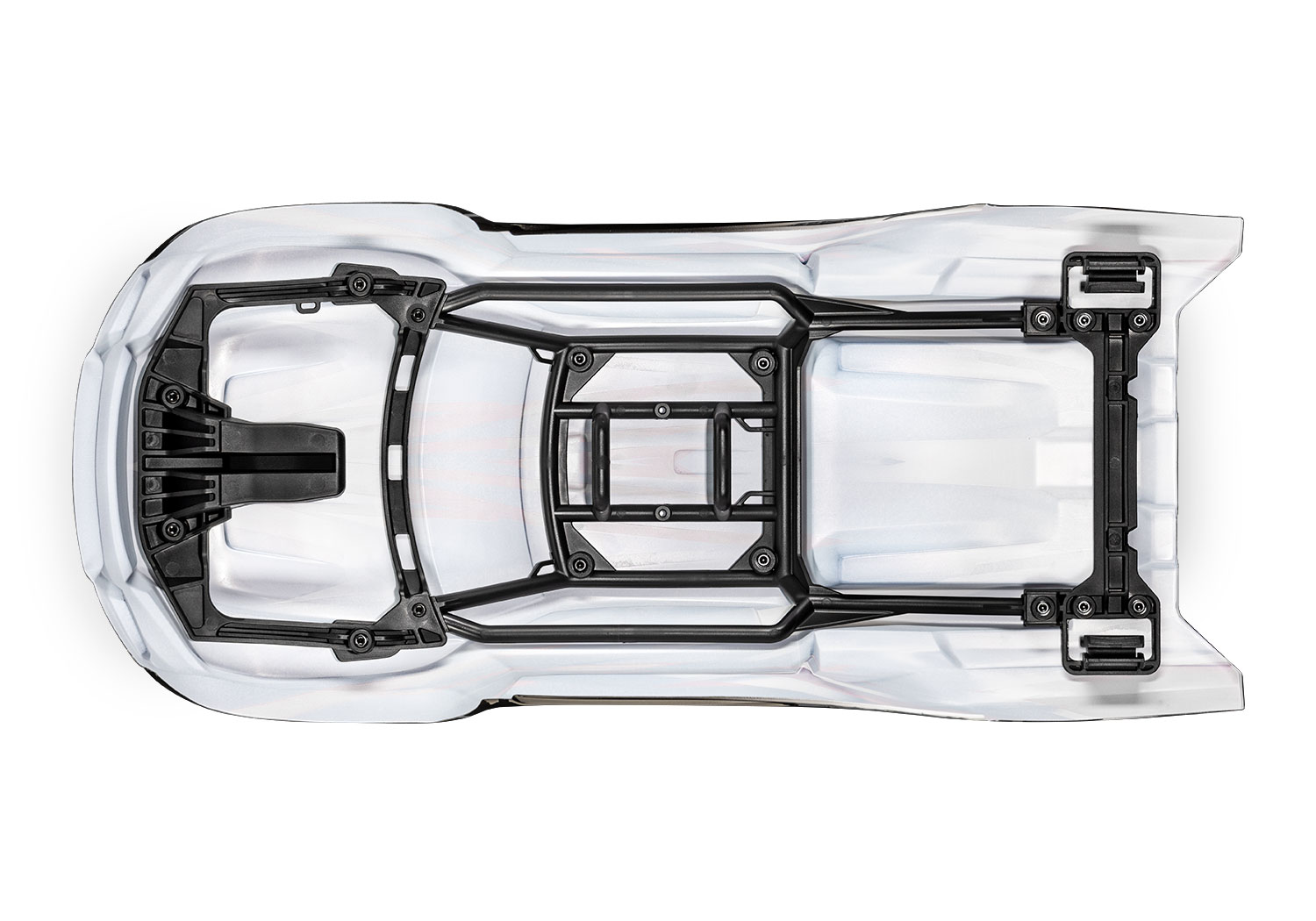

Reinforced Clipless Body

Reinforced Clipless Body

Sledge’s innovative clipless body system is a game changer designed for ease of use and to protect the integrity of the body. The body slips on smoothly and snaps in place in just seconds. It comes off when YOU release it.

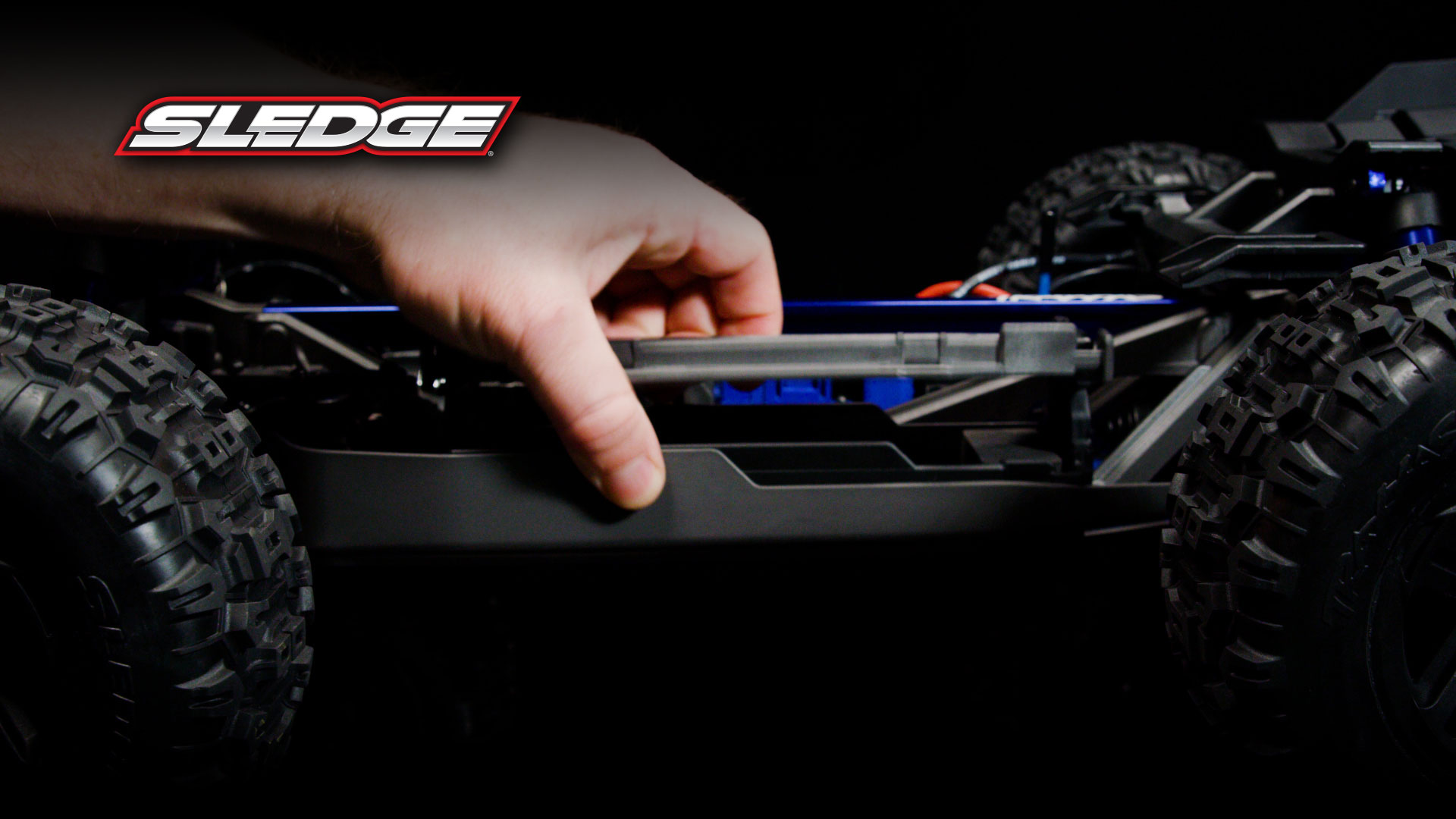

Easy Battery Access

Easy Battery Access

Sledge’s snap-lock battery retainer secures your batteries deep in the chassis for ultimate protection while still allowing lightning-quick battery swaps.

Features

Engineered for 6s Power

Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.

Superior Chassis Strength

Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar™. Built on a solid foundation, Sledge is strongest where it matters most.

Monster Servo

Sledge is equipped with a high-performance metal gear servo that packs massive torque inside a heat dissipating aluminum center case. Powerful and reliable steering authority is assured with no upgrade required.

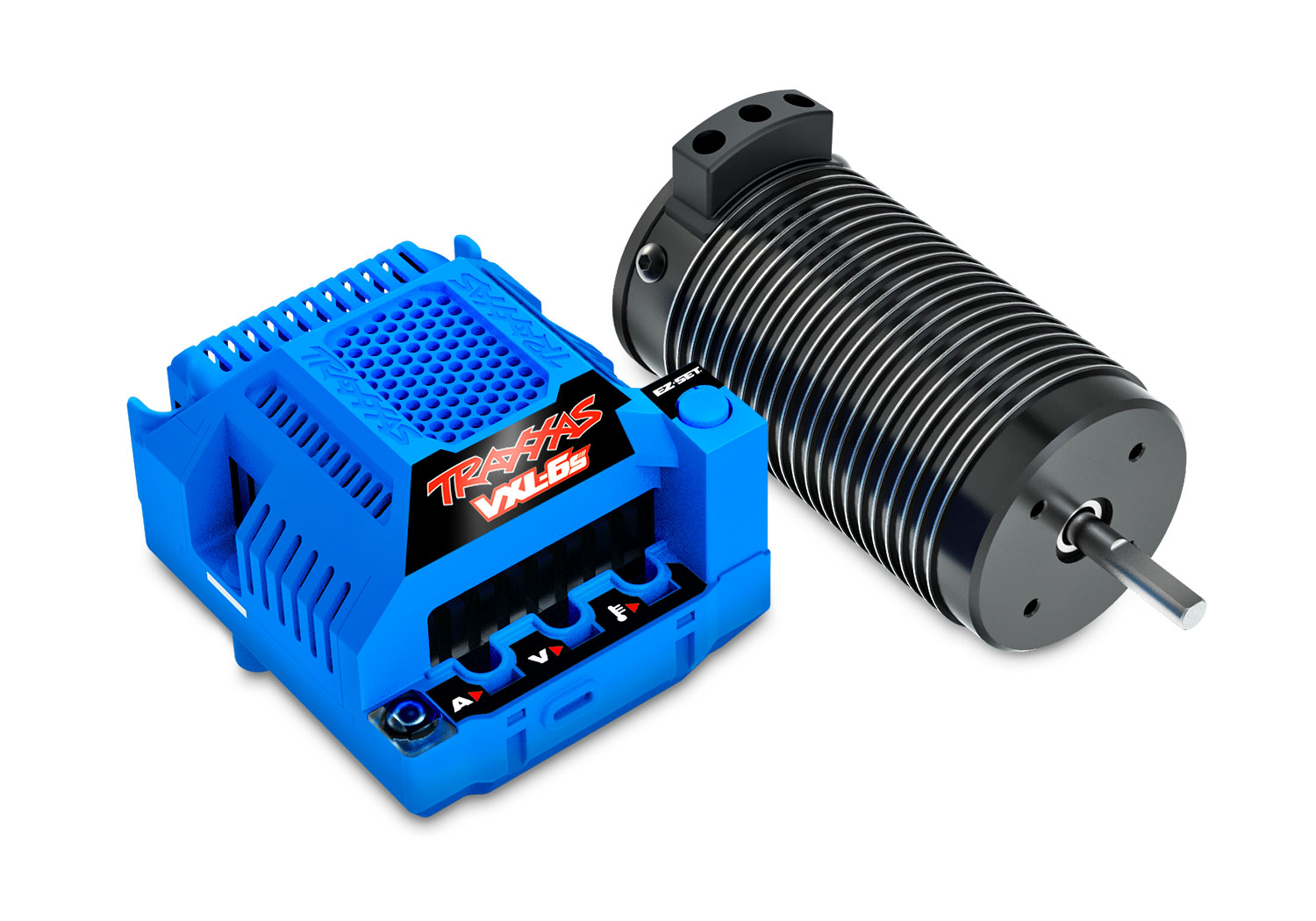

VXL-6s Power System

The Velineon VXL-6s features new hardware and new tuning specifically for the 2000 Kv motor. Together they deliver substantially more power under the curve for increased mid-range punch and hard-charging acceleration you can see and feel.

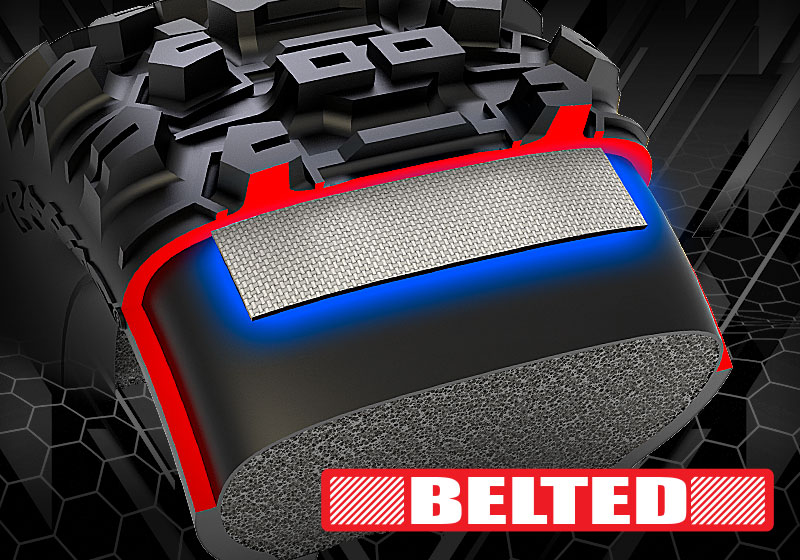

Belted Sledgehammer Tires

Sledge’s belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.

    VXL-6s Waterproof Electronic Speed Control

  • 6s LiPo compatible
  • Integrated cooling fan
  • Real-time telemetry via Traxxas Link™
  • 3-LED status indicators
  • Powered accessory ports
  • 10-gauge silicone wire
  • Patented Traxxas High-Current Connectors

    Velineon® 2000 Kv Brushless Motor

  • 4-pole 2000 Kv brushless motor
  • 5 mm output shaft
  • Finned can for better heat dissipation
  • Aluminum motor cradle mountSupports entire motor
    Reduces flex for longer gear life
  • Supports entire motor
  • Reduces flex for longer gear life

    Up to 70+ mph with Two 3s LiPo Batteries

    Traxxas Stability Management® (TSM)

  • Improves straight line acceleration and braking on low-traction surfaces
  • Never dulls throttle or slows the truck
  • Adjusts from off to 100% assistance from the transmitter

    TQi™ 2.4 GHz High Output Radio System

  • TQi™ 2-channel transmitter
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Programmable multi-function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • 5-channel micro receiver (6533) with fail-safe security

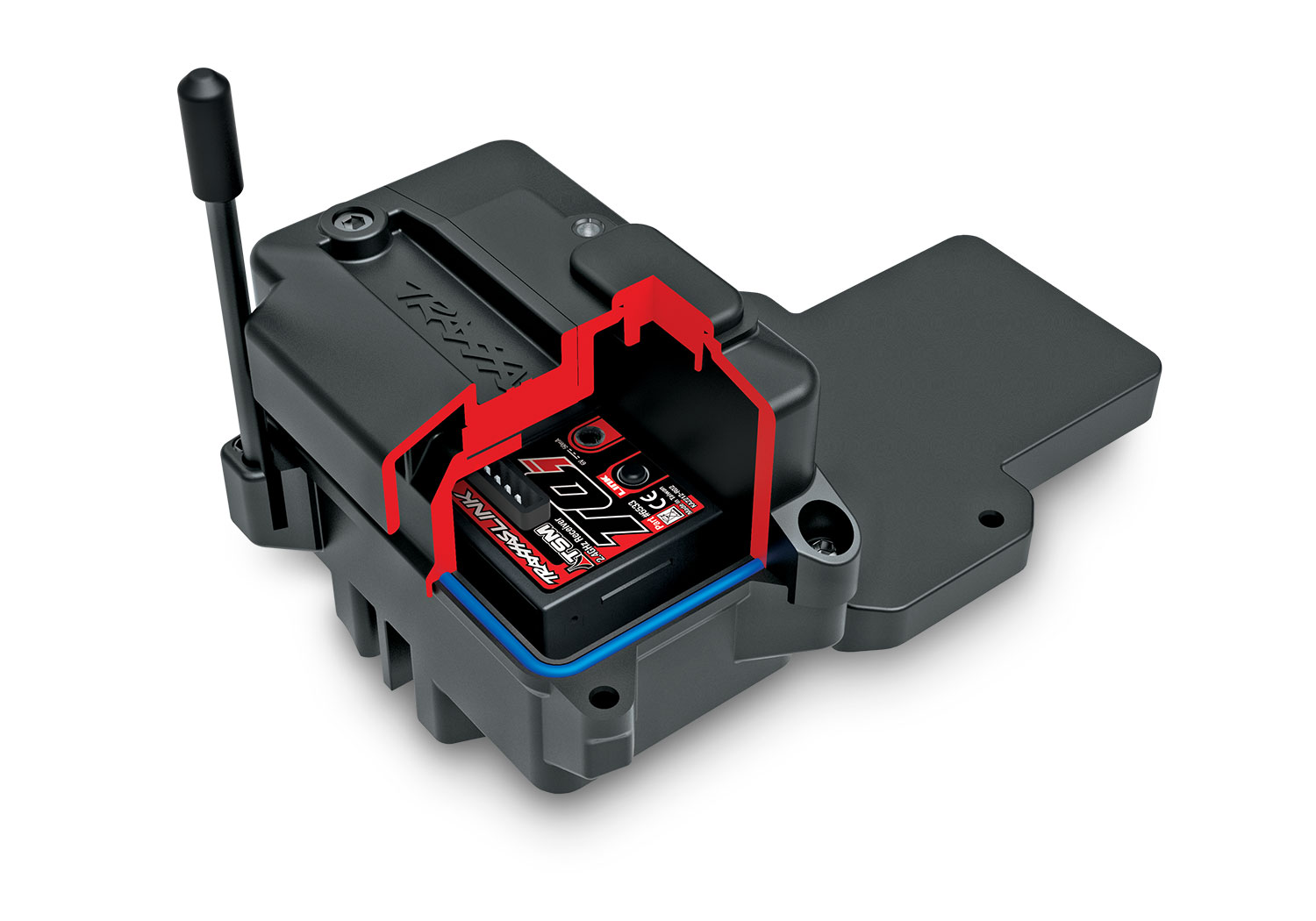

  • Patented waterproof receiver box with easy-access plug

    Drivetrain

  • Heavy-duty steel driveshafts
  • Large 8 mm steel stub axles
  • Steel dogbone center driveline
  • Protective rubber boots on differential inputs

    Transmission

  • Mod-1 pinion and spur gears
  • Fixed gear mesh system
  • Torque-Biasing Center Drive

    Differentials

  • Heavy-duty sealed 4-gear design
  • Large scale steel ring and pinion gears
  • Oversize 8 mm output shafts
  • Steel drive cups
  • Easy-access bulkheads

    Oil-filled GT-Maxx® Shocks

  • Longer rear shocks for more travel
  • Machined aluminum threaded body
  • Extra-large bore and capacity
  • Large-diameter damper shaft
  • Lower cartridge with dual X-rings
  • Height-adjustable spring retainer
  • Lower spring perches bolted on

    Suspension

  • Performance-optimized geometry
  • Ultra-tough composite armsMade from our strongest cold-weather material
    Molded insert for clean look
    Rear rock deflectors
    Press-in hinge pins to reduce play
  • Made from our strongest cold-weather material
  • Molded insert for clean look
  • Rear rock deflectors
  • Press-in hinge pins to reduce play
  • Oversize molded toe and camber links
  • Heavy-duty C-hubs
  • Stronger than conventional designs
  • Require no adjusments
  • Multiple mounting points for suspension tuning

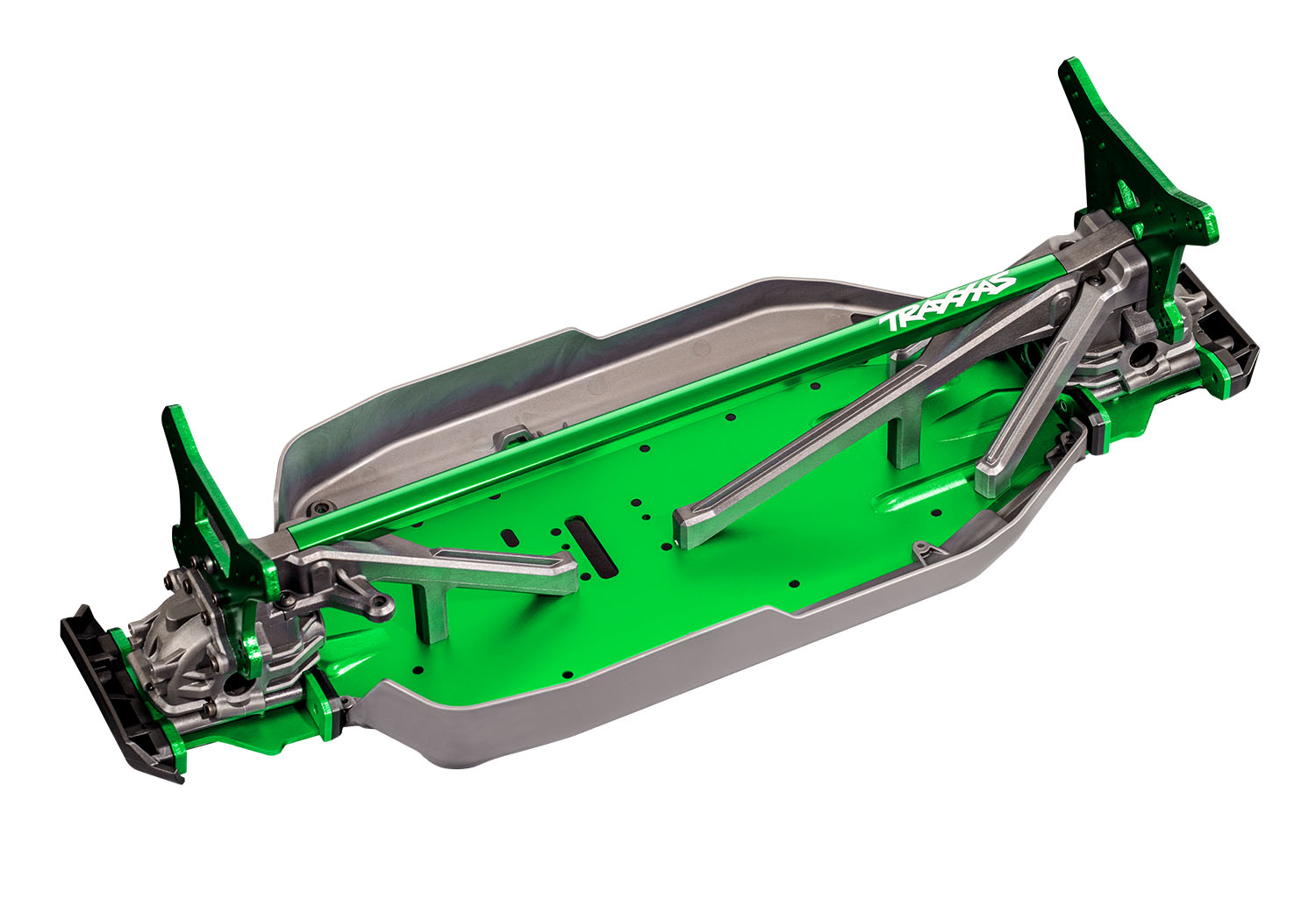

    Chassis

  • 3.2 mm ribbed aluminum chassis
  • Formed edges for improved strength
  • Thick T-Bar™ for added rigidity
  • Stronger than round bars
  • High-strength buttressing on shock towers
  • Ultra-thick 5 mm 6061-T6 aluminum shock towers
  • Rugged locking battery compartment with quick-release door
  • Low-CG design for improved handling
  • Interlocking components for tight tolerances
  • Tough front and rear bumpers double as skid plates
  • Hidden wire management for clean appearance

    ProGraphix® Body

  • Clipless body mounting system
  • Rigid internal frame
  • Molded body reinforcements for tear-through protection
  • Protective roof skids
  • Rugged high-downforce rear wing

    Wheels and TiresHuge 6.7″ Belted Sledgehammer® all-terrain tires

  • Huge 6.7″ Belted Sledgehammer® all-terrain tiresVirtually eliminates ballooning at high speeds
    Open tread block design
    2-piece foam insert
  • Virtually eliminates ballooning at high speeds
  • Open tread block design
  • 2-piece foam insert
  • Tough 3.8″ black wheels
  • Splined 17 mm aluminum axle hubs

    Steering

  • High-throw bellcrank steering design
  • Heavy-duty servo saver with aluminum posts
  • Metal servo horn
  • Powerful 2275 metal gear servo347 oz-in torque
    Fully waterproof
  • 347 oz-in torque
  • Fully waterproof

    Sealed Ball Bearings

    Hex hardware with Rust-Resistant Black Oxide Coating

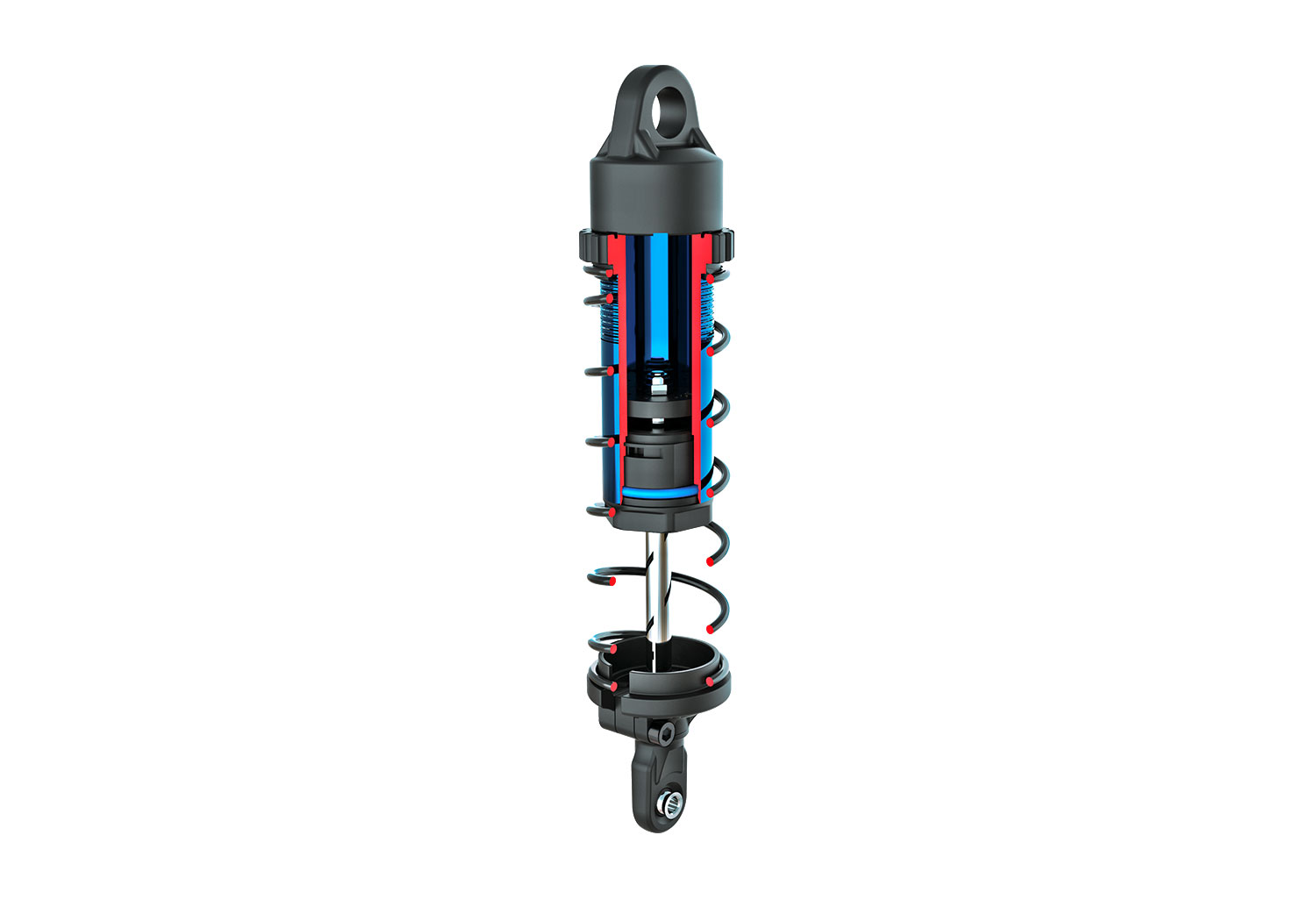

GT-Maxx Shocks

Large-bore GT-Maxx® aluminum shocks mount to the towers with 4 mm screws for superior strength. X-ring seals glide on large-diameter shafts, and the spring retainers are secured with screws to stay put.

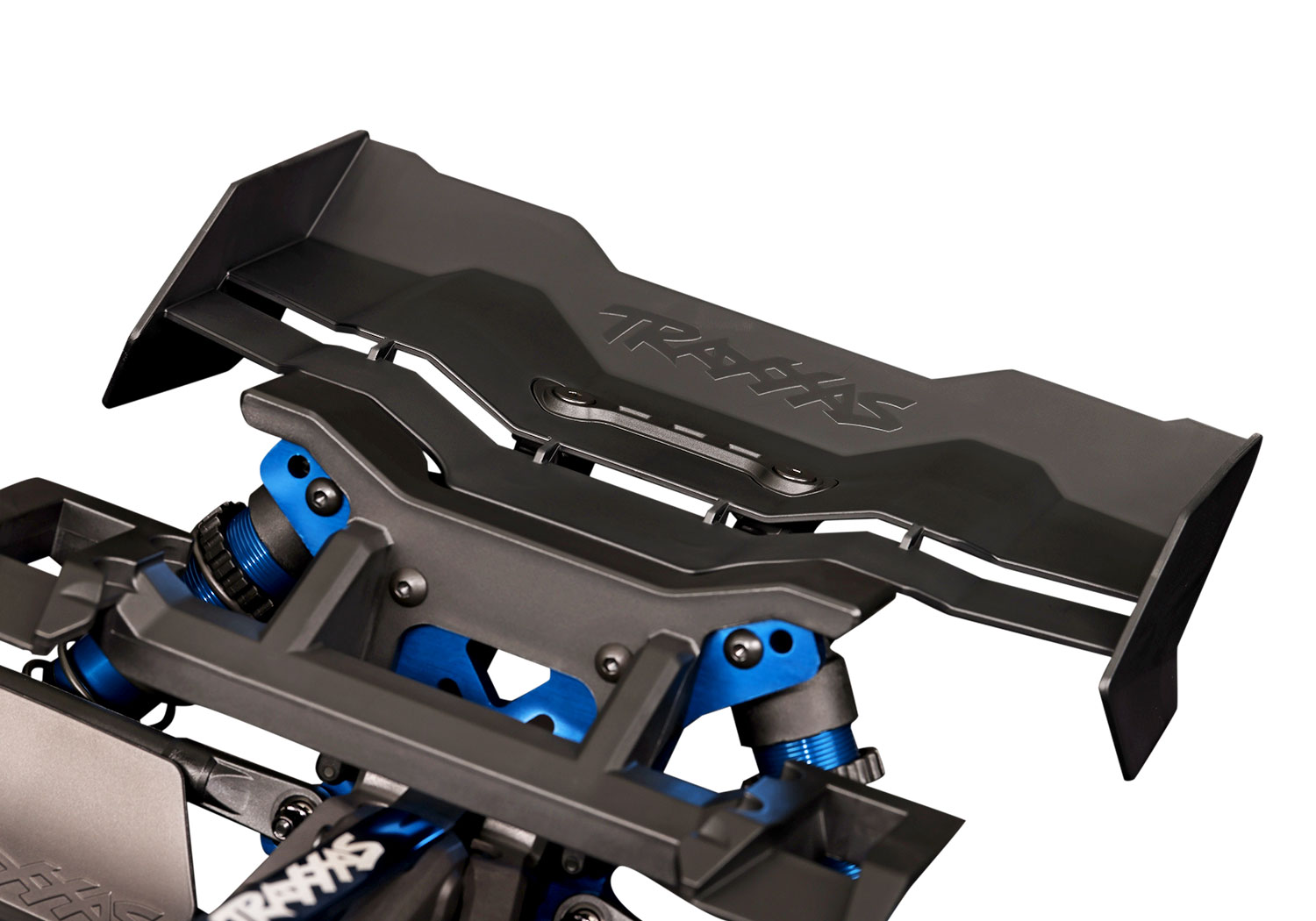

High Downforce Wing

Sledge’s high-downforce wing puts the wind to work with molded-in wear pads to protect the wing against ground-scraping wheelies.

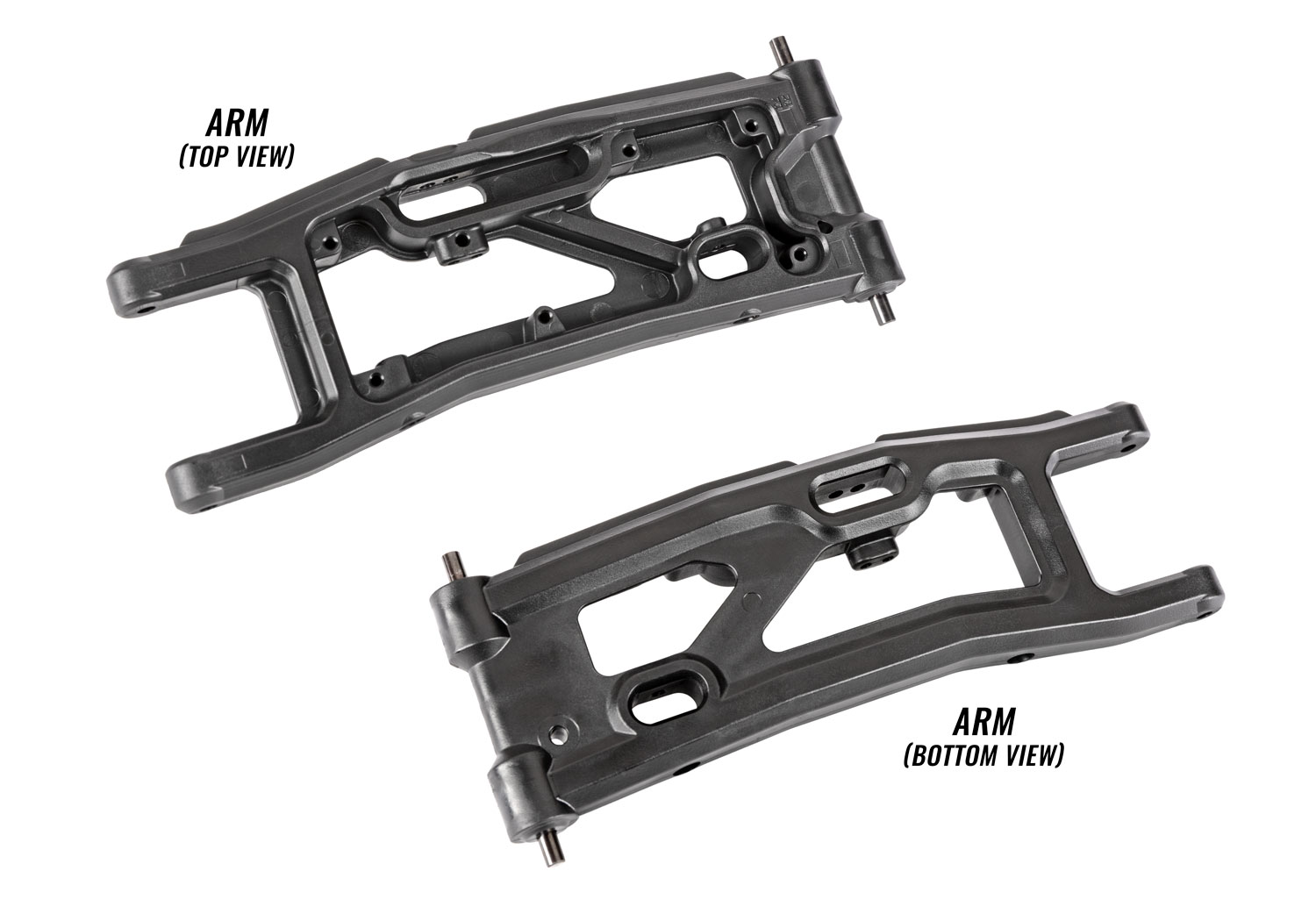

High-Tech Suspension Arms

Formed from our toughest composite material, heavy-duty suspension arms use high-grade steel pins that press into the arms for tighter tolerances.

Heavy-Duty Chassis Braces

Sledge’s heavy-duty front and rear braces combine with the aluminum chassis and rigid T-Bar™ to create a radically strong triangulated structure.

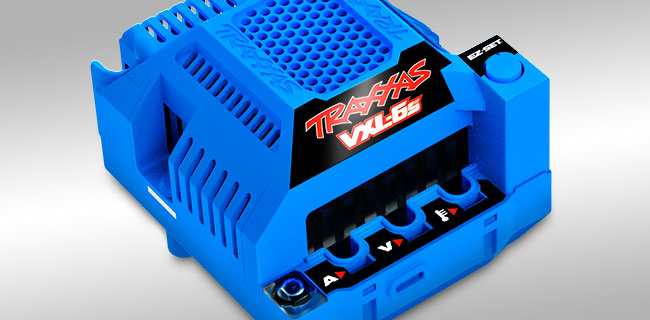

VXL-6s Speed Control

The proven Velineon® VXL-6s speed control is custom-tuned to give Sledge incredible punch throughout the RPM range. Whether you’re exploding off the line or accelerating out of a turn, Sledge responds with rocket-like thrust.

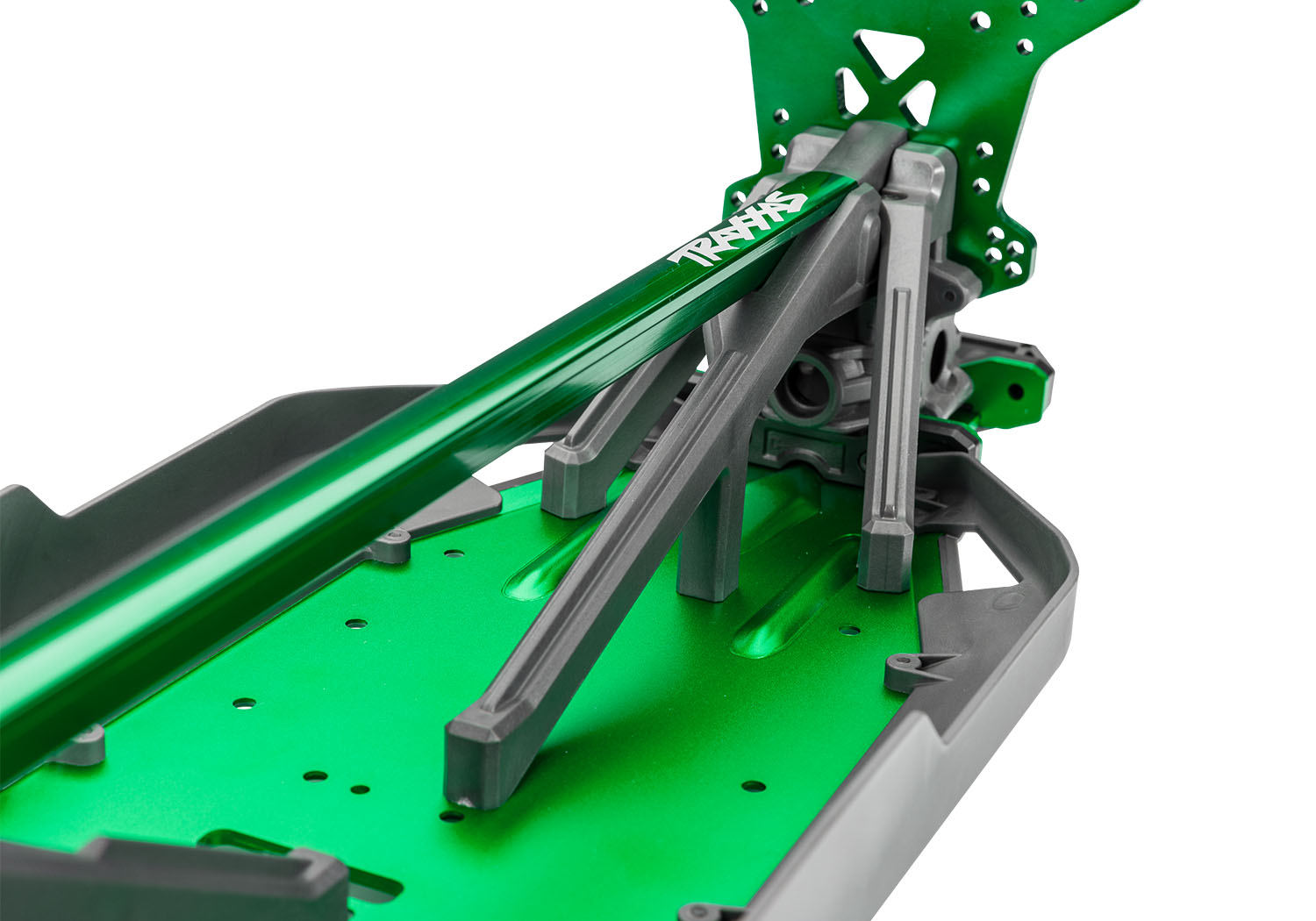

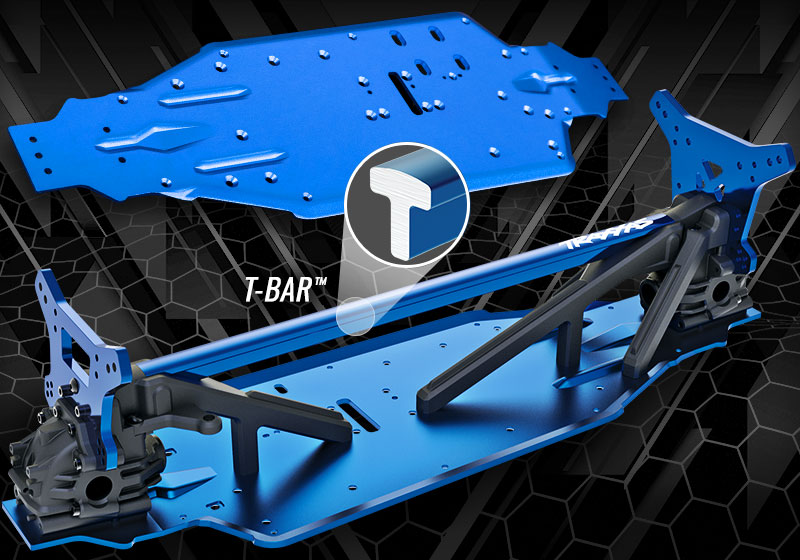

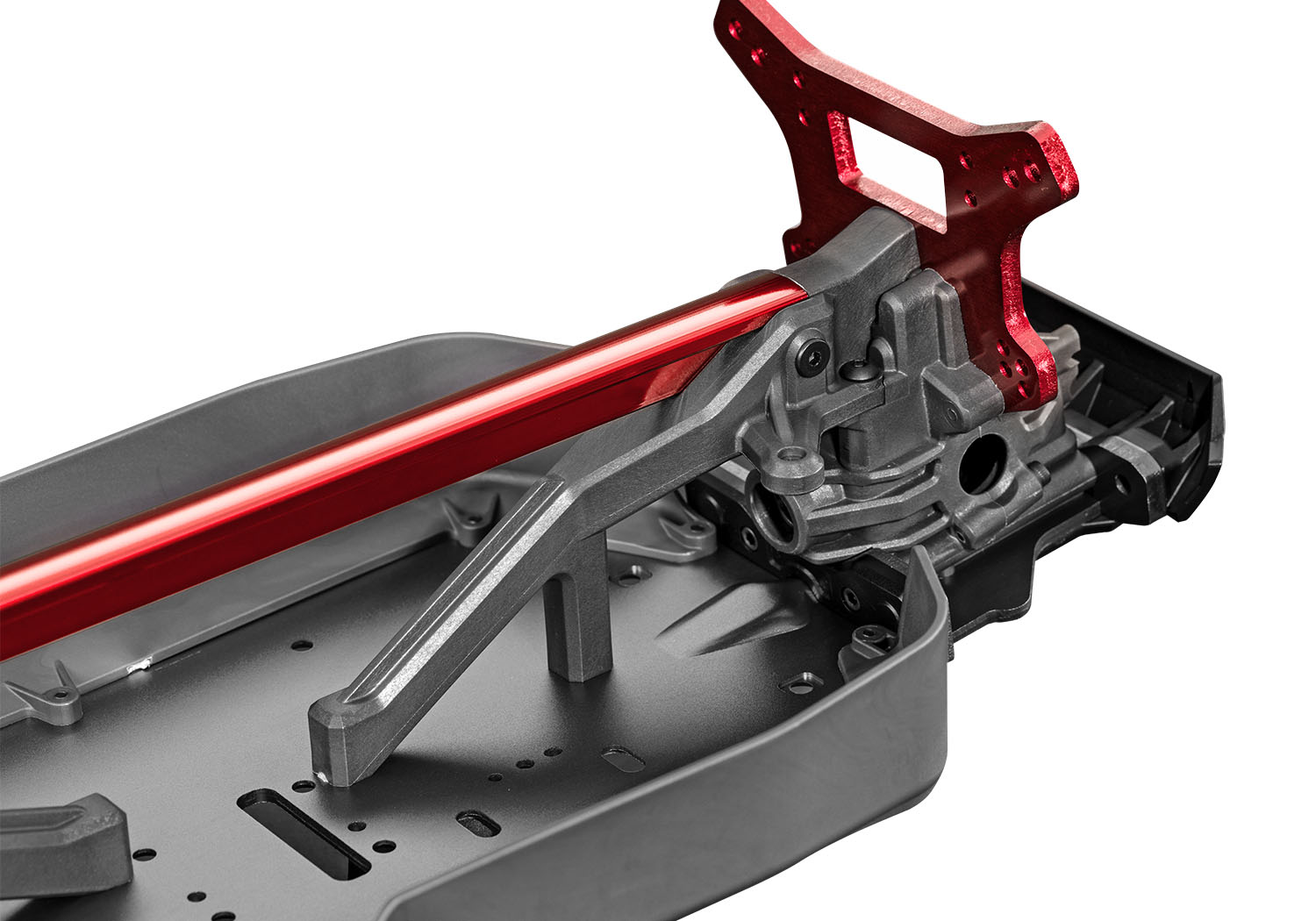

Aluminum T-Bar™

The unique shape of Sledge’s aluminum T-Bar brace delivers cross-sectional stiffness no round tube can match. The T-Bar also keys perfectly into the bulkheads so they absorb impact forces, and not the attachment screws.

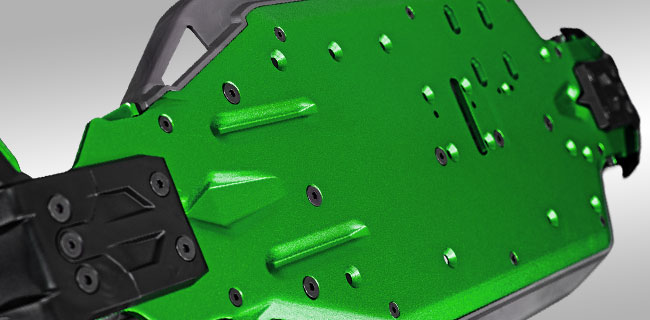

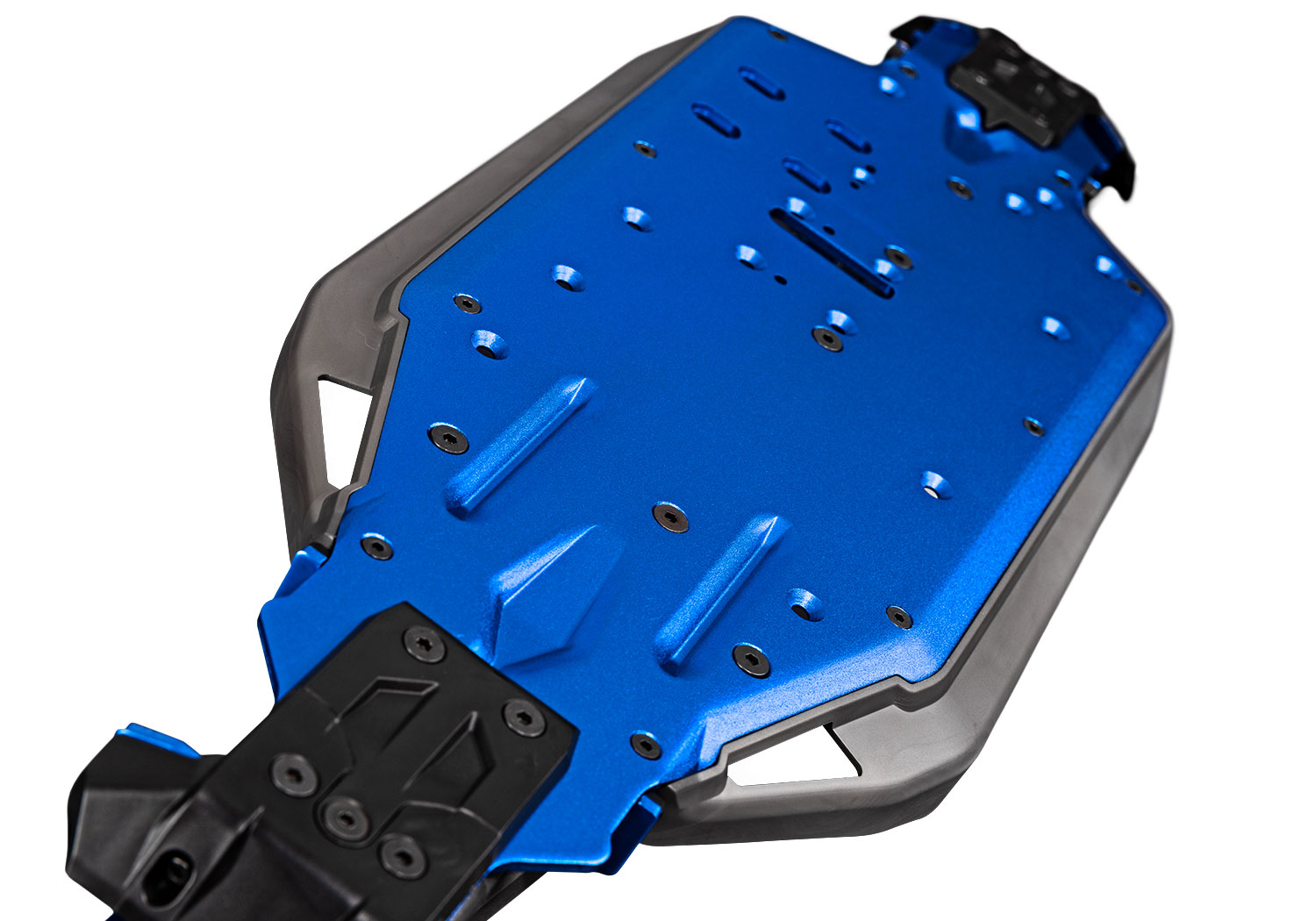

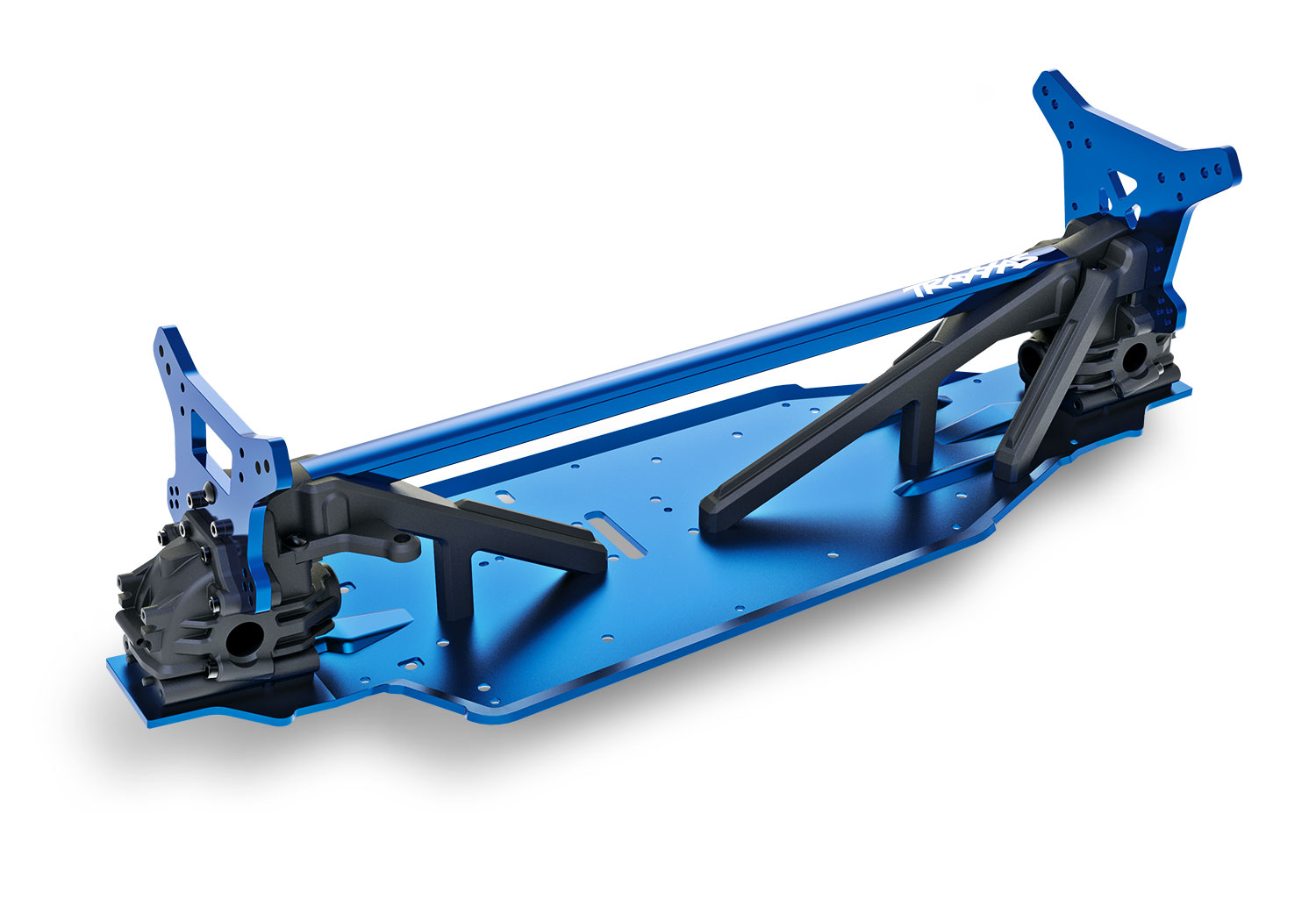

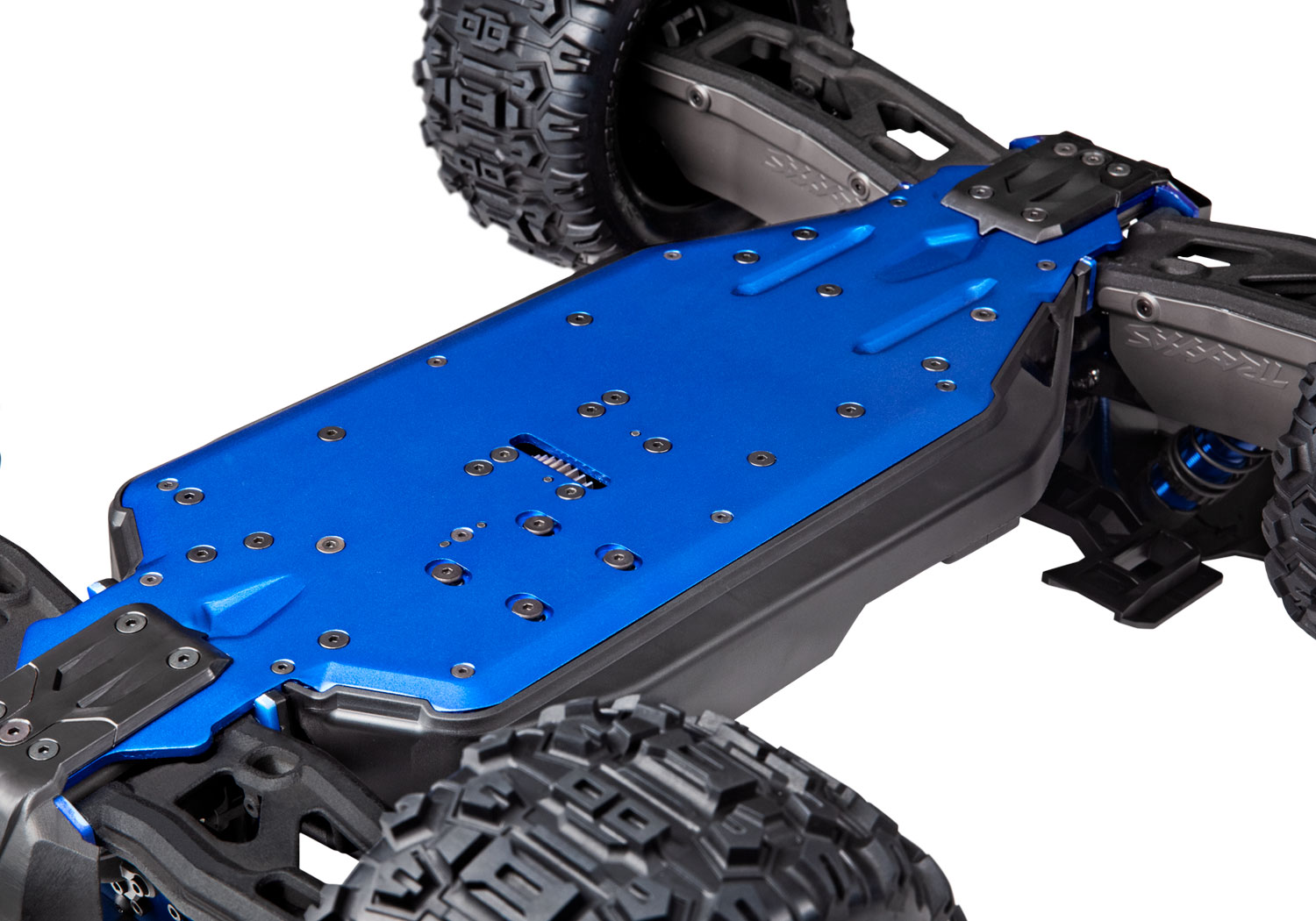

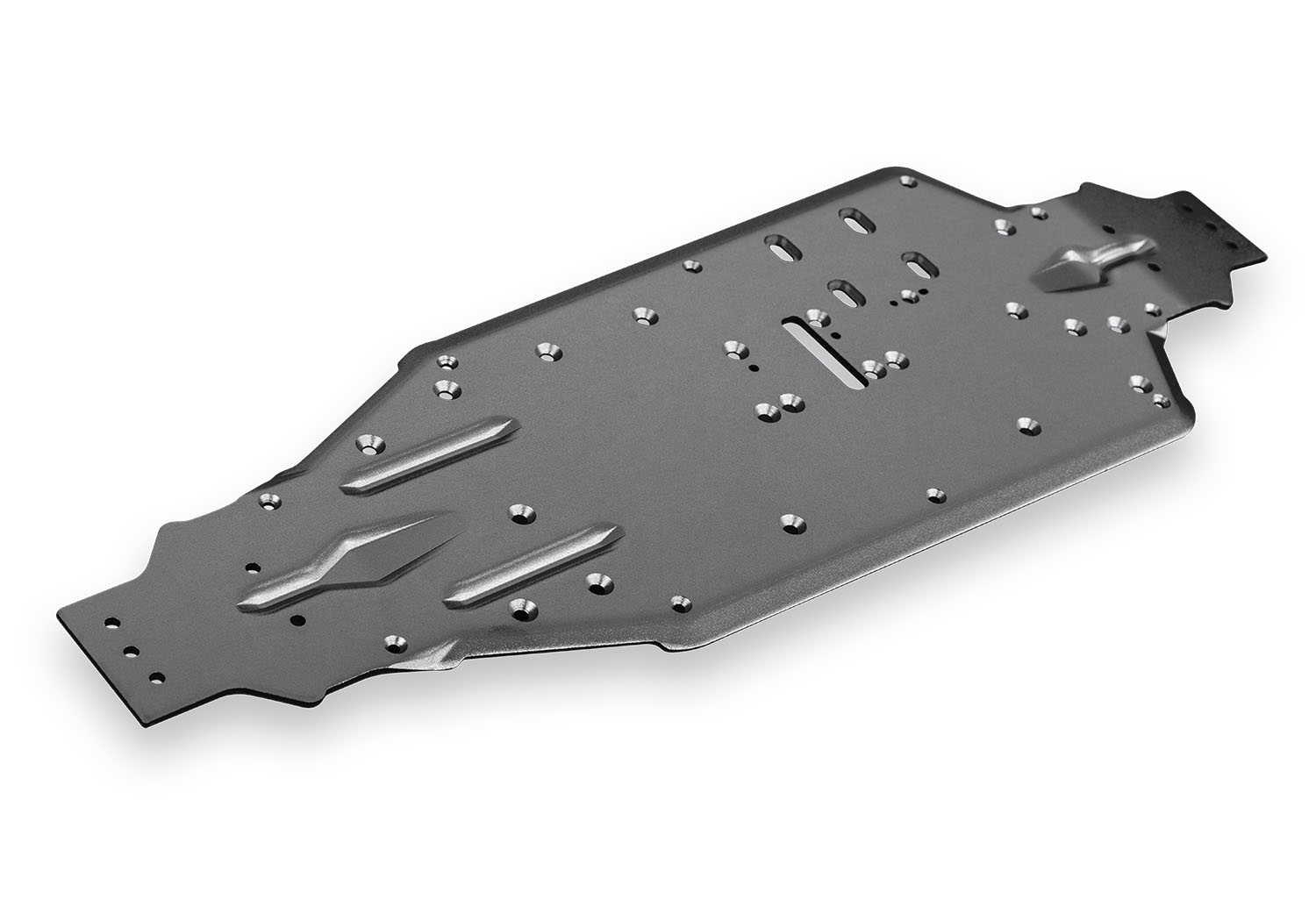

High Strength Aluminum Plate Chassis

Sledge’s chassis uses flanged edges from bulkhead to bulkhead to eliminate weak points. Additional strengthening ribs add extra rigidity in high-stress locations and the side guards fit tightly to the chassis for a seamless look.

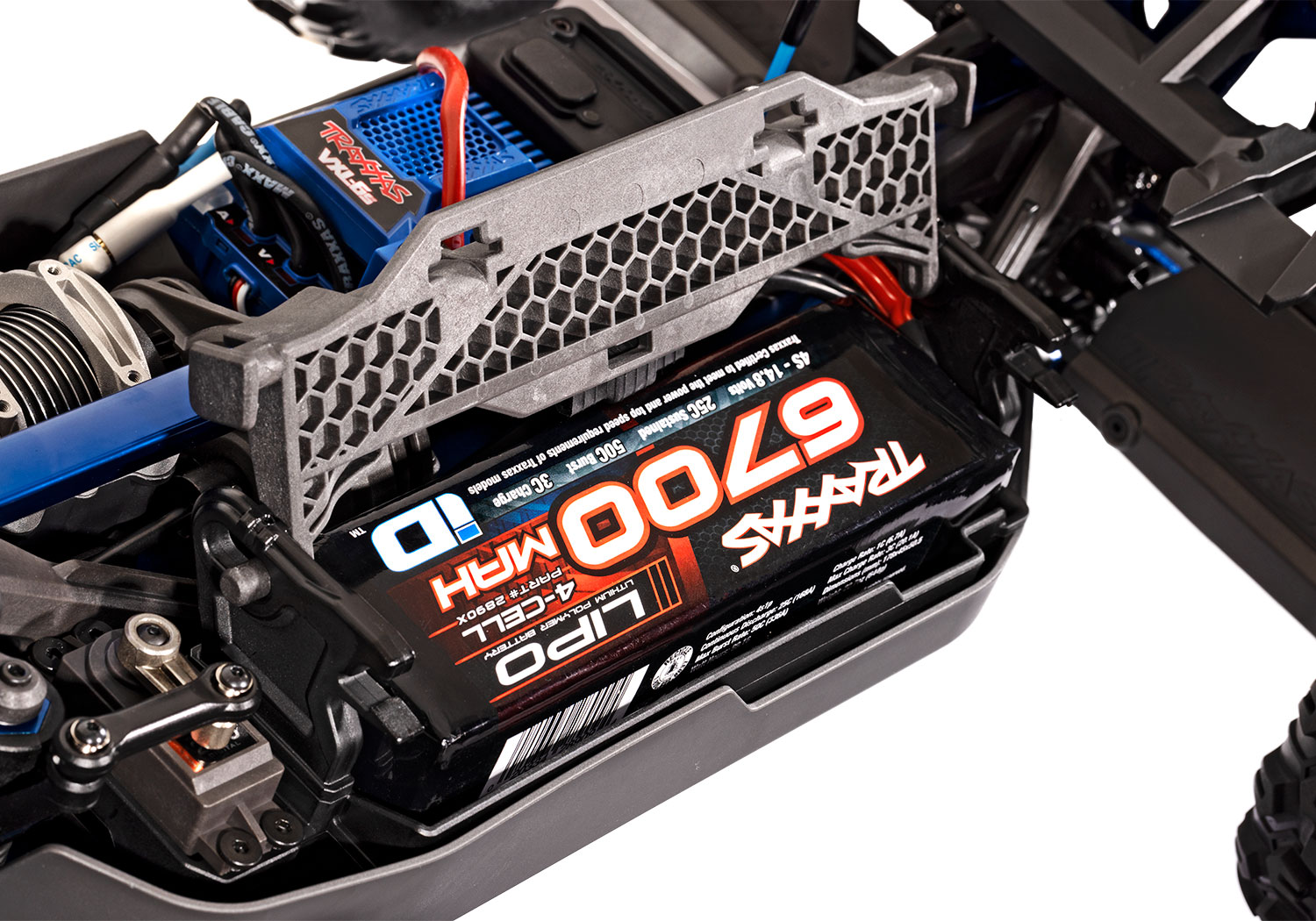

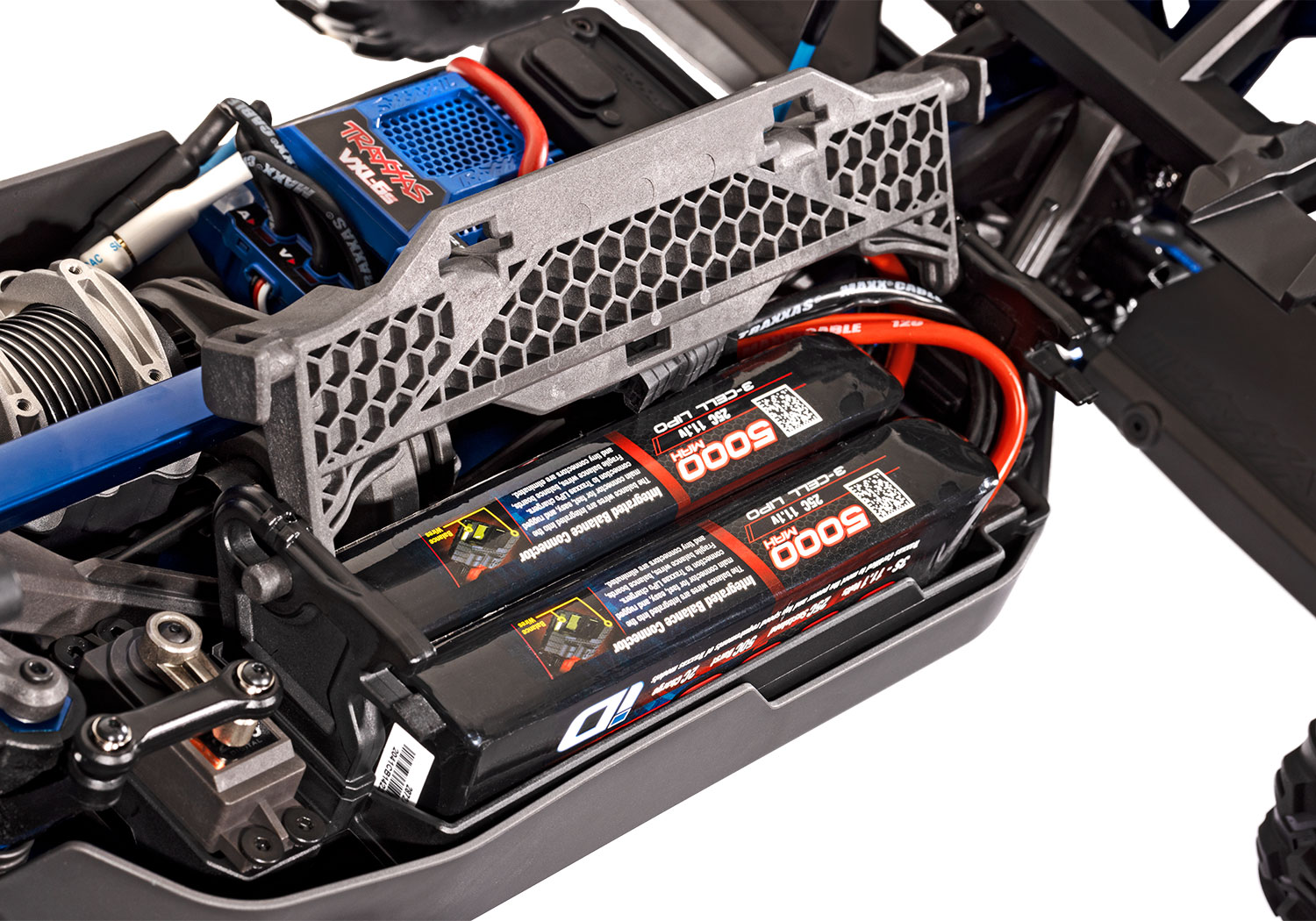

Rigid Battery Tray

Sledge’s roomy battery tray accepts a variety of 4s and 6s configurations. Battery changes take just seconds with no clips or straps required.

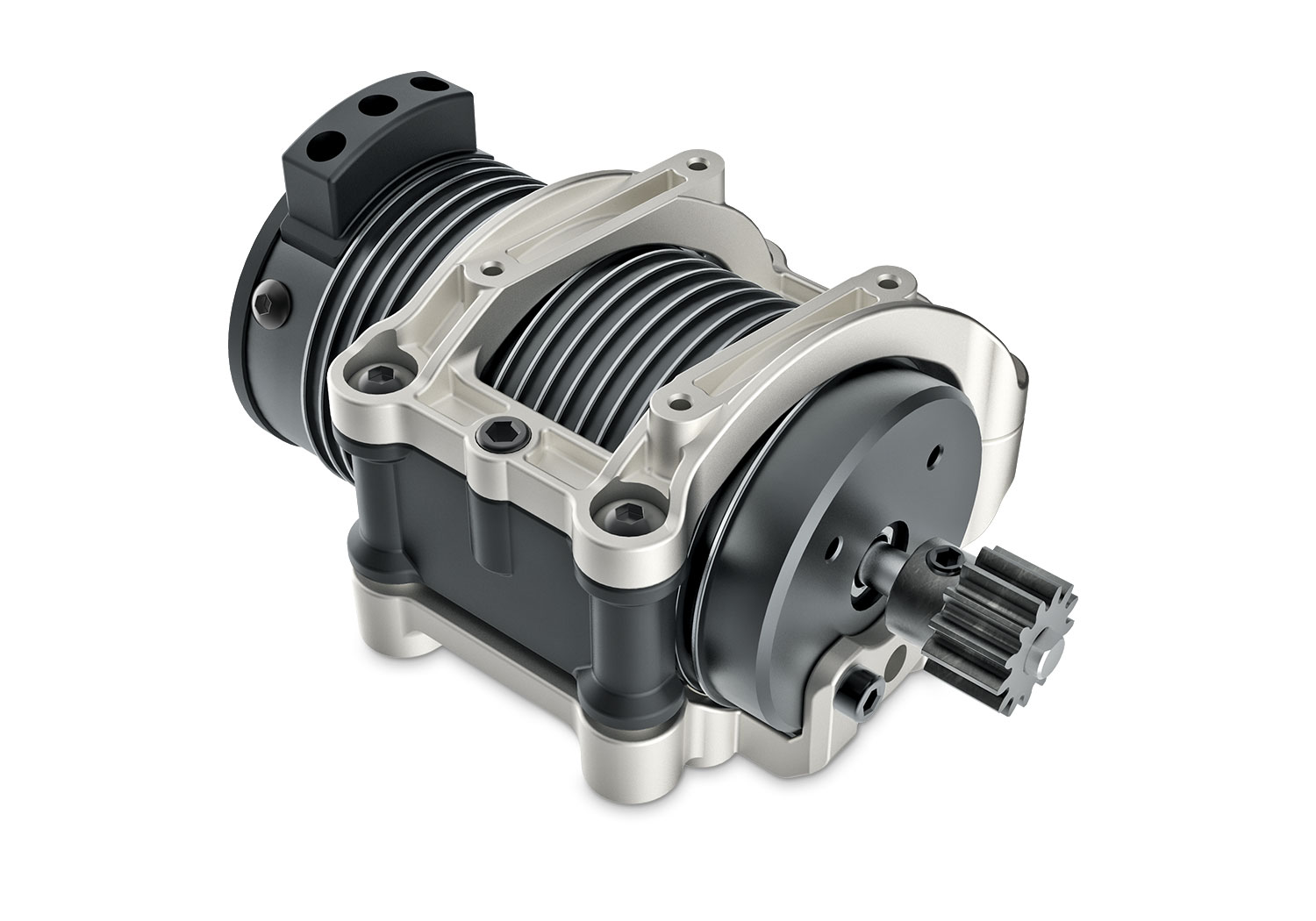

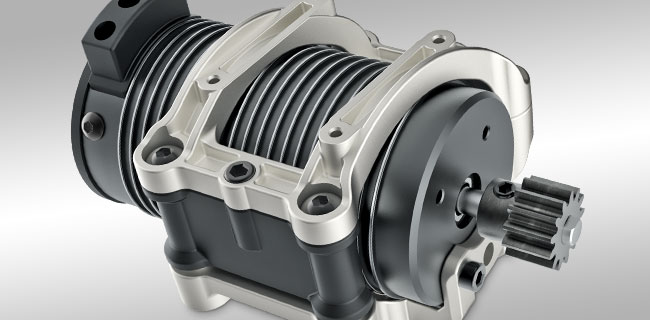

Aluminum Motor Cradle

Sledge secures its 2000 Kv brushless motor in place with a wrap-around aluminum cradle to eliminate all flex points. Built-in bosses make it easy to attach the accessory cooling fan (part 3476 available separately).

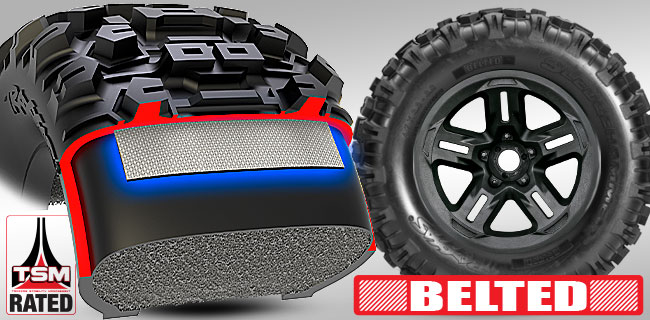

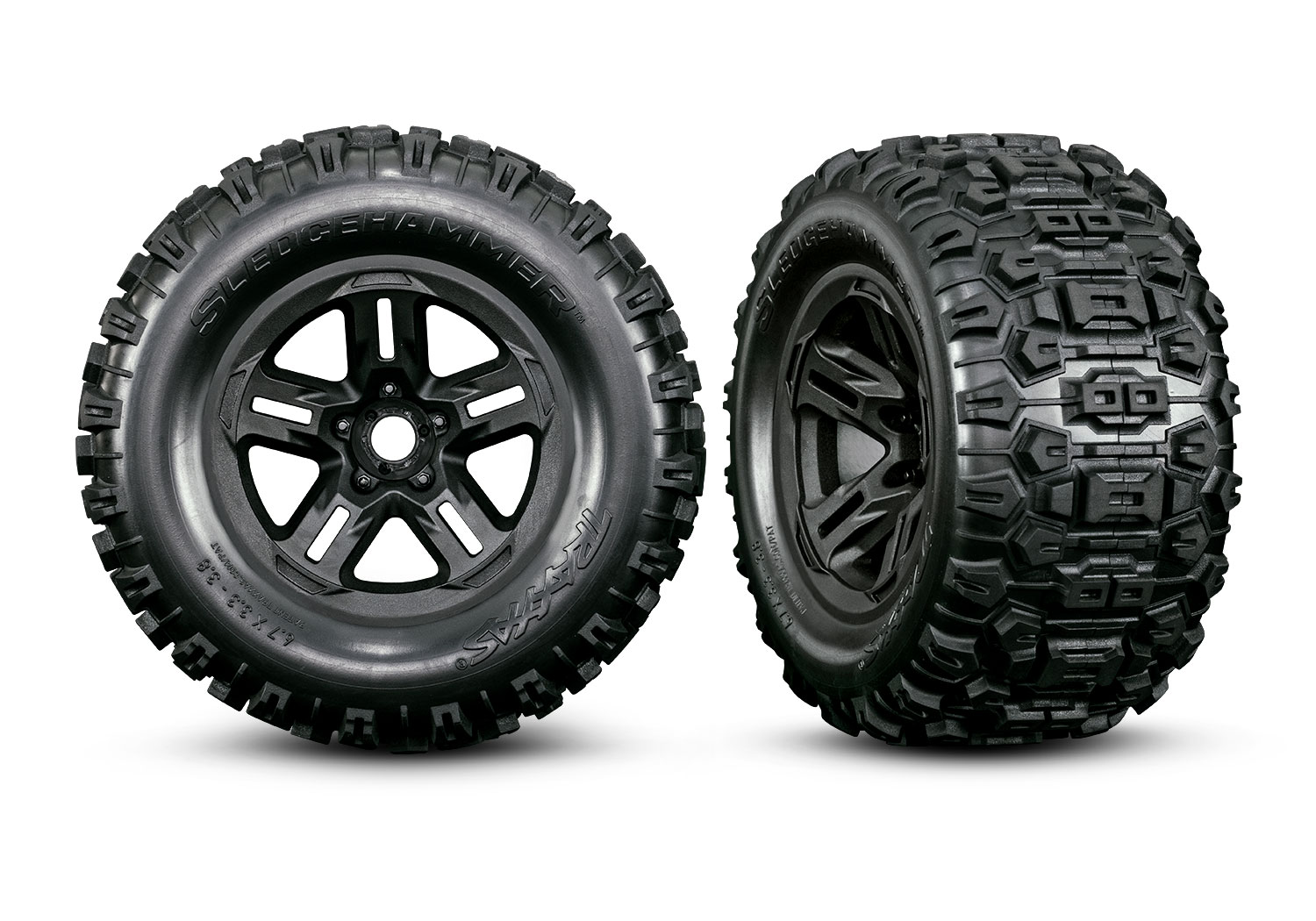

Belted Sledgehammer Tires

The Sledgehammer’s thick tread blocks bite into rough terrain for outstanding all-surface grip. Traxxas’ tire bonding innovation keeps them locked onto the 3.8″ wheels with a vise-like grip. Lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.

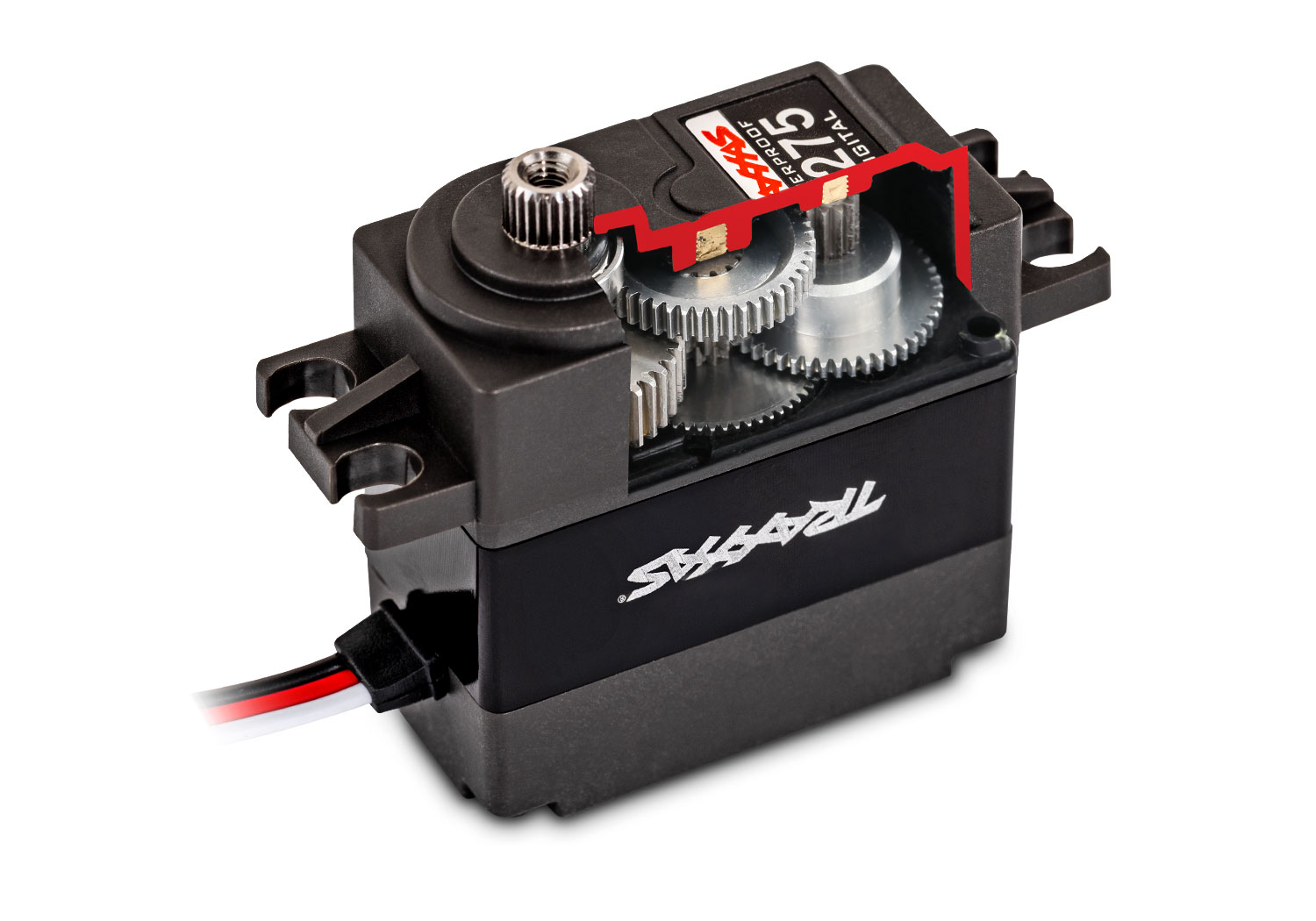

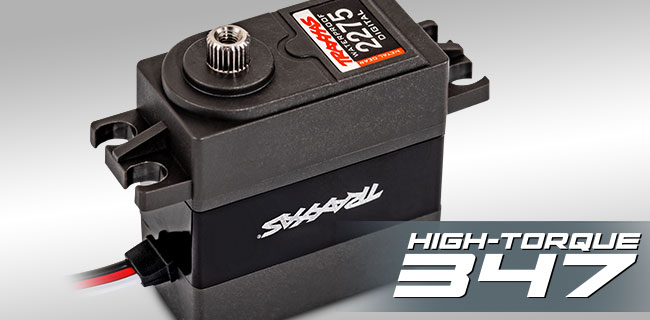

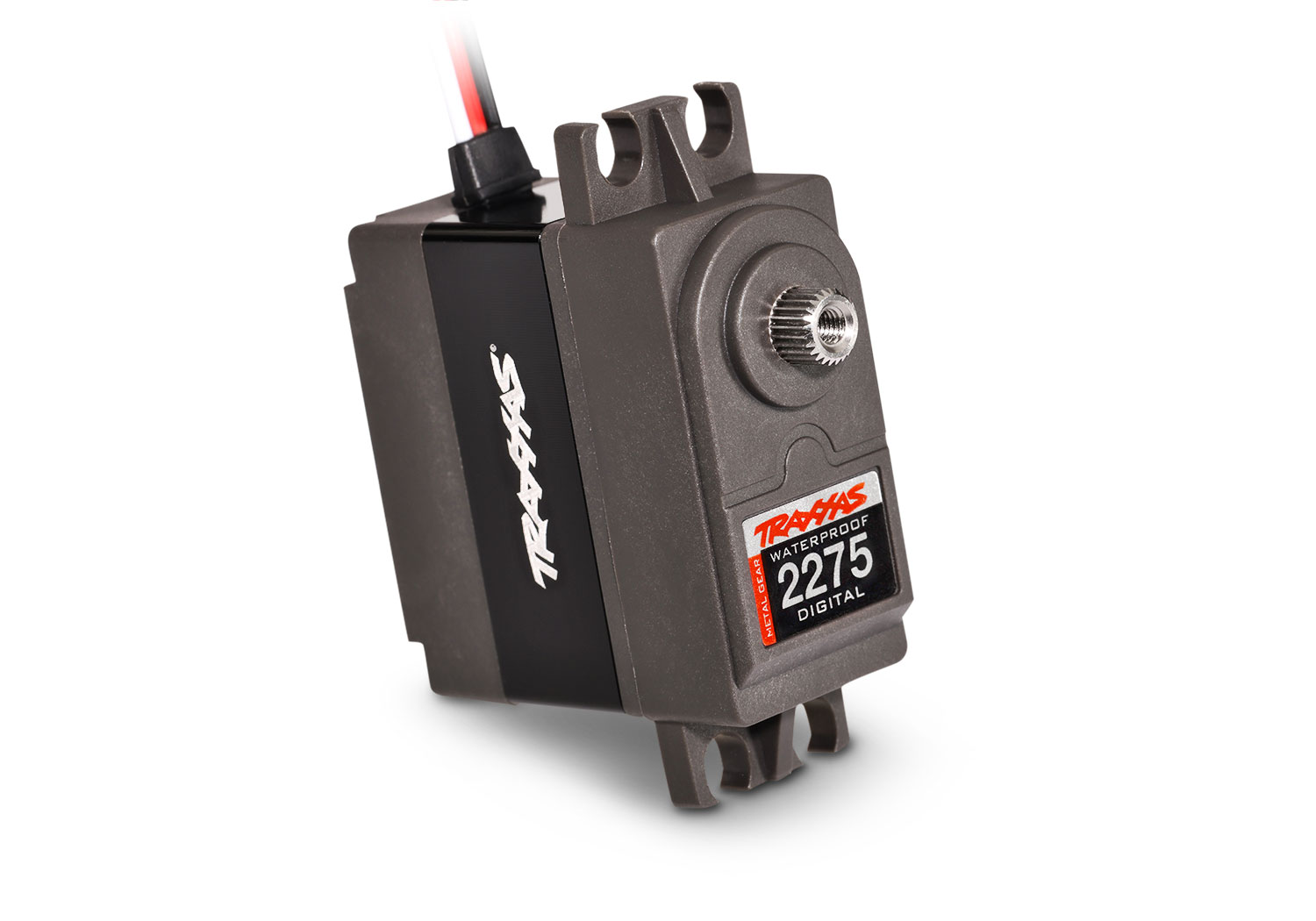

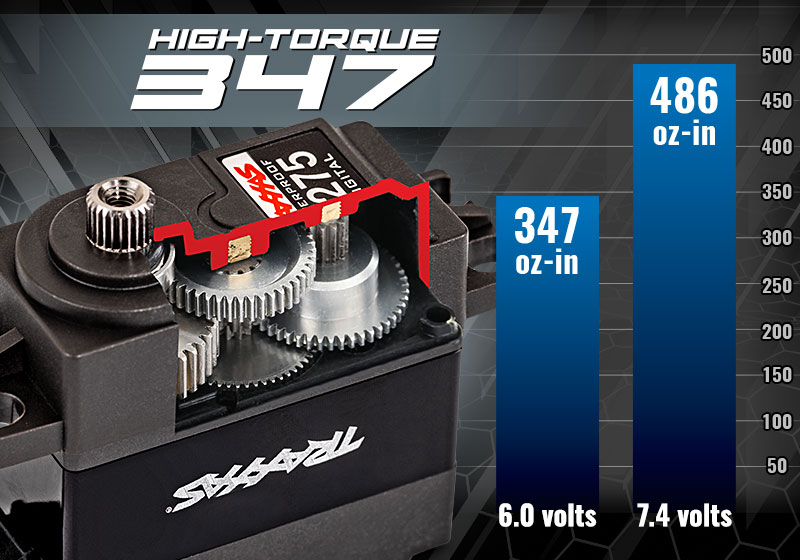

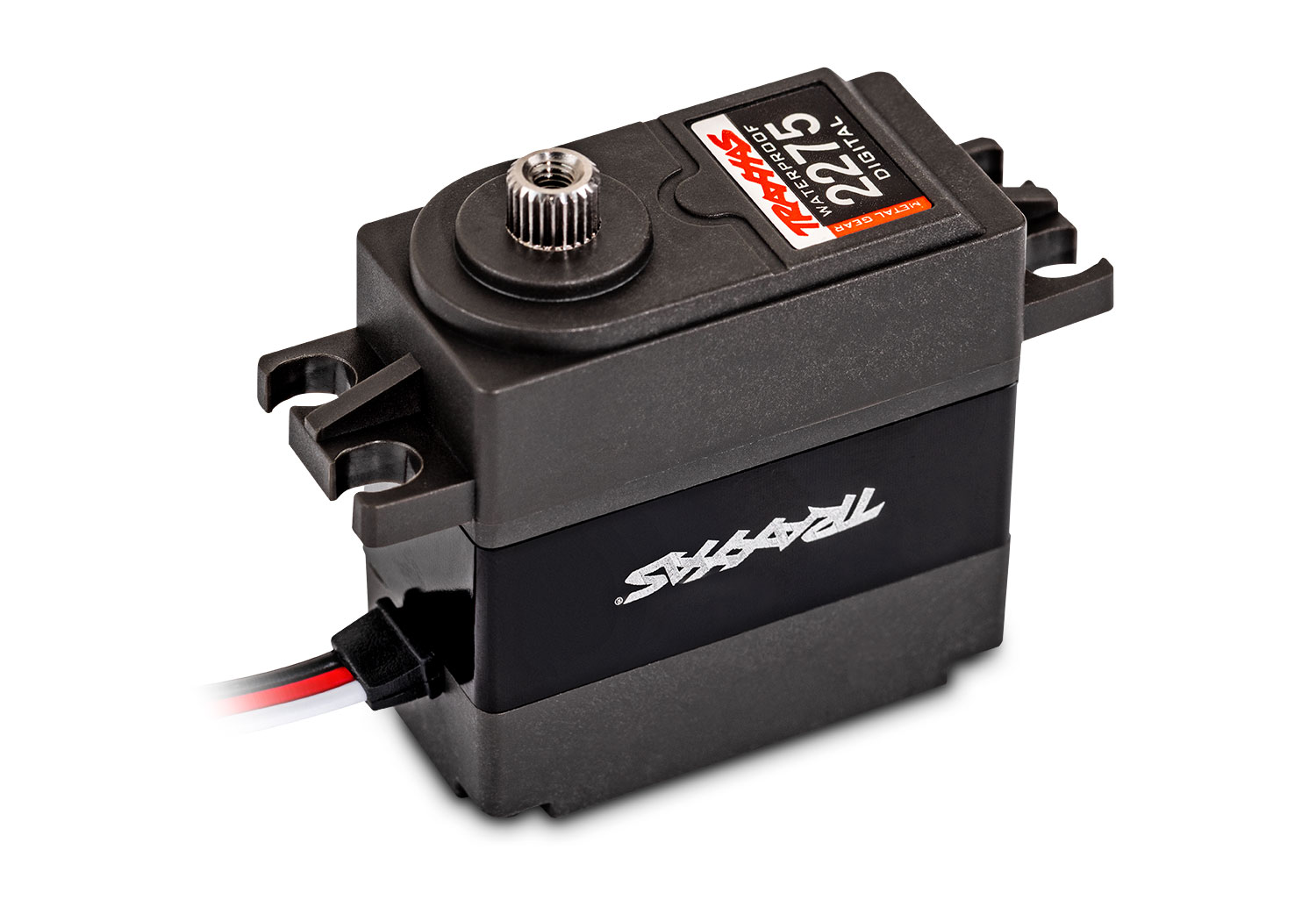

Total Steering Authority

Sledge’s waterproof 2275 metal gear servo competes with expensive aftermarket servos with over 20 pounds (347 oz-in) of torque @6.0 V—eliminating the need for servo upgrades.

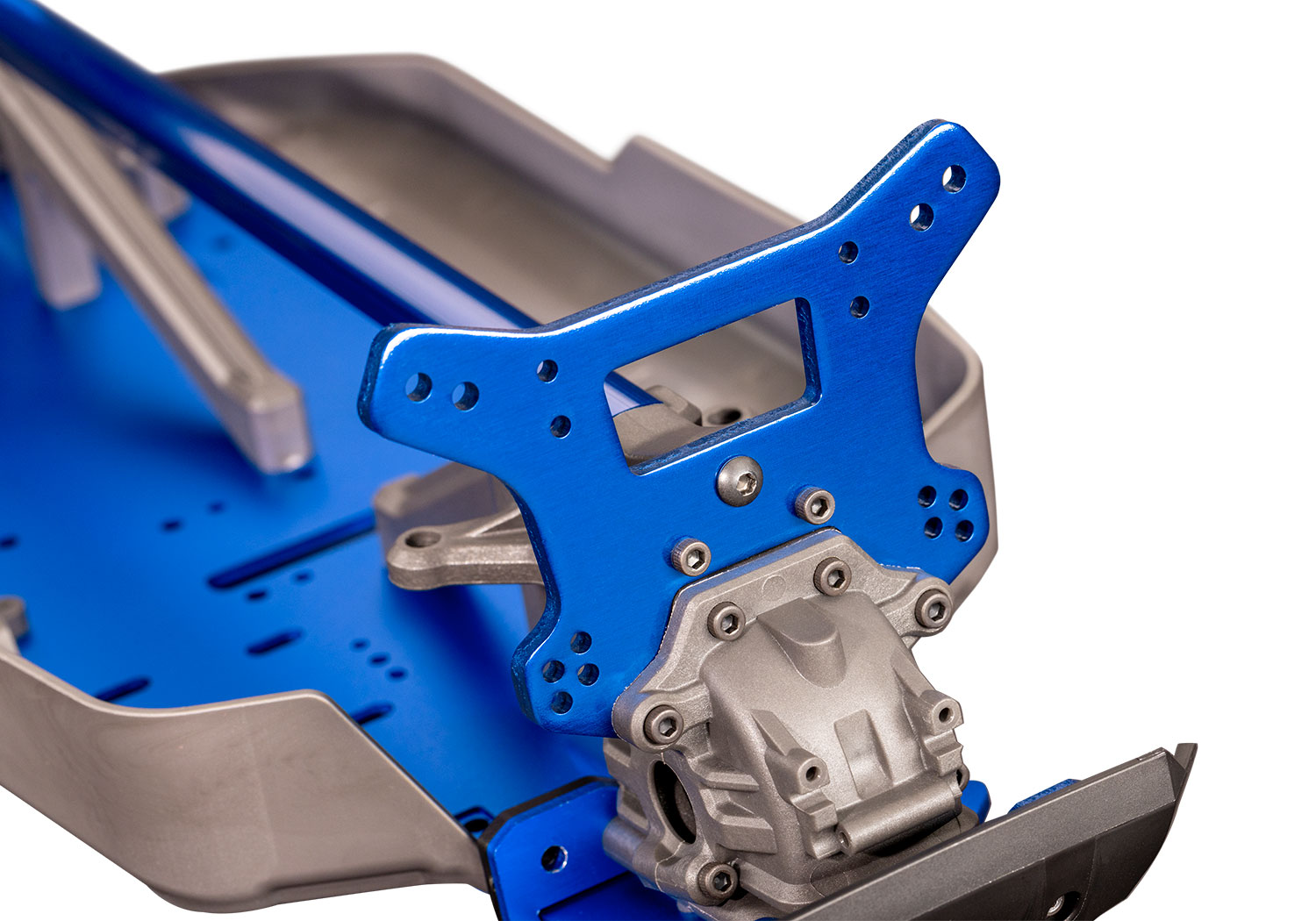

6061-T6 Aluminum Shock Towers

Sledge’s shock towers are cut from 5 mm thick 6061-T6 aluminum and tie directly into the center brace for bulletproof strength and durability.

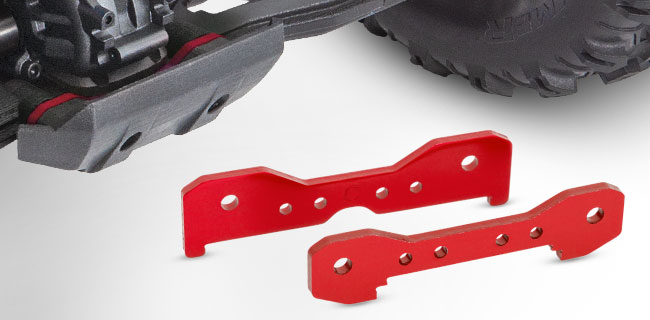

High Strength Hinge Pin Retainers

Heavy-duty 6061-T6 aluminum retainers hold the hardened steel hinge pins firmly in place. This allows for tighter tolerances than conventional sliding pins and sharper handling.

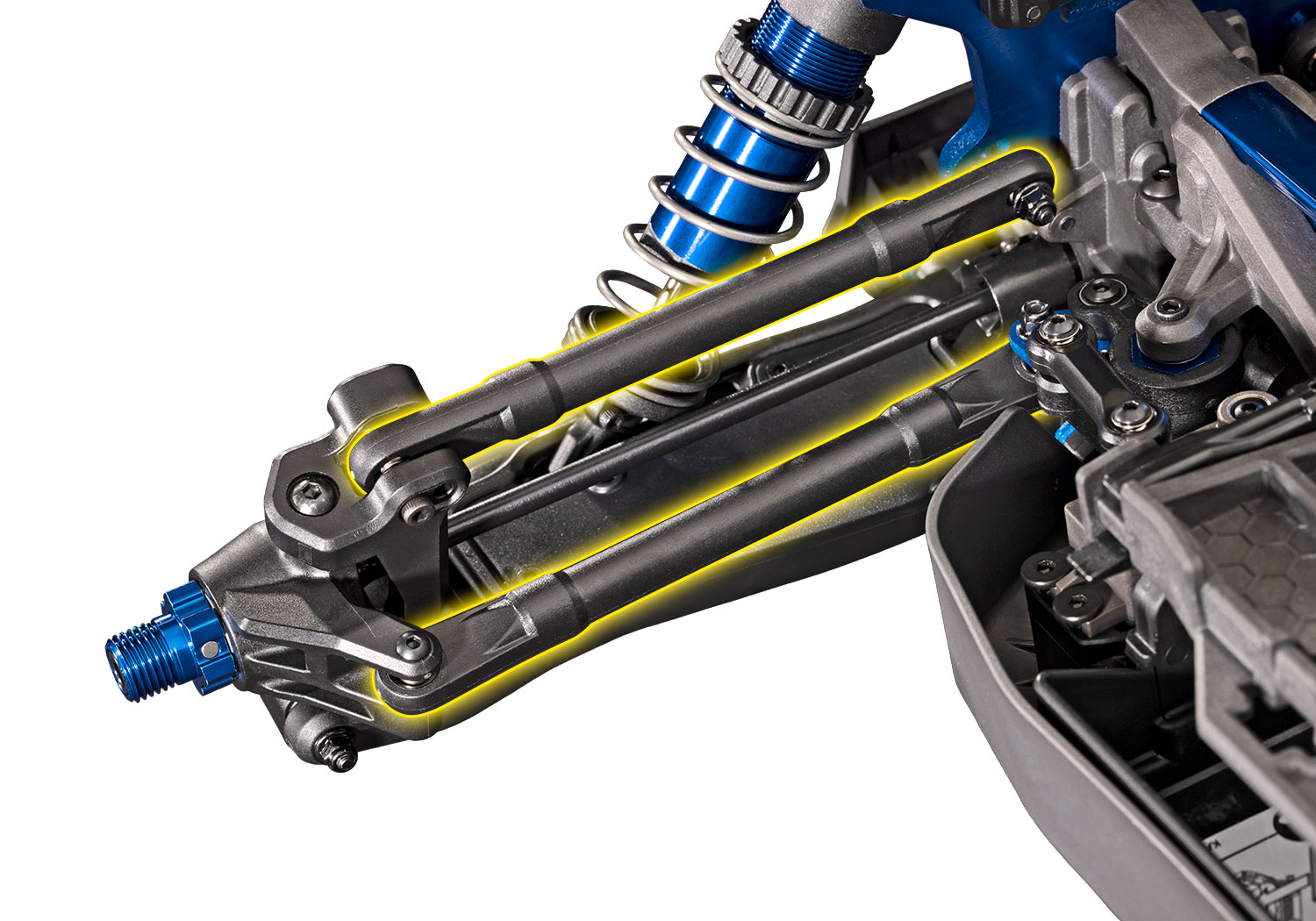

Extreme-Duty Composite Camber & Toe Links

Sledge’s energy-absorbing one-piece links return to shape if flexed and won’t pull apart or bend in a crash. They’re already pre-set for track worthy handling with optimal camber and toe settings.

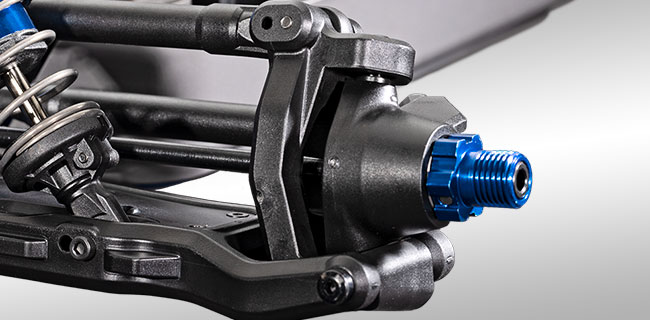

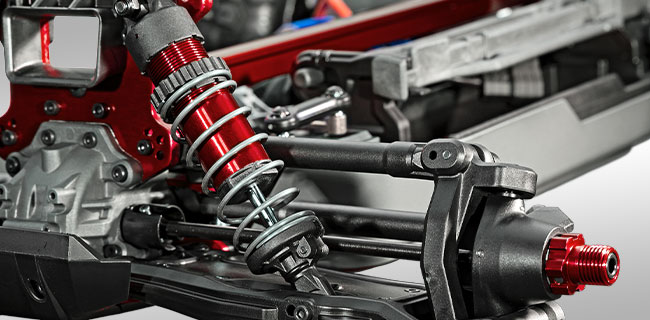

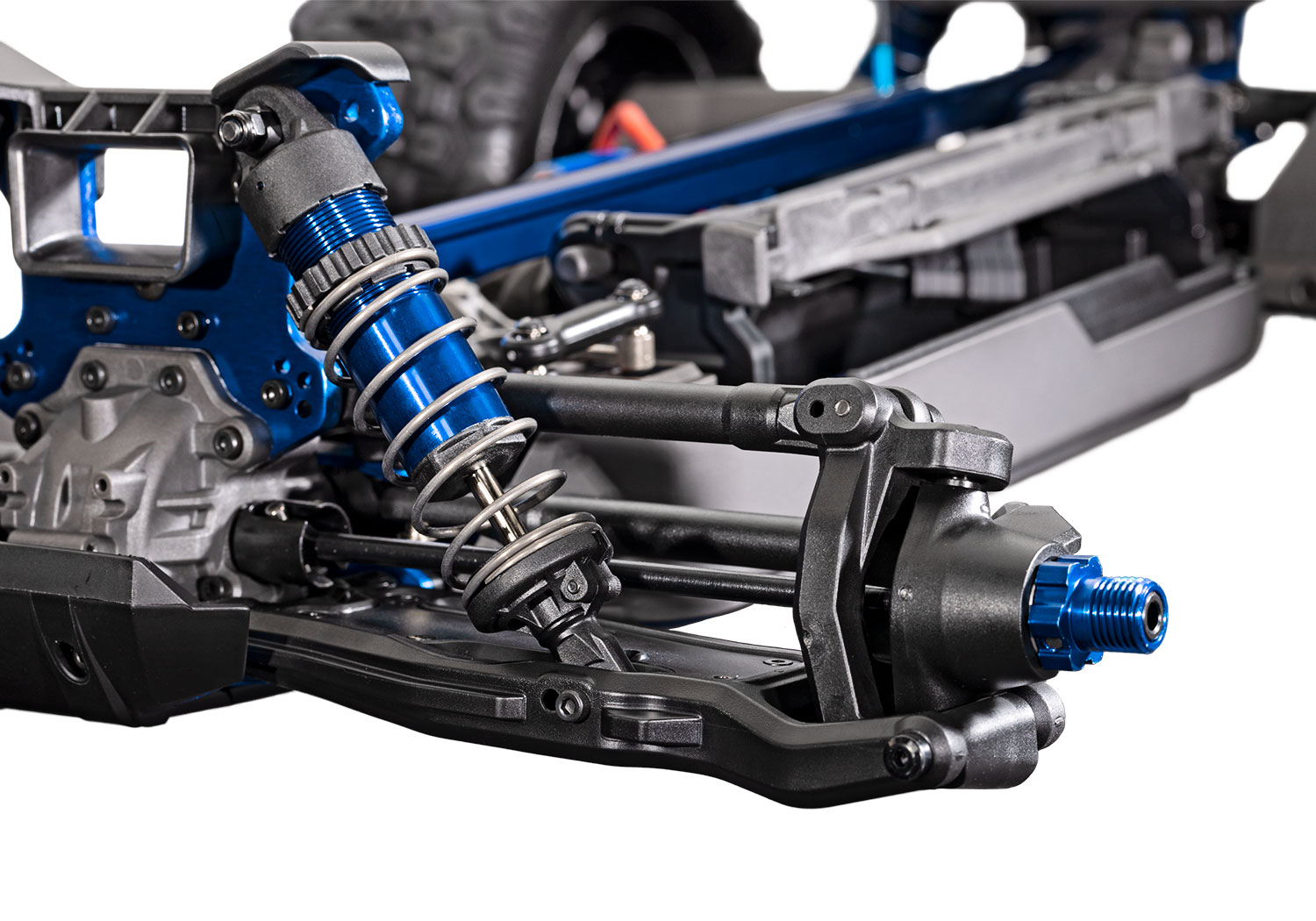

Rugged C-Hubs with Double Shear Connections

Sledge’s rugged C-hub design combines superior durability and impact resistance with precise steering alignment. Double shear connections keep the toe links securely fastened even during hard hits.

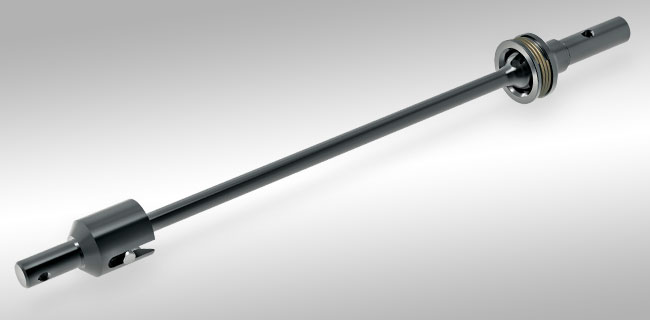

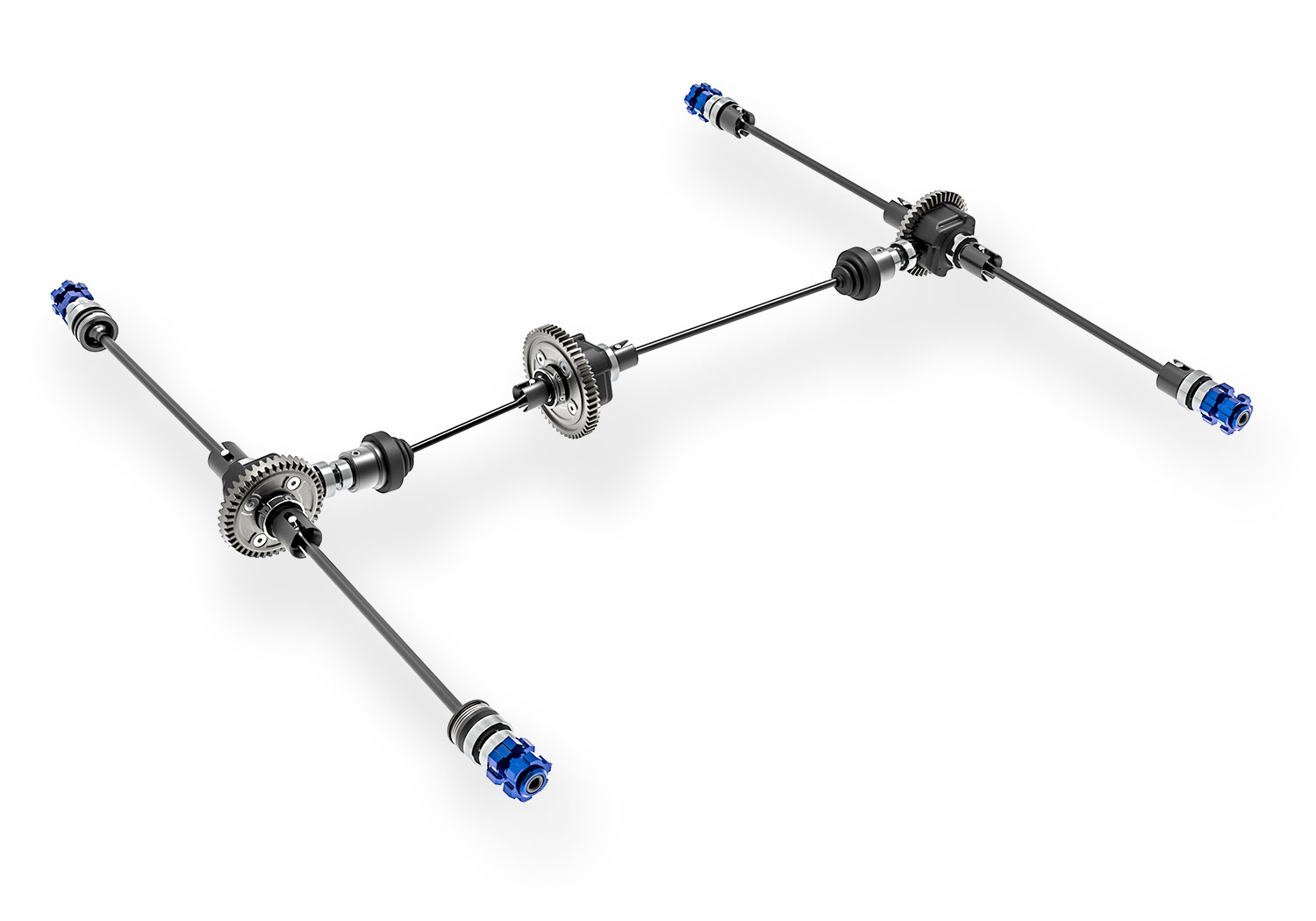

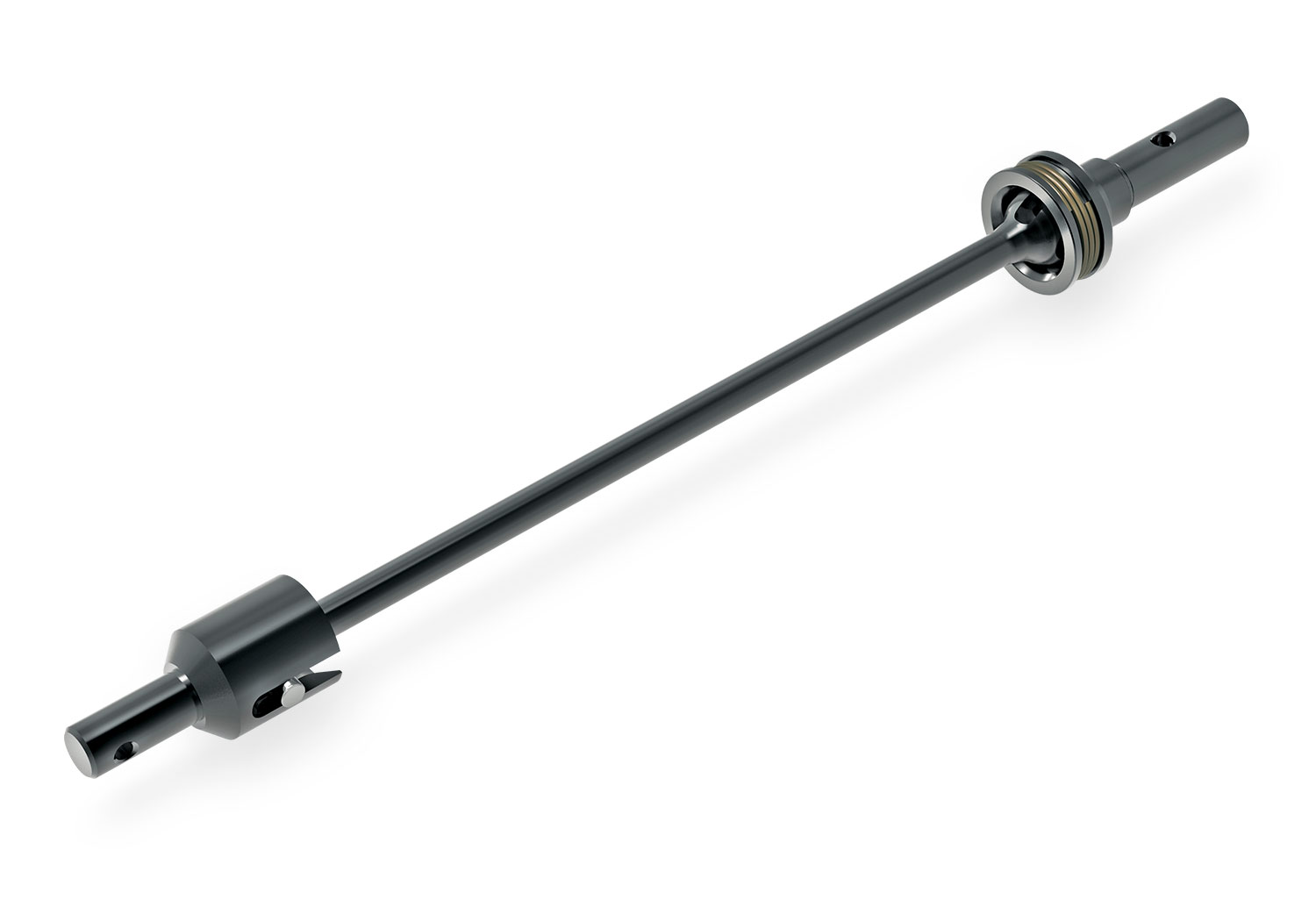

Steel Center Driveshafts

Super-duty solid steel driveshafts deliver power from the Torque-Biasing Center Drive to the differentials. Rubber boots on the joints seal grease in and keep dirt out.

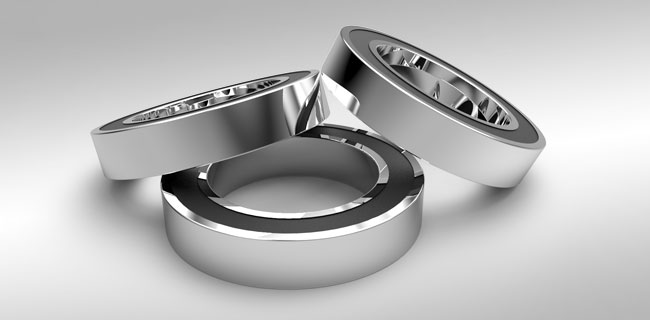

Oversized Sealed Bearings

Traxxas equips Sledge with oversize bearings throughout the drivetrain to ensure lasting precision and performance.

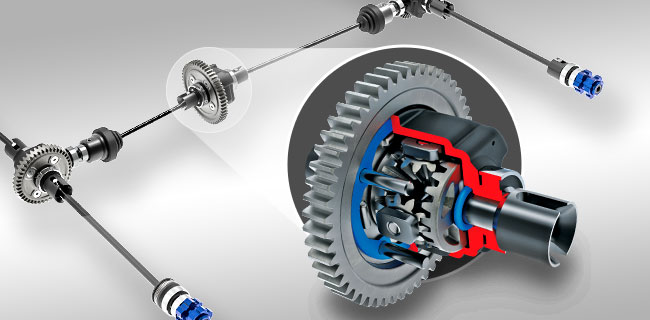

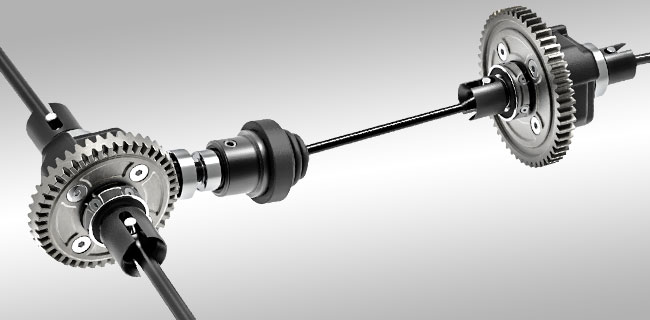

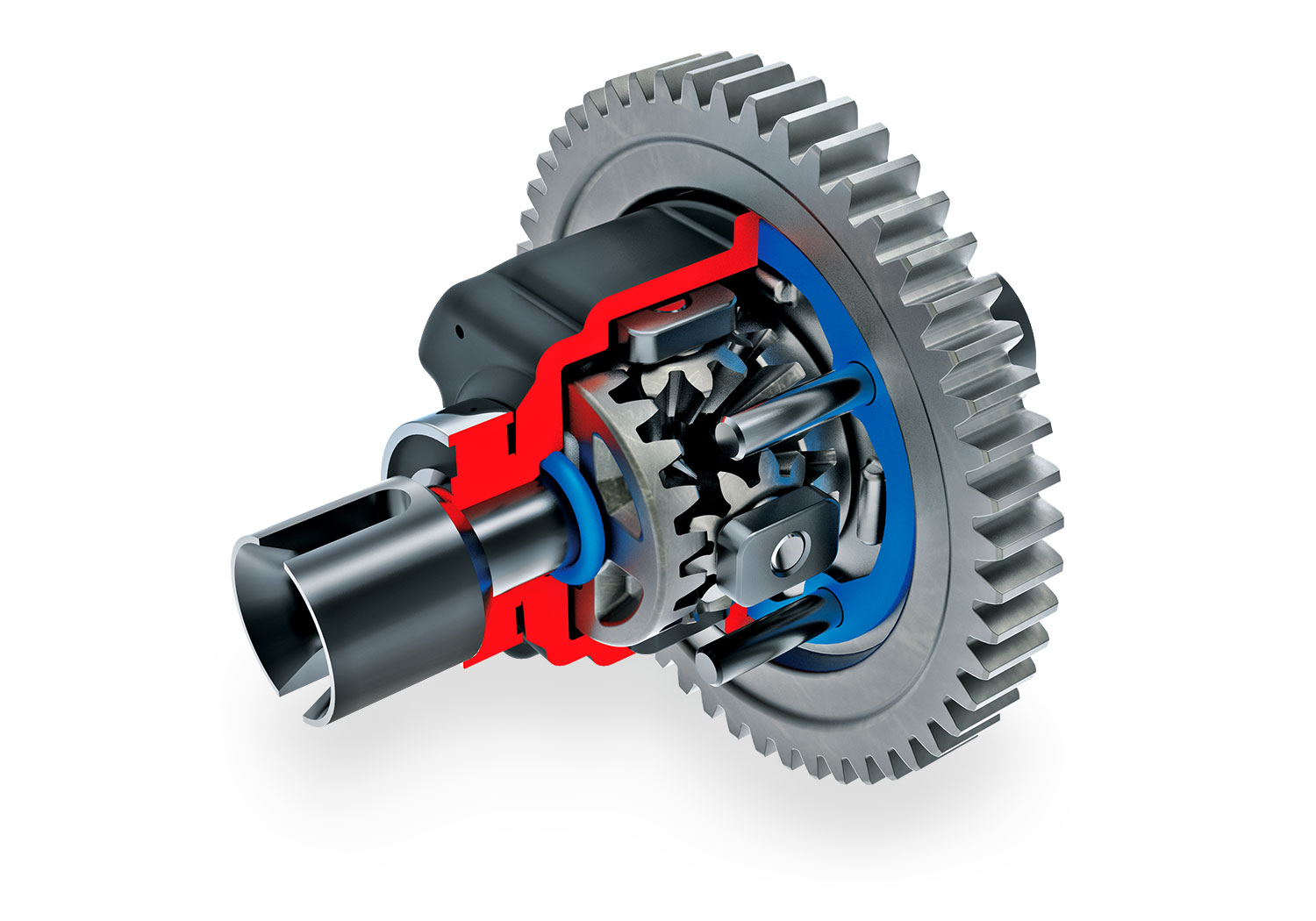

Torque-Biasing Center Drive

Traditional center diffs can’t handle 6s power. Sledge’s Torque-Biasing Center Drive is filled with thick silicone fluid to distribute power evenly for full 6s thrust with every launch and corner exit.

Steel Outer Driveshafts

Solid-steel driveshafts transfer Sledge’s massive 6s power from the differentials to the wheels via heavy-duty dogbones and constant-velocity joints in front so you can be as heavy on the throttle as you want.

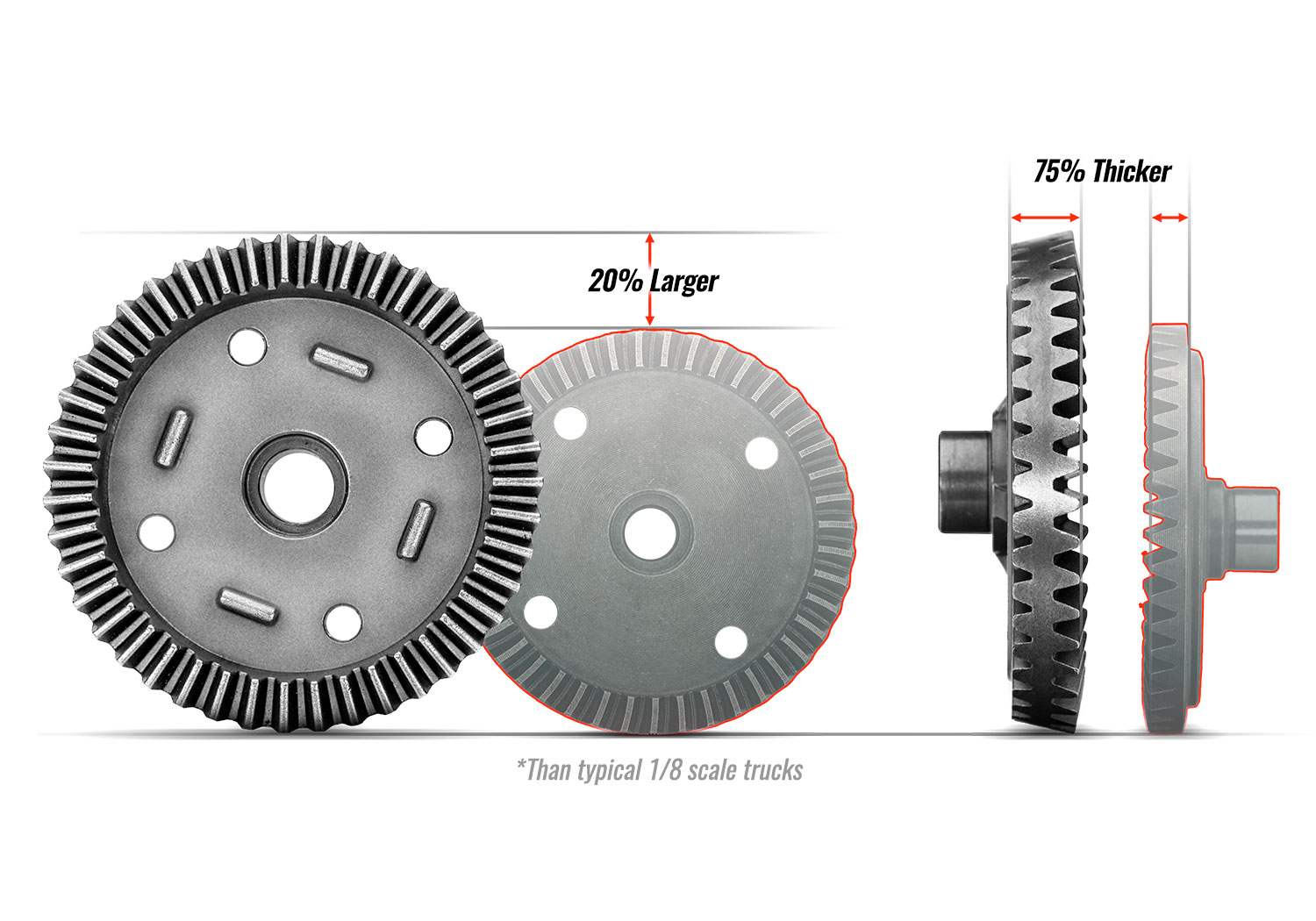

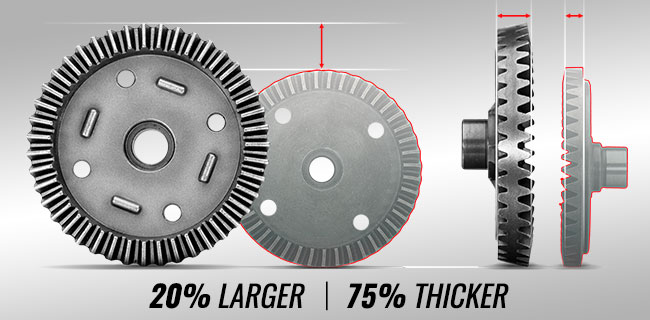

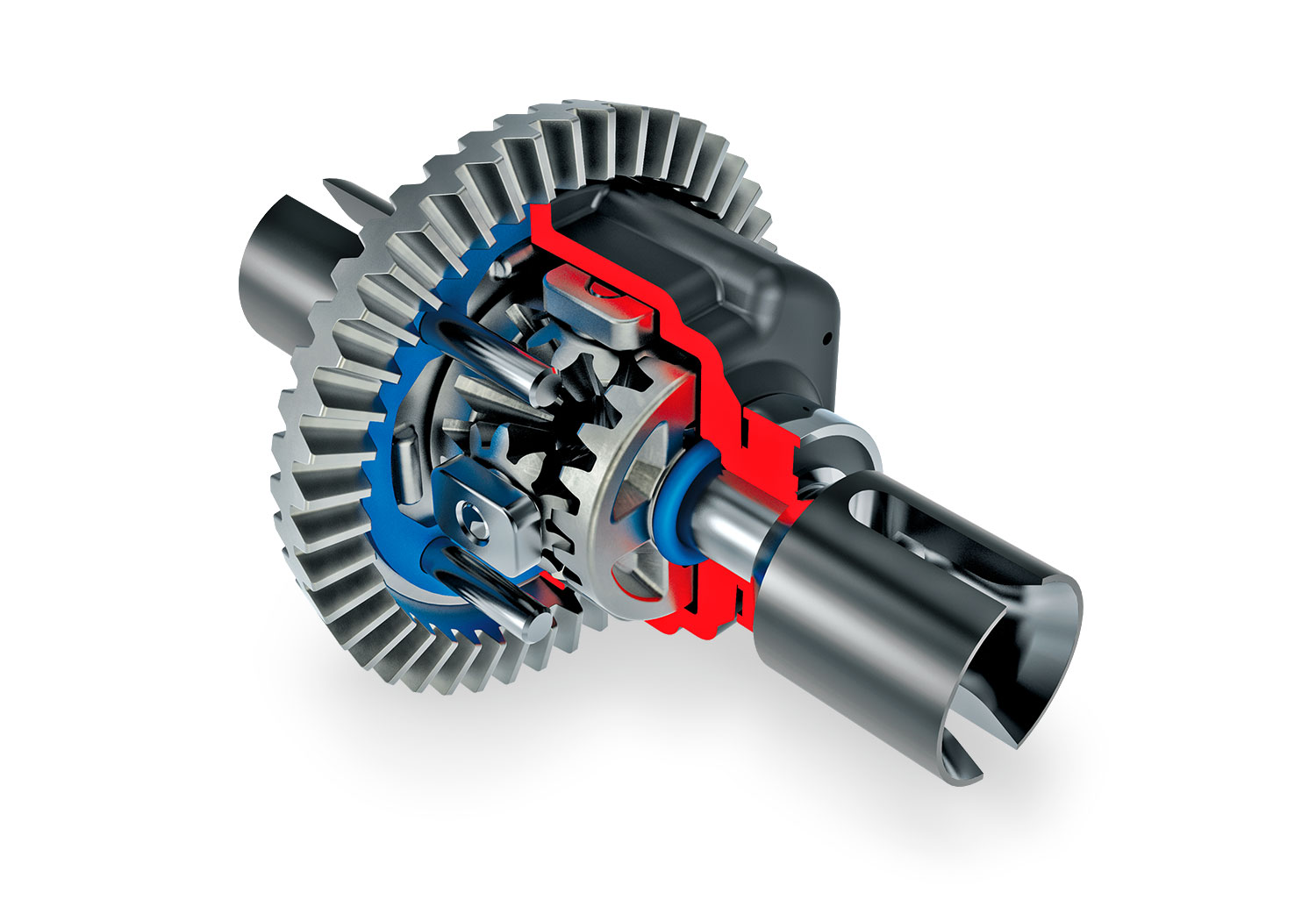

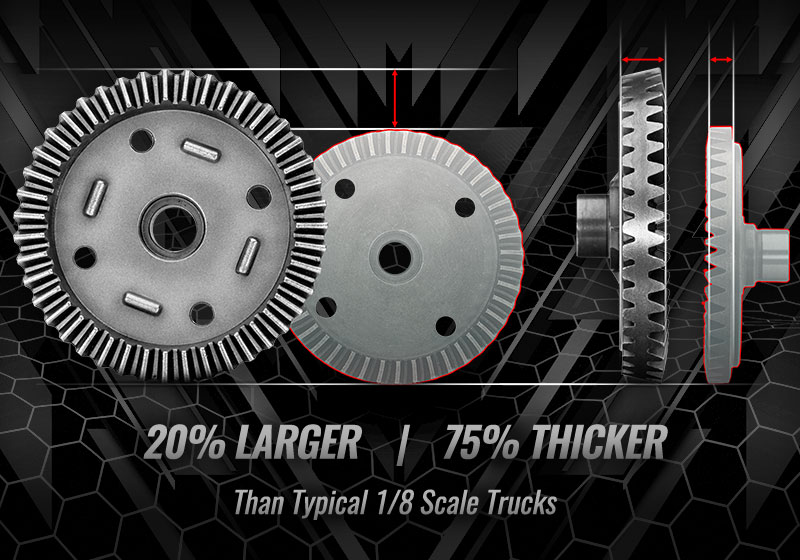

Steel-Gear Differentials

Sledge uses true 6s differentials to handle its ferocious power. Oversized coarse-pitch steel gears are 20% larger and 75% thicker than traditional 1/8 scale components for lasting performance.

Specifications

    Vehicle

  • Length (including wing): 23.78 inches (604 mm)
  • Front Track: 18.10 inches (459 mm)
  • Rear Track: 18.10 inches (459 mm)
  • Ground Clearance: 1.95 inches (50 mm)
  • Weight (no battery): 12.74 pounds (5.77kgs)
  • Height (overall): 8.43 inches (214 mm)
  • Wheelbase: 15.10 inches (384 mm)
  • Shock Length (front): 5.12 inches (128 mm)
  • Shock Length (rear): 5.67 inches (144 mm)
  • Tire Diameter: 6.7 x 3.3 inches (170 mm x 84 mm)
  • Wheel Diameter: 3.8 inches (97 mm)
  • Speed Control: Velineon® VXL-6s (3485)
  • Motor (electric): Velineon® 2000 Kv Brushless
  • Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
  • Differential Type: Sealed, hardened steel bevel, limited slip
  • Gear Pitch: Module 1.0
  • Chassis Structure/Material: 3.2 mm aluminum plate
  • Brake Type: Electronic
  • Drive System: Shaft-driven 4WD
  • Steering: Double-shear bellcrank w/metal servo arm
  • Wheels & Tires: 3.8″ wheels, pre-glued belted Sledgehammer® Tires & foam inserts; 6.7x3.8
  • Radio System: 2-Channel, TQi™ 2.4 GHz Transmitter with TSM® receiver
  • Servo: 2275 Waterproof, metal-gear (347 oz-in torque)
  • Top Speed: 70+ MPH with two 3s LiPo batteries and optional gearing (sold separately)
  • Skill Level: 4
  • Battery Tray: Narrow configuration (L/W/H): 181 mm x 50 mm x 29/37/45 mm*Wide configuration (L/W/H): 160 mm x 57 mm x 29/37/45 mm*
  • Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)
  • Gear Pitch: Module 1.0
  • Chassis Structure/Material: 3.2 mm aluminum plate
  • Brake Type: Electronic
  • Drive System: Shaft-driven 4WD
  • Steering: Double-shear bellcrank w/metal servo arm
  • Wheels & Tires: 3.8″ wheels, pre-glued belted Sledgehammer® Tires & foam inserts; 6.7x3.8
  • Radio System: 2-Channel, TQi™ 2.4 GHz Transmitter with TSM® receiver
  • Servo: 2275 Waterproof, metal-gear (347 oz-in torque)
  • Top Speed: 70+ MPH with two 3s LiPo batteries and optional gearing (sold separately)
  • Skill Level: 4
  • Battery Tray: Narrow configuration (L/W/H): 181 mm x 50 mm x 29/37/45 mm*Wide configuration (L/W/H): 160 mm x 57 mm x 29/37/45 mm*
  • Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)

    Motor

  • Type: 2000 Kv sensorless brushless
  • Weight: 14.32 ounces (406 g)
  • Length: 2.97 inches (76 mm)
  • Diameter: 1.65 inches (42 mm)
  • Connector Type: Traxxas 6.5 mm bullet connectors

    ESC

  • Input Voltage (cells): 4s–6s LiPo (max: 25.2 volts)
  • Case Size: 2.28 inches (58 mm) x 2.83 inches (72 mm) x 1.81 inches (46 mm)
  • Weight: 7.30 ounces (207 g)
  • BEC Voltage: 6.0 volts
  • BEC Current Continuous: 10 amps
  • BEC Current Peak: 20 amps
  • Reverse Delay: Yes, with lockout
  • Ports: RX input, auxiliary fan, Traxxas accessory port

Overview

Engineered, tested, and crafted to a higher standard, the Sledge® is designed to surpass expectations in quality, durability, and excitement. Its robust chassis, powerful steel drivetrain, and impressive 6s power deliver a thrilling performance that outshines competitors. Featuring new belted Sledgehammer® tires, this vehicle minimizes high-speed tire expansion for an expanded, flatter contact patch that revolutionizes high-speed precision and control.

Scale:Speed:Battery and Charger:
1/870+ mphNot Included
Precision Engineering

Precision Engineering

Look anywhere on Sledge to find parts that are beautifully integrated, formed, and assembled with precisely maintained tolerances. Overall fit, finish, and attention to detail on Sledge are superb.
Ultra-Solid Foundation

Ultra-Solid Foundation

A full-length formed-edge aluminum chassis with four stiffening ribs is just the beginning. Huge front and rear support trusses attach at six points across the chassis and then integrate seamlessly into the patent-pending aluminum T-Bar™. Each of these engineered solutions combine to deliver class-leading chassis strength that has been proven in thousands of hours of brutal testing.
Strength to the Extreme

Strength to the Extreme

Sledge channels explosive 6s brushless power through a properly sized all-steel driveline that is engineered for maximum strength and long life. Massive steel gears and proven 4-gear differentials transfer the power to high-strength steel driveshafts. Smooth-running CV joints are used in front. The center shafts feature greased and boot-protected outboard joints for cool-running, long-lasting performance.
Engineered for 6s Power

Engineered for 6s Power

Steel differential gears are built to handle the Velineon’s aggressive power curve. Sledge’s ring gears pack on 20% more steel than traditional 1/8 scale trucks so you can hammer the throttle and not hold back.
Razor Sharp Handling

Razor Sharp Handling

Sledge delivers track-worthy handling thanks to superior design and an ultra-low center of gravity. Color-matched GT-Maxx aluminum shocks and precisely tuned spring rates combine for outstanding response and control.
Our Most Potent VXL-6s Power System

Our Most Potent VXL-6s Power System

The VXL-6s speed control is loaded with a hot new tune to extract maximum torque from the all-new Velineon 2000 Kv motor. Greater efficiency delivers more power under the curve for additional mid-range punch and acceleration you can see and feel. Cooling fins are machined into the motor housing for cooler running and peak power.
Zero-Flex Aluminum Motor Cradle

Zero-Flex Aluminum Motor Cradle

A cast aluminum motor cradle with fixed gear mesh provides full-contact support for the entire motor. The cradle dissipates heat through the chassis, and features an integrated fan mount that allows for installation of an optional cooling fan (3476). Zero motor movement. Zero spur and pinon crash. Period.
Rugged C-Hubs

Rugged C-Hubs

Sledge's heavy-duty C-hub front suspension design allowed Traxxas engineers to make the parts bigger and tougher for ultimate durability and impact-resistance. Precise steering alignment and geometry are maintained while the steel pin bushing inserts minimize wear. Beefy hardened-steel suspension pins are secured with locknuts for extra security.
Fully Waterproof

Fully Waterproof

There’s a difference between waterproof and water resistant. Sledge continues the Traxxas legacy with our patented, industry-leading waterproofing solutions.
TQi Radio System

TQi Radio System

The high-output Traxxas TQi™ 2.4 GHz radio system delivers superior range, 30-model memory, and maximum control. Add the Traxxas Link™ Wireless Module (part 6511, sold separately) to send real-time telemetry to your smart phone using the free Traxxas Link app.
Traxxas Stability Management

Traxxas Stability Management

Traxxas Stability Management (TSM)® makes it easy for anyone to experience full 6s Velineon horsepower. TSM works behind the scenes to control oversteer, avoid spinouts, and keep the focus on high-performance fun. Learn More
Reinforced Clipless Body

Reinforced Clipless Body

Sledge’s innovative clipless body system is a game changer designed for ease of use and to protect the integrity of the body. The body slips on smoothly and snaps in place in just seconds. It comes off when YOU release it.
Easy Battery Access

Easy Battery Access

Sledge’s snap-lock battery retainer secures your batteries deep in the chassis for ultimate protection while still allowing lightning-quick battery swaps.

Features

Engineered for 6s Power

Sledge is the only truck in this class with a properly sized, 6s-capable driveline. Bigger gears. More steel. Basically bombproof. Sledge smashes the status quo to be the new standard for extreme 6s durability.

Superior Chassis Strength

Sledge is engineered to have the strongest chassis in the class. The triangulated chassis structure integrates a deep-formed aluminum plate with a multi-point composite truss system and the patent-pending full-length T-Bar™. Built on a solid foundation, Sledge is strongest where it matters most.

Monster Servo

Sledge is equipped with a high-performance metal gear servo that packs massive torque inside a heat dissipating aluminum center case. Powerful and reliable steering authority is assured with no upgrade required.

VXL-6s Power System

The Velineon VXL-6s features new hardware and new tuning specifically for the 2000 Kv motor. Together they deliver substantially more power under the curve for increased mid-range punch and hard-charging acceleration you can see and feel.

Belted Sledgehammer Tires

Sledge’s belted Sledgehammer® tires deliver game-changing stability and control whether you’re slinging mud or setting speed records. The wide, open-block tread design won’t clog up with dirt or debris and the lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.

    VXL-6s Waterproof Electronic Speed Control

  • 6s LiPo compatible
  • Integrated cooling fan
  • Real-time telemetry via Traxxas Link™
  • 3-LED status indicators
  • Powered accessory ports
  • 10-gauge silicone wire
  • Patented Traxxas High-Current Connectors

    Velineon® 2000 Kv Brushless Motor

  • 4-pole 2000 Kv brushless motor
  • 5 mm output shaft
  • Finned can for better heat dissipation
  • Aluminum motor cradle mountSupports entire motor
    Reduces flex for longer gear life
  • Supports entire motor
  • Reduces flex for longer gear life

    Up to 70+ mph with Two 3s LiPo Batteries

    Traxxas Stability Management® (TSM)

  • Improves straight line acceleration and braking on low-traction surfaces
  • Never dulls throttle or slows the truck
  • Adjusts from off to 100% assistance from the transmitter

    TQi™ 2.4 GHz High Output Radio System

  • TQi™ 2-channel transmitter
  • Automatically stores and loads settings for up to 30 Traxxas Link-enabled models
  • Programmable multi-function knob
  • Adjustable steering and throttle percentage (dual rates)
  • Adjustable steering and throttle sensitivity (exponential)
  • Adjustable steering and throttle end points
  • 5-channel micro receiver (6533) with fail-safe security
  • Patented waterproof receiver box with easy-access plug

    Drivetrain

  • Heavy-duty steel driveshafts
  • Large 8 mm steel stub axles
  • Steel dogbone center driveline
  • Protective rubber boots on differential inputs

    Transmission

  • Mod-1 pinion and spur gears
  • Fixed gear mesh system
  • Torque-Biasing Center Drive

    Differentials

  • Heavy-duty sealed 4-gear design
  • Large scale steel ring and pinion gears
  • Oversize 8 mm output shafts
  • Steel drive cups
  • Easy-access bulkheads

    Oil-filled GT-Maxx® Shocks

  • Longer rear shocks for more travel
  • Machined aluminum threaded body
  • Extra-large bore and capacity
  • Large-diameter damper shaft
  • Lower cartridge with dual X-rings
  • Height-adjustable spring retainer
  • Lower spring perches bolted on

    Suspension

  • Performance-optimized geometry
  • Ultra-tough composite armsMade from our strongest cold-weather material
    Molded insert for clean look
    Rear rock deflectors
    Press-in hinge pins to reduce play
  • Made from our strongest cold-weather material
  • Molded insert for clean look
  • Rear rock deflectors
  • Press-in hinge pins to reduce play
  • Oversize molded toe and camber links
  • Heavy-duty C-hubs
  • Stronger than conventional designs
  • Require no adjusments
  • Multiple mounting points for suspension tuning

    Chassis

  • 3.2 mm ribbed aluminum chassis
  • Formed edges for improved strength
  • Thick T-Bar™ for added rigidity
  • Stronger than round bars
  • High-strength buttressing on shock towers
  • Ultra-thick 5 mm 6061-T6 aluminum shock towers
  • Rugged locking battery compartment with quick-release door
  • Low-CG design for improved handling
  • Interlocking components for tight tolerances
  • Tough front and rear bumpers double as skid plates
  • Hidden wire management for clean appearance

    ProGraphix® Body

  • Clipless body mounting system
  • Rigid internal frame
  • Molded body reinforcements for tear-through protection
  • Protective roof skids
  • Rugged high-downforce rear wing

    Wheels and TiresHuge 6.7″ Belted Sledgehammer® all-terrain tires

  • Huge 6.7″ Belted Sledgehammer® all-terrain tiresVirtually eliminates ballooning at high speeds
    Open tread block design
    2-piece foam insert
  • Virtually eliminates ballooning at high speeds
  • Open tread block design
  • 2-piece foam insert
  • Tough 3.8″ black wheels
  • Splined 17 mm aluminum axle hubs

    Steering

  • High-throw bellcrank steering design
  • Heavy-duty servo saver with aluminum posts
  • Metal servo horn
  • Powerful 2275 metal gear servo347 oz-in torque
    Fully waterproof
  • 347 oz-in torque
  • Fully waterproof

    Sealed Ball Bearings

    Hex hardware with Rust-Resistant Black Oxide Coating

GT-Maxx Shocks

Large-bore GT-Maxx® aluminum shocks mount to the towers with 4 mm screws for superior strength. X-ring seals glide on large-diameter shafts, and the spring retainers are secured with screws to stay put.

High Downforce Wing

Sledge’s high-downforce wing puts the wind to work with molded-in wear pads to protect the wing against ground-scraping wheelies.

High-Tech Suspension Arms

Formed from our toughest composite material, heavy-duty suspension arms use high-grade steel pins that press into the arms for tighter tolerances.

Heavy-Duty Chassis Braces

Sledge’s heavy-duty front and rear braces combine with the aluminum chassis and rigid T-Bar™ to create a radically strong triangulated structure.

VXL-6s Speed Control

The proven Velineon® VXL-6s speed control is custom-tuned to give Sledge incredible punch throughout the RPM range. Whether you’re exploding off the line or accelerating out of a turn, Sledge responds with rocket-like thrust.

Aluminum T-Bar™

The unique shape of Sledge’s aluminum T-Bar brace delivers cross-sectional stiffness no round tube can match. The T-Bar also keys perfectly into the bulkheads so they absorb impact forces, and not the attachment screws.

High Strength Aluminum Plate Chassis

Sledge’s chassis uses flanged edges from bulkhead to bulkhead to eliminate weak points. Additional strengthening ribs add extra rigidity in high-stress locations and the side guards fit tightly to the chassis for a seamless look.

Rigid Battery Tray

Sledge’s roomy battery tray accepts a variety of 4s and 6s configurations. Battery changes take just seconds with no clips or straps required.

Aluminum Motor Cradle

Sledge secures its 2000 Kv brushless motor in place with a wrap-around aluminum cradle to eliminate all flex points. Built-in bosses make it easy to attach the accessory cooling fan (part 3476 available separately).

Belted Sledgehammer Tires

The Sledgehammer’s thick tread blocks bite into rough terrain for outstanding all-surface grip. Traxxas’ tire bonding innovation keeps them locked onto the 3.8″ wheels with a vise-like grip. Lightweight belting maintains the tire’s shape for a larger contact patch, more grip, and responsive handling at any speed.

Total Steering Authority

Sledge’s waterproof 2275 metal gear servo competes with expensive aftermarket servos with over 20 pounds (347 oz-in) of torque @6.0 V—eliminating the need for servo upgrades.

6061-T6 Aluminum Shock Towers

Sledge’s shock towers are cut from 5 mm thick 6061-T6 aluminum and tie directly into the center brace for bulletproof strength and durability.

High Strength Hinge Pin Retainers

Heavy-duty 6061-T6 aluminum retainers hold the hardened steel hinge pins firmly in place. This allows for tighter tolerances than conventional sliding pins and sharper handling.

Extreme-Duty Composite Camber & Toe Links

Sledge’s energy-absorbing one-piece links return to shape if flexed and won’t pull apart or bend in a crash. They’re already pre-set for track worthy handling with optimal camber and toe settings.

Rugged C-Hubs with Double Shear Connections

Sledge’s rugged C-hub design combines superior durability and impact resistance with precise steering alignment. Double shear connections keep the toe links securely fastened even during hard hits.

Steel Center Driveshafts

Super-duty solid steel driveshafts deliver power from the Torque-Biasing Center Drive to the differentials. Rubber boots on the joints seal grease in and keep dirt out.

Oversized Sealed Bearings

Traxxas equips Sledge with oversize bearings throughout the drivetrain to ensure lasting precision and performance.

Torque-Biasing Center Drive

Traditional center diffs can’t handle 6s power. Sledge’s Torque-Biasing Center Drive is filled with thick silicone fluid to distribute power evenly for full 6s thrust with every launch and corner exit.

Steel Outer Driveshafts

Solid-steel driveshafts transfer Sledge’s massive 6s power from the differentials to the wheels via heavy-duty dogbones and constant-velocity joints in front so you can be as heavy on the throttle as you want.

Steel-Gear Differentials

Sledge uses true 6s differentials to handle its ferocious power. Oversized coarse-pitch steel gears are 20% larger and 75% thicker than traditional 1/8 scale components for lasting performance.

Specifications

    Vehicle

  • Length (including wing): 23.78 inches (604 mm)
  • Front Track: 18.10 inches (459 mm)
  • Rear Track: 18.10 inches (459 mm)
  • Ground Clearance: 1.95 inches (50 mm)
  • Weight (no battery): 12.74 pounds (5.77kgs)
  • Height (overall): 8.43 inches (214 mm)
  • Wheelbase: 15.10 inches (384 mm)
  • Shock Length (front): 5.12 inches (128 mm)
  • Shock Length (rear): 5.67 inches (144 mm)
  • Tire Diameter: 6.7 x 3.3 inches (170 mm x 84 mm)
  • Wheel Diameter: 3.8 inches (97 mm)
  • Speed Control: Velineon® VXL-6s (3485)
  • Motor (electric): Velineon® 2000 Kv Brushless
  • Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)
  • Differential Type: Sealed, hardened steel bevel, limited slip
  • Gear Pitch: Module 1.0
  • Chassis Structure/Material: 3.2 mm aluminum plate
  • Brake Type: Electronic
  • Drive System: Shaft-driven 4WD
  • Steering: Double-shear bellcrank w/metal servo arm
  • Wheels & Tires: 3.8″ wheels, pre-glued belted Sledgehammer® Tires & foam inserts; 6.7x3.8
  • Radio System: 2-Channel, TQi™ 2.4 GHz Transmitter with TSM® receiver
  • Servo: 2275 Waterproof, metal-gear (347 oz-in torque)
  • Top Speed: 70+ MPH with two 3s LiPo batteries and optional gearing (sold separately)
  • Skill Level: 4
  • Battery Tray: Narrow configuration (L/W/H): 181 mm x 50 mm x 29/37/45 mm*Wide configuration (L/W/H): 160 mm x 57 mm x 29/37/45 mm*
  • Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)
  • Gear Pitch: Module 1.0
  • Chassis Structure/Material: 3.2 mm aluminum plate
  • Brake Type: Electronic
  • Drive System: Shaft-driven 4WD
  • Steering: Double-shear bellcrank w/metal servo arm
  • Wheels & Tires: 3.8″ wheels, pre-glued belted Sledgehammer® Tires & foam inserts; 6.7x3.8
  • Radio System: 2-Channel, TQi™ 2.4 GHz Transmitter with TSM® receiver
  • Servo: 2275 Waterproof, metal-gear (347 oz-in torque)
  • Top Speed: 70+ MPH with two 3s LiPo batteries and optional gearing (sold separately)
  • Skill Level: 4
  • Battery Tray: Narrow configuration (L/W/H): 181 mm x 50 mm x 29/37/45 mm*Wide configuration (L/W/H): 160 mm x 57 mm x 29/37/45 mm*
  • Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)

    Motor

  • Type: 2000 Kv sensorless brushless
  • Weight: 14.32 ounces (406 g)
  • Length: 2.97 inches (76 mm)
  • Diameter: 1.65 inches (42 mm)
  • Connector Type: Traxxas 6.5 mm bullet connectors

    ESC

  • Input Voltage (cells): 4s–6s LiPo (max: 25.2 volts)
  • Case Size: 2.28 inches (58 mm) x 2.83 inches (72 mm) x 1.81 inches (46 mm)
  • Weight: 7.30 ounces (207 g)
  • BEC Voltage: 6.0 volts
  • BEC Current Continuous: 10 amps
  • BEC Current Peak: 20 amps
  • Reverse Delay: Yes, with lockout
  • Ports: RX input, auxiliary fan, Traxxas accessory port
