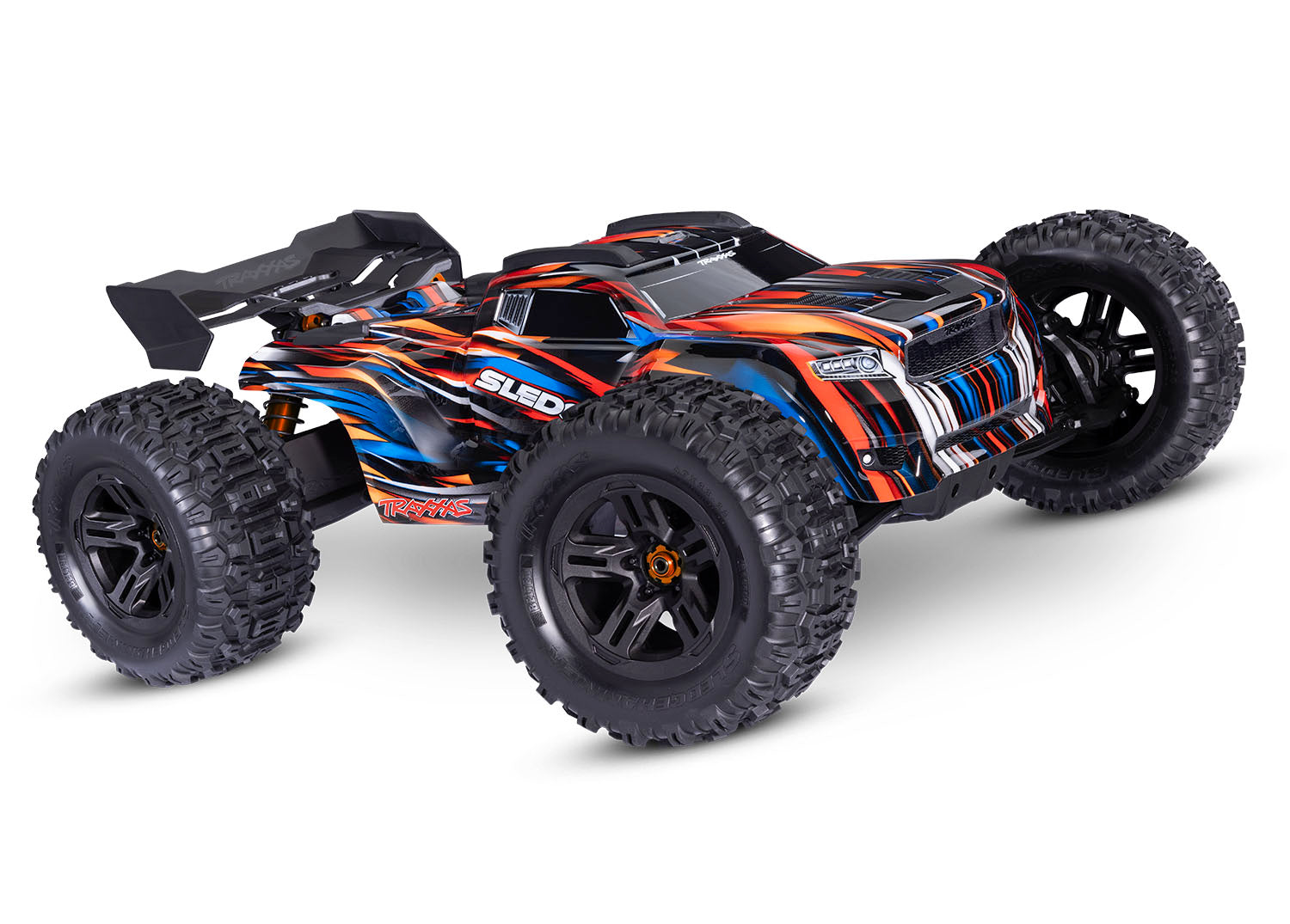

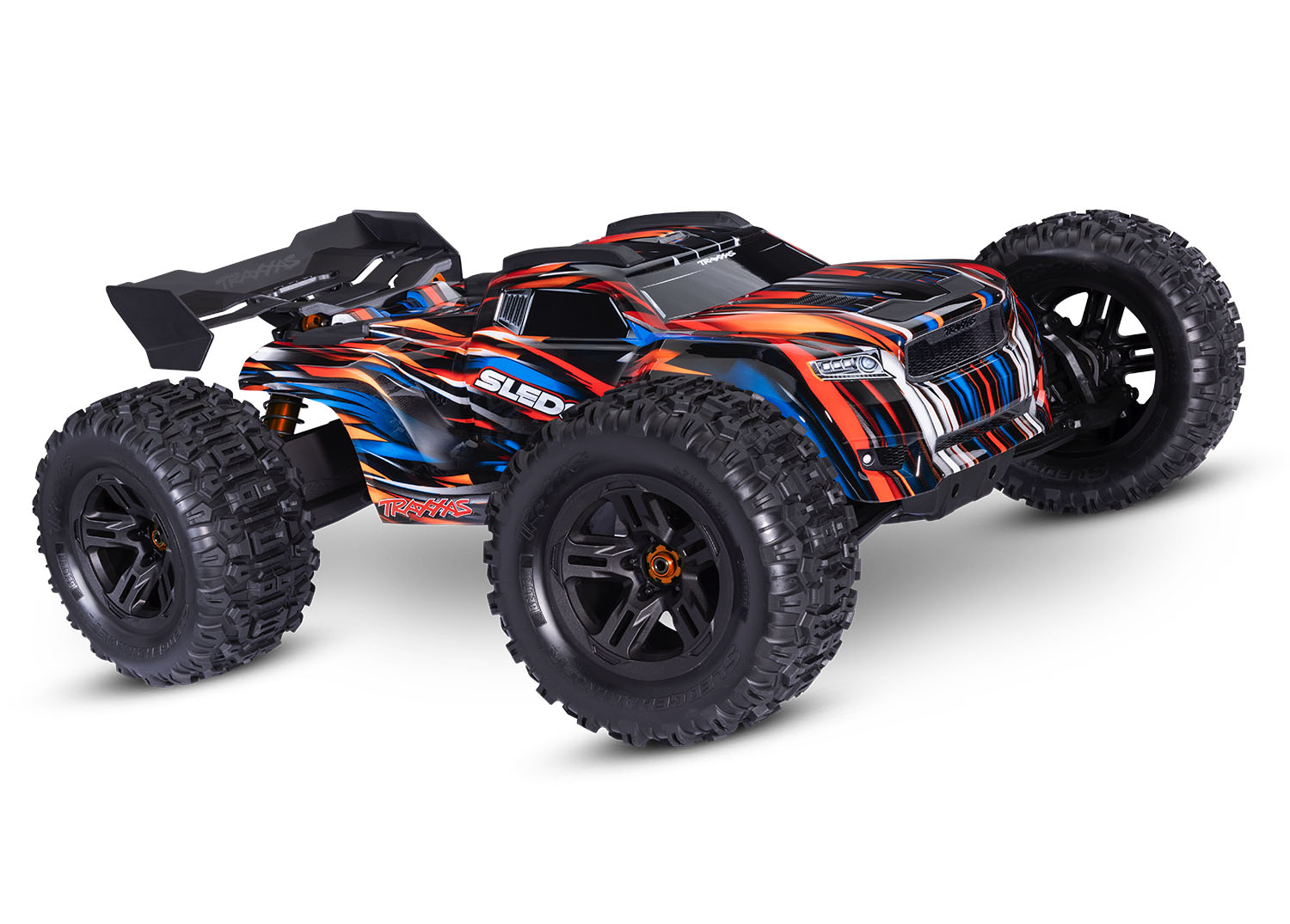

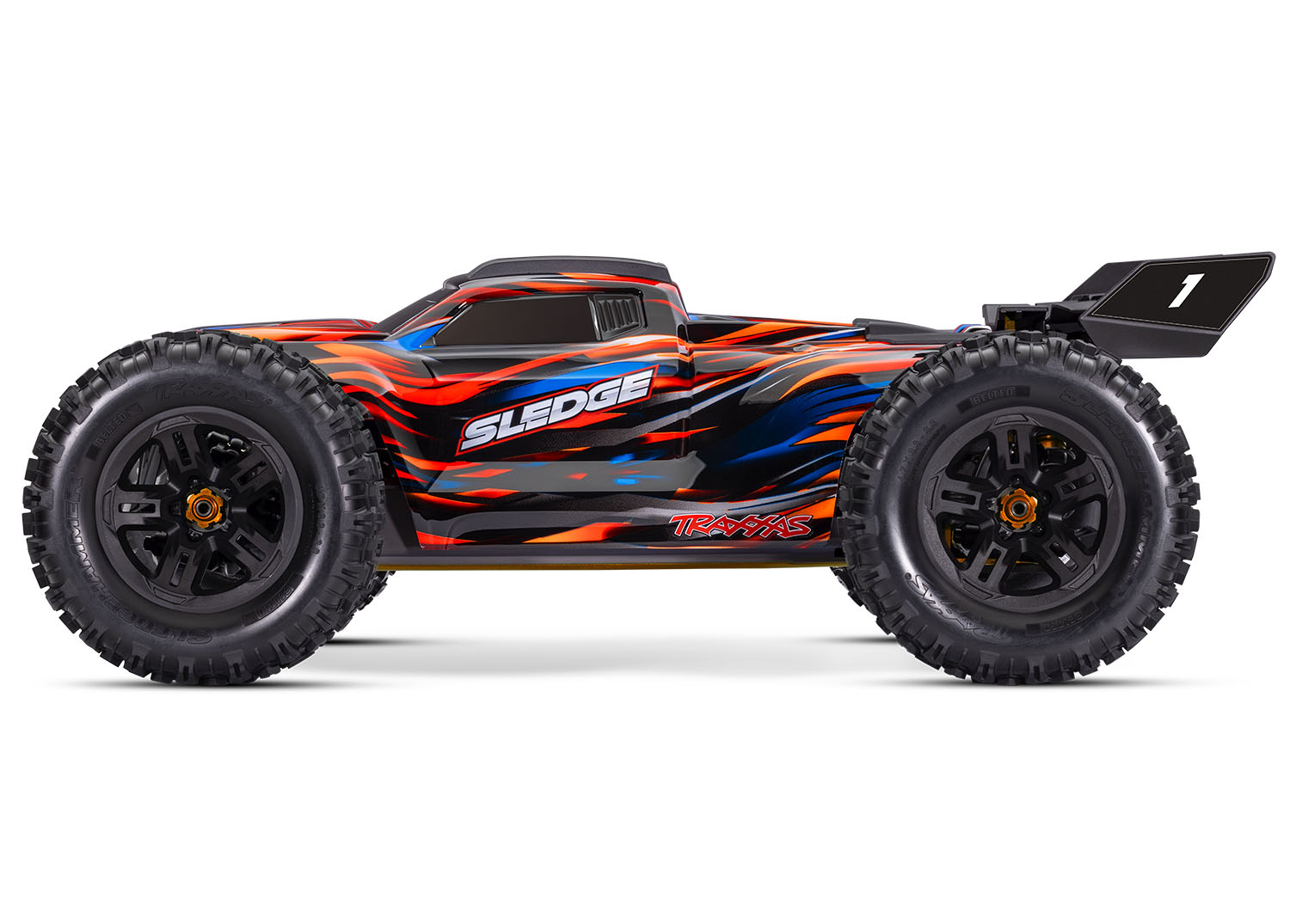

1/8 Sledge with Belted Sledgehammer Tires Ready to Run (Orange) (TRA95096-4-ORNG)
1/8 Sledge with Belted Sledgehammer Tires Ready to Run (Orange) (TRA95096-4-ORNG)
The Traxxas Sledge redefines the 1/8 scale off-road experience with cutting-edge engineering and unparalleled durability. Designed for extreme 6s LiPo power, the Sledge delivers over 70+ mph top speeds and dominates with a robust drivetrain, precision handling, and rugged durability. Equipped with belted Sledgehammer® tires, this truck offers unmatched stability, control, and traction across all terrains, limiting tire expansion for precise high-speed performance.

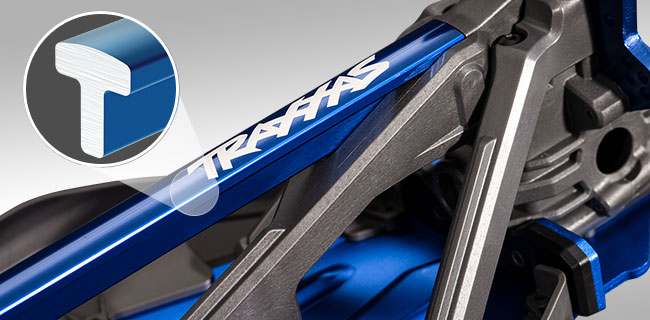

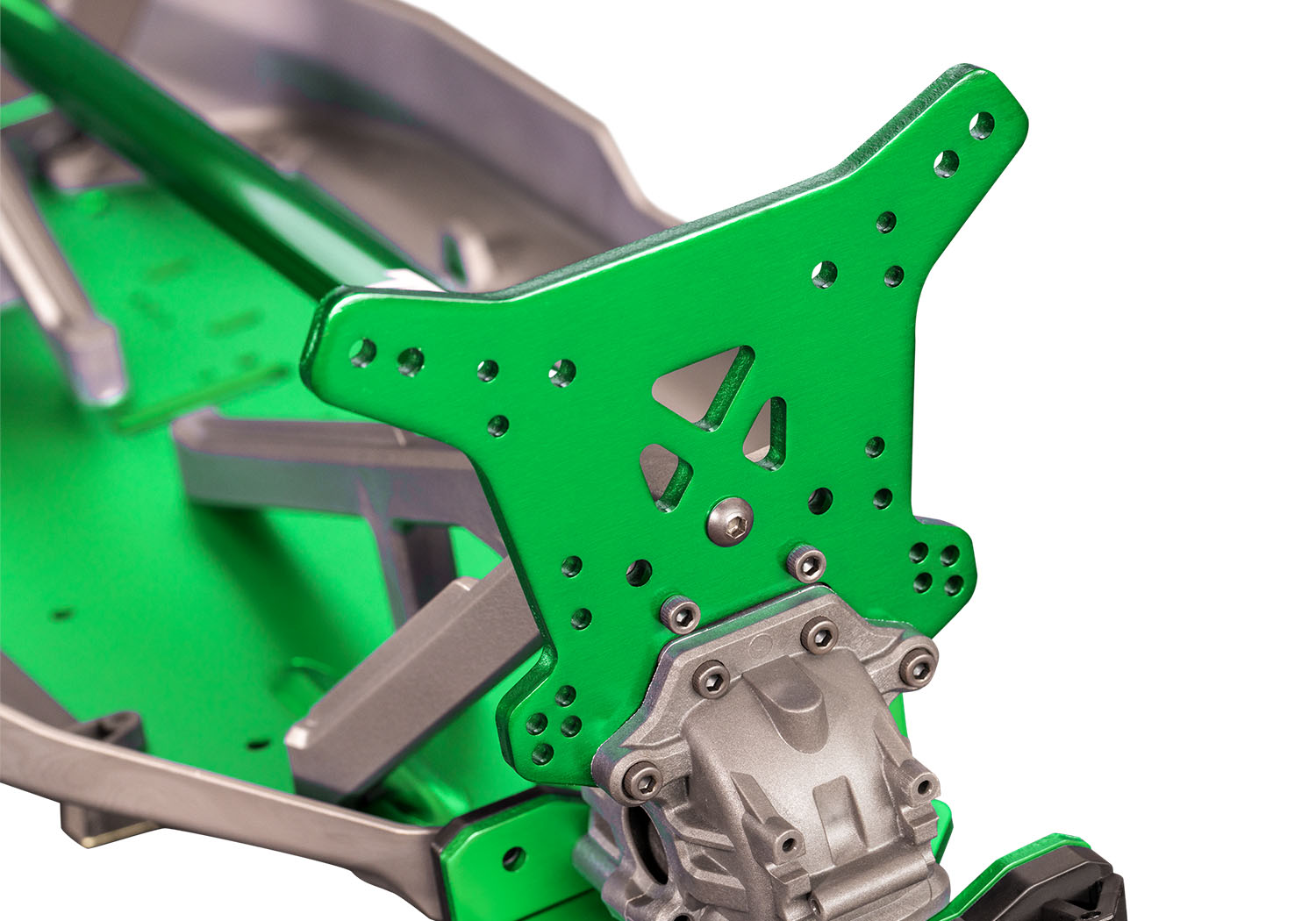

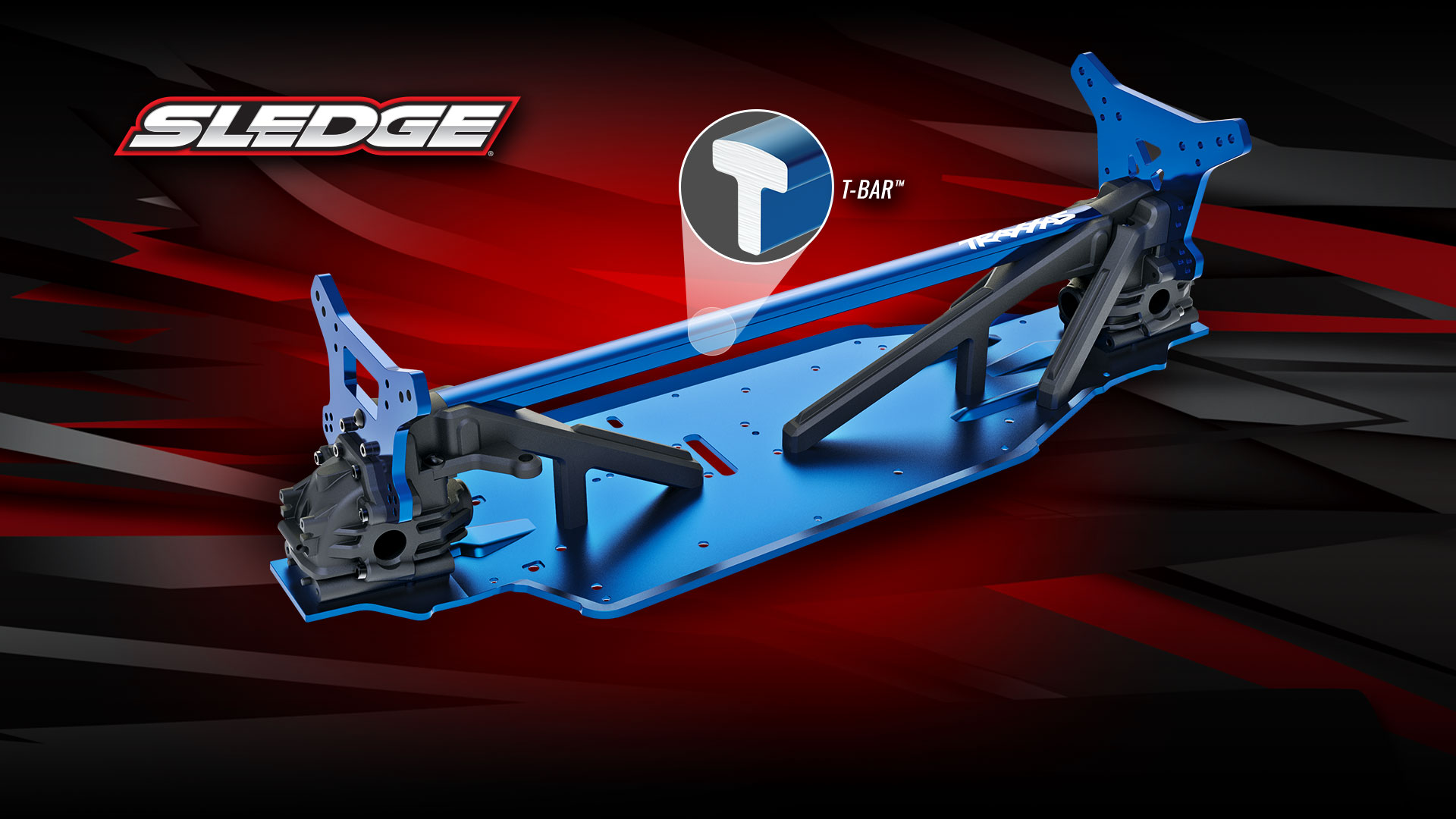

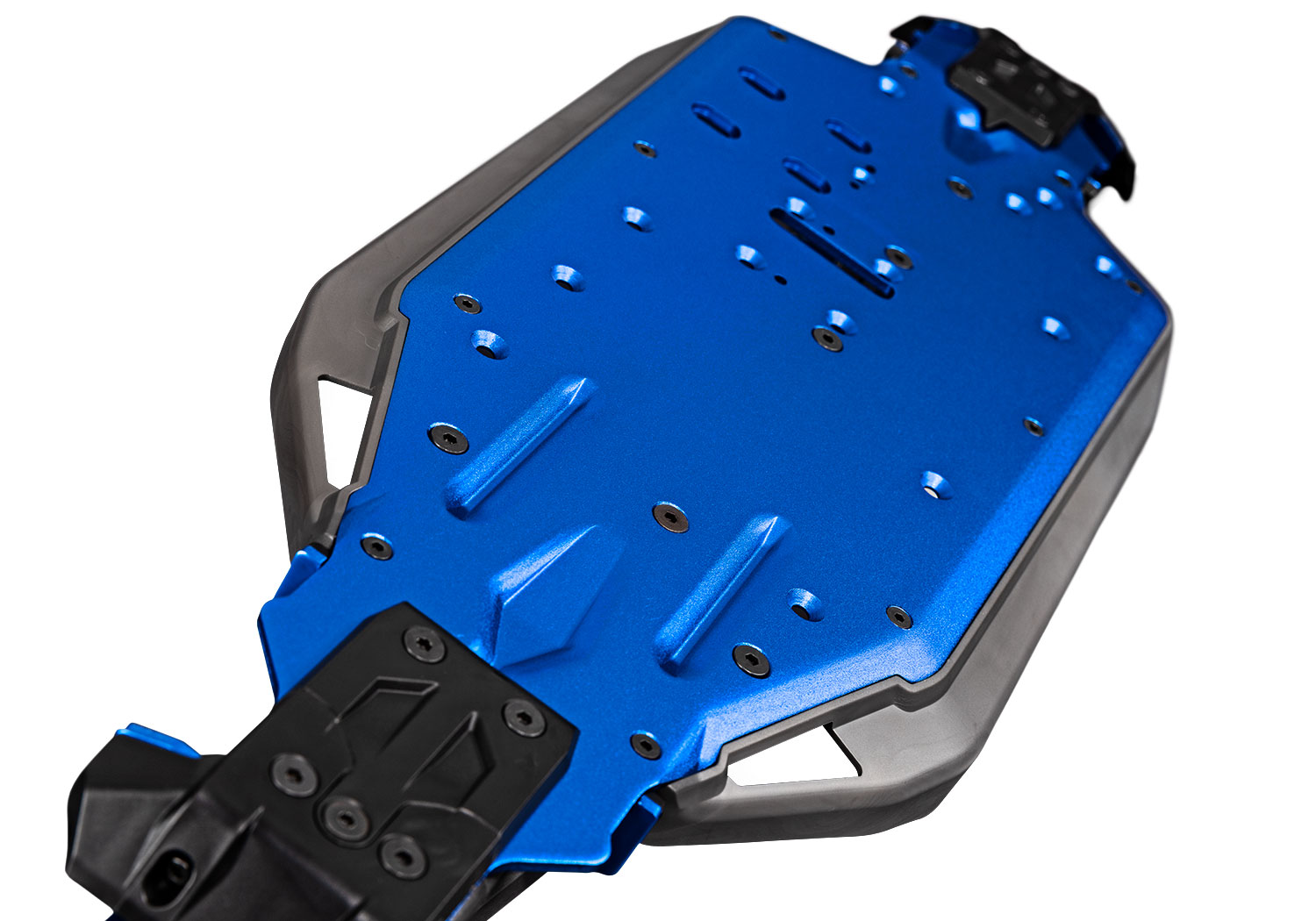

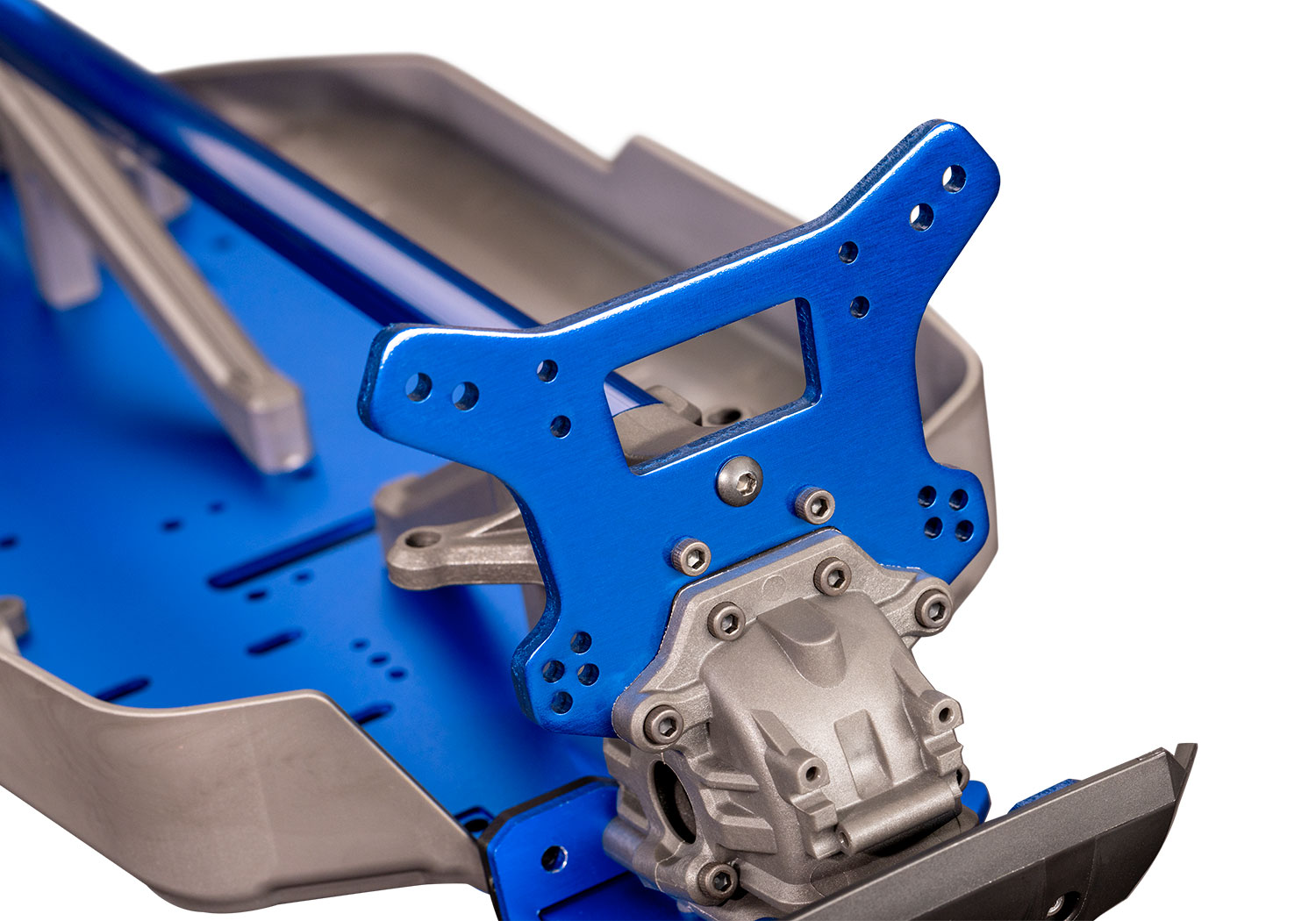

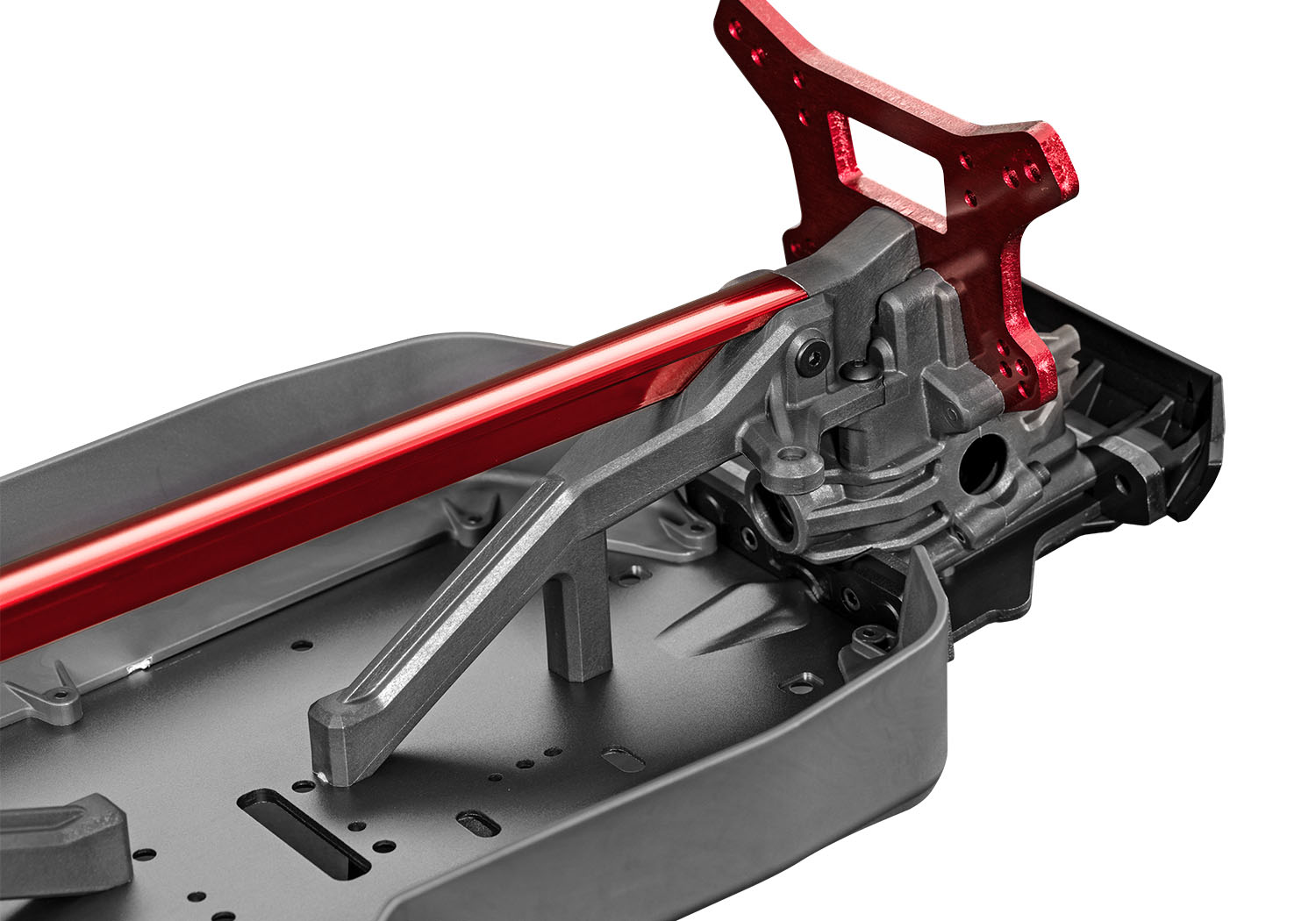

The Sledge’s superior chassis strength features a triangulated structure with a 3.2 mm ribbed aluminum plate, multi-point composite truss system, and the patent-pending full-length T-Bar™ for maximum rigidity and durability. Heavy-duty front and rear braces combine with shock towers made from 5 mm thick 6061-T6 aluminum, creating a chassis that stands up to intense impacts and demanding conditions.

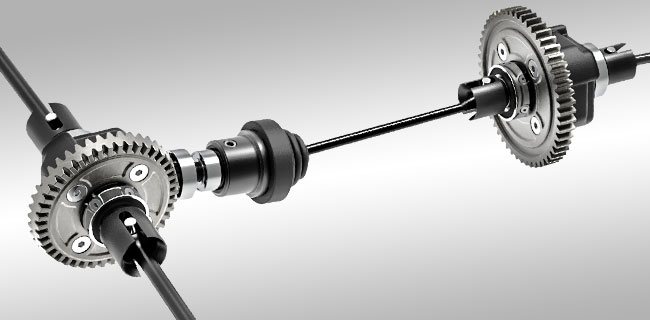

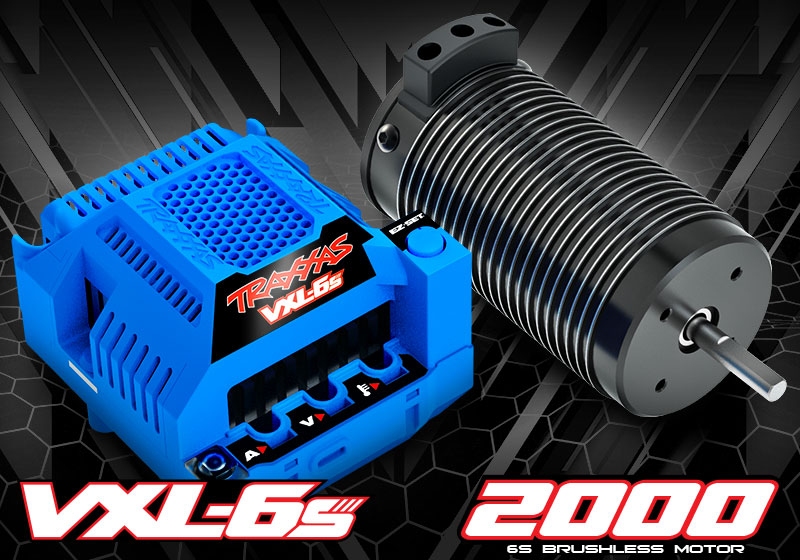

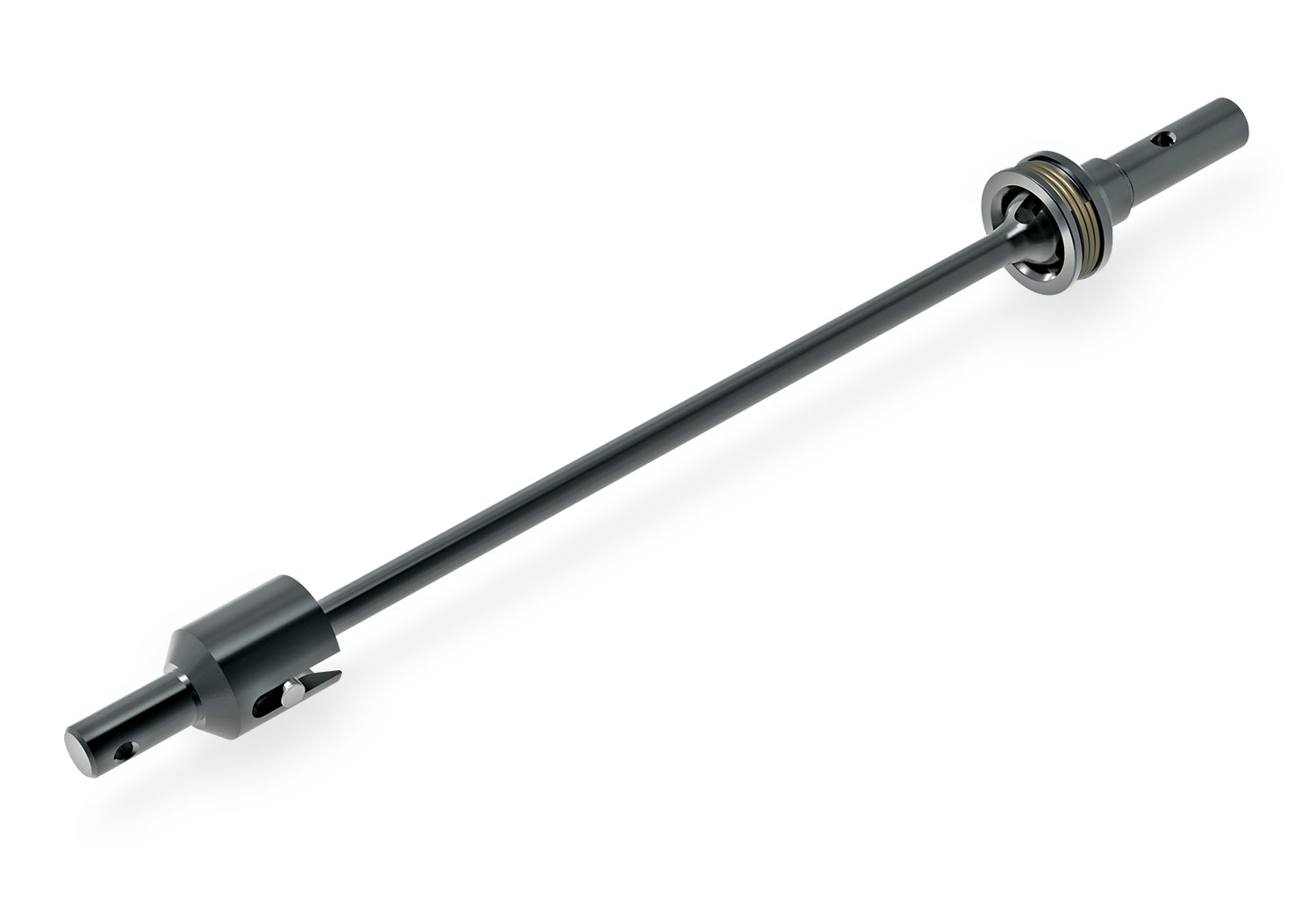

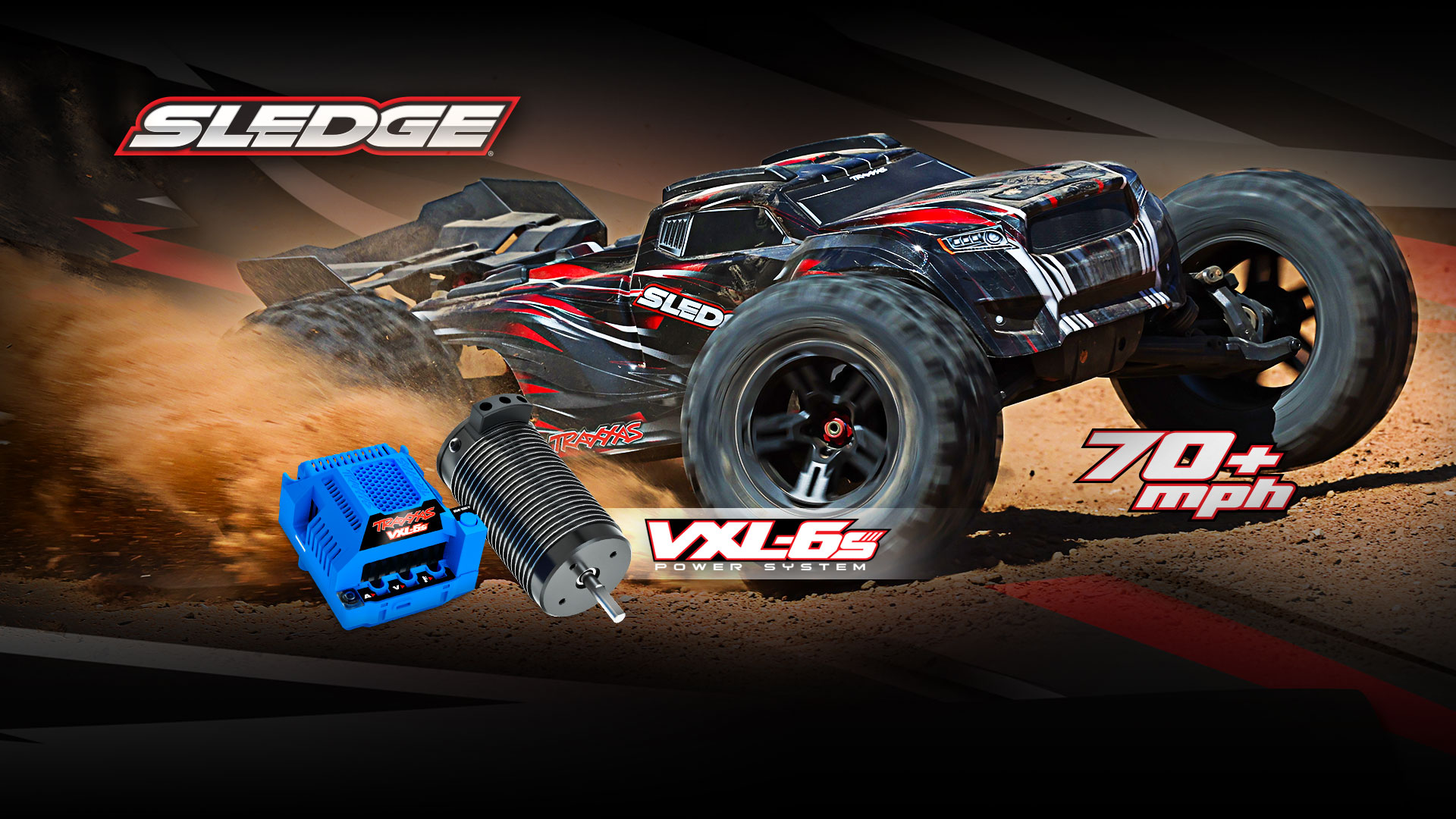

Powered by the Velineon® 2000 Kv brushless motor and VXL-6s ESC, the Sledge offers incredible acceleration and mid-range punch. The motor is securely mounted with an aluminum cradle, reducing flex for enhanced gear life. The Torque-Biasing Center Drive ensures consistent power distribution, while the steel-gear differentials and steel center driveshafts handle the immense power with ease.

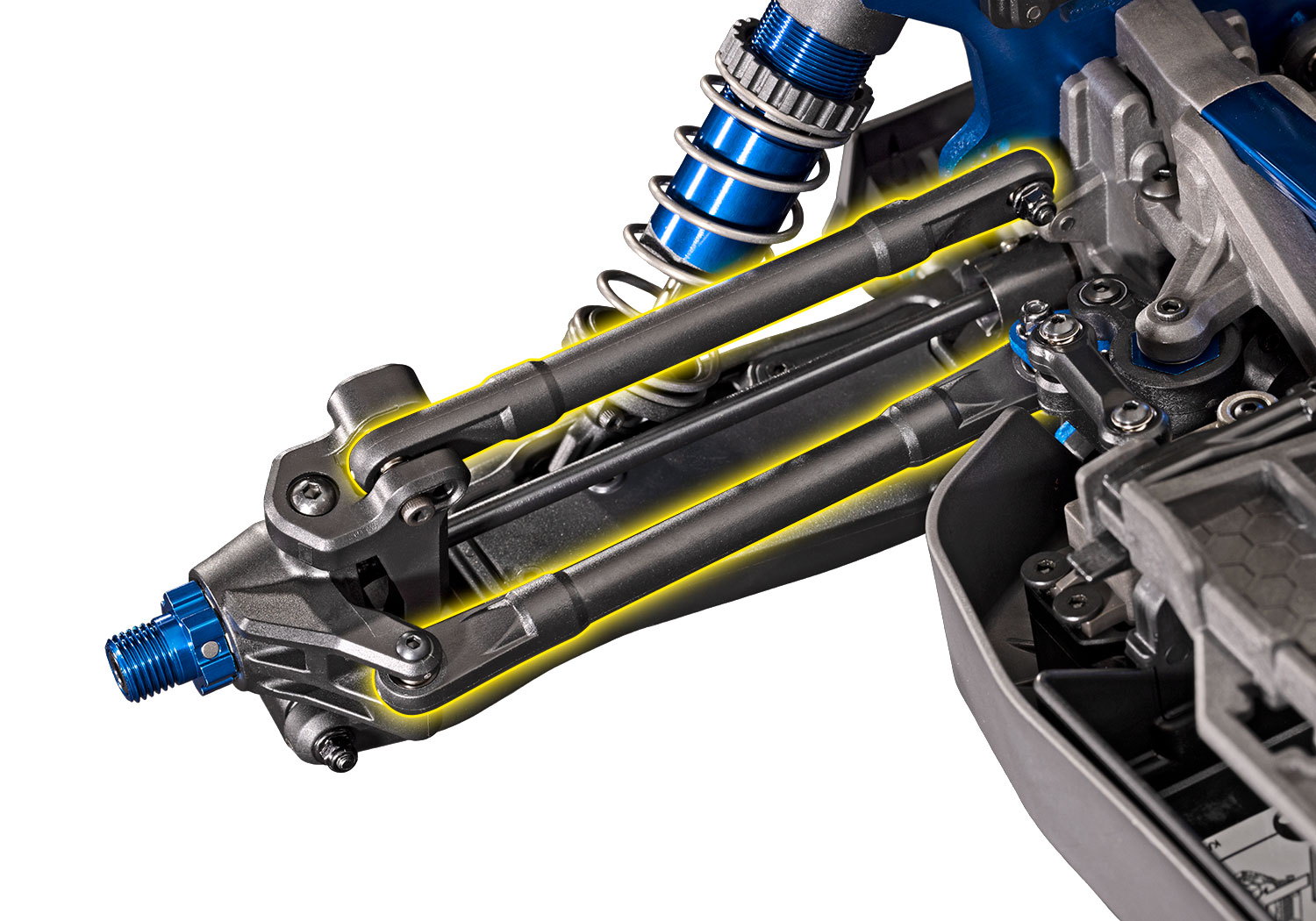

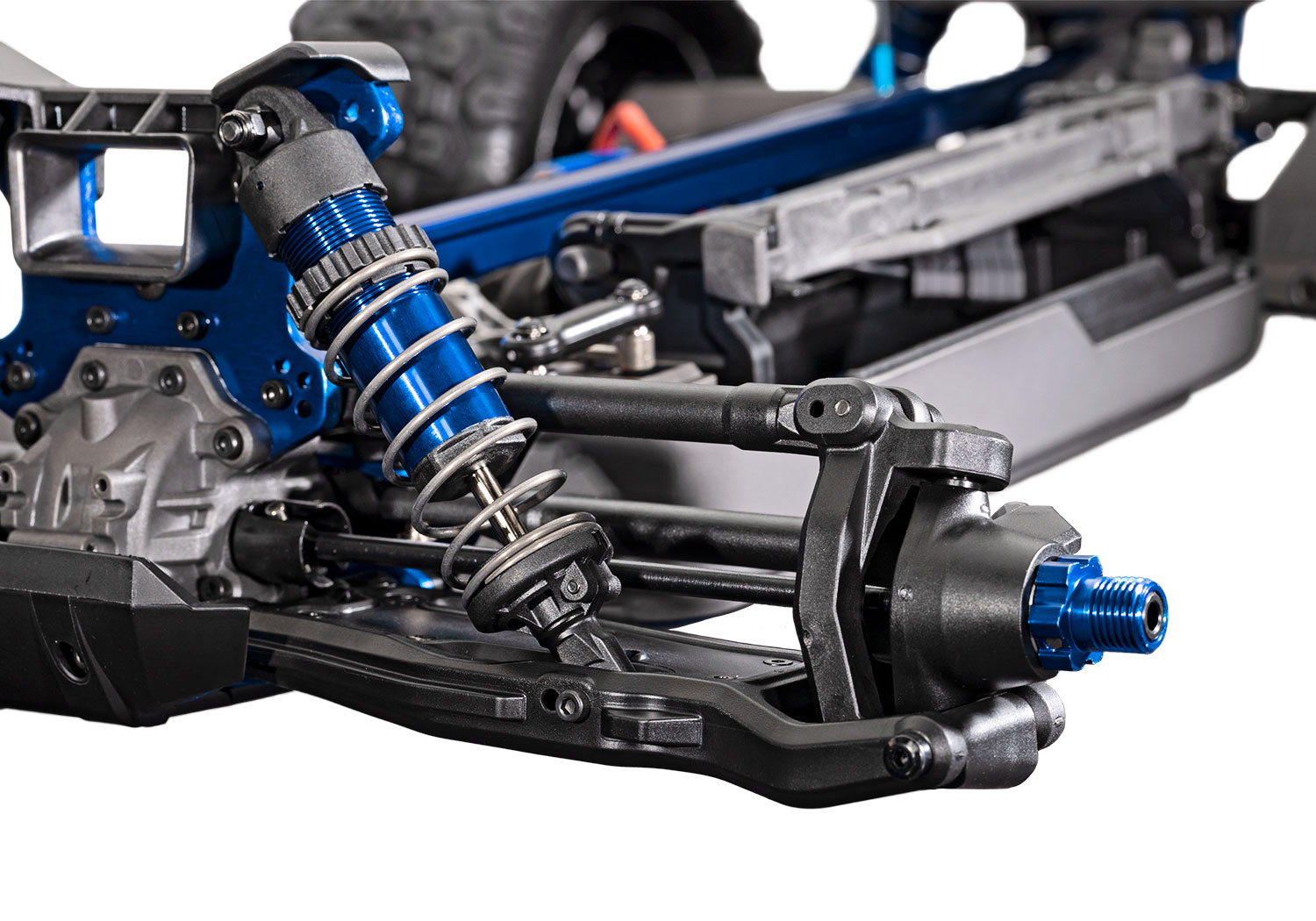

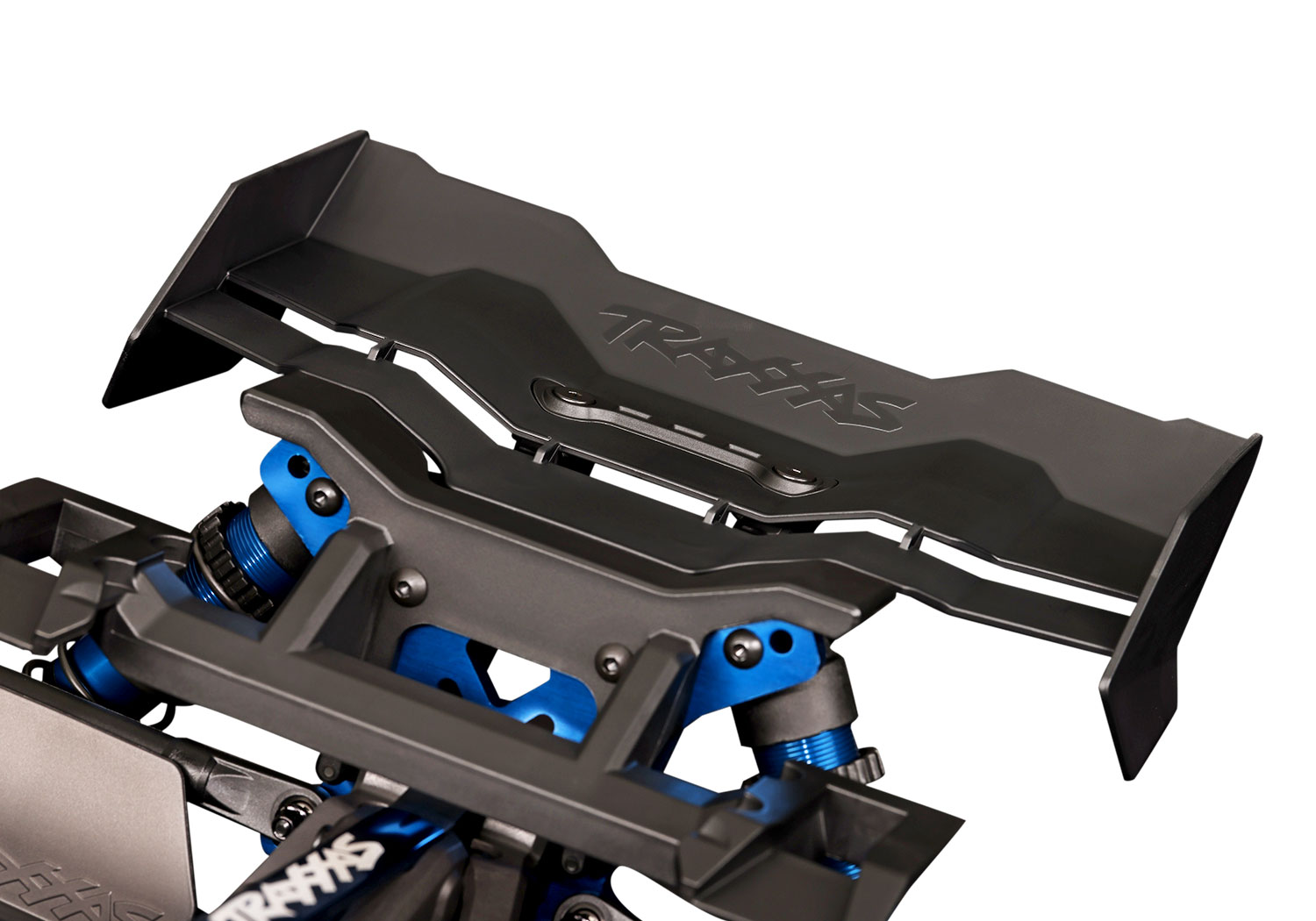

The Sledge’s suspension is engineered for performance, featuring GT-Maxx® aluminum shocks with X-ring seals, heavy-duty composite suspension arms, and oversized camber and toe links. The belted Sledgehammer® tires with open tread blocks provide exceptional grip and responsive handling, while the high-downforce wing enhances aerodynamics and stability during wheelies.

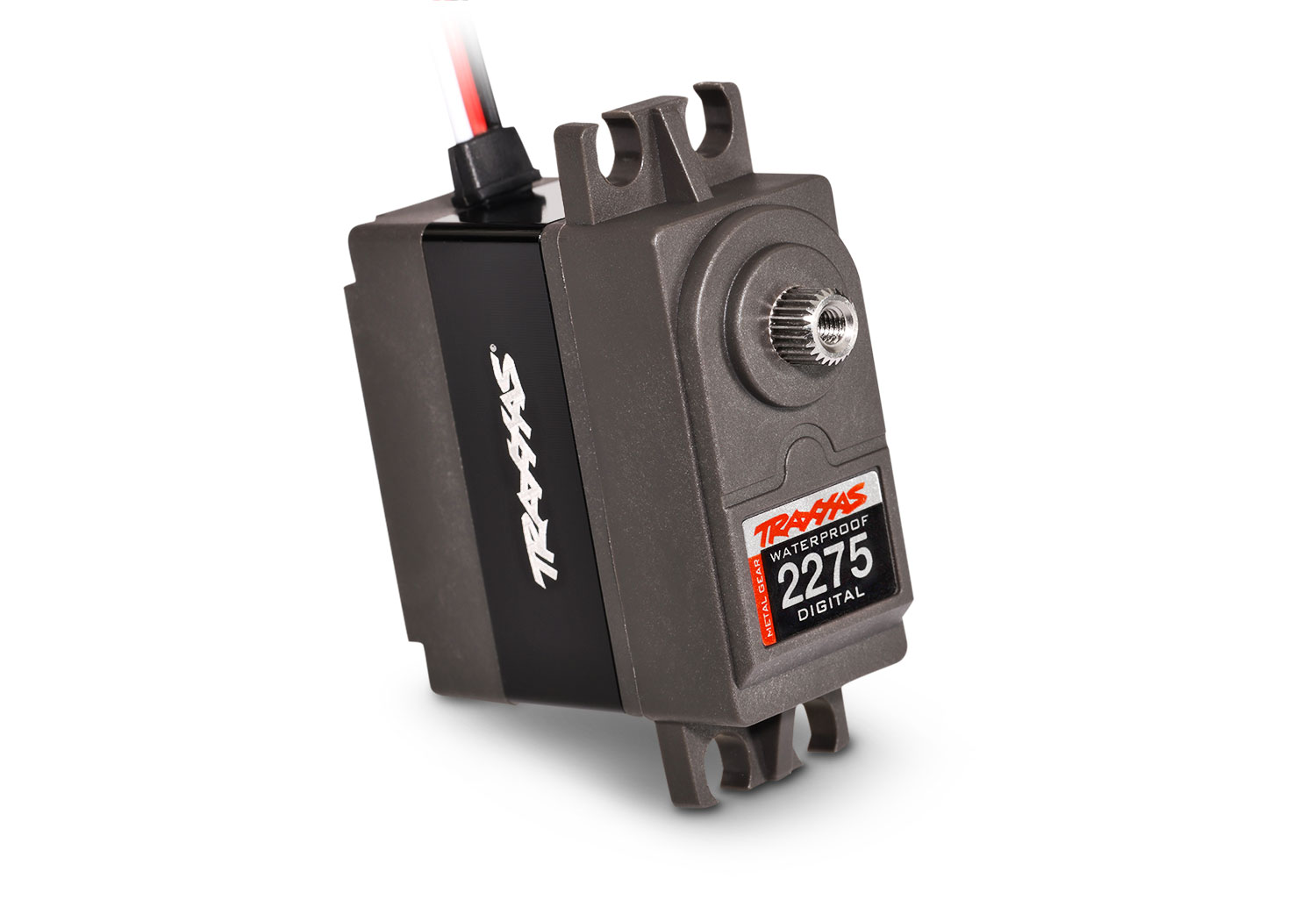

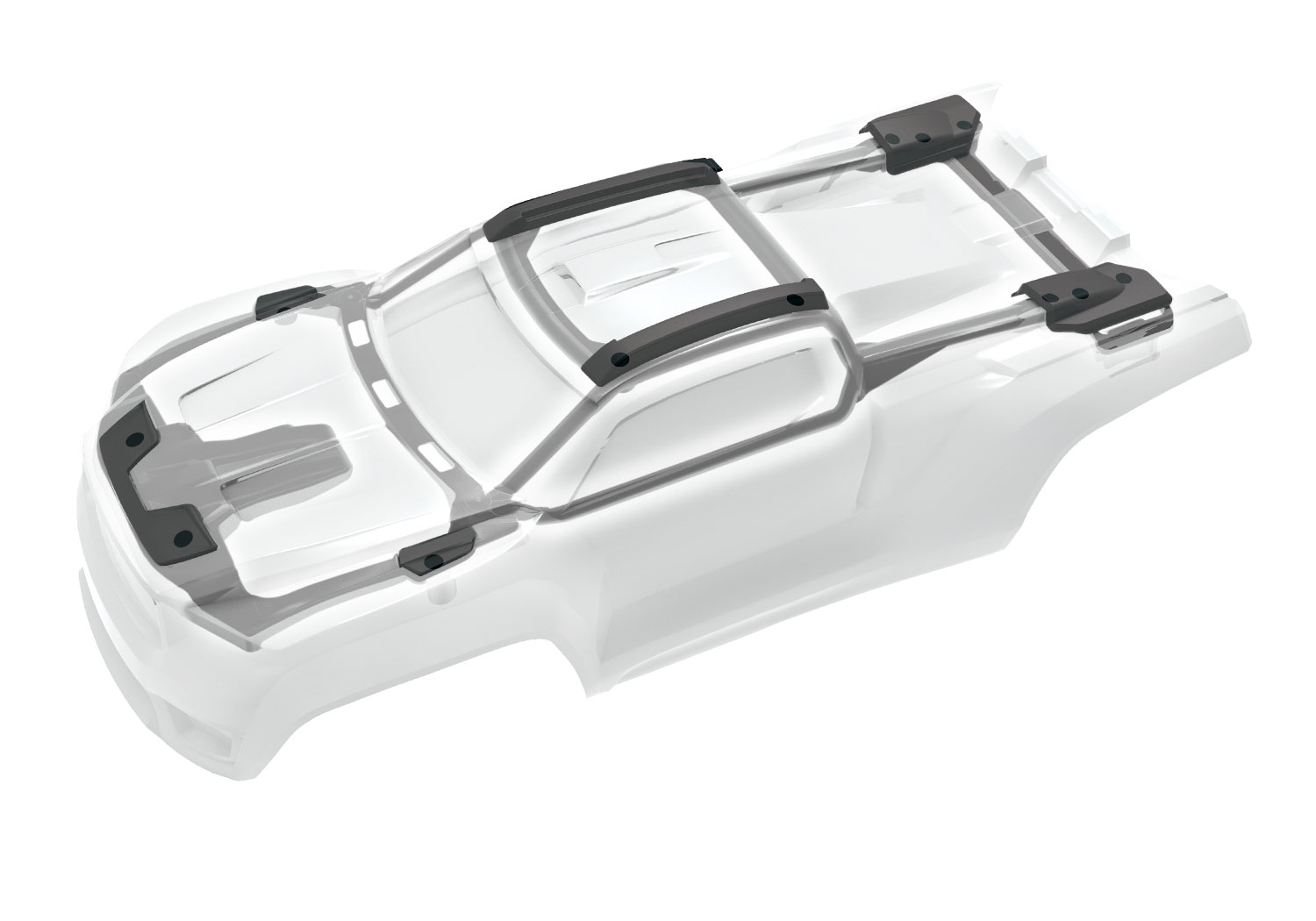

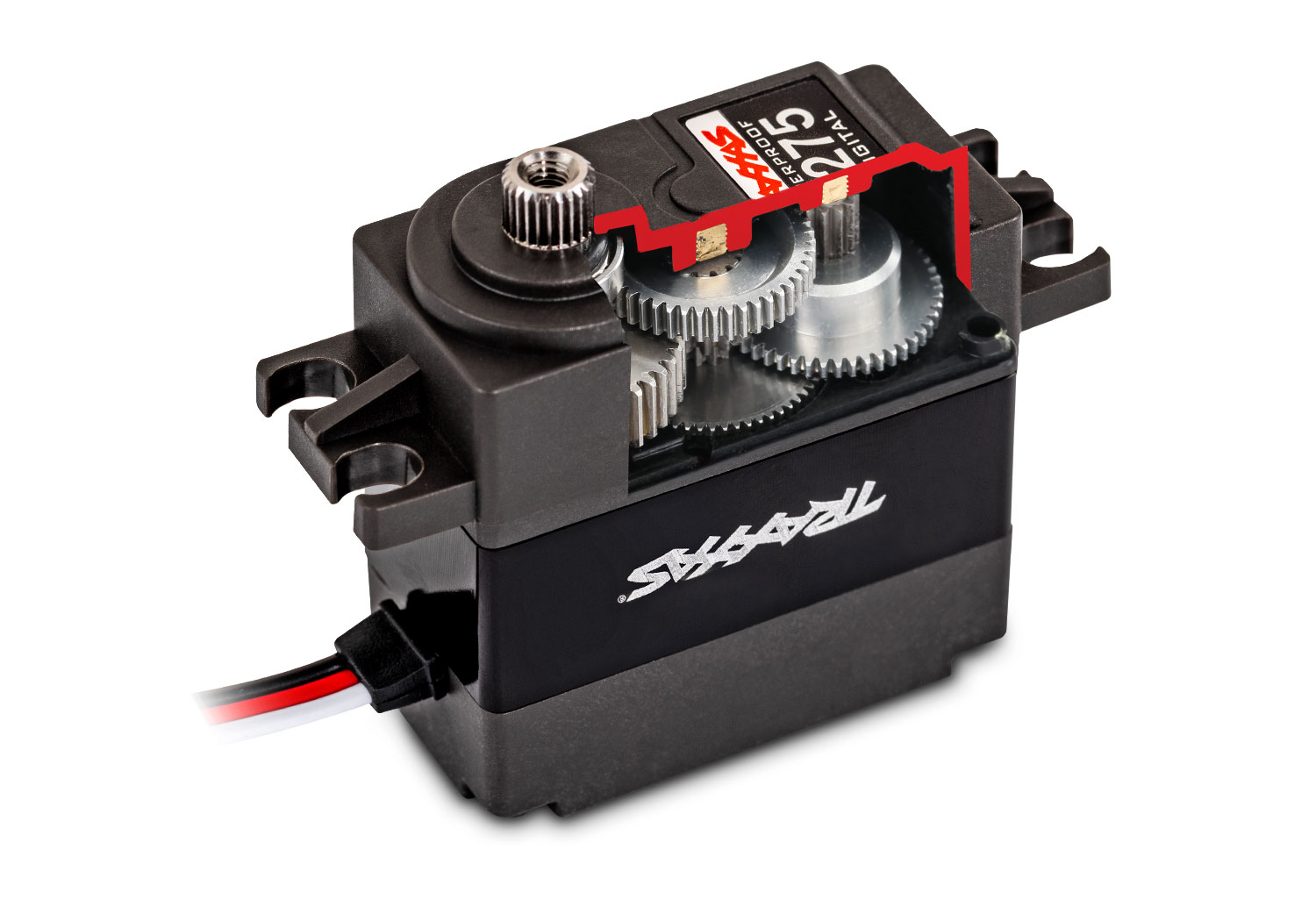

The clipless ProGraphix® body system allows for quick and secure installation, while the rigid internal frame and reinforced body skids protect against wear and tear. With a waterproof 2275 metal-gear servo delivering over 20 pounds of torque, precise and reliable steering is guaranteed in any conditions.
Designed for versatility, the Sledge accommodates a range of battery configurations with a quick-release battery tray for seamless changes. The innovative drivetrain features sealed, oversized bearings and a fixed gear mesh system for smooth, efficient operation. Integrated telemetry and real-time feedback are available through the TQi™ 2.4 GHz radio system.
The Traxxas Sledge is Ready-To-Race® out of the box, including the VXL-6s ESC, 2000 Kv motor, TQi radio system, and maintenance tools. Dual 3s LiPo batteries and a Traxxas EZ-Peak® Live charger are recommended for optimal performance. Experience unmatched power, control, and fun with the Sledge, the ultimate 1/8 scale off-road monster truck.
Exploded View
Exploded View
Parts List
Parts List
Product Manual
Product Manual
Collapsible content
Overview
The Traxxas Sledge redefines the 1/8 scale off-road experience with cutting-edge engineering and unparalleled durability. Designed for extreme 6s LiPo power, the Sledge delivers over 70+ mph top speeds and dominates with a robust drivetrain, precision handling, and rugged durability. Equipped with belted Sledgehammer® tires, this truck offers unmatched stability, control, and traction across all terrains, limiting tire expansion for precise high-speed performance.
The Sledge’s superior chassis strength features a triangulated structure with a 3.2 mm ribbed aluminum plate, multi-point composite truss system, and the patent-pending full-length T-Bar™ for maximum rigidity and durability. Heavy-duty front and rear braces combine with shock towers made from 5 mm thick 6061-T6 aluminum, creating a chassis that stands up to intense impacts and demanding conditions.

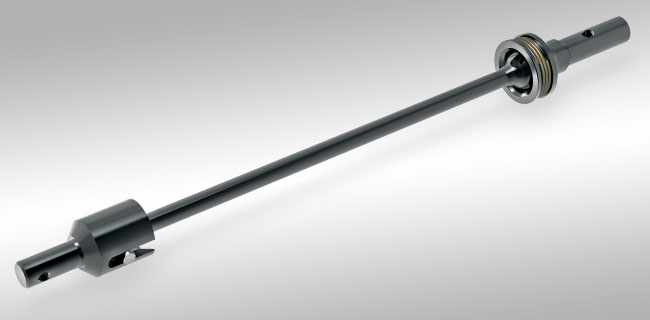

Powered by the Velineon® 2000 Kv brushless motor and VXL-6s ESC, the Sledge offers incredible acceleration and mid-range punch. The motor is securely mounted with an aluminum cradle, reducing flex for enhanced gear life. The Torque-Biasing Center Drive ensures consistent power distribution, while the steel-gear differentials and steel center driveshafts handle the immense power with ease.

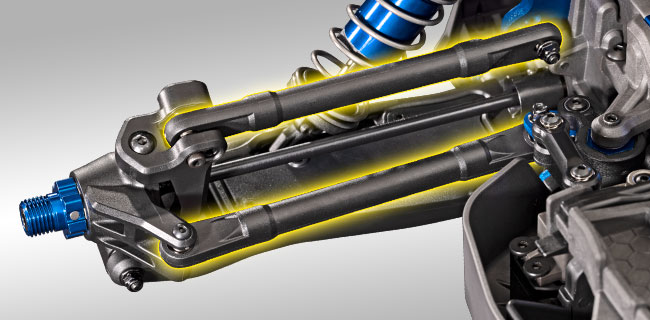

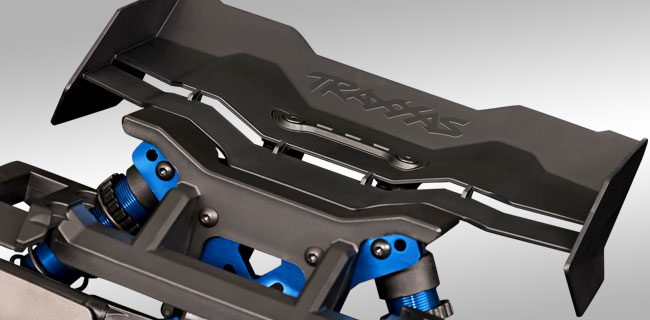

The Sledge’s suspension is engineered for performance, featuring GT-Maxx® aluminum shocks with X-ring seals, heavy-duty composite suspension arms, and oversized camber and toe links. The belted Sledgehammer® tires with open tread blocks provide exceptional grip and responsive handling, while the high-downforce wing enhances aerodynamics and stability during wheelies.

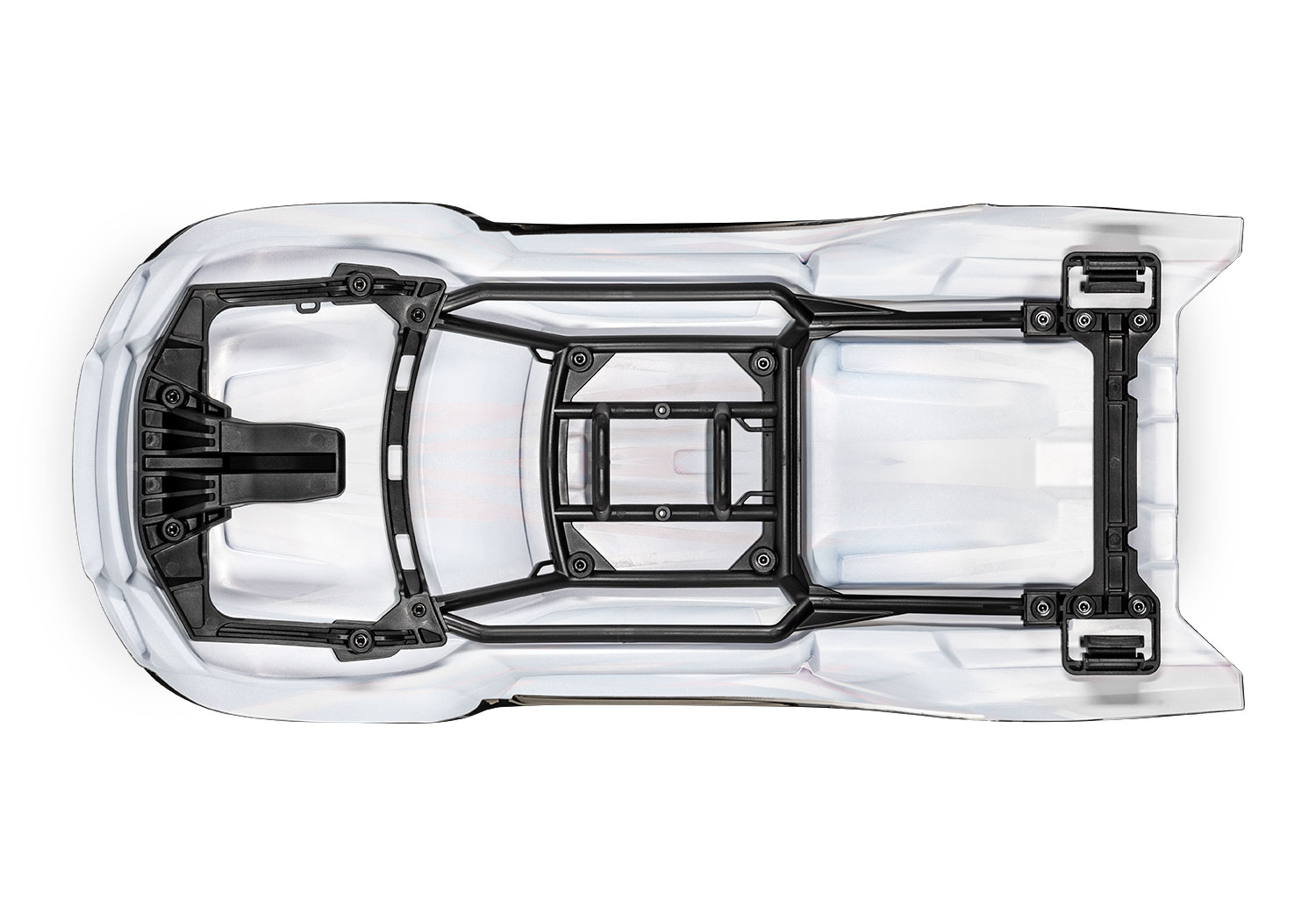

The clipless ProGraphix® body system allows for quick and secure installation, while the rigid internal frame and reinforced body skids protect against wear and tear. With a waterproof 2275 metal-gear servo delivering over 20 pounds of torque, precise and reliable steering is guaranteed in any conditions.
Designed for versatility, the Sledge accommodates a range of battery configurations with a quick-release battery tray for seamless changes. The innovative drivetrain features sealed, oversized bearings and a fixed gear mesh system for smooth, efficient operation. Integrated telemetry and real-time feedback are available through the TQi™ 2.4 GHz radio system.
The Traxxas Sledge is Ready-To-Race® out of the box, including the VXL-6s ESC, 2000 Kv motor, TQi radio system, and maintenance tools. Dual 3s LiPo batteries and a Traxxas EZ-Peak® Live charger are recommended for optimal performance. Experience unmatched power, control, and fun with the Sledge, the ultimate 1/8 scale off-road monster truck.
Features
- Redefines 1/8 scale off-road with quality, toughness, and extreme 6s power for high-speed performance.

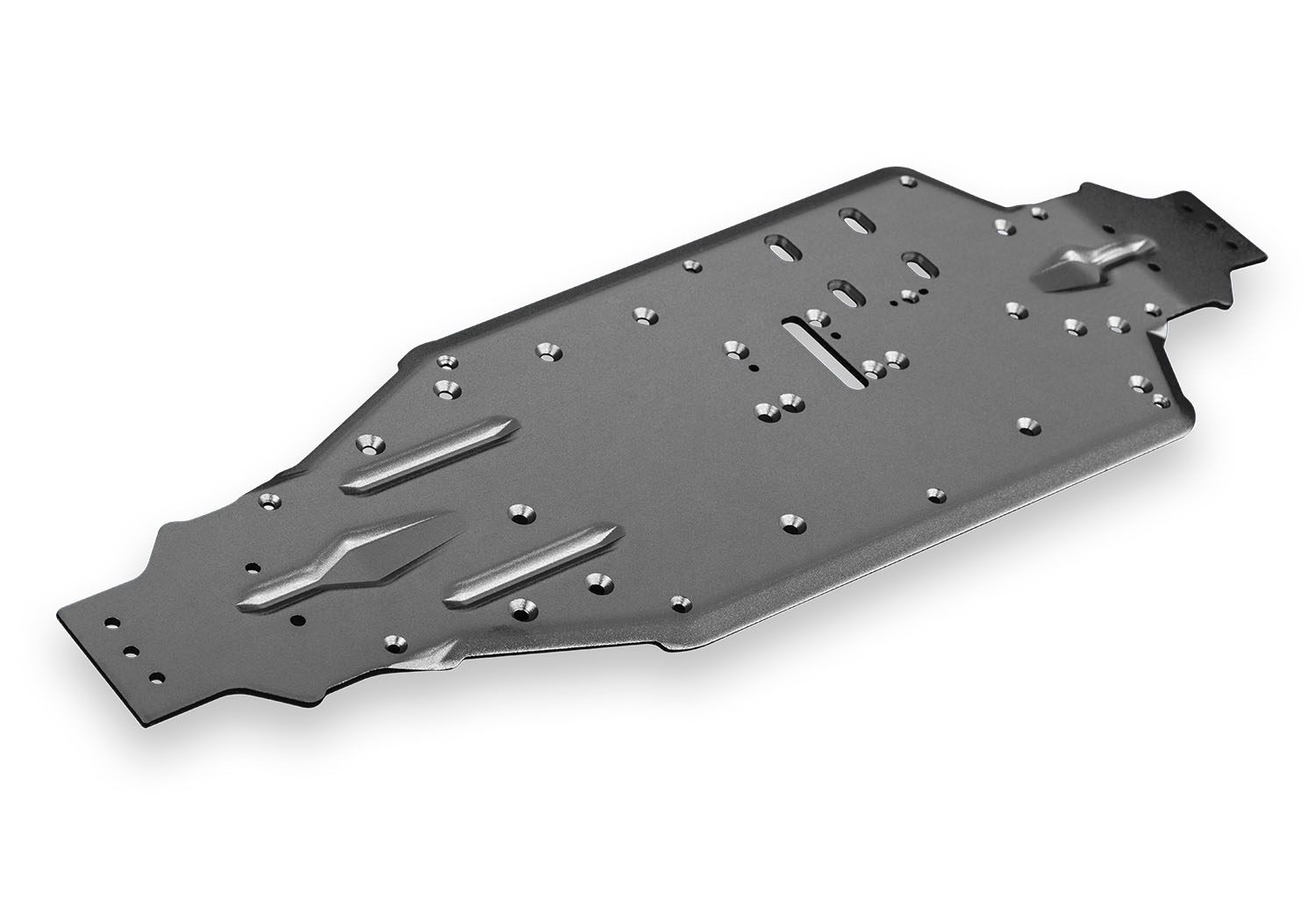

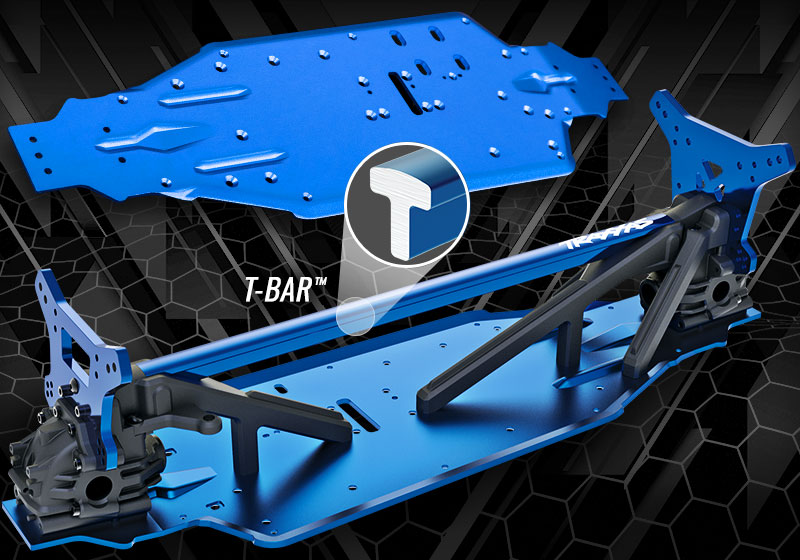

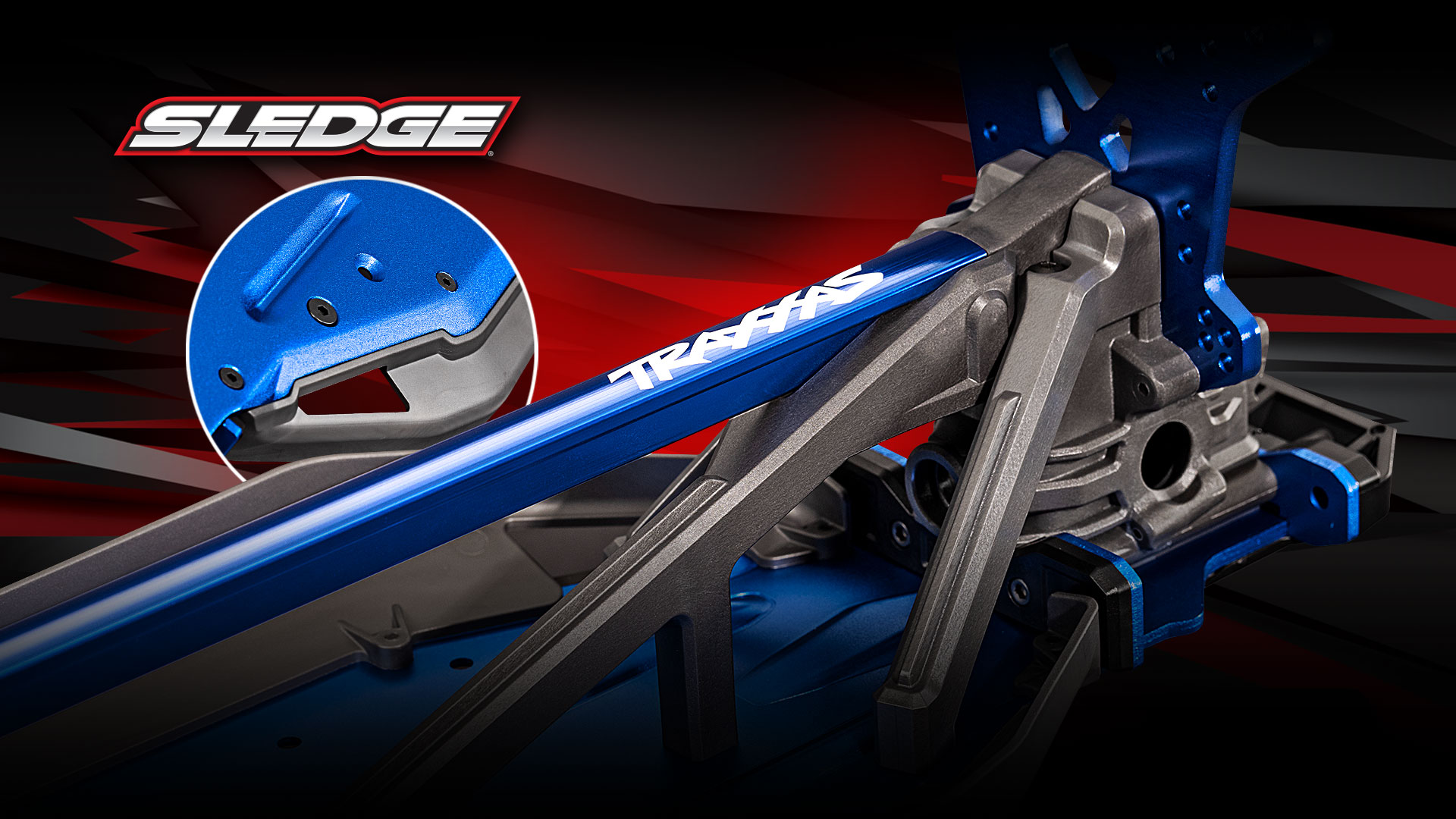

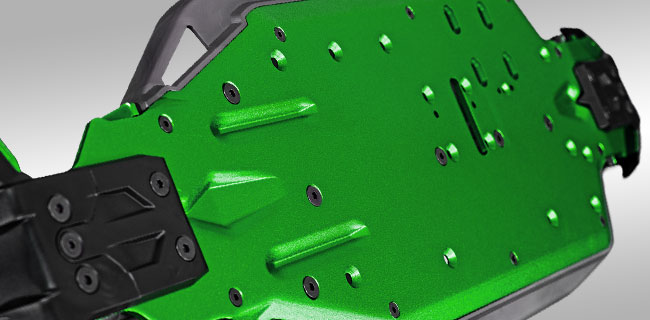

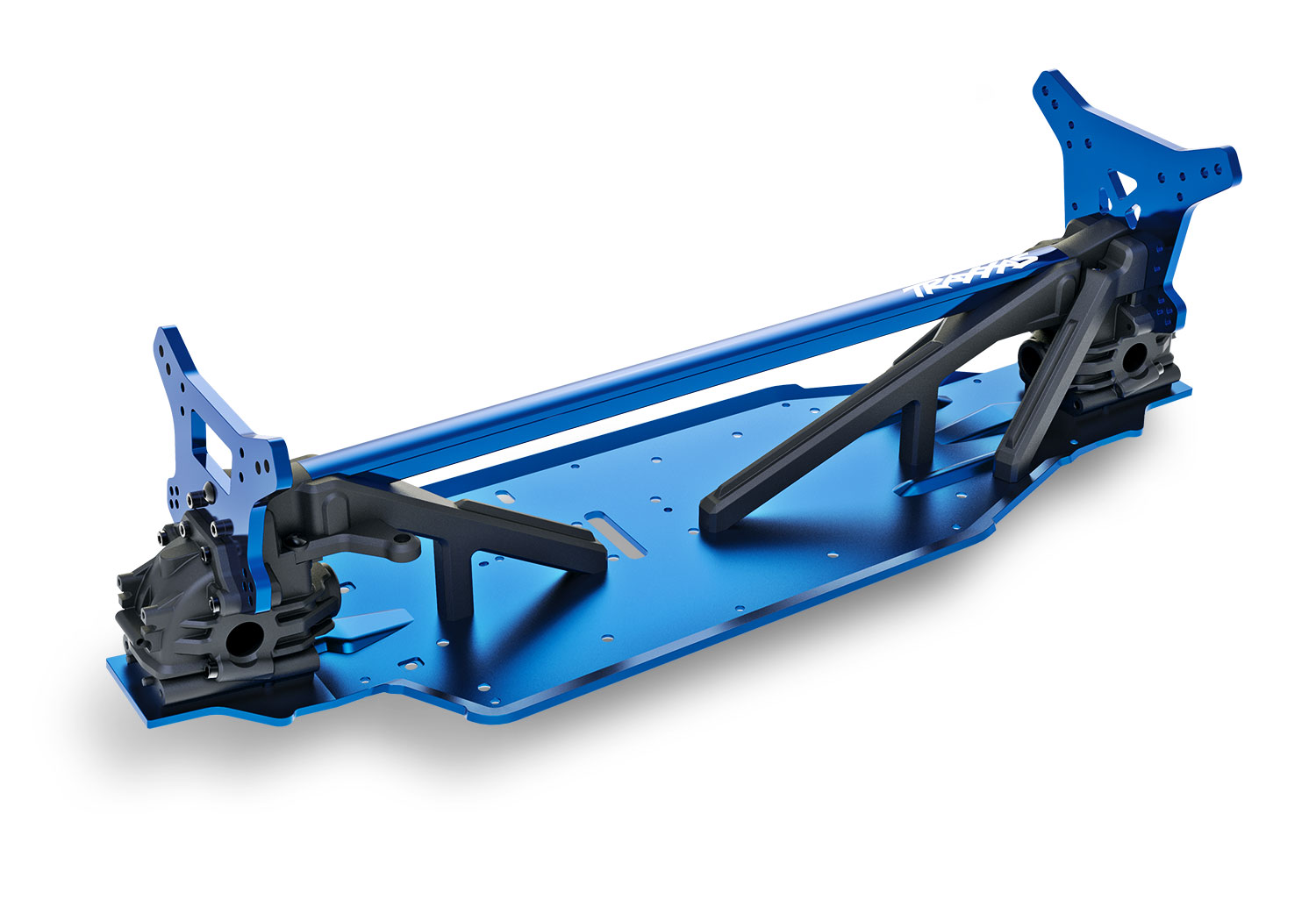

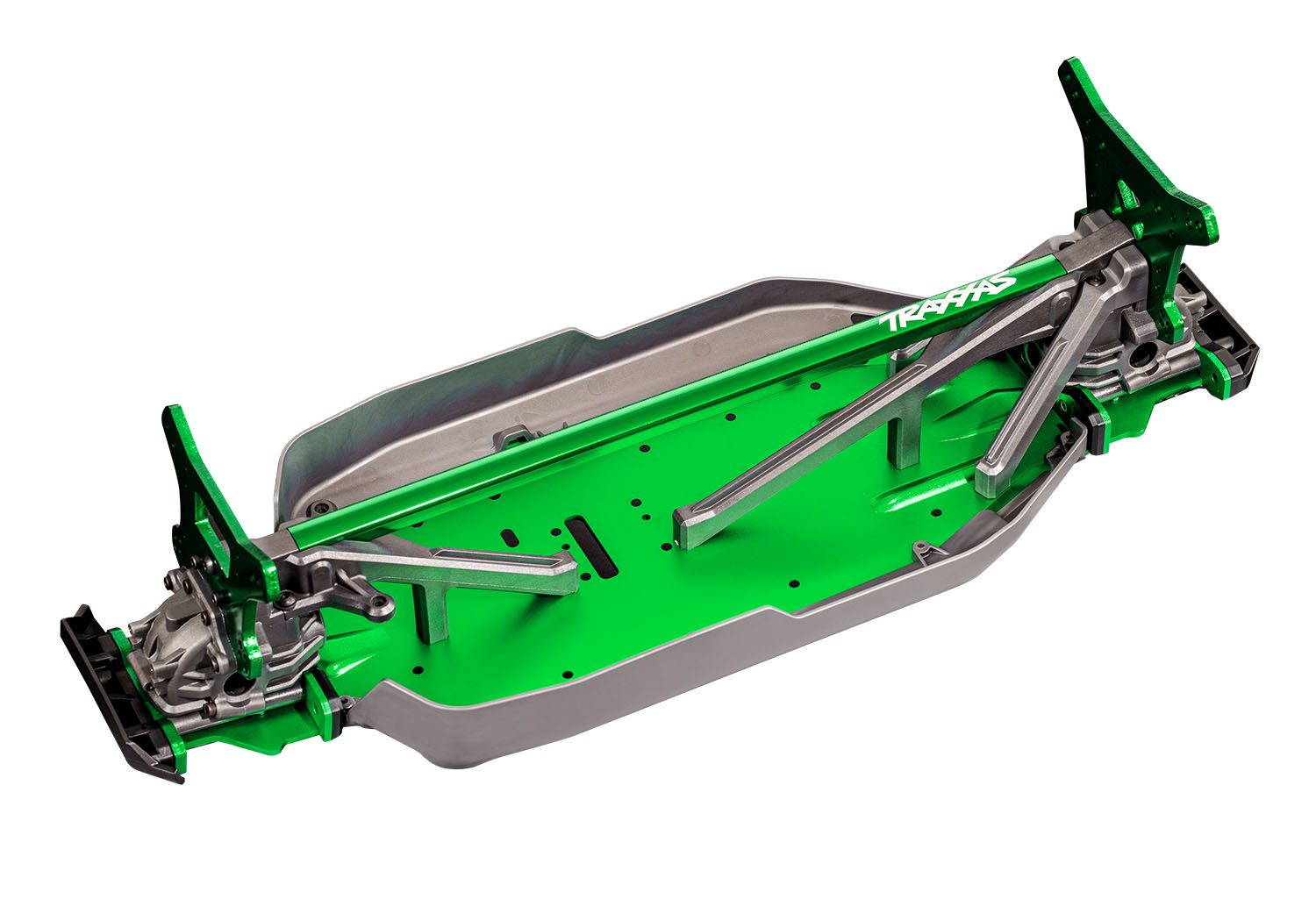

- Strong 3.2 mm aluminum plate chassis with flanged edges, strengthening ribs, and T-Bar™ brace for superior durability.

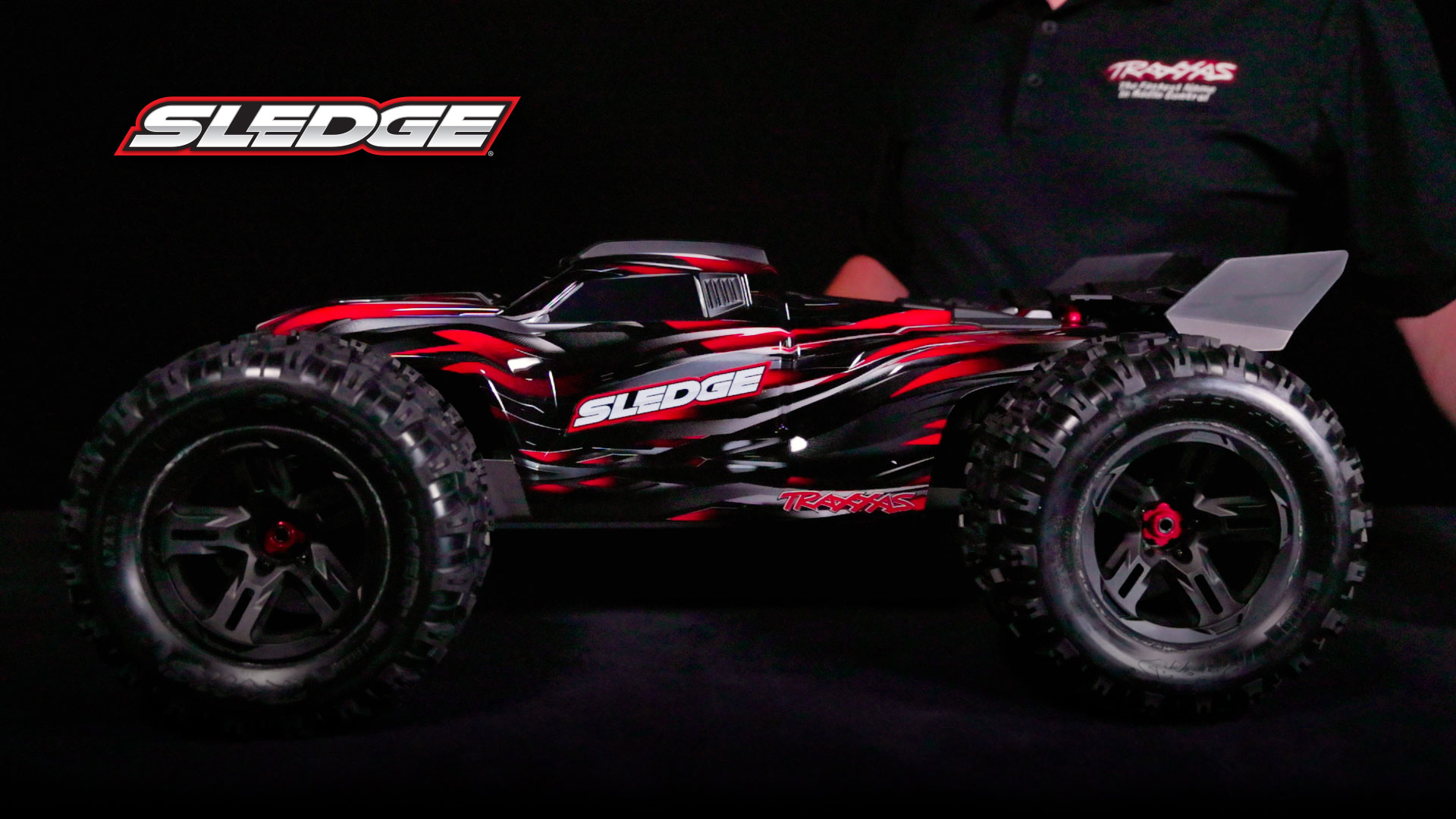

- Clipless body mounting system allows easy removal and replacement with a secure fit.

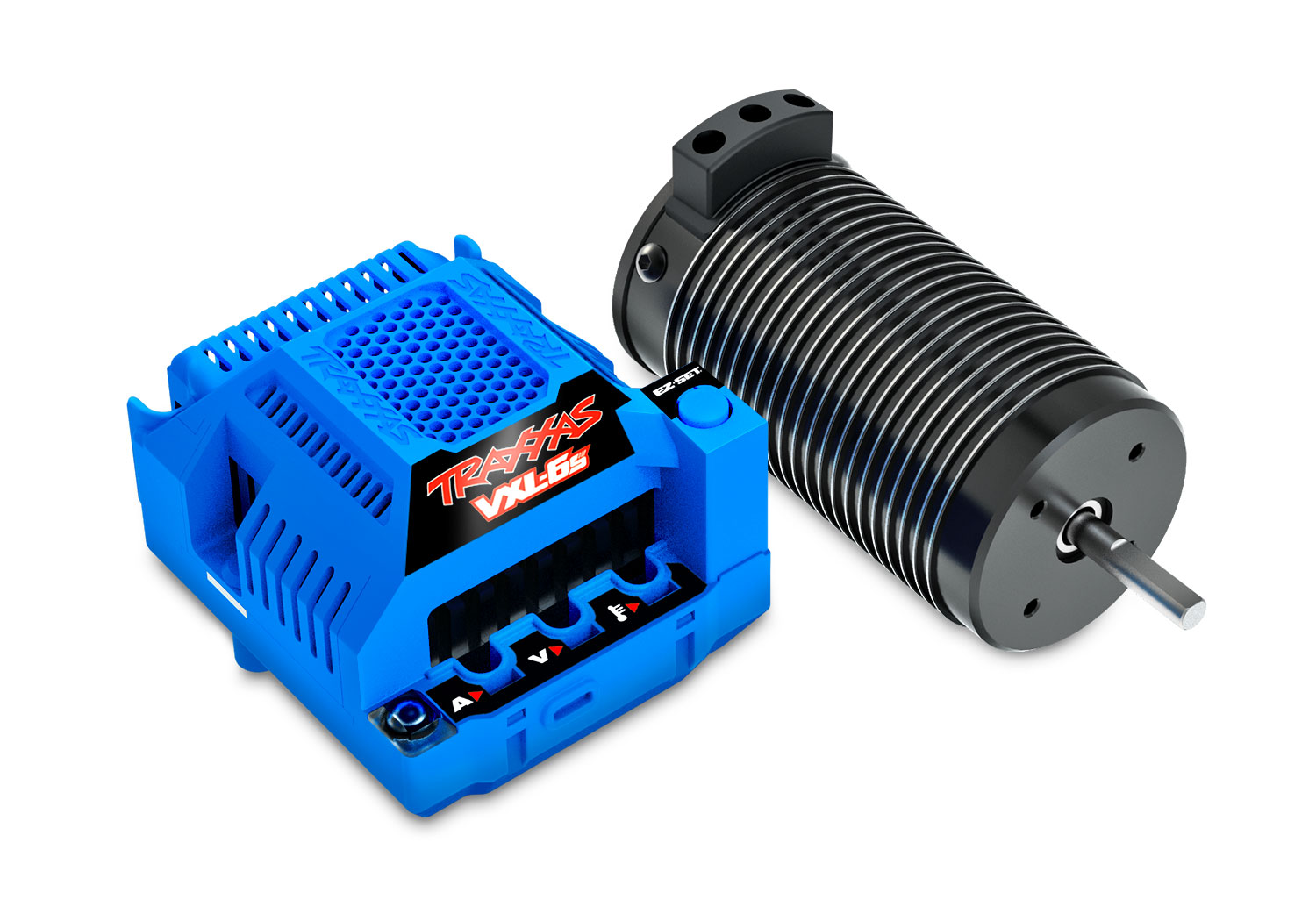

- Powered by the VXL-6s ESC and 2000 Kv brushless motor, delivering up to 70+ mph speeds with optional gearing.

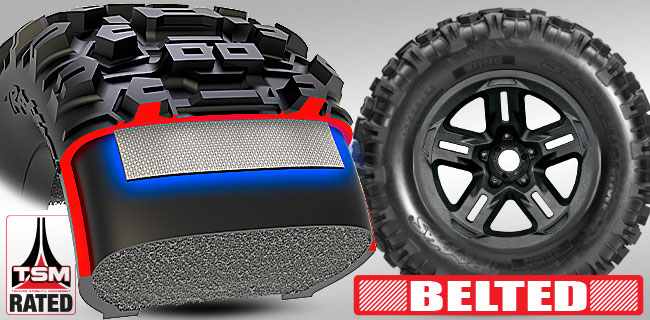

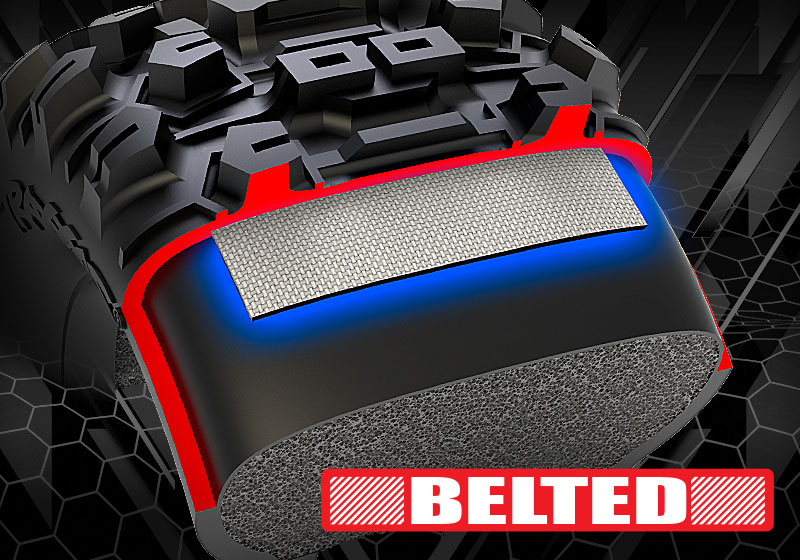

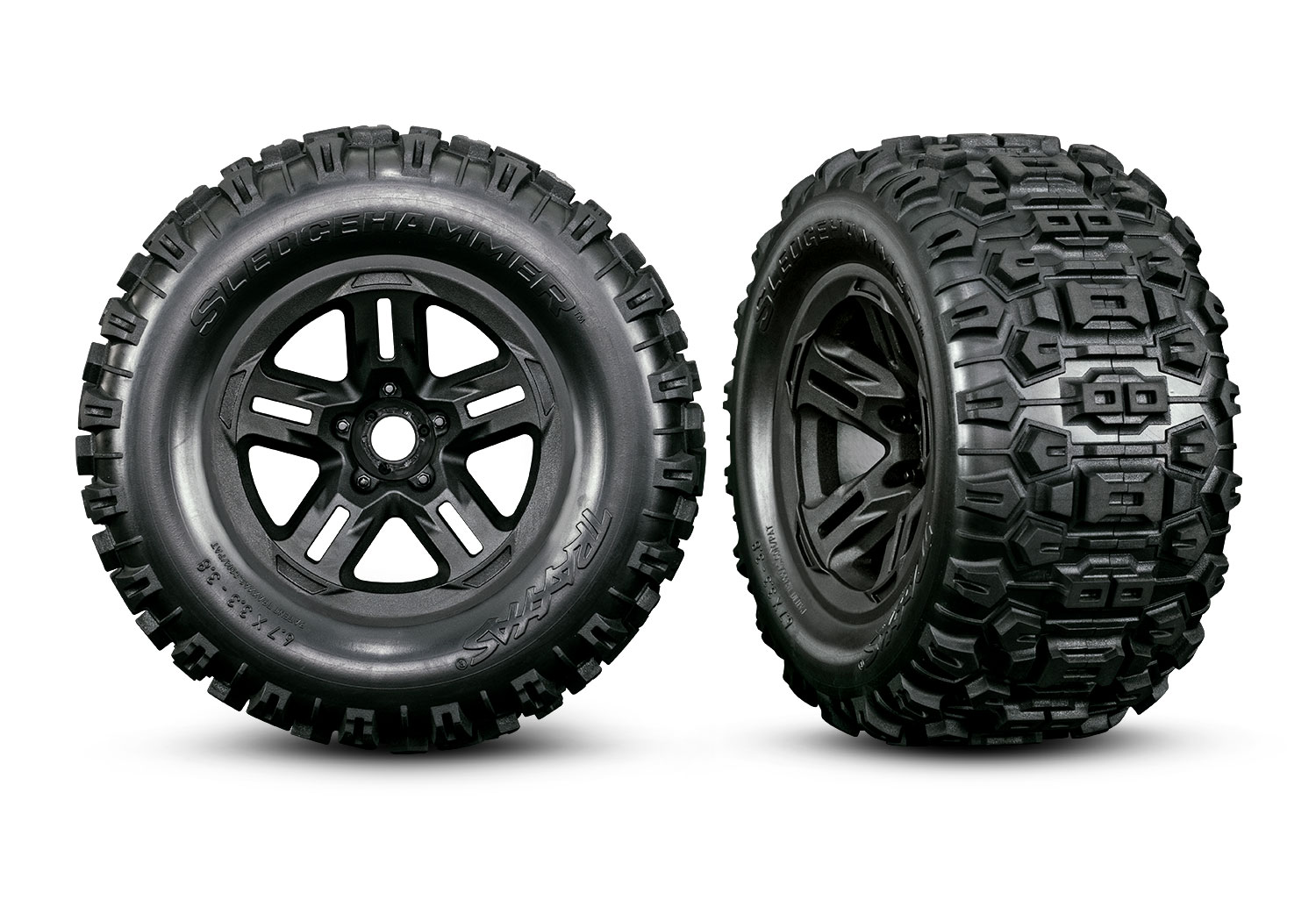

- Belted Sledgehammer® tires maintain shape at high speeds for precise handling and improved traction.

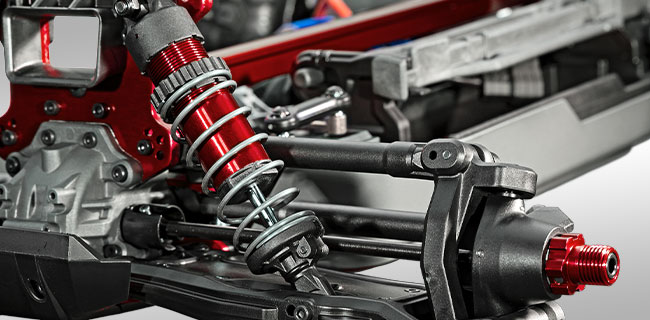

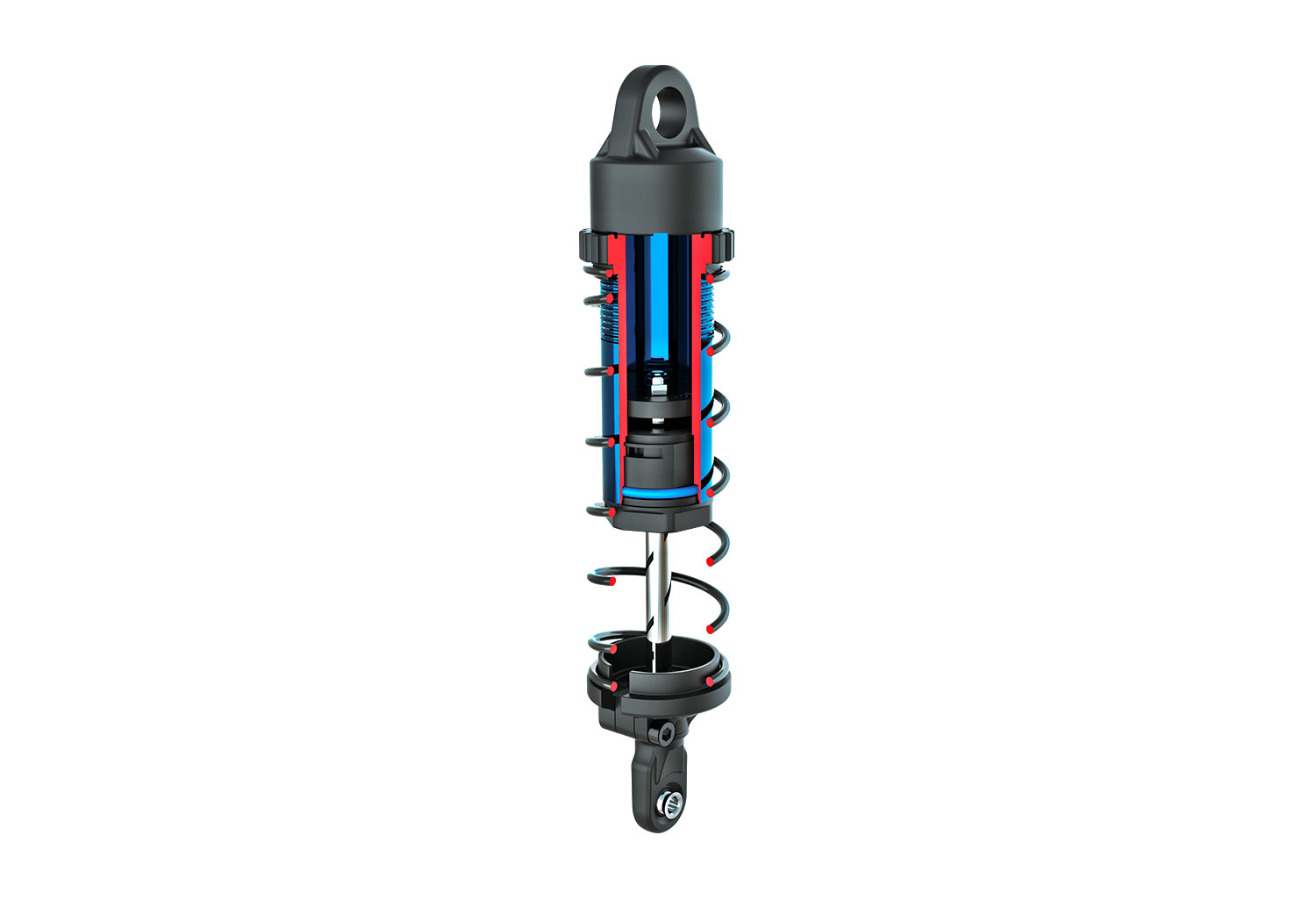

- GT-Maxx® aluminum shocks with X-ring seals and large-diameter shafts for smooth performance and durability.

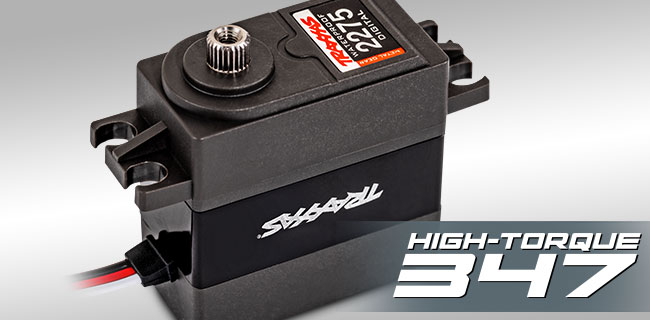

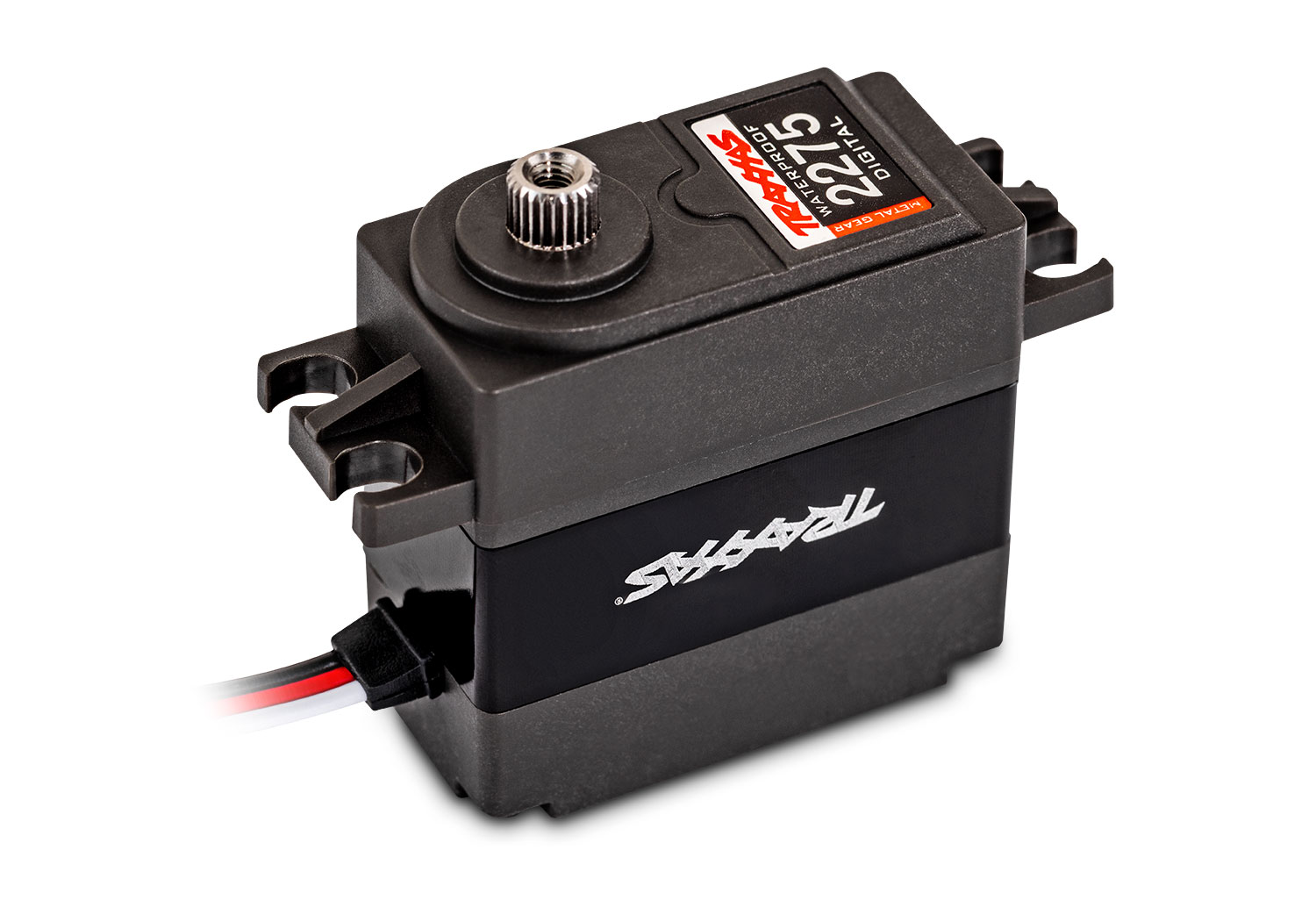

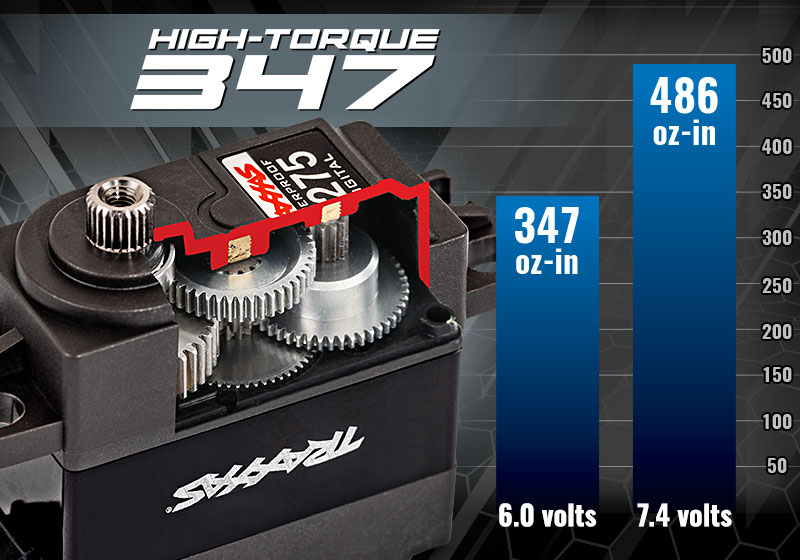

- High-torque waterproof 2275 metal gear servo with 347 oz-in torque for powerful steering control.

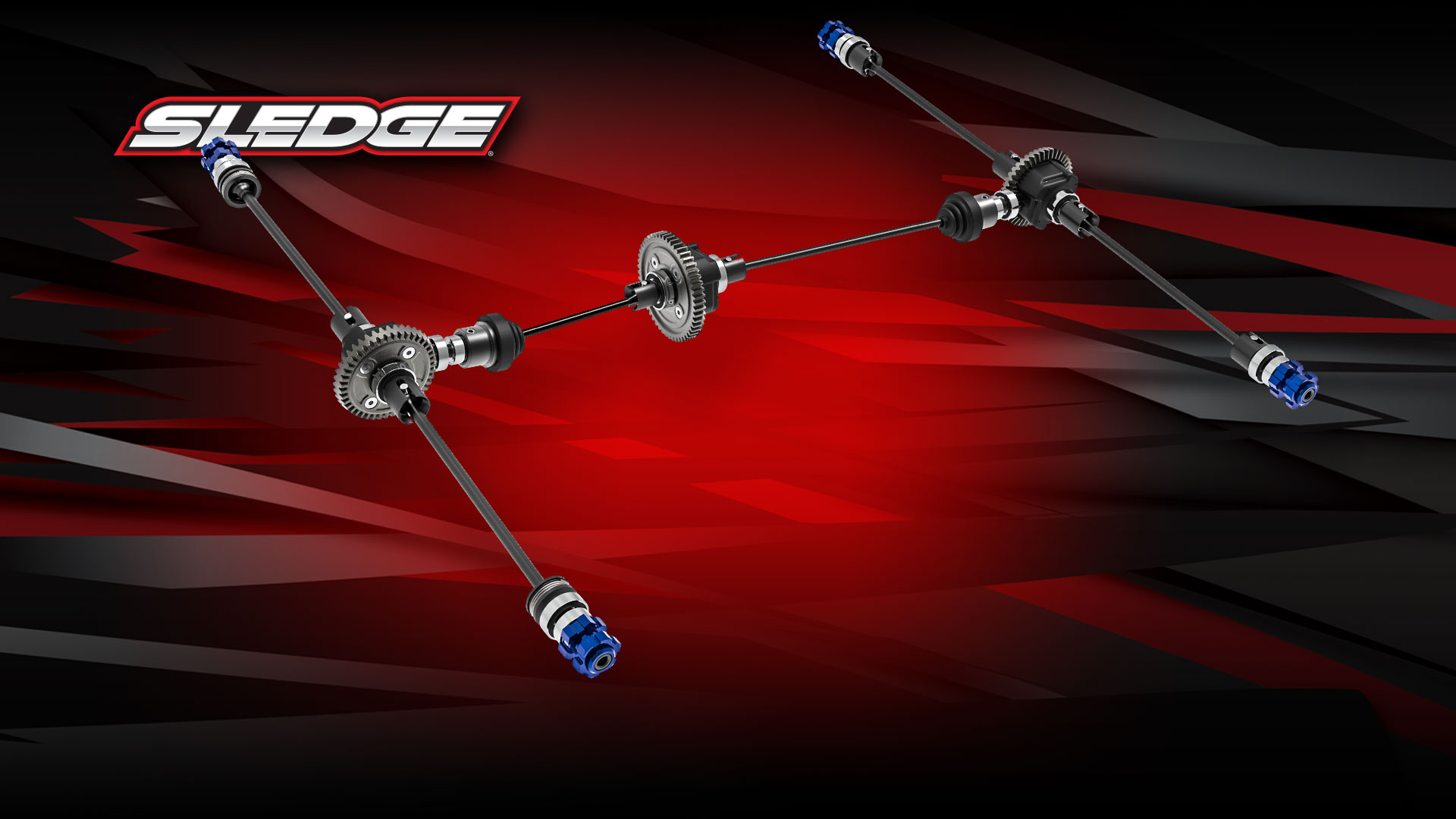

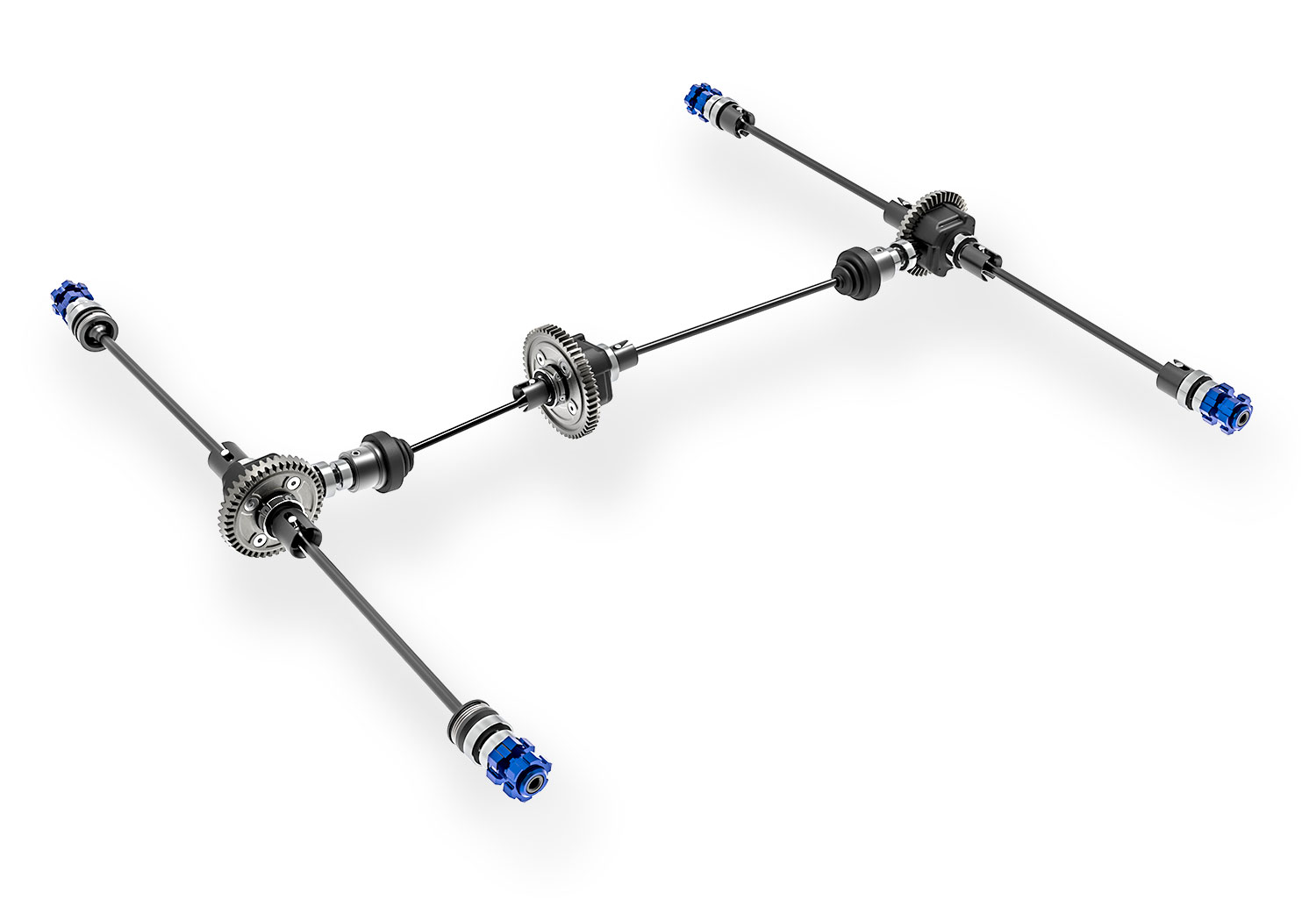

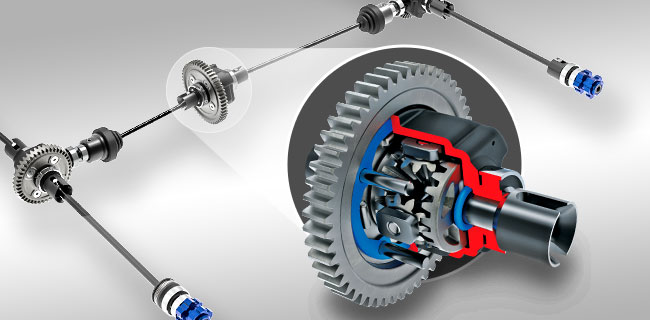

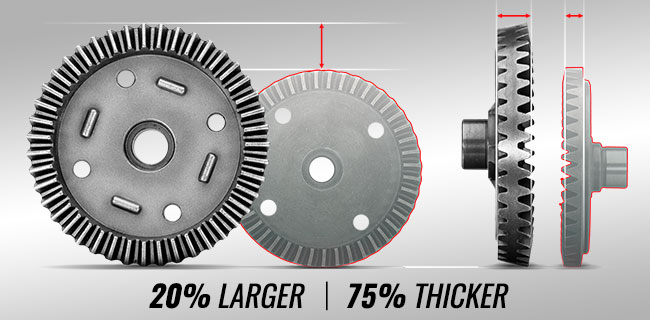

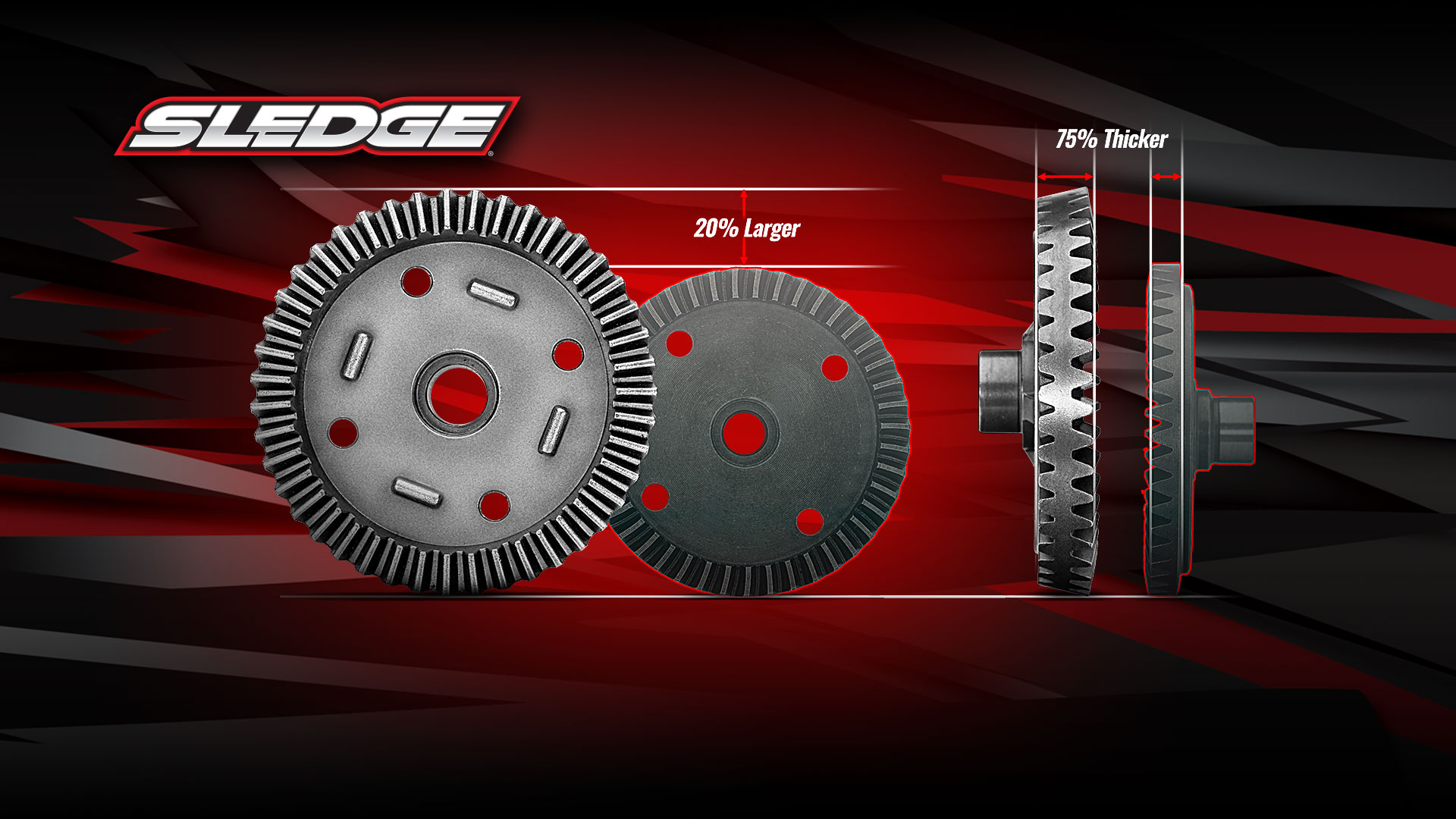

- Heavy-duty steel drivetrain with Torque-Biasing Center Drive for reliable 6s power distribution.

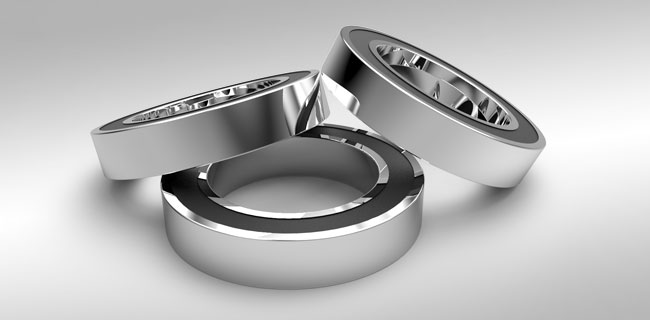

- Sealed, oversized bearings and hardened steel gears for long-lasting performance.

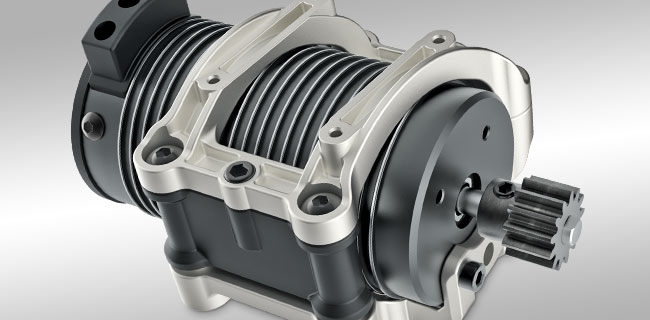

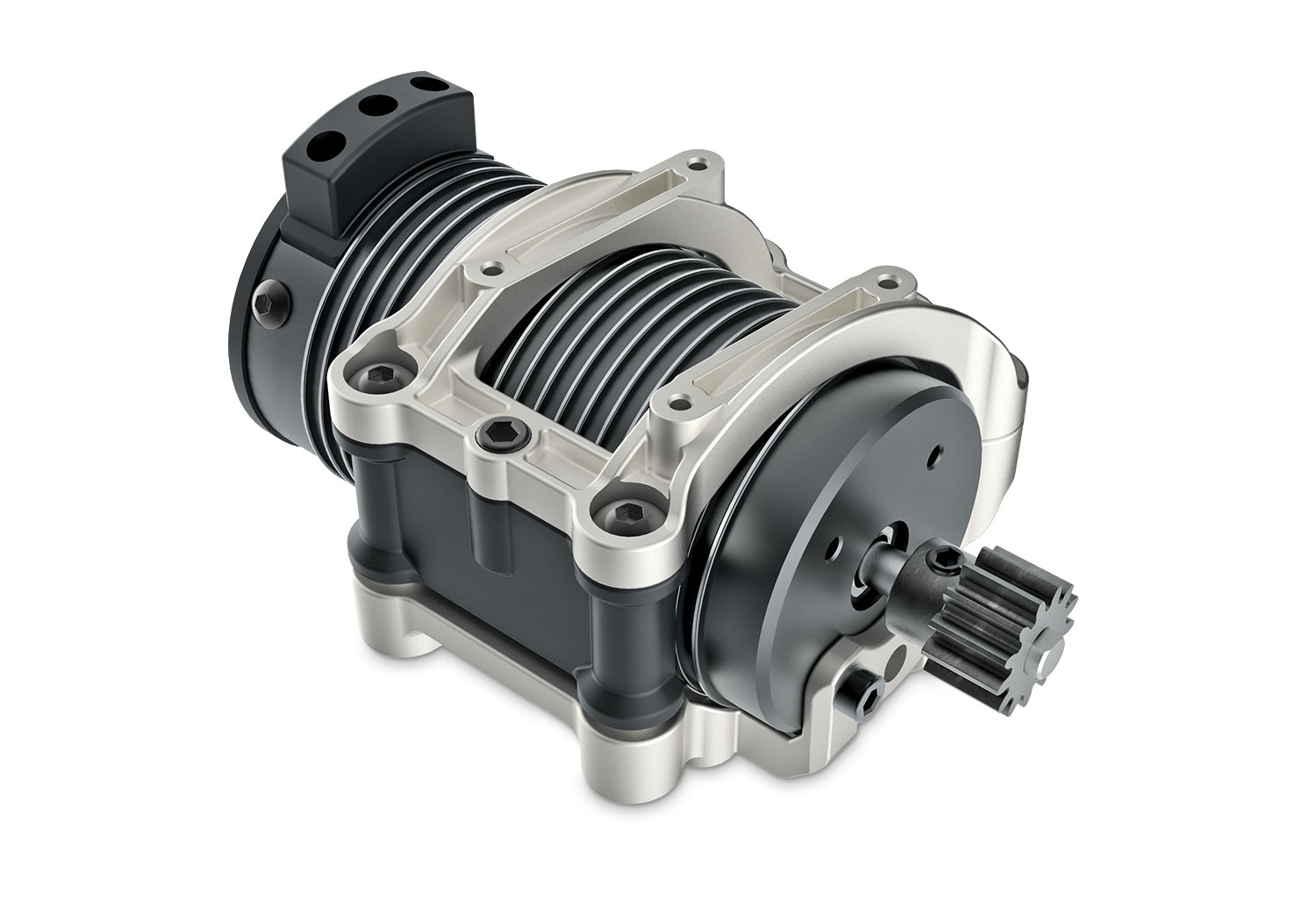

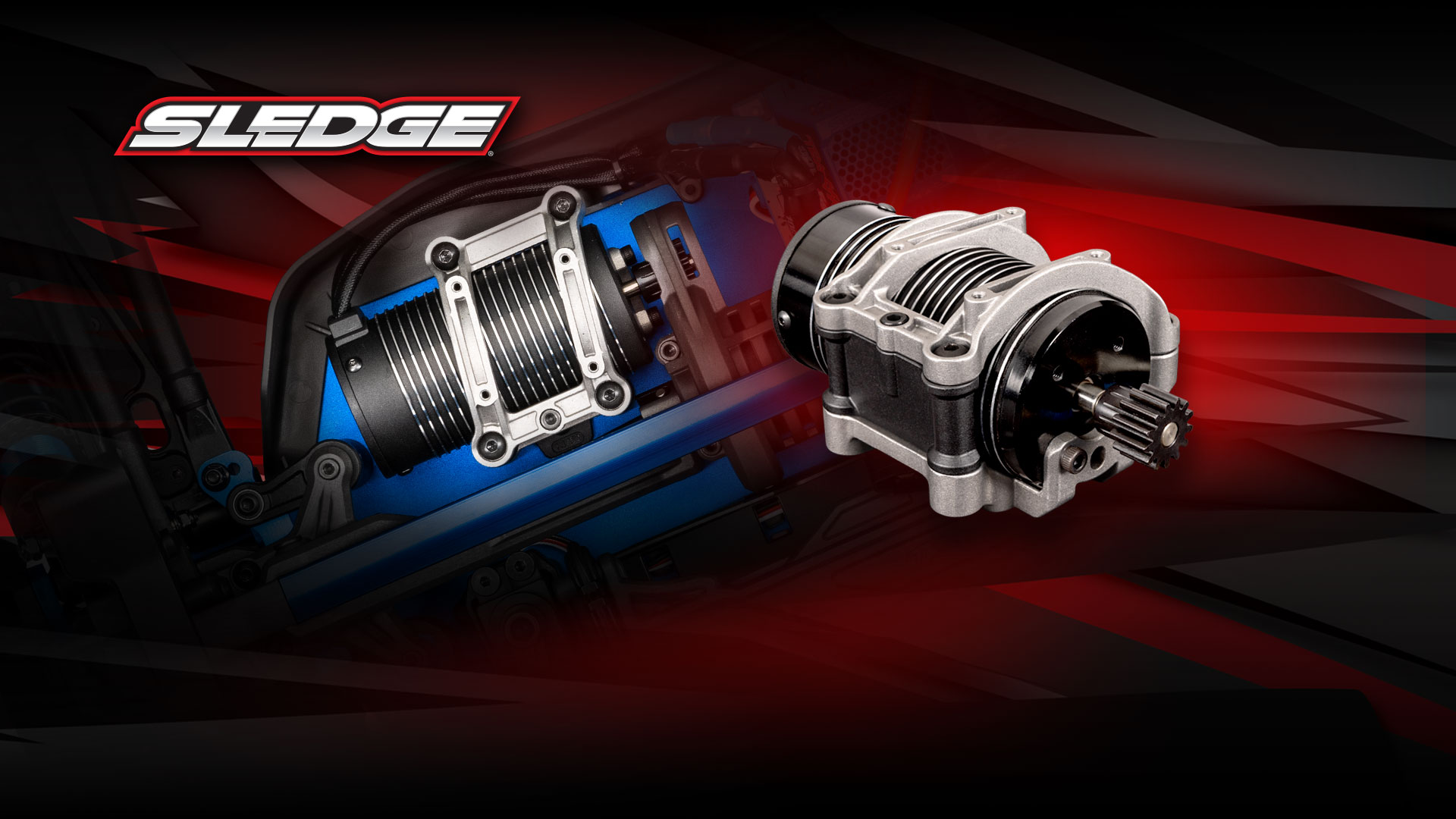

- Aluminum motor cradle eliminates flex and includes bosses for optional cooling fan attachment.

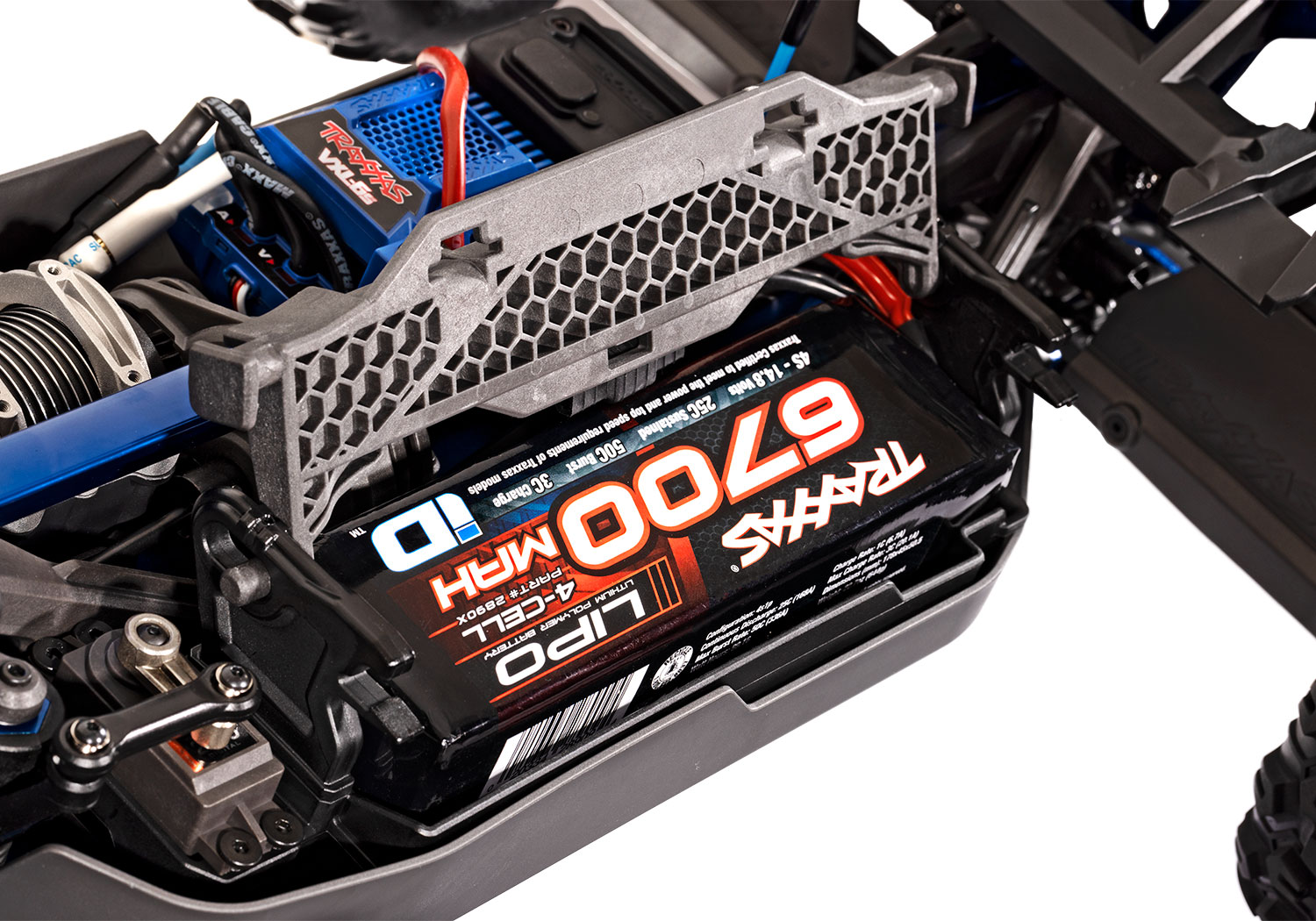

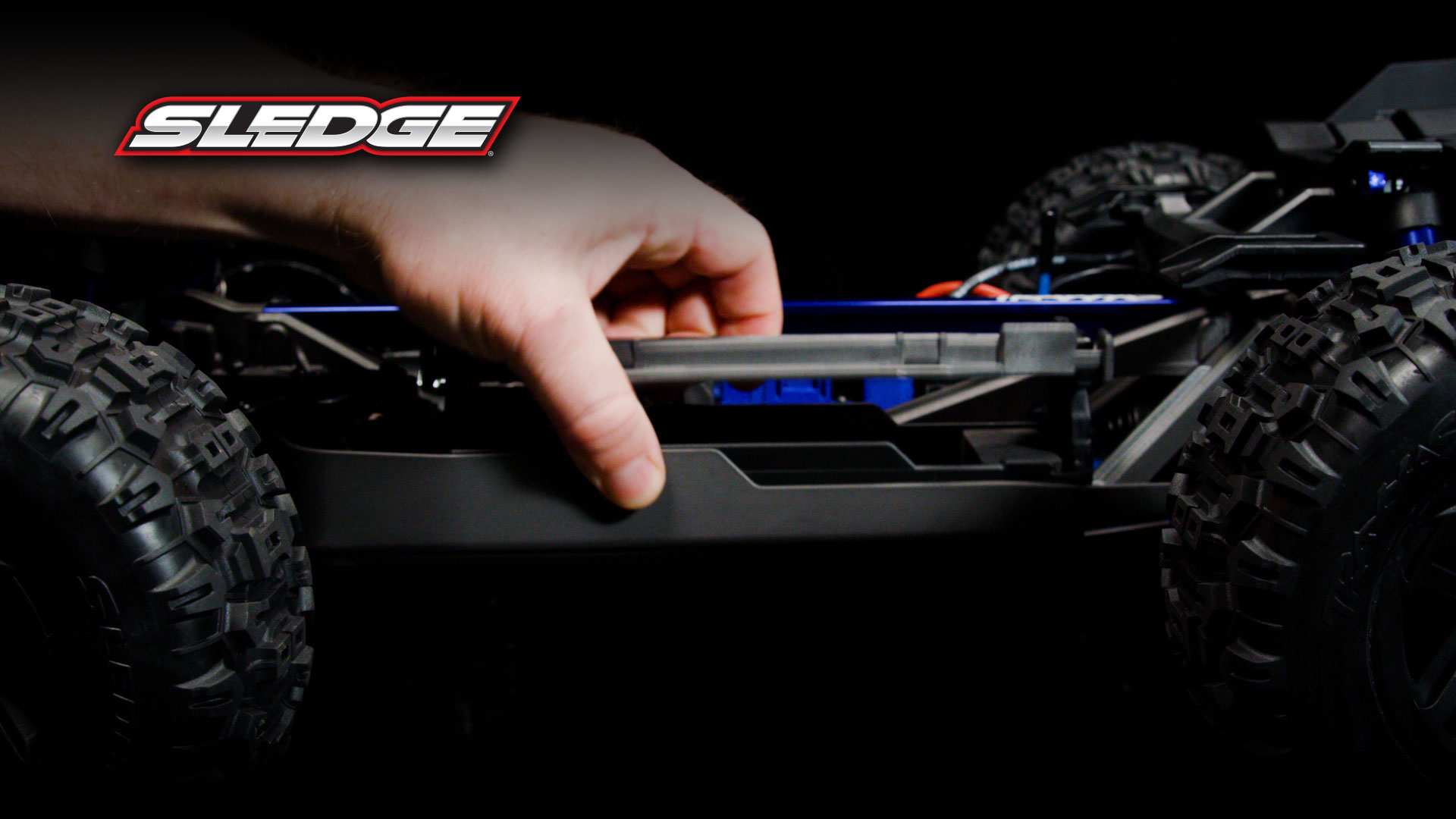

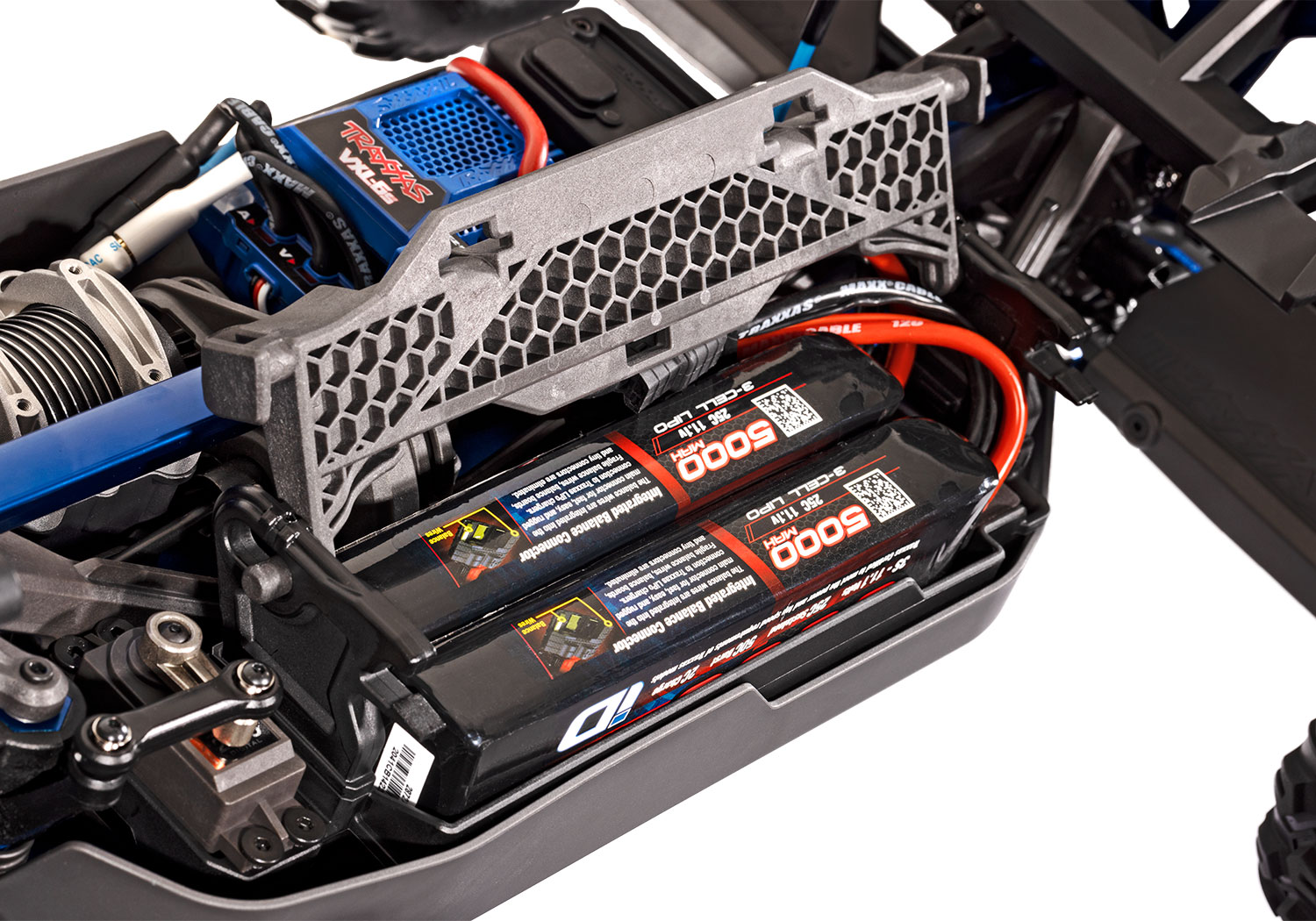

- Innovative battery tray accommodates various 4s and 6s battery configurations without clips or straps.
- 6061-T6 aluminum shock towers provide strength and stability in high-impact conditions.

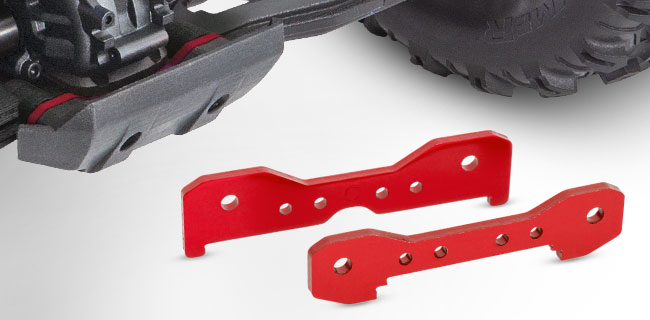

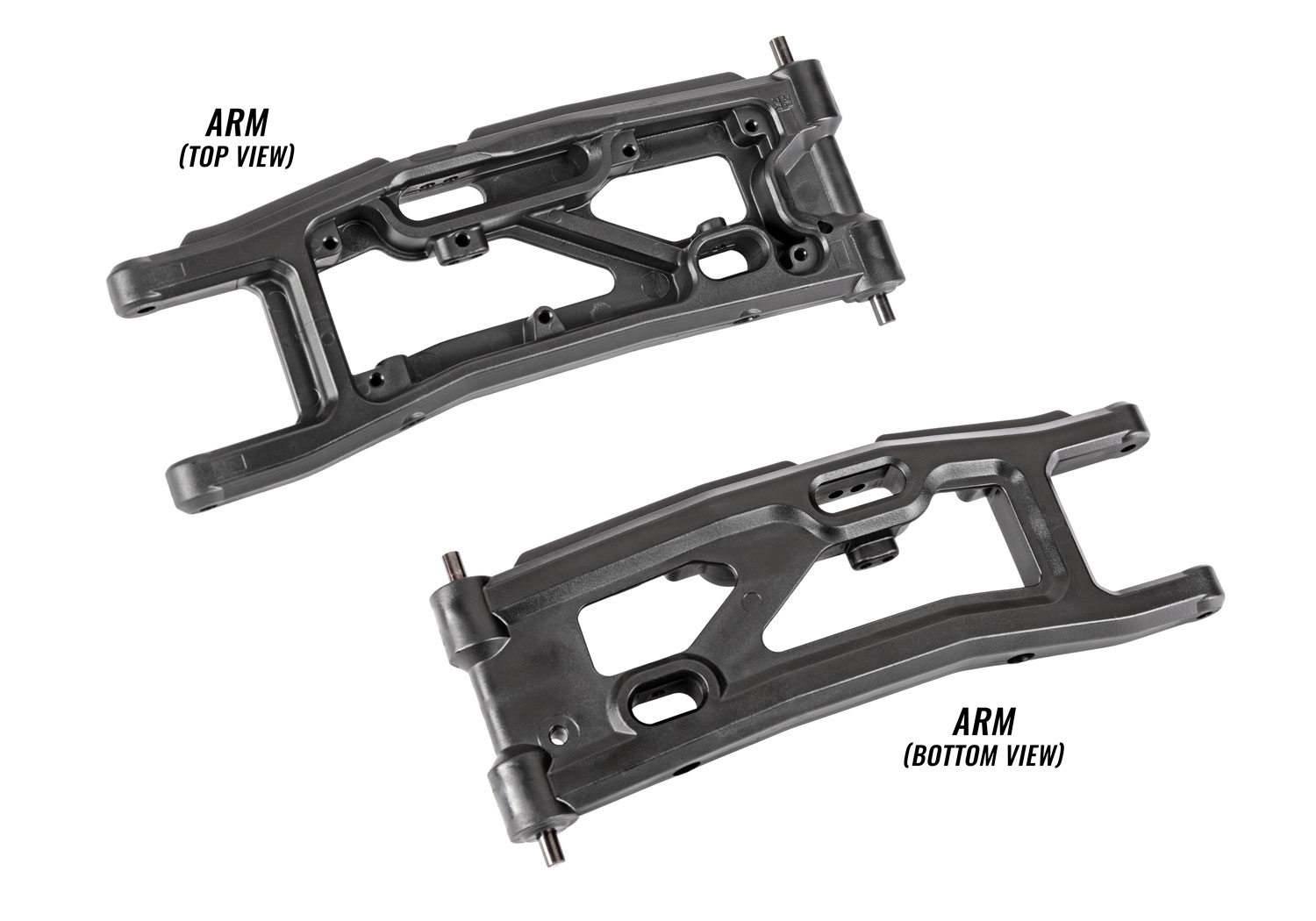

- Heavy-duty suspension arms and high-strength hinge pin retainers for race-inspired handling and durability.

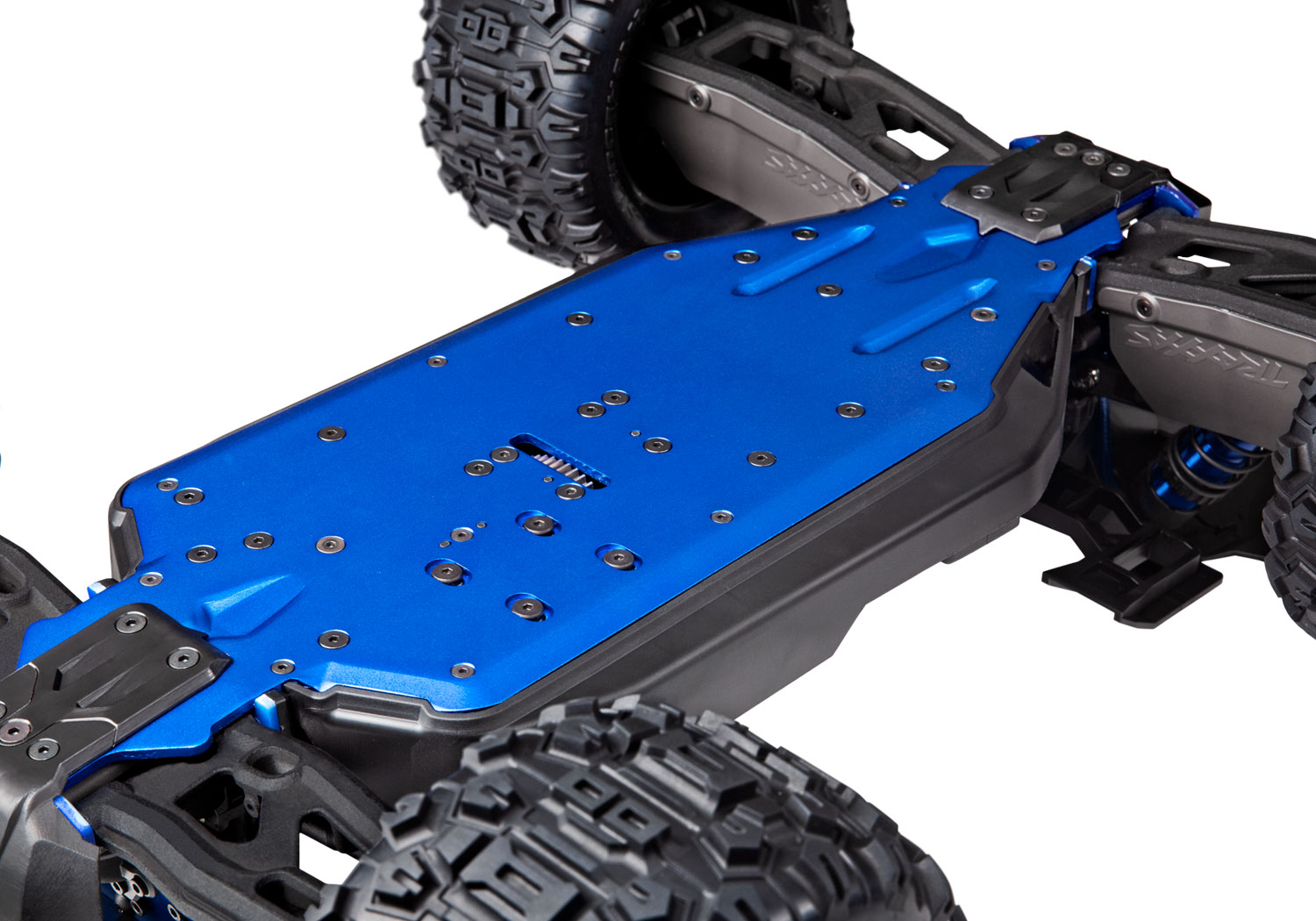

- Integrated skid plates and bumpers protect critical components during extreme off-road use.

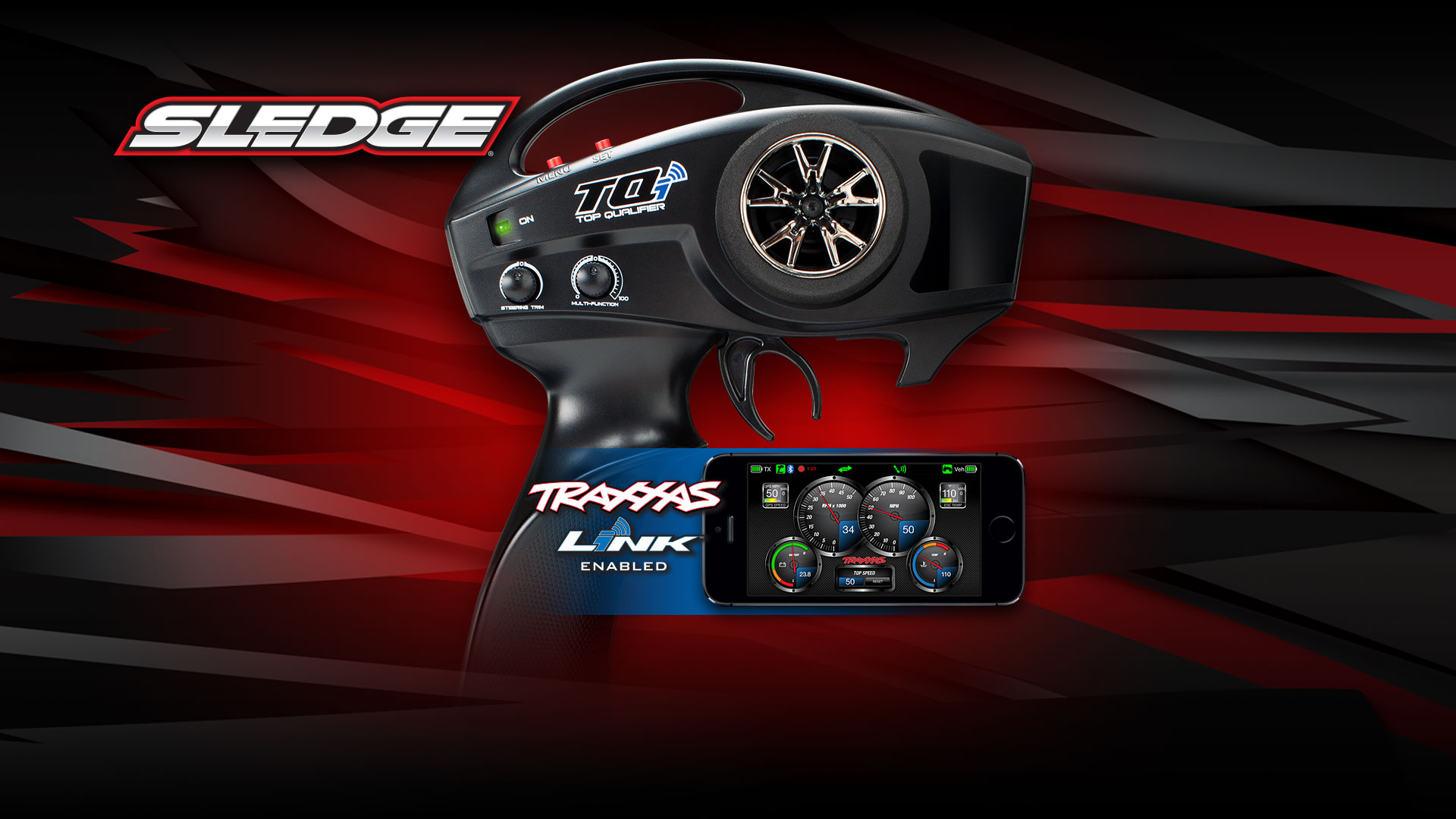

- TQi™ 2.4 GHz radio system with Traxxas Stability Management® (TSM) for improved control and adjustability.

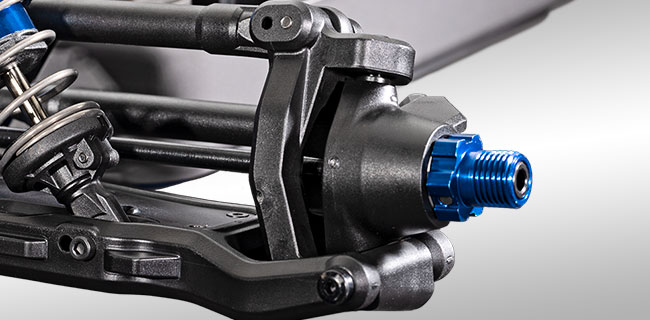

- Massive 6.7-inch belted tires on 3.8-inch wheels with splined 17 mm aluminum axle hubs.
- Includes maintenance tools, jumper plug for 4s battery use, and a Quick Start Guide.
- Requires dual 3s LiPo batteries, a LiPo balance charger with iD™, and AA alkaline batteries for operation.
Needed to Complete
- Dual 5000 mAh 3-cell 11.1 V Power Cell LiPo batteries for maximum performance, or dual 7600 mAh 7.4 V LiPo batteries or a single 6700 mAh 14.8 V LiPo battery for reduced performance.
- LiPo Balance Charger with iD™ (Traxxas EZ-Peak® Live 4s-capable charger, model #2971).
- Four AA alkaline batteries for the transmitter.
Specifications
- Length (including wing): 23.78 inches (604 mm)
- Front Track: 18.10 inches (459 mm)
- Rear Track: 18.10 inches (459 mm)
- Ground Clearance: 1.95 inches (50 mm)
- Weight (no battery): 12.74 pounds (5.77 kg)
- Height (overall): 8.43 inches (214 mm)
- Wheelbase: 15.10 inches (384 mm)
- Shock Length (front): 5.12 inches (128 mm)
- Shock Length (rear): 5.67 inches (144 mm)
- Tire Diameter: 6.7 x 3.3 inches (170 mm x 84 mm)
- Wheel Diameter: 3.8 inches (97 mm)

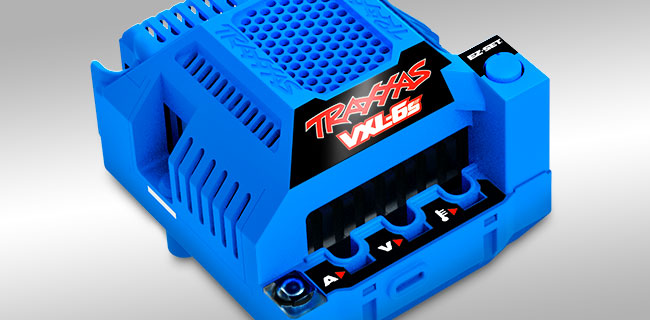

- Speed Control: Velineon® VXL-6s (3485)
- Motor: Velineon® 2000 Kv Brushless
- Overall Drive Ratio: 17.2 (13/52 motor pinion and spur gear)

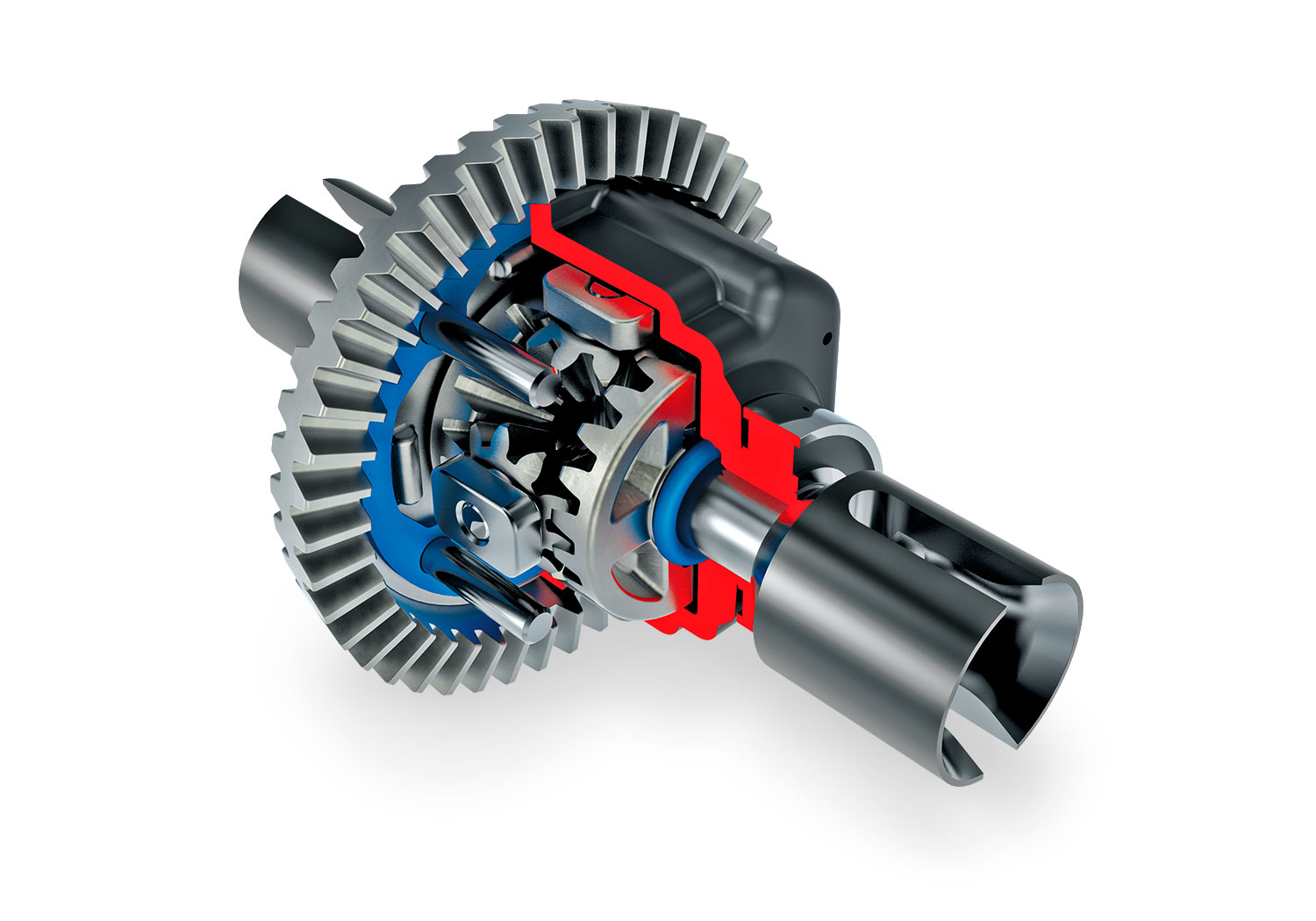

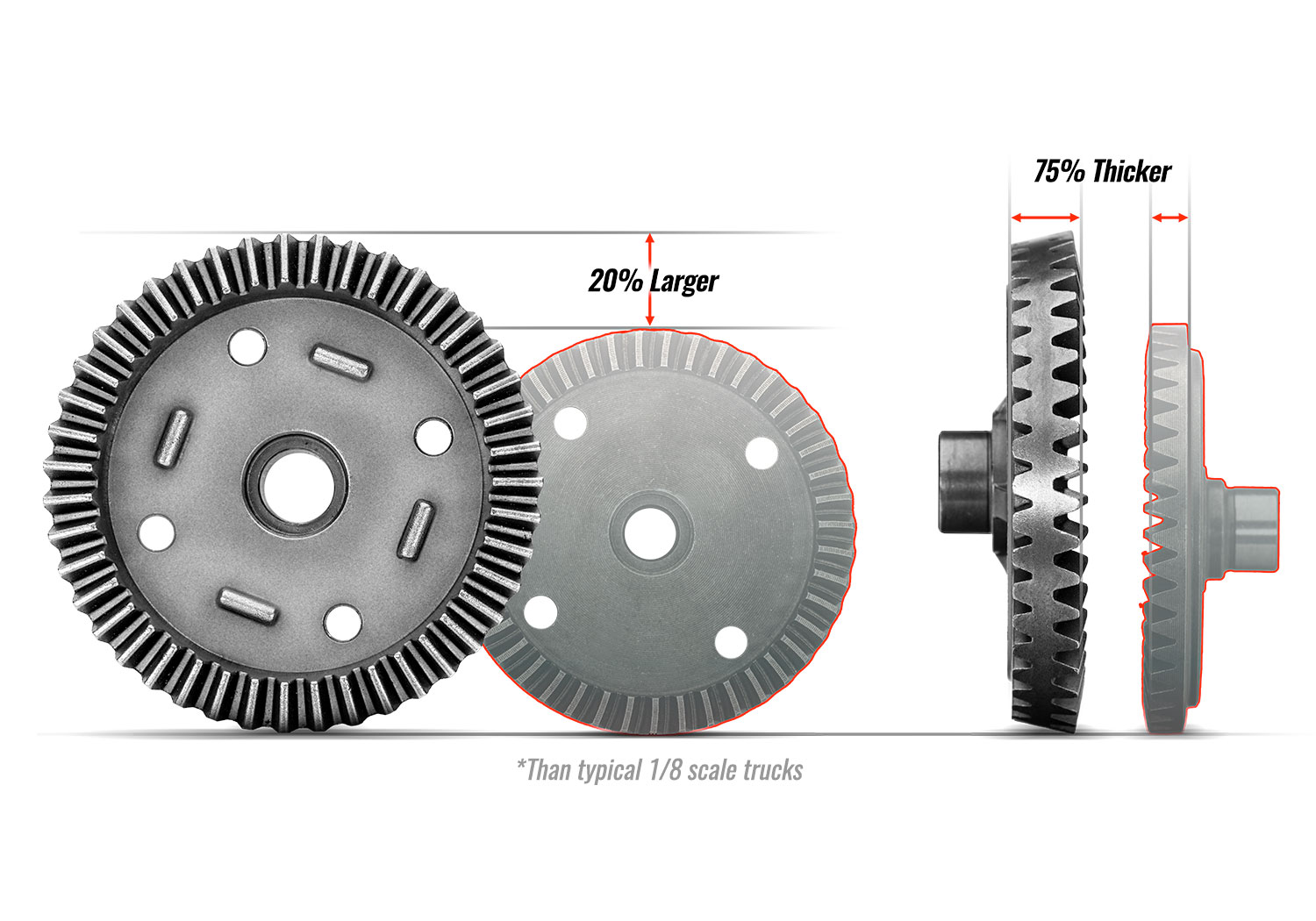

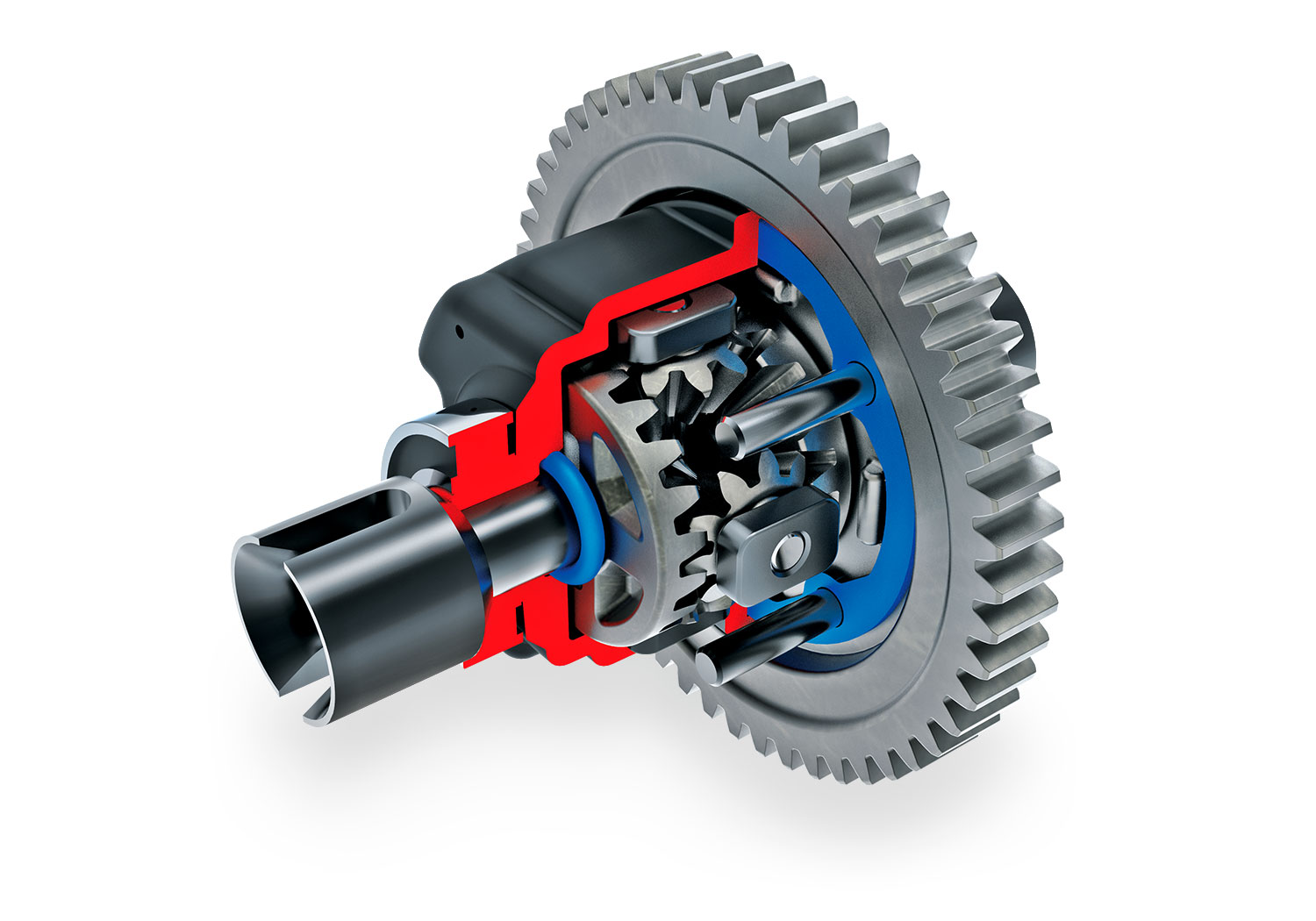

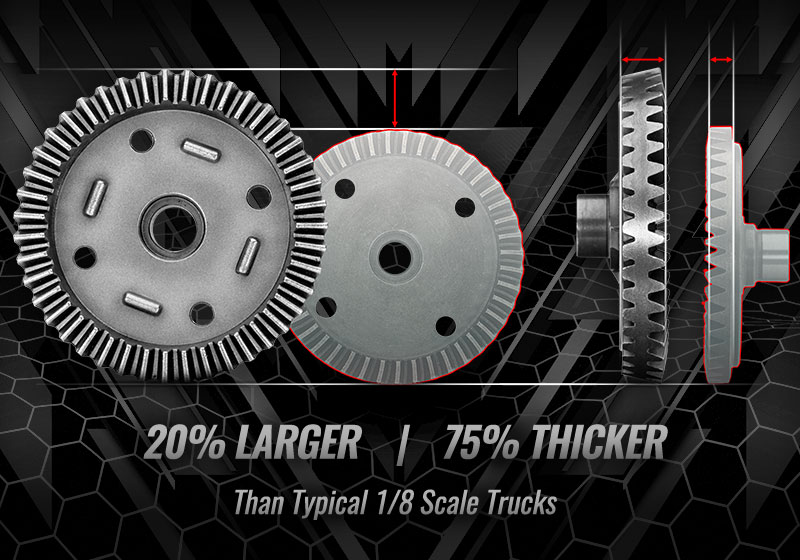

- Differential Type: Sealed, hardened steel bevel, limited slip
- Gear Pitch: Module 1.0
- Chassis Structure/Material: 3.2 mm aluminum plate
- Brake Type: Electronic
- Drive System: Shaft-driven 4WD
- Steering: Double-shear bellcrank with metal servo arm
- Wheels & Tires: 3.8″ wheels, pre-glued belted Sledgehammer® Tires, foam inserts

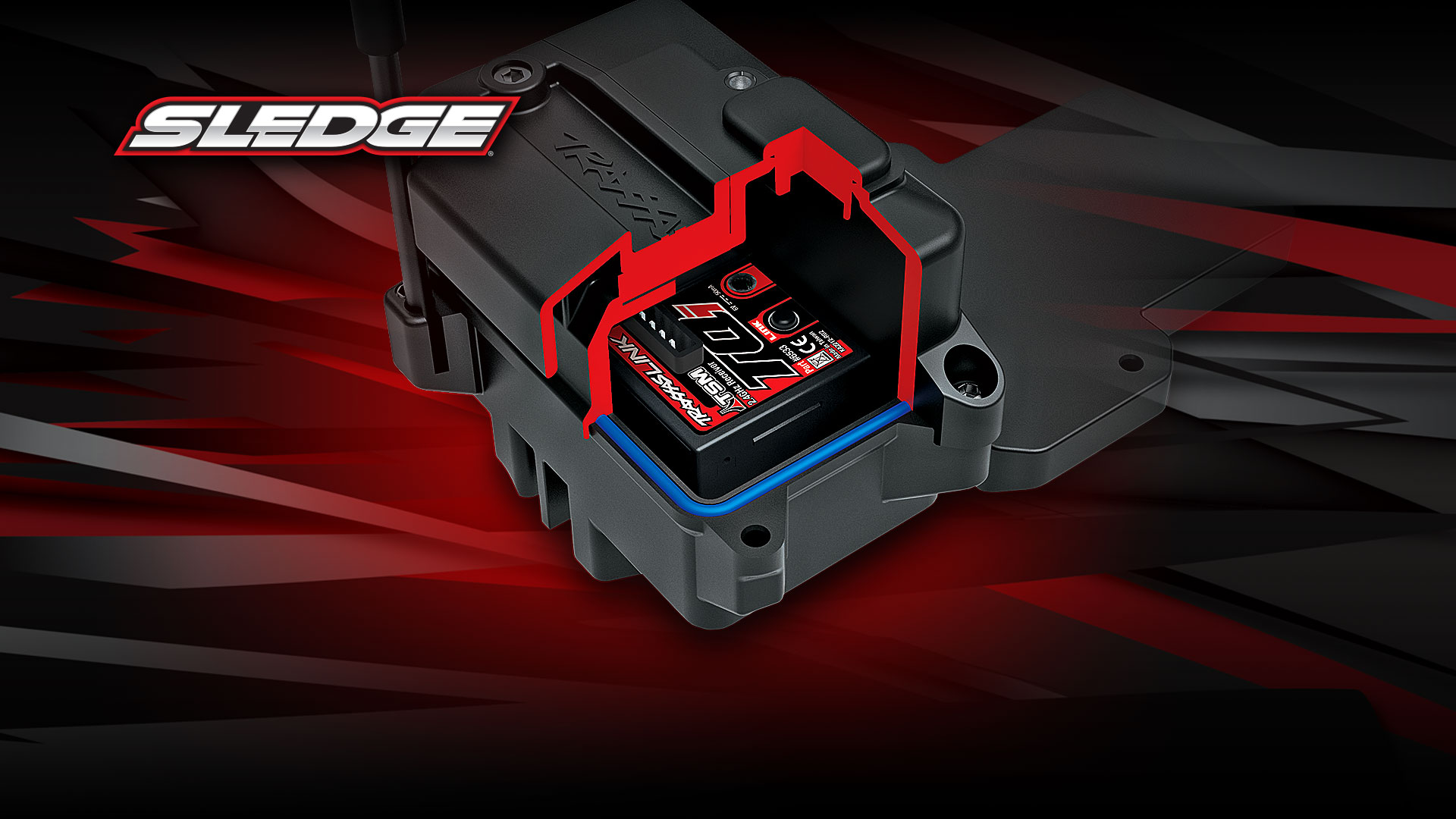

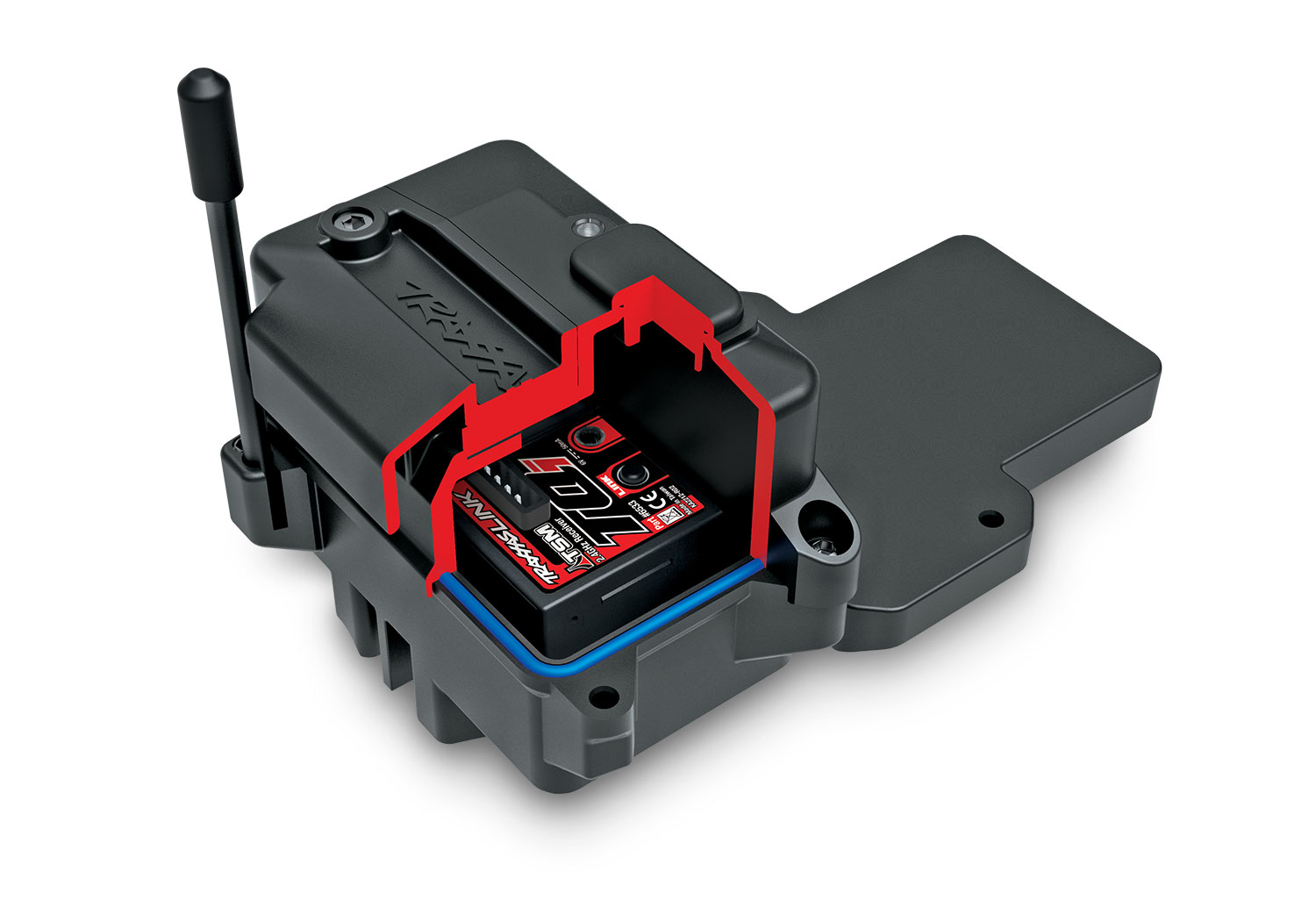

- Radio System: TQi™ 2.4 GHz Transmitter with TSM® receiver
- Servo: 2275 Waterproof, metal-gear (347 oz-in torque)
- Top Speed: 70+ MPH with two 3s LiPo batteries and optional gearing (sold separately)
- Skill Level: 4
- Battery Tray: Narrow: 181 mm x 50 mm x 29/37/45 mm; Wide: 160 mm x 57 mm x 29/37/45 mm
- Required Batteries: 4 “AA” (transmitter), Vehicle (see battery finder)
- Motor Type: 2000 Kv sensorless brushless
- Motor Weight: 14.32 ounces (406 g)
- Motor Length: 2.97 inches (76 mm)
- Motor Diameter: 1.65 inches (42 mm)
- Motor Connector Type: Traxxas 6.5 mm bullet connectors
- ESC Features: 6s LiPo compatible, cooling fan, telemetry support, 3-LED status indicators

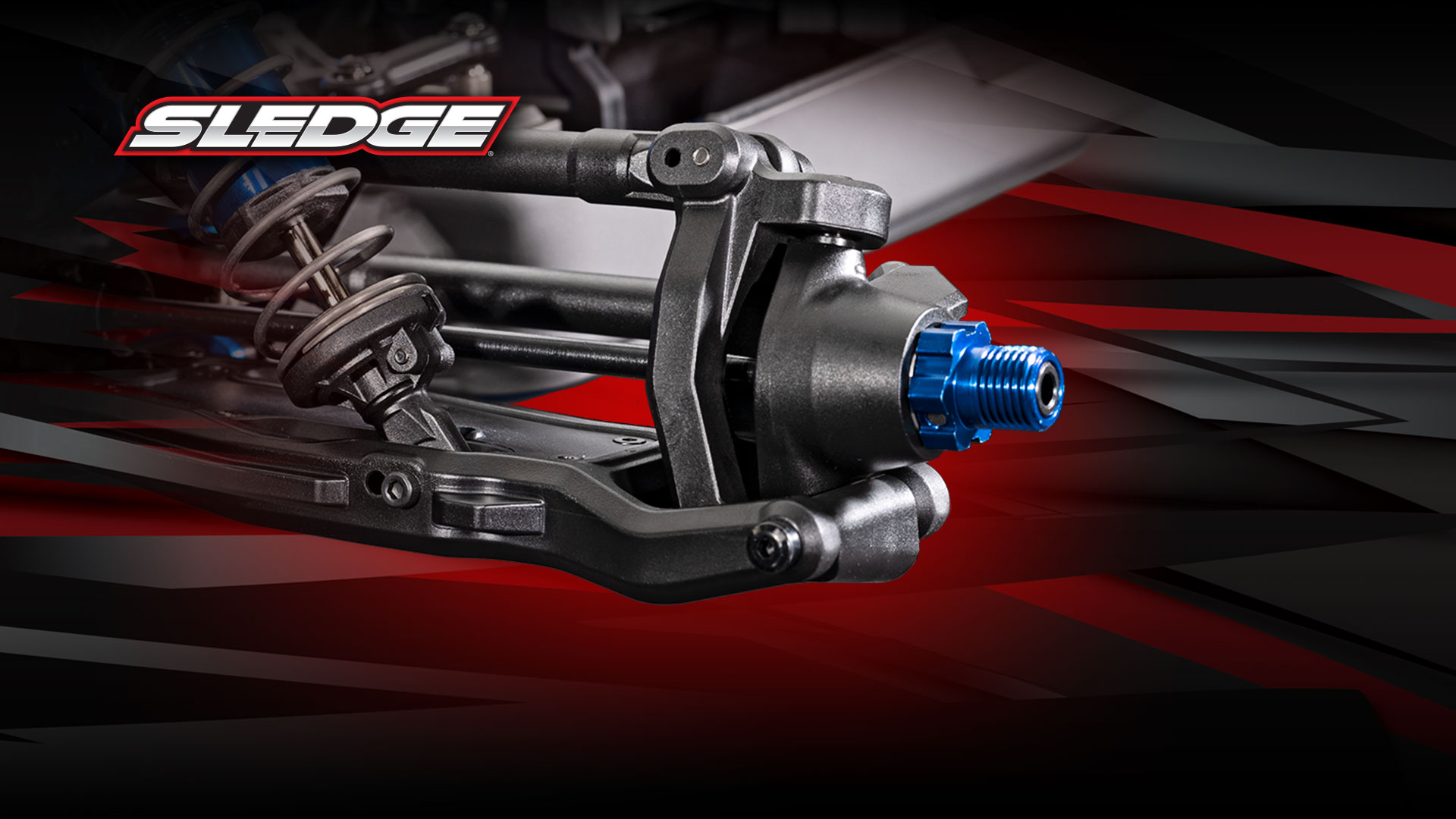

- Suspension: GT-Maxx® shocks, performance-optimized geometry, composite arms, heavy-duty C-hubs
- Drivetrain: Steel driveshafts, dogbone center driveline, sealed 4-gear differentials
- Chassis: 3.2 mm ribbed aluminum with T-Bar™ for added rigidity
- Body Features: Clipless mounting, molded reinforcements, protective skids
- Wheels & Tires: Belted Sledgehammer® all-terrain tires, open tread design
- Steering Features: High-torque servo (347 oz-in), metal horn, heavy-duty bellcrank
- Included: Sledge, VXL-6s ESC, TQi radio system, maintenance tools
- Required: Dual 3s LiPo batteries or single 4s/6s LiPo, charger, 4 AA alkaline batteries
