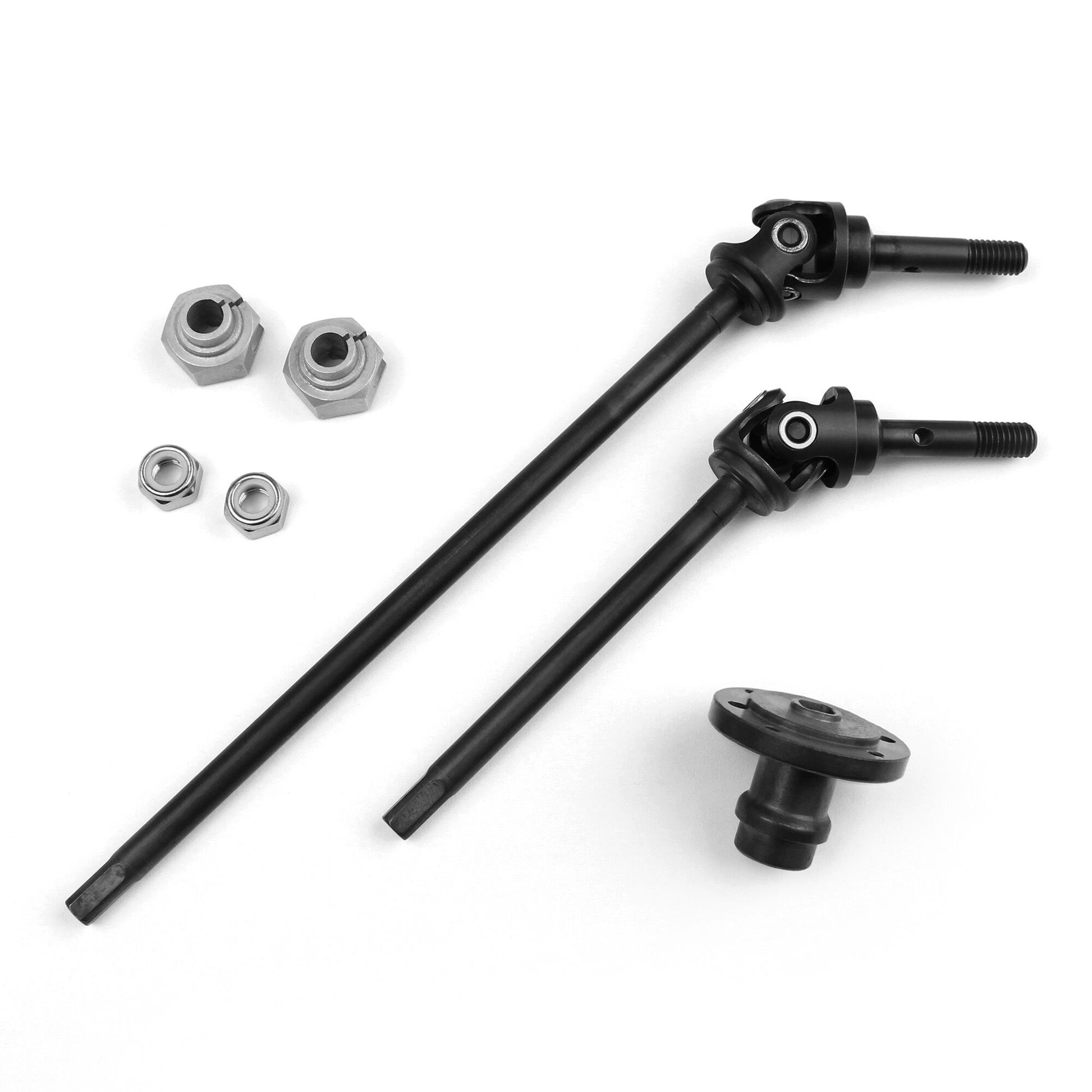

VXD Universal Axle Package for AR60 Axles (VPS08110)

Vanquish VXD Universal Axle Package for AR60 Axles is a heavy‑duty, rebuildable universal‑style axle shaft kit designed to upgrade AR60 axles with a robust, serviceable solution. Crafted from domestic high‑strength chromoly steel, it features a 5mm stub shaft and a squared locker engagement design for maximum strength. A chromoly spool is included and required for use with these axles, and the assembly arrives hand assembled with 12mm clamping hexes and a 5mm through bore, plus replaceable bushings to extend service life.

Designed to deliver up to 60 degrees of steering angle, this package aims to maximize rigidity while maintaining drive‑line flexibility. It is built to maximize material between link‑mount screws, though some rubbing may occur at very high angles. A hex cross pin is required for use with these axles, and the 5mm stub shaft uses an 8mm driver to tighten the included lock nut (some wheel setups may require a modified driver). Universal‑style axles can exhibit a light chattering feel at high angles, which is normal, but the kit provides a rugged, rebuildable upgrade with replaceable bushings and available rebuild parts.
