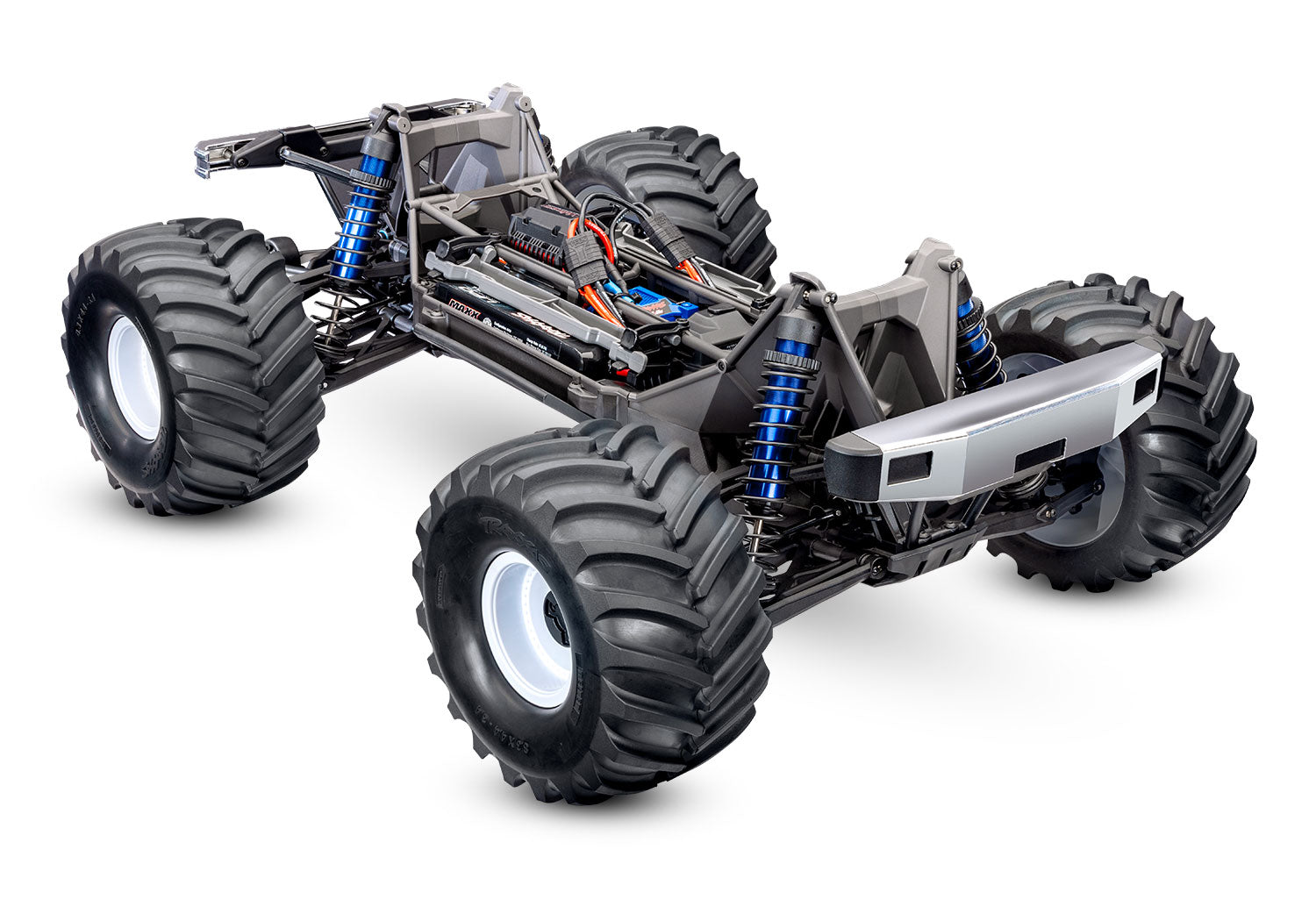

X-Monster MT 8S Ready to Run Chassis (No Body Included) (TRA77036-4-WB)

The X-Maxx MT Chassis delivers the ultimate in monster truck performance, combining legendary X-Maxx toughness with new levels of strength, size, and style. Powered by 8s LiPo capability and built on the most advanced X-Truck platform to date, the X-Maxx MT Chassis is ready to unleash over 30 volts of extreme power for blistering acceleration and speeds over 50 mph. Designed to accept a range of replica monster truck bodies, it provides an authentic scale look along with unstoppable performance on any terrain.

This chassis is equipped with massive 8.6-inch Terra Groove tires featuring a chevron tread pattern for superior grip on dirt, sand, and pavement. The belted construction prevents ballooning at high speeds, while the ultra-soft rubber compound ensures maximum traction and control. The heavy-duty suspension arms include double-shear connections and captured hinge pins for enhanced durability, even in the harshest conditions.

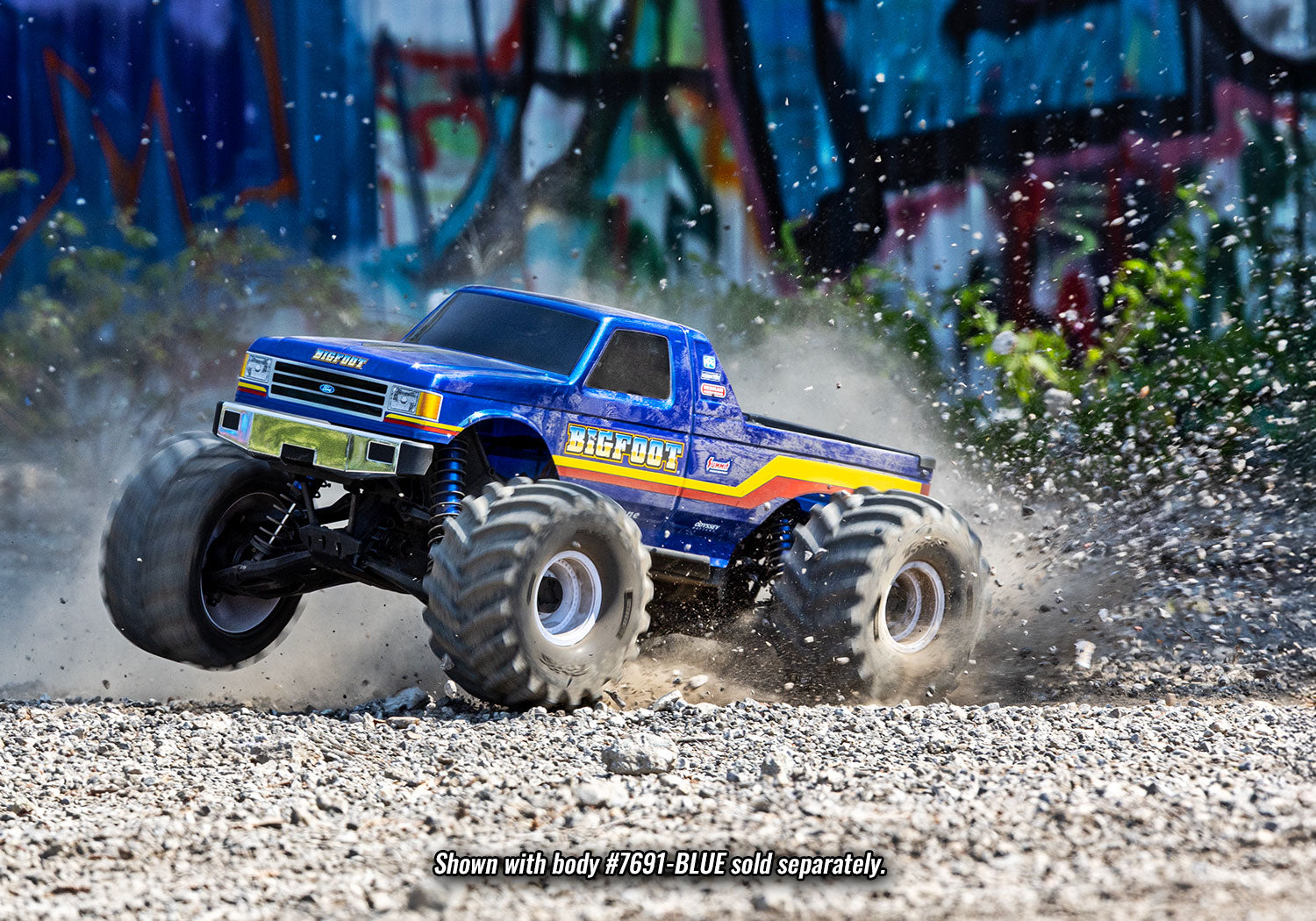

The X-Maxx MT Chassis is compatible with a variety of clipless monster truck bodies (sold separately), including officially licensed Ford F-150, Chevrolet C/K, and BIGFOOT No. 8 options. These bodies include reinforced full-length inner cages for added rigidity and durability. The chassis also accepts existing X-Maxx clipless bodies without modification.

A powerful 2085XL metal-gear steering servo delivers 450 oz-in of torque, ensuring sharp, responsive handling even with the oversized tires. Chrome-finished energy-absorbing bumpers provide impact protection while enhancing the truck’s aggressive scale appearance. Reinforced HD output yokes, taken from Pro Scale Sand Car technology, offer unmatched drivetrain strength.

Optional whip lights (sold separately) can be mounted to the new X-Monster replica bodies for increased visibility and scale realism. With its unmatched blend of rugged design, extreme power, and monster truck styling, the X-Maxx MT Chassis sets a new benchmark for RC monster truck performance.

• Compatible with multiple clipless monster truck bodies (sold separately)
• Quick one-hand body installation and removal
• Pivoting rear latch mechanism eliminates body posts and clips
• Body reinforced for extra protection
• VXL-8s Waterproof Electronic Speed Control
• Compatible with 8s LiPo batteries
• Built-in cooling fan and machined heat sinks
• 10-gauge silicone wire with integrated protection circuits
• LED status lights for diagnostics
• Velineon 1200XL 4-pole 1275 Kv brushless motor
• 5 mm output shaft with aluminum slip-on heat sink
• Dual motor cooling fans included
• Capable of 50+ mph with two 4s LiPo batteries and optional pinion gear
• Traxxas Stability Management (TSM) for improved control
• TSM adjustable from off to 100% via transmitter
• TQi 2.4 GHz High Output Radio System with Traxxas Link compatibility
• 5-channel micro receiver with fail-safe and telemetry ports
• Stores and loads settings for up to 30 models
• Multi-function knob with adjustable steering and throttle settings
• BEC voltage and motor temperature sensor pre-installed
• 8s-capable driveline with machined, hardened steel pinion and spur gears
• Full-time shaft-driven 4WD with heavy-duty steel CV driveshafts
• Steel differential output cups and splined aluminum center driveshaft
• Machined aluminum stub axles and 24 mm splined wheel hexes
• Torque-Biasing Center Drive for smooth power distribution
• Sealed silicone-filled differentials with large ring and pinion gears
• Fixed Motor Mounting System with rigid aluminum mounts
• Preset gear mesh with no manual adjustments required
• Heavy-duty modular composite chassis with interlocking bulkheads
• Motor mounts to rear bulkhead to eliminate flex-related gear issues
• Sealed driveline to protect from dirt and debris
• Snap-Lock Battery Retention System with no clips or straps
• Pivoting battery hold-downs adjustable for various battery sizes
• Integrated battery tray and chassis top brace for added stiffness
• Front rubber impact cushion and lower skid plates for protection
• Integrated nerf bars for side impact resistance
• 2085XL high-output metal-gear steering servo with 450 oz-in torque
• Aluminum cooling fins and fully-supported mounting case
• Double-shear, bearing-supported servo horn
• Heavy-duty suspension arms with double-shear connections
• High-strength steel suspension pins with captured outer lower pins
• Adjustable roll center and optimized steering geometry
• Steel upper and lower tie bars
• Full contact sealed bearings in exposed areas
• Aluminum GTX shocks with extra-large bore and threaded bodies
• 5.2 mm damper shafts with integrated wiper seals
• Adjustable spring retainers and fixed shock positions
• Lower spring perches bolted on for durability
• Dual-profile white monster truck wheels with replica military-style hubs
• Huge 8.6" belted chevron-pattern tires
• Super-soft rubber compound for exceptional traction
• Internal belting reduces tire ballooning at high speeds

• Model Name: X-Maxx MT Chassis
• Type: Monster Truck
• Speed: 50+ mph with two 4s LiPo batteries and optional speed gear
• Scale: X-Truck
• Weight: 19.1 pounds (8.66 kg)
• Length: 30.67 inches (779 mm)
• Width: 21.3 inches (540 mm)
• Front Track: 21.3 inches (540 mm)
• Height: 13.99 inches (355 mm)
• Wheelbase: 18.92 inches (480 mm)
• Center Ground Clearance: 4.2 inches (107 mm)
• Drive System: Shaft-driven 4WD
• Drivetrain: Shaft-driven 4WD
• Transmission: Single speed
• Differential Type: Sealed, hardened steel bevel, limited slip
• Gear Pitch: 1.0 metric pitch
• Servo: 2085XL metal gear ultra-high-torque waterproof
• Radio System: TQi 2.4 GHz 2-channel transmitter with wireless module
• Battery Compartment Specs: 197 mm x 52 mm x 44 mm
• Motor Name: Velineon 1200XL
• Motor Type: 1275 Kv sensorless brushless
• Motor Weight: 23.44 ounces (665 g)
• Motor Length: 4.32 inches (110 mm)
• Motor Diameter: 1.88 inches (48 mm)
• Motor Shaft Size: 5 mm
• Motor Connector Type: 6.5 mm bullet connectors
• ESC Name: Velineon VXL-8s
• ESC Type: Brushless
• ESC Case Size: 2.23 inches (58 mm) / 2.83 inches (72 mm) / 1.81 inches (46 mm)
• ESC Weight: 7.60 ounces (215.5 g)
• ESC Motor Connectors: 6.5 mm bullet connectors
• ESC Battery Connectors: Traxxas High-Current Connectors
• ESC Power Wire: 10 gauge Maxx Cable
